voxicon VXV149F User manual

User Manual
VXV149F
Please read this manual carefully for proper usage before lnstallatlon and
use. It is recommended to keep this manual for future check.
The pictures in this manual are only for reference.

1. Packing list
1. The TV set.
2. Quick start guide.
3. Remote control.
4. Power cord (or attached to TV set).
5. Base assembly.
2. Safety Warning and Notice
Thank you for choosing the Voxicon LED TV, a high quality product with multiple functions. All
machines are strictly tested, but incorrect use may cause malfunctions such as electric shocks
or fire. In order to ensure safety and to extend the product life-span, please read the manual
carefully before using it and comply with the following safety instructions. Please keep the user
manual for later use.
May result in personal injury or property loss
May result in casualties
Indicate the behaviors that must be prohibited
If the following conditions occur, turn off the TV set immediately. Unplug the power cord from the
power outlet and contact authorized maintenance personnel:
• Power failure or unstable voltage
• Abnormal sound or smell from the device
• AC power cord is damaged
• TV set is damaged due to falling off, knock or impact
• Any liquid or foreign matters enter into the TV set
Turn off the TV set immediately, unplug the power cord from the power outlet,
2.1 Under following conditions

• Only use 100-240VAC, 60/50Hz power supply
• All cables can be connected or pulled out only after power supply is turned off
• Do not fix the TV set in an instable position or else it may fall, be damaged or catch on fire
• Do not put the TV set in the environment:
1. With direct sunshine, moisture, overheating, undercooling or heavy dust
2. With flammable or explosive substance
3. With flammable or corrosive gas
4. In bathroom, kitchen, etc.
• Do not use damaged or improper power socket, and ensure that the plug and socket are
connected properly
• Keep the power plug and socket free of dust and metal pieces
• Do not damage the power cord:
1. It is prohibited to refit the power cord
2. Do not put heavy object on the power cord
3. Keep the power cord away from heat source
4. Do not drag the power cord when unplugging
• Do not connect too many appliances to one power strip, or else it may cause fire due to high
power consumption.
• Do not let open flame (e.g. lit candle) approach the TV set, or else it may cause electric shock or fire
• Do not put a container filled with water on the TV set, to avoid electric shock or fire caused
by water drop of splashing
• Do not penetrate any sharp object, metal or liquid into the signal connector or air vents, to
avoid short circuit and product damage as well as electric shock
• The slots on the case is designed to release heat so as to assure that all inside components
will not reach an extra high temperature and can work normally for a long time. Please do
not cover the holes while place it
Do not touch the plug with wet hands, or else it may cause electric shock
Do not turn on the TV set in thunderstorm weather, instead, unplug the power plug and
antenna connector to avoid lightning strike
Do not disassemble the TV set by yourself, or else it may cause electric shock or fire. Contact
qualified personnel for maintenance

• Do not let children climb onto the TV set.
• Keep the small accessories away from children’s reach to avoid swallowing
• If the TV set will not be used for a long time, please turn off the device and unplug the power cord
• Before cleaning the TV set, unplug the power cord and keep the power plug and socket free
of dust and metal pieces wipe with soft cloth; do not use chemical reagents and avoid
foreign substances entering into the device. Incorrect cleaning jsuch as cleaning fluid, water,
etc) may lead to damage of product’s appearance, erasing products printing information,
even flow into the machine and damage components, cause machine can not display
• To adjust the position or angle of the TV set, please disconnect all wires and move slowly to
avoid falling off
• Do not rub with hard object, knock, bend or squeeze the screen
• Do not use machine immediately after transferring machine lo the places with high
temperature from low temperature, which will cause fogging inside machine
• If the screen is broken and the liquid splashes on skin, please wash with clean water
immediately for 15 minutes, and go to see your doctor
• To carry the TV set with hands, please grasp the corners and hold the bottom; do not apply
force on the panel
• Displaying the same image for a long time or active image with fixed words, icons will leave
“image persistence” on screen which will not disappear after powering off for a long time.
This undesirable phenomenon is not covered by warranty
• Healthy TV watching:
1. Watch in appropriate light; poor light or long time watching may hurt your eyes
2. Adjust the volume appropriate to avoid hurting your hearing
• Unplug the power cord of the device to cut off the power supply
• If a power plug or appliance coupler is used as disconnecting device, it should ensure easy
operation
• Power plug shall be connected rellably. Loose power plugs may cause sparkle and fire
• All the technical specifications in the user manual and on the packaging are subject to
changes without prior notice. If there is slight deviation between the user manual and actual
operation, the latter shall prevail

3. How to mount the TV set
3.1 Tips on installation
3.2 Ventilation
• The TV set should be mounted near the AC power socket for easy plugging and unplugging
• For your safety, please select appropriate wall mount bracket or base
• To avoid damages, it is required to place the TV set on stable plane, or fixed on firm wall
• Ask qualified personnel to mount the TV set on the wall. Improper mounting may result in
instable TV set
• Do not place the TV set at any place susceptible to mechanical vibration
• Do not mount the TV set against air conditioner, or else the internal panel of the display may
condense moisture and cause failure
• Do not place the TV set at any place with strong magnetic field, or else it may be interfered
with and damaged by electromagnetic wave

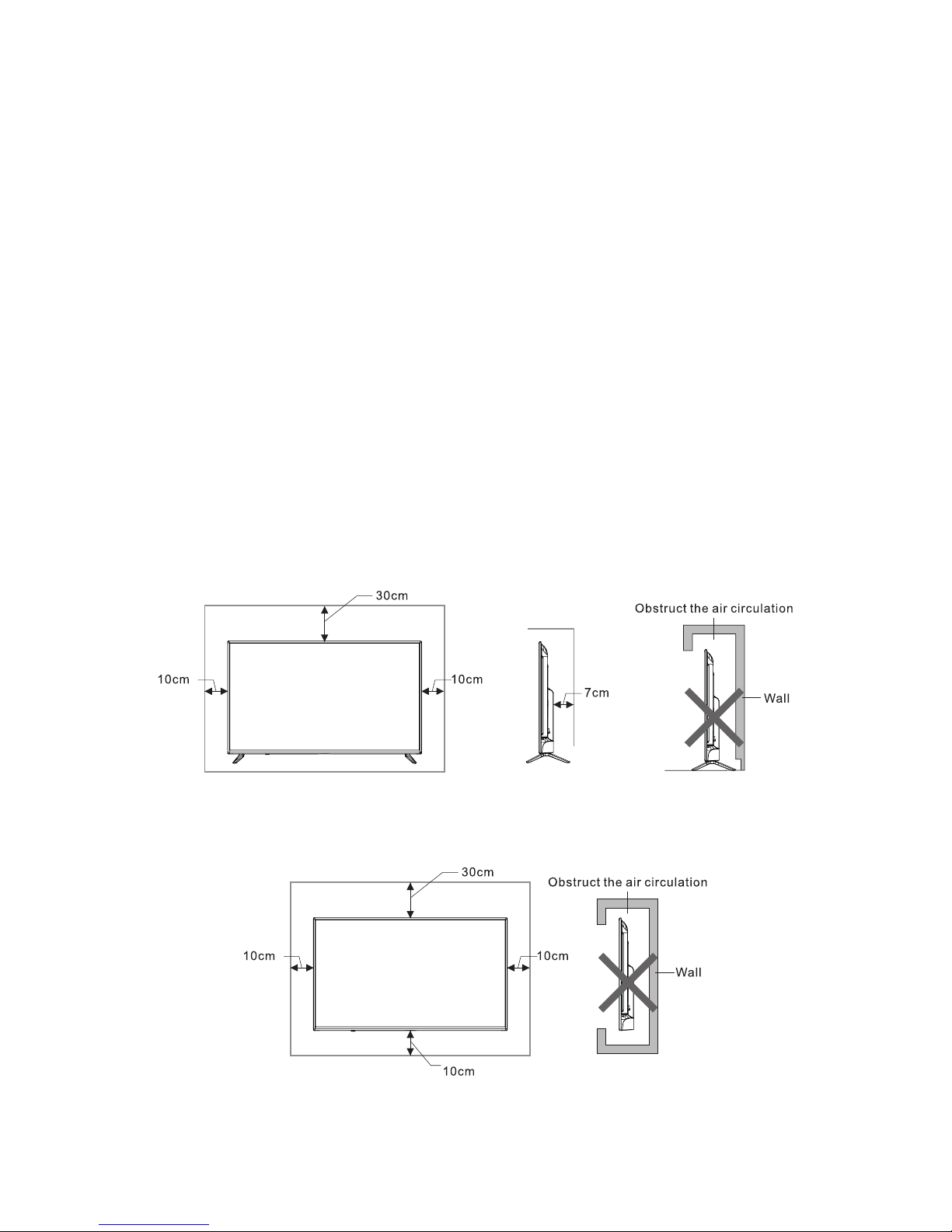

• Please keep this space at least around the TV, as shown in the figure
• Do not cover the air vents or insert any object into the enclosure.
• Do not put the device in limited space, e.g. bookcase or embedded closet, unless the TV set is
properly ventilated
Mount on the base:
Mount on the wall:

4. Antenna connection
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television set
• Only using furniture that can safely support the television set supporting furniture
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television set to a suitable support
• Not placing the television set on cloth or other materials that may be located between the
television set and supporting furniture
• Educating children about the dangers of climbing on furniture to reach the television set or
its controls
If your existing television set is being retained and relocated, the same considerations as above
should be applied.
When connecting outdoor antenna to signal port of the TV set, please turn off the main power
switch of the TV set first. Do not approach the outdoor antenna to high voltage mains power line
to avoid electric shock. The wired network antenna connected to this TV set must be isolated
from the protective grounding, or else it will cause fire or other hazards.
• Make sure the power supply is turned off before connecting or pulling out any cable
• If you would like to know more about the device connection diagram,
please refer to the User’s Manual
• The picture is only for reference, please refer to the actual

Remove the battery cover, and insert two AAA (1.5V) batteries; make sure that the polarity of the
battery is consistent with the marks “+/-” in the battery slot.
Before power-on platform, please make sure that
the power supply is stable. Insert the power plug
into the outlet. Press “0” button on the TV (If it
doesn’t have this button, you needn’t operate this
step), then press key to turn on the TV.
When the TV is working, pressing key, the TV
will enter standby mode
Special note:
This device adopts energy saving technology:
• If there is no signal input in power on state, the TV set enters standby state automatically
after five minutes
• When the schedule power off time is reached, the TV set enters standby state automatically
5.1 Installing battery
5.1 Precautions of remote cotrol usage
5. Remote Control
• Point the remote control to the receiver window. The objects between remote control and
the receiver window may disturb the normal operation
• Keep the remote control away from strong vibration. In addition, do not set or put the
remote control in direct sunshine, which may result in deformation of the remote control
• The remote control may be invalid if the receiver window is in direct sunshine or strong light;
in this case, please adjust the angle of the light or the device, or approach the remote control
to the receiver window
• The effective range of the remote control may be affected if the battery voltage is low; in this
case, please replace with a new battery; if the remote control won’t be used or battery
voltage is too low, please take out the battery to avoid corrosion due to battery liquid leakage
• Do not mix different types of battarias, or used and new batteries
• Do not throw the batteries into fire, charge or break up, or charge, short circuit, disassemble,
heat or burn the used batteries. Please follow the environmental protection regulations to
disposal of the batteries
Power on Power off
6. Turning on/Standby

Special note:
This device adopts energy saving technology:
• This manual is a quick guide. Ask for more detailed operations, please refer to the “User’s Manual”
• The following keys operation use remote control.
1. Press key to show the home page
2. Press key to select All Apps
3. press OK key to confirm
4. Press key to select User’s Manual
5. Press OK key to enter User’s Manual
6. Press key to select read mode
7. Press OK key to confirm
8. Press to select directories
9. Press OK key to confirm
10. Press key to enter the selected page
11. Press key to select page up/down
12. Press key to return back the directories
13. Press key to exit User’s Manual.
7. User’s manual
8. Troubleshooting
Snowflake spots occur in the
TV images and there is noise in
accompanying sound
1. Check if the antenna plug is loose or the cable is in
good condition
2. Check the antenna type (VHF/UHF)
3. Adjust the direction and position of the antenna
4. Try to use signal enhancer
There is neither display nor
sound on the screen. The
indication light is not on
Check the power line is connected
Press the ibutton on the panel
Dotted llne or strip disturbance
occurs In TV Images
Do not use electric hair dryer aside the TV set and
adjust the antenna direction to reduce disturbance
Double images occur on the
TV screen
1. Use high oriented antenna
2. Adjust the direction of the antenna
The images are colorless Enter “Picture” setting to increase color saturation
The TV has no accompanying
sound
1. Adjust the volume to a proper degree.
2. Press MUTE key on the remote control to cancel
mute mode
No signal input images show
on the machine screen. The
Indicator llght Is bllnklng
1. Check if the signal connecting cable is loose or falls
off. Reconnect it.
2. The computer may be in standby mode, please reboot.

• Put machine flat first, distinguish left and
right base and base installation front and
back direction
• Install base in bottom of machine back cover
as arrow direction in figure
• Align positioning hole/column of top base
and positioning column/hole of bottom of
machine back cover
• Align screw holes, then fasten screws (notice
that base module has to be adjusted at
figure status, otherwise it cannot be
installed in)
9. Base Installation Instructions
Declares that the design and manufactureing of this product complies with the european
directives for CE-marking as stated below:
2014/35/EU (LVD)
2014/30/EU (EMC)
2011/65/EU (RoHs)
2017/53/EU (RED)
10. Marking
Images displayed on the PC
deviate. The screen is not full or
is exceeded. The display is fuzzy
1. Use automatic adjustment function
2. Enter “PC Image Mode” adjustment level or vertical
position
3. Use the recommended mode.
The remote control distance is
short or out of control
1. Remove the object to avoid blocking the remote
control receiving window
2. Replace the battery
The browser cannot access
any link
1. Ask the network administrator to obtain available IP
address and other parameters
2. Check if the network connecting cable is normally
connected
3. Consult the network service provider
Online video play is very slow 1. Please upgrade your network bandwidth
to a higher one
2. Please try to replace with other addresses to obtain
better resources
The images are colorless Enter “Picture” setting to increase color saturation
Machine is slow, system crash,
can not operate the machine
Disconnect the power supply first, and connect the
power supply after about 1-2 minutes, then turn on
the TV again
