Wacom ESP-110-01-5 Installation instructions

WACOM CONFIDENTIAL
Ｐ１
CUSTOMER
Lenovo (Japan) Ltd. TENTETIVE
PRODUCT
SPECIFICATIONS
CUSTOMER'S TYPE NO. SD60G97209
Wacom TYPE NO. ESP-110-01B-5
CUSTOMER'S ACCEPTANCE
(Based upon the contents of this specification and related notes)
Authorized Signature
Printed Name
Title
Date
This information shall only be used for the specific project of the customer.
No disclosure is permitted to a third party without written consent of Wacom Co., Ltd.
Wacom Co., Ltd.
2-510-1 Toyonodai, Kazo-shi,
Saitama, 349-1148, Japan
Approved
Checked
Checked
Designed
Kaneda
2015.07.17
Aoki
2015.07.17 Sakamoto 2015.07.17
Drawing No.
Rev.
A4A-621A002 X

WACOM CONFIDENTIAL
Contents
1SCOPE........................................................................................................................................................................................... 2
2MODEL NO. AND MODEL NAME ................................................................................................................................................ 2
3ENVIRONMENTAL SPECIFICATION ........................................................................................................................................... 2
3.1 Guaranteed environment...................................................................................................................................................... 2
3.2 Testing environment.............................................................................................................................................................. 2
4COSMETIC, SHAPE, DIMENSIONS AND MASS ........................................................................................................................ 2
4.1 Cosmetic............................................................................................................................................................................... 2
4.2 Shape and dimensions ......................................................................................................................................................... 2
4.3 Mass...................................................................................................................................................................................... 2
5ADAPTED STANDARD................................................................................................................................................................. 3
5.1 Hazardous substance control criteria................................................................................................................................... 3
5.2 EMC standard....................................................................................................................................................................... 3
5.3 Adapted RF standard............................................................................................................................................................ 4
6CHARACTERISTICS [TBD].......................................................................................................................................................... 5
6.1 Function ................................................................................................................................................................................ 5
6.1.1 Oscillating frequency................................................................................................................................................ 5
6.1.2 Switch operation....................................................................................................................................................... 5
6.1.3 Pressure resolution .................................................................................................................................................. 5
6.1.4 Operation mode........................................................................................................................................................ 5
6.1.5 Returning time from sleep........................................................................................................................................ 5
6.1.6 Shifting time to sleep................................................................................................................................................ 5
6.1.7 Tip stroke.................................................................................................................................................................. 5
6.1.8 Side switch stroke and feel ...................................................................................................................................... 5
6.1.9 Load of side switch-on.............................................................................................................................................. 5
6.2 Electrical and power supply specification............................................................................................................................. 6
6.2.1 Raiting ...................................................................................................................................................................... 6
6.2.2 Power source............................................................................................................................................................ 6
6.2.3 Charging method...................................................................................................................................................... 6
6.2.4 Charging specification.............................................................................................................................................. 6
6.2.5 Operating and charging time.................................................................................................................................... 6
6.2.6 Average power consumption.................................................................................................................................... 6
6.2.7 Power supply requirement ....................................................................................................................................... 6
6.2.8 External terminals..................................................................................................................................................... 6

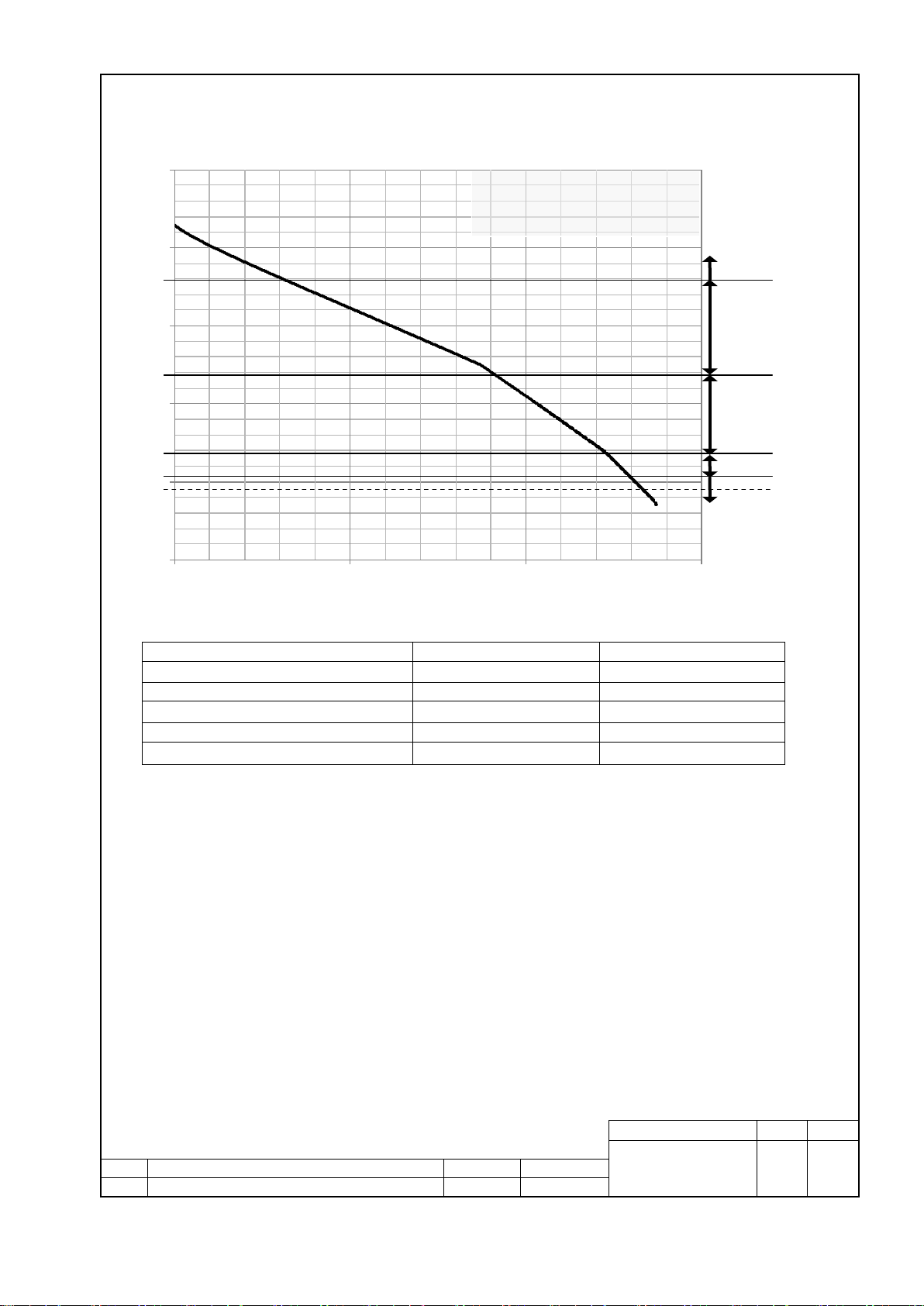

6.2.9 Discharge characteristic [TBD]................................................................................................................................. 7
6.2.10 Operating life ............................................................................................................................................................ 7
6.2.11 ID specification......................................................................................................................................................... 8

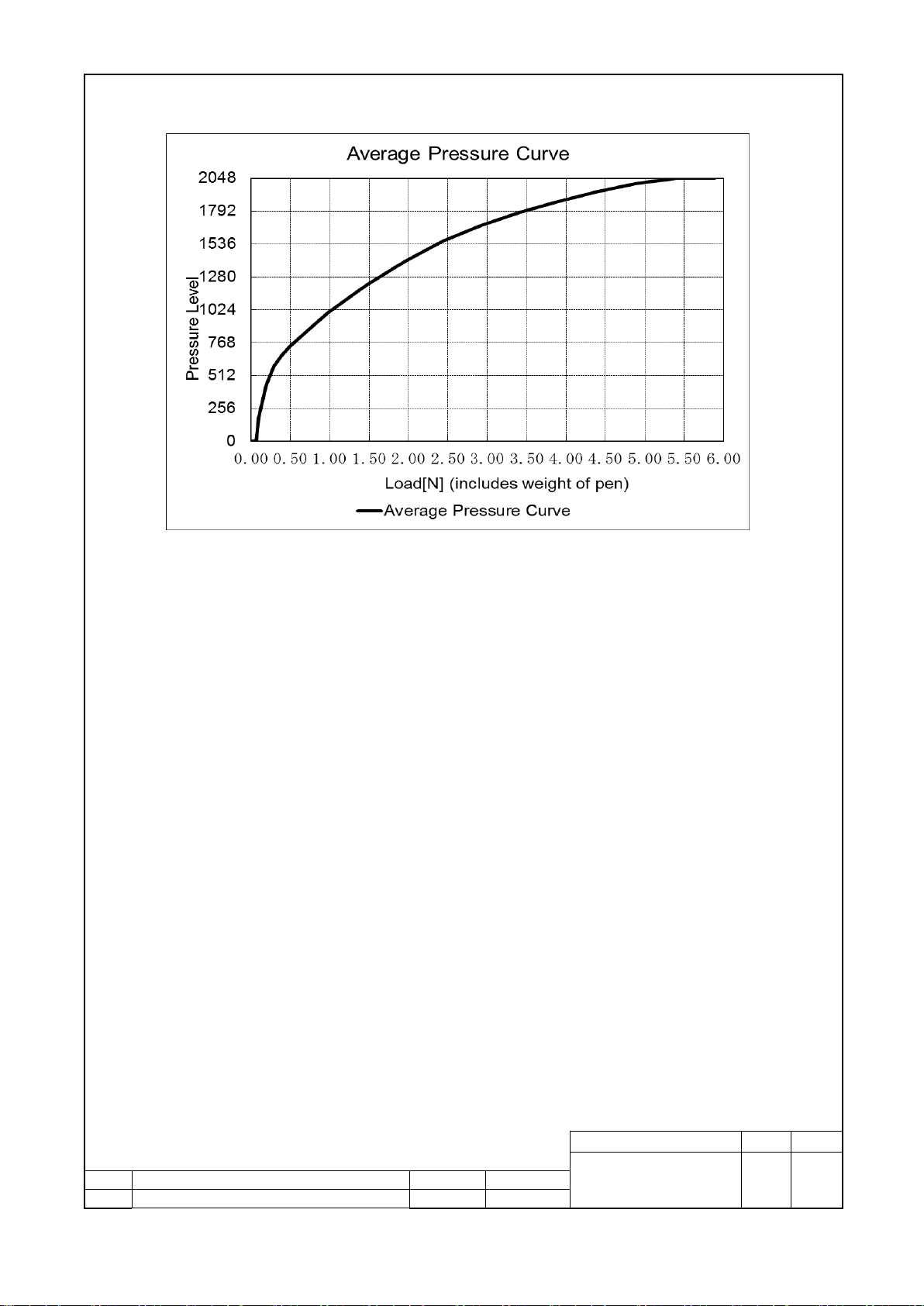

6.2.12 Tip switch average pressure curve (reference)........................................................................................................ 9
6.3 Environmental characteristics............................................................................................................................................. 10
6.3.1 Operational Environment........................................................................................................................................ 10
6.3.2 Storage Environment.............................................................................................................................................. 10
6.3.3 Temperature/humidity cycle test............................................................................................................................. 10
6.3.4 Electrostatic discharge test .................................................................................................................................... 10
6.4 Durability..............................................................................................................................................................................11
6.4.1 Operating life time of puressure switch...................................................................................................................11
6.4.2 Operating life time of side switch ............................................................................................................................11
6.4.3 Drop test..................................................................................................................................................................11
6.4.4 Break test ................................................................................................................................................................11
6.4.5 Charge function.......................................................................................................................................................11
7IMPORTANT RESTRICTIONS .................................................................................................................................................... 12
8NOTES ON HANDLING AND CONSTRAINTS .......................................................................................................................... 12

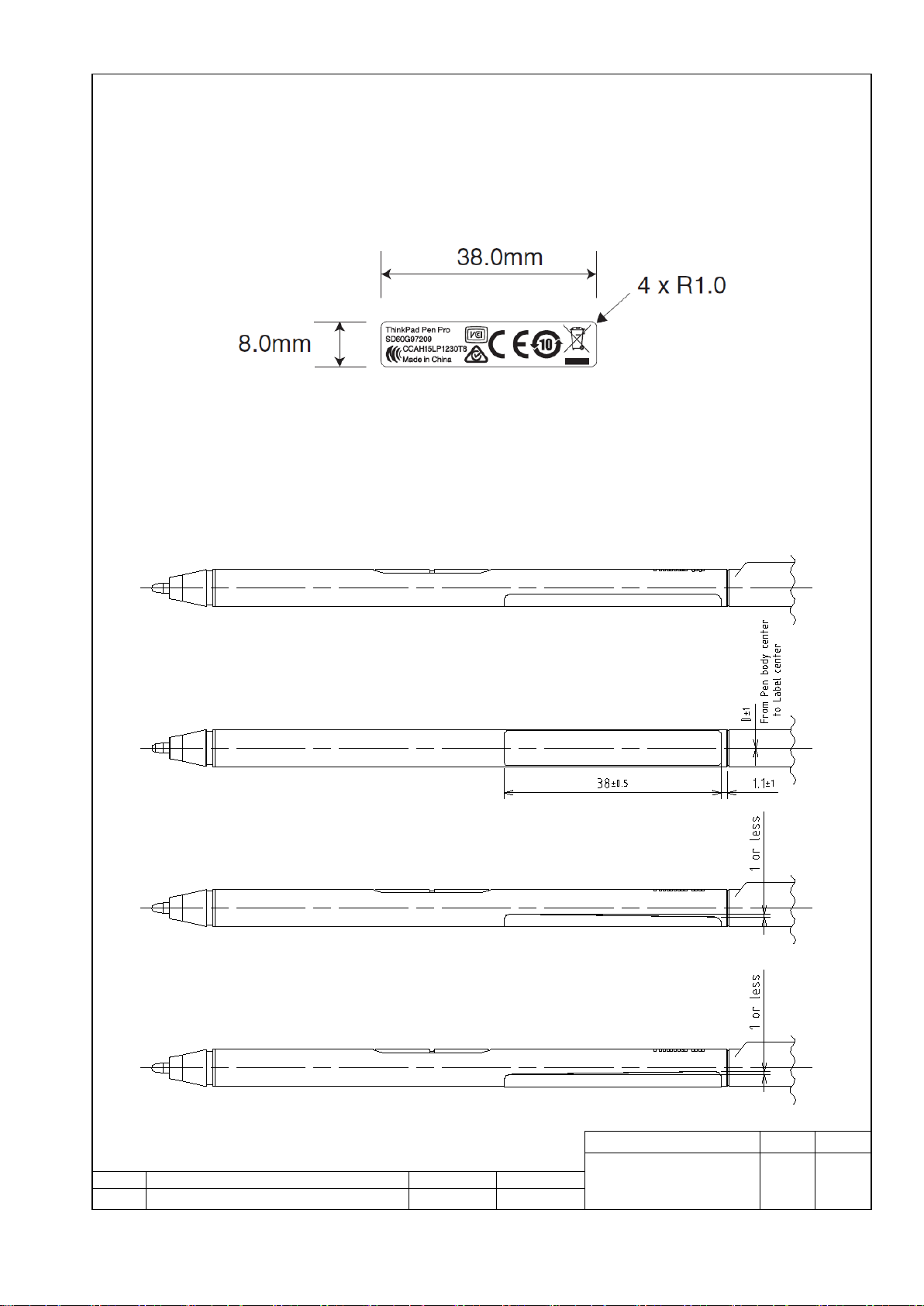

9STYLUS DRAWING..................................................................................................................................................................... 15

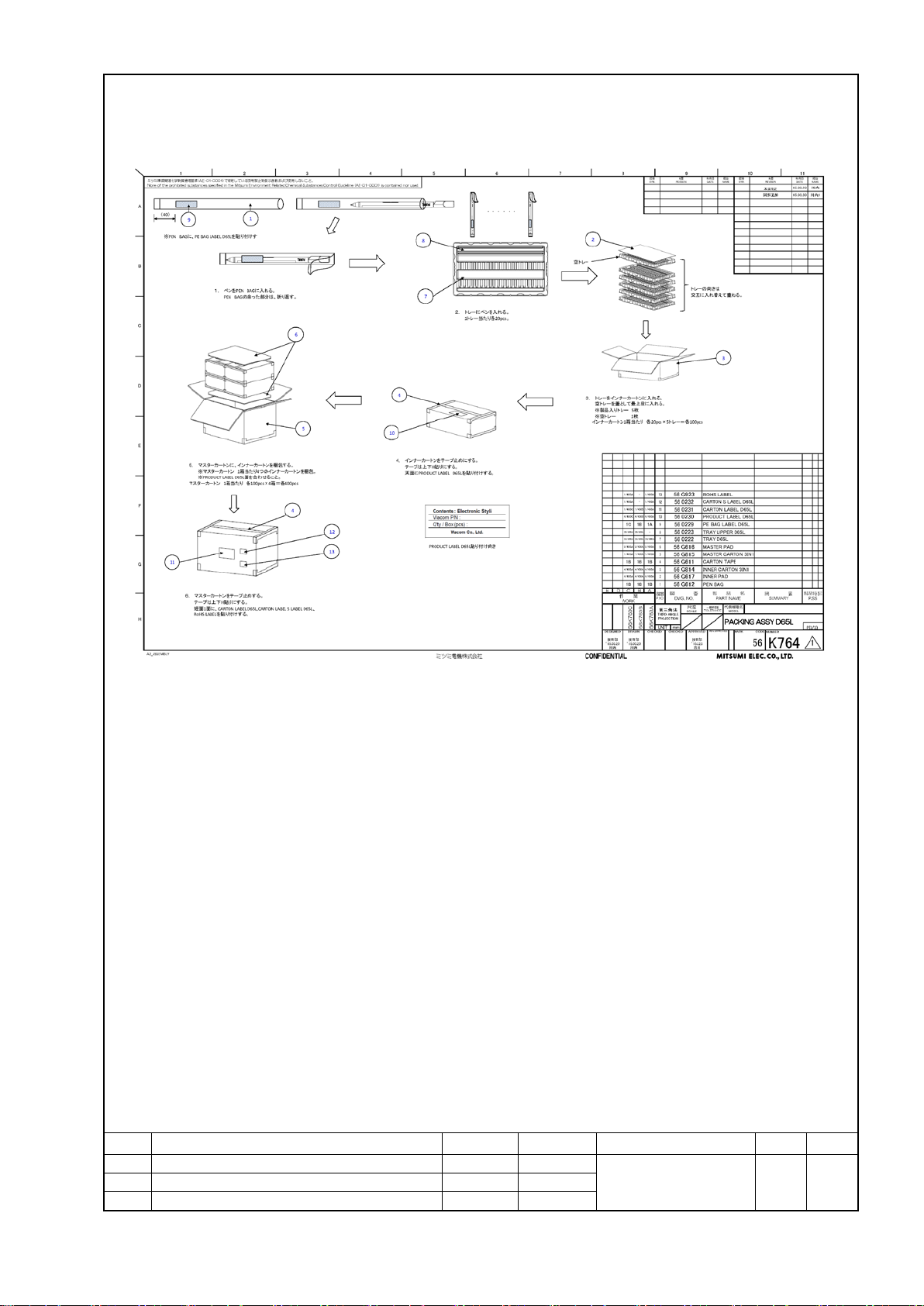

10 PACKING SPECIFICATION ........................................................................................................................................................ 16
10.1 Product packing .................................................................................................................................................................. 16
11 RATING LABEL........................................................................................................................................................................... 17
11.1 Rating label for Rear cap.................................................................................................................................................... 17
11.2 Pasting position................................................................................................................................................................... 17
12 PACKAGE LABEL....................................................................................................................................................................... 18
12.1 PE bag label (70x10mm).................................................................................................................................................... 18
12.2 Product label (100x40mm).................................................................................................................................................. 18
12.3 Carton label for Wistron...................................................................................................................................................... 19
12.4 RoHS label for Wistron ....................................................................................................................................................... 20
13 LOT NUMBER CODING.............................................................................................................................................................. 20
14 REVISION LIST ........................................................................................................................................................................... 21
Drawing No. Rev. Page
A4A-621A002 X 1

WACOM CONFIDENTIAL
1 Scope
The specifications of this document apply to ESP-110-01B-5 Active ElectroStatic (AES) stylus.
2 Model No. and model name
Model No. ：ESP-110-01B-5
Model name ：AES stylus with 2 side switch
Configuration
Part name
Model No.
Q’ty
Description
1 Main body ESP-110-01-5 1 Electronic stylus
3 Environmental specification
3.1 Guaranteed environment
Operating environment
Temperature : +5 ～+40 °C
Humidity : +30 ～+80 % (no condensation)
Storage environment (main body)
Temperature : -10 ～+60 °C
Humidity : +30 ～+80 % (no condensation)
Storage environment (in packaged condition)
Temperature : -10 ～+55 °C
Humidity : +30 ～+80 % (no condensation)
3.2 Testing environment
Test and measurement are carried out under the following environment as long as
there is no specific instruction concerning the testing environment.
Normal temperature (Temperature : 20 to 30°C), No condensation
4 Cosmetic, Shape, Dimensions and Mass
4.1 Cosmetic
Noticeable scratches, discoloring or uneven color are allowed.
Wacom Co., Ltd. sets inspection standard. 3rd grade.
Depends on the limit sample in case we defined.
4.2 Shape and dimensions
Diameter: 6.5 [mm] (body), Length : 126.7[mm] (Refer to 9. Stylus Drawing)
Bending of stylus to be 0.4 [mm] max.
Gap between front and rear case is less than 0.2 [mm].
No dimensional failure is allowed that affects stylus performance.
4.3 Mass
Approximately 5.5 [g]
Drawing No.
Rev.
Page
A4A-621A002 X 2
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
5 Adapted standard
5.1 Hazardous substance control criteria
This product is compliant with RoHS Directive
5.2 EMC standard
Needs to be measured in a state where the pen is running on the tablet.
For this reason, customer testing of EMC standard
No
Country
Regulation
Remark
1 Australia RCM
System: EMC test and DoC by customer.
OptionPen: EMC test and DoC by Wacom.
2 Canada IC
System: EMC test and DoC by customer.
OptionPen: EMC test by Wacom, DoC by customer.
3 China -
The EMC standard is not applicable to the product.
4
Japan
VCCI
System: EMC test and DoC by customer.
OptionPen: EMC test and DoC by Wacom.
5
New Zealand
RCM
6
EU/EFTA
CE
7 South Korea KC
System: EMC test and application of certification by a customer.
OptionPen: EMC test and application of certification by Wacom.
8 Taiwan BSMI The EMC standard is not applicable to the product.
9 USA FCC B
System: EMC test and DoC by customer.
OptionPen: EMC test by Wacom, DoC by customer.
10
Argentina
-
The EMC standard is not applicable to the product.
11
Brazil
-
12
Chile
-
13
Hong Kong
-
14
India
-
15
Israel
SII
16
Malaysia
-
17
Mexico
-
18
Philippines
-
19 Russia EAC
The certification by the customer.
20
Singapore
-
The EMC standard is not applicable to the product.
21
Thailand
-
22 Turkey CE
System: EMC test and DoC by customer.
OptionPen: EMC test and DoC by Wacom.
23
Angola
-
The EMC standard is not applicable to the product.
24
Bolivia
-
25
Colombia
-
26
Ecuador
-
27
Indonesia
-
28
Kazakhstan
EAC
The certification by the customer.
29
Kuwait
-
The EMC standard is not applicable to the product.
30
Paraguay
-
31
Peru
-
32
Saudi Arabia
-
33
South Africa
-
34
Sri Lanka
-
35
UAE
-
36
Ukraine
-
37
Uruguay
-
38
Uzbekistan
-
39
Vietnam
-
40
Albania
-
41
Bahrain
42
Bangladesh
43
Botswana
44
Egypt
45
Jordan
46
Kenya
Drawing No.
Rev.
Page
A4A-620A007 X 3
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
No
Country
Regulation
Remark
47 Lebanon
The EMC standard is not applicable to the product.
48
Macedonia
49
Moldova
50
Morocco
51
Nigeria
52
Pakistan
53
Qatar
54
Serbia
55
Tunisia
56
Venezuela
5.3 Adapted RF standard
Country
Regulation
Remark
Taiwan
NCC
RF test and application of certification by Wacom.
As the results of Wacom investigation, the following countries do not require RF standard test.
Australia, Canada, China, Japan, New Zealand, EU/EFTA, South Korea, USA, Argentina, Brazil, Chile,
Hong Kong, India, Israel, Malaysia, Mexico, Philippines, Russia, Singapore, Thailand, Turkey, Angola,
Bolivia, Colombia, Ecuador, Indonesia, Kazakhstan, Kuwait, Paraguay, Peru, Saudi Arabia, South Africa,
Sri Lanka, UAE, Ukraine, Uruguay, Vietnam, Albania, Bahrain, Bangladesh, Botswana, Egypt, Jordan,
Kenya, Lebanon, Macedonia, Moldova, Morocco, Nigeria, Pakistan, Qatar, Serbia, Tunisia, Venezuela,
Uzbekistan
Drawing No.
Rev.
Page
A4A-620A007 X 4
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
6 Characteristics [TBD]
6.1 Function
6.1.1 Oscillating frequency
1800 [kHz]±10%
6.1.2 Switch operation
Pen tip : Pressure infomation is detected as continuous signal.
Side switch : ON / OFF switching is detected.
6.1.3 Pressure resolution
2048 level
6.1.4 Operation mode
EDLC voltage 2.7~ 0.9 [V] : To be operable the active mode
EDLC voltage less than 0.9 [V] : Shutdown
6.1.5 Returning time from sleep
5 [msec]±30%
6.1.6 Shifting time to sleep
Approximately 10 [min]
Pen operation mode changes from active mode to sleep mode when pressure level is 0 and
Side-Switch is not pressed.
6.1.7 Tip stroke
Operating stroke MAX 1.0 [mm]. No hang-up in all case.
6.1.8 Side switch stroke and feel
Operating stroke MAX 0.5 [mm]. No hang-up in all case. To feel tactile switching.
6.1.9 Load of side switch-on
1.2±0.7 [N]
Drawing No. Rev. Page
A4A-621A002 X 5
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
6.2 Electrical and power supply specification
6.2.1 Raiting
Raiting voltage : 3.3[V], Raiting current : 400 [mA]
6.2.2 Power source
EDLC 0.7 [F]（No replacement)
6.2.3 Charging method
CC-CV charging
6.2.4 Charging specification
Input voltage: 3.3 [V]
Input current: Less than 350 [mA]
EDLC charging voltage: 2.65 [V] (typ)
While power is supplied to the recharging terminals of pen, the battery is always being recharged.
6.2.5 Operating and charging time
15 seconds charging : more than 90 [min]
300 seconds charging : more than 100 [min]
(Measured in the initial state)
6.2.6 Average power consumption
Approximately 280 [uW] (Active mode)
6.2.7 Power supply requirement
3.3 [V]±5%, Ripple±1.5%, Min 350 [mA]
6.2.8 External terminals
x 2 for recharging
Drawing No.
Rev.
Page
A4A-621A002 X 6
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
6.2.9 Discharge characteristic [TBD]
Discharge curve (Reference) [TBD]
0.5
1
1.5
2
2.5
3
050 100 150
Battery voltage [V]
time [min]
Charge level and usage time(Reference) [TBD]
Charging time 15 [sec]
Charging time 300 [sec]
From end of charge to shutdown 114 [min] 139 [min]
From Level 2 of charge to shutdown
104 [min]
107 [min]
From Level 3 of charge to shutdown
46 [min]
46 [min]
From Level 4 of charge to shutdown
13 [min]
13 [min]
From Level 5 of charge to shutdown
5 [min]
6 [min]
* AES stylus: Typical sample, measured in the initial state.
6.2.10 Operating life [TBD]
22,000 [h]
Conditions:
- Temperature 25°C
- Humidity 60%
- Maintain the charging
- Failure decision: Less than 70 % of usage time
Drawing No.
Rev.
Page
A4A-621A002 X 7
Rev.
Contents
Sign
Date
Level1
Level2
Level3
Level4
Level5
2.26
1.65
1.13
0.9
0.99
Measurement condition
- AES stylus: Typical sample
- Charging time: 300 [sec]

WACOM CONFIDENTIAL
6.2.11 ID specification
1) Device ID (16 bits)
Device ID shows the device function and design.
Part No.
Value
Function
Design
1
ESP-110-01B-5
ESP-110-02B-5
ESP-110-03B-5
0x0011 EDLC battery
ASIC control Lenovo ID 6.5Φ
2) Unique ID (35 bits)
Unique ID consists of Vendor ID (5 bits) and Serial ID (30 bits).
Vendor ID is fixed number for each product vendor.
Each device with the specific Vendor ID has different Serial ID.
3) Vendor ID
Value
Vendor
2 (0b00010)
Lenovo
4) Serial ID
Serial ID consists of following fields and is unique for each Vendor ID.
A) Factory ID (2 bits)
ID for distinguish of the factory
Value
Factory
1 (0b01)
ZHUHAI MITSUMI ELECTRIC CO., LTD.
B) Date (M) (6 bits)
From the starting month (2014/04), this field increase one per month continuously.
C) Reserve (1 bit)
Normally fix to 0. Reserve for the expansion of any one field of Serial ID.
D) Serial No (21 bits)
This field is the different number for each device per factory and month.
Drawing No. Rev. Page
A4A-621A002 X 8
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
6.2.12 Tip switch average pressure curve (reference)
Note) The equipment used for measurement is prepared by Wacom Co., Ltd.
Above curve shows on a brand-new stylus.
Drawing No.
Rev.
Page
A4A-621A002 X 9
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
6.3 Environmental characteristics
Item Test condition Specification
6.3.1 Operational
Environment
The following tests are carried out during operation
(1) high temperature 40°C 4hrs
(2) high temperature, high humidity 40°C, 80% 4hrs
(3) low temperature 5°C 4hrs
(4) high temperature, low humidity 40°C, 30% 4hrs
No malfunction
6.3.2 Storage
Environment
After exposing to below environment, pens are left at normal
temperature and humidity for 1hour before function check.
(1) high temperature, high humidity 60°C, 90% 96hrs
(2) low temperature -10°C 96hrs
(3) low humidity 30°C, 30% 96hrs
No malfunction
6.3.3 Temperature/
humidity
cycle test
After exposing the pens 3 times to the following temperature
and humidity, left at normal temperature and humidity for 1hour
before function check.
The temperature gradient is to be 15°C/h
No malfunction
6.3.4 Electrostatic
discharge test
Charging volatage
(1) contact discharge: ± 4.0kV
(2) air discharge: ± 8.0kV
No malfunction
Drawing No.
Rev.
Page
A4A-621A002 X 10
Rev.
Contents
Sign
Date
+60°C, 95%
-20°C
1 cycle
8h 6h 8h 6h

WACOM CONFIDENTIAL
6.4 Durability
Item
Test condition
Specification
6.4.1 Operating life
time of
puressure
switch
(1) Operating speed : 5 times/sec
(2) Applied pressure : 2.94 [N]
(3) Operating cycle : 2,000,000 times
No malfunction
6.4.2 Operating life
time of side
switch
(1) Operating speed : 3 times/sec
(2) Applied pressure : 1.8 [N]
(3) Operating cycle : 100,000 times
No malfunction
6.4.3 Drop test
(1) Height: 80[cm]
(2) Cycle: 15
(3) Floor surface: Iron plate
(4) Fall method: To drop a sylus in horizontal attitude
No malfunction
6.4.4 Break test
Apply load at the point as shown below. No breakage
6.4.5 Charge
function
Pen to operate appropriatelyafter recharging-
discharging for 50 times (charging period is 300[sec] as
full-charge status).
No malfunction
Drawing No.
Rev.
Page
A4A-621A002 X 11
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
7 Important Restrictions
Wacom shall inform changes in the specifications herein and changes affect the product quality prior to such
changes. However, in order to maintain or improve service e.g. lead time and delivery, Wacom may make minor
design changes without notice as far as such changes will not interfere specifications herein or quality of the product.
Wacom is not responsible for damage caused by misuse or improper use of devices against the following
precautions.
8 Notes on Handling and Constraints
(1) Care during storage
Do not use or store the stylus in a place where excessive changes in temperature may occur such as in a car or in
direct sunlight.
Do not store the stylus in a condition where the stylus tip switch has any pressure applied to it.
(2) Do not subject the stylus to shock or vibration.
The electronic stylus is made of precision parts. If a stylus is subjected to repeated dropping, it may cause the stylus
to malfunction or a deterioration in performance in the characteristics of pressure value and tip switch ON/OFF
response.
(3) Do not apply any excessive pressure during operation
Excessive pressure applied to the tip switch and side switch will shorten the life of the stylus.
(tip switch: 9.8N or less, continuous time: 30 seconds of less)
The electronic stylus is designed to feel user most comfortable under normal usage.
The recommended tip force during operation is 4.90N max. Do not keep the stylus tip pressed while the stylus is not
in use; it will degrade the tip feel.
(4) Avoid moisture and humid environments.
If any water enters the stylus or condensation occurs.
(5) Do not attempt to disassemble the stylus
Disassembling the stylus may change the calibration setting or shorten the life cycle of the stylus.
(6) Cleaning
Use either a silicone cloth or if not available a dry cloth for cleaning.
Do not use volatile liquids such as alcohol, paint thinner, or benzine etc.
(7) Tip deformed
Don't apply excessive loading to pen tip.
Using the bending or deformed tip cause the stylus to malfunction.
(8) Life support policy
This product is not designed for application that requires extremely high reliability,
such as aviation control, nuclear power control or life support equipment.
(9) Exchanging nib
Refer to page 12-13
(10) Charging
Do not keep recharging while storing pen for a long period of time.
Recharging under high temperature will shorten the EDLC life.
Pen keeps operating while tip or side switch is pressed.
Do not allow tip or side switch to be pressed while pen is stored; it will consume power.
About shorting avoidance on recharger terminals, protection is required both in electrical and mechanical design.
Be sure to design the garage so that pen is stored only in the right direction; storing pen in the opposite direction will
cause mechanical failure to occur. Mechanical countermeasure is required.
(11) Stay away from magnet
Do not let any magnet come close to the side switch while using the electronic pen;
it will cause the pen to malfunction or become out of order.
Drawing No.
Rev.
Page
A4A-621A002 X 12
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL

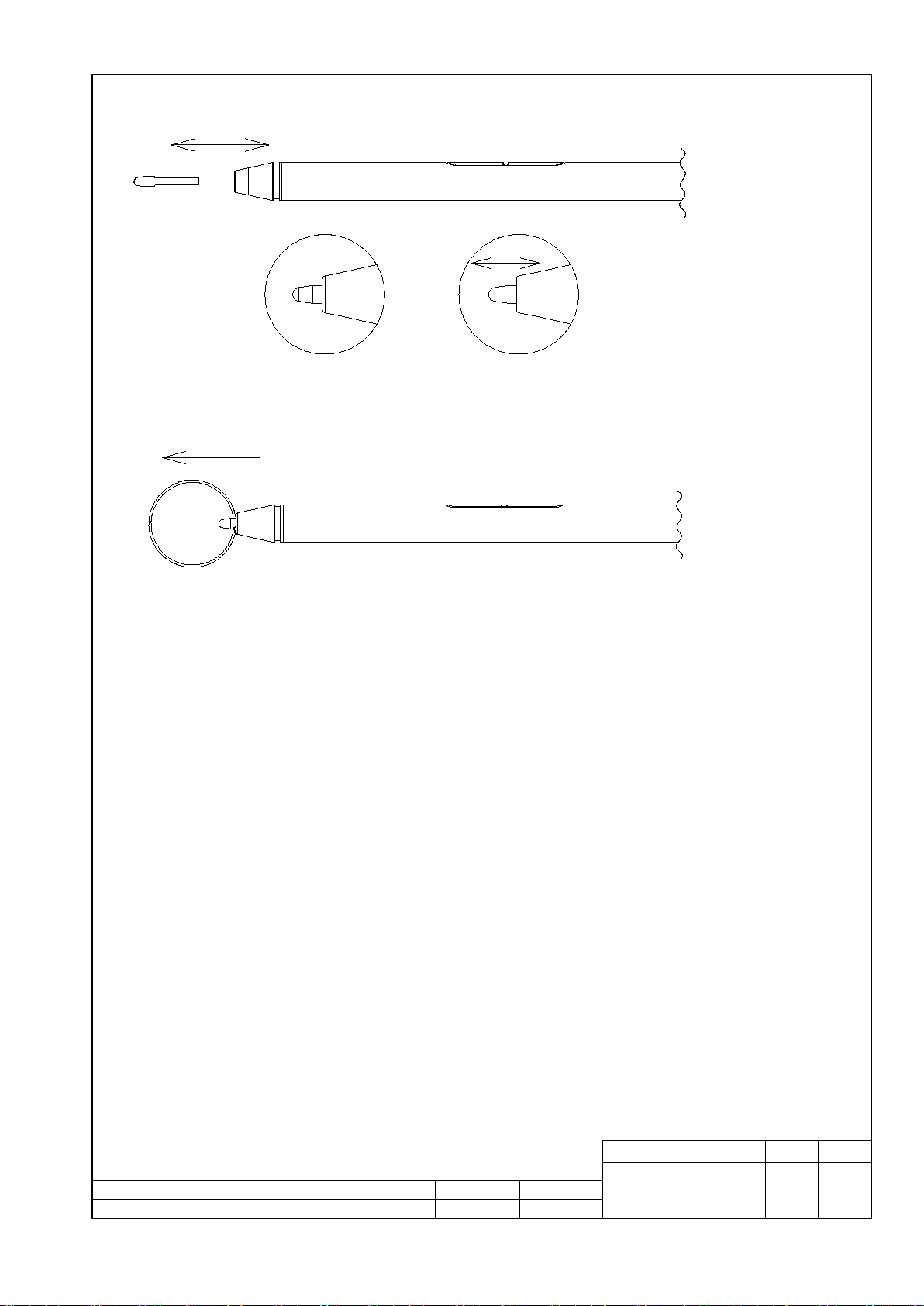

Exchanging nib
Pen parts name
How to remove the nib shaft if hard to pull off.
1. Remove it in the same way as exchanging battery 1 and 2.
2. Turn the front unit clockwise wearing non-slip rubber groves.
(It will open at Approx. 2kg force.)
3. Remove the nib shaft stuck inside after removing the front unit.
4. Tighten the front unit counterclockwise.
5. Insert a nib slowly until the nib touches the back..
Drawing No. Rev. Page
A4A-621A002 X 13
Rev.
Contents
Sign
Date
Turn front unit clockwise.
Turn front unit counterclockwise.
※Do not touch the inner parts.

WACOM CONFIDENTIAL
6. After inserting the nib, make sure if it withdraws when pushing tip. If the nib doesn’t move up and down,
remove it and insert it again.
Exchanging the nib
1. When exchanging the nib, pull it out straight holding a nib by tip tweezer.
2. Insert the new nib straight from front unit tip.
Insert it slowly until the nib touches the back. Note that inserting the nib slantwise will cause the pen to
malfunction.
3. Refer to how to remove the nib shaft if hard to pull off 6.
Drawing No. Rev. Page
A4A-621A002 X 14
Rev.
Contents
Sign
Date
Projecting about 3mm.
Make sure there is stroke.

WACOM CONFIDENTIAL
9 Stylus drawing
DIMENSION
/寸法区分
315 or less
120 or less
6 or less
30 or less
0.5～3
±1.0
±0.2
±0.4
±0.7
±0.2
TOLERANCES
/許容公差
ESP-110-01-5
Drawing No.
Rev.
Page
A4A-621A002 X 15
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
10 Packing specification
10.1 Product packing
Drawing No. Rev. Page
A4A-621A002 X 16
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
11 Rating Label
11.1 Rating label for Pen body
Size: (38x 8 [mm])
11.2 Pasting position
Drawing No. Rev. Page
A4A-621A002 X 17
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
12 Package Label
12.1 PE bag label (70x10[mm])
Description of barcode each digit
Digit 1-2 (Fixed letter) : 8S
Digit 3-12 (Lenovo parts number) : Lenovo ID: SD60G97209
Digit 13 (Supplier code) : W
Digit 14 (Revision code) : Represent engineering change level increases as 1, 2, …9, A, …, Z except I, O, Q, U
Digit 15-16 (Supplier Location) : ZH
Digit 17 (Production year) : Last digit of production year
Digit 18 (Production month) : Jan :1, Sep : 9, Oct : A, Dec : C
Digit 19 (Production day) : 1st :1, 9th : 9, 10th : A, 31st : Z ※Do not use I, O, Q and U
Digit 20-23 (Serial number) : “0001 to 9999” (decimal system). Starts from “0001”. Production date change increments it by one.
* Barcode format is CODE39.
12.2 Product label (100x40[mm])
Contents : Electronic Styli
Wacom P/N : ESP-110-01B-5
Q'ty / Box (pcs) : 50
Wacom Co., Ltd.
8SSD60G97209W1ZHYMD0001
Drawing No. Rev. Page
A4A-621A002 X 18
Rev.
Contents
Sign
Date

WACOM CONFIDENTIAL
・Barcode format is CODE128
・Size: (60x30mm)
・Barcode format is CODE128
・Size: (100x80mm)

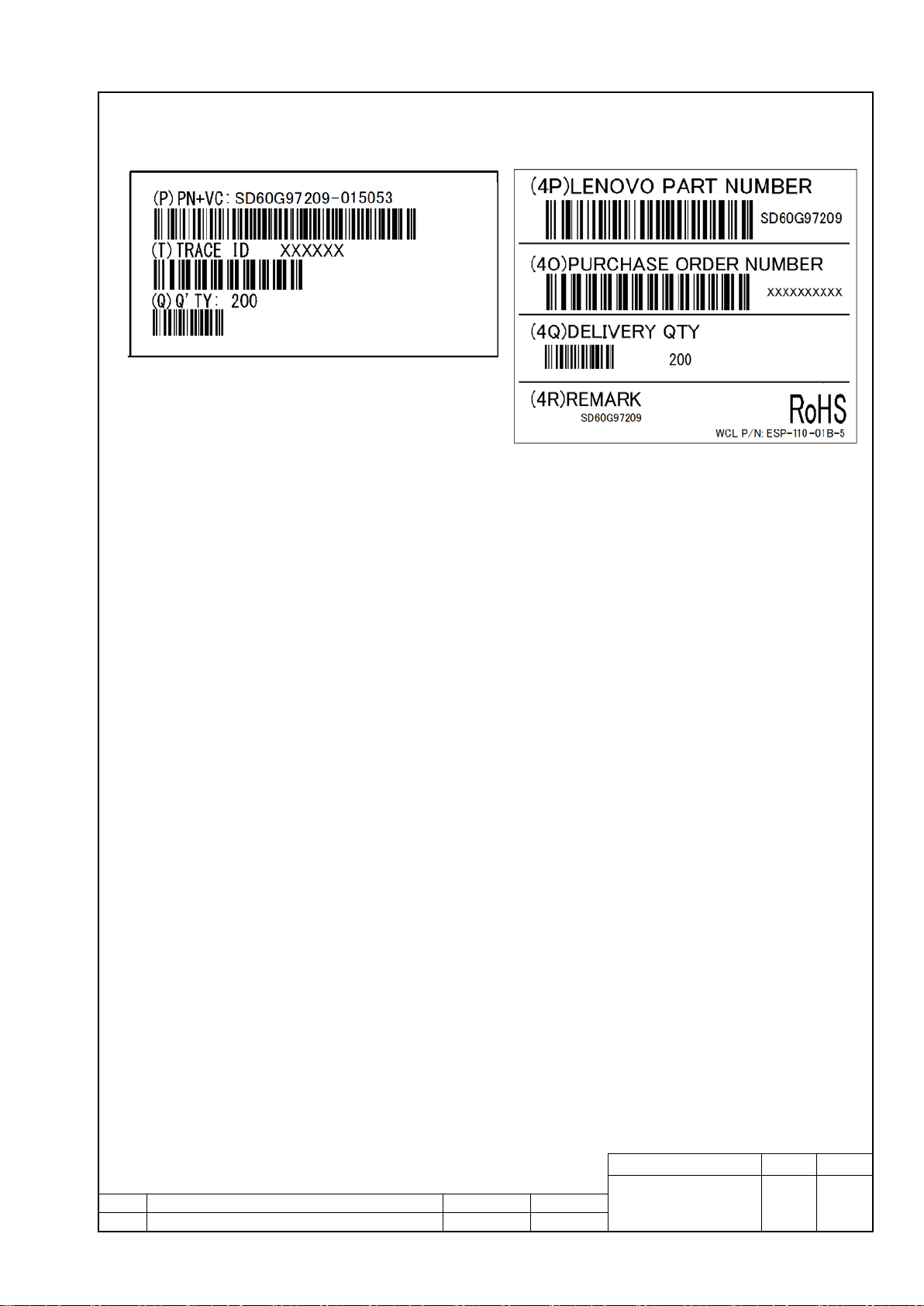

12.3 Carton label for Wistron
・Small (3S label)
・TRACE ID : Lot number of shipment date
Refer to 19. Lot number coding in next page.
Drawing No. Rev. Page
A4A-621A002 X 19
Rev.
Contents
Sign
Date
・Large (4S label)
