W&H teon RID-100 User manual

Operating instructions
Washer-disinfector
RID-100
To avoid the risk of accidents or damage to the
machine, it is essential to read these instructions
before it is installed and used for the first time.
en - GB
M.-Nr. 11 310 060

2

Contents
3
Notes about these instructions..........................................................................................7
Intended use ........................................................................................................................8
Wash pressure and spray arm monitoring ............................................................................ 9
User profiles ........................................................................................................................ 10
Guide to the machine........................................................................................................11
Machine overview................................................................................................................ 11

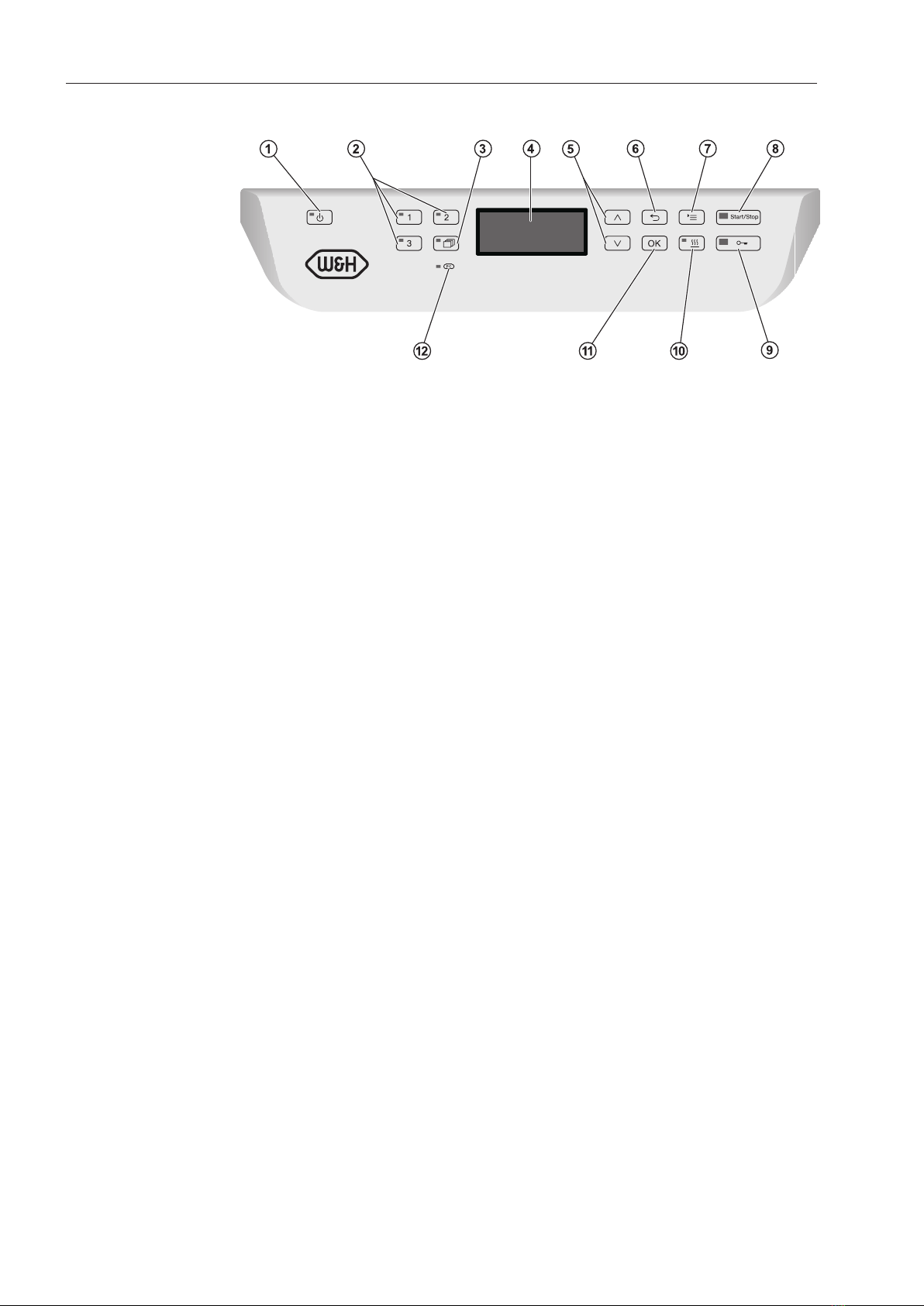

Control panel....................................................................................................................... 12
LEDs in buttons................................................................................................................... 13
Warning and Safety instructions......................................................................................14
Symbols on the machine..................................................................................................... 19
Using the machine.............................................................................................................20
Display illustrations.............................................................................................................. 20
Switching on........................................................................................................................ 21
Switching off........................................................................................................................ 21
Auto-off function ................................................................................................................. 21
Ready for use ...................................................................................................................... 21
Display interface.................................................................................................................. 22
Menu operation ................................................................................................................... 22
Settings in the menu ........................................................................................................... 23
Symbols on the display ....................................................................................................... 24
Opening and closing the door..........................................................................................25
Electronic door locking........................................................................................................ 25
Opening the door ................................................................................................................ 25
Closing the door.................................................................................................................. 25
Opening the door using the emergency release ................................................................ 26
Water softener ...................................................................................................................27
Water hardness ................................................................................................................... 27
Setting the water hardness level ......................................................................................... 28
Filling the salt reservoir........................................................................................................ 30
Add salt reminder ................................................................................................................ 32
Areas of application ..........................................................................................................33
Mobile units, baskets, modules and inserts........................................................................ 33
Adjusting the upper basket ................................................................................................. 34
Wash pressure measurement.............................................................................................. 36
Test point for measuring water pressure ........................................................................ 36
Preparing the load ............................................................................................................... 37
Recontamination ............................................................................................................ 39
Protein test ..................................................................................................................... 39
Instruments.......................................................................................................................... 40
Transmission instruments.................................................................................................... 40
Mouth specula..................................................................................................................... 41
Mouth rinsing cups.............................................................................................................. 41
Chemical processes and technology ..............................................................................42
Adding and dispensing chemical agents ........................................................................45
Dispensing systems ............................................................................................................ 45
Labelling of the siphons ................................................................................................. 45

Contents
4
Rinsing agent....................................................................................................................... 46
Adding rinsing agent ...................................................................................................... 46
Refill indicator................................................................................................................. 47
Dispensing rinsing agent ................................................................................................ 47
Neutralising agent ............................................................................................................... 48
Refilling neutralising agent ............................................................................................. 48
Refill indicator................................................................................................................. 49
Dispensing neutralising agent ........................................................................................ 49
Instrument care products .................................................................................................... 49
Cleaning agent .................................................................................................................... 50
Replenishing liquid cleaning agent................................................................................. 50
Refill indicator................................................................................................................. 51
Dispensing liquid cleaning agent ................................................................................... 51
Operation............................................................................................................................52
Selecting a programme ....................................................................................................... 52
Starting a programme ......................................................................................................... 52
Starting a programme using delay start ......................................................................... 52
Drying assistance ........................................................................................................... 54
Programme sequence indicator .......................................................................................... 55
At the end of the programme .............................................................................................. 55
Cancelling a programme ..................................................................................................... 56
Programme cancelled due to a fault .............................................................................. 56
Cancelling a programme manually................................................................................. 56
Settings ...........................................................................................................................57
Delay start ........................................................................................................................... 58
Drying .................................................................................................................................. 59
DOS venting ........................................................................................................................ 60
Filter maintenance ............................................................................................................... 61
Activating and setting the interval .................................................................................. 61
Language ......................................................................................................................... 63
Time of day.......................................................................................................................... 64
Volume................................................................................................................................. 67
Further settings .................................................................................................................68
Code.................................................................................................................................... 70
Entering the PIN code .................................................................................................... 70
Date ..................................................................................................................................... 72
Log book ............................................................................................................................. 74
Report.................................................................................................................................. 75
Temperature unit.................................................................................................................. 75
Programme settings ............................................................................................................ 75
Release programme ............................................................................................................ 76
Moving a programme: allocating programme selection buttons......................................... 77
Test programme .................................................................................................................. 78
Interface .............................................................................................................................. 78
Water hardness ................................................................................................................... 81
Display: Temperature........................................................................................................... 81
Display brightness and contrast.......................................................................................... 82

Contents
5
Switch off after .................................................................................................................... 83
Ready for operation........................................................................................................ 83
Auto-off function ............................................................................................................ 83
Switching off after activating.......................................................................................... 84
Software version.................................................................................................................. 84
Programme settings..........................................................................................................85
Adjusting programme settings ............................................................................................ 85
Programme structure........................................................................................................... 85
Programme header......................................................................................................... 85
Programme blocks ......................................................................................................... 86
Opening the menu............................................................................................................... 87
Reset programme................................................................................................................ 88
Altering a programme ......................................................................................................... 89
Allocating wash blocks................................................................................................... 89
Change water quantity ................................................................................................... 90
Increasing drainage time ................................................................................................ 91
Drying assistance ........................................................................................................... 92
Process documentation....................................................................................................94
Outputting cycle reports retrospectively ............................................................................. 97
External software............................................................................................................ 97
Report printer ................................................................................................................. 97
Maintenance ......................................................................................................................98
Periodic checks ................................................................................................................... 98
Routine checks.................................................................................................................... 99
Cleaning the filters in the wash cabinet ............................................................................ 100
Cleaning the spray arms.................................................................................................... 102
Cleaning the machine........................................................................................................ 104
Cleaning the control panel ........................................................................................... 104
Cleaning the door and the door seal............................................................................ 104
Cleaning the wash chamber......................................................................................... 104
Cleaning the door front ................................................................................................ 104
Preventing re-soiling..................................................................................................... 104
Checking mobile units, baskets, modules and inserts...................................................... 105
Process validation ............................................................................................................. 106
Problem solving guide ....................................................................................................109
Technical faults and messages ......................................................................................... 109
Dispensing/Dispensing systems ....................................................................................... 110
Insufficient salt/Water softener.......................................................................................... 111
Cancel with fault code....................................................................................................... 112
Process-related faults and messages ............................................................................... 117
Door................................................................................................................................... 118
Unsatisfactory cleaning and corrosion.............................................................................. 119
Spray arm monitoring/wash pressure ............................................................................... 122
Water inlet and drainage ................................................................................................... 123
Noises................................................................................................................................ 123
Printer/interface................................................................................................................. 124
Problem solving guide ....................................................................................................125
Cleaning the drain pump and non-return valve................................................................. 125

Contents
6
Cleaning the water intake filters ........................................................................................ 126
After sales service...........................................................................................................127
Contacting the Customer Service Department ................................................................. 127
Software version................................................................................................................ 128
Installation........................................................................................................................129
Installation and levelling .................................................................................................... 129
Building under a continuous worktop ............................................................................... 130
Removing the lid.......................................................................................................... 130
Electromagnetic compatibility (EMC) ................................................................................ 131
Electrical connection ......................................................................................................132
Equipotential bonding connection .................................................................................... 132
Peak-load negotiation ....................................................................................................... 133
Plumbing ..........................................................................................................................134
Connection to the water supply ........................................................................................ 134
Connecting the drain hose ................................................................................................ 137
Programme chart ............................................................................................................138
Technical data..................................................................................................................140
Terms of warranty............................................................................................................141
Caring for the environment ............................................................................................143
Disposal of the packing material ...................................................................................... 143

Notes about these instructions
7
Important warnings
Information which is important for safety is highlighted in a thick
framed box with a warning symbol. This alerts you to the potential
danger of injury to people or damage to property.
Read these warning notes carefully and observe the procedural
instructions and codes of practice they describe.
Notes
Information of particular importance that must be observed is
highlighted in a thick framed box.
Additional information and comments
Additional information and comments are contained in a simple
frame.
Operating steps
Operating steps are indicated by a black square bullet point.
Example:
 Select an option using the arrow buttons and save your choice with
OK.
Display
Certain functions are shown in display messages using the same font
as that used for the function itself in the display.
Example:
Settings  menu.

Intended use
8
This W&H washer-disinfector is a Class IIb medical device (Directive
93/42/EEC).
This W&H washer-disinfector can be used to clean, rinse and
thermally disinfect a wide range of reprocessable medical devices for
dental use. Information issued by the manufacturers of medical
devices (ENISO17664) must be heeded.
Instruments such as dental instruments, suction instruments, trans-
mission instruments etc. can be reprocessed in this washer-disin-
fector.
UK only: This washer-disinfector is NOT intended for reprocessing
transmission instruments such as turbines, hand-pieces and con-
tra-angles.
The washer-disinfector is generally referred to as “the machine” in
these operating instructions. Reprocessable medical devices are re-
ferred to as “items” if they are not more closely defined.
Reprocessing items by machine achieves reproducible results and
should be used in preference to processing them by hand. Where dis-
infection is required for the protection of staff and/or patients, a
thermal disinfection programme, e.g. the Vario TD programme should
be selected.
According to the A0 concept described in EN ISO 15883-1, thermal
disinfection occurs at 90°C (+ 5 °C, - 0 °C) with 5 min holding time
(A0 3000), depending on the disinfection result required. The efficacy
standard A0 3000 is suitable for deactivating the HBV virus.
Regional and/or other official directives may apply (CFPP, HTM or rel-
evant technical memorandums in the UK). Refer to your country's
local and national health and safety regulations and guidelines.
The cleaning programme must be chosen according to the type of
soiling and load being processed.
The agents used for reprocessing the products should be selected to
suit the level of cleaning required.
The cleaning result must ensure that items can be disinfected cor-
rectly, that subsequent sterilisation can be carried out and that the
items can be used again safely.
Medical devices are best processed using the Vario TD programme
where applicable.
The use of a suitable carrier (basket, module, insert, etc.) is important
to ensure the adequate cleaning of the load. Examples are given in
the section “Areas of application”.
This machine is programmed to carry out the final rinse with mains
water or with processed water of a quality to suit the application (e.g.
purified water, fully demineralised water or demineralised water).
This machine complies with EN ISO 15883 for validation purposes.

Intended use
9
Wash pressure and spray arm monitoring
The washer-disinfector is equipped with a sensor for monitoring the
wash pressure during the active cleaning process stages.
Spray pressure monitoring is carried out according to the general val-
idation guideline and routine monitoring of machine cleaning and dis-
infection processes for thermostable medical devices of the Deutsche
Gesellschaft fuer Krankenhaushygiene e.V. (German Society for Hos-
pital Hygiene) (DHKG), the Deutsche Gesellschaft fuer Sterilgutversor-
gung e.V. (German society for sterile supplies) (DGSV) and the Arbeit-
skreis Instrumentenaufbereitung (Instrument Reprocessing Working
Group) (AKI) in accordance with ENISO15883.
The result of the spray pressure monitoring is recorded via the pro-
cess documentation.
Spray arm speed can also be monitored, e.g. for prompt detection of
blockages due to misloading or foam in the water circulation system.
Spray arm monitoring can be activated or deactivated by the W&H
Customer Service Department.

Intended use
10
User profiles
Daily operators Daily operators must be instructed in operating and loading the
washer-disinfector and trained regularly to guarantee safe daily use.
They require knowledge of machine reprocessing of medical devices.
Tasks for daily routine operation are located in the Settings  menu.
This menu is freely accessible to all users.
Administration More advanced tasks, e.g. interrupting or cancelling a programme,
require more detailed knowledge about the machine reprocessing of
medical devices.
Alterations or adaptations of the washer-disinfector, e.g. accessories
used or on-site conditions require additional specific knowledge of
the washer-disinfector.
Validation processes assume specialised knowledge about machine
reprocessing of medical devices, the processes involved and applic-
able standards and legislation.
Administrative processes and settings are allocated to the Further
settings menu. This is protected from unauthorised access by a code.

Guide to the machine
11
Machine overview
aComfort door locking mechanism
bModule slot for a communication module
(back, top right)
cTest point for validation
(top, front right; only visible with lid re-
moved)
dUpper machine spray arm
eRails for baskets and mobile units
fLower machine spray arm
gData plate
hRinsing agent container
iDishwasher salt container
jFilter combination
kPlinth cover
lOn the back:
– Second data plate
– Electrical and water connections
– Siphon(s) for external containers
mWater connections for mobile units and
baskets

Guide to the machine
12
Control panel
abutton (on/off)
For switching the machine on and off.
b,andbuttons
Programme selection buttons.
The button assignment can be configured.
cProgramme list button
For accessing the list of all additional programmes.
dDisplay
User interface and programme sequence display.
eandarrow buttons
For navigating in the user interface.
fCancel button
For cancelling a process in the user interface.
No programme interruption.
gSettings button
For accessing the system settings menu.
hStart/Stop button
For starting or cancelling a programme.
iDoor release button
For opening the door before or after a programme sequence.
jbutton (drying assistance)
For switching drying assistance on and off.
kOK button
For selecting or confirming entries in the user interface
(acknowledge or save).
lService interface
Testing and transmission point for the Customer Service Depart-
ment.

Guide to the machine
13
LEDs in buttons
The buttons on the control panel have LEDs (Light Emitting Diodes). They indicate the
status of the machine.
Button LED Status
 Button ON The machine is switched on.
FLASHES The machine is ready for use.
OFF The machine is switched off.
Programme se-
lection buttons
,  and

ON The respective programme has been selected. At the
end of the programme the LED will remain lit until a
different programme is selected.
OFF The programme is not selected or the programme
settings are being selected.
 Button ON A programme has been selected from the pro-
gramme list. At the end of the programme the LED
will remain lit until a different programme is selected.
OFF No programme has been selected from the list or the
programme settings are being changed.
 Button ON The additional “Drying assistance” function has been
activated for the selected programme (not available
for all programmes; see “Programme overview”).
OFF The additional “Drying assistance” function has been
deactivated.
Start/Stop
button
ON Programme running.
FLASHES
GREEN
A programme has been selected but not yet started.
FLASHES RED A fault has occurred (see “Problem solving guide”).
OFF A programme has finished.
 Button ON The door is closed (locked) and there is no pro-
gramme running.
FLASHES A programme has finished and the door is closed
(locked).
OFF A programme is running or the door is open (un-
locked).

Warning and Safety instructions
14
This machine complies with all statutory safety requirements. Inap-
propriate use can, however, lead to personal injury and material
damage.
Read these instructions carefully before using it for the first time to
avoid the risk of accidents and damage to the machine.
Keep these instructions in a safe place where they are accessible
to users at all times.
Correct application
 Use of the machine is only permitted for the applications expressly
approved in the operating instructions. Alterations or conversion of
the machine, or using it for purposes other than those for which it
was intended, are not permitted and could be dangerous.
The cleaning and disinfection processes are only designed for med-
ical devices which are designated reprocessable by the manufacturer.
Instructions issued by load and instrument manufacturers must be
heeded.
 This machine is intended for indoor use only.
Risk of injury
Please pay attention to the following notes to avoid injury
 The machine may only be commissioned, repaired and maintained
by the W&H Customer Service Department or a service technician
authorised by the manufacturer of the machine. A W&H service con-
tract is recommended to ensure full compliance with medical device
regulations (such as the German Medical Device Ordinance). Incor-
rect repairs can cause considerable danger to users.
 Do not install the machine in an area where there is any risk of ex-
plosion or of freezing conditions.
 In order to reduce the risk of water damage, the area around the
machine should be limited to furniture and fittings that are designed
for use in commercial environments.
 Some metal parts pose a risk of injury/being cut. Wear cut-resist-
ant protective gloves when transporting and setting up the machine.
 If the machine is built under, it must only be installed under a con-
tinuous worktop run which is firmly secured to adjacent units to im-
prove stability.
 The electrical safety of the machine can only be guaranteed when
it is correctly earthed. It is essential that this standard safety require-
ment is observed and regularly tested. If in any doubt, please have
the electrical installation inspected by a qualified electrician. W&H or
the manufacturer cannot be held liable for the consequences of an in-
adequate earthing system (e.g. electric shock).

Warning and Safety instructions
15
 A damaged or leaking machine can pose a threat to your safety.
Always switch off a damaged or leaking machine immediately and
call the W&H Customer Service Department.
 Personnel operating the machine should be trained regularly. Un-
trained personnel must not be allowed access to the machine or its
controls.
 Only use chemical agents which have been approved by their
manufacturer for use in the application you are using. The chemical
agent manufacturer is responsible for any negative influences on the
material the load is made from and for any damage they may cause
to the machine.
 Take care when handling chemical agents. These may contain irrit-
ant, corrosive or toxic ingredients.
Please observe the chemical agent manufacturer's safety instructions
and safety data sheets.
Wear protective gloves and goggles.
 The machine is designed for operation with water and recommen-
ded additive chemical agents only. Organic solvents and flammable
liquid agents must not be used in it.
This could cause an explosion, damage rubber or plastic components
in the machine and cause liquids to leak out of it.
 The water in the cabinet must not be used as drinking water.
 Do not lift the machine by protruding parts such as the control
panel or the opened service flap as these could be damaged or torn
off.
 Do not sit or lean on the opened door. This could cause the ma-
chine to tip up and be damaged or cause an injury.
 Be careful when sorting items with sharp, pointed ends. Position
them in the machine so that you will not hurt yourself or create a
danger for others.
 Broken glass can result in serious injury when loading or unload-
ing. Broken glass items must not be processed in the machine.
 When operating the washer-disinfector, bear in mind the possibility
of high temperatures. If the door is opened bypassing the safety lock,
there is a danger of burning, scalding and chemical burns.
 Should personnel accidentally come into contact with toxic va-
pours or chemical agents, follow the emergency instructions given in
the manufacturer's safety data sheets.
 Mobile units, baskets, modules, inserts and the load must be al-
lowed to cool down before they are unloaded. Any water remaining in
containers could still be very hot. Empty them into the wash cabinet
before taking them out.

Warning and Safety instructions
16
 Never clean the machine or near vicinity with a water hose or a
pressure washer.
 The machine must be disconnected from the mains electricity sup-
ply before any maintenance or repair work is carried out.
Quality assurance
The following points should be observed to assist in maintaining
quality standards when processing medical devices, in order to
protect patients, and to avoid damage to the loads being
cleaned.
 If it is necessary to interrupt a programme in exceptional circum-
stances, this may only be done by authorised personnel.
 The standard of cleaning and disinfection in the disinfection pro-
grammes must be routinely confirmed by the user. The process must
be thermo-electrically validated on a regular basis, and checked
against documented control results.
 For thermal disinfection, use temperatures and temperature holding
times to achieve the required infection prophylaxis in accordance with
current health and safety regulations.
 Make sure items being washed are suitable for machine repro-
cessing and are in good condition. Plastic items must be thermally
stable. Nickel plated items and aluminium items can be machine pro-
cessed using special procedures only.
Items containing iron, and soiling containing residual rust must not be
placed in the cabinet.
 Under certain circumstances, process chemicals may damage the
machine. Users are urged to follow the recommendations issued by
manufacturers of process chemicals.
Contact the W&H Customer Service Department in the event of dam-
age and any suspicion of material incompatibility.
 Instrument care products based on paraffin oils (white oils) can
damage the elastomers and plastic in the machine. Such care
products must not be dispensed as chemical agents in this machine
even if they are recommended for machine use by the care product
manufacturer.
 Abrasive substances must not be placed in the machine as they
could cause damage to the mechanical components of the water
supply. Any residues of abrasive substances on items to be washed
must be removed without trace before reprocessing in the machine.
 Pre-treatments with cleaning or disinfecting agents can create
foam, as can certain types of soiling and chemical agents. Foam can
have an adverse effect on the disinfection and cleaning result.
 Processes must be set up such that foam cannot escape from the
wash cabinet. It would hinder the correct functioning of the machine.

Warning and Safety instructions
17
 The process used must be monitored on a regular basis by the su-
pervisor to check foaming levels.
 To avoid the risk of damage to the machine and any accessories
used with it caused by chemical agents, soiling and any reaction
between the two please read the notes in “Chemical processes and
technology”.
 Even when a process chemical, e.g. cleaning agent, is recommen-
ded, W&H or the manufacturer takes no responsibility for the effect of
such chemicals on the load items.
Please note that changes in product formulation, storage conditions,
etc. which are not announced by manufacturers of process chemicals
may impair the quality of cleaning results.
 When using process chemicals, always consult the instructions is-
sued by individual manufacturers. Process chemicals must only be
used for the purpose they are designed for by the manufacturer to
avoid any material damage or the occurrence of very strong chemical
reactions (e.g. oxyhydrogen explosion).
 Always follow the relevant manufacturer's instructions on storage
and disposal of chemical agents.
 Particles ≥0.8mm are removed by the filters in the wash cabinet.
Smaller particles may find their way into the circulation system. For
this reason, processing of loads with narrow openings requires addi-
tional filtering of the wash water.
 In critical applications where very stringent requirements have to
be met, it is strongly recommended that all the relevant factors for the
process, such as cleaning agents, water quality, etc., are discussed
with W&H.
 The mobile units, baskets, modules and inserts that hold the load
must be used only as intended.
Hollow items must be thoroughly cleaned, internally and externally.
 Secure small and light items with cover nets or place in a mesh
tray for small items, so that they do not block the spray arms.
 Empty any containers or utensils before loading them.
 The amount of residual solvents and acids on items going into the
cabinet should be minimal.
There should be no more than a trace of any solvents with a flash
point of below 21°C.
 Chlorous solutions, in particular hydrochloric acid, must not be
placed in the cabinet.
 Ensure that solutions or steam containing chlorides or hydrochloric
acid do not come into contact with the stainless steel outer casing of
the machine in order to avoid any damage through corrosion.

Warning and Safety instructions
18
 After any plumbing work the water pipework to the machine will
need to be vented. If this is not done, components can be damaged.
 The gaps between a built-in machine and adjacent cabinetry must
not be filled e.g. with silicone sealant as this could compromise the
ventilation to the circulation pump.
 Follow the installation instructions in the operating and installation
instructions.

Warning and Safety instructions
19
Using accessories
 Only use original spare parts and accessories from the manufac-
turer, which are suitable for the application they are required for.
Model designations are available from W&H.
 Only use mobile units, baskets, modules and inserts from the ma-
chine manufacturer. Using mobile units, baskets and inserts made by
other manufacturers or making modifications to original accessories
can result in an unsatisfactory cleaning and disinfection result. Any
resultant damage would not be covered by the warranty.
Symbols on the machine
Warning:
Observe the operating instructions!
Warning:
Danger of electric shock!
Warning: Hot surfaces:
It can be very hot inside the wash cabinet
when the door is opened!
Risk of being cut:
Wear cut-resistant protective gloves when
transporting and setting up the machine!
Disposing of your old machine
 Please note that the machine may contain contamination from
blood and other bodily fluids, pathogens and facultative pathogens,
and must be decontaminated before disposal.
For environmental and safety reasons, dispose of all process chem-
ical residues in accordance with safety regulations (wear safety
goggles and gloves).
Remove or disable the door lock prior to disposal of the machine, so
that children cannot become trapped inside. Then make appropriate
arrangements for safe disposal of the machine.

Using the machine
20
Control panel
The washer-disinfector is operated exclusively by the buttons located
on the stainless steel surfaces either side of the display. The display
is not a touch screen.
A light touch on the relevant button is sufficient to operate the func-
tions. The buttons can also be pressed and held for approx. 20
seconds.
Display illustrations
All display illustrations shown in these operating instructions are ex-
amples which may differ from the actual display screens shown on
the machine.
Vario TD Dental
Temperature
Duration Min50
55 °C
The control buttons are shown next to the display. The ,  and
Start/Stop buttons are not shown.
