The Watts Radiant Staple Gun is a pneumatic (air-pow-
ered) tool. To operate correctly, the staple gun requires an
air compressor capable of delivering 100 psi. Each tool is
designed and sold only for the purpose of installing Watts
Radiant’s Onix, RadiantPEX, or WaterPEX radiant tubing, and
must not be used for any other purpose.
If you experience more than one or two punctures, then
either the gun or your installation procedures may be faulty.
Please call Watts Radiant for assistance before proceeding.
Watts Radiant recommends replacing radiant tubing that
has been punctured. However, if you choose to repair the
puncture, always use a Watts Radiant repair kit. This kit has
been carefully selected to give you a trouble-free splice joint
if used as directed. Refer to the appropriate Watts Radiant
manuals and guidelines for technical assistance to this pro-
cedure. Watts Radiant cannot warrantee field splices, as the
installation is not under our supervision. This kit has been
carefully selected to give you a trouble-free splice joint if
used as directed.
Note: Please refer to Watts Radiant’s product warranties.
GENERAL CAUTIONS
Do not operate this tool before reading the following
cautions and instructions on the front and back of this
Guideline. Misuse of this tool can cause serious injury or
death. If you are unclear about its proper use, please call
your supplier or call Watts Radiant at 800-276-2419 for
further instructions before using. Return this tool directly to
your supplier if it appears to be in need of repairs.
1. This tool may fire when you first connect or dis-
connect the air hose. Be sure that the tool is unloaded or
pointed in a safe direction before connecting/disconnecting
an air hose to it.
2. Remember that any pneumatic staple gun is exactly
that — a gun. It shoots staples at a velocity sufficient to kill
or permanently injure you or anyone else within range. Never
point this tool at anything except a piece of tubing you want
to permanently fasten down. Never squeeze the trigger when
your finger, hand, or any part of your body is in front of or
close to the firing head.
3. Always wear safety glasses with side shields while
operating this tool. Other workers or visitors to the jobsite
must wear adequate eye protection if they are within range
of the tool. There is always a possibility that a staple may
ricochet off a nail or knot in the subfloor and injure you or
a bystander.
The staples are capable of ricocheting off any wood sur-
face unless the gun is correctly positioned over the tubing.
Do not attempt to staple into knots, even if you must
extend the staple spacing. Never attempt to staple into
concrete, metal, or any nonwooden surface.
4. Use the correct staple gun and quality Watts Radiant
staples to prevent tool jamming and tubing punctures.
Watts Radiant uses a specially-modified Senco gun for
stapling Onix, RadiantPEX, and WaterPEX. Guns are clearly
labeled as are all boxes of Watts Radiant staples. Use of the
non-Watts Radiant staples can cause accidental punctures
during the installation. Please call Watts Radiant or your
distributor, if you are not sure how to proceed.
Occasionally a staple will misfire and puncture the tubing
when the staple clip is down to the last 5 to 10 staples.
Always check to see if the clip is getting low, and insert a new
clip to avoid this potential problem.
5. Before beginning the installation, please refer to
the plans supplied by Watts Radiant or its representatives
with all associated design information. We recommend you
read all appropriate Watts Radiant Installation Manuals and
Guidelines before beginning.
3131 W. Chestnut Expwy.
Springfield, MO 65802
417-864-6108
Fax: [phone]
USA and Canada: 800-276-2419
Web: www.wattsradiant.com

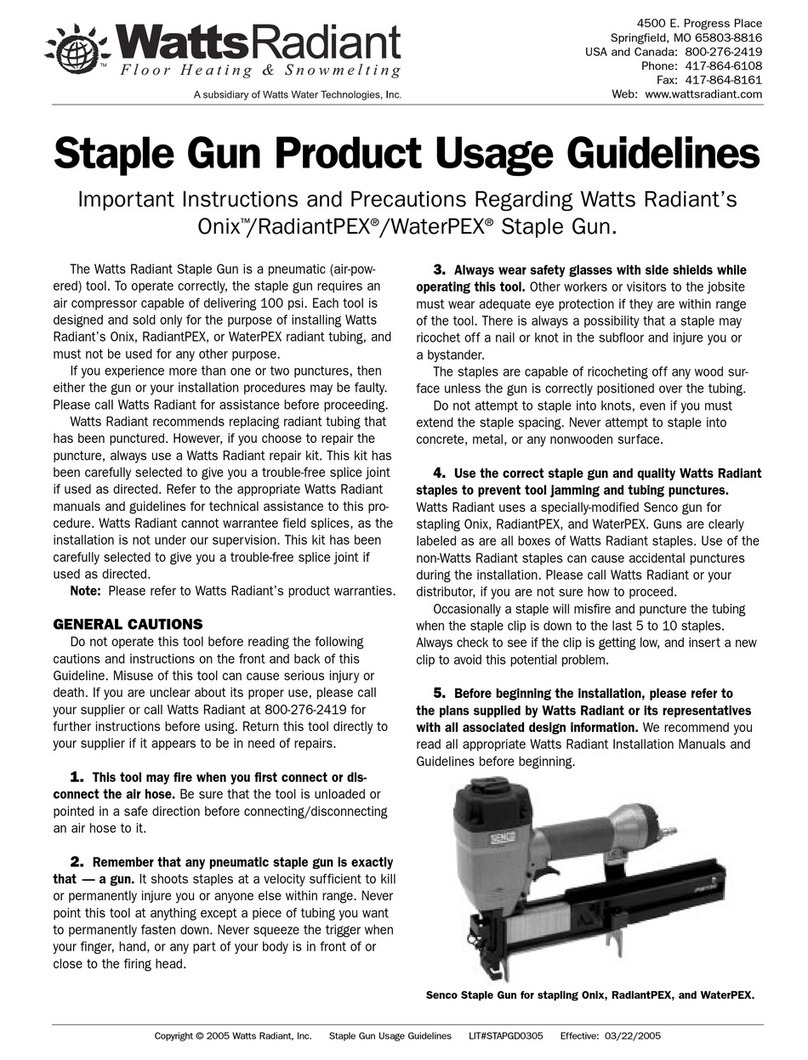

Staple Gun Product Usage Guidelines
Important Instructions and Precautions Regarding Watts Radiant’s
Onix™
/RadiantPEX™ /WaterPEX™Staple Gun.
Senco Staple Gun
for stapling Onix,
RadiantPEX, and
WaterPEX.
© Watts Radiant 2003 Staple Gun Usage Guidelines LIT#STAPGD0103 Effective: 01/01/2003

© Watts Radiant 2003 Staple Gun Usage Guidelines LIT#STAPGD0103 Effective: 01/01/2003
USING THE PEX STAPLE GUN
The PEX staple gun is a Senco staple gun, specially
modified by Watts Radiant both internally and externally for
use with Watts Radiant’s RadiantPEX and WaterPEX. This
staple gun is fitted with a stainless steel guide plate that is
attached to front of the gun. It is designed for 3/8" and
1/2" PEX, part #P668522.
PEX Staple Intervals: The PEX staple gun should only
be used for thin-slab applications and not “staple-up” or
“sandwich” applications. For thin-slab applications, staples
should be placed every 12" to 15" along the length of the
tubing. Stapling the PEX at wider intervals can result in the
tubing being too close to the surface of the thin slab. (Watts
Radiant recommends a minimum 3/4" between the top of
the tubing and the surface of the concrete.)
PEX CAUTIONS:
1. Examine each circuit after it has been stapled in
place. The PEX staple gun is designed to leave a 1/8" gap
between the top of the tubing and the staple. This is to make
sure that the tubing is not fractured by the impact of the sta-
ple and to assure that no abrasion is possible between the
staple and the tubing. If the staple is closer than 1/16" of
the tubing, then it should be removed and replaced with a
new staple. Please see the illustration for tolerances.
2. As with any floor heating application, do not install
PEX over floors with asphalt paper “slip joint” in the flooring,
as an unpleasant odor may result. Rosin paper (pink colored)
is generally acceptable.
Note: For best performance, pneumatic oil (5-weight,
nondetergent machine oil) should be installed once daily
into the air inlet of the staple gun.
USING THE ONIX STAPLE GUN
The Onix staple gun is a Senco staple gun, specially
modified by Watts Radiant both internally and externally. The
Onix staple gun is fitted with a stainless steel guide plate
that is attached to the front of the gun. When stapling 3/8"
Onix, make sure that the gun is fitted with a 3/8" Onix guide
plate (#668521); when stapling 1/2" Onix, make sure that
the gun is fitted with a 1/2" Onix guide plate (#668522).
When stapling Onix, position the guide plate over the Onix
while simultaneously pushing it down far enough to engage
the safety on the tool. When you feel the guide plate hit the
plywood, and you can see that the safety is engaged, pull the
trigger and fire the staple. Before pulling the trigger, make
sure that the tail end of the tool is also centered over the
Onix. If the tail of the tool is not centered, some of the
staples may puncture the Onix.
Onix Staple Intervals: You must use one staple every
6" when the Onix is installed under a wood frame floor. This
ensures good thermal contact between the Onix and the
floor, which is essential for the Onix to deliver its specified
heat output. Spacing the staples too far apart can cause as
much as a 20% loss of peak heat output. For initial Onix
placement, or where there is insufficient clearance for the
gun to be used, we suggest the use of Watts Radiant
NailTites to hold the Onix in place. Although not essential, it
can be very helpful for an assistant to hold the Onix in place
while the installer is stapling. This assistant must wear all
appropriate safety equipment. When stapling Onix on top of a
floor, in preparation for installing an elevated thin slab, you
may increase the staple intervals to 12" or 18". Always
maintain the Onix spacing as indicated on the plans or in
associated design information.
ONIX CAUTIONS
1. Examine each Onix circuit after it has been stapled in
place. If you see that the Onix has been partially compressed
by a staple, you must remove that staple and put in a new
one. The staple can acceptably deform the Onix slightly,
1/16" or less, without causing any difficulties. See the illus-
tration for deformation tolerances when stapling hose.
2. Do not install Onix under floors containing an asphalt
paper “slip joint” between the subfloor and finish floor, as an
unpleasant smell may result. Rosin paper (pink colored) is
generally acceptable.
Note: For best performance, 3 or 4 drops of pneumatic
oil (5-weight, nondetergent machine oil) should be installed
once daily into the air inlet of the staple gun. (More oil drops
may be used if the gun sees continuous heavy service, i.e.,
more than 3–4 hours at a time.)
Acceptable
Deformation Unacceptable Deformation
1/8"gap;
correct
spacing
incorrect
spacing —
tight
Unacceptable
Acceptable
