Wesco CTP 29 User manual

D - 22391 Hamburg •Tel.: + 49 40 60009468-0 •Fax: + 49 40 536 75 01
• Equipment Imp.-Exp. GmbH •Zitterpappelweg 9
E-Mail: [e-mail] •www.wesco-navy.com
Manual / Handbuch
Spare parts list / Ersatzteilliste
Equipment Imp.-Exp. GmbH
ZITTERPAPPELWEG 9
D - 22391 HAMBURG
Tel.: + 49 40 60009468-0
Fax: + 49 40 536 75 01
E-Mail: [e-mail]
w w w. w e s c o - n av y. c o m
Deutsche Bank AG, Hamburg
Acc. No. 51 42 070
Bank Code 200 700 24
Swift code: DEUTDEDBHAM
IBAN No.: DE 10 2007 0024 0514 2070 00
VAT No: DE 118695141
Amtsger. Hbg. HRB 45 699
Steuerno.: 09/860/04785
Manager:
Christopher S. Wessel
Alexander O. Wessel

Gebrauchsanweisung
Kühl-Gefrierkombination
7081 869-03
CTP/CTPesf 29../32.. 4210
Mode d’emploi
combinés réfrigérateur-congélateur
Gebruiksaanwijzing
koel-vriescombinatie
Istruzione d’uso
combinazione frigo-congelatore
Manual de utilização
Combinado frigorífico-congelador
Instrucciones de manejo
combinación de frigorífico-congelador
D
GB
NL
F
P
I
E
TR
Kullaným Kýlavuzu
Soðutucu-Dondurucu-Kombinasyonu
Operating instructions
combined refrigerator-freezer
Οδηγίες Χρήσης
Ψυγειοκαταψύκτης GR

8
Dimensions
CTP 29.. A = 1550 mm
CTP 32.. A = 1690 mm
Contents Page
Saving energy, Setting up, Connecting to the mains,
Switching the appliance on and off
Setting the temperature,Changing shelf arrangement,
Interior light .................................................................................9
Cooling, Freezing ..................................................................... 10
Notes on freezing and storage, Defrosting, cleaning................11
Malfunctions, Shutting your appliance down
Installing appliance in a row of kitchen units ............................ 12
Changing over door hinges ...................................................... 13
Butter stop
Adjustable shelves
Adjustable door racks
Rating plate
Vegetable bins
Freezer compartment
storage shelf
Adjustable feet
Safety instructions and warnings
• To prevent injury or damage to the unit, the appliance should
be unpacked and set up by two people.
• In the event that the appliance is damaged, contact the sup-
plier immediately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set
up and connected as described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs.
Pull out the plug, switch off or remove the fuse.
•
When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried
out by the customer service department, as unauthorised work
could prove highly dangerous for the user. The same applies to
changing the mains power cable.
• Do not allow naked flames or ignition sources to enter the
appliance. When transporting and cleaning the appliance en-
sure that the refrigerant circuit is not damaged. In the event of
damage, make sure that there are no ignition sources nearby
and keep the room well ventilated.
• Do not stand on the plinth, drawers or doors or use them to
support anything else.
• Do not let children play with the appliance, e.g. do not allow
them to sit in the drawers or swing on the door. This appliance
is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge unless they have been given initial
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be super-
vised to ensure that they do not play with the appliance.
• Avoid prolonged skin contact with cold surfaces or chilled/
frozen food. This could cause pain, numbness and frostbite.
Protect against long-term contact with the skin, e.g. wear gloves.
• Do not eat ice cream, particularly ice lollies or ice cubes, imme-
diately after taking them from the freezer compartment as there
is a risk of “burning” because of the very cold temperatures.
• Do not consume food which has been stored for too long, as it
could cause food poisoning.
•
The device is designed exclusively for the cooling foodstuffs. The
applicable statutory regulations are to be observed in the event
that the device is to be used for commercial cooling of foodstuffs.
The device is not suitable for the storage and cooling of drugs, blood
plasma, laboratory preparations or similar medicine-related materials
and products as detailed in the Medical Devices Directive 2007/47/
EC. Improper use of the device can cause the stored products sto-
red in it to be damaged or the items can be spoiled. In addition, the
device is not suitable for operation in explosion-prone areas.
• Do not store explosives or sprays using combustible propellants
such as butane, propane, pentane etc. in the appliance. Elec-
trical components might cause leaking gas to ignite. You can
identify such sprays by the printed contents or a flame symbol.
• Do not use electrical appliances inside the appliance.
•Special-purpose lamps (incandescent lamps, LEDs, fluores-
cent tubes) in the appliance serve to illuminate the appliance
interior and are not suited for room illumination.
The operating instructions apply to several models. Differences
may therefore occur.
Climate rating
The appliance is set to operatewithin specific ambient temperature
limits according to its climate rating. These temperature limits should
not be exceeded. The correct climate rating for your appliance is
indicated on the type plate.
Climate rating Ambient temperatures
SN + 10° to + 32 °C
N + 16° to + 32 °C
ST + 16° to + 38 °C
T + 16° to + 43 °C
Operating
Controls
Disposal notes
The packaging is made of recyclable materials.
- Corrugated board/board
- EPS moulded parts
- Polythene sheets
- Polypropylene straps
• Keep packaging materials away from children - polythene
sheets and bags can cause suffocation!
•
Please return the packaging to an official collection point.
Your old appliance: This contains some reusable
materials and should be disposed of properly - not
simply with unsorted household refuse.
• Discarded appliances should be disabled:
Remove the plug, cut through the connection
cable and render the catch unusable so that
children cannot become trapped inside.
• Ensure that the refrigerant circuit is not damaged
when the appliance that is no longer needed is taken away for
disposal.
• Details of the refrigerant can be found on the type plate.
• Appliances which are no longer needed must be disposed of
in a professional and appropriate way, in accordance with the
current local regulations and laws.
Description of appliance and equipment
Interior light
Defrost drain
Adjustable bottle and can
holder
Door rack for large bottles
* Depending on model and options
Bottle shelf *

9
Switching the appliance on and off
You are recommended to clean the appliance before switching it
on for the first time (see “Cleaning”).
Switching on, Fig. A1:
Insert plug. Using a coin, turn the temperature controller 1 to
a setting between “0” and “max” . The temperature display 3
shows the set interior temperature.
To switch the appliance off:
Pull out the mains plug or set the temperature control to “0”.
Setting the temperature
Turn the temperature control 1 to set the desired tem-
perature. The display of the set temperature in display 3
changes in accordance with the temperature setting 3.
When storing pre-frozen food in the freezer compartment, we
recommend a temperature setting of between 5 °C and 3 °C,
in order to achieve temperatures of -18°C or lower inside the
compartment.
Note:The temperature shown on the display is not the
current temperature inside the appliance but the set tem-
perature.
Interior light
Light-bulb specifications: 25 W (never use a bulb rated at
more than 25 W). The voltage should agree with the details
on the type plate. Socket: E 14.
Replacing the bulb:
Pull out the mains plug or remove/unscrew the fuse.
• Push the sides 1 of the lamp cover together according to
Fig. F1, unlatch and detach 2.
• Replace the light bulb according to Fig. F2. When inser-
ting the new bulb, make sure the seal is correctly positi-
oned in the socket.
• Attach the cover at the rear again and lock into place on
sides.
Setting up
• The floor on which the appliance stands should be horizontal
and level. To compensate for any unevenness, adjust the
height of the feet with the open-ended wrench supplied.
• Always position the appliance directly up against the wall.
• The ventilation grilles should not be obstructed.
•Condensation may form on the outside of the refrigerator/
freezer during periods of high humidity.
Constant ventilation of the installation site is recommend.
• Do not place heat-emitting appliances, e.g. microwave oven,
toaster, etc., on top of the appliance.
• In order to avoid the risk of fire, do not place any burning candles,
lamps or other objects with open flames on the refrigerator/freezer.
• Standard EN 378 specifies that the room in which you install
your appliance must have a volume of 1 m3 per 8g of R
600a refrigerant used in the appliance, so as to avoid the
formation of inflammable gas/air mixtures in the room where
the appliance is located in the event of a leak in the refrigerant
circuit. The quantity of refrigerant used in your appliance is
indicated on the type plate on the inside of the appliance.
• Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
- The appliance is designed for use in enclosed areas. Do not
operate the appliance outdoors or in areas where it is exposed
to splash water or damp conditions.
• CAUTION! Risk of injury and danger of damage as a result of
incorrect transport!
- Transport the appliance in a packed condition.
- Transport the appliance upright.
- Do not transport the appliance without assistance.
• The appliance may be moved only when it is empty.
Connecting to the mains
Power supply (AC) and voltage at the operating point must com-
ply with the details on the rating plate. The type plate is located
in the refrigerator compartment on the left-hand side. The socket
must be fused with a 10 A fuse or higher, it must be away from
the rear of the appliance and must be easily accessible.
•Do not connect the appliance to the supply with other equip-
ment using a distribution outlet - risk of overheating.
•Connect the appliance with a properly earthed fused plug
and socket only.
Changing shelf
arrangement
The shelves, Fig. A3, can be adjusted
according to the height of frozen food;
to do this, lift the shelf fowards, pull
out half way and move down (or up).
Always insert trays with stop bar/raised
edge at the back upwards, otherwise
food may freeze onto the rear wall.
Remover door racks, Fig. A2
Lift the racks vertically upwards,
remove from the front and reinsert at
another height in the reverse order.
By pushing the bottle holder, Fig.
A2, you can secure bottles against
tipping over when opening and closing
the door.The holder can be removed
for cleaning:
- fig. A2: The holder slides and
releases left or right along the door
stops.
Fig. A4. If you need space for large bottles and containers,
then simply push half of glass shelf 1 back. For cleaning
the holder 2 can be used to remove the half glass shel-
ves.
Dimensions
CTP 29.. A = 1550 mm
CTP 32.. A = 1690 mm
Saving energy
- Always ensure good ventilation. Do not cover ventilation open-
ings or grille.
- Always keep fan louvres clear.
- Do not place appliance in areas of direct sunlight or next to a
stove, heater or similar object.
- The energy consumption depends on the installation condi-
tions, e.g. the ambient temperature.
- Keep the time the appliance is open to a minimum.
- Store food logically.
- Ensure that all food is well packed and covered for storage.
This will prevent frost from forming.
- First cool warm food to room temperature before storing it.
- Defrost frozen food in the refrigerator.
- If there is a thick layer of frost in the ap-
pliance: defrost the appliance.
Accumulated dust increases the energy
consumption:
- Once a year, dust the refrigerating unit
together with the metal grille of the heat
exchanger at the back of the appliance.

10
Freezing
The maximum amount of food wich can be frozen in 24 hours is
shown on the type plate “Freezing capacity” 4. This amount
varies according to the model and climate rating. This maximum
quantity of frozen goods varies depending on model and
climate class.
Freezing
• Press the Superfrost button 2. The
Superfrost lamp comes on.
• Wait 24 hours.
• Place the fresh food in the freezer.
• The Superfrost facility automatically
switches the fast freezing procedure
off after 65 hours.
You should not switch on the
Superfrost function:
- when placing frozen food in the freezer;
- when freezing up to approx. 1 kg fresh food daily.
Making ice cubes
• Fill the ice-cube tray three-quarters
full with water and freeze.
• The ice cubes can be removed from
the tray by twisting or by holding
upside down for a short time under
running water.
Cooling
Example of arrangement
!
Butter, Cheese
"
Eggs
§ Bottles, Cans, Tubes
$ Frozen Food, Ice Cubes
% Meat, Sausages, Dairy
Products
& Baked Goods, Pre-Cooked
Meals, Drinks
/ Fruit, Vegetables, Salad,
Note
• Only store high-percentage
alcohol in tightly sealed,
upright containers.
• Fruit, vegetables and salad
can be stored unpacked in
the bins.
• Reuseable plastic, metal,
aluminium and glass contai-
ners can be used for packaging.
Refrigerating with fan
(depending on model and options)
This achieves a relatively even temperature distribution over at
all storage levels; all foods are equally cool, at an adjustable
temperature. Due to the enforced air circulation, the various
temperature ranges of normal operation are raised.
It is generally recommended:
- with high room temperature (above approx. 30 °C),
- with high humidity, e.g. on summer days.
Switching on and off, Fig. A1: Turn on fan switch 4.
The indicator lamp in the switch will light up.
Note: the fan may also run when the fan function is switched off. This
is a functional feature and completely normal if the room temperature
is below 18°C when the SuperFrost function is switched on.
Note
- Place food inside the appliance as shown in the diagram. This
allows the appliance to save energy during operation.
- Shelves, drawers and baskets are arranged for optimum en-
ergy efficiency on delivery.

11
Notes on freezing and storage
• As a guideline for the storage time, the following applies to various
foodstuffs in the freezer compartment:
Ice cream 2 to 6 months
Sausage, ham 2 to 6 months
Bread, cakes and pastries 2 to 6 months
Game, pork 6 to 10 months
Fish, oily 2 to 6 months
Fish, lean 6 to 12 months
Cheese 2 to 6 months
Poultry, beef 6 to 12 months
Vegetables, fruit 6 to 12 months
• Pack food which you are freezing yourself in quantities appro-
priate to your household. To ensure that the food freezes right
through, the following quantities should not be exeeded per
package:
Fruit and vegetables up to 1 kg, meat up to 2.5 kg.
• Blanch vegetales after washing and cutting them (Add to boi-
ling water for 2-3 minutes, remove and quickly cool down in
cold water).
• Do not salt or season fresh food or blanched vegetables
before freezing. Only lightly salt and season other food. The
intensity of flavour of some spices can change.
• Pack frozen food in standard freezer bags or reuseable pla-
stic, metal or aluminium containers.
• Do not allow fresh food which is to be frozen to come into con-
tact with food already frozen. Always keep packs dry in order
to avoid them sticking together.
• Always write the date and contents on the pack and do not
exeed the stated storage time for the food.
• Do not freeze bottles and cans which contain carbonated
drinks as they might burst.
• Only take out as much food as is immediately required for tha-
wing. Use food which has been thawed in prepared meals as
quickly as possible.
Frozen food can be thawed in the following ways:
– in a fan oven
– in a microwave oven
– at room temperature
– in the refrigerator; the cold given off by the frozen food is used
for cooling the food.
Solid cuts of meat and fish can be cooked when partly thawed.
Vegetables can be cooked from frozen (in half the normal time).
Defrosting
Refrigerator compartment
The refrigerator compartment de-
frosts automatically. The water that
forms on the rear wall drains into a
reservoir at the back of the appli-
ance and evaporates automatically
through the compressor heat. The
defrost water is then evaporated
by the compressor heat. Ensure that the water can flow
without hindrance through the hole above the vegetable
bins (see “Cleaning”).
Freezer compartment
• Switch the appliance off to defrost.
Pull out the mains plug or set the temperature control to
“0”.
• Wrap the frozen food in paper or blankets and store in a
cool place.
• To speed up the defrosting process put a saucepan of hot
but not boiling water on one of the cooling elements.
• Leave the door of the appliance open while defrosting.
After defrosting mop up the remaining water and clean the
appliance.
Do not use any mechanical devices or other artificial
aids for de-frosting other than those recommended by
the manufacturer.
Cleaning
• Before cleaning, always switch off the appliance. Discon-
nect from the mains or un-screw or switch off the fuse.
•Wash shelves, glass plates and other options by hand.
• Clean the outer walls, inside and appliance by hand with lu-
kewarm water and a little detergent. Because of the risk of
injury and damage to the appliance, steam cleaning equipment
should not be used.
• Never use abrasive or scouring sponges. Do not use concentra-
ted cleaning agents and never use abrasive or acid cleaners or
chemical solvents.
• We recommend using a soft cloth and an all-purpose cleaner
with a neutral pH value. Only use food safe cleaning materials
inside the appliance.
•For stainless-steel appliances*:
- Clean the side panels and door surfaces with a clean and soft
cloth. If necessary, use a moist cloth (water + detergent). Alter-
natively, use a micro-fibre cloth.
• Ensure that no cleaning water penetrates into the electrical
components, drain gulley* or ventilation grilles. Wipe the app-
liance dry.
• Do not damage or remove the type plate on the inside of the
appliance. It is very important for servicing purposes.
• Clean the drain hole on the rear wall above the vegetable bins
often Fig. A, arrow.
If necessary, clean with a thin object, e.g. a cotton swab or
similar.
• Ensure that none of the wires or other components are dis-
lodged, bent or damaged.
• Then connect/switch on the appliance.
If the appliance is to be left switched off for any length of time,
empty the appliance, disconnect from the mains, clean as de-
scribed above and leave the door open so as to avoid odours.
* Depending on model and options

12
Installing appliance in a row of kitchen units
To adapt the height of the appliance to the surrounding furniture
a top unit ! can be added. A gap of at least 50 mm depth must
be provided behind and
along the entire width of
this unit so as to ensure
sufficient ventilation. The
area of ventilation under-
neath the ceiling should
be at least 300 cm2.
When setting up the
appliance next to a wall
$, a distance of approx.
50 mm must be provided
on the hinge side between
the appliance and the wall
(forthe handlewhen the
door is open).
!Top Unit
"Refrigerator-Freezer
§Kitchen Unit Side Pa nel
$ Wall
Malfunctions
Your appliance is designed and manufactured for a lengthy,
reliable operating life with no malfunctions. If a malfunction
nonetheless occurs during operation, check whether it is due to
an operating error. Please note that even during the warranty
period the resultant servicing costs in this case will have to be
borne by the owner.
You can eliminate the following faults yourself by checking
the possible causes:
Appliance does not function,
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the socket fuse intact?
Loud running noise, check whether, check whether
– Is the appliance set up firmly on the floor?
– Does the appliance cause nearby items of furniture or objects
to vibrate? Please note that noises caused by the refrigerant
circuit cannot be avoided.
The temperature is not low enough, check
–
Is the temperature setting correct (see “Setting the temperature”)?
– Have excessive amounts of fresh food been placed in the ap-
pliance?
– Does the separately installed thermometer show the correct
reading?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes applies and you cannot eliminate
the fault yourself, please
contact your nearest after-
sales service point. Please
state the
appliance designation !,
service number ",
appliance number §
of the rating plate (see fig.)
The type plate is located in
the refrigerator compartment
on the left-hand side.
Shutting your appliance down
If your appliance is to be shut down for any length of time:
switch it off and disconnect the plug or remove the fuse. Clean
the appliance and leave the door open in order to prevent
unpleasant smells.
The refrigerant circuit has been tested for leaks.
The appliance complies with current safety regulations and
EC directives 2006/95/EC and 2004/108/EC.
All types and models are subject to continuous improvement
and the manufacturer therefore reserves the right to make
modifications in the shape, equipment and technology.

13
Changing over door hinges
Fig. T: You can change over the door hinges if necessary. Follow the order of the positions illustrated in fig. T/T1.
7
4
4
1
8
1
8
4
6
5

Pos Sachnr. Anzahl Beschreibung Preis
0 4098 86 2 ADJUSTING SCREW 0.80
30 7422832 2 ROLLERS 0.98
40 7 3 42 2 BOLT 0.38
50 6 375 OPERATING UNIT BOARD 7.60
60 7424 37 VARIOUS INJECTION-MOULDED ITEMS 0.80
70 6942806 AIR SENSOR FOR FREEZER COMPARTMENT 4.50
80 7428682 SENSOR RETAINING FIXTURE 0.38
85 7428674 COVER 0.38
90 4098 62 PT SCREW 0.28
00 7426878 VARIOUS INJECTION-MOULDED ITEMS 7.60
0 6072038 LAMPHOLDER 2.70
20 972 008 REFLECTOR 0.38
30 6070024 INCANDESCENT BULB 2.70
40 7428676 COVER 0.80
50 4098 2 2 PT SCREW 0.22
60 7428678 COVER 6.20
70 7428554 HOUS. AUDIBLE WARNING SIGNAL/FAN SWITCH 6.20
80 7428556 VARIOUS HOUSINGS 4.20
90 7266 6 SLEEVE 2.70
200 62990 4 FAN BLADE 2.70
2 0 6 8060 COMPACT FAN 9.50
220 7266079 2 BUFFER 0.80
230 6023025 PLUG-IN DISTRIBUTOR 0.80
240 4098 2 2 PT SCREW 0.22
250 74274 4 WALL CONNECTION STRIP 4.20
260 6 9 66 COMPRESSOR R 600 a 64.00
270 6944697 ELECTRICAL CONNECTION 23.90
290 6342026 CAPACITOR .50
300 7266 20 4 SPECIAL SECURING HARDWARE 0.60
3 0 7422234 2 VARIOUS RETAINING FIXTURES 0.28
320 7422236 2 VARIOUS RETAINING FIXTURES 0.22
340 6009909 SUPPLY LINE 9.50
350 770000 PIPE .30
360 594 824 CONDENSER FIN
370 5942036 DRYER .50
380 7266036 2 SLEEVE 0. 8
390 4098086 4 DRILLING SELF-TAPPING SCREW 0. 8
Seite
2
von
6
Liebherr
10.02.2011
http://interparts.lex
-
com.net/interparts
-
liebherr
-
hg/deploy_201011031548/server?com
...

400 7424777 EVAPORATOR TRAYS 4.20
4 0 7 2820 GRID SHELF 7.60
420 9293880 3 GLASS PLATE, ASSY., WITH RETAINING STRIP 29.90
425 7640644 3 TRIM STRIP PROFILE 2.70
430 7430094 3 RETAINING STRIP FOR GLASS PLATES 2.70
440 9293858 GLASS PLATE, ASSY., WITH RETAINING STRIP 4.50
445 7640644 TRIM STRIP PROFILE 2.70
450 9293860 GLASS PLATE, ASSY., WITH RETAINING STRIP .50
455 7430094 RETAINING STRIP FOR GLASS PLATES 2.70
460 7427966 2 VARIOUS INJECTION-MOULDED ITEMS .30
480 727 638 TOUGHENED SAFETY-GLASS PLATE 7.60
485 7640644 TRIM STRIP PROFILE 2.70
490 7427860 2 TRAY 6.50
500 74269 3 FRONT TRIM 4.50
502 7427256 BUTTON 0.60
504 7427252 BUTTON 0.38
506 7734526 DISPLAY TRIM .30
508 7427206 CONTROL KNOB 0. 8
5 0 7427 38 VARIOUS RETAINING FIXTURES .70
520 6 386 INTEGRAL BOARD 43.50
525 7427264 2 SENSOR RETAINING FIXTURE 4.20
530 4098029 2 PT SCREW 0.38
540 7042870 ZINC DIE-CAST BEARING BLOCK 7.60
550 40840 3 3 OVAL-HEAD SCREW 0.22
560 4098232 2 SCREW IN ACC.WITH DRAWING 0. 8
570 90400 6 SPECIAL SECURING HARDWARE 0.22
580 7427088 COVER 2.70
590 7427092 COVER 2.70
600 7427422 VARIOUS INJECTION-MOULDED ITEMS .30
6 0 4082709 OVAL-HEAD SELF-TAPPING SCREW 0.28
620 7 30 0 BOLT 0.38
630 90 4927 DOOR, CAVITY-FOAMED 88.00
640 7 08842 GASKET 4.50
645 9086524 ACCESSORY PACK 2.70
660 74267 5 6 BUSHING 2.70
670 7426722 SWITCHING COMPONENTS 2.70
680 7426942 2 MOULDED HANDLE 4.50
685 4098 84 8 SCREW IN ACC.WITH DRAWING 0. 8
690 7426362 4 VARIOUS INJECTION-MOULDED ITEMS 0.22
700 7402605 8 PLUG 0. 8
7 0 74 2094 2 PLUG 0. 8
720 704259 ZINC DIE-CAST BEARING BLOCK 7.60
730 7 3 44 BOLT 0.80
740 7422596 BUSHING 0.38
750 40827 6 2 OVAL-HEAD SELF-TAPPING SCREW 0.28
760 7744009 3 WASHER 0. 8
770 7402623 2 PLUG 0. 8
780 90 4928 DOOR, CAVITY-FOAMED 04.00
790 7 08898 GASKET 9.50
795 9086526 ACCESSORY PACK 2.70
800 7426936 2 BUSHING 2.70
8 0 7432473 SWITCHING COMPONENTS .30
820 7042872 ZINC DIE-CAST BEARING BLOCK 7.60
830 7042874 BOLT 2.70
840 4098 82 2 OVAL-HEAD SCREW 0.22
850 4084007 OVAL-HEAD SCREW 0.28
860 7424656 COVER PLATE 0.28
870 7 22 8 2 WIRE BRACKET/GLASS-LINE DOOR 2.70
875 7433568 2 VARIOUS RETAINING FIXTURES .30
880 7 22 4 WIRE BRACKET/GLASS-LINE DOOR 2.70
885 7433570 VARIOUS RETAINING FIXTURES .70
890 7436502 STORAGE RACK, PRINTED, PLAIN 6.20
900 7272594 4 TOUGHENED SAFETY-GLASS PLATE 4.20
9 0 74365 6 2 RETAINING STRIP FOR GLASS PLATES 4.20
9 74365 6 RETAINING STRIP FOR GLASS PLATES 4.20
920 74269 0 EGG TRAY .30
930 7422682 ICE-CUPE TRAY (RECEPTIVE OF) 4.20
9899 ------- 0
99 0 708 869 OPERATING INSTRUCTIONS 0.00
99 3
Seite
3
von
6
Liebherr
10.02.2011
http://interparts.lex
-
com.net/interparts
-
liebherr
-
hg/deploy_201011031548/server?com
...

708 87 OPERATING INSTRUCTIONS 0.00
9920 9878850 PACKAGING, ASSY. 23.90
9930 804 8 8 CORRUGATED CARDBOARD RING 6.50
Seite
4
von
6
Liebherr
10.02.2011
http://interparts.lex
-
com.net/interparts
-
liebherr
-
hg/deploy_201011031548/server?com
...

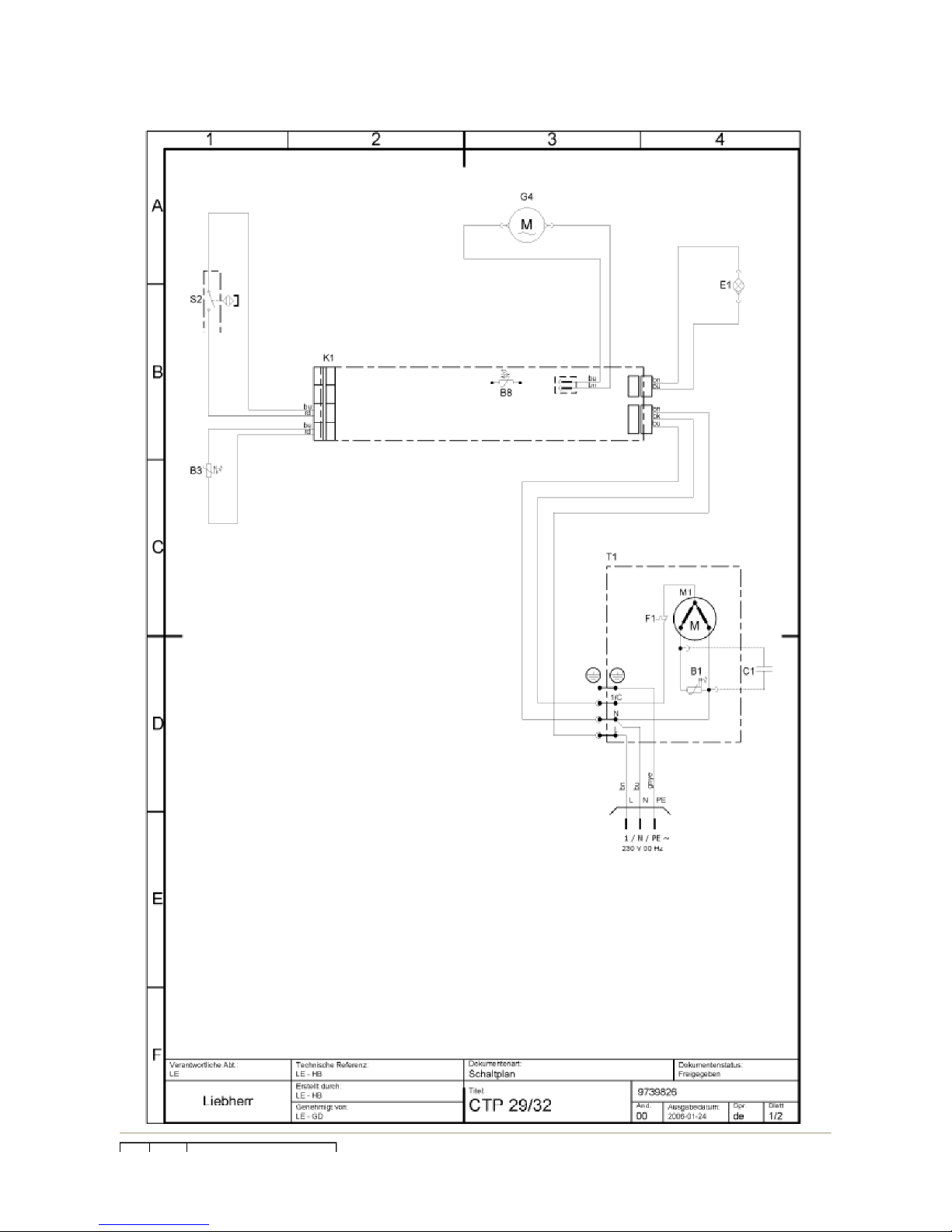

Design/001/CTP/CTP 3223
Design/001/CTP/CTP 3223Design/001/CTP/CTP 3223
Design/001/CTP/CTP 3223-
--
-20D/Wiring diagram
20D/Wiring diagram20D/Wiring diagram
20D/Wiring diagram

.

Item
ItemItem
Item Colour
ColourColour
Colour Legend text
Legend textLegend text
Legend text
  Supplyline
bk  black
bn  brown
bu  blue
gd  gold
gn  green
gnye  green/yellow
gy  grey
og  orange
pk  pink
rd  red
sr  silver
tq  turquoise
vt  lilac
wh  white
ye  yellow
B1  PTC/relay
B3  Evaporatorsensor-refrigerator
B8  Ambienttemperaturesensor
C1  Operatingcapacitor(ifprovided)
F1  Clixon(externalorinternal)
K1  Board
M1  C-S-Rmotor
S2  Doorswitch
T1  Compressor-refrigerator
