Westinghouse UX28H1Y1 User manual

English
TABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTS.... . ............................................................... i
DIGITAL TELEVISION TRANSITION NOTICE ........................... 1
ENERGY STAR DISCLAIMER ..................................................... 1
IMPORTANT INFORMATION....................................................... 2
Warnings ................................................................................... 2
NOTICES ................................................................................. 3
FCC COMPLIANCE STATEMENT ......................................... 4
IMPORTANT SAFETY INSTRUCTIONS ................................. 5
Circuit Overload........................................................................ 6
Power Cord Protection ............................................................. 6
Ventilation................................................................................. 6
WARNINGS AND PRECAUTIONS .......................................... 7

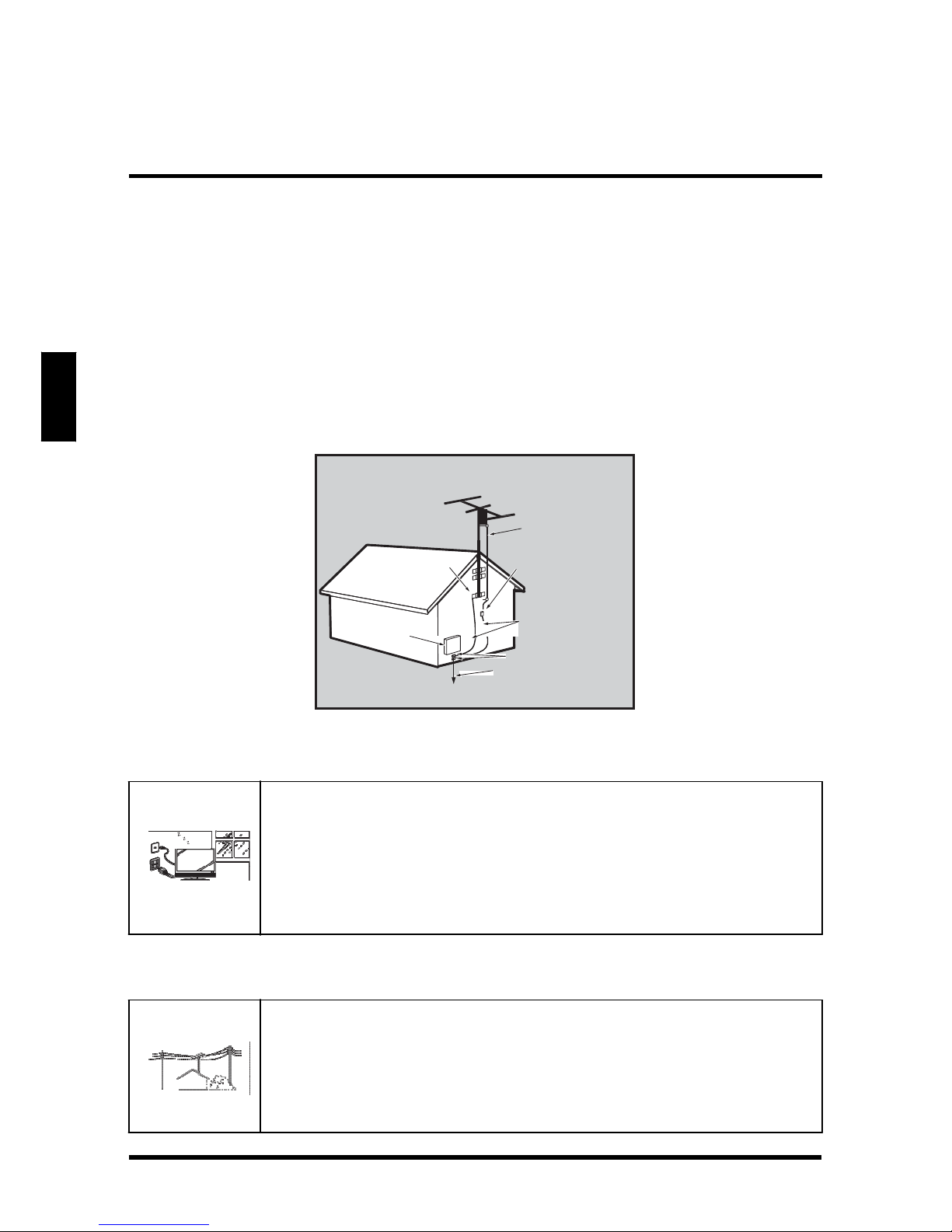

ANTENNA INSTALLATION SAFETY....................................... 8
Lightning................................................................................... 8
Power lines............................................................................... 8
CLEANING THE LED TV ......................................................... 9
Dolby License Notice................................................................ 9
Licensing and Patent Information............................................. 9
PACKAGE CONTENTS .............................................................. 10
CONTROL PANEL...................................................................... 11
TERMINALS ............................................................................... 12

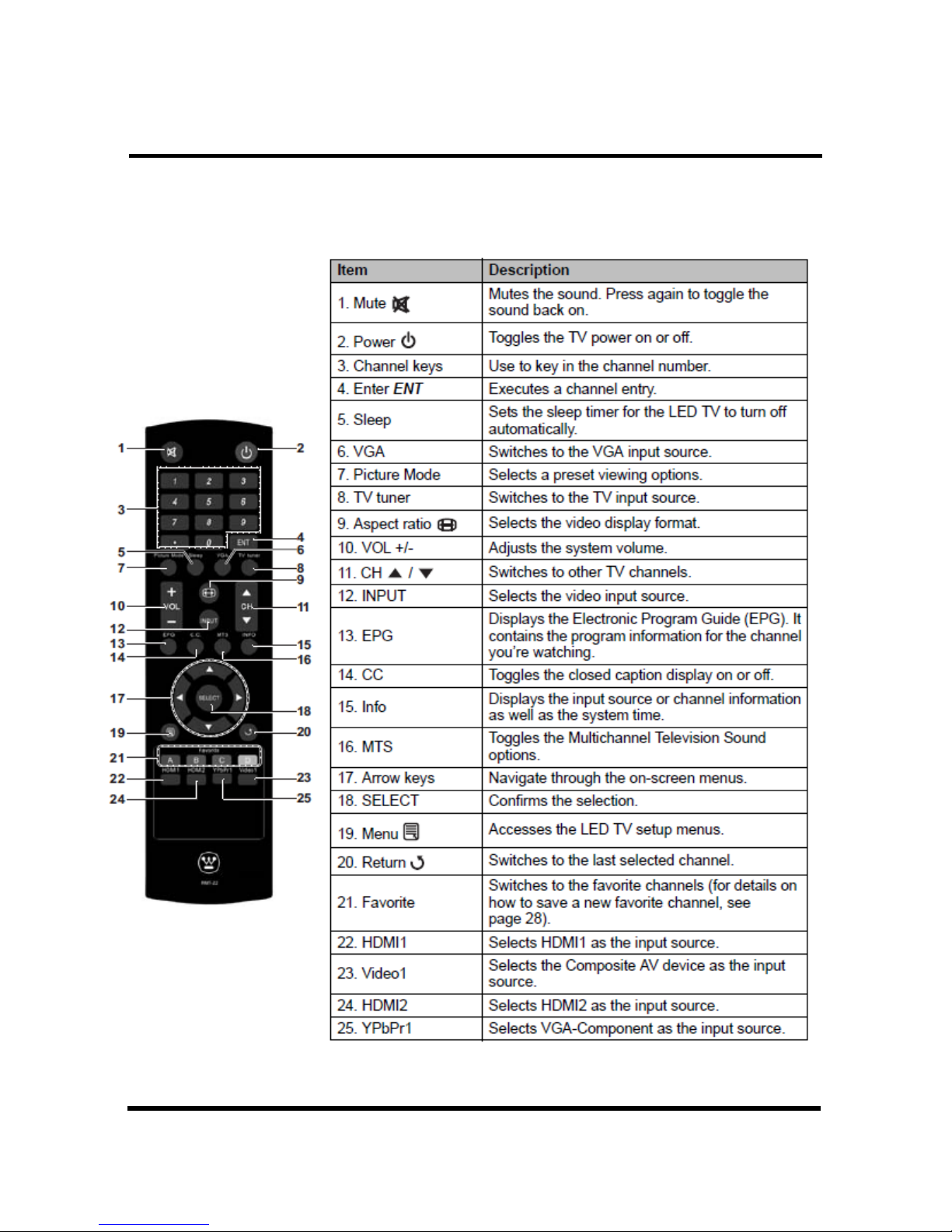

REMOTE CONTROL .................................................................. 13
REMOTE CONTROL OPERATION ............................................ 14

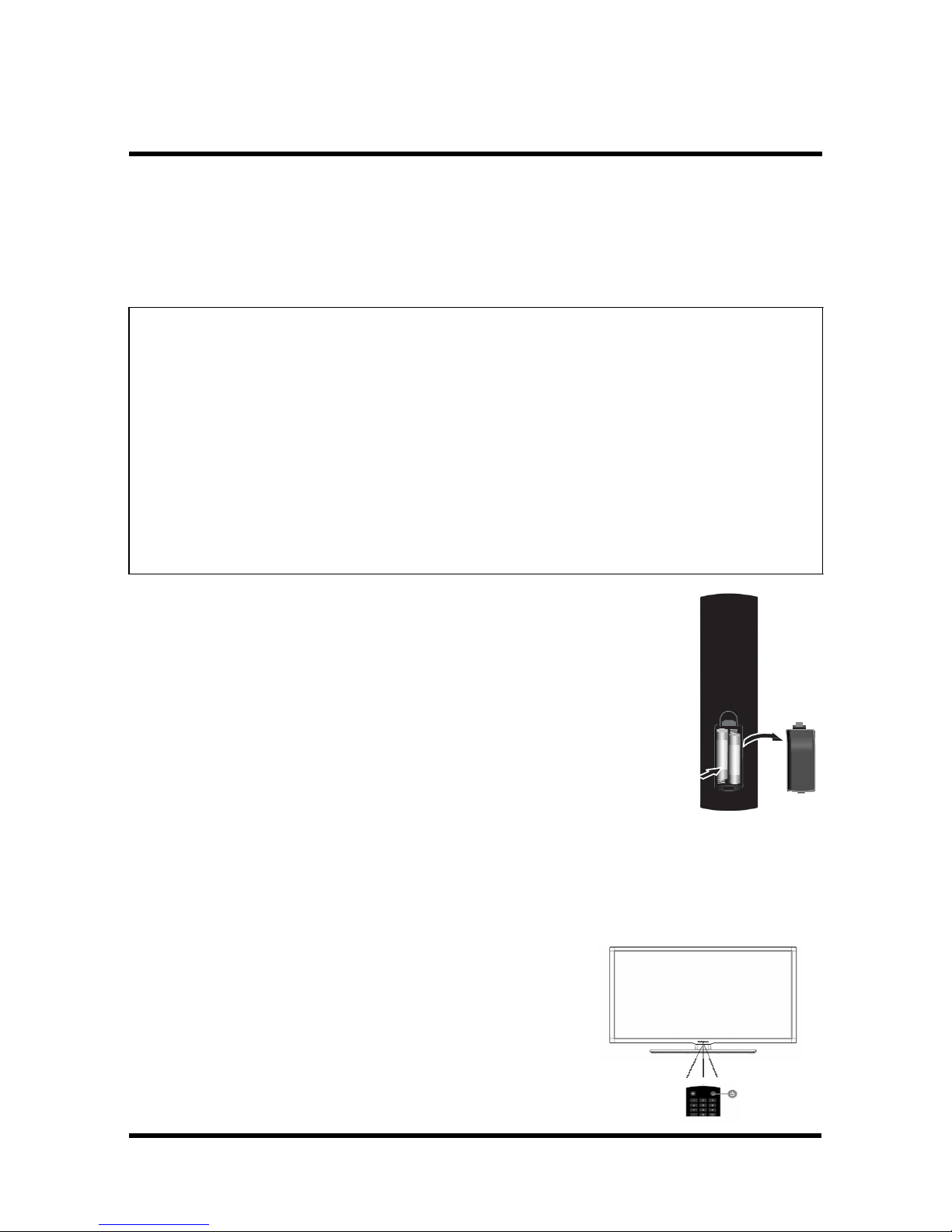

INSTALLING THE REMOTE CONTROL BATTERIES .......... 14
REMOTE CONTROL TRANSMISSION RANGE ................... 14
LED TV BASE ............................................................................. 15

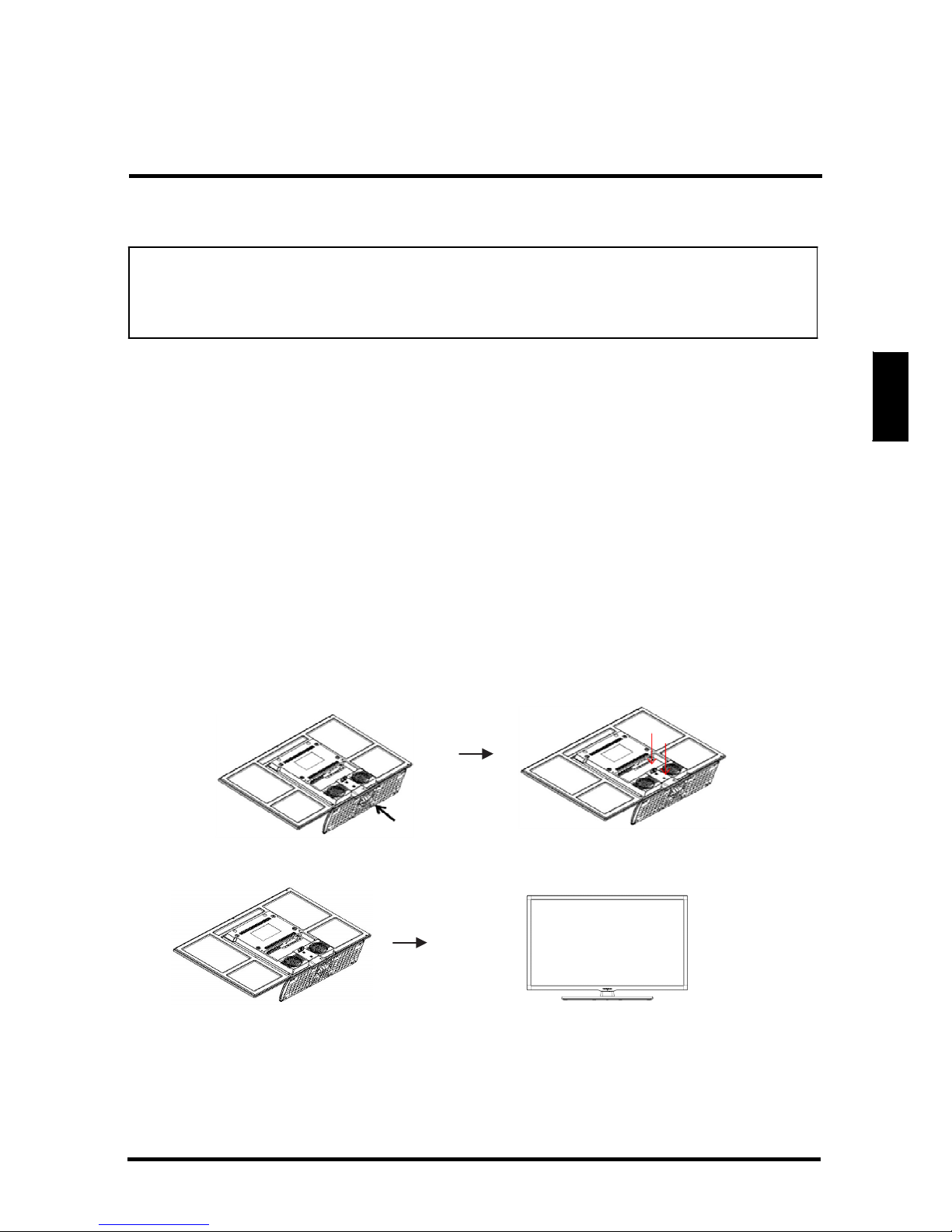

INSTALLING THE LED TV BASE .......................................... 15

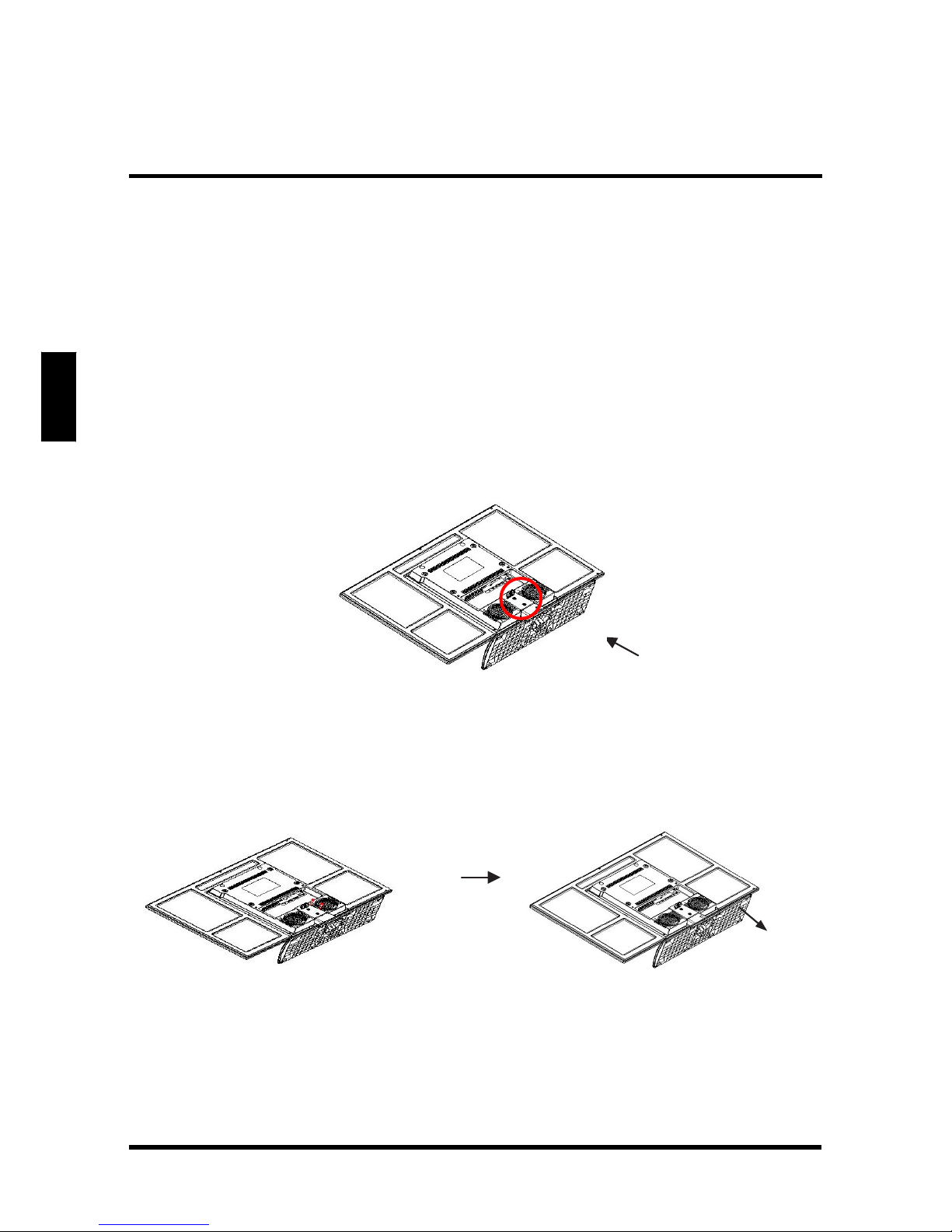

REMOVING THE LED TV BASE ........................................... 16
ANTENNA
CONNECTION.......................................................... 17
OUTDOOR ANTENNA CONNECTION.................................. 17
CABLE TV (CTV/DTV) CONNECTION .................................. 17
EXTERNAL DEVICE CONNECTIONS ....................................... 18
i

English
TABLE OF CONTENTS
POWER CONNECTION ............................................................. 20
CONNECTING AC POWER................................................... 20
INITIAL SETUP ...................................................................... 20
ANTENNA OR COAXIAL CABLE CONNECTION SETUP .... 21
CABLE OR SATELLITE BOX CONNECTION SETUP .......... 24
OTHER INPUT SOURCE CONNECTION SETUP ................ 26
BASIC OPERATIONS................................................................... 28
TURNING THE POWER ON AND OFF ................................. 28
ADJUSTING THE VOLUME................................................... 28
CHANGING CHANNELS ....................................................... 29
SELECTING THE INPUT SOURCE....................................... 29
ADJUSTING THE DISPLAY FORMAT .................................. 30
SETUP MENUS .......................................................................... 31
SETUP MENU OPERATION.................................................. 31
PICTURE................................................................................ 32
SOUND .................................................................................. 38
CHANNEL .............................................................................. 43
PARENTAL CONTROL.......................................................... 51
SETUP ................................................................................... 57
OTHERS ................................................................................ 60
WALL MOUNT OPTION ............................................................. 63
WALL MOUNT INSTALLATION REMINDERS ...................... 63
TROUBLESHOOTING ................................................................ 64
SPECIFICATIONS ...................................................................... 67
ii

English
DIGITAL TELEVISION TRANSITION NOTICE
DIGITAL TELEVISION TRANSITION NOTICE
This device contains a digital television tuner, so it should receive digital over the air
TV programming, with a suitable antenna, after the end of full-power analog TV
broadcasting in the United States on June 12, 2009. The nationwide switch to digital
television broadcasting will be complete on June 12, 2009, but your local television
stations may switch sooner. After the switch, analog-only television sets that receive
TV programming through an antenna will need a converter box to continue to receive
over-the-air TV. Watch your local stations to find out when they will turn off their
analog signal and switch to digital-only broadcasting.
For more information, call the FCC at 1-888-CALL-FCC (1-888-225-5322) or see
www.DTV.gov. For information on the TV Converter program, and on government
coupons that may be used toward the purchase of one, see www.dtv2009.gov, or call
the NTIA at 1-888-DTV-2009.
ENERGY STAR DISCLAIMER
This Westinghouse product has earned the ENERGY STAR
®
for meeting U.S.
Federal energy efficiency guidelines as set by the Department of Energy and
Environmental Protection agency. The ENERGY STAR
®
program exists to provide
energy saving guidelines and help promote energy efficient products and practices.
Changes to certain features, settings and functions of this TV can change and/or
increase its power consumption. Depending on how settings are changed, power
consumption may exceed the limits required for ENERGY STAR
®
qualification. This
Westinghouse TV will operate at optimal energy efficiency in “Home” mode.
1

English
English
IMPORTANT INFORMATION
IMPORTANT INFORMATION
Warnings
To reduce the risk of fire or electric shock:
• Do not expose this product to rain or moisture.
• Do not remove the rear cover. There are no user-serviceable parts inside.
Refer all servicing requirements to qualified service personnel.
• The plug should be connected to a mains socket outlet with a protective
earthing connection.
The lightning flash with arrowhead inside an equilateral
triangle symbol is intended to alert the user to the presence
of uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation inside an equilateral triangle symbol is intended to
alert the user to related operating and maintenance instructions in
the user documentation accompanying the product.
WARNING!
This device must be operated with the original power supply.
WARNING!
To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.
CAUTION:
The power supply outlet should be located near the LED TV and should be easily
accessible.
Always use the appropriate AC cord that is certified for your specific country.
Some examples are listed below:
• USA – UL
• Canada – CSA
• Japan – Electric Appliance Control Act
2

English
IMPORTANT INFORMATION
NOTICES
Important Notices Concerning Power Cord Selection
The specific power cord for this LED TV is enclosed and has been selected
according to the country of destination. Use the enclosed power cord to prevent
electric shock. Observe the following guidelines if it is necessary to replace the
original cord set, or if there is no cord set enclosed. The female receptacle of the
cord set must meet IEC-60320 requirements and should look like Figure A1 below:
Figure A1 Figure A2
For the United States and Canada
In the United States and Canada the male plug is a NEMA5-15 style (Figure A2),
UL-listed, and CSA-labeled. For LED TVs that are to be placed on a desk or table,
type SVT or SJT cord sets may be used. For LED TVs that are to be placed directly
on the floor, only SJT type cord sets may be used. The cord set must be selected
according to the current rating for the LED TV. Consult the table below for the
selection criteria of power cords used in the United States and Canada.
Cord Type
Size of Conductor in Cord
Maximum Unit Current Rating
SJT
1
8
A
W
G
16 AWG
14 AWG
1
0
Am
p
s
12 Amps
12 Amps
SVT
1
8
A
W
G
17 AWG
1
0
Am
p
s
12 Amps
Figure a1 Figure a2
I-SHENG
SP-12N
X
E55943
7A 125V
K
Detachable, Max. 4.5 m long, Min. 1.5 m long, Type SVT, SJT or SPT-2, No. 18
AWG/2C. One end terminates in NEMA 1-15P with min. 125 V ac, 2.0 A
min., or
NEMA 2-15P with min. 250 V ac, 2.0 A min., the other end with an
appliance coupler.
3
Figure a2-1

English
IMPORTANT INFORMATION
FCC COMPLIANCE STATEMENT
This equipment has been tested and complies with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and may cause
harmful interference to radio communications if not installed and used in accordance
with the instructions. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the LED TV and the receiver.
• Connect the LED TV to an outlet on a circuit separate from to which the
receiver is connected.
• If the interference persists even after performing the above measures,
consult the Westinghouse Service Center or an experienced radio/TV
technician for assistance.
FCC Warning
To assure continued FCC compliance, use a grounded power supply cord and the
provided shielded video interface cable with bonded ferrite cores. If a BNC cable is
used, use only a shielded BNC (5) cable. Also, any unauthorized changes or
modifications not expressly approved by the manufacturer will void the user's
authority to operate this device.
4

English
IMPORTANT INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
Make sure to note and follow all warnings and instructions marked on the LED TV.
Observe the following safety instructions.
• Read these instructions.
• Keep these instructions.
• Read all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

English
IMPORTANT INFORMATION
Circuit Overload
Do not overload wall outlets, extension cords, or power strips. This can result in a fire
or electronic shock.
Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Periodically inspect the cords for
damage. Install the LED TV near a wall socket outlet where the power cord can be
readily accessed.
Ventilation
The slots and openings on the cabinet are provided for necessary ventilation. To
ensure reliable operation of the LED TV and to protect it from overheating, these
slots and openings must never be blocked or covered.
Never cover the slots and openings with a cloth or other materials.
Do not block the openings by placing the LED TV on a bed, sofa,
rug or other similar surface.
Do not place the LED TV in a built-in installation such as a
bookcase or a rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
6

English
IMPORTANT INFORMATION
WARNINGS AND PRECAUTIONS
• Do not orient the LED TV towards direct sunlight to reduce glare.
• If the LED TV will not be used for a long period of time, unplug the unit and
remove the batteries from the remote control.
• Avoid touching the display screen by hand or any object.
• Never remove the rear cover. The LED TV interior contains high-voltage
parts. You may be seriously injured if you touch them.
• Always handle the LED TV with caution when moving it.
• Do not install the LED TV in airtight compartments, or in areas where it can
be exposed to water or high temperature.
• Ensure that the area around the LED TV is clean and free of moisture.
• Do not place anything on the LED TV that can hinder heat dissipation.
• Do not place naked flame sources, such as lighted candles, on or near the
LED TV.
• Do not place anything on the LED TV that can cause liquid to splash on it
(e.g. flower vase).
• Do not place heavy objects on the LED TV, audio/video cables, or power
cord.
• If the LED TV emits smoke, abnormal noise, or a strange odor, immediately
turn it off and contact the Westinghouse Service Center by:
– Logging on to www.wde.com.
– Contacting the Westinghouse Customer Service at [phone].
– E-mailing us at s[email protected].
7

English
IMPORTANT INFORMATION
ANTENNA INSTALLATION SAFETY
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the LED TV, be sure the
antenna or cable system is grounded to prevent voltage surges and built-up static
charges. Article 810 of the National Electrical Code, ANS/NFPA 70, provides
information on proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Antenna lead in wire
Grounding clamps
Electric service
equipment
NEC: National Electrical Code
Antenna discharge unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Grounding clamps
Power service grounding
electrode system (NEC Art
250 part H)
Lightning
For added protection for the LED TV during a lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. DO NOT disconnect the antenna or the power cord during
a heavy storm—lightning may strike while you are holding the
cable cord, causing serious injury. Turn off the LED TV and wait for
the weather to improve.
Power lines
An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them
might be fatal.
8

Engl
ish
IMPORTANT INFORMATION
CLEANING THE LED TV
• Make sure the LED TV is turned off and the power cord is
disconnected from the power outlet.
• Never spray or pour any liquid directly onto the screen or the
case.
To clean the screen:
1 Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other
particles.
2 If it is still not clean, apply a small amount of non-ammonia, non-alcohol
based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
To clean the case:
1 Wipe the case with a soft, dry cloth.
2 If it is still not clean, apply a small amount of non-ammonia, non-alcohol
based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.
Dolby License Notice
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories.
is a trademark of SRS Labs, Inc. TruSurround HD technology is
incorporated under license from SRS Labs, Inc.
SRS TruSurround HD™ creates an immersive, feature-rich surround sound
experience from two speakers, complete with rich bass, high frequency detail and
clear dialog.
Licensing and Patent Information
This WESTINGHOUSE product may be covered by one or more U.S. and foreign
patents and patent applications. See http://westinghousedigital.com/compliance/ for
details.
9

English
PACKAGE CONTENTS
PACKAGE CONTENTS
28” LED TV Unit
Remote Control (with 2x AAA batteries)
LED TV Base
User Ma nual
Cable tie Warranty Card
AC Ada p ter
Quick Connect Guide
Screws for Base
Screw for Base
10

English

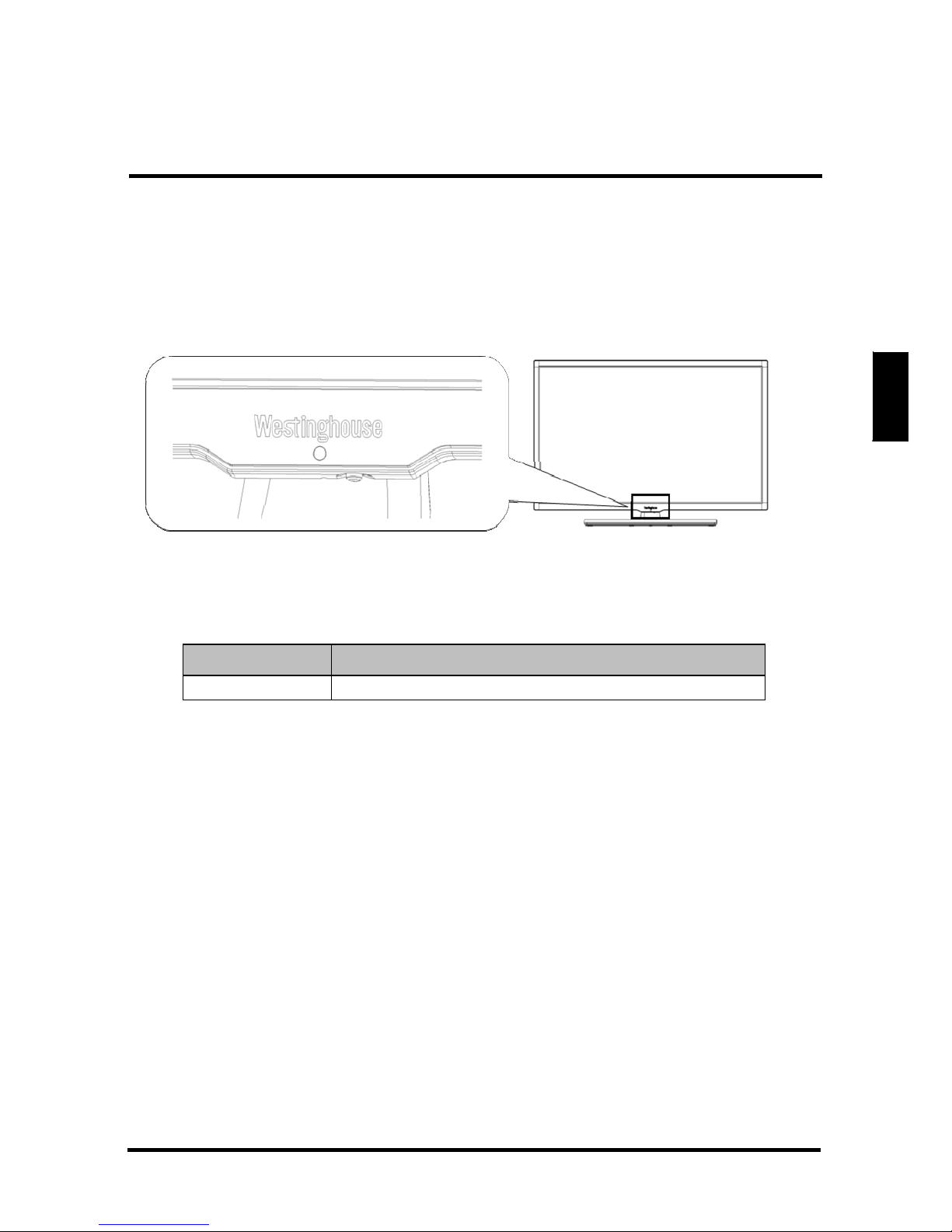

CONTROL PANEL
CONTROL PANEL
Item
Description
1
.
P
o
w
e
r
T
og
g
les
t
h
e
pow
e
r
o
n
a
nd o
f
f.
11

English
TERMINALS
TERMINALS
Item
Function
1. DC in
Connects the AC to DC adapter from this outlet to a
power source.
2. Coax out
Connects to an external digital audio receiver.
3.Component in
Connect to an external YPbPr device such as a VCR,
DVD player, set-top box, or game system.
4. CVBS &
Component Audio in
Connect to an external AV device such as a VCR, DVD
player, set-top box, or game system.
5. Serial port For factory test program use
6. TV tuner
Connects the LED TV to an antenna or cable service.
7. Audio out
Connect to an analog audio output device.
8. HDMI 1 / HDMI 2
Connects to an external AV device such as a VCR,
DVD player, set-top box, or game system.
9. USB Service port
Connect USB to play photo or video.
* For Component in and CVBS (AV) in, connect the matching color cable for
connection as shown below:
12
Component In
CVBS (AV) In

REMOTE CONTROL
REMOTE CONTROL
13

REMOTE CONTROL OPERATION
REMOTE CONTROL OPERATION
INSTALLING THE REMOTE CONTROL BATTERIES
CAUTIONS:
• Only use AAA batteries.
• Do not mix new and old batteries. This may result in cracking or leakage, which
may pose a fire risk or lead to personal injury.
• Insert batteries according to the (+) and (-) markings. Inserting the batteries
incorrectly may result in cracking or leakage, which may pose a risk of fire or
lead to physical injury.
• Dispose of used batteries in accordance with local laws and regulations.
• Keep batteries away from children and pets.
• When the remote control will not to be used for an extended period, remove the
batteries.
1 Remove the battery cover.
2 Insert the batteries. Make sure the (+) and (–) marks on the
batteries match those inside the compartment.
3 Re-attach the battery cover.
REMOTE CONTROL TRANSMISSION RANGE
Transmission range depends upon the reception angle.
The range of coverage is 20°horizontal/vertical at a
distance of 10 feet from the LED TV.
14

English
LED TV BASE
LED TV BASE
CAUTION:
The LED TV unit may be too heavy for one person to lift. If this is the case,
make sure to ask for assistance in handling the LED TV to prevent
physical injury and/or damage to the unit.
INSTALLING THE LED TV BASE
1 Open the LED TV carton box.
2 Remove the LED TV base.
3 Remove the plastic bag.
4 Remove the two top carton stabilizers from the LED TV.
5 Remove the protective plastic covering the LED TV.
6 Grasp the two sides of the LED TV and then pull it out of the carton box.
7 Remove the two bottom carton stabilizers from the LED TV.
8 Lay the LED TV on a clear, flat, and stable surface.
9 Align the base to the bottom side of the LED TV and use two M4*30 screws to
secure it.
10 Carefully orient the LED TV in an upright position.
11 Use one M5 x 16 screw to fix the stand base and LED TV on the desk.
Be sure to place the TV at a location (at least 75cm high)
1

English
LED TV BASE
REMOVING THE LED TV BASE
If you intend to repack the LED TV unit (for shipping or storage) or you want to
change the installation to a wall mount option, you must first remove the LED TV
base.
1 Turn off the LED TV and all connected devices.
2 Disconnect the power cord from the LED TV.
3 Disconnect all signal cables from the I/O port terminals.
4 Remove the M5 x 16 screw securing the base to the desk.
5 Lay the LED TV on a clear, flat, and stable surface.
M5 x 16
6 Remove the two M4*30 screws securing the base to the LED TV.
7 Detach the base from LED TV.
8 Pack the screws you removed in step 5 together with the LED TV base for
future reassembly.
16
M4 x 30 x 2

English
ANTENNA CONNECTION
ANTENNA CONNECTION
OUTDOOR ANTENNA CONNECTION
Cable TV lead in
VHF, UHF or VHF/UHF
combination antenna
75 ohm coaxial cable (round)
300 ohm twin-lead (flat)
300-75 ohm ADAPTER
(Not supplied)
RF IN
Separate VHF/UHF Antenna
VHF Antenna UHF Antenna
300 ohm twin-l ead COMB I N E R
(Not supplied)
Home Antenna
terminal (75 ohm)
300 ohm twin-lead
75 ohm coaxial cable
IN OUT
NOTE:
The F-type connector should be finger-tightened only.
When connecting the RF cable to the LED TV, do not
tighten F-type connector with any tool. If tools are used,
it may cause damage to the LED TV (e.g. breaking of
internal circuit).
CABLE TV (CTV/DTV) CONNECTION
The unit has a TV tuner (75 ohm coaxial cable connector) located on the rear I/O
panel for easy cable hookup. When connecting the 75 ohm coaxial cable to the unit,
screw the 75 ohm cable to the TV tuner. Some cable TV companies offer premium
pay channels. Since the signals of these channels are scrambled, a cable TV
converter/descrambler is usually provided to the subscriber by the cable TV
company. This converter/descrambler is necessary for normal viewing of the
scrambled channels. (Set your TV to channel 3 or 4. Typically one of these channels
is used. If a channel is unknown, consult your cable TV company.) For more specific
instructions on installing cable TV, consult your cable TV company. One possible
method of utilizing the converter/descrambler provided by your cable TV company is
explained below.
17
