INSTRUCTION MANUAL
WCV2601
CAR AUDIO WITH
7” TFT
2

CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM.
BEFORE USE PRECAUTIONS
• In addition to this operating instruction manual,
be sure to refer to the labels on the unit as well.
• This unit is designed to be operated on a 12-
volt DC negative-ground electrical system only.
• To prevent short-circuiting, disconnect the
negative car battery terminal until the unit has
been mounted and connected completely.
• When replacing the fuse, be sure to use one
whose amperage rating is identical. Use of a
fuse of higher amperage may cause serious
damage to the unit.
• Do NOT attempt to disassemble this unit.Laser
rays from the optical pickup are dangerous to
the eyes.
• Make sure that pins or other foreign objects do
not get inside the unit; they may cause
malfunctioning, or a safety hazard such as
electrical shock or exposure of laser rays.
• If your car is parked in direct sunlight resulting
in a considerable rise in temperature inside the
car, allow the unit to cool off before operating it.
• Keep the volume at such a level that you can
hear outside warning sounds (horns, sirens,
etc.).
CAUTION
Modifications or adjustments to this
product,whicharenotexpresslyapproved
by the manufacturer, may void the user's
right or authority to operate this product.
INCORRECT WIRING
The manufacturer is not responsible for
any defect that may occur due to
incorrect wiring of this product.
Never connect the cord of each
speaker in common to ground.
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
PRODUTO LASER CLASSE 1
This product contains a low
power laser device.
ATTENTION
RESET BUTTON
Press the Button once, after making all
connections.
Try pressing this button if a DVD/CD does
not operate properly.When you press this
button, use the tip of a pointed object such
as a pencil or toothpick.
Note that the memory contents, however,
will be erased by pressing this button.
NOTES ON COPYRIGHT
It is forbidden by law to copy, broadcast, show,
broadcastoncable,playin public,rent copyrighted
material without permission.
Apparatus Claims U.S. Patent Nos. 4,907,093;
5,315,448 and 6,516,132 licensed for limited
viewing uses only.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyrightprotection technologymustbeauthorized
byMacrovision,and is intendedforhomeand other
limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering
or disassembly is prohibited.
This symbol means that the
unitcomplieswithEuropean
safety and electrical
interference directives.
GB - 1

GB - 2
TABLE OF CONTENTS
PRECAUTIONS ..................................................1
TABLE OF CONTENTS .....................................2
DISC FORMATS .................................................3
INSTALLATION
Removing Existing Receiver Unit ..................4
Mount the Unit ...............................................5
Remove the Unit from the Installation
Sleeve............................................................5
CONNECTIONS.............................................. 6-8
Connection Diagram ......................................6
Reset Button..................................................6
CONTROL REFERENCE GUIDE
Main Unit .......................................................9
Display Window .............................................9
Remote Control ...........................................10
PREPARATIONS
Resetting the Unit ........................................11
Opening/Closing the Monitor ....................... 11
Adjusting the Monitor Angle ........................11
REMOTE CONTROL
Using the Remote Control ...........................12
Changing Remote Batteries ........................12
ADJUSTING THE CLOCK ................................13
ADJUSTING THE SOUND
CHARACTERISTICS ........................................13
Muting the Volume .......................................13
CONNECTION WITH OTHER EQUIPMENT
Connecting to a Video Game System .........14
Connecting to a Monitor or TV Tuner Unit ...14
SOUND SYSTEM .............................................14
RADIO OPERATION ........................................15
Using RDS features ............................... 16-17
PLAYING A DISC
Playing a Disc..............................................18
Pausing Playback ........................................18
Stopping Playback .......................................18
Skipping to a Different Track ........................18
Fast Forward/Fast Reverse..........................18
Skip (Forward/Reverse) ...............................18
Slow Motion Play .........................................19
Subtitle Selection.........................................19
Audio Selection............................................19
Angle Selection............................................19
SPECIAL FUNCTIONS
Display Function ..........................................20
Locating a Specific Title...............................20
Locating a Specific Chapter/Track ...............20
Locating a Specific Time .............................20
DVD PROGRAMMABLE MEMORY
Title/Chapter Programmed Playback ...........21
PLAYING PICTURE FILE DISC ....................... 21
REPEAT PLAYBACK
Repeating a Chapter ...................................22
Repeating a Title..........................................22
Repeating a Single Track ............................. 22
Repeating a Whole Disc ..............................22
Repeating a Specific Section ......................22
CUSTOMIZING THE FUNCTION SETTINGS
Disc Setup ...................................................23
Video Setup .................................................24
Audio Setup .................................................24
Display Setup ..............................................25
Others Setup ...............................................25
MAINTENANCE................................................25
TROUBLESHOOTING GUIDE .........................26

GB - 3
REGION MANAGEMENT INFORMATION
Thisunit is designedandmanufacturedto respondtothe Region ManagementInformationthat is encoded
on DVD discs.If the Region number printed on the DVD disc does not correspond to the Region number
of this unit, this unit cannot play that disc.
The region number of this unit is 2.
DISC FUNCTION OR OPERATIONTHAT IS NOT AVAILABLE
When the symbol appears on the TV screen, it indicates that the function or operation attempted is
not available at that time. This occurs because the DVD disc manufacturer determines the specific
functions. Certain functions may not be available on some discs. Be sure to read the documentation
provided with the disc.
ICONS USED ON DVDS
Sample lcons
The unit can playback discs bearing any of the following marks:
TITLE, CHAPTER AND TRACKS
• DVDs are divided into “titles” and “chapters”.If the
dischas more than onemovieon it, eachmoviewould
beaseparate“title”.“Chapters”aresections oftitles.
• Audio CDs are divided into “tracks”. A “track” is
usually one song on an Audio CD.
Note:
When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the
graphic images will not be shown.
DISC FORMATS
DVDs
[8cm / 12cm disc]
Audio CDs
[8cm / 12cm disc]
Note:
Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Language selections for audio
Language selections for subtitles
Screen aspect ratio
Multiple camera angles
Region code indicator
NOTES ON UNAUTHORISED DISCS
You may not be able to play some DVD discs on this unit if they were purchased from outside your
geographic area or made for business purposes.

GB - 4
• Use only the supplied mounting hardware for a safe and secure installation.
PRECAUTIONS
• This unit is designed for negative ground 12-V DC operation only.
• Before making installations, make sure the ignition switch is set to OFF and disconnect the ground
terminal of the car battery to avoid short-circuiting.
• Install the unit where it will not hamper the driver during driving.
• Install the unit where it will not injure the passenger if there is a sudden stop, like an emergency stop.
• Avoid installing the unit where it would be subject to high temperatures caused by direct sunlight or
hot air from the heater, or where it should be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
Consult with your nearest dealer if installation require the drilling holes or other modifications of your car.
MOUNTING EXAMPLE
Installation in the dashboard
Thefollowingexampleshowsa typical installation, howeveryoushould makeadjustments corresponding
to your specific car, consult your nearest car audio dealer.
MOUNTING ANGLE ADJUSTMENT
The mounting angle should be at the angle of 30 degrees or less.
REMOVING EXISTING RECEIVER UNIT
If there is an installation sleeve for the receiver unit already in the dashboard, it must be removed.
Supporter x 1
Installation sleeve x 1 Nut x 1
Screw x 1 Washer x 2 Spring washer x 2 Lever x 2
Existing receiver unit Installation sleeve
Dashboard
INSTALLATION

GB - 5

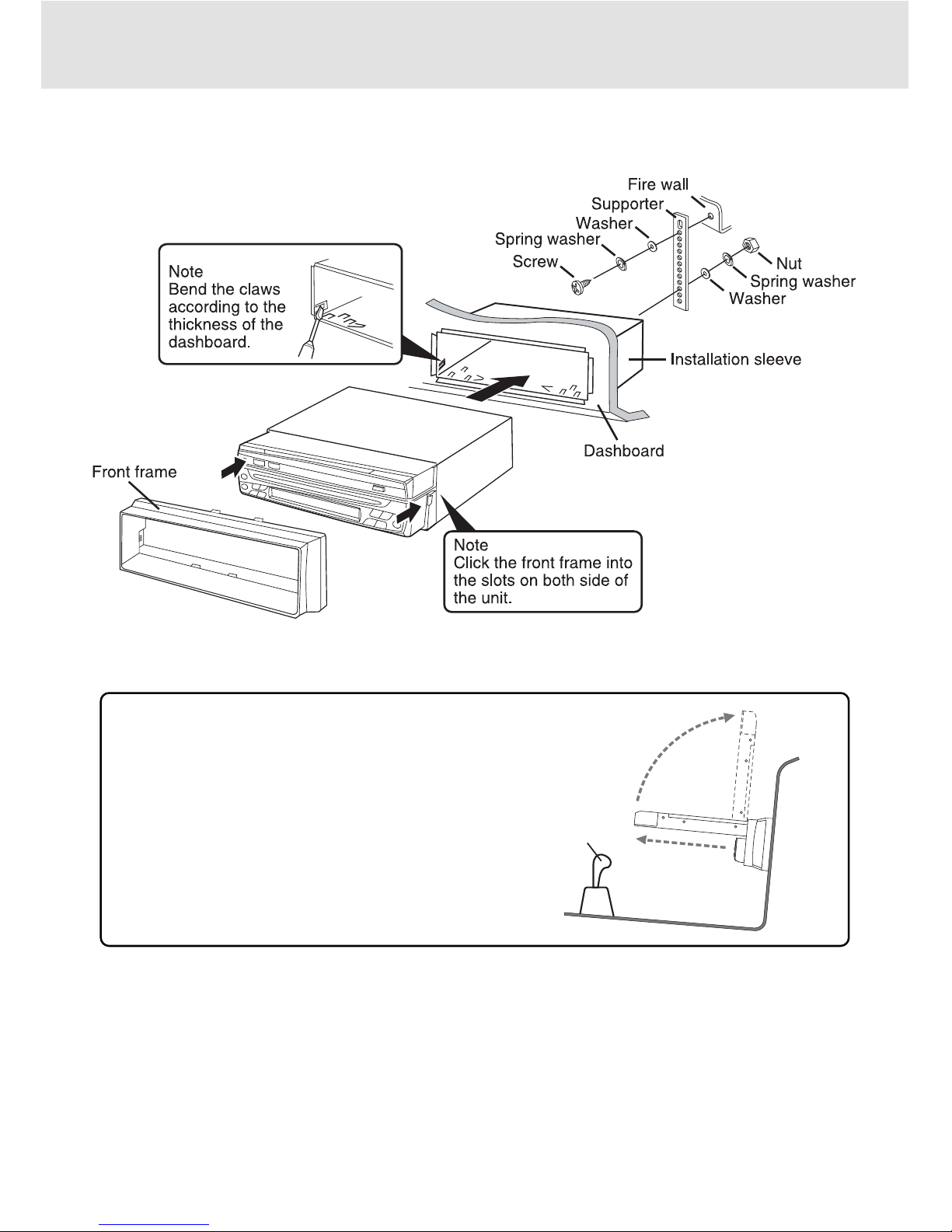

MOUNTTHE UNIT
INSTALLATION
PRECAUTION:
Toallowforproper openingandclosingof the monitor,
there must be a clearance between the closest
position of the shift lever and the mounting surface
for the unit. Do not install the monitor so that it will
block access to the hazard switch or other important
controls.
shift lever

GB - 6
REMOVETHE UNIT FROMTHE INSTALLATION SLEEVE
INSTALLATION
1Push the front frame to one end.
2Holdand presstheframeat theotherend,
the frame will release.
3Pull out the frame.
1Insert both levers into the grooves on both
sides of the unit.
2Pull the levers toward you to remove the unit
from the installation sleeve.
TO REMOVETHE FRONT FRAME TO REMOVETHE UNIT
NOTE:
Pull the unit all the way out with your hands, being
careful not to drop it.

GB - 7
CONNECTIONS
This unit is designed for negative 12-V DC
operation only.
NEVERConnect the cord of eachspeaker
in common to ground.
CONNECTION DIAGRAM
From Antenna
To connect to the parking brake to the car
(green colour lead).
To the ISO connector of vehicle (power
supply)
A
B
Note
If you want to use the leads with the ISO
connector removed, make sure to connect each
lead to the correct terminal according to the list
of colours of leads below.
Colours of leads
1. Black (ground lead to be connected to vehicle
(metal) body.)
2. Red (ACClead to be connected to the terminal
from which the power is supplied when the
ignition switch is set to ACC).
3. Orange/White (power antenna lead to be
connected to the terminal of the control relay
switch for vehicles equipped with a power
antenna.This lead is not used for vehicles with
manual semi-automatic antennas. When you
use optical power amplifiers with the unit,
connect this lead to the remote terminal of the
amplifier.)
4. Orange (battery lead to be connected to the
backup terminal from which power is always
supplied).
To the ISO connector of vehicle (speaker
connection)
D
Note
If you want to use the leads with the ISO
connector removed, make sure to connect each
lead to the correct terminal according to the list
of colours of leads below.
C
RESET BUTTON
Press the Button
once, after making
all connections.
Colour of lead Speaker
5 Brown/black Rear left
6 Grey/black Front left
7 White/black Front right
8 Yellow/black Rear right
9 Brown Rear left
10 Grey Front left
11 White Front right
12 Yellow Rear right

GB - 8
CONNECTIONS
ATTENTION
If your vehicle is not fitted with this type of connector you must purchase the accessory pack available
from your car radio dealer.
WARNING
• Make correct connections as illustrated in the connection diagram.
• Before connecting, make sure that the ignition switch is set to OFF, and remove the terminal of the
battery to avoid short circuits.
• If you connect the ignition wire (red) and the battery wire (orange) to the car chassis (ground), you
may cause a short circuit, that in turn may start a fire.Always connect those wires to the power source
running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (orange).The power supply
must be connected to the wires via the fuse.
• When replacing the fuse, be sure to use one whose amperage rating is identical. Use of a fuse of
higher amperage may cause serious damage to the unit.
• Do not watch the monitor while driving.You may cause a traffic accident if your attention is distracted
by the monitor. For the sake of safety, be sure to connect the parking brake (green) wire to your car.
WARNING ON SPEAKER CONNECTION
• Before connecting speakers, turn off the unit.
• Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities.
Otherwise, speaker may be damaged.
• Do not connect the speakers in parallel.
• Do not connect the terminals of speaker system to the car chassis.
• Do not connect the ground lead of this unit to the negative terminal of the speaker.
• Do not use speakers of impedance less than 4 ohms and do not allow the speaker wires to be shorted
together when the unit is switched on, otherwise it may overload or burn out the power amplifier stage.
Caution Volkswagen/Audi and Vauxhall owners:
Some vehicles do not follow the normal ISO wiring convention which will cause the unit to lose the radio
preset memories each time the ignition switch is turned off.To prevent such occurrences swap over the
RED ignition and ORANGE Memory wires in the bullet connectors attached to the wiring harness of the
car radio.
Important Note:
• This unit develops high power output to the front speakers. It is very important that you confirm the
front speakers fitted in your vehicle are capable of handling this power.
• If after directly connecting the unit via the vehicles ISO connector plugs it does not appear to work
(fails to power up), disconnect the Orange lead bullet connector and reconnect it to the twin bullet
connector socket on the RED wire. Try the unit again it should power up and can be used normally.
Note this phenomenon is most frequent in Volkswagen/Audi and Vauxhall vehicles.
For safety reason, no video/TV images are displayed while the vehicle is moving.The
video/TV images appear only after you park the car and set the parking brake.
Do not operate the DVD player if it will in any way divert your attention from the safe
driving of your vehicle.Always observe safe driving rules and abide with all existing traffic
regulations. In some countries the viewing of images on a screen by the driver of a
vehicle is illegal.Where such regulations apply the unit’s DVD screen should not be used.
WARNING

GB - 9
1. COLOUR control
Adjust for colour intensity.
2. SCREEN switch
Wide: Wide Screen
Normal: Pan scan
3. VOL + / VOL - (volume control) button
4. AV OUT jack
5. AV IN jack
6. (Standby / On) button
7. MODE/MUTE button
Press once to change function of the unit,
TUNER, AV-IN (AUX) or CD/DVD.
Press and hold will turn MUTE function on
and off.The MUTE indicator will be displayed
in the Display Window.
DISPLAYWINDOW
1. CD/DVD indicator
2. MUTE indicator
3. AUX (AV-IN) indicator
4. Main display section
5. STEREO indicator
6. REPEAT indicator
7. CH (channel) indicator
8. RDS indicators
CONTROL REFERENCE GUIDE
1
678
23 4 5
8. CD/DVD compartment
9. Display Window
10. (Forward skip) / (tune up) button
(back skip) / (tune down) button
11. Return / TA button
12. Eject button
13. Remote sensor
Receives the remote control unit signals.
14. BRIGHTNESS control
Adjustthelightness or darkness ofthecolour.
15. Monitor OPEN/CLOSE button
16. Reset Button
MAIN UNIT

GB - 10
1. MODE button
Select functions, Tuner, AV-IN (AUX) or DVD/
CD.
2. / TUNING buttons
: Fast reverse playback.
: Fast forward playback.
Scan all available stations.
3. PREV button
Press once to go to previous tuner station.
4. DISPLAY button
Change disc status information displayed on
the screen.
5. RETURN button
Return to the normal operation after using the
SETUP menu of a DVD.
TA button
To select traffic announcement broadcasting
6. MEMORY button
In stop mode, enter the number of a selected
chapter or track.
7. SETUP button
In stop mode, open and close the SETUP
menu.
8. Cursor ( , , , ) buttons
Use to highlight selections on a menu screen
and adjust certain settings.
ENTER button
Confirm selections on a menu screen.
9. MUTE button
Pressto cutthe volume,press againto restore
the previous volume.
10. EJECT button
11. MONITOR OPEN/CLOSE button
12. ANGLE button
Switches between multiple camera angles
when the DVD you are playing has multiple
camera angles recorded.
AF button
To select alternative frequency broadcasting.
13. SUBTITLE button
Select one of the subtitle languages
programmed on a DVD.
PTY button
To select program type broadcasting.
14. STANDBY/ON button
Turns the unit on and puts it in standby mode.
15. NEXT button
Press once to go to next tuner stations.
16. AUDIO button
Select one of the audio sound tracks
programmed on a DVD or select the audio
output mode on an AUDIO CD.
17. SOUND button
Selects sound balance and tone controls for
adjustment with the volume + / - buttons.
18. STOP button
Stop playing a disc.
PAUSE button
Pause playback, frame advance.
PLAY button
Press to start or resume playing a disc.
19. MENU button
Open DVD menu.
20. SLOW button
21. VOLUME (+/-) buttons
Adjust the volume.
22. GOTO button
Skip directly to a location on a DVD.
23. Number (0-9) buttons
Usewhen creatingprogrammes,and entering
a parental level password. Also use to select
a CD track directly. Select or save tuner
memory stations.
Number (- / - -) button
Use to select a 2 digits songs in DVD/CD
mode.e.g.Song 14, first press“- / --”, then “1”,
and “4”.
24. REPEAT A-B/DISC button
Perform point to point repeat playback on a
DVD or CD.
Repeat chapter or title of a DVD.
Repeat single track or whole CD.
BAND button
Switch between MW or FM.
CONTROL REFERENCE GUIDE
REMOTE CONTROL

GB - 11
PREPARATIONS
TO OPEN/CLOSETHE MONITOR
Press the OPEN/CLOSE button on the unit or in
the remote control.
The monitor will slide out or slide back into the
unit automatically. Donotplaceany articles,such as cans or bottles,
on the monitor. It may cause a malfunction.
TO ADJUSTTHE MONITOR ANGLE
Press the MONITORTILT or TILT buttons on
the remote control will adjust the viewing angle
bit by bit. Do not push the monitor by hand or
damage to the unit could result.
RESETTINGTHE UNIT
Before operating the unit for the first time, or
after replacing the car battery or changing the
connections, you must reset the unit.
Note: Do not push the button too strong.

GB - 12
USING THE REMOTE CONTROL
USINGTHE REMOTE CONTROL
• Point the Remote Control at the REMOTE SENSOR located on the unit.
• When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may
be degraded, causing unreliable operation.
• The recommended effective distance for remote operation is about 16 feet (5 meters).
REPLACEMENT OF BATTERIES
When batteries become weak, the operating distance of the Remote Control is greatly reduced and you
will need to replace the batteries.
Note: If the Remote Control is not to be used for a long time, remove the batteries to avoid corrosion
damage caused by batteries leakage.
TO CHANGE REMOTE BATTERIES
1. Open the battery door. 2. Insert two“AAA”or UM-4size batteries.
WARNING: Do not dispose of remote control batteries so that they
may be subject to excessive heat such as sunshine, fire or the like,
as batteries may explode or leak.
Caution:
Danger of explosion if battery is
incorrectly replaced. Replace only with
the same or equivalent type.
Wasteelectricalandelectronicproductsmust
not be disposed of with household waste.
Please refer to the retailer from whom you
purchasedthisitem fordisposal instructions.
Argos
MK9 2NW

GB - 13
1. Press to turn on the unit.
OPERATING TONE (BEEP)
The operating tone can be activated or
deactivated.
ACTIVATINGTHE OPERATINGTONE
Press and hold the button for 2 seconds
until BEEP ON is displayed. The operating tone
will beep when an operating button is pressed.
DEACTIVATINGTHE OPERATINGTONE
Press and hold the button until BEEP OFF
is displayed.
Note: The operating tone’s status-activated
(BEEP ON) or deactivated (BEEP OFF) will be
stored in memory even when the power is turned
off.
HAVINGTHE CLOCK DISPLAY WHILE
IN RADIO OR CD/DVD PLAY MODE
PressDISPLAY buttonuntil theclockis displayed.
To return to its former display, press DISPLAY
again.
CLOCK ADJUSTMENT
2. Press DISPLAY in the remote control to select
CLOCK mode and hold for more than 2
seconds.
4. Clock displays in the display window.
5. Press button on the remote control unit to
adjust hours and to adjust minutes.
6. Press DISPLAY again to start clock.
Notes
• If you do not proceed with next step within 3
seconds,the selectedmodeswitchesto normal
mode.
• TA volume is same as system volume when
listen on the traffic announcement.
3. Press and hold the VOL UP / DOWN buttons
to change the level rapidly.
ADJUSTING THE SOUND CHARACTERISTICS
1. Press to turn on the unit.
2.Press SOUND to select sound mode. The
following indications appear in cyclic order:
BAS (bass),TRE (treble), BAL (balance), FAD
(fader), TAVOL (TA volume), VOL (volume).
Adjust each model referring to the audio control
indications in the display window.
The range of Volume level is displayed as a
number from 0 to 63 (MAX).
Bass level: -6 to +6
Treble level: -6 to +6
Balance level: R15 to L15
Fader level: R15 to F15
TA Volume: 0 to 63
Without selecting any mode with SOUND, only
the volume level can be adjusted by VOL+/VOL-
keys.
TO MUTETHE VOLUME
Press and hold the MODE button will turn the
MUTE on and off. The MUTE indicator on the
display window will display the
current status of the MUTE.
Press and hold again will restore
to the previous volume.

GB - 14
A. CONNECTINGTO AVIDEO GAME
SYSTEM
You can connect Game System to play with
through the monitor.
1. Turn on the unit.
2. Turn on the video game system and follow the
instructions provided with it to play with.
B. CONNECTINGTO A MONITOR OR
TVTUNER UNIT
This car unit can be used with a monitor or TV
tuner unit that has a A/V inputs.If your monitor
orTV tuner unit does not have A/V inputs, you
can purchase an RF modulator (sold
separately) to connect to the car unit.
CONNECTIONS
DOLBY DIGITAL (FOR DVD)
Dolby Digital is a sound system developed by Dolby Laboratories Inc.that gives movie theatre ambience
to audio output when the unit is connected to a Dolby Digital 5.1 channel processor or amplifier.
This unit automatically recognises DVDs that have been recorded with Dolby Digital.
Not all Dolby Digital sources are recorded with 6 channels.
Some sources marked Dolby Digital may be recorded in Dolby Surround, a 2 channel system. Look for
this logo on your unit.
Manufactured under license from Dolby Laboratories.
'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
SOUND SYSTEM
USINGTHIS UNIT WITH OTHER EQUIPMENT

GB - 15
LISTENINGTOTHE RADIO
1. Press to turn on the unit.
2. Press MODE to select tuner mode.
3. Press BAND button to select desired band.
RADIO OPERATION
STORINGTHE STATIONS IN MEMORY
AUTOMATICALLY
1. Press to turn on the unit.
2. Press MODE button to go to tuner mode.
3. Press BAND to select band.
4. Press andhold MEMORYbuttonfor2seconds,
auto search begins.
5. The tuner will automatically store up and scan
10stations in eachbandFM1, FM2,FM3,MW1
and MW2 (up to a total 50 stations).
• When auto memory storing is completed, the
selected stations are automatically stored and
shown in order.
• To stop auto memory, press MEMORY button
again.
Band indication Frequency
indication
FM1, FM2, FM3 have the same frequency range.
MW1, MW2 have the same frequency range.
4.Press TUNING or TUNING to seek
frequency up or down.
5. Press for 5 seconds, a station is searched
automatically. After tuning in a station, the
search stops.
6. The search may not stop at a station with a
very weak signal.
Note:
If ((STEREO)) indicator lights up when the tuned
in station is broadcasting in stereo and the
reception is good.
TUNING INTO A PRESET STATION
1. Press to turn on the unit.
2. Press MODE to go to tuner mode
3. Press BAND to select band.
4.Press 0 ~ 9 buttons directly on the remote
control to go to your desired stations.
5.The number of the pressed preset station
appears next to the frequency indication.
Active tuning reception control (ATRC)
This unit automatically suppresses FM stereo
noisecaused byvaryingsignalsstrengthresulting
from movement of the car.
• The built-in automatic blending circuit mixes
the left and right channel signals according to
the strength of the reception.At the same time,
the high-cut circuit activates to maintain the
sound quality.
• If the reception becomes even weaker, the unit
automatically switches to monaural mode to
reduce noise.
PRESETTHE STATIONS MANUALLY
1. Press to turn on the unit.
2. Press MODE button to go to tuner mode.
3. Press BAND to select band.
4.Press TUNING or TUNING to seek
frequency up or down.
5. Press and hold one of the number buttons (in
the remote control 0 ~ 9) for 3 seconds, the
station will be stored. The number of the
pressed preset station button appears next to
the frequency indication.
Preset station
Notes:
• Pressthe BACK SKIP /TUNING
DOWN and FORWARD SKIP /
TUNING UP buttons on the unit
will go to the preset stations one
by one.
• Press and hold the button will
go into the search mode, to stop
searching,press thebuttononce
again.

GB - 16
USING RDS FEATURES
WHAT IS RDS?
Developed by the European Broadcasting Union
(EBU), the Radio Data System (RDS) offers
listeners various information services, such as
station name display and traffic announcements
through FM broadcasting.
Since the RDS data is in digital form, you cannot
hearit.Thismeans youcanreceiveFM programs
without being disturbed by RDS data signals.
This receiver can receive the following types of
RDS digital data:
• PS (Program Service) name
Displays the station name during reception.
• AF (Alternative Frequencies)
Automatic tuning to alternative frequencies.
• TP (Traffic Program)
Automatic traffic announcement reception in
Tuner mode.
• PTY (Program Type)
Program selection by program type, such as
news, sports, rather than by station.
• EON (Enhanced Other Network)
Switches automatically when a traffic
announcement begins on other network.
Note:
EONindicatorturns on whenthatstationreceived
contains EON information.The EON information
helps the receiver to check other network
(stations) traffic program status.
IMPORTANT
• These RDS functions are effective only in FM
(FM1, FM2 and FM3) mode.
• The above functions may not operate correctly
where RDS transmissions are in the
experimental stages.
DISPLAYINGTHE STATION NAME
If the received station has a program service
name, the station name is displayed.
• The station name may not be displayed if the
signal is below a certain level.
RECEIVING ALTERNATIVE
FREQUENCIES
Whenthe FM programtuned inisbeing broadcast
on network stations, you can continue to listen to
that program while driving without frequent
manual retuning.
During FM reception, press AF to turn on the AF
indicator.
• If the station tuned in does not offer AF data,
the AF indicator blinks.
The unit searches for an alternative frequency
whichhas thestrongestsignal among thenetwork
stations and immediately retunes to that
frequency.
For example, if the program tuned in is broadcast
in 88.0 MHz, 88.5MHz and 90.1 MHz as shown
in the illustration above, the tuned-in station
frequency will change to 88.0 MHz, 90.1 MHz
and 88.5 MHz as the car moves.
If no alternative frequencies are found, press AF
to leave the AF mode.
Regional
PressAF buttonand hold for2secondsto change
Regional status.
REG indicator on means alternative frequency
PI code must be exactly identical.
REG indicator off means the region identification
code in the PI code is ignored so that the local
station in one area can be changed to another
station (eg. "BBC Kent" changed to "BBC Slnt")
in an other area.

GB - 17
RECEIVINGTRAFFIC ANNOUNCEMENTS
Once the unit is set in the TA (traffic
announcement) Standby mode, you can hear
traffic announcements as soon as they begin.
1. Tune in an FM station.
2. PressTA button to turn on theTA indicator and
enter the TA Standby mode.
If the tuned-in station does not offer traffic
announcementservice, theTP indicator blinks.
In this case, tune in another FM station with
TA.
3. Listen to the radio.
When a traffic announcement starts, the unit
automatically enters the FM reception mode, and
theTA indicator flashing.The frequency indicator
also displays the station name a few seconds
later.
When the announcement is finished, the TA
indicatorwillstopflashingandthe original source
will be heard.
Traffic announcements are heard at a TA VOL
level, regardless of the volume setting. This is
convenient when you want to hear no other
sources other than the traffic announcement.
If the signal falls below a certain level, both the
AFandTPindicatorsblink.This function switches
inautomaticallywhen a trafficannouncementhas
begun on another network, so you can listen to
the traffic announcement.
SELECTING FM BY PROGRAMTYPE
Thisfeaturemaynot yetbeavailableinyourarea.
During FM reception, press PTY.
The unit enters the PTY mode and PTY type will
turn on in the display for about 5 seconds.
SELECTTHE PROGRAMTYPE
1. Turn on the power.
2. Tune to the desired band.
3.Press PTY button (in the remote control).
Programtype willturn oninthe displayforabout
5 seconds.
4. Within 5seconds, pressTune up orTune down
to display the desired program type.
5. Press PTY button and hold for 2 seconds to
start the PTY search.
When TUNING or TUNING is kept
pressed, the program type starts to change
automatically.Then release the button.
USING RDS FEATURES

GB - 18
PLAYING A DISC
1. Press button to turn on the unit.
2.Press OPEN/CLOSE button to open the
monitor.
3. Press MODE button to go to CD/DVD mode.
4. Insert a disc with
the label side
upward. When the
disc is inserted
part-way, it is drawn
in automatically.
5.Theunitwillautomatically start playing.Amenu
may appear on the screen when a DVD is
inserted.
Note:
If listening to an audio CD, no need to open the
monitor.
6. The following will be displayed in the display
window.
PAUSING PLAYBACK (STILL MODE)
Pressthe PAUSE button.To resume playback,
press the PLAY button.
Each time you press PAUSE button, the
picture advances one frame.
STOPPING PLAYBACK
Press the STOP button at the location where
you want to interrupt playback. To resume
playback at the position where the disc was
stopped, press the PLAY button.
If you press the STOP button twice, the unit’s
memorywill be cleared and pressing the PLAY
button will reset the disc to the beginning.
TO SKIPTO A DIFFERENTTRACK
1. Press the PREV button repeatedly to skip
to the start of the current or previous track.
2. Press the NEXT button to skip to the next
track.
3. for audio CD, use the number buttons (remote
control only) to jump straight to the track
number.
FAST FORWARD/FAST REVERSE
1. Press the TUNING or TUNING button
when a disc is playing.
2. The disc begins fast scan at 2x speed.
3. Five speeds are available.Each time TUNING
or TUNING button is pressed, the
speed of fast scan changes in the following
sequence:
4. Press the PLAY button when you reach the
desired point to resume playback at normal
speed.
SKIP (FORWARD/REVERSE)
While you are playing a disc, press the NEXT
button to move to the beginning of the next
chapter or track. Press the PREV button to
move to the previous chapter or track and
automatically start playing it.
PLAYING A DISC
This owner’s manual explains the basic
instructions of this unit. Some DVD discs are
produced in a manner that allows specific or
limited operation during playback. Such as, the
unit may not respond to all operating commands.
This is not a defect in the unit. Refer to the
instruction notes of discs.
“ ”may appearon thescreenduring operation.
A“ ”means that the desired operation is not
permitted by the unit or disc.
REP 1
Track/Chapter
number Elapsed time
Note:
3-inch (8cm) discs cannot be played in this unit.
Do not use an adaptor as it may cause
malfunction.

GB - 19
SLOW-MOTION PLAY
Press SLOW button (in the remote control
only) in play mode.
5 speeds are available. Each time SLOW button
is pressed, the speed of slow motion playback
changes in the sequence like this:
PLAYING A DISC
SUBTITLE 2 : ENG
ANGLE : 1
Sequence of angle shots
(Example)
AUDIO SELECTION
On some discs, the sound is recorded in two or
more formats. Follow the directions below to
select the type of playback.
1. While a disc isplaying,press the AUDIO button
to show the current audio format number.
2. Press the AUDIO button repeatedly to select
the desired audio format.
SUBTITLE SELECTION
1. While a DVD is playing, press the SUBTITLE
button to display the current language setting,
as shown in the example below.
2.Press the SUBTITLE button repeatedly to
select the desired subtitle language.
Notes :
• If only one language is recorded, the language
does not change.
• About two seconds later, playback continues
with the new subtitle you selected.
• The number of languages recorded differs
depending on the disc.
• If no button is pressed within a few seconds,
playback continues without changing the
current subtitle.
• This function can only be used for discs on
which subtitles have been recorded in multiple
languages.
• On some DVDs, subtitles are activated from
the main menu of the DVD. Press the MENU
button to activate the main menu.
ANGLE SELECTION
Some DVDs contain scenes which have been
shot from a number of different angles.For these
discs, the same scene can be viewed from each
of these different angles.
1.While you are playing a DVD with different
angles recorded, press the ANGLE button to
view the number of the current angle available.
2. Press theANGLE buttonrepeatedly to change
the scene to the next angle in those recorded.
• About two seconds later, playback continues
from the new angle you selected.
• If no button is pressed within 10 seconds,
playback continues without changing the
current angle.
Note:
This function can only be used for discs on which
scenes shot from multiple angles have been
recorded.
Notes:
• Ifonly oneaudioformatisrecorded, thenumber
does not change.
• About two seconds later, playback continues
in the new audio format.
