Whitehall GlacierFreeze GF-12 Operation and maintenance manual

INSTRUCTIONS FOR
OPERATION AND CARE OF
P.O. Box 3527 • City of Industry, CA, 91744-0527, U.S.A.
800-782-7706 • 626-968-6681 • www.whitehallmfg.com
6702-488-000 August 2012
Member of
GF-12
GLACIERFREEZE

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
Instructions for Operation and Care of GlacierFreeze
WARNING
PLEASE READ THIS ENTIRE
BOOKLET BEFORE OPERATING
YOUR GLACIER FREEZE.
Failure to follow these instructions could result in damage
to your Glacier Freeze and/or bodily injury
•
•
a
! !
CONNECT the appliance to a G.F.C.I. (Ground Fault Circuit Interrupter) electrical receptacle for protection
against electrical shock. The Glacier Freeze must be properly grounded. Failure to do so may result in
increase risk of electric shock.
DO NOT use in the presence of flammable liquids or gases, as these may present a fire/explosion hazard.
DO NOT use an extension cord.
DO NOT use a knife or other metal object to remove frost and/or ice. Doing so may severly damage the
refrigeration system.
•
•

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
Instructions for Operation and Care of GlacierFreeze
1
TABLE OF CONTENTS
Model Description ................................................................................................. 2
Defrost Your GlacierFreeze ...................................................................................3
Cleaning & Maintenance
....................................................................................... 3
Troubleshooting
.................................................................................................... 4
Wiring Diagram ..................................................................................................... 4
Start Up Procedures ............................................................................................. 3
Temperature Adjustment .......................................................................................3
Parts Diagram ....................................................................................................... 5

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
2
GlacierFreeze
GlacierFreeze provides a convenient and reliable storage for a Glacier Packs. It’s designed to keep them properly
stored and ready to use. Each unit comes with stainless steel shelves for standard Glacier Packs and a molded
compartment for Ice Cups (Ice Cups not included). Oversized packs are easily stored on the bottom shelf.
MODEL GF-12
Instructions for Operation and Care of GlacierFreeze

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
3
START UP PROCEDURES
•
•
•
•
CLEANING & MAINTENANCE
To use your GlacierFreeze with the most efficiency and
safety, select a suitable place for installation keeping in
mind the following points:
Turn off your
vertical rack spacers, cup holder and drip tray. Wash
interior liner with a solution of warm water and two
teaspoons baking soda per quart of water. Rinse and
wipe clean. Do not use soaps, detergents, scouring
powder or spray cleaners for the liner. They may create
odors in the freezer.
Wash the drip tray, rack spacers and cup holders in a
mild detergent. Rinse and dry with a soft cloth. Use
only mild soapy water to clean door gaskets.
Never use acids, chemical thinner, gasoline, or the like
for cleaning any part of the freezer. Boiling water and
benzine may deform and damage plastic parts.
Use a vacuum cleaner to clean the condenser
(tube and wire attachment) on the back of the freezer.
Wash the exterior cabinet with a detergent or soap
solution. Rinse well. Do not use scouring powder or
pads. To protect the cabinet finish, use a good quality
automotive wax. Be careful not to wax plastic parts.
GlacierFreeze. Remove cold pack,
The GlacierFreeze should be installed on a strong,
level floor. If floor is not quite level, adjust feet as
necessary.
The GlacierFreeze was designed for free standing
installation only and should not be recessed or
built-in.
Allow four inches or air space behind the freeze.
Keep away from direct sunlight, oven or other heat
source.
The GlacierFreeze is equipped with a three-prong
plug and is grounded to eliminate electrical
hazards. WARNING! FREEZER SHOULD BE
PLUGGED INTO A GROUNDED 120V, 60Hz
ELECTRICAL OUTLET. (NOTE: For other
voltages contact Whitehall for voltage adapters.)
•
TEMPERATURE ADJUSTMENT
The GlacierFreeze temperature can be adjusted by
the Cold Control Knob. Freezer temperature will
become lower as the Control Knob is set closer to the
“MAX” position.
The GlacierFreeze temperature will vary depending
on the quantity of cold packs stored and the frequency
of the door being opened.
A thermometer is supplied to indicate temperature of
freezer.
DEFROST YOUR GLACIERFREEZE
Remove cold packs from your
GlacierFreeze. Keep drip tray in place.
Set Cold Control Knob to “OFF”
position.
Defrosting may take several hours. To
defrost faster:
WARNING! NEVER USE A KNIFE OR OTHER METAL
OBJECT TO REMOVE FROST AND/OR ICE. DOING
S O M A Y S E V E R E L Y D A M A G E T H E
REFRIGERATION SYSTEM.
When defrosting is complete, remove drip tray and
dispose of water. Set Cold Control Knob back to
original position.
Leave door open.
Remove vertical Rack Spacers
and place pans of hot water on
frost shelves.
Wipe with warm towel or sponge.
•
•
•
Instructions for Operation and Care of GlacierFreeze

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
4

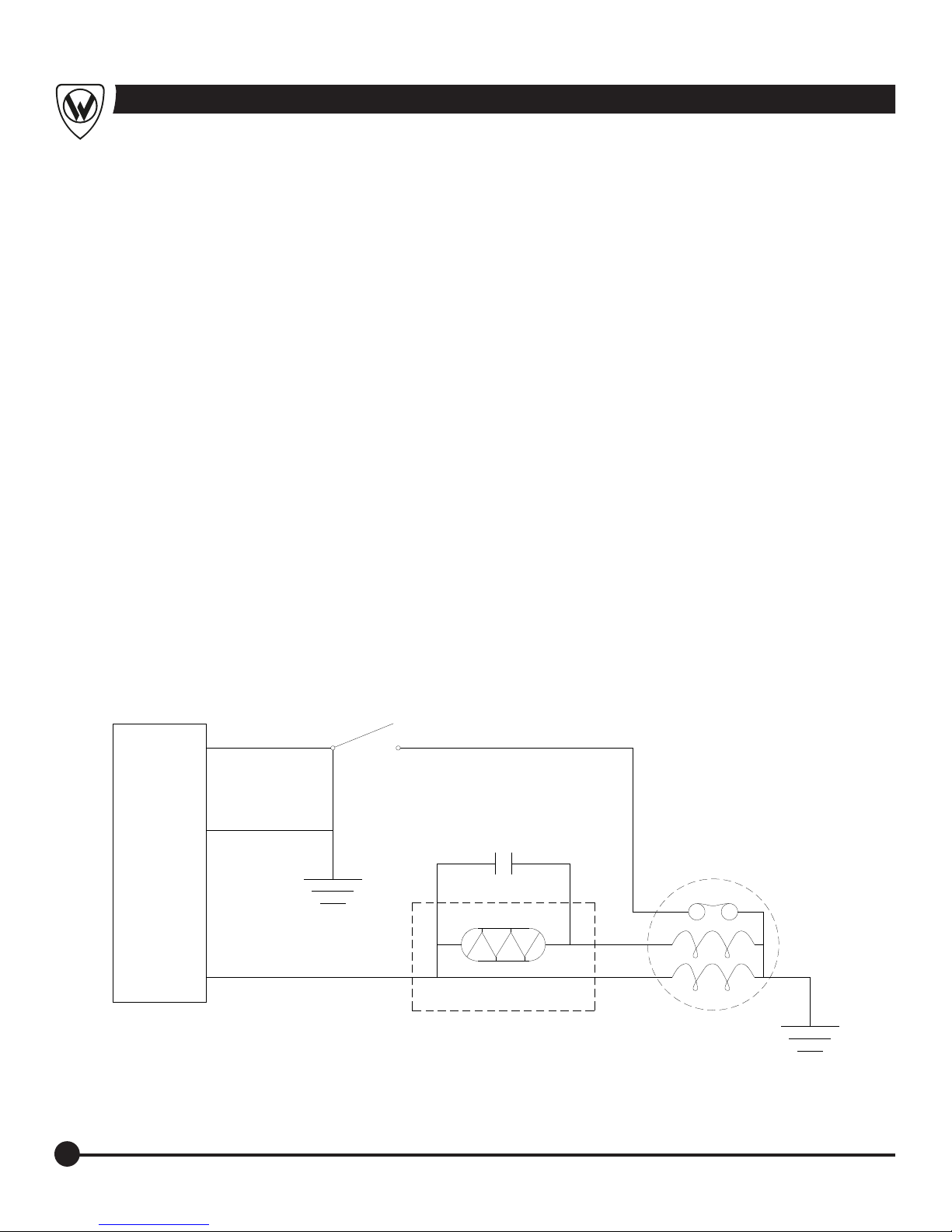

POWER INLET
YEL
L
WHT
N
GND
GRN
GND
THERMOSTAT
RUNNING
CAPACITOR
COMPRESSOR
PTC THERMISTER
GRAY
TROUBLESHOOTING
What should I do if my GlacierFreeze is too warm?
Adjust Cold Control. See page 3.
Make sure door is closed properly.
Condenser coils on back may need cleaning. See
page x.
--------------------------------------
•
•
•
What should I do if moisture collects on the outside?
Frequent door openings in high humid conditions
will cause this. Reduce door openings and reduce
time door is open.
Make sure door seal is tight.
•
•
What should I do if my GlacierFreeze is too noisy?
Make sure cabinet is level, not touching a wall or
other surface, and rests squarely on the floor on all
four corners.
Make sure condenser coils are free of lint and dust.
Normal noises include refrigerant gurgling as it
passes through tubes and the compressor clinking
on and off.
--------------------------------------
•
•
•
What should I do if there is an odor coming from my
GlacierFreeze?
Clean interior. See page 3.
•
WIRING DIAGRAM
Instructions for Operation and Care of GlacierFreeze

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
5

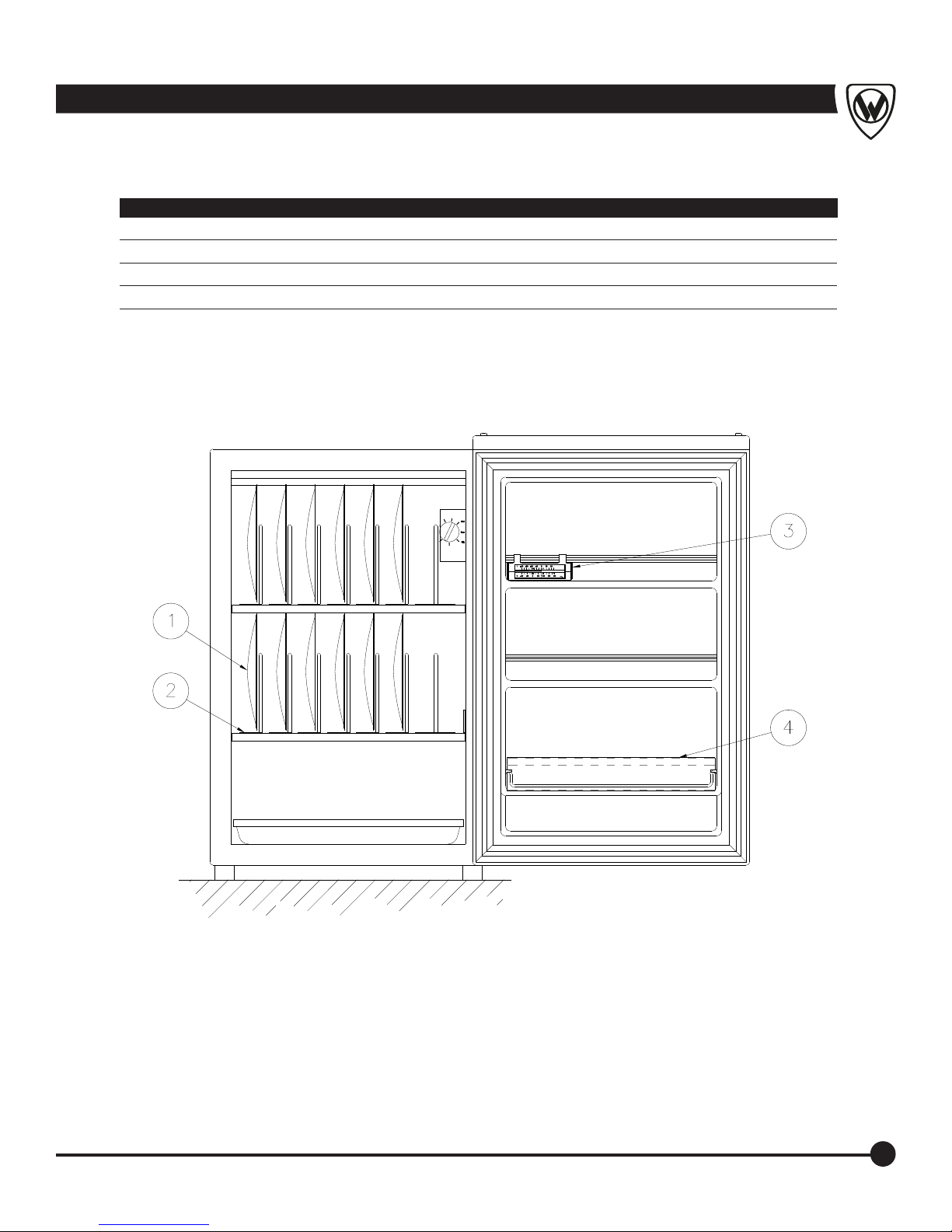

PARTS LIST FOR GLACIERFREEZE
ITEM # PART # DESCRIPTION
1 6702-450-000 Standard Size Glacier Pack
2 6702-484-001 Vertical Rack Spacer
3 6702-486-000 Thermometer
4 6702-487-199 Cup Holder (Ice Cups not included)
Instructions for Operation and Care of GlacierFreeze

WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
4
Instructions for Operation and Care of GlacierFreeze
6
1 8332331052700 Mascot
2 8330310551900 Foamed Door Assy
3 8330331652700 Door Gasket
4 8332320160702 Door Liner
5 8332320351000 Trim Shelf Door
6 8312320384100A Panel Guard Lower
7 8312322180100 Door Shelf Bushing
8 S1440100001000 Screw #023
9 8312612083272 Thermo Knob
10 8332230850400 Thermo Panel
11 8312132021231 Bottom Hinge
12 4233C29700 Thermostat ATB-3U1008
13 S1440160200700 Screw #035
14 8312432581370 Therm Bulb Clamp
15 8312132019800 Hinge Top
16 8312133012500 Hinge Top Cover, White
17 S31050160001GT Bolt #027
18 8312530814670 Case Wire Splicer
19 8342322170000 Trim Evaporator Bushing
20 S0440080001T00 Screw #026
21 8312537784100 Cord Clamp
22 4243C24500 Power Cord
23 SWZ502001R6UL Leg Spacer
24 8332111001210 Leg
25 2FB2236200200 Screw #159
26 8312433184801 Plate Support Condenser
27 8330420250500 Double Drier, 8 Grams
28 8312430970001 Bolt #050
29 8338030451000 Compressor
30 8312430683101 Grommet Compressor Mtg
31 SFSHY5012SE Bolt #119
32 8312120188700 Plate Cabinet Base
33 8332532650400 Clip Relay Cover
34 8332533250700 Relay Cover
35 8334204C50700 PTC Relay
36 8340410270700 Condenser
37 8340410172270B Evaporator Assy
38 8332411750303 Trim Shelf Evap. Upper
39 8332411750203 Trim Shelf Evap. Lower
40 8332220250800 Drip Tray
41 8332332870400 Cap Grommet, White
42 8336421950320 Wiring Diagram
43 4BC4S20002100 Overload Relay
44 8312432112000 Support, Tube Condenser
Parts Not Illustrated
8332132550400 Nylon Washer, Natural
8332340250700 Insulation Door
8342233111170 Thermo Bracket
8312233126870 Plate Mounting Thermo Fix

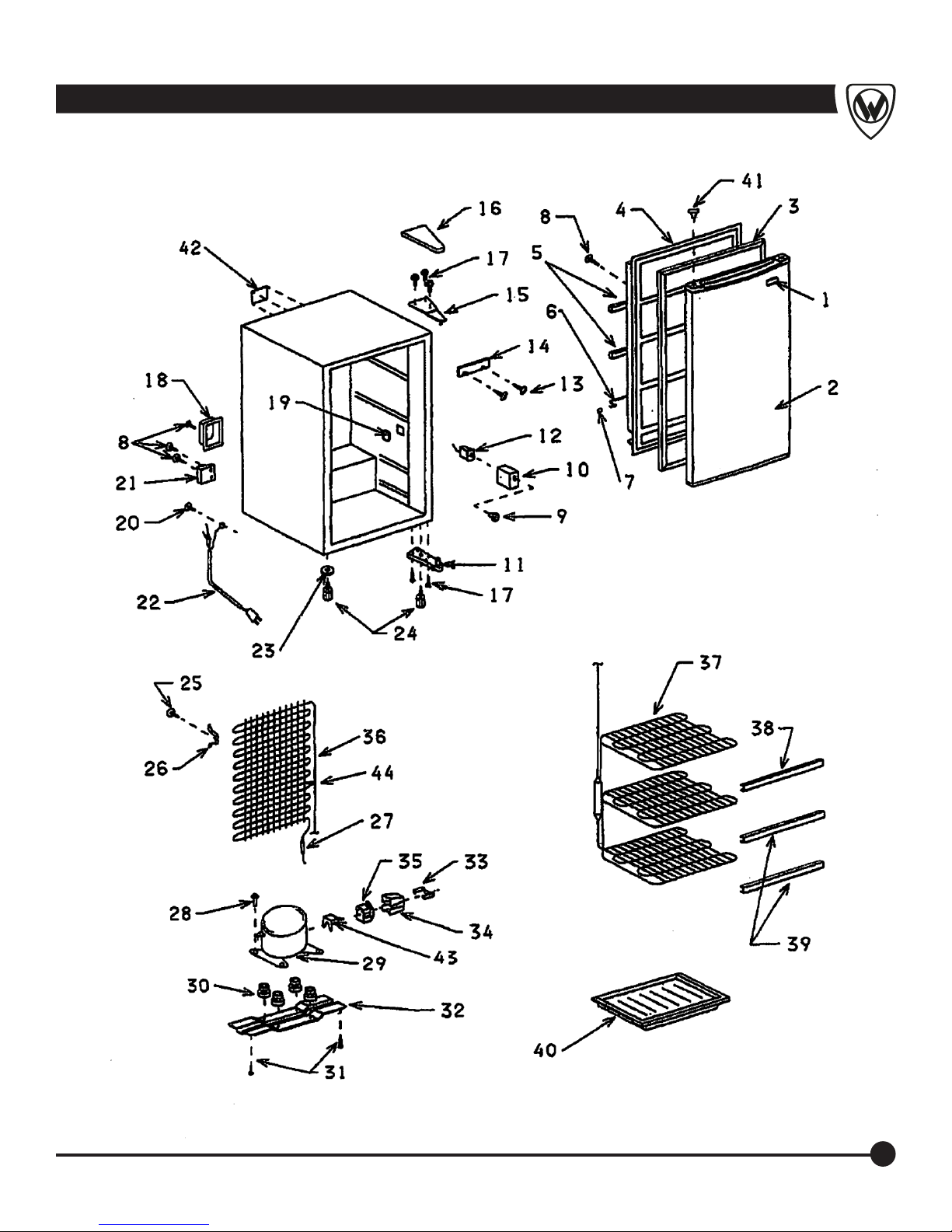

GLACIERFREEZE REPAIR PARTS

EXPLODED PARTS DRAWING
Instructions for Operation and Care of GlacierFreeze
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
7

Mailing Address:
P.O. Box 3527 • City of Industry, CA 91744-0527 U.S.A
Physical Address:
15125 Proctor Avenue • City of Industry, CA 91746 U.S.A
Phone [phone] • 626-968-6681
Fax [phone]
Web: www.whitehallmfg.com
Any questions regarding servicing of products in Europe or the Middle East should be directed to:
Niva Medical Company • Olarinluoma 14 B, FIN-02200 Espoo, Finland
Phone [phone] • Fax [phone]
Web www.nivamedical.fi • E-mail [email protected]
E-mail: [email protected]
Whitehall Manufacturing Company warrants that its products are free from defects in material or workmanship under
normal use and service for a period of one year from date of shipment. Whitehall's liability under this warranty shall be
discharged solely by replacement or repair of defective material, provided Whitehall is notified in writing within one
year from date of shipment, F.O.B. Industry, California.
This warranty does not cover installation or labor charges, and does not apply to materials which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of
the defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Whitehall under this
warranty. Whitehall shall not be liable under any circumstances for incidental, consequential or direct charges caused
by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other
warranties expressed or implied. Product maintenance instructions are issued with each fixture, and disregard or non-
compliance with these instructions will constitute an abnormal use condition and void the warranty. If you have any
questions or require technical assistance, please call 800-743-8219.
NOTICE TO KEEP ORIGINAL PACKAGING- Regarding warranty claims: customer must retain original packaging
for one year upon receipt of product. If packaging is discarded, it is the customer's responsibility to provide adequate
packaging. Any shipping claims that are a direct result of customer-provided packaging materials will be handled by
the shipper.
