Wisdom MB3005B User manual

双层自动合缝机
Automatic Denim Pocket Setter
（MB3005B-PS- EXT3216H）
使用说明书
Instruction Manual
常州智谷机电科技有限公司
CHANGZHOU WISDOM & VALLEY ELECTRICAL TECHNOLOGY CO.,LTD
在使用本设备之前请先阅读本使用说明书
Please read the operation manual of the touch
screen interface before using the device
请将本使用说明书放在便于查阅的地方保管
Please keep this operation manual of touch screen
interface in convenient place for referenc
2021.01
版本信息/ Version

感谢购买 IMB 工业用缝纫机。
在使用此机器之前，请仔细阅读以下的说明，这样可以更好地帮到您了解此机器的相关
操作。
这些说明是根据现行的条例明确阐述了正确的工作方法。
Thank you for purchasing this industrial sewing machine from IMB
Before using this automatic unit, please read the following instructions, which will help
you to
understand how the machine operates.
These instructions illustrate the correct working methods to comply with current
regulations.
在没有得到IMB授权许可的前提下，此说明书的任何部分是不可以被复制或者转录的。
说明书的内容可能被修改，而不需预先通知。
No part of this manual may be copied or transcribed without requesting prior authorization
from IMB
The contents of this manual may be subject to change without advance notification.
我们将欣然接受各位提出的改进此说明书的任何建议和指示
We are happy to receive suggestions and/or indications on ways we could improve this manual.
本机介绍说明分为两部分，具体请参照《MB3005B 双层自动合缝机-使用说明书》、《MB3005B 双层
自动合缝机-零件手册》。
The introduction of this machine is divided into three parts. For details, please refer
to 《MB3005B Operation manual》 and 《MB3005B Parts Manual》《MB3005B Touch screen interface
operation instructions》

ENGLISH

Catalog
1、Basic information of the equipment................................................................................................. 1
1.1.Basic information of equipment............................................................................................... 1
2、Technical parameters of equipment................................................................................................... 2
3、Safety precautions..................................................................................................................................3
4、Key function description..................................................................................................................... 5
4.1.Button function description..................................................................................................... 5
5、Operating instructions......................................................................................................................... 7
5.1.Preparation before operation................................................................................................... 7
5.2.Operation process description................................................................................................. 7
6、Debugging method....................................................................................................................................10
6.1.Interface description............................................................................................................... 10
6.2.Parameter setting....................................................................................................................... 11
6.3.Gap adjustment............................................................................................................................. 11
6.4.Adjustment......................................................................................................................................12
7、Electrical wiring................................................................................................................................. 13
7.1.Electronic control panel：..................................................................................................... 13
7.2.Air control chart................................................................................................................................. 14
8、Common problems and Solutions............................................................................................................. 15
9、Daily maintenance requirements.............................................................................................................. 15
10、Knowledge product protection statement.............................................................................................. 16

1
1、Basic information of the equipment
1.1.Basic information of equipment
1
2
3
4
5
6

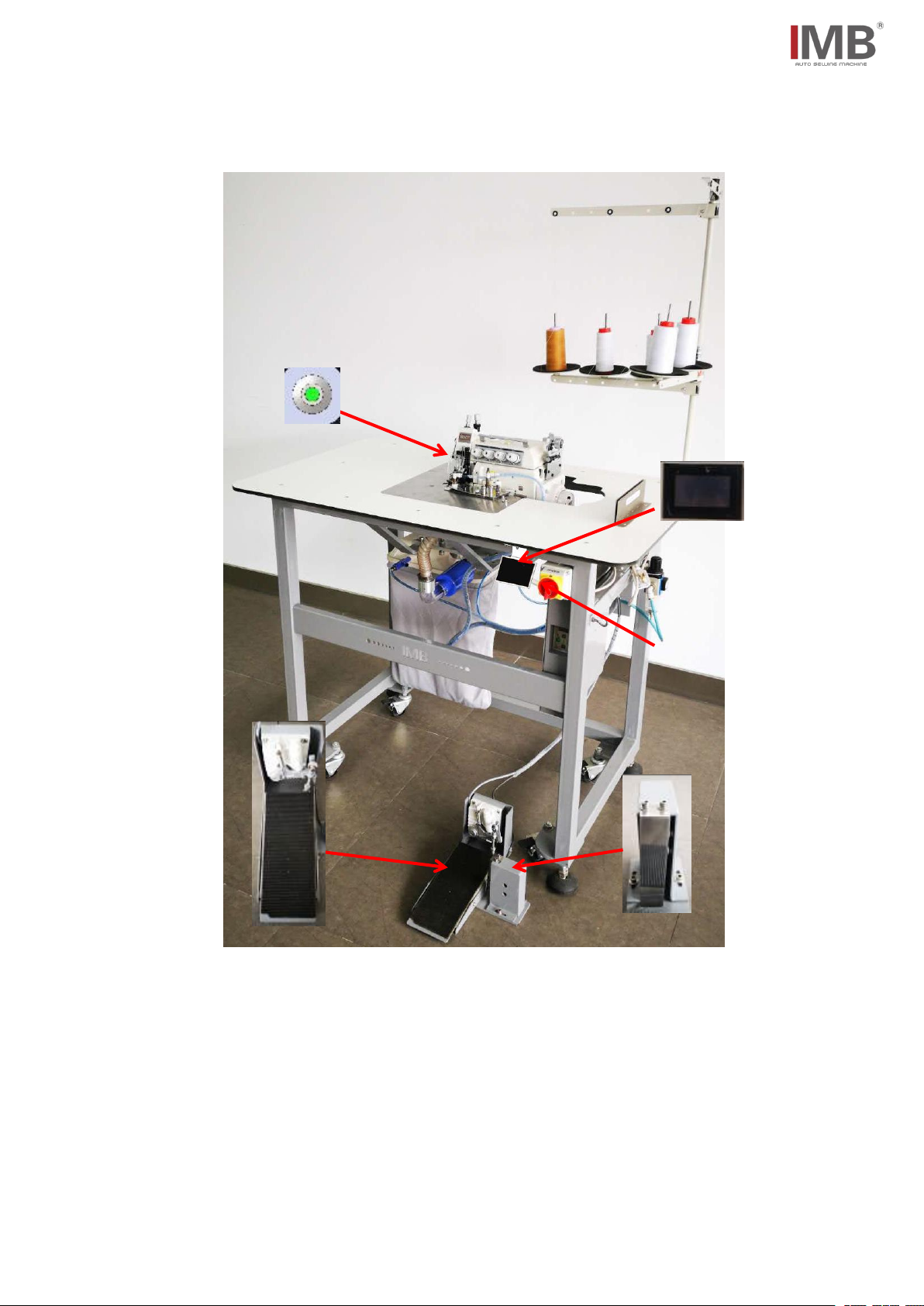

1：PS-EXT3216H Machine head； 2：Seamer device； 3：Dust collecting device；
4：Control box； 5：Pedal； 6: Screen

2
2、Technical parameters of equipment
MB3005B Side seamer
1
Machine head
PS-EXT3216H
2
Maximum sewing speed/rpm
5000
3
Voltage/V
AC220
4
Working pressure/Mpa
0.5
5
Stitch length/mm
0-5
6
Size/mm
1270L×890W×1270H
7
Weight/kg
95

3
3、Safety precautions
Considerations for safe use of automata
1. In order to prevent accidents caused by electric shock, please do not open
the cover of the electrical box of the motor or touch the parts in the electrical
box when the power is connected.
1. In order to prevent personal injury, please do not operate the machine in
the state of removing the belt guard, finger protector and other safety devices.
2. In order to avoid being involved in the machine's personal accident, please
do not let your fingers, hair, clothes near the pulley, v-belt, motor, and do
not put items on it during the operation of the sewing machine.
3. To prevent personal injury, please do not put your finger near the needle
when turning on the power or running the machine.
4. In order to prevent personal injury, please do not put your fingers in the
wire pole guard during the operation of the sewing machine.
5. When the machine is running, it turns at a high speed. To prevent damage
to the hand, never let the hand near the cutter during operation. In addition,
when changing the cable, please be sure to turn off the power.
6. In order to prevent personal injury, please be careful not to pinch your
fingers when the machine moves up and down or when you return to the original
position.
7. Please do not cut off the power or air supply while the machine is running.
8. In order to prevent accidents caused by sudden starting, please remove the
cloth guide when the preparation work is finished and the sewing state is
reached.
9. In order to prevent accidents caused by electric shock, please do not operate
the sewing machine when the ground wire of the power supply is removed.
10. In order to prevent accidents caused by electric shock and damage to
electrical parts, be sure to turn off the power switch before inserting or
unplugging the power plug.
11. In order to prevent accidents caused by damage of electrical parts, please
stop the operation for safety when it thunders and pull the power plug.
12. In order to prevent accidents caused by damage to electrical parts,
condensation will occur when moving from a cold place to a warm place
immediately, so please wait until the water drops dry before switching on the
power.
13. As this product is a precision machine, please pay full attention to it
during operation, do not splash water or oil on the machine, and do not let
the machine fall and give the machine impact.
This machine is A class A industrial machine. The use of this machine in the
home environment may cause the phenomenon of radio interference. At this point,
please take appropriate measures to solve the problem of radio interference.
15. After the power switch is turned off when the accumulator moves, the
accumulator lever moves, so please be careful not to clip your finger, etc.
16. When the power switch is turned off during the foot press action, please

4
be careful not to pinch your fingers.
17. During folding operation, please be careful not to clip the cylinder to
your finger when putting your finger into the folding machine.
* important safety information:
√ improper operation of the machine may cause personal injury. Please read this
instruction carefully and operate correctly before operation.
√Please ventilate the machine before it is officially powered on.
√ do not turn on the internal parts of the electric cabinet or touch screen
while the power is on.
√ this machine should be used after receiving training or under special
instruction to ensure the safety of the user.

5
4、Key function description
4.1.Button function description
（1）：Power switch: ventilate and power on the equipment after 90 ° rotation。
（2）：Pedal: sewing in front and lifting in back。
（3）：Microswitch: 1.1-2 sewing mechanism moves left or right after touching
（4） : button --- button green light display button or micro switch can be used, press
the button 1.1-2 to move the sewing mechanism left or right.
（5）Screen

6
a. Welcome interface
b. Monitoring interface

7
5、Operating instructions
5.1.Preparation before operation
√ The machine head shall be in the stop state when the operator checks it
√ Check whether the sewing thread has been put on correctly
√ Check whether the needle has been installed
√ Clean the sundries on the machine table to ensure that there are no sundries hindering
the operation of the machine
√ Check the pressure of the air pressure gauge to make it meet the use requirements of
the machine
5.2.Operation process description
5.2.1 Boot device
Rotate the power switch to the on position at 90 ° to power on the device.
The touch screen displays the power on interface. Select the language to enter the monitoring
interface
5.2.2 Operation process
a. Hem to waist：press turn to green

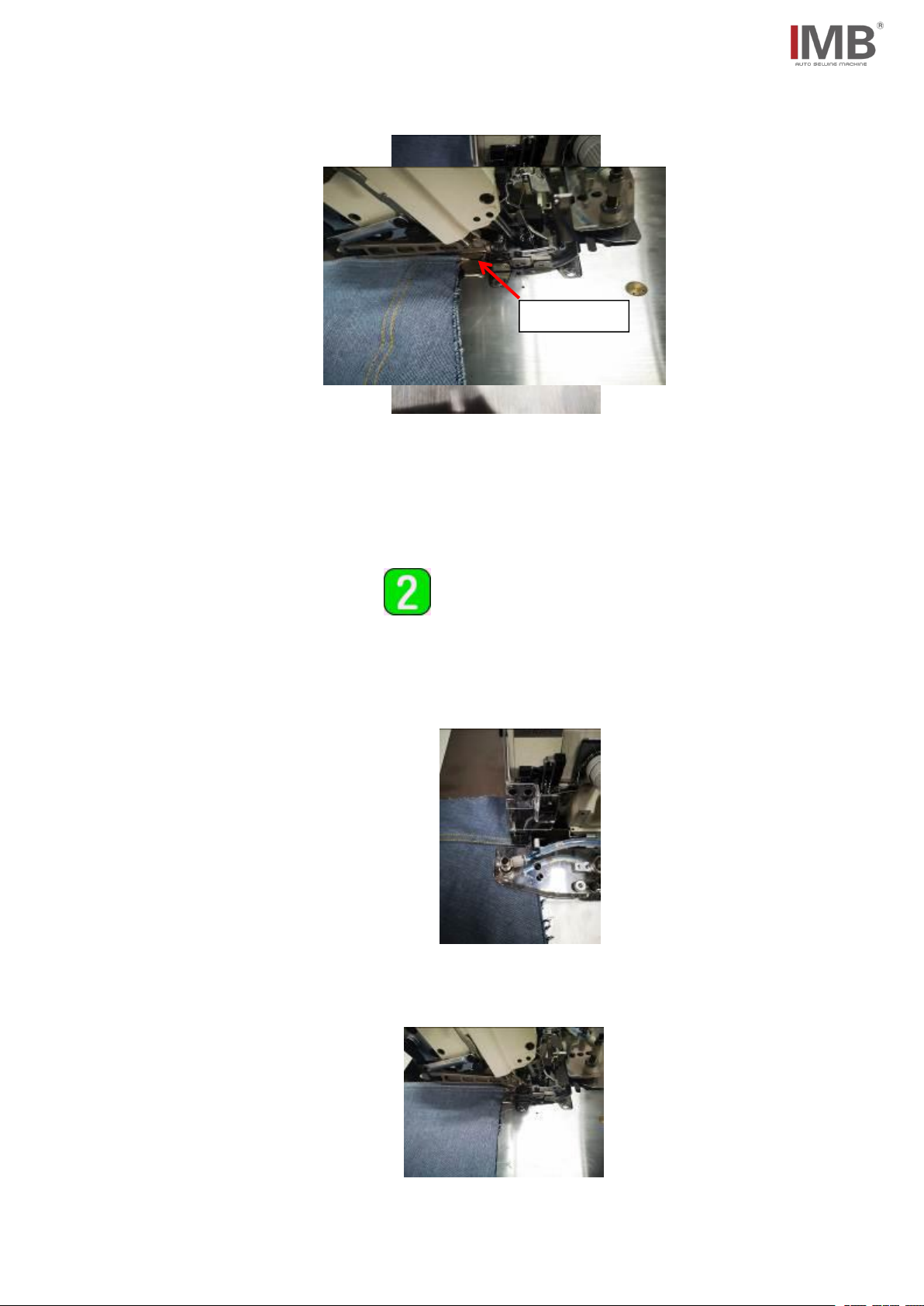

1) Press pedal backward to lift the presser foot，Place the cloth in the work area，
Press the pedal forward to the position shown in the figure below and then stop，
Touch the 4microswitch with your foot, and the sewing mechanism moves to the
left (as shown in the figure below)；
2) Step on the front pedal to the position shown in the figure below and stop. Touch

8
the micro switch with your foot to move the sewing mechanism to the right；
3) 3) When the front pedal is sewed to the position shown in the figure below, the
sewing is completed, the air suction stops and the presser foot is raised. (Note:
since the cutting thread is located behind the feeding tooth, the cutting piece
needs to be sent to the rear of the cutting thread suction for the convenience
of cutting thread)
b. Waistband to hem：Click turn to green
1) Press pedal backward to lift the presser foot，Place the cloth in the work area，
Press the pedal forward to the position shown in the figure below and then stop，
Touch the microswitch with your foot，The sewing mechanism moves to the left (as
shown in the figure below)；
2) Press the foot pedal forward to the position shown in the figure below and then
stop，Touch the microswitch with your foot，The sewing mechanism moves to the right
and the sewing is completed。
剪线吸风口

9

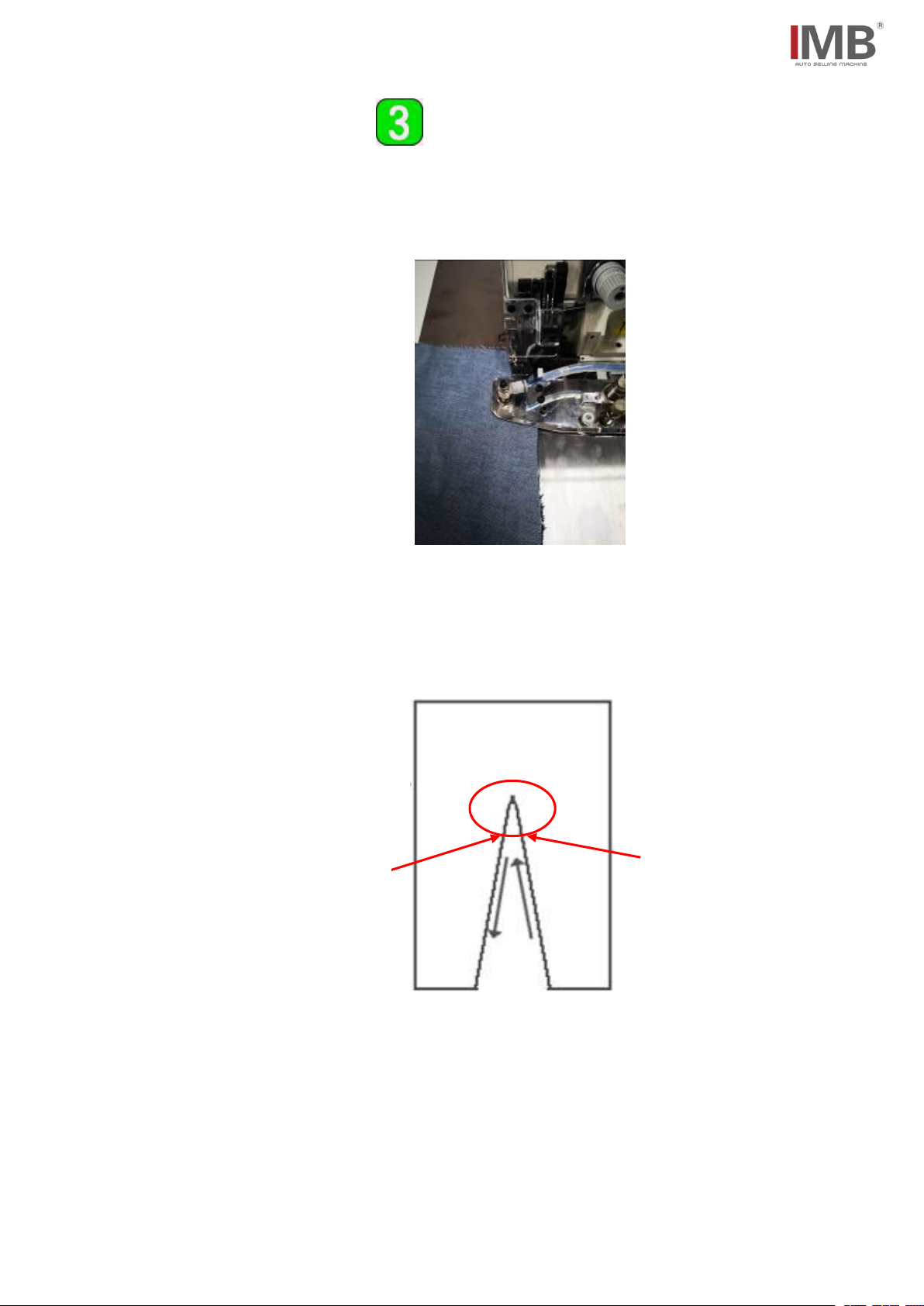

c. Crotch position：Click turn to green
1) Step back on the pedal to lift the presser foot，Place the cloth in the work area，
Step forward to the position shown in the figure below and stop，Touch the
microswitch with your foot, and the sewing mechanism moves to the left (as shown
in the figure below)；
2) Step forward to the position ○
1as shown in the figure below, Touch the microswitch
with your foot, and the sewing mechanism moves to the right，Continue sewing to
position○
2，Touch the 4.1 (3) micro switch with your foot, the sewing mechanism
moves to the left, step on the foot pedal in front, and the machine sews
automatically. After finishing, the sewing mechanism moves to the right
automatically, and the presser foot lifts up automatically
·
5.2.3 Shut down
After the operation, turn the power switch 90 ° to the off position, and the equipment
will be shut down
○
1
○
2

10
6、Debugging method
6.1.Interface description
、 、 The function is shown in 5.2 operation process description；
represent 、 automatic switching of two power sequences；
Adjust the current maximum speed of the head；
Click this button to open the interface shown in 6.2；
Input and output detection interface, click this button to pop up the interface as
shown in the figure below。

11
6.2.Parameter setting

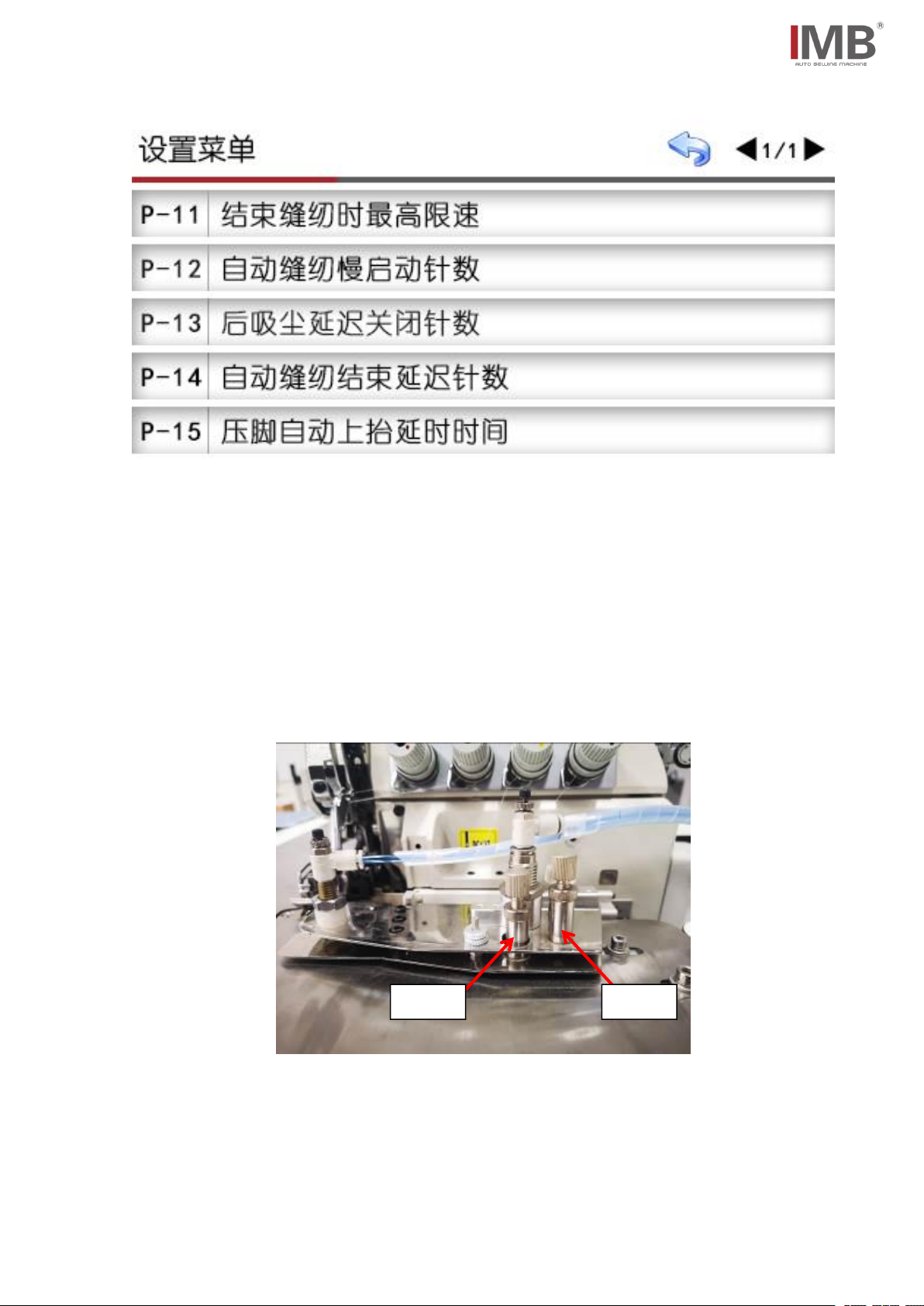

P-11：Adjust the maximum rotation speed of the sewing end section；
P-12：Adjust the number of stitches at low speed；
P-13：Adjust the number of spacing needles from cloth off photoelectric switch to dust
cleaning off；
P-14：Adjust the number of stitches between the cloth leaving the photoelectric switch and
the machine head closing under the automatic sewing state；
P-15：Adjust the number of interval stitches from the cloth separating from the photoelectric
switch to the presser foot lifting。
6.3.Gap adjustment
○
1
○
2
Manually rotate screw○
1, Adjust the gap between the lower plate and the mop plate，The gap size shall
be adjusted according to the thickness of the bottom cutting piece
Manually rotate screw ○
2, Adjust the gap between the upper plate and the lower plate，The gap size is
adjusted according to the thickness of the upper cutting plate

12
6.4.Adjustment
Limit
block
Adjust the left and right position of the limit block according to the size of the binding。

13
7、Electrical wiring

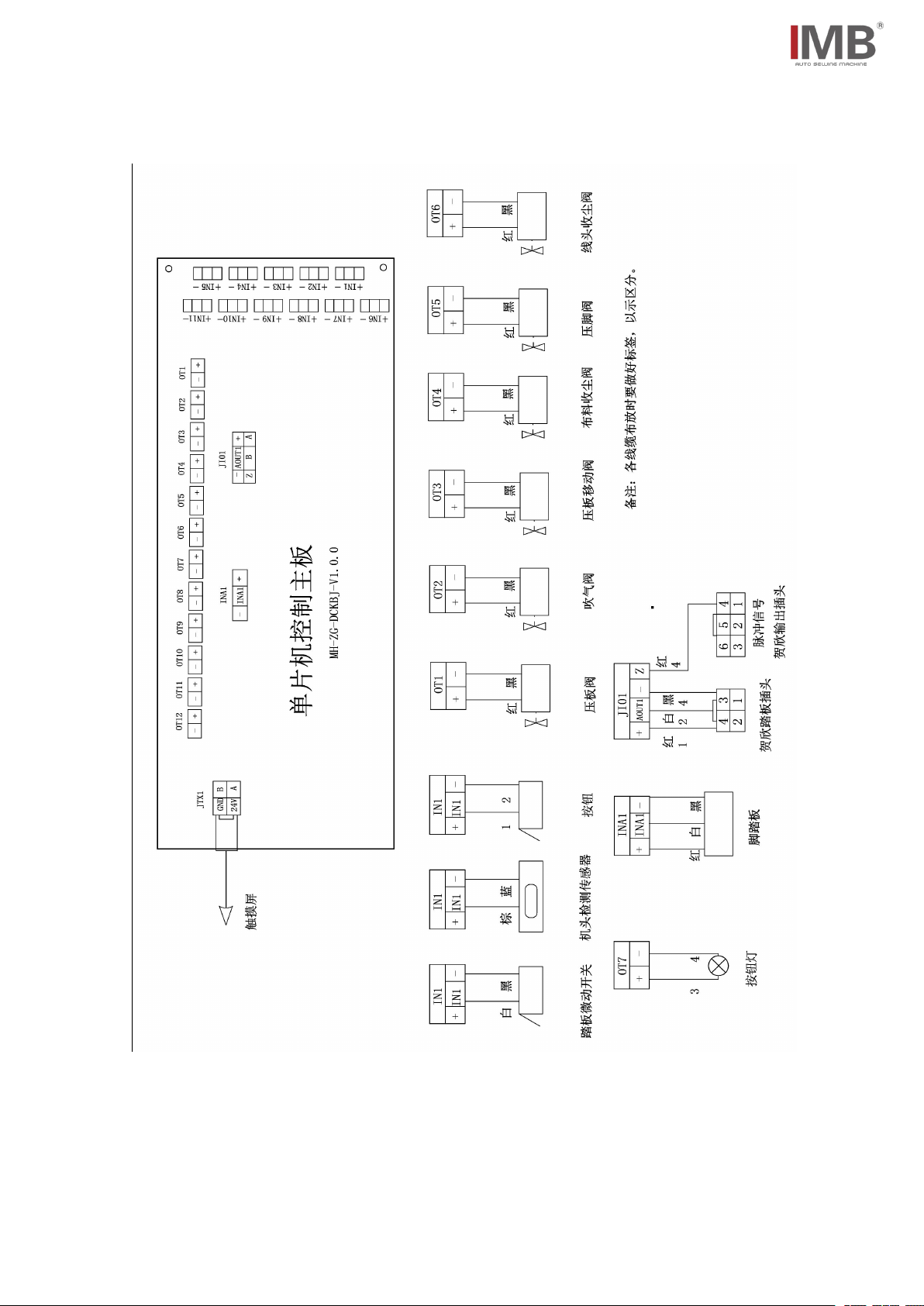

7.1.Electronic control panel：

14
7.2.Air control chart：

15
8、Common problems and Solutions
8.1. See the table below for common problems and Solutions
Phenomenon
Cause Analysis
Solutions
Over bound
The position of limit
block is to the left
Adjust the stop
position according
to step 6.2
9、Daily maintenance requirements
9.1. See the following table for the list and requirements of equipment maintenance
9.2. Please refer to the machine head manual for other maintenance requirements
NO
Project
Frequency
Requirement
Daily
Weekly
Monthly
Half
year
1
Clean up the
dust
√
Remove dust from equipment surface and
parts
2
Cleaning up
oil pollution
√
Clean the greasy dirt on the table ,
needle plate and bobbin
3
Air tube
interface
√
The air tube interface is tight without
air leakage
4
Oil
√
Oil volume not lower than warning line
5
Bobbin
√
Check if the bobbin is scratched
6
Sensor
√
Check if the sensitivity is accurate and
if the position changes
7
Slider
√
Check slide lubrication and add
lubricant if necessary
8
Electric
control box
√
Cooling fan runs normally, clean up the
dust in time
9
Cutter tough
√
Check cutter toughness to ensure no gaps
and wear

16
10、Knowledge product protection statement
MB3005B Side seamer was designed by Changzhou wisdom & valley Electric Technology Co.,
Ltd.。The intellectual property rights of this achievement belong to Changzhou wisdom &
valley Electric Technology Co., Ltd. and are protected by national intellectual property
laws and regulations. Without the written permission of the right holder, the patented
technology of the achievement shall not be implemented, and the information related to the
achievement shall not be copied, sold or disseminated through the network. For any illegal
infringement, Changzhou wisdom & valley Electric Technology Co., Ltd. will pursue its legal
responsibility according to law.。
