Xtreme Power 61034 Original instruction manual

ALL TERRAIN POWER CART
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 61034
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

SAFETY
Read and thoroughly understand all instructions and safety information before assembling or operating
this All Terrain Power Cart. Failure to do so may cause serious injury or death. DO NOT allow anyone to
operate this equipment who has not read this manual. As with all power equipment, an All Terrain Power
Cart can be dangerous if assembled or used improperly. DO NOT operate this equipment if you have
doubts or questions concerning safe operation.
1
DO NOT Use the Power Cart for any purpose other than for which it was designed. Any other use is
unauthorized and may result in serious injury or death.
When operating this Power Cart it is essential that you wear safety gear including goggles or safety
glasses, adequate clothing and tight tting gloves (no loose cuffs or draw strings). Always wear ear
plugs or sound deafening headphones to protect against hearing loss when operating this Power Cart.
Always wear sturdy footwear. Never wear sandals, sneakers or open shoes, and never operate the
Power Cart with bare feet. DO NOT wear loose clothing that might get caught in moving parts.
Whenever you leave the operating position to unload or make adjustments always shut off the engine
and wait ve (5) minutes to allow parts to cool. Remove the key or disconnect the spark plug wire and
keep the wire away from the spark plug to prevent accidental starting.
DO NOT permit children to operate this equipment at any time.
NEVER stand or sit on the machine with engine running.
ALWAYS operate the Power Cart from the control panel.
CAREFULLY INSPECT THE AREA TO BE TRIMMED AND REMOVE ALL FOREIGN OBJECTS.
DO NOT allow a person who is tired or otherwise impaired or not completely alert to operate the Power
Cart.
DO NOT operate the Power Cart when under the inuence of alcohol, drugs or medication.
DO NOT permit others that have not read and understood the complete Operation Manual to operate
this equipment
Keep all people and pets away from the work area when operating the Power Cart.
IMPORTANT SAFETY INFORMATION
CALIFORNIA PROPOSITION 65 WARNING Engine exhaust, some of its constituents and certain
product components contain or emit chemicals known to the state of California to cause cancer and
birth defects or other reproductive harm.
ALWAYS turn the engine off when unloading.
NEVER, under any conditions, remove, bend, cut, t, weld, or otherwise alter standard parts on the
Power Cart.
Use caution when operating on slopes.
DO NOT operate on slopes greater than 20 degrees.
Be cautious when using the Power Cart around obstacles such as fencing, wires, ropes, or other
material that can become entangled within the Power Cart’s tracks.
DO NOT exceed the recommended load limit of 705 lbs.

2
IMPORTANT SAFETY INFORMATION
NEVER run the engine in an enclosed area or without proper ventilation as the exhaust from the engine
contains carbon monoxide, which is an odorless, tasteless, and deadly poisonous gas.
Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely.
The mufer and engine become very hot with use and can cause a severe burn; DO NOT touch. Allow the
engine to cool before refuelling, doing maintenance, or making adjustments.
DO NOT make sudden or sharp turns when operating the cart.
At 15-20 degree bevelled level, the loading capacity should control within 150KG. When at 20-25, should
bear nothing to drive. DO NOT drive while the level is over 25 degrees. DO NOT to shift while overloading
or at bevelled level.

3

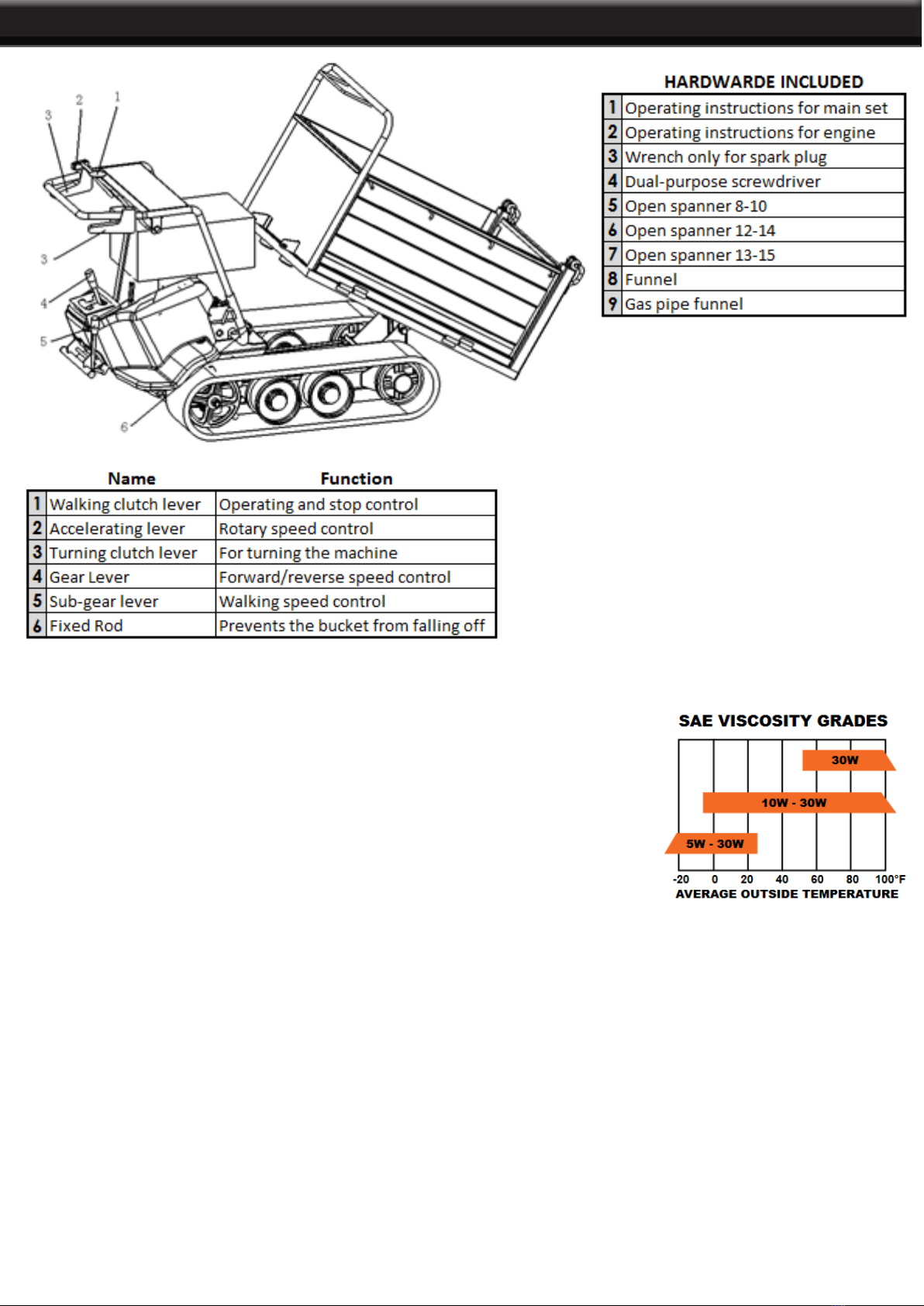

PRODUCT INFORMATION
FILLING WITH GASOLINE AND OIL: ADD OIL BEFORE STARTING THE ENGINE The Power Cart is
shipped without uids installed.
Keep the caps on the fuel and oil lls until you are ready to pour either gasoline
or oil into the correct ll. Oil capacity: 3.6L of SAE 10W30 engine oil.
1. Place the machine on a level surface and initially add 1/2 of the SAE 10W30
high detergent oil into the oil ll and wait one minute for the oil to settle.
2. Check the dipstick and continue adding a few ounces of oil at a time,
rechecking the dipstick until the oil reaches the ll mark. Be careful not to
overll.
3. Fill the fuel tank with fresh, unleaded gas (85+ Octane), to 1/2” from the top of the ll neck to allow for
expansion. Be careful not to overll and reinstall the cap before starting the engine.
Allow the engine to cool for at least two minutes before removing the fuel cap. Use caution as engine oil,
mufer and other components may be hot to the touch. To avoid re danger never add fuel to a hot engine.
Before performing any adjustments to the Power Cart or any maintenance, stop the engine, wait ve minutes
to allow parts to cool. Disconnect the spark plug wire, keeping it away from the spark plug. Contact with internal
rotating parts may cause serious personal injury. Never put hands or feet on or between the track rollers.
FUEL (ANYTIME): 93 UNLEADED 3.6L CAPACITY
ENGINE OIL: FIRST TIME 50HRS, AFTER EVERY 100HRS: SAE10W-30 0.6L CAPACITY
GEAR BOX OIL: FIRST TIME 50HRS, AFTER EVERY 500HRS: GL-4, 1.5L CAPACITY

4
OPERATION
STARTING THE ENGINE:
FOLLOW THE PROCEDURE BELOW FOR COLD STARTS:
1. Turn choke lever on the engine to the CLOSED position.
2. Set the throttle lever on the handlebar at halfway position
3. Turn the engine switch on.
4. Pull the starting rope slowly several times to allow the gasoline to ow
into the engine’s carburetor. Then hold the start handle rmly and pull
rope out a short distance until you feel some resistance. Then pull the
rope smoothly and briskly, and allow rope to return gently. Do not let the
rope snap back. If necessary, pull the rope several times until the engine
starts.
5. Allow the engine to run for several seconds to warm up. Then, gradually
move choke lever to “OPEN” position
Restarting a warm engine does not require use of the choke, so follow the
same steps above with the choke lever set to the OPEN position.
STOPPING THE ENGINE:
To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions,
use the following procedure.
1. Move the throttle lever to the SLOW position.
2. Let the engine idle for one-two minutes.
3. Turn the engine switch to the OFF position.
4. Turn the fuel valve lever to the OFF position
CAUTION: DO NOT move the choke control to stop the engine. This may result in engine backre or
damage to the engine may occur.
After engine warms up, pull throttle lever to accelerate engine speed. Engage the required gear and slowly
squeeze the clutch control lever. If the gear does not engage right away, slowly release the clutch lever and
try again.
STOPPING THE ENGINE:
CHANGING DIRECTIONS:
1. To turn left, pull the left steering lever upwards. 2. To turn right, pull the right steering lever upwards.
The sensitivity of the steering increases in proportion to the speed of the machine and that with an empty
machine, a light pressure on the lever is all that is needed to turn. When the machine is loaded, more pressure
is required. It is recommended that the operator practice driving the Power Cart with the dumper empty to
become familiar with the equipment’s operation before attempting to move a load.
LOADING AND UNLOADING:
1. Position the Power Cart into the desired position for dumping the load.
2. Turn off the engine and put the clutch lever into the STOP position.
3. Pull the tipping handle up to release the dump box’s locking device and raise the dump box.
4. Raise the dump box manually to dump the load.
5. Pull the tipping handle down to its original position. When the dump box is lowered, the locking mechanism
operates, locking the dump box.
