Yamaha RX-V483 User manual
AV Receiver
Owner's Manual
•This unit is a product for enjoying video and music at home.
•This manual explains preparations and operations for everyday users of the unit.
•Read the supplied booklet “Quick Start Guide” before using the unit. EN
CONTENTS
BEFORE USING THE UNIT 5
Accessories................................................................................................ 5
How to use this manual............................................................................ 5
Remote control.......................................................................................... 5
Insert the batteries................................................................................................................................................................... 5
Operating range of the remote control........................................................................................................................... 5
FEATURES 6
What you can do with the unit................................................................. 6
Part names and functions...................................................................... 10
Front panel............................................................................................................................................................................... 10
Front display (indicators).................................................................................................................................................... 11

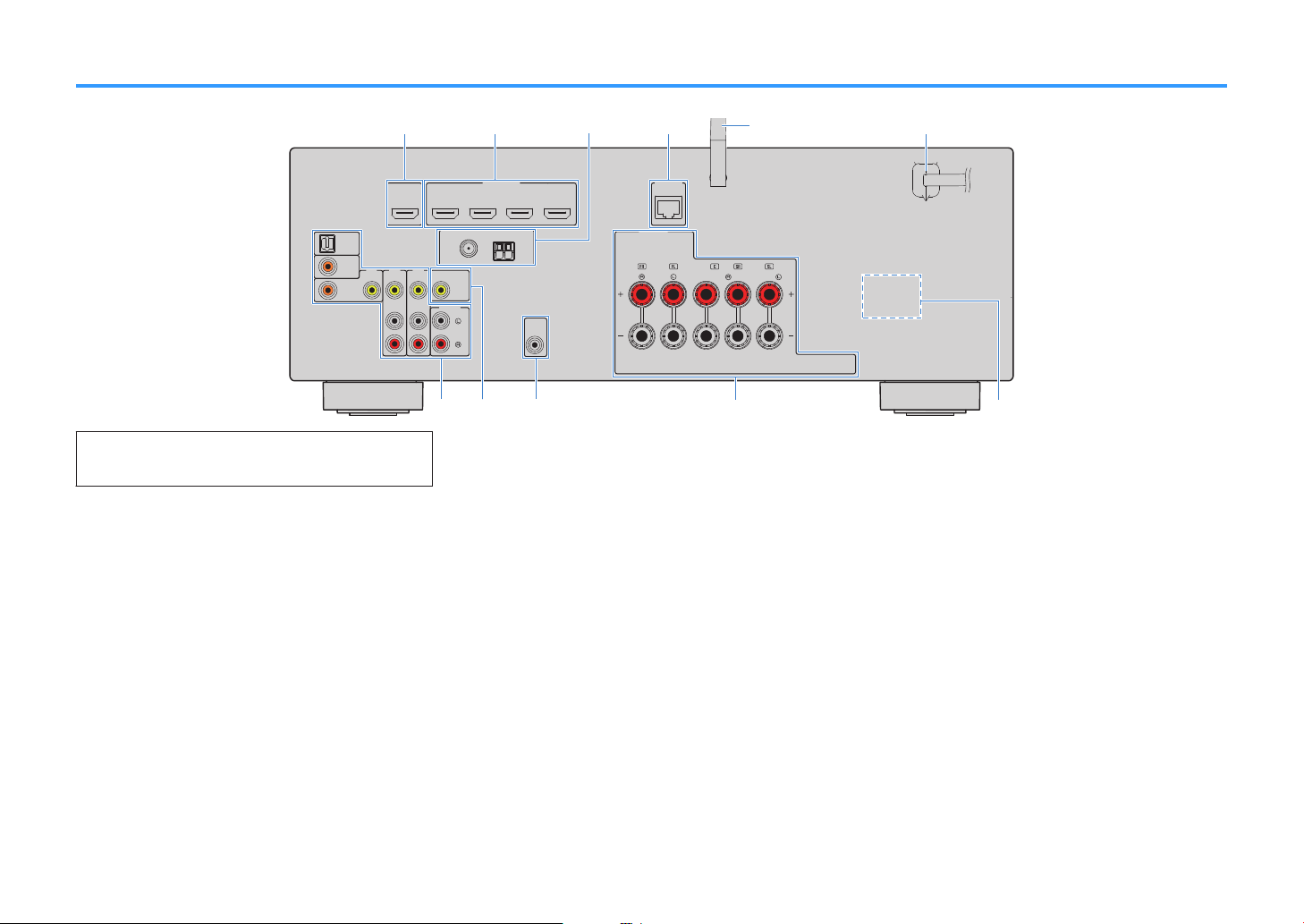

Rear panel................................................................................................................................................................................. 12
Remote control....................................................................................................................................................................... 13
PREPARATIONS 14
1Placing speakers............................................................................... 15

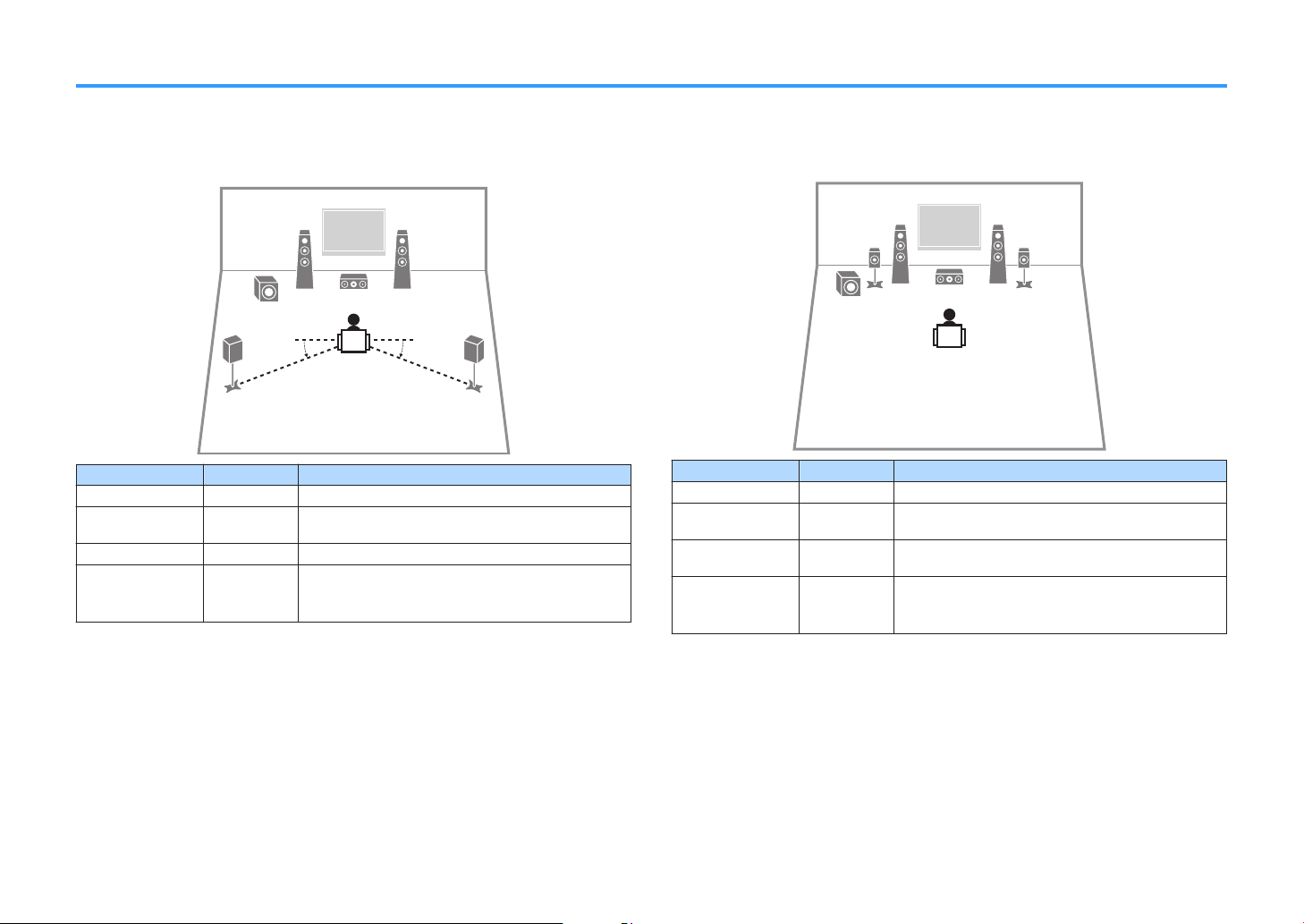

Typical speaker layouts....................................................................................................................................................... 16

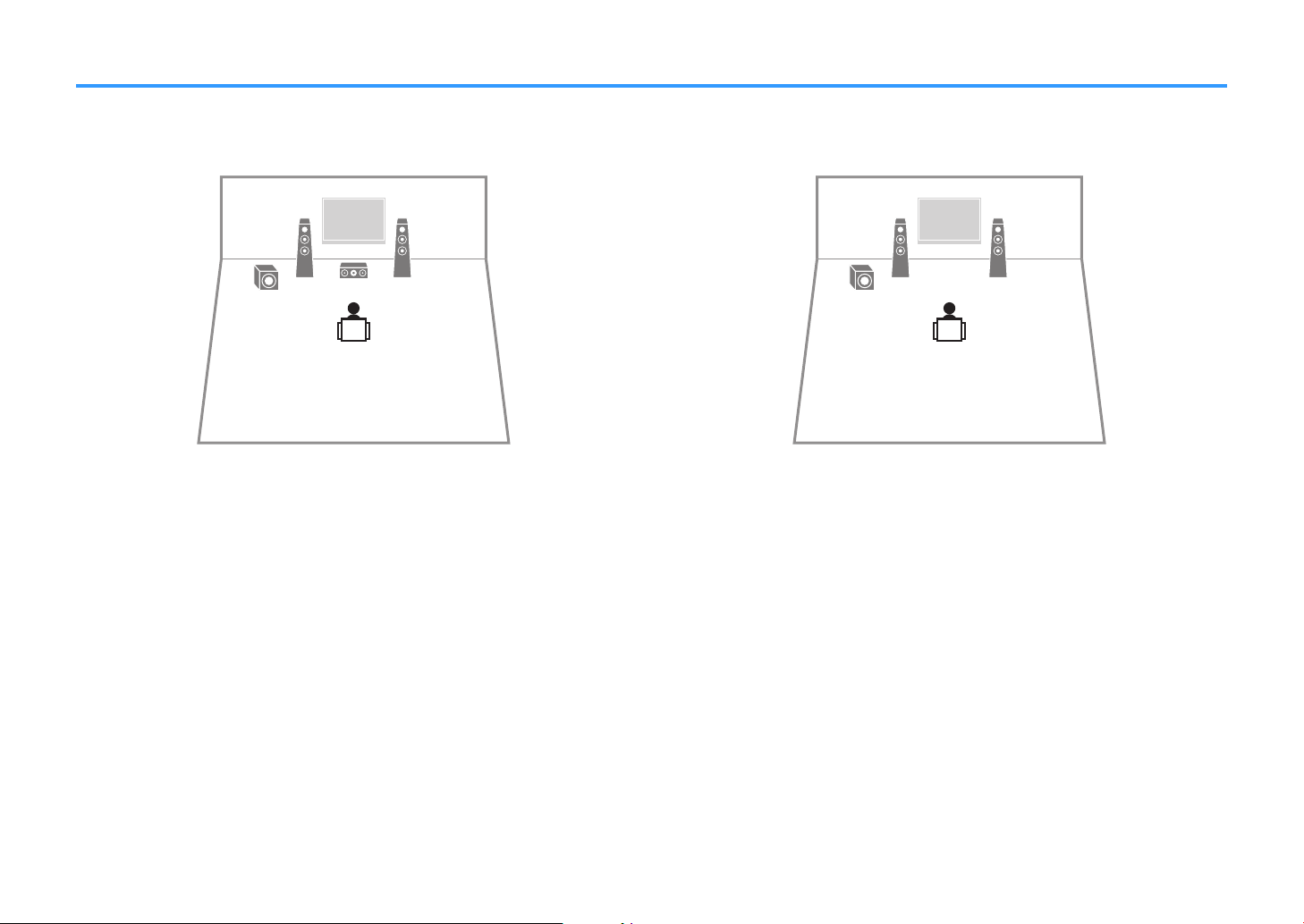

Other speaker layouts.......................................................................................................................................................... 17
Setting the speaker impedance....................................................................................................................................... 18

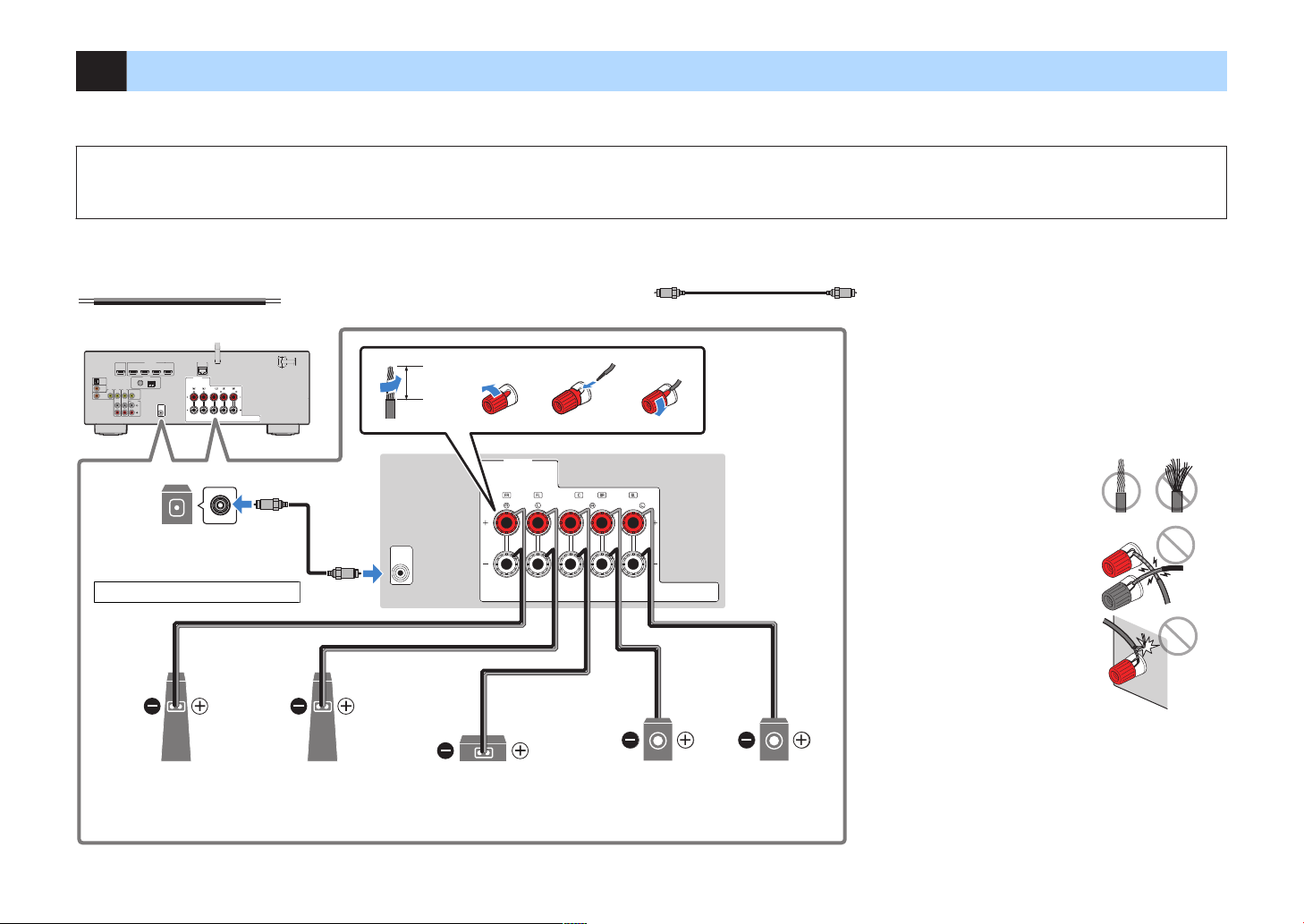

2 Connecting speakers........................................................................ 19

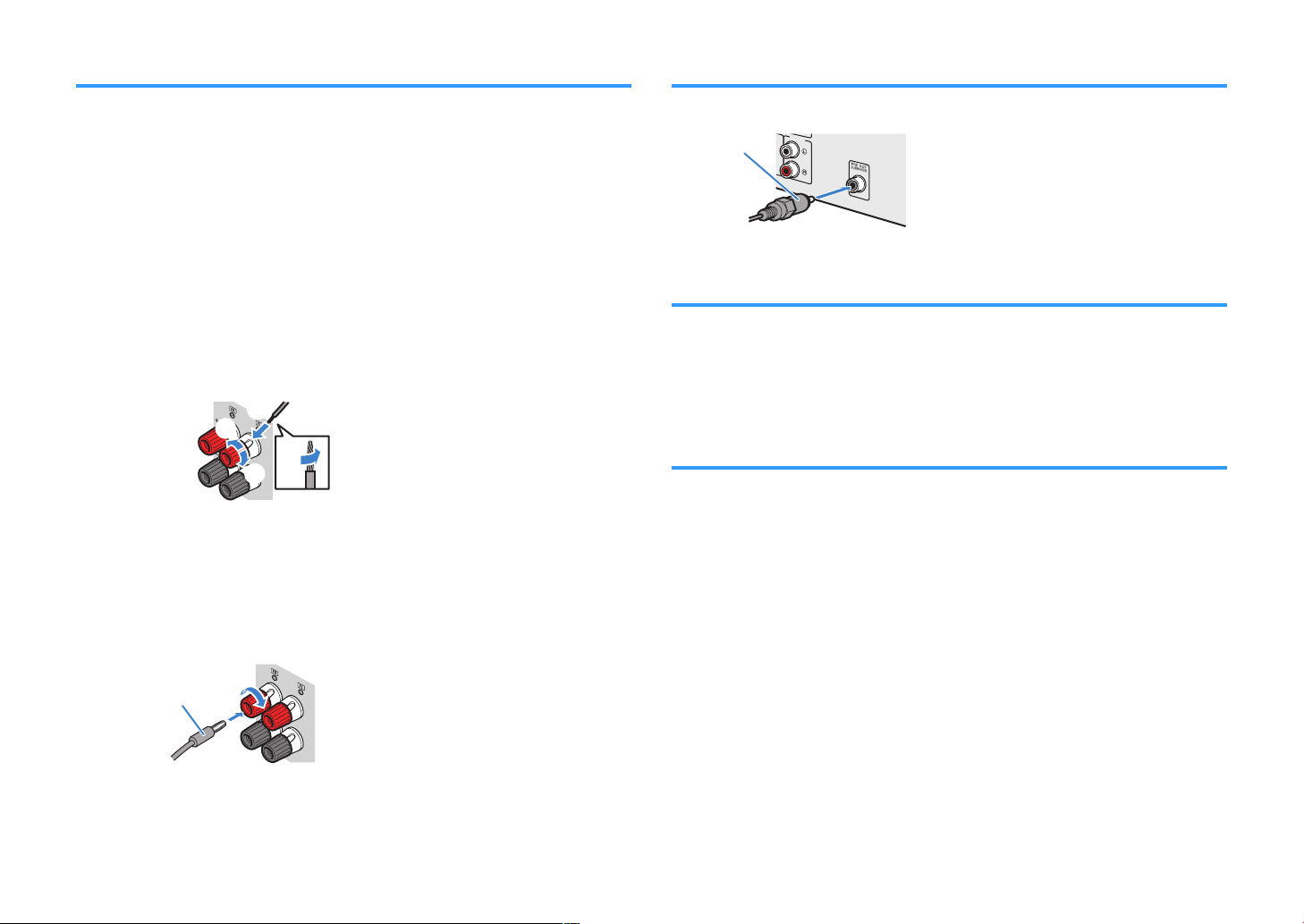

Connecting speaker cables................................................................................................................................................ 20
Connecting the subwoofer (with built-in amplifier)................................................................................................. 20
Connecting front speakers that support bi-amp connections............................................................................. 20
Connecting Zone B speakers............................................................................................................................................. 20
3Connecting a TV/playback devices.................................................. 21
Input/output jacks and cables.......................................................................................................................................... 21
Connecting a TV..................................................................................................................................................................... 22
Connecting video devices (such as BD/DVD players).............................................................................................. 23
Connecting audio devices (such as CD players)......................................................................................................... 25
Connecting to the jack on the front panel................................................................................................................... 25
4Connecting the FM/AM antennas.................................................... 26
5Preparing for connecting to a network........................................... 27
Connecting a network cable............................................................................................................................................. 27
Preparing a wireless antenna............................................................................................................................................ 27
6Connecting the power cable............................................................ 28
7Selecting an on-screen menu language.......................................... 29
8Optimizing the speaker settings automatically (YPAO)................ 30
Error messages....................................................................................................................................................................... 32
Warning messages................................................................................................................................................................ 33
9 Connecting to a network wirelessly................................................ 34
Selecting the connection method................................................................................................................................... 34
Connecting the unit to a wireless network.................................................................................................................. 35
Connecting a mobile device to the unit directly (Wireless Direct)...................................................................... 40
10 Setting the MusicCast....................................................................... 42
MusicCast CONTROLLER..................................................................................................................................................... 42
Adding the unit to the MusicCast network.................................................................................................................. 42
PLAYBACK 43
Basic playback procedure...................................................................... 43
Enjoying playback................................................................................................................................................................. 43
Switching information on the front display................................................................................................................. 44
Selecting the input source and favorite settings with one touch
(SCENE).................................................................................................... 45
Selecting a registered scene.............................................................................................................................................. 45
Registering a scene............................................................................................................................................................... 45
Selecting the sound mode..................................................................... 46
Enjoying stereoscopic sound fields (CINEMA DSP 3D)............................................................................................ 47
Enjoying unprocessed playback...................................................................................................................................... 49
Enjoying pure high fidelity sound (direct playback)................................................................................................. 50
Enhancing the bass (Extra Bass)....................................................................................................................................... 50
Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed
Music Enhancer)..................................................................................................................................................................... 50
En
2
Listening to FM/AM radio....................................................................... 51
Setting the frequency steps............................................................................................................................................... 51
Selecting a frequency for reception............................................................................................................................... 51
Registering favorite radio stations (presets)................................................................................................................ 52
Radio Data System tuning.................................................................................................................................................. 55
Playing back music stored on a Bluetooth® device.............................. 56
Playback Bluetooth® device music on the unit........................................................................................................... 56
Enjoying audio using Bluetooth® speakers/headphones....................................................................................... 57
Playing back music with AirPlay............................................................ 58
Playback of iTunes/iPhone music contents................................................................................................................. 58
Playing back music stored on a USB storage device............................ 60
Connecting a USB storage device................................................................................................................................... 60
Playback of USB storage device contents..................................................................................................................... 60
Playing back music stored on media servers (PCs/NAS)...................... 63
Media sharing setup............................................................................................................................................................. 63
Playback of PC music contents......................................................................................................................................... 64
Listening to Internet radio..................................................................... 66
Playback of Internet radio.................................................................................................................................................. 66
Registering favorite Internet radio stations................................................................................................................. 67
Playing back more high-quality sounds with bi-amp connections
.................................................................................................................. 68
Connecting front speakers that support bi-amp connections............................................................................. 68
Playing back music in multiple rooms.................................................. 69
Connecting Zone B speakers............................................................................................................................................. 69
Operating the Zone B........................................................................................................................................................... 70
Useful functions...................................................................................... 72
Registering favorite items (shortcut).............................................................................................................................. 72
Configuring playback settings for different playback sources
(Option menu)......................................................................................... 74
Option menu items............................................................................................................................................................... 74
CONFIGURATIONS 78
Configuring various functions (Setup Menu)....................................... 78
Setup menu items................................................................................................................................................................. 79
Speaker...................................................................................................................................................................................... 81
HDMI........................................................................................................................................................................................... 84
Sound......................................................................................................................................................................................... 86
ECO............................................................................................................................................................................................. 89
Function.................................................................................................................................................................................... 90
Network..................................................................................................................................................................................... 93
Bluetooth.................................................................................................................................................................................. 95
Language.................................................................................................................................................................................. 96
Configuring the system settings (ADVANCED SETUP menu).............. 97
ADVANCED SETUP menu items........................................................................................................................................ 97
Changing the speaker impedance setting (SP IMP.)................................................................................................. 98
Selecting the remote control ID (REMOTE ID)............................................................................................................. 98
Changing the FM/AM tuning frequency setting (TU)............................................................................................... 98
Switching the video signal type (TV FORMAT)............................................................................................................ 98
Selecting the HDMI 4K signal format (4K MODE)....................................................................................................... 99
Restoring the default settings (INIT)............................................................................................................................... 99
Updating the firmware (UPDATE).................................................................................................................................... 99
Checking the firmware version (VERSION)................................................................................................................... 99
Updating the unit’s firmware via the network................................... 100
Updating the unit’s firmware immediately............................................................................................................... 100
Updating the unit’s firmware at power off................................................................................................................ 100
APPENDIX 102
Frequently asked questions................................................................ 102
Troubleshooting................................................................................... 104
First, check the following:................................................................................................................................................ 104
Power, system and remote control............................................................................................................................... 104
Audio....................................................................................................................................................................................... 105
Video........................................................................................................................................................................................ 107
FM/AM radio......................................................................................................................................................................... 108
USB and network................................................................................................................................................................. 109
Bluetooth®............................................................................................................................................................................. 110
Error indications on the front display................................................. 111
En
3
Glossary................................................................................................. 112
Audio information.............................................................................................................................................................. 112
HDMI and video information.......................................................................................................................................... 113
Network information......................................................................................................................................................... 113
Yamaha technologies........................................................................................................................................................ 113
Supported devices and file formats.................................................... 114
Supported devices.............................................................................................................................................................. 114
File formats............................................................................................................................................................................ 115
Video signal flow.................................................................................. 115
Information on HDMI........................................................................... 116
HDMI Control........................................................................................................................................................................ 116
Audio Return Channel (ARC)........................................................................................................................................... 118
HDMI signal compatibility............................................................................................................................................... 118
Trademarks........................................................................................... 119
Specifications........................................................................................ 120
En
4
BEFORE USING THE UNIT
Accessories
Check that the following accessories are supplied with the product.
£AM antenna £FM antenna
* One of the above is supplied depending on
the region of purchase.
£YPAO microphone £Remote control
£Batteries (AAA, R03, UM-4) (x2)
£CD-ROM (Owner's Manual)
£Quick Start Guide
How to use this manual
• Some features are not available in certain regions.
• Due to product improvements, specifications and appearance are subject to
change without notice.
• This manual explains operations using the supplied remote control.
• This manual describes all the “iPod touch”, “iPhone” and “iPad” as the “iPhone”.
“iPhone” refers to “iPod touch”, “iPhone” and “iPad”, unless otherwise specified.
Notice:
Indicates precautions for use to avoid the possibility of malfunction/damage to the unit.
Note:
Indicates instructions and supplementary explanations for optimum use.
Remote control
The supplied remote control is used as follows.
Insert the batteries
Insert the batteries the right way round.
Operating range of the remote control
Point the remote control at the remote control sensor on the unit and remain within the
operating range shown below.
Within 6 m (20 ft)
30° 30°
En
5
FEATURES
What you can do with the unit
The unit is equipped with full of useful functions.
Supports 2- to 5.1-channel
speaker system
You can enjoy your favorite acoustic spaces in various
styles.
YPAO automatically optimizes the speaker
settings to suit your room.
• “Optimizing the speaker settings automatically
(YPAO)” (p.30)
CINEMA DSP allows you to create stereo or
multichannel sounds with the sound fields
like actual movie theaters and concert halls in
your own room.
• “Enjoying stereoscopic sound fields (CINEMA DSP
3D)” (p.47)
You can enjoy compressed music with
enhanced sound (Compressed Music
Enhancer).
• “Playing back digitally compressed formats (such as
MP3, etc.) with enriched sound (Compressed Music
Enhancer)” (p.50)
The Zone A/B function allows you to playback
an input source in the room where the unit is
installed (Zone A) and in another room (Zone
B).
• “Playing back music in multiple rooms” (p.69)
Change the input source and
favorite settings with one touch
(SCENE)
The SCENE function allows you to select the input
source and settings registered to the corresponding
scene, such as sound program and Compressed
Music Enhancer on/off, with just one touch.
• “Selecting the input source and favorite settings with
one touch (SCENE)” (p.45)
4K Ultra HD signal and HDCP 2.2
supported
You can enjoy the high definition video quality of 4K
with HDCP 2.2 that complies with the latest copyright
protection.
• “Selecting the HDMI 4K signal format (4K
MODE)” (p.99)
Wide variety of supported
content via network
When the unit is connected to a network by
establishing a wired or wireless connection, you can
enjoy various contents via network on the unit.
You can select a wired or wireless connection
to a network.
• “Preparing for connecting to a network” (p.27)
• “Connecting to a network wirelessly” (p.34)
You can play back music files stored on your
PC or DLNA-compatible NAS on the unit.
• “Playing back music stored on media servers (PCs/
NAS)” (p.63)
You can listen to Internet radio stations from
all over the world.
• “Listening to Internet radio” (p.66)
The AirPlay function allows you to play back
iTunes or iPhone/iPad/iPod touch music on
the unit via network.
• “Playing back music with AirPlay” (p.58)
En
6
The ECO mode (power saving
function) allows you to create an
eco-friendly home theater system
When the ECO mode is enabled, you can reduce the
unit's power consumption.
• “ECO Mode” (p.89)
Sequential operation of a TV, AV
receiver, and BD/DVD player
(HDMI Control)
When the unit is connected to an HDMI Control-
compatible TV and BD/DVD player with each HDMI
cable, you can control the unit (such as power and
volume) and BD/DVD player with TV remote control
operations.
• “HDMI Control” (p.116)
Supports Bluetooth® devices
You can play back music stored on a Bluetooth device.
• “Playing back music stored on a Bluetooth®
device” (p.56)
Supports USB storage devices
You can play back music stored on a USB storage
device.
• “Playing back music stored on a USB storage
device” (p.60)
Connecting various devices
A number of HDMI jacks and various input/output jacks
on the unit allow you to connect video devices (such as
BD/DVD players), audio devices (such as CD players),
game consoles, portable audio player, and other
devices.
• “Connecting a TV/playback devices” (p.21)
Playing back TV audio in
surround sound with a single
HDMI cable connection (Audio
Return Channel: ARC)
When using an ARC-compatible TV, you only need one
HDMI cable to enable video output to the TV, audio
input from the TV, and the transmission of HDMI Control
signals.
• “Connecting a TV” (p.22)
Creating 3-dimensional sound
fields
The Virtual Presence Speaker (VPS) function allows you
to create a 3-dimensional sound field that spreads high
and deep into your own room (CINEMA DSP 3D).
• “Enjoying stereoscopic sound fields (CINEMA DSP
3D)” (p.47)
Surround playback with 5
speakers placed in front
You can enjoy the surround sound even when the
surround speakers are placed in front.
• “Enjoying surround sound with 5 speakers placed in
front (Virtual CINEMA FRONT)” (p.48)
Enjoying pure high fidelity sound
When the direct playback mode is enabled, the unit
plays back the selected source with the least circuitry,
which lets you to enjoy Hi-Fi sound quality.
• “Enjoying pure high fidelity sound (direct
playback)” (p.50)
Enhanced bass reproduction
Extra Bass allows you to enjoy enhanced bass
reproduction that does not depend on the speakers
used.
• “Enhancing the bass (Extra Bass)” (p.50)
Listening to FM/AM radio
The unit is equipped with a built-in FM/AM tuner. You
can register up to 40 favorite radio stations as presets.
• “Listening to FM/AM radio” (p.51)
En
7
Easy operation with a TV screen
You can operate the USB storage device, view
information, or easily configure the settings using the
on-screen menu.
Auto Rename function
The unit automatically creates input source names
according to the HDMI-compatible devices connected,
and displays the respective input source names on the
front display.
• “Input Rename” (p.90)
Useful applications
The useful application for connections and operations
of the unit is as follows.
nApplication for tablets “AV SETUP
GUIDE”
AV SETUP GUIDE is an application that assists
you with cable connections between AV Receiver
and source devices as well as AV Receiver setup.
This app guides you through the various settings
such as speaker connections, TV and source
device connections and assigning the power
amp.
Functions:
1) Connection support guide
– Speaker connection
– TV/source devices connection
2) Setup support guide
– Automatic network setup of HDMI, power amp
assign, etc.
– Various setup assistance with illustrations.
– YPAO setting guidance
3) View Owner's Manual
* This application is for tablets only.
For details, search for “AV SETUP GUIDE” on the App
Store or Google Play™.
nApplication for smartphone /
tablets “AV CONTROLLER”
AV CONTROLLER is an application that assists
you with various operations of AV Receiver
without the remote control. This app allows you
not only to control the unit’s power and volume
but also to select the input source and start/stop
playback, as shown below.
Functions:
• Power on/off
•Volume up/down
• Mute
• Music Play
• Input Selection
• DSP Mode Selection
• SCENE selection
• Blu-ray player fundamental control
• Seamless control between the Yamaha AV Receiver
and Blu-ray player
• Demo mode - Explains how to use this app
For details, search for “AV CONTROLLER” on the App
Store or Google Play.
En
8
nApplication for smartphone /
tablets "MusicCast CONTROLLER"
MusicCast CONTROLLER is an application that
allows you to link a MusicCast compatible device
to other MusicCast compatible devices in other
rooms and play them back simultaneously. This
app lets you use your smartphone or other mobile
device instead of the remote control to easily
select music to play back as well as configure the
unit and MusicCast compatible devices.
Functions:
• Selecting and playing back various content
– Play back music from your mobile device
– Select an Internet radio station
– Play back music files stored on media servers
(PCs/NAS)
– Play back music files stored on a USB storage
device
• Operating and configuring the unit
– Select the input source, adjust the volume and
mute the audio output
– Select from a wide variety of sound processing
features
For details, search for “MusicCast CONTROLLER” on
the App Store or Google Play.
En
9

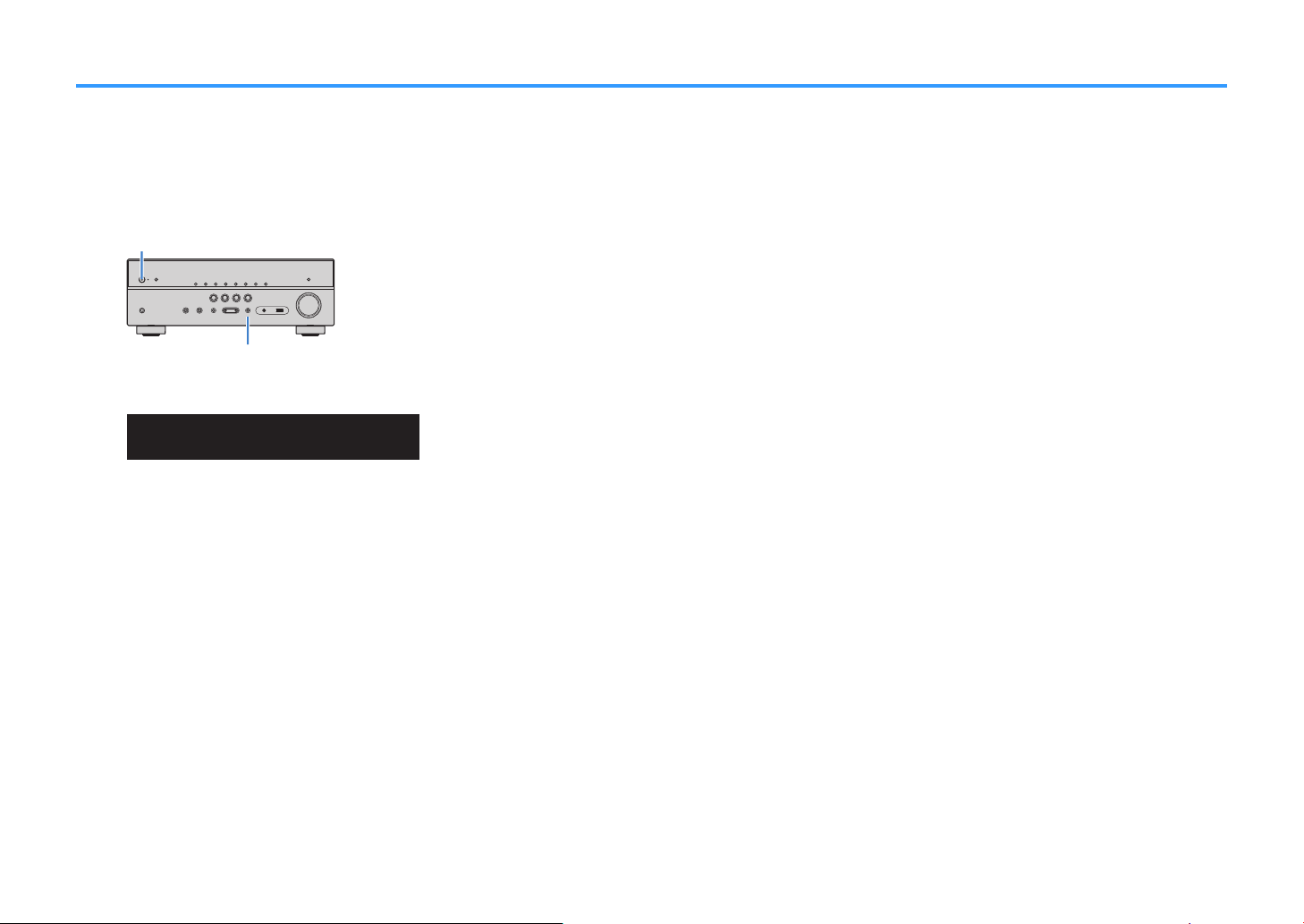

Part names and functions
The part names and functions of the unit and the supplied remote control are as follows.
Front panel
PROGRAM
TONE CONTROL STRAIGHT
(CONNECT)
AUX USB
AUDIO
5V 1A
SCENE
INPUT
PHONES
SILENT CINEMA
YPAO MIC
MEMORY
INFO (WPS)
PRESET
FM AM TUNING
DIRECT
VOLUME
TV
BD
DVD
NET
RADIO
23 4 6 7 8
51 09 A
B C D E F H I JG
1z (power) key
Turns on/off (standby) the unit.
2Standby indicator
Lights up when the unit is in standby mode under any of
the following conditions.
• HDMI Control is enabled (p.84)
• Standby Through is enabled (p.84)
• Network Standby is enabled (p.94)
3YPAO MIC jack
For connecting the supplied YPAO microphone (p.30).
4Remote control sensor
Receives remote control signals (p.5).
5INFO (WPS) key
Selects the information displayed on the front display
(p.44).
Enters the wireless LAN connection setup (WPS button
configuration) by holding down for 3 seconds (p.36).
6MEMORY key
Registers FM/AM radio stations as preset stations (p.52).
7PRESET keys
Select a preset FM/AM radio station (p.54).
8FM and AM keys
Switch between FM and AM (p.51).
9TUNING keys
Select the radio frequency (p.51).
:Front display
Displays information (p.11).
ADIRECT key
Enables/disables the direct playback mode (p.50).
BPHONES jack
For connecting headphones.
CINPUT keys
Select an input source.
DTONE CONTROL key
Adjusts the level of high-frequency range (Treble) and low-
frequency range (Bass) individually (p.75).
ESCENE keys
Select the registered input source and sound program with
one touch. Also, turns on the unit when it is in standby
mode (p.45).
FPROGRAM keys
Select a sound program or a surround decoder (p.46).
GSTRAIGHT (CONNECT) key
Enables/disables the straight decode mode (p.49).
Enters the MusicCast network addition and the wireless
LAN setup by holding down for 5 seconds (p.42).
HAUX jack
For connecting devices, such as portable audio players
(p.25).
IUSB jack
For connecting a USB storage device (p.60).
JVOLUME knob
Adjusts the volume.
En
10
Front display (indicators)
-
R
es
Hi
YPAO
VOL.
PARTY
FPR
SBL SB SBR
FPL
2
32
ENHANCER
ECO
OUT
A
-
DRC
SLEEP
STEREO
TUNED
VOL.
SL
SW
SR
MUTE VIRTUAL
ZONE
LINK
MASTER
BA
1 5 7 9342 0 A6
CB C
FED G
8
H
1HDMI
Lights up when HDMI signals are being input or output.
OUT
Lights up when HDMI signals are being output.
2LINK MASTER
Lights up when the unit is the master device of the
MusicCast network.
3Firmware update indicator
Lights up when a firmware update is available via the
network.
4Bluetooth indicator
Light up while the unit is connected to a Bluetooth device.
5CINEMA DSP
Lights up when CINEMA DSP (p.47) or CINEMA DSP 3D
(p.47) is working.
6SLEEP
Lights up when the sleep timer is on.
7STEREO
Lights up when the unit is receiving a stereo FM radio
signal.
TUNED
Lights up when the unit is receiving an FM/AM radio station
signal.
8ZONE indicators
Indicate the zone to which the sound is output (p.71).
9A-DRC
Lights up when Adaptive DRC (p.75) is working.
:Volume indicator
Indicates the current volume.
AVIRTUAL
Lights up when the Virtual Presence Speaker (VPS)
(p.47), Virtual CINEMA DSP (p.48) or Virtual CINEMA
FRONT (p.48) is working.
BECO
Lights up when the eco mode (p.89) is enabled.
CCursor indicators
Indicate the remote control cursor keys currently
operational.
DInformation display
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.44).
ESignal strength indicator
Indicates the strength of the wireless signal (p.34).
Note
This indicator may light up when the unit is added to the
MusicCast network. For details, see “Setting the
MusicCast” (p.42).
FENHANCER
Lights up when Compressed Music Enhancer (p.50) is
working.
GSpeaker indicators
Indicate speaker terminals from which signals are output.
AFront speaker (L)
SFront speaker (R)
DCenter speaker
FSurround speaker (L)
GSurround speaker (R)
LSubwoofer
HMUTE
Blinks when audio is temporarily muted.
En
11
Rear panel
OPTICAL
COAXIALCOAXIAL
VIDEOVIDEOVIDEO
AMFM
75ΩANTENNA
(RADIO)
MONITOROUT
PREOUT
SUBWOOFER
HDMI
(HDCP2.2)(BD/DVD)
2314HDMIOUT
(HDCP2.2)
ARC
N
ETWORK
(NET)
FRONTCENTERSPEAKERS
SURROUND/BI-AMP/ZONEB
AV3AUDIO1AUDI02AUDI03AV2AV1
(TV)
1246
7 8
5
09 A
3
▪ The area around the video/audio output jacks is marked in white
on the actual product to prevent improper connections.
1HDMI OUT jack
For connecting to an HDMI-compatible TV and outputting
video/audio signals (p.21). When using ARC, TV audio
signal can also be input through the HDMI OUT jack.
2HDMI 1–4 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.23).
3ANTENNA jacks
For connecting to FM and AM antennas (p.26).
4NETWORK jack
For a wired connection to a network (p.27).
5Wireless antenna
For a wireless (Wi-Fi) connection to a network (p.27) and
a Bluetooth connection (p.56).
6Power cable
For connecting to an AC wall outlet (p.28).
7AV jacks
AUDIO jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.23).
8MONITOR OUT jack
For connecting to a TV and outputting video signals
(p.21).
9SUBWOOFER PRE OUT jack
For connecting to a subwoofer (with built-in amplifier)
(p.19).
:SPEAKERS terminals
For connecting to speakers (p.19).
AVOLTAGE SELECTOR
(Taiwan, Brazil and General models only)
Selects the switch position according to your local voltage
(p.28).
En
12
Remote control
TUNING
PRESET
MUTE
TUNING
MEMORY
TOP MENU
HOME
POP-UP/MENU
DISPLAYRETURN
SETUP
OPTION
FM/AM
VOLUME
PROGRAM
USB
STRAIGHT
ENHANCER BASS
INPUT
BD
DVD TV
S C E N E
RADIO
SLEEP
ENTER
BLUE
YELLOWGREEN
RED
DIRECT
ZONE A ZONE B
NE T
NET
BLUETOOTH
3
4
5
7
8
6
1
0
B
C
D
E
A
9
2
1Remote control signal transmitter
Transmits infrared signals.
2z (receiver power) key
Turns on/off (standby) the unit.
3SLEEP key
Pressing this key repeatedly will specify the time (120 min,
90 min, 60 min, 30 min, off), in which the unit switches to
the standby mode.
4ZONE switch
Changes the zone that is controlled by the remote control
(p.70).
5SCENE keys
Select the registered input source and sound program with
one touch. Also, turn on the unit when it is in standby mode
(p.45).
6Sound mode keys
Select a sound mode (p.46).
7Input selection keys
Select an input source for playback.
You can select directly each input source by pressing the
following keys.
FM/AM FM/AM radio
USB USB jack (on the front panel)
NET SERVER, NET RADIO, MusicCast Link,
AirPlay and network sources (press
repeatedly to select a desired source)
BLUETOOTH Bluetooth device
8SETUP key
Displays the setup menu (p.78).
9Menu operation keys
Cursor keys Select a menu or the parameter.
ENTER Confirms a selected item.
RETURN Returns to the previous screen.
9:A External device operation keys
Let you perform playback operations when “USB” or “NET”
is selected as the input source, or control playback of the
HDMI Control-compatible playback device.
Note
▪ The playback devices must support HDMI Control. Some
HDMI Control-compatible devices cannot be used.
▪ You can assign the unit's functions to the RED/GREEN/
YELLOW/BLUE keys (p.92).
ARadio keys
Operate the FM/AM radio when “TUNER” is selected as the
input source (p.51).
MEMORY Registers FM/AM radio stations as
presets.
PRESET Select a preset station.
TUNING Select the radio frequency.
BVOLUME keys
Adjust the volume.
CMUTE key
Mutes the audio output.
DOPTION key
Displays the option menu (p.74).
EDISPLAY key
Turns on/off the browse screen, playback screen, etc.
En
13
PREPARATIONS
General setup procedure
1Placing speakers................................................................................................................................ (p.15)
2Connecting speakers........................................................................................................................ (p.19)
3Connecting a TV/playback devices.................................................................................................. (p.21)
4Connecting the FM/AM antennas.................................................................................................... (p.26)
5Preparing for connecting to a network........................................................................................... (p.27)
6Connecting the power cable............................................................................................................ (p.28)
7Selecting an on-screen menu language.......................................................................................... (p.29)
8Optimizing the speaker settings automatically (YPAO)................................................................ (p.30)
9Connecting to a network wirelessly................................................................................................ (p.34)
10 Setting the MusicCast....................................................................................................................... (p.42)
This completes all the preparations. Enjoy playing movies, music, radio and other content with the unit!
En
14
1Placing speakers
Select the speaker layout for the number of speakers that you are using and place the speakers and subwoofer in your room. This section describes the representative speaker
layout examples.
Notice
▪ (U.S.A. and Canada models only)
Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” (p.18).
▪ (Except for U.S.A. and Canada models)
Use speakers with an impedance of at least 6 W.
▪ Use a subwoofer with built-in amplifier.
▪ Be sure to connect the front left and right speakers.
En
15
Typical speaker layouts
n5.1-channel system
We recommend this speaker layout which can maximize the performance of the unit.
4 5
1 2
39
10° to 30° 10° to 30°
Speaker type Abbr. Function
Front (L/R) 1/2Produce front left/right channel sounds (stereo sounds).
Center 3Produces center channel sounds (such as movie dialogue
and vocals).
Surround (L/R) 4/5Produce surround left/right channel sounds.
Subwoofer 9
Produces LFE (low-frequency effect) channel sounds and
reinforces the bass parts of other channels.
This channel is counted as “0.1”.
Note
▪ You can enjoy surround sound even without the center speaker (4.1-channel system).
▪ You can place the subwoofer either in the left or right side.
n5.1-channel system (Virtual CINEMA FRONT)
We recommend this speaker layout when the speakers can't be placed in back of the
room.
1 2
39
4 5
Speaker type Abbr. Function
Front (L/R) 1/2Produce front left/right channel sounds (stereo sounds).
Center 3Produces center channel sounds (such as movie dialogue
and vocals).
Surround (L/R) 4/5Produce surround left/right channel sounds. By this
system, place the surround speakers in front.
Subwoofer 9
Produces LFE (low-frequency effect) channel sounds and
reinforces the bass parts of other channels.
This channel is counted as “0.1”.
Note
▪ To utilize this configuration, set “Virtual CINEMA FRONT” (p.82) in the “Setup” menu to “On”.
▪ You can enjoy surround sound even without the center speaker (front 4.1-channel system).
▪ You can place the subwoofer either in the left or right side.
En
16
Other speaker layouts
The following speaker layouts are also available.
n3.1-channel system
1 2
39
Note
In addition to this speaker layout, you can use bi-amp connections or the Zone B function that allows you to
play back an input source in another room (Zone B). For details, see “Playing back more high-quality sounds
with bi-amp connections” (p.68) or “Playing back music in multiple rooms” (p.69).
n2.1-channel system
1 2
9
Note
In addition to this speaker layout, you can use bi-amp connections or the Zone B function that allows you to
play back an input source in another room (Zone B). For details, see “Playing back more high-quality sounds
with bi-amp connections” (p.68) or “Playing back music in multiple rooms” (p.69).
En
17
Setting the speaker impedance
(U.S.A. and Canada models only)
Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the speaker impedance to “6 ΩMIN”.
1Before connecting speakers, connect the power cable to an AC wall outlet.
2While holding down STRAIGHT on the front panel, press z (power).
(power)
z
STRAIGHT
3Check that “SP IMP.” is displayed on the front display.
ENHANCER
LINK
ECO
MASTER
OUT
2
-
R
es
Hi
YPAO
VOL.
A
-
DRC
SLEEP
STEREO
PARTY
TUNED
ZONE
3 B2 A
VOL .
FPR
SL
SW
SR
SBL SB SB R
FPL
MUT E VI RT UAL
SP IMP.••8¬MIN
4Press STRAIGHT to select “6 Ω MIN”.
5Press z (power) to set the unit to standby mode and remove the power cable from the AC wall outlet.
You are now ready to connect the speakers.
En
18
2Connecting speakers
Connect the speakers placed in your room to the unit. The following diagrams provide connections for a 5.1-channel system as an example. For other systems, connect speakers
while referring to the connection diagram for the 5.1-channel system.
Notice
▪ Remove the unit’s power cable from an AC wall outlet and turn off the subwoofer before connecting the speakers.
▪ The speaker has the polarity (+/-). Connect the speaker cable correctly between the positive (+) terminal of the unit and the speaker, and also between the negative (-) terminal of them.
Cables required for connection (commercially available)
Speaker cables (x the number of speakers)
–
+
–
+
Audio pin cable (x1: for connecting a subwoofer)
OPTICAL
COAXIALCOAXIAL
VIDEOVIDEOVIDEO
AMFM
75ΩANTENNA
(RADIO)
MONITOROUT
PREOUT
SUBWOOFER
HDMI
(HDCP2.2)(BD/DVD)
2314HDMIOUT
(HDCP2.2)
ARC
N
ETWORK
(NET)
FRONTCENTERSPEAKERS
SURROUND/BI-AMP/ZONEB
AV3AUDIO1AUDI02AUDI03AV2AV1
(TV)
OPTICAL
COAXIALCOAXIAL
VIDEOVIDEOVIDEO
AMFM
75ΩANTENNA
(RADIO)
MONITOROUT
PREOUT
SUBWOOFER
HDMI
(HDCP2.2)(BD/DVD)
2314HDMIOUT
(HDCP2.2)
ARC
N
ETWORK
(NET)
FRONTCENTERSPEAKERS
SURROUND/BI-AMP/ZONEB
AV3AUDIO1AUDI02AUDI03AV2AV1
(TV)
12349
3
5 4
2 1
Audio pin cable
Use a subwoofer with built-in amplifier.
Subwoofer
Surround (L)Surround (R)CenterFront (R) Front (L)
10 mm
(3/8”)
Precaution for connecting of the speaker cables
▪ Prepare speaker cables in a place away from the unit, to avoid
accidentally dropping wire strands into the unit's interior which could
result in a short circuit or malfunction of the unit.
▪ Improper connecting of the speaker cables may cause short circuit and
also damage the unit or the speakers.
– Twist the bare wires of the speaker cables
firmly together.
– Do not let the bare wires of the speaker
cable touch one another.
– Do not let the bare wires of the speaker
cable come into contact with the unit’s
metal parts (rear panel and screws).
▪ If “Check SP Wires” appear on the front display when the unit is turned
on, turn off the unit, and then check the speaker cables short circuit.
En
19
Connecting speaker cables
Speaker cables have two wires. One is for connecting the negative (-) terminals of the
unit and the speaker to each other, and the other is for the positive (+) terminals. If the
wires are colored to prevent confusion, connect the black wire to the negative and the
other wire to the positive terminal.
1Remove approximately 10 mm (3/8”) of insulation from the ends of
the speaker cable, and twist the bare wires of the cable firmly
together.
2Loosen the speaker terminal.
3Insert the bare wires of the cable into the gap on the side (upper
right or bottom left) of the terminal.
4Tighten the terminal.
FRONT
aa
b
d
c
+ (red)
- (black)
Using a banana plug
(U.S.A., Canada, China, Taiwan, Brazil and General models only)
1Tighten the speaker terminal.
2Insert a banana plug into the end of the terminal.
FRONT
a
b
Banana plug
Connecting the subwoofer (with built-in amplifier)
Use an audio pin cable to connect the subwoofer.
AUDIO 3
Audio pin cable
Connecting front speakers that support bi-amp
connections
When using front speakers that support bi-amp connections, connect them to the
FRONT terminals and SURROUND/BI-AMP/ZONE B terminals. For details, see “Playing
back more high-quality sounds with bi-amp connections” (p.68).
Note
Surround speakers, bi-amp speakers or Zone B speakers cannot be connected simultaneously.
Connecting Zone B speakers
The Zone A/B function allows you to playback an input source in the room where the
unit is installed (Zone A) and in another room (Zone B). To connect the Zone B
speakers, see “Playing back music in multiple rooms” (p.69).
Note
Surround speakers, bi-amp speakers or Zone B speakers cannot be connected simultaneously.
En
20
