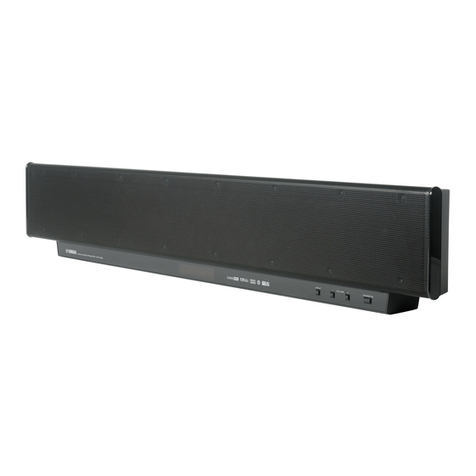

Yamaha Digital Sound Projector YSP-900 User manual
SERVICE MANUAL
DIGITAL SOUND PROJECTOR
YSP-900
■CONTENTS
TO SERVICE PERSONNEL .......................................... 2
FRONT PANEL .............................................................. 3
REAR PANELS .............................................................. 3
BOTTOM PANEL ........................................................... 4
REMOTE CONTROL PANELS ...................................... 4
SPECIFICATIONS / 参考仕様 ........................................ 5
INTERNAL VIEW ........................................................... 5
SET MENU TABLE / セットメニュー ............................ 6
SERVICE PRECAUTIONS / サービス時の注意事項 ..... 7
DISASSEMBLY PROCEDURES/分解手順 ........... 7–12
UPDATING FIRMWARE/
ファームウェアの書き込み ..................................... 13–23
SELF DIAGNOSIS FUNCTION (DIAG)/
自己診断機能（ダイアグ）..................................... 24–40
DISPLAY DATA ........................................................... 41
IC DATA ................................................................. 42–43
BLOCK DIAGRAM ....................................................... 44
PRINTED CIRCUIT BOARDS................................ 45–53
PIN CONNECTION DIAGRAM .................................... 54
SCHEMATIC DIAGRAMS ...................................... 55–60
REPLACEMENT PARTS LIST .............................. 61–77
REMOTE CONTROL.............................................. 78–79
ADJUSTING SYSTEM PARAMETERS /
拡張メニューを設定する ........................................ 80–82
101035
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
P.O.Box 1, Hamamatsu, Japan
2006 All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
YSP-900
When transporting this unit, be sure to use the unit’s packing materials and box so as to protect
it against any damage, in particular, dents in the front grille during transportation.
本機を輸送する場合、輸送時の破損（特に、フロントグリルのへこみ）等を防ぐために必ず専用の梱
包箱を使用してください。
'06.08
YSP-900
2
YSP-900
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and
possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-
SON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
WALL
OUTLET
EQUIPMENT
UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked s
and must be replaced with parts having specifications equal
to those originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohms shunted
by 0.15µF.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both polarities.
“CAUTION”
“F501: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.”
CAUTION
F501: REPLACE WITH SAME TYPE 4A, 125V FUSE.
ATTENTION
F501: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 4A, 125V.
本機に搭載されているすべての基板は無鉛ハンダでハンダ
付けされています。
無鉛ハンダにはいくつかの種類がありますが、修理時には
下記のような無鉛ハンダの使用を推奨します。
・Sn+Ag+Cu（錫+銀+銅）
・Sn+Cu（錫+銅）
・Sn+Zn+Bi（錫+亜鉛+ビスマス）
注意：
無鉛ハンダの融点温度は通常の鉛入りハンダに比べ30
〜40℃程度高くなっていますので、それぞれのハンダ
に合ったハンダごてをご使用ください。
All of the P.C.B.s installed in this unit are soldered using
the lead free solder.
Among some types of lead free solder currently available,
it is recommended to use one of the following types for the
repair work.
•Sn + Ag + Cu (tin + silver + copper)
•Sn + Cu (tin + copper)
•Sn + Zn + Bi (tin + zinc + bismuth)
Caution:
As the melting point temperature of the lead free solder
is about 30°C to 40°C (50°F to 70°F) higher than that of
the lead solder, be sure to use a soldering iron suitable
to each solder.
About Lead Free Solder / 無鉛ハンダについて
YSP-900
3
YSP-900
■FRONT PANEL
■REAR PANELS
K model A model
L model
J model
T model
J model
LL
RR
VCR
AUDIO INPUT OUT DIGITAL INPUT
VIDEO TV/STB AUX DVD
COAXIAL
SYSTEM
CONNECTOR
TV/STB
SUBWOOFER
OPTICAL
LL
RR
VCR
AUDIO INPUT OUT DIGITAL INPUT
VIDEO TV/STB AUX
OPTICAL
DVD
COAXIAL
TV/STB
SUBWOOFER
左 左
右 右
ビデオ
オーディオ入力 出力 デジタル入力
ビデオ
テレビ／チューナー
DVD AUX
同軸
システム接続テレビ／
チューナー
サブウーファー
光
T, K, A, B, G, E, L, V models J model
B, G, E models V model
YSP-900
4
YSP-900
■REMOTE CONTROL PANELS
T, K, A, B, G, E, L, V models J model
■BOTTOM PANEL
J model
YSP-900
5
■INTERNAL VIEW
• DIMENSIONS/寸法図
■SPECIFICATIONS / 参考仕様
Unit : mm (inch)
単位:mm（インチ）
TruBass, SRS and the “ ” symbol are registered trademarks of
SRS Labs, Inc. TruBass technology is incorporated under license from
SRS Labs, Inc.
TruBass、SRSと 記号はSRSLab,Inc.の商標です。
TruBass技術はSRSLabs,Inc.からのライセンスに基づき製品化されて
います。
AACロゴマーク はドルビーラボラトリーズの商標です。
The “ ” logo and “IntelliBeam” are trademarks of YAMAHA
Corporation.
「インテリビーム」「IntelliBeam」は、ヤマハ株式会社の登録商標です。
The “ ” logo and “Cinema DSP” are registered trademarks of
YAMAHA Corporation.
「シネマDSP」「CINEMADSP」は、ヤマハ株式会社の登録商標です。
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.
ドルビーラボラトリーズからの実施権により製造されています。「ドル
ビー」、「PROLOGIC」およびダブルD記号 は、ドルビーラボラト
リーズの商標です。
“DTS”, and “Neo:6” are trademarks of Digital Theater Systems, Inc.
DTSおよびNeo：6はデジタルシアターシステムズの登録商標です。
Manufactured under license from 1 Ltd. Worldwide patents applied for.
The ‘ ’ logo and ‘Digital Sound Projector™’ are trademarks of 1 Ltd.
世界に広く特許申請中の1Ltdからライセンスを受けています。
および、DigitalSoundProjectorTMは1Ltdの商標です。
■Amplifier Section/アンプ部
Maximum Power / 実用最大出力 (EIAJ)
Woofer [4 ohms, 100 Hz, 10% THD] ................................ 20 W/ch
Tweeter [4 ohms, 1 kHz, 10% THD] ................................... 2 W/ch
Total Maximum Output Power / 総合最大出力
............................................................................................. 82 W
Minimum RMS Output Power / 定格出力
Woofer [4 ohms, 100 Hz, 0.9% THD] ............................... 14 W/ch
Tweeter [4 ohms, 1 kHz, 0.9% THD] ............................... 1.7 W/ch
Input Sensitivity/Impedance / 入力感度/インピーダンス
Analog input ....................................................... 1.0 V / 32 k-ohms
Maximum Input Signal / 最大許容入力 [1 kHz, 0.5% THD]
Analog input .............................................................. 2.2 V or more
Output Level/Impedance / 出力電圧/出力インピーダンス
Woofer PRE OUT ............... 1.5 V / 1.1 k-ohms (less than 120 Hz)
Total Harmonic Distortion / 全高調波歪率 [1 W]
Woofer [100 Hz] .......................................................... 0.2% or less
Tweeter [1 kHz] ........................................................... 0.1% or less
■Video Section/ビデオ部
OSD Out / オンスクリーンディスプレイアウト
............................................................................ 1 Vp-p/75 ohms
■Speaker Section/スピーカー部
Type / 型式 ............................................... 2-way acoustic suspension
Magnetic shielding type
Drivers / スピーカーユニット
Woofer ...................................................... 10 cm (4") cone type x 2
Tweeter ............................................ 4 cm (1-9/16") cone type x 21
Frequency Response / 再生周波数帯域 ................. 60 Hz to 20 kHz
Crossover Frequency / クロスオーバー周波数
Beam channel ...................................................................... 400 Hz
Stereo channel ....................................................................... 1 kHz
■Input/Output/入力/出力
Input Jack / 入力端子
Audio ......................... VCR, TV/STB / ビデオ、テレビ/チューナー
Digital (optical) [Fs=32/44.1/48/64/88.2/96 kHz]
................................... TV/STB, AUX / テレビ/チューナー、DVD
Digital (coaxial) [Fs=32/44.1/48/64/88.2/96 kHz]
....................................................................................DVD / AUX
Output Jack /出力端子
OSD video out (Composite) / OSD用コンポジット映像信号
K, V, J models..................................................................... NTSC
T, A, B, G, E, L models .......................................................... PAL
Subwoofer ....................................................................... PRE OUT
Microphone Input Jack /マイク入力
..................... Automated system calibration / 自動システム調整
System Connector /システム接続 (J model)
......................................................................... Monoral mini jack
■General/総合
Power Supply/電源電圧
T model ................................................................. AC 220 V, 50 Hz
K model................................................................. AC 220 V, 60 Hz
A model................................................................. AC 240 V, 50 Hz
B, G, E models ..................................................... AC 230 V, 50 Hz
L model .................................................... AC 220-240 V, 50/60 Hz
V model.................................................... AC 110-120 V, 50/60 Hz
J model ............................................................ AC 100V, 50/60 Hz
Power Consumption/消費電力
T, K, A, B, G, E, L, V models ................................................. 30 W
J model ................................................................................... 37 W
Standby Power Consumption (Reference Data)/待機時消費電力（参考値）
............................................................................................ 0.1 W
Dimensions/寸法 (W x H x D)
................................ 800 x 153 x 115 mm (31-1/2" x 6" x 4-1/2")
Weight/質量 .................................................. 9.0 kg (19 lbs. 13 oz.)
Finish/仕上げ
Black color .................................... T, K, A, B, G, E, L, V, J models
Silver color .................................... T, K, A, B, G, E, L, V, J models
Accessories/付属品
Remote control x 1, Batteries (UM-3) x 2, Power cable x 1, Video pin
cable x 1, Audio pin cable x 2, Digital audio pin cable x 1, Optical
cable x 1, Cable clip x 1, Fastener x 4, Optimizer microphone x 1,
Cardboard microphone stand x 1, DVD-ROM x 1 (J model)
T .......... Chinese model K ...... Korean model
A .......... Australian model B ...... British model
G .......... European model L ....... Singapore model
V .......... Taiwan model E ...... South European model
J ........... Japanese model
* Specifications are subject to change without notice due to product
improvements.
※ 参考仕様および外観は予告なく変更されることがあります。
115 (4-1/2")
96 (3-3/4")
26 (1")
47 (1-7/8")
102.9
(4-1/16")
8-M4
17.5
(11/16")
153 (6")
119
(4-11/16")
4 (3/16")3.5 (1/8")
26.5
(1-1/16")
800 (31-1/2")
782.6 (30-13/16")
30 (1-3/16") 30 (1-3/16")225 (8-7/8") 225 (8-7/8")
102.9
(4-1/16")
17.5
(11/16")
16
(5/8")
143 (5-5/8")
64
(2-1/2")
32
(1-1/4")
49.6
(1-15/16")
47
(1-7/8")
DRIVER WOOFER
DRIVER TWEETER
AMP P.C.B.
INPUT (5) MIC P.C.B.
INPUT (3) FL DISPLAY P.C.B.
1
2
3
4
5
INPUT (4) SWITCH P.C.B.
DSP P.C.B.
INPUT (2) INPUT P.C.B.
INPUT (1) POWER P.C.B.
6
7
8
9
7543
21 1
6
8 9
YSP-900
6
TREBLE
BASS
BASS OUT
CROSS OVER
LFE LEVEL
DISTANCE
MUTE, -20 dB
0 to 160 mS
MOUNTING
REFLECTING
MIN, STD, MAX
INSTALLED POSITION
ROOM WIDTH
(C: LEFT WALL)
ROOM LENGTH
(C: RIGHT WALL)
USER POSITION
TO L WALL (* 4)
a) HORIZONTAL ANGLE (* 5)
b) BEAM TRAVEL LENGTH
c) FOCAL LENGTH (* 5)
d) TREBLE GAIN
ON, OFF
LEFT
RIGHT
OPTICAL IN (1)
OPTICAL IN (2)
COAXIAL IN
AUTO, LAST
OPTICAL IN (1) TV ANALOG
OPTICAL IN (2) OPTICAL
COAXIAL IN VCR ANALOG
ANALOG IN (1) AUX OPTICAL
ANALOG IN (2) DVD COAXIAL
DVD _>
STANDARD DIMMER
AUTO DIMMER
OSD SHIFT
OSD BACK COLOR
TRBL (0.5 dB step -12.0 to 0 to +12.0 [dB])
BASS (0.5 dB step -12.0 to 0 to +12.0 [dB])
FRONT, SWFR
80, 100, 120 [Hz]
-20 to 0 [dB]
0.3 to 15.0 [m] (0.1 step)
1.0 to 50.0 [ft] (0.5 step)
SHELF, WALL
[NORMAL], HI ECHO
FLAT TO WALL, ANGLE TO WALL OR CORNER
2.0 to 12.0 [m] (0.1 step)
6.5 to 40.0 [ft] (0.5 step)
2.0 to 12.0 [m] (0.1 step)
6.5 to 40.0 [ft] (0.5 step)
1.8 to 9.0 [m] (0.1 step)
6.0 to 30.0 [ft] (0.5 step)
0.6 to 11.4 [m] (0.1 step)
2.0 to 38.0 [ft] (0.5 step)
H.ANGLE FL (1 deg. step -90 deg to 0 to +90 deg)
H.ANGLE FR (1 deg. step -90 deg to 0 to +90 deg)
H.ANGLE C (1 deg. step -90 deg to 0 to +90 deg)
H.ANGLE SL (1 deg. step -90 deg to 0 to +90 deg)
H.ANGLE SR (1 deg. step -90 deg to 0 to +90 deg)
DIST FL (0.1 m step 0.3 to 24.0 [m])
(0.5 ft step 1.0 to 80.0 [ft])
DIST FR (0.1 m step 0.3 to 24.0 [m])
(0.5 ft step 1.0 to 80.0 [ft])
DIST C (0.1 m step 0.3 to 24.0 [m])
(0.5 ft step 1.0 to 80.0 [ft])
DIST SL (0.1 m step 0.3 to 24.0 [m])
(0.5 ft step 1.0 to 80.0 [ft])
DIST SR (0.1 m step 0.3 to 24.0 [m])
(0.5 ft step 1.0 to 80.0 [ft])
F.L. FL (0.1 m step -1.0 to 13.0 [m])
(0.5 ft step -3.5 to 43.5 [ft])
F.L. FR (0.1 m step -1.0 to 13.0 [m])
(0.5 ft step -3.5 to 43.5 [ft])
F.L. C (0.1 m step -1.0 to 13.0 [m])
(0.5 ft step -3.5 to 43.5 [ft])
F.L. SL (0.1 m step -1.0 to 13.0 [m])
(0.5 ft step -3.5 to 43.5 [ft])
F.L. SR (0.1 m step -1.0 to 13.0 [m])
(0.5 ft step -3.5 to 43.5 [ft])
TRBL FL (0.5 dB step -12.0 to 0 to +12.0 [dB])
TRBL FR (0.5 dB step -12.0 to 0 to +12.0 [dB])
TRBL C (0.5 dB step -12.0 to 0 to +12.0 [dB])
TRBL SL (0.5 dB step -12.0 to 0 to +12.0 [dB])
TRBL SR (0.5 dB step -12.0 to 0 to +12.0 [dB])
L|········C 0 to 95 [%] (5% step) * test tone output
C········| R 0 to 95 [%] (5% step) * test tone output
[TV], VIDEO
DVD, [AUX] T, K, A, B, G, E, L, V models
[DVD], AUX J model
[DVD], AUX T, K, A, B, G, E, L, V models
DVD, [AUX] J model
····| ····(0.5 dB step -6.0 to 0.0 [dB])
····| ····(0.5 dB step -6.0 to 0.0 [dB])
····| ····(0.5 dB step -6.0 to 0.0 [dB])
····| ····(0.5 dB step -6.0 to 0.0 [dB])
····| ····(0.5 dB step -6.0 to 0.0 [dB])
_DVD
-2, -1, OFF
DISPLAY OFF, -3, -2, -1, OFF
-5 to 0 to +5 (1 step)
BLUE, GRAY
■SET MENU TABLE / セットメニュー
1
2
3
4
5
MEMORY
AUTO SETUP
MANUAL SETUP
LANGUAGE SET (* 12)
1) LOAD
2) SAVE
1) BEAM+SOUND OPTIMZ
2) BEAM OPTIMZ ONLY
3) SOUND OPTIMZ ONLY
1) SOUND MENU
2) BEAM MENU
3) INPUT MENU
4) DISPLAY MENU
A) TONE CONTROL
B) SUBWOOFER SET
C) MUTE LEVEL
D) AUDIO DELAY
E) ROOM EQ
F) DD/DTS DYNAMIC RANGE
A) SETTING PARAMETERS
B) BEAM ADJ
C) IMAGE LOCATION
A) INPUT ASSIGNMENT (* 10)
B) INPUT MODE
C) INPUT TRIM
D) INPUT RENAME (* 11)
A) DIMMER SET
B) OSD SET
C) UNIT SET (* 12)
CATEGORY 1 MAIN MENU 2 SUB MENU 3 SELECT MENU 4 VALUE [INITIAL]
METERS, FEET
ENGLISH, DEUTSCH, Francais, ESPANOL
*4 ..... Displayed only for the FLAT TO WALL setting; distance from the wall on the left side to the user. / 壁置き設定のみ表示。左壁からユーザーまでの距離。
*5 ..... Test tone output. / テストトーン出力。
*10 ... Priority given to COAXIAL when set to the same input. / 同じ入力に設定した場合は、COAXIAL優先。
*11 ... MAX 8 Character. / 最大8文字。(T, K, A, B, G, E, L, V models)
*12 ... T, K, A, B, G, E, L, V models
MEMORY 1, MEMORY 2, MEMORY 3
MEMORY 1, MEMORY 2, MEMORY 3
YSP-900
7
YSP-900
分解・組立時の注意：
■DISASSEMBLY PROCEDURES / 分解手順
(Remove parts in the order as numbered.)
Cautions for disassembly and reassembly :
• Disconnect the power cable from the AC outlet.
• Spread soft cloth or the like and perform the work on it.
• Use full care as you may be injured by the front grille
or other part.
• All screws must be tightened securely to prevent air
leakage. Check the number of screws and their
positions when installing them.
• When installing parts, be careful not to have anything
such as cables caught between other parts.
• Make sure that all the removed driver (tweeter) parts
are reinstalled at specified positions.
1. Removal of Top Cover
a. Remove 4 screws (1). (Fig. 2)
b. Slide the top cover rearward to remove it. (Fig. 2)
2. Removal of Rear Panel
a. Remove 17 screws (2) and 11 screws (3). (Fig. 1)
b. Remove the rear panel. (Fig. 1)
3. Removal of Grille Bottom Ass’y
a. Remove 10 screws (4). (Fig. 2)
b. Remove the grille bottom ass’y. (Fig. 2)
4. Removal of Front Grille
a. Remove 10 screws (5) and 8 screws (6). (Fig. 2)
b. Remove the front grille. (Fig. 2)
5. Removal of Grille Net Ass’y (Black Color Model)
a. Remove 11 screws (7). (Fig. 2)
b. Remove the grille net ass’y. (Fig. 2)
6. Removal of Frame Top
a. Remove 7 screws (8). (Fig. 2)
b. Remove the frame top. (Fig. 2)
1. トップカバーの外し方
1
2. リアパネルの外し方
23
3. グリルボトムASSYの外し方
4
4. フロントグリルの外し方
56
5. グリルネットASSYの外し方（BlackColorモデル）
7
6. フレームトップの外し方
8
■SERVICE PRECAUTIONS / サービス時の注意事項
安全対策
Safety measures
• Some internal parts in this product contain high voltages
and are dangerous. Be sure to take safety measures
during servicing, such as wearing insulating gloves.
• Note that C523 on the INPUT (1) P.C.B. is dangerous
even after the power is turned off because an electric
charge remains and a high voltage continues to exist
there.
Before starting any repair work, perform discharge by
connecting a discharge resistor (5 k-ohms/10 W) between
C523 terminals.
(For the discharge resistor connection points, refer to page
49 “PRINTED CIRCUIT BOARD [INPUT (1) P.C.B.]” and
page 60 “SCHEMATIC DIAGRAM [INPUT 2/2]”)
YSP-900
8
YSP-900
Fig. 2
7. Removal of Baffle Unit
a. Remove 17 screws (9). (Fig. 3)
b. Remove connectors CB8, CB9, CB10, CB704, CB707
and CB708. (Fig. 3)
c. Remove the baffle unit. (Fig. 3)
8. Removal of Driver (Woofer)
a. Remove 4 screws (0). (Fig. 3)
b. Remove the driver (woofer).
7. バッフルユニットの外し方
9
8. スピーカーユニット（ウーファー）の外し方
0
Fig. 1
2
32
Rear panel
2
Front grille
5
6
5
4
4
Frame top
Grille net ass'y
Grille bottom ass'y
5
7
5
5
4
4
1
8
Top cover
7
YSP-900
9
YSP-900
Fig. 3
Fig. 4
9. Removal of Frame Bottom C
a. Remove 14 screws (A) and 8 screws (B). (Fig. 4)
b. Remove connector CB501. (Fig. 4)
c. Remove the frame bottom C. (Fig. 4)
10.Removal of INPUT (1) POWER P.C.B.
a. Remove connectors CB4, CB504, CB506 and CB507.
(Fig. 4)
b. Remove 6 screws (C). (Fig. 4)
c. Remove the INPUT (1) POWER P.C.B.. (Fig. 4)
9. フレームボトムCの外し方
AB
10.INPUT（1）POWERP.C.B.の外し方
C
CB5
CB4
CB507
CB504
CB501
CB506
INPUT(2) INPUT P.C.B. INPUT(1) POWER P.C.B.
E
A
ABBB
Frame bottom C
C
C
D
D
B
9
Baffle unit
Baffle unit
Driver (woofer)
Driver (woofer)
9
0 0
CB9CB707CB708CB704
AMP P.C.B. DSP P.C.B.
CB10 CB8
YSP-900
10
YSP-900
Fig. 5
11.Removal of INPUT(2) INPUT P.C.B.
a. Remove connector CB5. (Fig. 4)
b. Remove 6 screws (D) and 2 screws (E). (Fig. 4)
c. Remove the INPUT (2) INPUT P.C.B.. (Fig. 4)
12.Removal of INPUT (4) SWITCH P.C.B.
a. Remove connector CB903. (Fig. 5)
b. Remove 2 screws (F). (Fig. 5)
c. Remove the INPUT (4) SWITCH P.C.B.. (Fig. 5)
13.Removal of INPUT (5) MIC P.C.B.
a. Remove 2 screws (G). (Fig. 5)
b. Remove the INPUT (5) MIC P.C.B.. (Fig. 5)
14.Removal of INPUT (3) FL DISPLAY P.C.B.
a. Remove connector CB902. (Fig. 5)
b. Remove 5 screws (H). (Fig. 5)
c. Remove the INPUT (3) FL DISPLAY P.C.B.. (Fig. 5)
11.INPUT（2）INPUTP.C.B.の外し方
DE
12.INPUT（4）SWITCHP.C.B.の外し方
F
13.INPUT（5）MICP.C.B.の外し方
G
14.INPUT（3）FLDISPLAYP.C.B.の外し方
H
INPUT (3) FL DISPLAY P.C.B.INPUT (5) MIC P.C.B.
INPUT (4) SWITCH P.C.B.
H
FF
G
CB902 CB903
15.Removal of DSP P.C.B.
a. Remove connector CB11. (Fig. 6)
b. Remove 6 screws (I). (Fig. 6)
c. Remove the DSP P.C.B.. (Fig. 6)
16.Removal of AMP P.C.B.
a. Remove connectors CB709, CB710, CB711, CB712,
CB713, CB714 and CB715. (Fig. 6)
b. Remove 6 screws (J). (Fig. 6)
c. Remove the AMP P.C.B.. (Fig. 6)
15.DSPP.C.B.の外し方
I
16.AMPP.C.B.の外し方
J
YSP-900
11
YSP-900
AMP P.C.B.
DSP P.C.B. CB715
CB714
CB713CB711CB709
CB11
CB712CB710
I
I
J
J
Baffle unit
TW1 TW3
TW2 TW4 TW6 TW8 TW10 TW12 TW14 TW16 TW18 TW20
TW5 TW7 TW9 TW11 TW13 TW15 TW17 TW19 TW21
CB715
CB714
Rear view
CB713
CB712
CB711 CB709
CB710
KBaffle unit
Fig. 7
Fig. 6
17.Removal of Driver (Tweeter)
a. Remove 2 screws/piece (K). (Fig. 7)
b. Remove the driver (tweeter). (Fig. 7)
17.スピーカーユニット（ツイーター）の外し方
K
Installation of Driver (Tweeter)
Caution : Make sure that all the removed driver (tweeter)
parts are reinstalled at specified positions.
(Fig. 7)
スピーカーユニット（ツイーター）の取り付け方
注意：
TW4
TW5
TW6
Pin No. / ピンNo. CB715
5 –6
3 –4
1 –2
TW7
TW8
TW9
TW10
TW11
TW12
TW13
TW14
TW15
TW16
TW17
TW18
TW19
TW20
TW21
CB714 CB713 CB712 CB711 CB710 CB709
TW1
TW2
TW3
YSP-900
12
YSP-900
When checking the P.C.B. :
•The rear unit removed from the unit does not work
because its grounding is loose. Be sure to connect the
ground of the rear unit to the chassis or GND with a
ground lead or the like. (Fig. A)
•Reconnect all cables (connectors) that have been
disconnected.
•When connecting the cable, use care for the polarity.
P.C.B.チェックをする場合には
Fig. A
INPUT(2) INPUT P.C.B.
INPUT(4) SWITCH P.C.B.
INPUT(1) POWER P.C.B.
Ground lead
INPUT(5) MIC P.C.B.
AMP P.C.B. DSP P.C.B.
INPUT(3) FL DISPLAY P.C.B.
Cloth
YSP-900
13
YSP-900
●操作前の準備と注意
•RS232C cross cable “D-sub 9 pin female”
(Specifications)
Pin No.2 RxD Pin No.2 RxD
Pin No.3 TxD Pin No.3 TxD
Pin No.5 GND Pin No.5 GND
Pin No.7 RTS Pin No.7 RTS
Pin No.8 CTS Pin No.8 CTS
•RS232C conversion jig.
For the details, refer to page 76.
●Preparation and precautions before starting
the operation
•Download DSP_FLASHER(YSP).exe and
spDownloader_2_0_x_xxx.exe from the specified
source to the PC being used.
•Prepare the above specified RS232C cross cable.
•While writing, keep the other application software on
the PC closed. It is also recommended to keep the
software on the task tray closed as well.
■UPDATING FIRMWARE / ファームウェアーの書き込み
●必要なツール
When the following parts have been replaced with servicing
parts, be sure to write the updated data of the firmware.
IC11 of P.C.B. ASS’Y DSP : X8046B00
... Writing of DSP
IC17 of P.C.B. ASS’Y DSP : X8047A00
... Writing of DSP APPLICATION / SPID
IC24 of P.C.B. ASS’Y DSP : X6894A00
... Writing of CPU
●Required tools
•PC with a serial port (RS232C), OS: Windows 98/2000/
Me/XP
•Program upgrading program
There are 2 program upgrading programs.
Writing of CPU : DSP_FLASHER(YSP).exe
Writing of DSP : DSP_FLASHER(YSP).exe
Writing of DSP APPLICATION / SPID
: spDownloader_2_0_x_xxx.exe.
•Firmware
* Be sure to put following 4 firmwares in the same folder.
CPU ...................................................
DSP .......................................
DSP APPLICATION
......................... ysp2app_YSP2-0_xxxxx_.hex
SPID .................................................. Y9xxxxxxx.bin
YSP-900
14
YSP-900
Slit /
RS232C
conversion jig /
RS232C cable /
Bottom view Reset
switch /
Electrode side /
●Operation Procedure
Writing of CPU
1. Install DSP_FLASHER(YSP).exe into the PC.
2. Before turning on the power to YSP-900 and PC, con-
nect each of them using RS232C conversion jig and
RS232C cable (cross cable). (Fig. 1)
●操作方法
Fig. 1
3. While pressing the reset switch of YSP-900, connect
the power cable to the AC outlet. (Fig. 1)
* Use a fine tipped pin or the like to push the reset
switch.
4. Start up DSP_FLASHER(YSP).exe, the screen will ap-
pear as shown below.
YSP-900
15
YSP-900
・MOTFILE
・RS232C
5. Select the data to be transmitted and port.
·MOT FILE
Select “SA25_xx.mot”.
·RS232C
Select the port of RS-232C.
Select the port of RS-232C
接続しているRS-232Cポートを選択します
Press this button to open the window
このボタンを押すとウィンドウが開きます
Select the firmware
ファームウェアを選択します
* The port selection varies depending on OS of the PC.
Windows 98/2000/Me ........... COM1-4
Windows XP .......................... COM1-2
As no port other than the above can be used, se-
lect the port using the setting of the PC.
Press this button to start writing
このボタンを押すと
書き込みが開始されます
During downloading
書き込み中
6. Press the [E.P.] button and start writing.
YSP-900
16
YSP-900
7. When the program transmission is completed, the
screen appears as shown below.
The press the [OK] button to end the procedure.
8. Disconnect the power cable of YSP-900 from the AC
outlet.
Writing of DSP
1. Install DSP_FLASHER(YSP).exe into the PC.
2. Before turning on the power to YSP-900 and PC, con-
nect each of them using RS232C conversion jig and
RS232C cable (cross cable). (Fig. 1)
3. Start up DSP_FLASHER(YSP).exe, the screen will
appear as shown below.
YSP-900
17
YSP-900
・DSPHEXFILE
・RS232C
4. Select “YSP DSP”tag.
5. Select the data to be transmitted and port.
·DSP HEX FILE
Select “YSPx00_verxxxx.hex”.
·RS232C
Select the port of RS-232C.
Select the port of RS-232C
接続しているRS-232Cポートを選択します
Select YSP DSP
YSPDSPを選択します
Press this button to open the window
このボタンを押すとウィンドウが開きます
Select the firmware
ファームウェアを選択します
6. Press the [RDY] button to set to the standby mode.
このボタンを押すと、書き込み待機状態になります。
Pressing this button sets to the ready-to-write state.
* The port selection varies depending on OS of the PC.
Windows 98/2000/Me ........... COM1-4
Windows XP .......................... COM1-2
As no port other than the above can be used, se-
lect the port using the setting of the PC.
YSP-900
18
YSP-900
Change OFF to ON
7. Connect the power cable of YSP-900 to the AC outlet.
While pressing the “VOL+”key and “VOL-”key of the
YSP-900, press the “STANDBY/ON”key of the remote
control to activate the DIAG function.
1Using the “UP”or “DOWN”key of the remote control,
select the DIAG menu in the figure below.
2Using the “LEFT”or “RIGHT”key of the remote
control, select the DIAG sub-menu in the figure
below.
3Using the “ENTER”key of the remote control, make
a change as shown below.
8. When the program transmission is completed, the
screen appears as shown below.
During downloading
書き込み中
YSP-900
19
YSP-900
9. Check the SUM.
After downloading successfully, the value of “SUM from
SET”is appeared.
The procedure is completed when the value is obtained
for “SUM from FILE”and “SUM from SET”.
Confirm the value of SUM
SUM値を確認します
10
.Press the “STANDBY/ON”key of the YSP-900 to turn
off the power.
YSP-900
20
YSP-900
4. Start up spDownloader_2_0_x_xxx.exe, the screen will
appear as shown below.
Writing of DSP APPLICATION / SPID
1. Install spDownloader_2_0_x_xxx.exe into the PC.
2. Before turning on the power to YSP-900 and PC, con-
nect each of them using RS232C conversion jig and
RS232C cable (cross cable). (Fig. 1)
3. Connect the power cable of YSP-900 to the AC outlet.
While pressing the “VOL+”key and “VOL-”key of the
YSP-900, press the “STANDBY/ON”key of the remote
control to activate the DIAG function.
1Using the “UP”or “DOWN”key of the remote control,
select the DIAG menu in the figure below.
2Using the “LEFT”or “RIGHT”key of the remote con-
trol, select the DIAG sub-menu in the figure below.
3Using the “ENTER”key of the remote control, make
a change as shown below.
Change YAMAHA to 1Ltd.
4For restarting, use the “STANDBY/ON”key of the
YSP-900 or the remote control.
Other manuals for Digital Sound Projector YSP-900
4
This manual suits for next models
9
Table of contents
Other Yamaha Digital Sound Projector manuals
