Zanussi FLS474CN User manual

WASHINGMACHINE
STIRALWNAÅ MAfiINA
FLS474CN
INSTRUCTION BOOKLET
RUKOVODSTVO PO ÈKSPLUATACII
124975180

2
YOUR NEW WASHING MACHINE
This new washing machine meets all
requirements for a modern washing of laundry
with reduced consumption of water, energy and
detergent.
Ecological hints
In order to obtain water and energy savings and
to protect the environment, we advice you to
follow these instructions:
■Whenever possible, wash the maximum load
for the selected programme, without
overloading the drum.
■Use a programme with prewash only for
heavy soiled items.
■Measure out detergent according to the water
hardness, degree of soiling and quantity of
laundry being washed.
■Use the “Economy programme” for normally
soiled cotton fabrics.
Environment protection
■Packaging recycling
Materials marked with the symbol are
recyclable. To enable them to be recycled, they
must be placed in the appropriate collection
areas (or containers). Check with your local
authorities.
>PE<= polyethylene
>PS<= polystyrene
>PP<= polypropylene
■Washing machine scrapping
When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device inoperative to avoid it becoming a death
trap for a child.
For correct disposal of the machine, contact your
local authority department which provides for
collection of urban solid refuse.
i
The symbols you will see on some paragraphs of this booklet have the following meaning:
Important information concerning the
safety in the use of your machine.
Disregarding this information might
lead to damages.
Information for correct use of your
machine and to obtain the best
performance.
Important information concerning
environment protection.
Our contribution to the protection of the
environment: we use recycled paper.

3
ENGLISH
CONTENTS
Important information . . . . . . . . . . . . .4
Description of the appliance . . . . . .5
■Detergent dispenser drawer
and programme chart . . . . . . . . . . . . . . . . .5
Technical specifications . . . . . . . . . . .5
Installation . . . . . . . . . . . . . . . . . . . . . . . .6
■Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . .6
■Positioning . . . . . . . . . . . . . . . . . . . . . . . . . .6
■Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . .7
■Water drainage . . . . . . . . . . . . . . . . . . . . . .7
■Electrical connection . . . . . . . . . . . . . . . . . .7
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
■Control panel . . . . . . . . . . . . . . . . . . . . . . .8
■Washing hints . . . . . . . . . . . . . . . . . . . . . . .9
Sorting the laundry . . . . . . . . . . . . . . . . . . . .9
Temperatures . . . . . . . . . . . . . . . . . . . . . . . .9
Before loading the laundry . . . . . . . . . . . . . .9
Maximum loads . . . . . . . . . . . . . . . . . . . . . .9
Laundry weights . . . . . . . . . . . . . . . . . . . . . .9
Removing stains . . . . . . . . . . . . . . . . . . . . .9
Detergents and additives . . . . . . . . . . . . . .10
Quantity of detergent to be used . . . . . . . .10
■International wash code symbols . . . . . . . .11
■Washing programmes . . . . . . . . . . . . . .12-13
■Operating sequence . . . . . . . . . . . . . . .14-15
Maintenance . . . . . . . . . . . . . . . . . . . . . .16
■Bodywork . . . . . . . . . . . . . . . . . . . . . . . . . .16
■Detergent dispenser drawer . . . . . . . . . . .16
■Water inlet filter . . . . . . . . . . . . . . . . . . . . .16

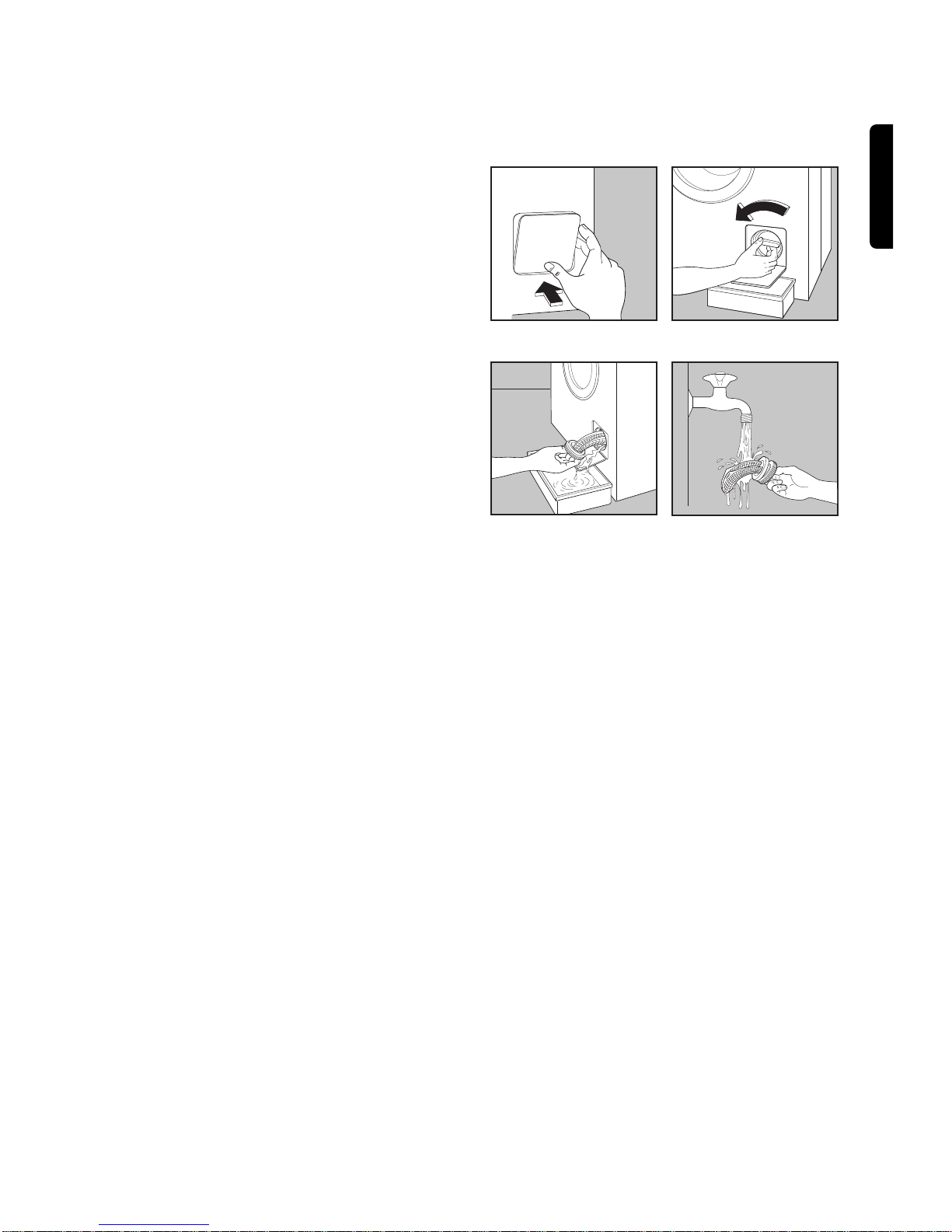

■Drain filter . . . . . . . . . . . . . . . . . . . . . . . . .17
■Emergency emptying out . . . . . . . . . . . . . .17
■The dangers of freezing . . . . . . . . . . . . . . .17
Something not working . . . . . . . .18-19

4
IMPORTANT INFORMATION
Installation
■When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
■All internal packing must be removed before
using the appliance. Serious damage may be
caused to the machine or adjacent furniture if
the protective transit devices are not
removed or are not completely removed.
Refer to the relevant paragraph in the
instruction book.
■Any electrical work required to install this
appliance must be carried out by a qualified
electrician.
■Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
■After having installed the machine, check that
it is not standing on its electrical supply cable.
■If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between
the adjustable feet and the floor.
Use
■This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
■Do not overload the appliance. Follow the
instructions in the instruction book.
■Only wash fabrics which are designed to be
machine washed. Follow the instructions on
each garment label.
■Make sure that all pockets are empty.
Objects such as coins, safety pins, pins and
screws can cause extensive damage.
■Do not machine wash garments saturated
with petroleum, methylated spirits,
trichlorethylene, etc. If such fluids have been
used to remove stains prior to washing, wait
until they have completely evaporated from
the fabric before placing garments in the
appliance.
■Place small items such as socks, belts, etc. in
a cloth bag or pillowcase to prevent them
getting trapped between the drum and the tub.
■Use only the recommended quantities of
fabric softener. An excessive amount could
damage the laundry.
■Leave the porthole door slightly ajar when
the appliance is not in use. This preserves
the door seal and prevents the formation of
musty smells.
■Always check that water has emptied out
before opening the door. If not, drain the
water following the instructions in the
instruction book.
■Always unplug the appliance and shut the
water tap after use.
Service/repair
■In the event of a fault, do not attempt to
repair the appliance yourself. Repairs carried
out by inexperienced persons may cause
damage.
■If repairs are needed, contact an authorised
service centre and ask for genuine spare
parts.
Safety
■This appliance is designed to be used by
adults. Children must not be allowed to touch
the controls or play with the product.
■During high temperature wash cycles the
glass door becomes very hot. Do not touch it.
■Pets sometimes climb into washing
machines. Check the drum before each use.
It is important that this instruction book be kept with the appliance for future reference. If you sell or
give the appliance away, make sure that the book is passed to the new owners so that they can
familiarise themselves with its operation and relevant warnings.
The following warnings are provided in the interests of overall safety. You must read them carefully
before installing or using the appliance.

5
ENGLISH
DESCRIPTION OF THE APPLIANCE
01 Detergent dispenser drawer
02 Programme chart
03 Option buttons
04 ON/OFF button
05 Operating pilot light
06 Programme selector dial
07 Door handle
08 Drain filter
09 Adjustable feet
Detergent dispenser drawer and
programme chart
Symbols
Prewash
Main wash
Fabric softener
There is a programme guide in symbols on the
handle of the detergent dispenser drawer.
8
7
9
1
6532 4
C0006
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 45 cm
POWER SUPPLY VOLTAGE/FREQUENCY 220-230V/50 Hz
TOTAL POWER ABSORBED 2250 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 50N/cm2
Maximum 80 N/cm2
MAXIMUM LOAD Cotton 4.0 kg
Synthetics, delicate fabrics 2.0 kg
Woollens 1.0 kg
SPIN SPEED 400 rpm
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility

6
INSTALLATION
Unpacking
You are advised to keep all transit devices so
that they can be refitted if the machine ever has
to be transported again.
1. Using a spanner, unscrew and remove the
rear right-hand bolt and lay the machine on
its back, taking care not to squash the hoses.
This can be avoided by placing one of the
corner packing pieces between the machine
and the floor.
2. Remove the polystyrene block from the
bottom of the machine and release the two
plastic bags by removing the adhesive strip.
3. Carefully remove the right-hand bag (1) then
the left-hand bag (2) by pulling them towards
the centre of the machine.
4. Set the machine upright and remove the two
remaining bolts from the back.
5. Pull out the three plastic spacers from the
holes into which the bolts were fitted.
6. Plug the open holes with the plugs which you
will find at the back of the appliance.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the
machine is not impeded by carpets, rugs etc.
Check that the machine does not touch the wall
or other kitchen units.
Carefully level by screwing the adjustable feet in
or out. Never place cardboard, wood or similar
materials under the machine to compensate for
any unevenness in the floor.
P0255
P0234
P0233
21
P0256
P0020
P1051
All transit bolts and packing must be
removed before using the appliance.

7
ENGLISH
Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread after having inserted the small filter “A”
supplied with the machine.
The other end of the inlet hose which connects
to the machine can be turned in any direction.
Simply loosen the fitting, rotate the hose and
retighten the fitting, making sure there are no
water leaks.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
Water drainage
The end of the drain hose can be positioned in
three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine is
emptying.
This could be done by tying it to the tap with a
piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must
be above the trap so that the bend is at least
60 cm above the ground.
Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain
pipe must be larger than the outside diameter of
the drain hose.
The drain hose must not be kinked. Run it along
the floor; only the part near the drainage point
must be raised.
Electrical connection
This machine is designed to operate on a
220-230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.25 kW),
also taking into account any other appliances in
use.
Connect the machine to an earthed socket,
in accordance with current wiring regulations.
A
P0003
P0022
P0023
P0021
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution.

8
USE
Control panel
474CN
FLS
40º- 95º
30º- 60º
30º- 40º
30º- 60º
30º- 40º
30º- 40º
AB
B
C
HJ
K
L
D
F
G
M
N
P
12345 67
1 Detergent dispenser drawer
2 Anti-crease button
By depressing this button on programmes H-J-
K-L-M-N the water of the last rinse is not
emptied out, to prevent the fabrics from creasing.
To drain the water, depress this button again. If
the laundry has to be gently spun after draining,
select programme G (short spin).
3 Economy button
By depressing this button on programme B the
machine will wash at 60°C instead of 95°C: the
duration of the programme will not alter. This will
ensure a substantial saving in electricity
consumption.
To be used for normally soiled laundry.
4 Half load button
Select this button to reduce water consumption
on the rinse cycle when washing a half load of
cottons or linens.
The machine will carry out 3 rinses instead of 4.
5 ON/OFF button
Depress this button to start the programme.
Depress it again to stop the programme or to
switch the machine off.
Before selecting or changing an ongoing
programme the machine must be switched off.
6 Operating pilot light
This light is on whilst the machine is operating
and goes out at the end of the programme.
7 Programme selector dial
To select the required programme, turn this dial
clockwise until the programme letter is exactly
opposite the pointer.

9
ENGLISH
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing
instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and
linen (e.g. tea cloths, towels,
tablecloths, sheets...)
60° for normally soiled, colour fast
garments (e.g. shirts, night dresses,
pyjamas....) in linen, cotton or
synthetic fibres and for lightly soiled
white cotton (e.g. underwear).
(cold)
30°-40° for delicate items (e.g. net curtains),
mixed laundry including synthetic
fibres and woollens bearing the label
«pure new wool, machine washable,
non-shrink»
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their “whiteness” in the wash.
New coloured items may run in the first wash;
they should therefore be washed separately the
first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent
or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
cotton, linen: drum full but not too tightly
packed
synthetics: drum no more than half full
idelicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and
the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach (whites
and fast coloureds only).
Ball point pen and glue: moisten with acetone
(*), lay the garment on a soft cloth and dab the
stain.

10
French
°T.H.
German
°dH
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove any
residual marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic acid;
treat any residual marks on white fabrics with
bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk
Detergents and additives
Good washing results also depend on the choice
of detergent and use of the correct quantities to
avoid waste and protect the environment.
Although biodegradable, detergents contain
substances which, in large quantities, can upset
the delicate balance of nature.
The choice of detergent will depend on the type
of fabric (delicates, woollens, cottons, etc.), the
colour, washing temperature and degree of
soiling.
All commonly available washing machine
detergents may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C
max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be placed
in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of soiling
and hardness of the water used.
Water hardness is classified in so-called
“degrees” of hardness. Information on hardness
of the water in your area can be obtained from
the relevant water supply company, or from your
local authority.
Follow the product manufacturers’ instructions
on quantities to use.
Use less detergent if:
– you are washing a small load
– the laundry is lightly soiled
– large amounts of foam form during washing.
00-15
16-25
26-37
more than 37
Level
1
2
3
4
soft
medium
hard
very hard
00-07
08-14
15-21
more than 21
Characteristic Degrees
Degrees of water hardness

11
ENGLISH
Max. wash
temperature
30°C
Max. wash
temperature
40°C
Max. wash
temperature
95°C
Max. wash
temperature
60°C
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
DELICATE
WASH
Hand wash Do not wash
at all
BLEACHING Bleach in cold water Do not bleach
IRONING Hot iron
max 200°C Warm iron max 150°C Lukewarm iron max 110°C Do not iron
DRYING Flat On the line On clothes
hanger Tumble dry
high
temperature
low
temperature
Do not
tumble dry
A
P
F
ENERGETIC
WASH
95 60
60
40
40 40
30
30
i
DRY
CLEANING Dry cleaning in all solvents Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean

12
Energetic programmes for cotton and linen
Maximum load: 4 kg
Progr.
A
Temp. Type of laundry Cycle description Possible
options
95°
Whites
with prewash
(heavy soiled)
Prewash
Wash at 95°C
4 rinses
Long spin
BWhites
without prewash
(normally soiled)
Wash at 95°C
4 rinses
Long spin
B+ Whites economy
(normally soiled) Wash at 60°C
4 rinses
Long spin
D
F
Wash at 40°C
4 rinses
Long spin
40°
No-fast coloureds
(normally soiled)
95°
60°
GSpin Drain and short spin
4 rinses with liquid
additive, if required
Long spin
Rinses
CFast coloureds
(normally soiled) Wash at 60°C
4 rinses
Long spin
60°

13
ENGLISH
Gentle programmes for synthetics, mixed fibres, delicates and
woollens
Maximum load: 2 kg, woollens: 1kg
Progr.
H
Temp. Type of laundry Cycle description Possible
options
60°
Synthetics
with prewash
(heavy soiled)
Prewash
Wash at 60°C
3 rinses
Drain
JSynthetics
without prewash
(normally soiled)
Wash at 60°C
3 rinses
Drain
KDelicate fabrics - Silk Wash at 40°C
3 rinses
Drain
L
Softeners
M
N
Wash at 40°C
3 rinses
Drain
40°
Woollens
60°
40°
P
1 rinse with fabric softener
Drain
Drain Draining of water
3 rinses with fabric softener
Drain
Rinses

14
P0004
C0005
C0004
Operating sequence
Before washing your first load of laundry, we
recommend that you run a cotton cycle at 60°C,
with the machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main
wash compartment and start up the machine.
1.Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a
time, shaking them out as much as possible.
Close the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent
recommended by the manufacturer in a
graduated cup and pour it into the main wash
compartment . If you wish to carry out a
prewash, pour detergent into the appropriate
compartment marked .
3.Measure out the additives
If required, pour fabric softener into the
compartment marked without exceeding the
«MAX» mark.
4.Select the desired option
Depress ANTI-CREASE or HALF LOAD
and/or ECONOMY button, if required.
i

15
ENGLISH

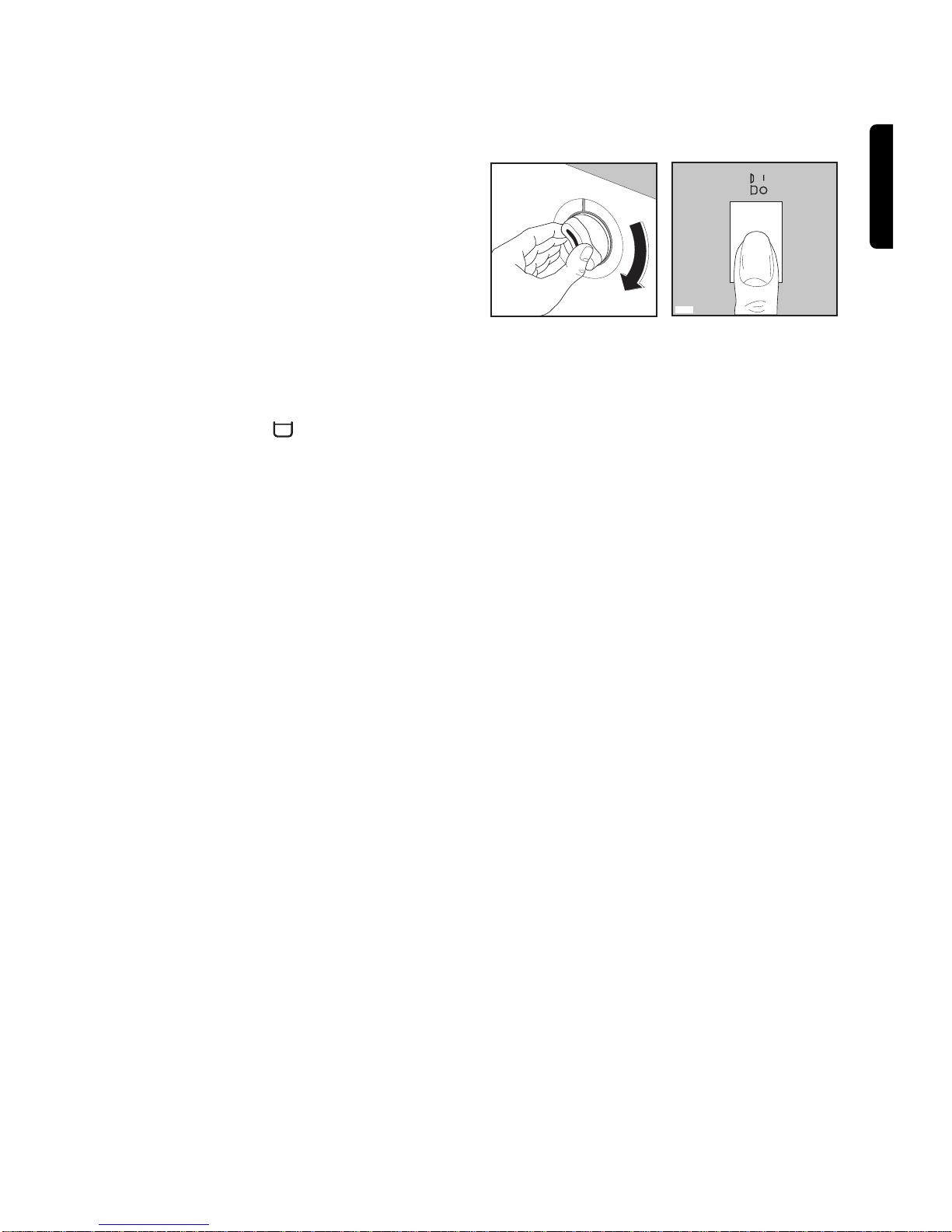

5.Select the programme and start it
Turn the programme selector dial clockwise to
the required wash programme and depress the
ON/OFF button: the operating pilot light comes
on and the machine starts to operate.
6.At the end of the programme
The machine stops automatically, the operating
pilot light goes out.
If you have selected a gentle programme with
the anti-crease option , drain the water
before opening the door.
It is normal to have to wait for about 2 minutes
before being able to open the door to allow the
safety lock to release.
Depress the ON/OFF button again to switch the
machine off.
Remove the laundry.
Turn the drum by hand to make sure it is
completely empty, so as to avoid any forgotten
items being damaged in a subsequent wash
(e.g. shrinking) or their colour running into a load
of whites.
Release any button which has been depressed.
Turn the water tap off and unplug the machine.
Leave the door ajar to air the machine.
P0215
B
P0471

16
MAINTENANCE
C0002
P0038
P0041
1.Bodywork
Clean the outside of the machine with warm
water and a neutral, non-abrasive household
detergent. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits,
solvents or similar products to clean the
bodywork.
2.Detergent dispenser drawer
After a while, detergents and fabric softeners
leave deposits in the drawer.
Clean the drawer from time to time by rinsing it
under a running tap. To remove the drawer from
the machine, press the button in the rear left-
hand corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
Detergent can also eventually accumulate inside
the drawer recess: clean it with an old
toothbrush. Refit the drawer after cleaning.
3.Water inlet filter
If you notice that the machine is taking longer to
fill, check that the filter in the water inlet hose is
not blocked.
Turn off the water tap.
Unscrew the hose from the tap and remove the
filter.
Clean it with a stiff brush.
Refit the filter and screw the hose back onto the
tap.
C0003

17
ENGLISH
4.Drain filter
The drain filter collects threads and small
objects inadvertently left in the laundry. Check
regularly that the filter is clean.
Open the filter door.
Place a container under the filter and unscrew it.
Pull out the filter.
Clean the filter under a running tap, then refit it,
screwing it fully in.
5.Emergency emptying out
If the water is not discharged (drain pump is
blocked, filter or drain hose are clogged),
proceed as follows to empty out the machine:
■pull out the plug from the power socket;
■close the water tap;
■if necessary, wait until the water has cooled
down;
■place a bowl on the floor;
■put the drain hose end into the bowl and let
the water come out.
Should it not be possible to have access to the
drain hose because, for example, the appliance
is built in the kitchen furniture, slightly loosen the
drain filter after placing a bowl on the floor, to let
the water come out slowly.
At the end screw the filter again.
P0011
P0132
P0133
P0040
6.The dangers of freezing
If the machine is exposed to temperatures below
0°C, certain precautions should be taken.
■Turn off the water tap.
■Unscrew the inlet hose.
■Unhook the drain hose from the rear support
and position the end of this hose and that of
the inlet hose in a bowl. Run the draining
programme until the selector dial is in the
“Stop” position.
■Switch the machine off.
■Screw the inlet hose and reposition the drain
hose.
■When you intend to start the machine up
again, make sure that the room temperature
is above 0°C.

18
SOMETHING NOT WORKING
■Problem ■Possible cause
■The machine does not start up: ■Check that the door is firmly closed.
■Check that the machine is plugged in and
that there is power at the socket.
■Check that the main fuse has not blown.
■Check that the programme selector dial is
positioned correctly and the ON/OFF button
depressed.
■The machine does not fill: ■Check that the water tap is open.
■Check that water is coming out of the tap.
■Check that the inlet hose is not squashed or
kinked.
■Check that the filter in the inlet hose is not
blocked.
■Check that the door is closed.
■The machine does not empty
and/or does not spin: ■Check that the drain hose is not squashed or
kinked.
■The drain filter is blocked. Clean it.
■The option has been selected with
sinthetics and delicates.
■There is water on the floor: ■Too much detergent or unsuitable detergent
(creates too much foam) has been used.
■Check whether there are any leaks from one
of the inlet hose fittings. It is not always easy
to see this as the water runs down the hose;
check to see if it is damp.
■Check that the drain hose is not damaged.
■Check that the drain filter has been refitted
correctly after cleaning.
■Unsatisfactory washing results: ■Too little detergent or unsuitable detergent
has been used.
■Stubborn stains have not been treated prior
to washing.
■The correct programme was not selected.
■The machine fills then empties
immediately: ■The end of the drain hose is too low. Refer to
relevant paragraph in “water drainage”
section.
Problems which you can resolve yourself

19
ENGLISH
■Problem ■Possible cause
■The machine vibrates or is noisy: ■Check that all the transit bolts and packing
have been removed.
■Check that the machine is not resting against
anything.
■Check that the support feet are resting firmly
on the ground.
■Check that the laundry is evenly distributed in
the drum.
■Maybe there is very little laundry in the drum.
■The door will not open: ■The programme is still running.
■The door lock has not yet been released.
■There is water in the drum.
■Water is not visible in the
machine: ■The machine, which is the result of modern
technology, runs in a very economical way
with low water consumption. Performance is
nevertheless excellent.
If you are unable to identify or solve the
problem, contact our service centre. Before
telephoning, make a note of the model, serial
number and purchase date of your machine: the
Service Centre will require this information.
Mod. ..........
Prod. No. ...........
Ser. No. .........
Mod.
..........
Ser.
P0042
