Zanussi ZWH 7148 P User manual

EN
User manual
Washing Machine
ZWH 7148 P

Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Frost precaution _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ 5
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Personalisation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 12
Washing programmes _ _ _ _ _ _ _ _ _ _ _ 21
Consumption values _ _ _ _ _ _ _ _ _ _ _ _ 23
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 24
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 26
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an in-
correct installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• Do not let persons, children included, with reduced physical sen-
sory, reduced mental functions or lack of experience and knowl-
edge use the appliance. They must have supervision or instruc-
tion for the operation of the appliance by a person who is re-
sponsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is
open.
• If the appliance has a child safety device, we recommend you ac-
tivate it.
General Safety
• Before maintenance, deactivate the appliance and disconnect
the mains plug from the mains socket.
• Do not change the specification of this appliance.
2
www.zanussi.com

• Obey the maximum load volume of 7 kg (refer to the “Programme
chart” chapter).
• If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualified persons in order to
avoid a hazard.
• The operating water pressure (minimum and maximum) must be
between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not be
obstructed by a carpet.
• The appliance is to be connected to the water mains using the
new supplied hose-sets. Old hose sets must not be reused.
Safety instructions
Installation
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move the
appliance again you must block the drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the
temperature is less than 0 °C or where it is
exposed to the weather.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install the
appliance is flat, stable, heat resistant and
clean.
• Do not install the appliance where the appli-
ance door can not be fully opened.
• Always be careful when you move the appli-
ance because it is heavy. Always wear safety
gloves.
• Make sure that there is air circulation be-
tween the appliance and the floor.
• Adjust the feet to have the necessary space
between the appliance and the carpet.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power sup-
ply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and exten-
sion cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact
the Service or an electrician to change a
damaged mains cable.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains
plug with wet hands.
• This appliance complies with the E.E.C. Di-
rectives.
Water connection
• Make sure not to cause damage to the water
hoses.
3
www.zanussi.com

• The appliance is to be connected to the wa-
ter mains using the new supplied hose-sets.
Old hose sets must not be reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time, let
the water flow until it is clean.
• The first time you use the appliance, make
sure that there is no leakage.
Use
Warning! Risk of injury, electrical shock,
fire, burns or damage to the appliance.
• Use this appliance in a household environ-
ment.
• Obey the safety instructions on the deter-
gent packaging.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not touch the glass of the door while a
programme operates. The glass can be hot.
• Make sure that you remove all metal objects
from the laundry.
• Do not put a container to collect possible
water leakage under the appliance. Contact
the Service to ensure which accessories can
be used.
Care and Cleaning
Warning! Risk of injury or damage to the
appliance.
• Do not use water spray and steam to clean
the appliance.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
Frost precaution
If the appliance is installed in a place where the
temperature could drop below 0°C, proceed
as follows to remove any water remaining in-
side the appliance:
1. unplug the appliance;
2. turn off the water tap;
3. unscrew the water inlet hose from the tap;
4. unscrew the drain hose from the rear sup-
port and unhook it from sink or spigot;
5. place a bowl on the floor;
6. let the drain hose run along the floor, place
the external extremities of the drain and in-
let hoses in the bowl placed on the floor
and let water drain out completely;
7. screw the water inlet hose to the tap and
the drain hose to the rear of the appliance
again;
When you intend to start the appliance up
again, make sure that the room temperature is
above 0°C.
4
www.zanussi.com

Environment concerns
Recycle the materials with the symbol . Put
the packaging in applicable containers to
recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with the
household waste. Return the product to your
local recycling facility or contact your municipal
office.
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by dis-
posing of them properly in appropriate collec-
tion containers.
Ecological hints
To save water, energy and to help protect the
environment, we recommend that you follow
these tips:
• Normally soiled laundry may be washed
without prewashing in order to save deter-
gent, water and time (the environment is pro-
tected too!).
• The machine works more economically if it is
fully loaded.
• With adequate pre-treatment, stains and
limited soiling can be removed; the laundry
can then be washed at a lower temperature.
• Measure out detergent according to the wa-
ter hardness, the degree of soiling and the
quantity of laundry being washed.
Product description
1 2 3
4
5
6
11
9
10
9
9
8
7
12
5
www.zanussi.com

1
Detergent dispenser drawer
2
Worktop
3
Control panel
4
Door opening handle
5
Rating plate (on the inner edge)
6
Front adjustable feet
7
Water drain hose
8
Drain hose support
9
Hose holders
10
Water inlet hose
11
Mains cable
12
Back feet
Child safety device
To activate this device, rotate the button
(without pressing it) inside the door clockwise
until the groove is horizontal. If necessary use a
coin.
To disable this device and restore the possi-
bility of closing the door, rotate the button anti-
clockwise until the groove is vertical.
Technical data
Dimensions Width
Height
Depth
Depth (Overall dimensions)
60 cm
85 cm
50 cm
54 cm
Electrical connection
Voltage - Overall power - Fuse
Information on the electrical connection is given on the rating plate, on
the inner edge of the appliance door.
Water supply pressure Minimum
Maximum
0,05 MPa
0,8 MPa
Maximum Load Cotton 7 kg
Spin Speed Maximum 1400 rpm
Installation
Unpacking
Warning!
• Read carefully the "Safety information"
chapter before installing the appliance.
6
www.zanussi.com

x 3
x 3
x 2
x 1
B
A
C

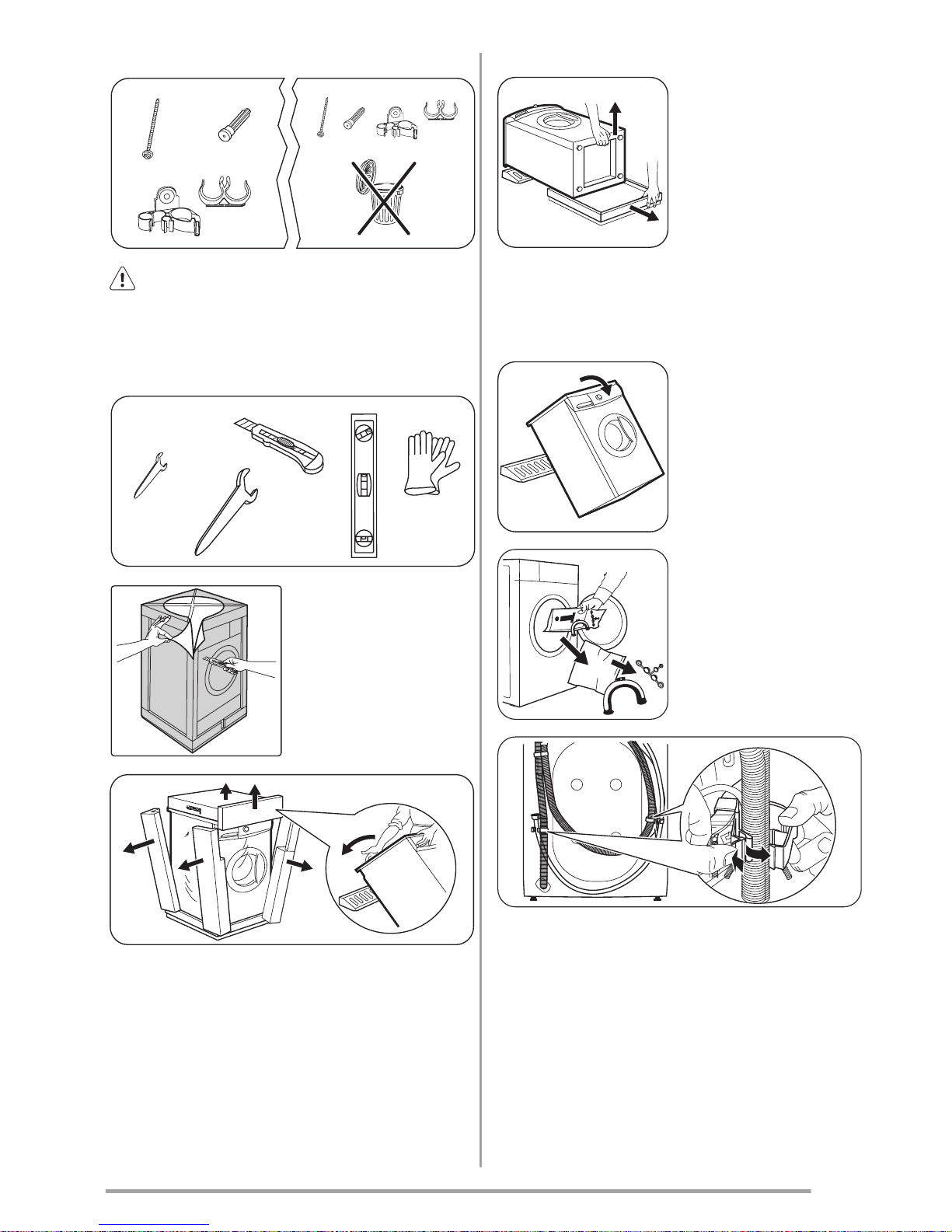

Warning! Remove and keep all
transit devices so that they can be re-
fitted if the appliance ever has to be trans-
ported again.
Necessary tools
10 mm
30 mm
• Remove the exter-
nal film. Use a cut-
ter, if necessary.
• Remove the cardboard top.
• Remove the polystyrene packaging materi-
als.
2
1
• Spread the front
piece on the floor
behind the appli-
ance and then lay
the appliance care-
fully rear side
down on it. Make
sure that no hoses
are crushed in the
process.
• Remove the polystyrene base from the
bottom.
• Return appliance
to it's upright posi-
tion.
• Open the door and
remove the plastic
hose guide, the
bag containing the
instruction booklet
and the plastic
plug caps from the
drum.
• Remove the power supply cable and the
draining and inlet hose from the hose hold-
ers on the rear of the appliance.
7
www.zanussi.com

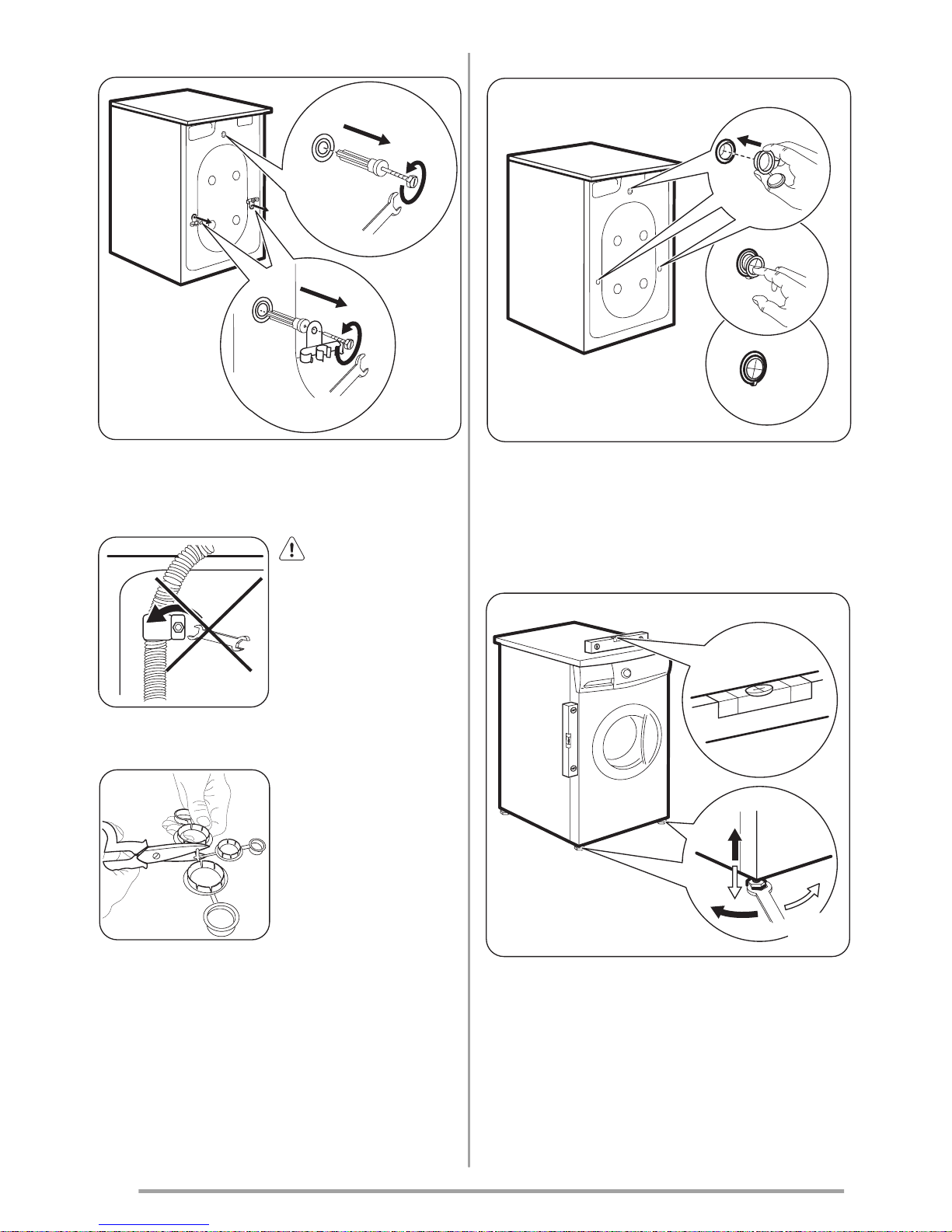

• Unscrew the three bolts and remove the
hose holders.
• Slide out the relevant plastic spacers.
Warning! Do
not remove
the drain hose
from the rear sup-
port. Remove this
hose only if it is
necessary to drain
the water. Refer to
"Frost precaution"
and "What to do if".
• Plug the smaller upper hole and the two
large ones with the corresponding plastic
plug caps.
Positioning and levelling
x 4
Level the appliance by raising or lowering the
feet.
The appliance MUST be level and stable on
a flat hard floor. If necessary, check the set-
ting with a spirit level. Any necessary adjust-
ment can be made with a spanner.
8
www.zanussi.com

Accurate levelling prevents vibration, noise
and displacement of the appliance during
operation.
Repeat the levelling action, if the appliance is
not level and stable.
Warning! This appliance is free standing
only. Do not remove the worktop for any
reason.
Water inlet
Connect the hose to
a tap with a 3/4”
thread.
35° 45°
Loosen the ring nut to angle the hose to the
left or right depending on the position of your
water tap. Do not place the inlet hose
downwards. After positioning the inlet hose,
be sure to tighten the ring nut again to pre-
vent leaks.
Water drainage
Firstly form a hook in the end of the drain
hose using the plastic hose guide supplied
with the appliance .
The end of the drain hose can be positioned
in four ways:
•Hooked over the edge of a sink using
the plastic hose guide.
Tie the plastic hose guide to the tap with a
string to prevent that the drain hose unhooks
when the appliance is emptying.
•Onto a sink outlet spigot.
Push the drain hose onto the spigot and se-
cure with a clip, ensure a loop is formed in
the drain hose to prevent waste from the sink
entering the appliance.
If the outlet spigot has not been used before,
remove any blanking plug that may be in
place.
9
www.zanussi.com

•Directly into a drain pipe at a height
of not less than 60 cm and not more than
100 cm.
MAX 100cm
The end of the drain
hose must always be
ventilated, i.e. the
inside diameter of the
drain pipe must be
larger than the out-
side diameter of the
drain hose. The drain
hose must not be
kinked.
If your drain hose
looks like this (see
beside) you do not
require the “U”
piece”. Just push the
hose firmly in to the
standpipe.
•Directly to a built-in drain pipe in the
room wall.
The drain hose may be extended to a max-
imum of 4 metres. An additional drain
hose and joining piece is available from your
Local Centre.
Connections overview
~max.400 cm
min. 60 cm
max. 100 cm
0.5 bar (0.05 MPa)
8 bar (0.8 MPa)
min.
60 cm
max.
100 cm
In the interest of the environment
The appliance should be connected to the
FOUL drainage system, the water will then be
taken to a sewage works for treatment before
being discharged safely into a river.
It is essential that these appliances are not
connected to the surface water drainage sys-
tem as this water is discharged directly into a
river or stream and may cause pollution.
10
www.zanussi.com

If you require any further advice please contact
your local water authority.
SHOWER
WASHING
MACHINE DISHWASHER
BATH
SINK TOILET
BIDET
RAINWATER
‘RUN-OFF’
SURFACE WATER
DRAINS & SEWERS
UNTREATED
DISCHARGE
RIVER RIVER
TREATED DISCHARGE
FOUL DRAIN
FOUL SEWERS
SEWAGE TREATMENT
WORKS
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agree with your domestic
power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-way plugs, connectors and
extension cables. There is a risk of fire.
• Do not replace or modify the mains cable
yourself. Contact the After Sales Service.
• Make sure that the mains plug and cable is
not squashed or damaged by the back of the
appliance.
• The mains plug must be accessible without
moving machine to enable electrical isolation
of appliance prior to cleaning or service.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• This appliance complies with the E.E.C. Di-
rectives.
Warning! The appliance is supplied with
a 13 amp plug attached. Use a 13 amp
ASTA approved (BS 1362) fuse if it is
necessary to change the fuse in the plug
supplied. A cut off plug inserted into a 13 amp
socket is a serious safety danger. Make sure
that it is disposed of safely.
First use
• Ensure that the electrical and water
connections comply with the installation
instructions.
• Ensure that the drum is empty.
• Before the first wash, run a cotton cycle
at the highest temperature without any
laundry in the machine, to remove any
manufacturing residue from the drum
and tub. Pour 1/2 a measure of deter-
gent into the main wash compartment
and start the machine.
Personalisation
Buzzer
The appliance is provided with an acoustic de-
vice, which sounds in the following cases:
• at the end of the cycle;
• if there is a fault.
11
www.zanussi.com

Rinse Hold
Super Quick

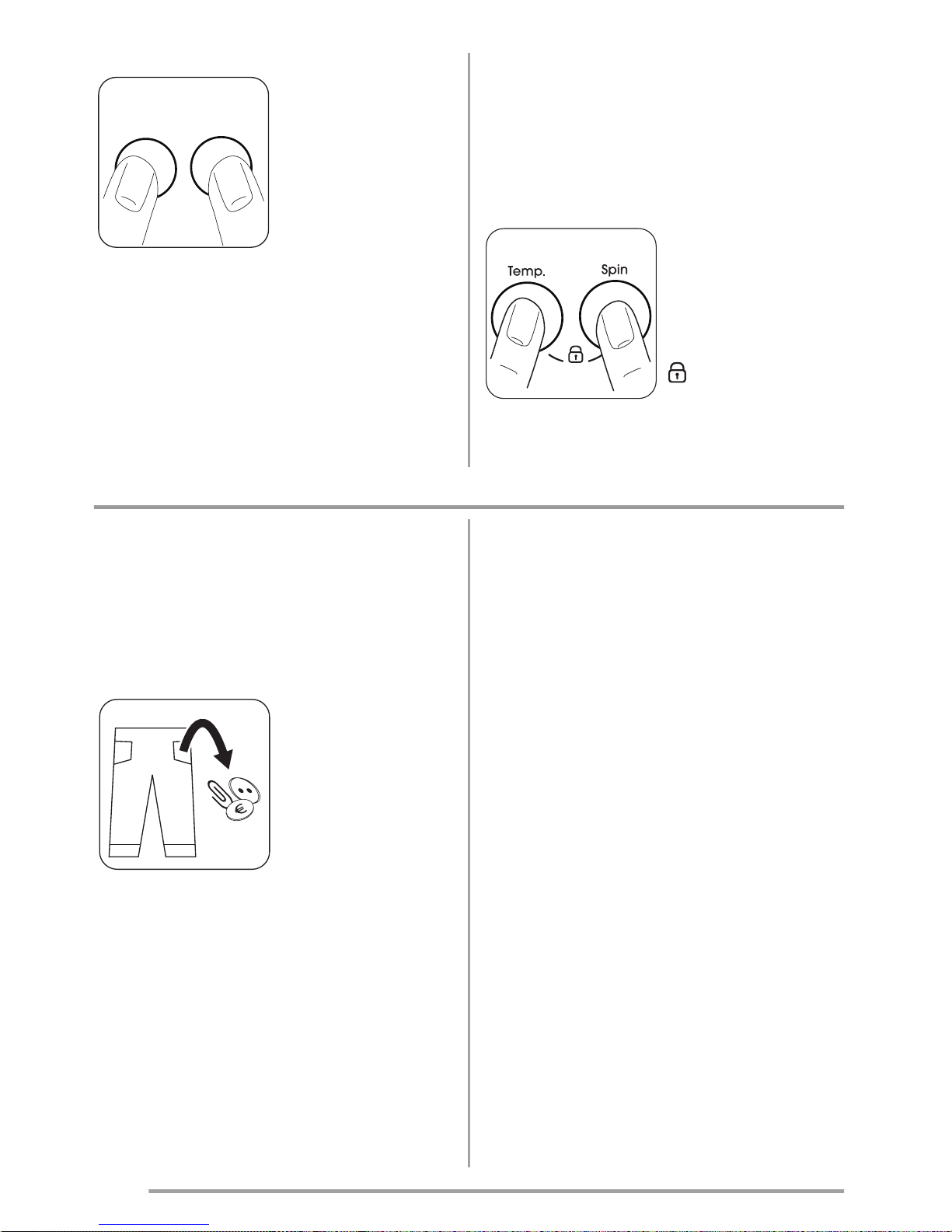

By pressing the 4
and 5buttons simul-
taneously for about 6
seconds, the acous-
tic signal is deactiva-
ted (except if there is
a fault).
By pressing these 2 buttons again, the
acoustic signal is reactivated.
Child safety lock
This device permits you to leave the appliance
unattended so you do not need to worry that
children might be injured by or cause damage
to the appliance. This function remains enabled
also when the appliance is not working.
There are two different ways to set this option:
1. Before pressing button 9: it will be impos-
sible to start the appliance.
2. After pressing button 9: it will be impossi-
ble to change any other programme or op-
tion.
To enable or disable
this option press si-
multaneously for
about 6 seconds but-
tons 2and 3until on
the display, the icon
appears or disap-
pears.
Daily use
Sort out the laundry
Follow the wash code symbols on each gar-
ment label and the manufacturer’s washing in-
structions. Sort the laundry as follows: whites,
coloureds, synthetics, delicates, woollens.
Before Loading The Laundry
Important! Make
sure that no metal
objects are left in the
laundry (e.g. hair
clips, safety pins,
pins). Button up pil-
lowcases, close zip
fasteners, hooks and
poppers. Tie any
belts or long tapes.
Remove any hooks
(e.g curtains).
• Never wash whites and coloureds together.
Whites may lose their «whiteness» in the
wash.
• New coloured items may run in the first
wash; they should therefore be washed sep-
arately the first time.
• Rub particularly soiled areas with a special
detergent or detergent paste.
• Treat curtains with special care.
• Wash the socks and the gloves inside the
bag or a net.
Remove stubborn stains before washing:
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and wa-
ter.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and
dab the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since the
cellulose structure will already have been dam-
aged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
12
www.zanussi.com

Ball point pen and glue: moisten with ace-
tone1), lay the garment on a soft cloth and dab
the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Treat any
residual marks with bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone1), then with acetic
acid; treat any residual marks on white fabrics
with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover, me-
thylated spirits or benzine, then rub with deter-
gent paste.
Open the door by carefully pulling the
door handle outwards
Load the laundry
Place the laundry in
the drum, one item at
a time, shaking them
out as much as pos-
sible.
Maximum Loads
Recommended loads are indicated in the
«Washing Programmes».
General rules:
•Cotton, linen: drum full but not too tightly
packed;
•Synthetics: drum no more than half full;
•Delicate fabrics and woollens: drum no
more than one third full.
Close the door gently
Warning! Make
sure that any
fabrics were not trap-
ped when closing the
door.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the envi-
ronment.
Although biodegradable, detergents contain
substances which, in large quantities, can up-
set the delicate balance of nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and de-
gree of soiling.
All commonly available washing machine deter-
gents may be used in this appliance:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics
(40°C max) and woollens,
• liquid detergents, preferably for low temper-
ature wash programmes (60°C max) for all
types of fabric, or special for woollens only.
The detergent dispenser drawer is provi-
ded with an insert for liquid detergent. Do
not use the insert downwards for gelatinous
detergents, with programmes including pre-
wash, with the delay start option. In all these
cases you can use metering balls or sachets
provided with the detergent, Take out the me-
tering aid at the end of the washing cycle.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of soil-
ing and hardness of the water used.
For the quantity of detergent, refer always to
what is written on the product packing.
Use less detergent if:
1) do not use acetone on artificial silk.
13
www.zanussi.com

• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam form during washing.
Degrees of water hardness
Water hardness is classified in so-called “de-
grees” of hardness. Information on hardness of
the water in your area can be obtained from the
relevant water supply company, or from your
local authority.
If the water hardness degree is medium or high
we suggest you to add a water softener follow-
ing always the manufacturer’s instructions.
When the degree of hardness is soft, readjust
the quantity of the detergent.

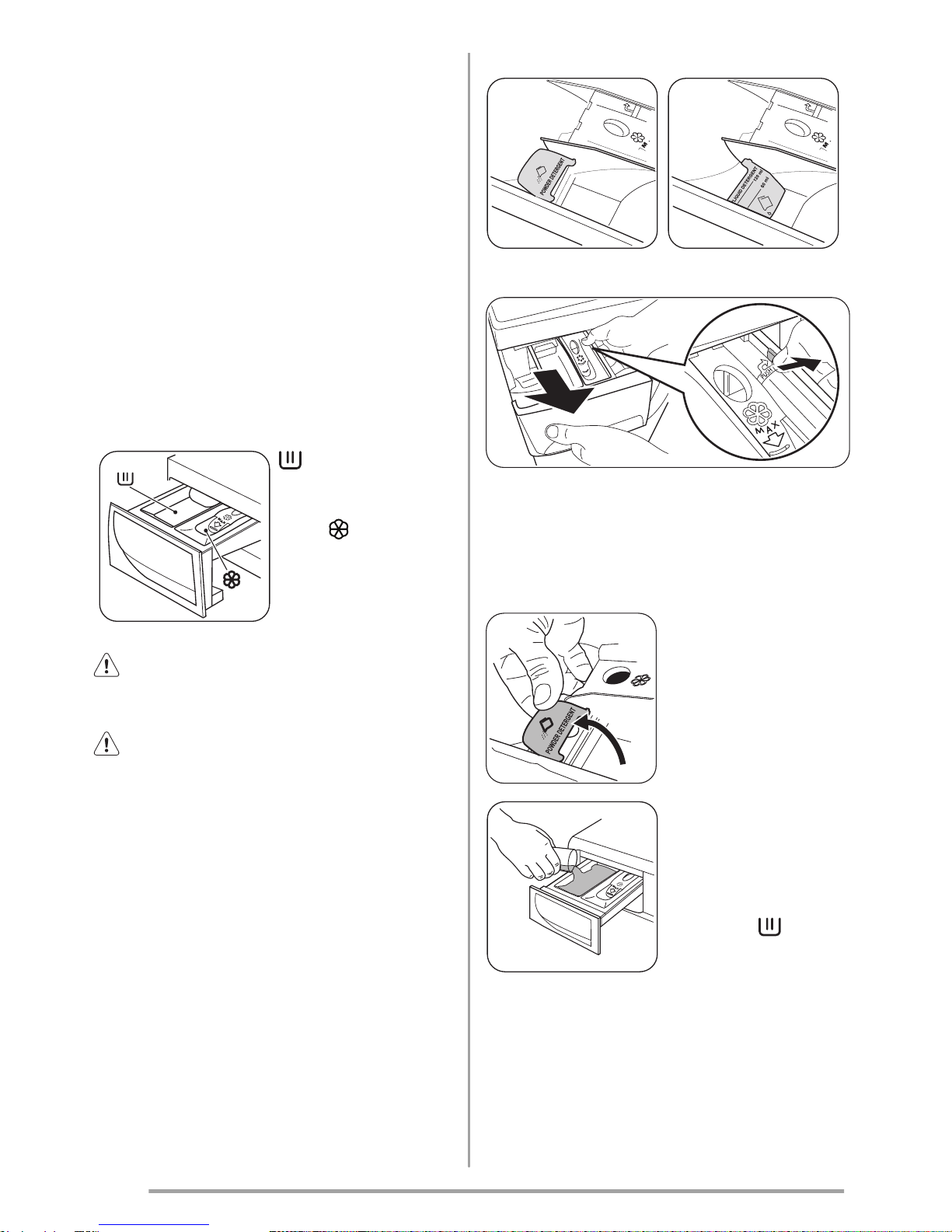

Open the detergent dispenser drawer
Compartment for
powder or liquid de-
tergent used for main
wash. Compart-
ment for liquid addi-
tives (fabric softener,
starch).
Warning! If you wish to carry out the
prewash, pour the detergent for prewash
phase among washing items into the drum.
Warning! Depending on the type
detergent you use (powder of liquid),
ensure that the flap, placed in the main wash
compartment, is in the desired position.
Flap for powder or liquid detergent
UP- Flap position
if using POWDER
detergent
DOWN - Flap posi-
tion if using LIQ-
UID detergent dur-
ing main wash
PUSH
REMOVE
TO CLEAN
PUSH
REMOVE
TO CLEAN
If the flap is not in the desired position:
• Remove the drawer. Push the drawer edge
outwards where indicated by the arrow
(PUSH) to facilitate drawer removal.
The flap is down and you wish to use
powder detergent:
• Rotate the flap up-
wards. Ensure to fit
the flap completely
in.
• Carefully put the
drawer back.
• Measure out the
detergent.
• Pour the powder
detergent into the
main wash com-
partment .
The flap is up and you wish to use liq-
uid detergent:
14
www.zanussi.com

• Rotate the flap
downwards.
• Carefully put the
drawer back.
• Measure out the detergent.
For the quantity of detergent, refer al-
ways to what is written on the product
packing and ensure that the detergent can
be poured in the drawer.
• Pour the liquid detergent in the compart-
ment without exceeding the limit indi-
cated in the flap. The detergent must be
placed in the appropriate compartments of
the dispenser drawer before starting the
wash programme.
Warning! Do not use the flap in "DOWN"
position with:
• Gelatinous detergent or thick detergent.
• Powder detergent.
• With programmes with prewash.
• Do not use liquid detergent if the washing
programme doesn't start immediately.
In all above listed cases, use the flap in
"UP" position .
Measure out the fabric softener
Pour fabric softener
or any additives into
the compartment
marked (do not
exceed the «MAX»
mark in the drawer).
Any additives must
be placed in the ap-
propriate compart-
ments of the dis-
penser drawer just
before starting the
wash programme.
Close the detergent dispenser drawer
Set your washing programme
The control panel permits to select a washing programmes and different options.
When an option button is selected, the corresponding pilot light is on. Otherwise it is off.
For compatibility among washing programmes and options, see the "Washing Pro-
grammes". If an incorrect option is selected, the integrated red pilot light of the button 9
flashes 3 times and the display shows the message Err.
15
www.zanussi.com

1 2 3 4 5 6 910
7 8
1
Programme selector
dial
Specials Cottons
Cottons
+Prewash
Cottons Eco
Synthetics
Delicates
Wool
Handwash
RinseDrain
Spin
Easy Iron
5 Shirts
Jeans
Mix 20°
Turn the programme selector dial to the required pro-
gramme. The selector dial can be turned either clock-
wise or counter-clockwise. The green pilot light of the but-
ton 9starts flashing: the appliance is now switched on.
If you turn the programme selector dial to another pro-
gramme when the appliance is working, the red pilot light
of the button 9will flash 3 times and the message Err is dis-
played to indicate a wrong selection. The appliance will not
perform the new selected programme.
• To switch the appliance off, turn the programme selec-
tor dial to the position .
• To cancel or change a running programme, switch the
appliance off by turning the programme selector dial to the
position . Select the new programme by turning the se-
lector to the desired programme. Start the new programme
by pressing the button 9again. The water in the tub will be
not emptied out.
2
Temperature button Push the temperature button to select the most suita-
ble temperature for washing your laundry .
: Cold wash.
16
www.zanussi.com

3

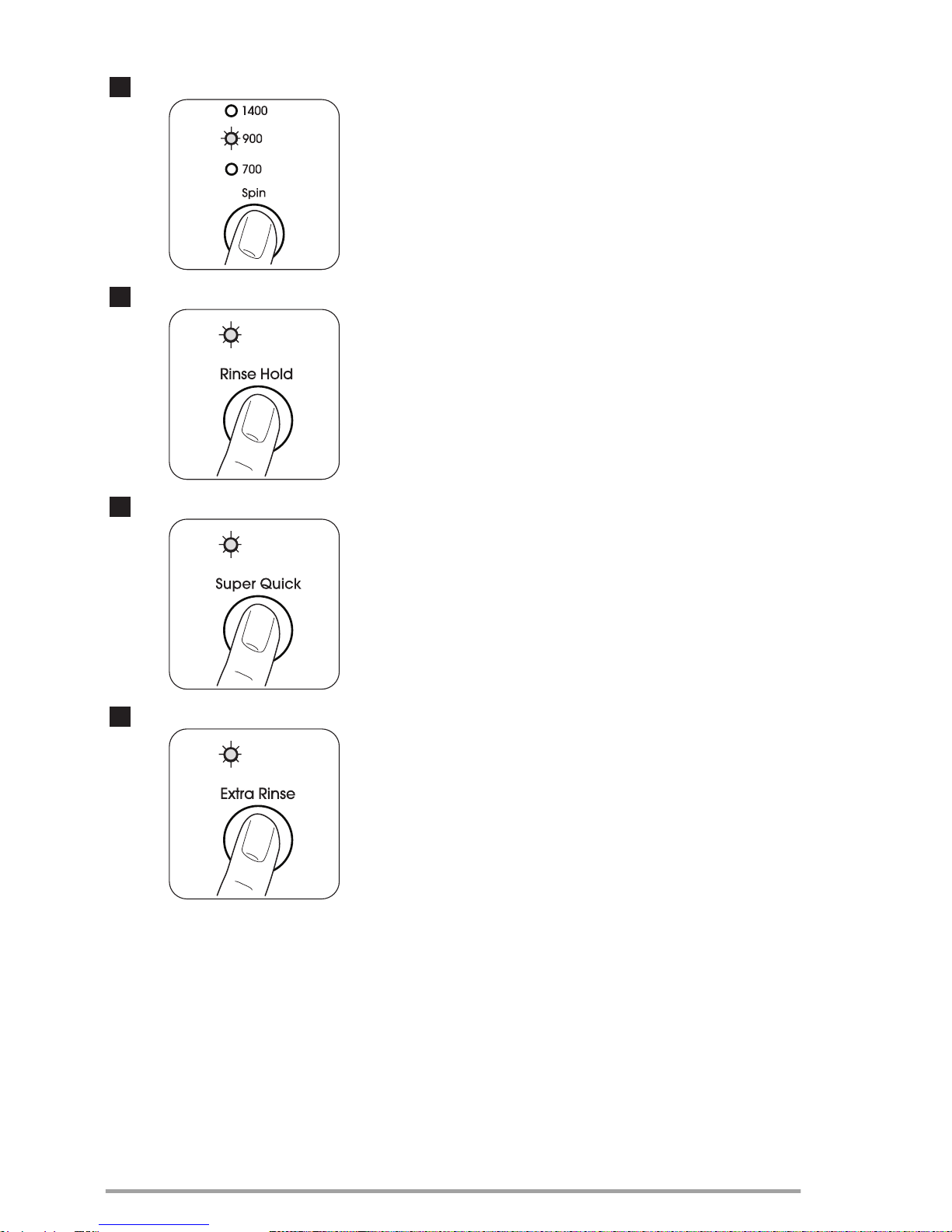

Spin reduction By selecting a programme, the appliance proposes automati-
cally the maximum spin speed provided for that programme.
Press this button repeatedly to change the spin speed, if you
want your laundry to be spun at a different speed. The rele-
vant light illuminates.
4
Rinse Hold By pressing this button the corresponding pilot light illumi-
nates.
By selecting this function the water of the last rinse is not
emptied out to prevent the fabrics from creasing. Before
opening the door it will be necessary to empty out the water.
To empty out the water, please read the paragraph «At
the end of the programme».
5
Quick Wash By pressing this button the corresponding pilot light illumi-
nates.
Short cycle for lightly soiled items or for laundry which needs
only freshening up.
With this option, a reduced load of laundry is recommended:
• Cottons 3,5 kg
• Synthetics and delicates 2 kg
6
Extra Rinse Press this button to perform an additional rinse. The corre-
sponding light illuminates. In this case, the option doesn't stay
permanently on.
17
www.zanussi.com

4
+
6
Extra Rinse This appliance is designed for saving water. However, for
people with very delicate skin (allergic to detergents) it may
be necessary to rinse the laundry using an extra quantity of
water.
Press simultaneously the buttons 4and 6for some seconds:
• the pilot light of button 6illuminates;
• the extra rinse option is activated and it stays permanently
on.
To remove it press the same buttons again until the pilot light
of button 6goes off.
7
Display
7.1
7.2
7.3
The display shows the following information:
7.1Delay Start icon
7.2Child safety lock
This device permits you to leave the appliance unattended
during it's functioning.
7.3
•Duration of the selected programme
After selecting a programme, the duration is displayed in
hours and minutes (for example ). The duration is
calculated automatically on the basis of the maximum rec-
ommended load for each type of fabric. After the pro-
gramme has started, the time remaining is updated every
minute.
•Delayed start
The selected delay set by pressing the relevant button ap-
pears on the display for a few seconds, then the duration of
the selected programme is displayed again. The delay time
value decreases by one unit every hour and then, when 1
hour remains, every minute.
•Alarm codes
In the event of operating problems, some alarm codes can
be displayed, for example (see paragraph «What to
do if...»).
•Incorrect option selection
If an option which is not compatible with the set wash pro-
gramme is selected, the message Err is displayed at the
bottom of the display for a few seconds and the integrated
red light of button 9start flashing.
•End of programme
When the programme has finished a zero ( ) is displayed,
the door pilot light 10 and the pilot light of button 9go out
and the door can be opened.
18
www.zanussi.com

8
Delay Start
The programme can be delayed from 30 min - 60 min - 90
min, 2 hours and then by 1 hour up to a maximum of 20 hours
by means of this button.
Before you start the programme, if you wish to delay the start,
press this button to select the desired delay.
The selected delay time value will appear on the display for a
few seconds, then the duration of the programme will appear
again.
You must select this option after you have set the programme
and before you start the programme.
You can cancel or modify the delay time at any moment, be-
fore you press button 9.
Selecting the delay start :
• Select the programme and the required options.
• Select the delay start by pressing button 8.
• Press button 9:
– the appliance starts its hourly countdown.
– the programme will start after the selected delay has ex-
pired.
Cancelling the Delay Start after having started the pro-
gramme:
• Set the appliance to PAUSE by pressing button 9.
•Press button 8once. On the display will appear '.
• Press button 9again to start the programme.
• The selected delay can be changed only after select-
ing the washing programme again.
• The door will be locked throughout the delay time. If
you need to open the door, you must first set the ap-
pliance to PAUSE by pressing button 9and wait a few
minutes before opening the door. After you have
closed the door, press the same button again.
The Delay Start cannot be selected with the draining
programme.
19
www.zanussi.com

9
Start /Pause
Start the programme by pressing the button 9
• To start the selected programme, press the button 9, the
corresponding green pilot light stops flashing. The pilot
light 10 illuminates to indicate that the appliance starts op-
erating and the door is locked. If you have chosen a de-
layed start, the appliance will begin the countdown.
• To interrupt a programme which is running, press the but-
ton 9: the corresponding green pilot light starts flashing. It
is possible to change some options of a running pro-
gramme before the programme carries them out.
• To restart the programme from the point at which it was
interrupted, press the button 9.
• After the programme has started the door is locked. If, for
any reason, you need to open the door, set firstly the ap-
pliance to PAUSE by pressing the button 9. After a few mi-
nutes it will be possible to open the door.
If the door remains locked, this means that the appliance is
already heating or that the water level is too high. In any
case, do not try to force the door!
If you cannot open the door but you need to open it you
have to switch the appliance off by turning the selector dial
to . After a few minutes the door can be opened (pay
attention to the water level and temperature!). After
closing the door, it is necessary to select the programme
and options again and to press the button 9.
10
The pilot light 10 illuminates when the programme starts and
indicates if the door can be opened:
• light on: the door cannot be opened. The appliance is
working or has stopped with water left in the tub.
• light off: the door can be opened. The programme is finish-
ed or the water has been emptied out.
• light blinking: the door is opening in a few minutes.
At the end of the programme
The appliance stops automatically. The pilot
light of the button 9and the pilot light 10 go
off. The display shows .
If a programme or an option that ends with wa-
ter left in the tub has been selected, the pilot
light 10 remains on and the door is locked to
indicate that the water must be emptied out
before opening the door.
Follow the below instructions to empty out the
water:
•Turn the programme selector dial to .
• Select the draining or spinning programme.
• Reduce the spin speed if needed, by press-
ing the relevant button.
• Press the button 9.
At the end of the programme, the door can be
now opened. Turn the programme selector dial
to to switch the appliance off. Remove the
laundry from the drum and carefully check that
the drum is empty. If you do not intend to carry
out another wash, close the water tap. Leave
the door open to prevent the formation of mil-
dew and unpleasant smells.
20
www.zanussi.com
