ZWH71046
ZWH71246
User Manual 2
34
Washing Machine
洗衣機
EN
ZH

2 www.zanussi.com
CONTENTS
1.1 Conditions Of Use
1.2 Child Safety
1.3 Child Safety Device (Door Block Button)
1.4 General Safety
1.5 Installation
1.6 Use
1. SAFETY INFORMATION
........................................................................................................ 4
.................................................................................................................. 4
..................................................................... 5
............................................................................................................. 5
.................................................................................................................... 6
.............................................................................................................................. 6
2.1 Parts
2.2 Accessories
2.
PRODUCT DESCRIPTION
............................................................................................................................ 7
.................................................................................................................. 8
3.1 Control Panel Description
3.2 Display
3.3 Program Chart
3.4 Program Options Compatibility
3.5 Options
3.6 Settings
3.7 Start/Pause ( ) and Add Clothes ( ) Touchpad
3.
CONTROL PANEL
........................................................................................... 9
......................................................................................................................... 9
............................................................................................................. 10
..................................................................................... 11
........................................................................................................................ 11
........................................................................................................................ 12
................................................... 13
4.
BEFORE FIRST USE
....................................................................................................... 13
Visit our website to:
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Get usage advice, brochures, troubleshooting, service information,
buy accessories & spare parts, online product registration : www.zanussi.com

ENGLISH 3
CONTENTS
5.1 Loading The Laundry
5.2 Using Detergent And Additives
5.3 Options Setting
5.4 Starting A Cycle ( )
5.5 Interruption Of A Program
5.6 Changing A Program
5.7 Changing The Options
5.8 Opening The Door
5.9 At The End Of The Program
5.10 When The Washing Program Is Completed, But There Is Water In The Drum
5.11 AUTO Standby Mode
5.
DAILY USE
.................................................................................................... 14
.................................................................................... 14
............................................................................................................ 16
.................................................................................................. 16
............................................................................................ 16
................................................................................................... 16
................................................................................................ 16
........................................................................................................ 16
........................................................................................ 17
......... 17
................................................................................................. 17
6.1 Sorting The Laundry
6.2 Temperatures
6.3 Before Loading The Laundry
6.4 Maximum Loads
6.5 Removing Stains
6.6 Detergents Type And Quantity Of Detergent
6.
WASHING HINTS
.................................................................................................... 18
............................................................................................................... 18
........................................................................................ 18
........................................................................................................... 18
.......................................................................................................... 18
................................................................ 19
8.1 External Cleaning
8.2 Descaling
8.3 After Each Wash
8.4 Maintenance Wash
8.5 Cleaning The Dispenser Drawer
8.6 Cleaning The Drawer Recess
8.7 Cleaning The Pump
8.8 Cleaning The Water Inlet Filter
8.9 Frost Precautions
8.
CARE AND CLEANING
........................................................................................................ 20
..................................................................................................................... 20
.......................................................................................................... 20
...................................................................................................... 21
.................................................................................. 21
...................................................................................... 21
...................................................................................................... 21
.................................................................................... 24
......................................................................................................... 24
9.1 Possible Failures
9.2 Emergency Door Opening
9.
TROUBLESHOOTING
........................................................................................................ 25
........................................................................................... 27
7.
INTERNATIONAL WASH CODE SYMBOLS
................................................................ 20
10.
TECHNICAL DATA
.......................................................................................................... 28
11.1 Unpacking
11.2 Positioning
11.3 Water Inlet
11.4 Water Drainage
11.5 Electrical Connection
................................................................................................................ 29
................................................................................................................ 30
................................................................................................................. 31
......................................................................................................... 31
................................................................................................. 32
11.
INSTALLATION
12.1 Packaging Materials
12.2 Old Machine
12.3 Ecological Hints
.................................................................................................. 33
............................................................................................................... 33
......................................................................................................... 33
12.
ENVIRONMENT CONCERNS

4 www.zanussi.com
SAFETY INFORMATION
In the interest of your safety and to ensure the correct
use, before installing and first using the appliance, read
this user manual carefully, including its hints and
warnings.
This appliance is intended to be used in household and
similar applications such as:
Farm houses
By clients in serviced apartments, holiday apartments
and residential type environments.
1.1 Conditions Of Use
To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety
features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on
appliance use and safety.
1.
●
●
●
●
●
This washing machine is not intended for use by
young children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger of
suffocation! Keep them out of children’s reach.
1.2 Child Safety
WARNING! The appliance must not be supplied
through an external switching device, such as timer,
or connected to a circuit that is regularly switched on
and off by utility.

ENGLISH 5
●
Make sure that children or pets do not climb into the
drum.
When you activate this device, you cannot close the door.
This prevents children or pets to be locked in the drum.
Keep all detergents in a safe place out of children’s
reach.
1.3 Child Safety Device (Door Block Button)
●
This machine is provided with child safety lock option
( ) to prevent children playing with the control panel.
(see page 12)
●
1.4 General Safety
It is dangerous to alter the specifica-
tions or attempt to modify this product
in any way.
During high temperature wash
program the door glass may get hot.
Do not touch it!
Make sure that small pets do not
climb into the drum. To avoid this,
please check inside the drum before
using the appliance.
Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
Only use manufacturer’s
recommended quantities of fabric
softener and detergent. Damage to
the fabric or appliance can occur if
you exceed the recommended
amount.
Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
Do not use your washing machine to
wash articles with whalebones,
material without hems or torn
material.
To disable this device and restore the possibility of
closing the door, rotate the button counter-clockwise
until the groove is vertical.
●
●
●
●
●
●
●
●
●
To activate this device,
rotate the button
(WITHOUT pressing it)
inside the door clockwise
until it stops. If necessary
use a coin.

6 www.zanussi.com
Never use the washing machine if
the power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washing machine is acces-
sible.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
This appliance is heavy. Care should
be taken when moving it.
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
All packing and transit bolts must be
removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.
Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
1.5 Installation
After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
If the appliance is installed on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their
connections after the installation.
Any plumbing work required to install
this appliance should be carried out
by a qualified plumber.
Any electrical work required to install
this appliance should be carried out
by a qualified electrician.
This appliance is designed for
domestic use. It must not be used for
purposes other than those for which
it was designed.
Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
Do not overload the appliance. See
the relevant section in the user
manual.
Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat stains
such as paint, ink, rust, and grass
before washing.
Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to ensure
that the fluid is removed from the
garment before placing in the
machine.
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
1.6 Use
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.

ENGLISH 7

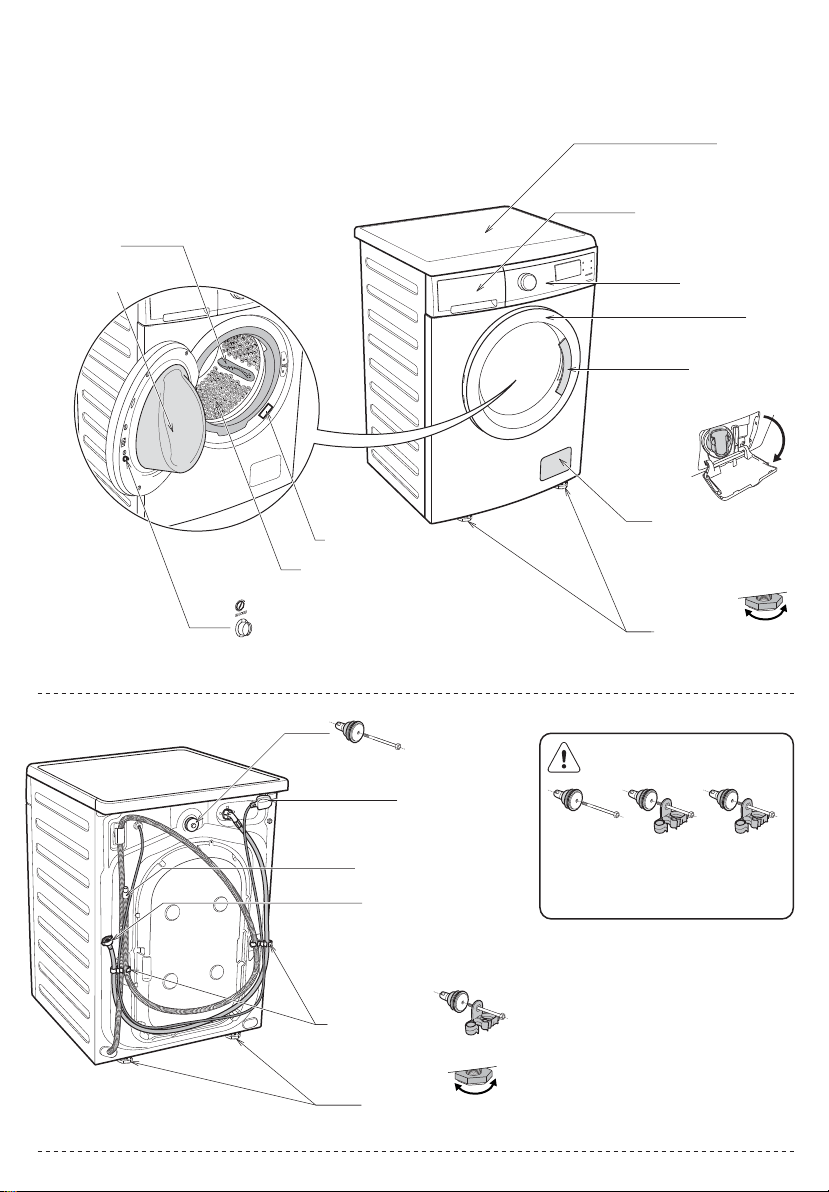

2.1 Parts
PRODUCT DESCRIPTION2.
Worktop
Detergent/
Softener Dispenser
Control Panel
Door Handle
Drain Pump Filter
Mains Cable
Transit Bolts,
Hose Support
Transit Bolts
Water Drain Hose All transit bolts (3 pcs) must
be removed before using the
appliance.
(For more information
see page 22)
CAUTION !
Door
Level Adjustment
Feet (Front)
Level Adjustment
Feet (Back)
Drum Lifter
Door Glass
Rating Label
Stainless Drum
Child Safety Device
(For more information
see page 5)
Water Inlet Hose

8 www.zanussi.com
2.2 Accessories

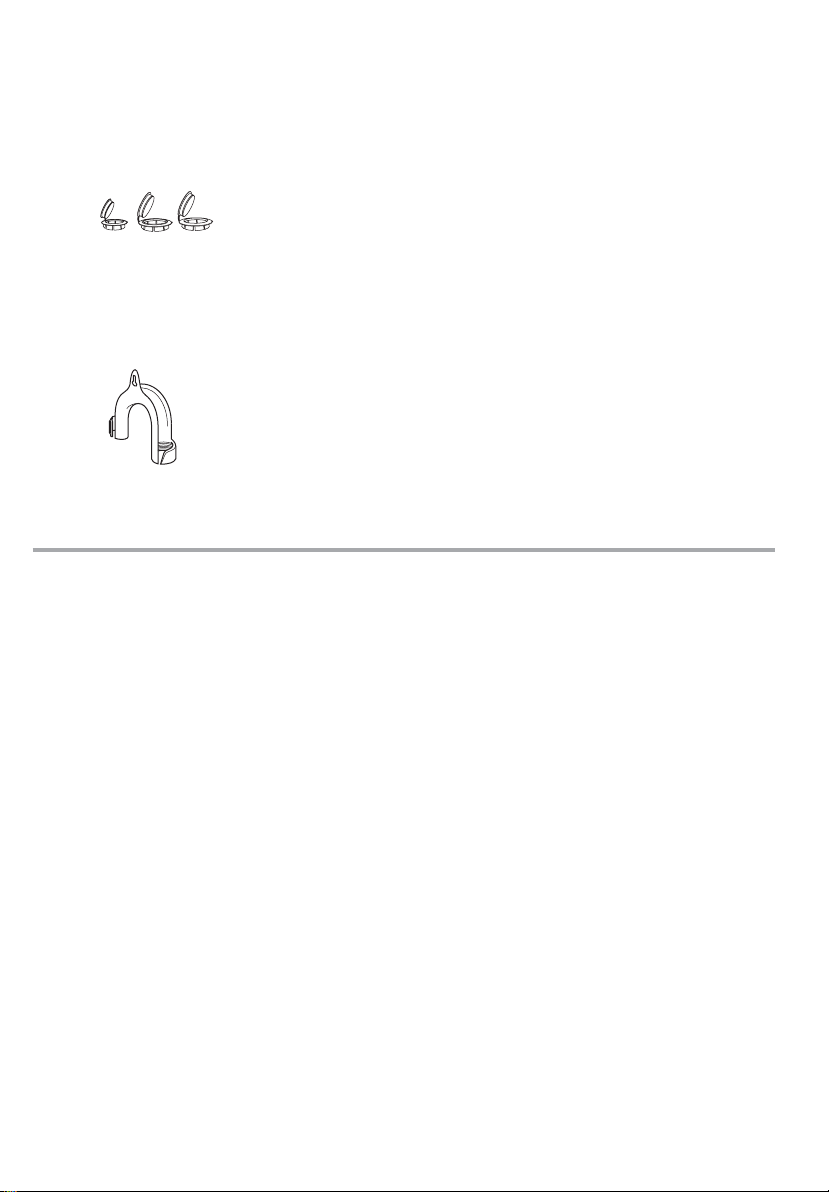

To connect the drain hose on the edge
of a sink.
Plastic Caps
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
Plastic Hose Guide
●
●

ENGLISH 9
CONTROL PANEL3.
Program Knob

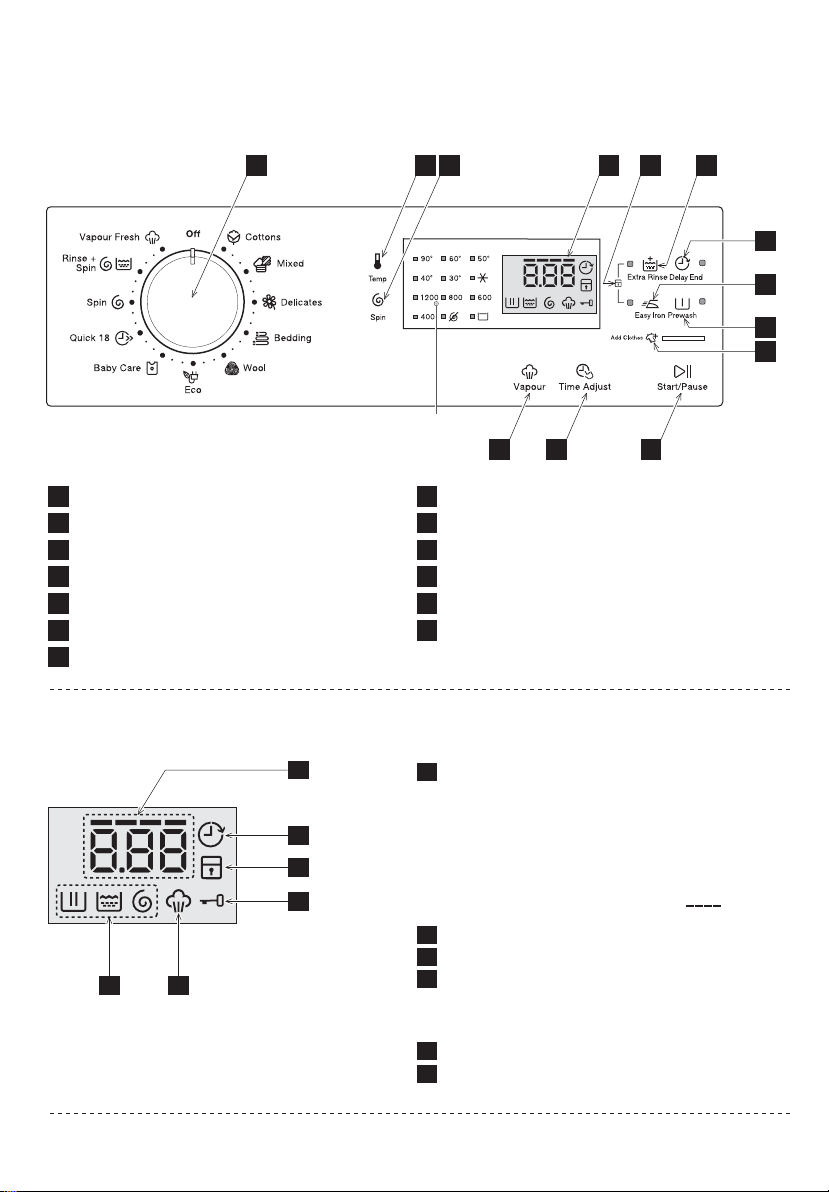

3.1 Control Panel Description
1
1
Temperature Touchpad
2
Spin Selection Touchpad
3
Display
4
Child Lock (see page 12)
5
Extra Rinse Touchpad
6
Delay End Touchpad
7
Easy Iron Touchpad
8
Prewash Touchpad
9
Add Clothes Function Symbol
10
Start/Pause, Add Clothes Touchpad
11
Time Adjust Touchpad
12
Vapour Touchpad
13
2 3 4 65
7
8
9
10
111213
Max. Spin
Model ZWH71046: 1000 rpm
Model ZWH71246: 1200 rpm
3.2 Display
Digital Number;
will tell you:
The level of the Time Adjust ( ).
-Washing cycle time.
-
-
The alarm codes. Refer to the chapter
“Troubleshooting” for their description.
-Delay End time.
-It is on, you cannot open the door.
-It is off, you can open the door.
B
C
D
A
A
B
C
F
E
D
Delay End Icon
Child Lock Icon
Door Lock Icon
Vapour Icon
Washing Phase icon (Wash/Rinse/Spin)
EF

10 www.zanussi.com

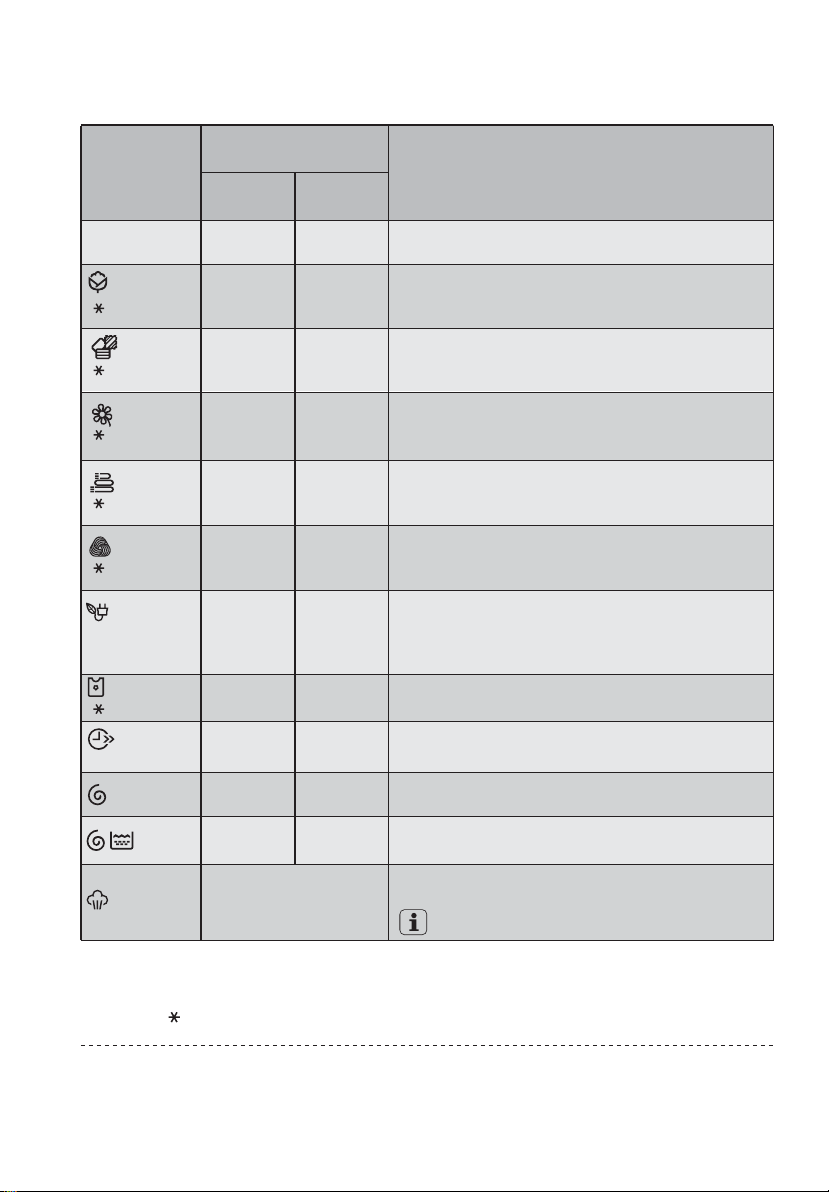

3.3 Program Chart
Program ;
Temperature
range
2) to 90°C
White and coloured cotton. (Adjust wash time
according to soil level. See Time Adjust table on
page 12)
This position to reset program/switching off
the machine.
7.5 kg ;
1200 rpm
-
3.5 kg ;
1200 rpm
3.5 kg ;
1200 rpm
1.5 kg ;
800 rpm
1.5 kg ; Clothes
tumble in vapour.
2 kg ;
1200 rpm
3 kg ;
800 rpm
7.5 kg ;
1200 rpm
7.5 kg ;
1200 rpm
7.5 kg ;
1000 rpm
7.5 kg ;
1200 rpm
Type of load and soil level
Max. load (dry clothes);
Max. Spin Speed
Model:
ZWH71246
Model:
ZWH71046
Synthetic or mixed fabric items. (Adjust wash time
according to soil level. See Time Adjust table on
page 12)
30°C
Vapour
Fresh
Synthetic and mixed fabric items. Light soil
and items to freshen up.
This cycle removes odours and helps to
dewrinkle the laundry.
to 60°C
to 40°C
to 40°C
to 60°C
Specially tested program for woollen
garments bearing the “Pure new woollen,
non-shrink, machine washable” label.
Bedding;Special program for one synthetic blanket, duvet,
bedspread and so on. (Adjust wash time according
to soil level. See Time Adjust table on page 12)
Rinse
+ Spin To rinse and spin the laundry.
Spin To spin the laundry and drain the water in the
drum.
Eco;
40°C to
60°C
White and colourfast, cotton with normal soil.
Set this program to have a good washing
results and decrease the energy consumption.
The time of the washing program is extended.
Delicate fabrics such as acrylics, viscose,
polyester items. (Adjust wash time according to
soil level. See Time Adjust table on page 12)
Cottons 1);
Off
Mixed;
Delicates;
Quick 18;
Wool;
to 40 °C
3.5 kg ;
1200 rpm
7.5 kg ;
1000 rpm
-
3.5 kg ;
1000 rpm
3.5 kg ;
1000 rpm
1.5 kg ;
800 rpm
2 kg ;
1000 rpm
3 kg ;
800 rpm
7.5 kg ;
1000 rpm
7.5 kg ;
1000 rpm
3.5 kg ;
1000 rpm
Baby cotton clothes and delicate knitting
items with normal soil.
Baby Care;
This cycle no need to add detergent.
2) Symbol “ ” represents Cold water.
1) Cottons program with 60 °C option selected is recommended for a full load of normally
soiled cottons, and is the water rating label program.

ENGLISH 11

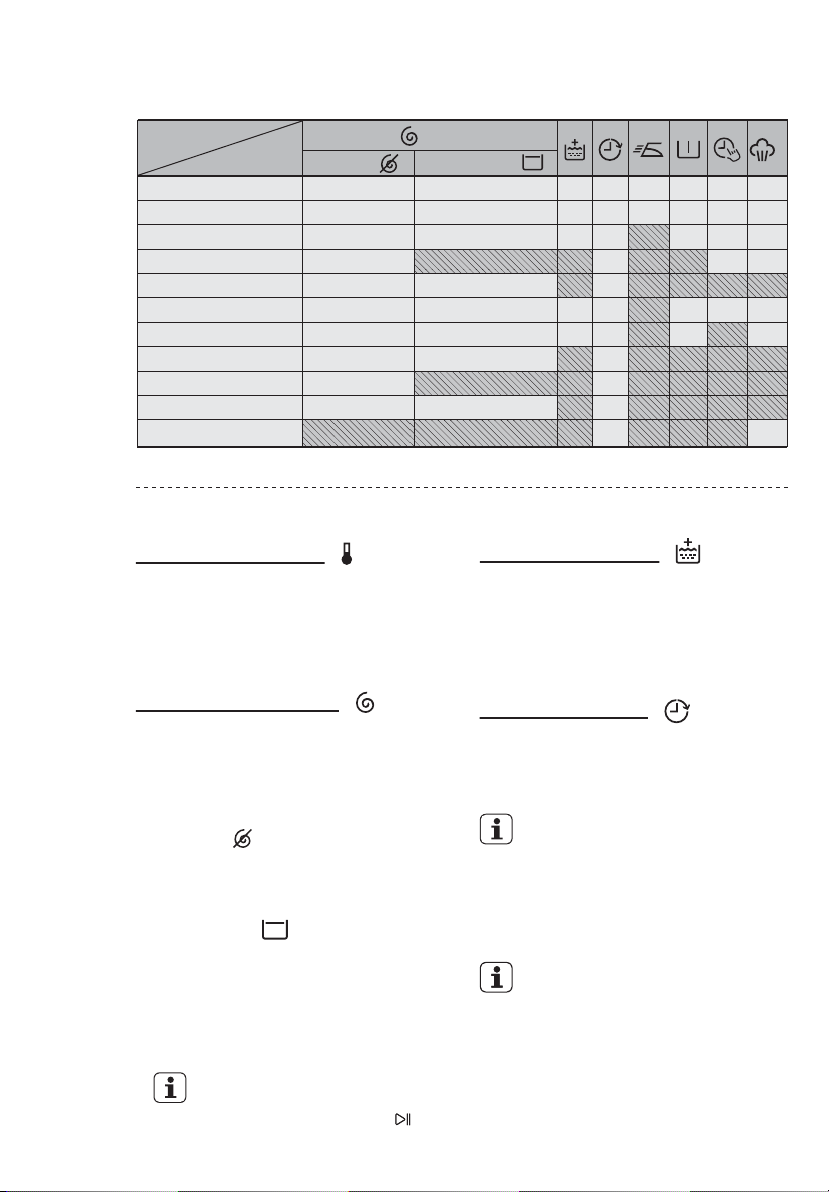

3.4 Program Options Compatibility
1) Vapour option can be combined with temperature 40 to 90 °C only.
Program
Option
Cottons
Mixed
Delicates
Bedding
Wool
Eco
Baby Care
Quick 18
Spin
Rinse + Spin
Vapour Fresh
No Spin ( ) Rinse Hold ( )
Spin
       












































1)
The door stays locked with the
water in the drum. To continue
the cycle, you must press
(Start/Pause).
Extra Rinse Touchpad ( )
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft. Press
it to add two rinse phases to a program.
The indicator of this option will be on.
Temperature Touchpad ( )
Press this touchpad repeatedly to
increase or decrease the wash tempera-
ture if you want your laundry to be washed
at a temperature different from the one
proposed by the washing machine.
Spin Selection Touchpad ( )
●
●
Press this touchpad repeatedly to increase
or decrease the spin speed or select
Rinse Hold, if you want your laundry to be
spun at a speed different from the one
proposed by the washing machine.
No spin option eliminates all the spin
phases and increase the number of
rinses.
No Spin ( )
By selecting this option, the water of
the last rinse is not emptied out and
the drum turns regularly to prevent the
laundry creases.
The door is still locked to indicate that
the water must be emptied out.
Rinse Hold ( )
3.5 Options
Delay End Touchpad ( )
Before you start the program, this option
makes it possible to define the end of the
washing program from minimum of 1 hour
to maximum of 19 hours.
If program duration is longer than
3 hours, minimum Delay End option
starts from 4 hours.
Press the Delay End touchpad to choose
the end time as you wish. The display
shows the number of hours and the
indicator beside the touchpad is on.

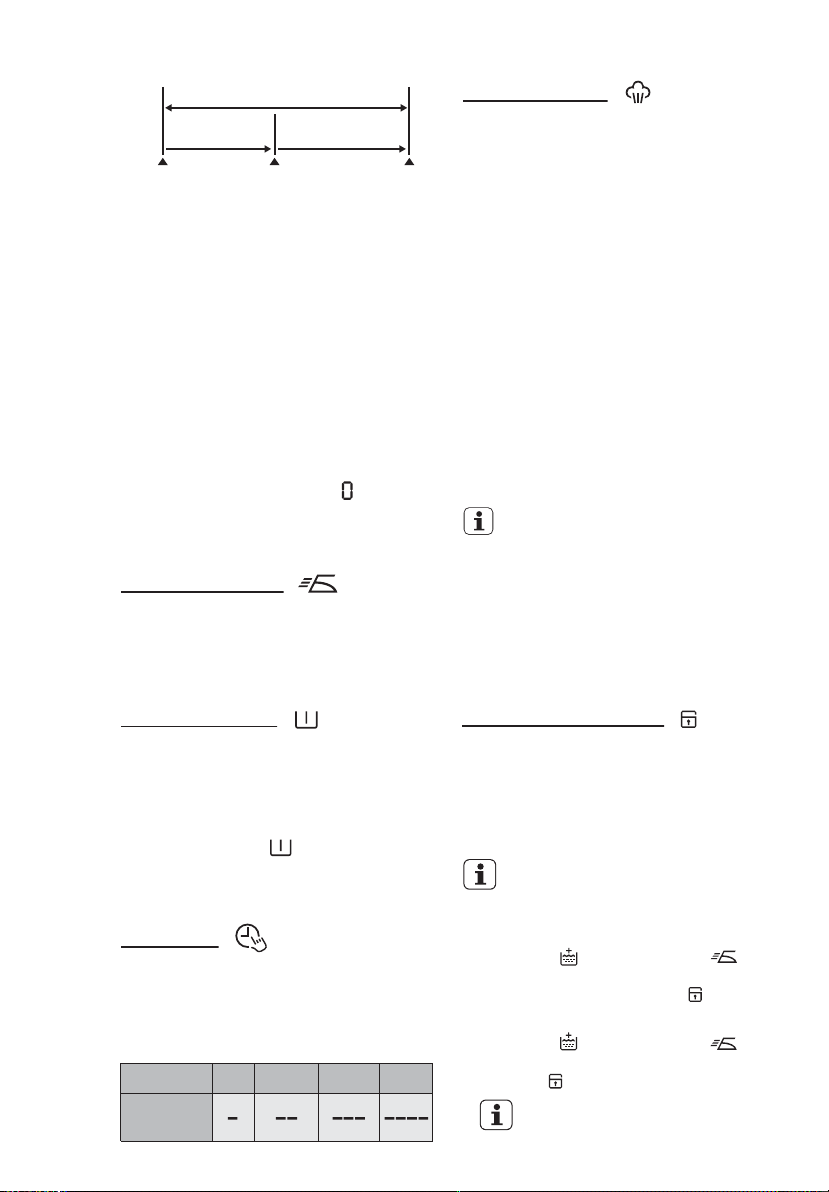

For example, if the program duration of
your selected program is 3.20 hours and
you define the “Delay End” time to 6
hours. This means your wash program
will finish in 6 hours. (See diagram)
This option must be selected
after choosing the wash
program, and before pressing
the “Start/Pause” touchpad.

12 www.zanussi.com
Time Adjust ( )
Select this option to add approximately
30 minutes of tumbling in vapour during
the wash cycle. Vapour helps open fabric
fibers up to allow laundry additives to
release tough stains. The indicator of this
option will be on.
Vapour Touchpad ( )
Vapour may not necessarily be visible
inside the drum during a vapour wash
cycle. Vapour is created below the
drum and allowed to naturally rise into
the clothes.
At the end of the Vapour cycle, the
clothes will be warmer, softer and
detached from the drum.
If Vapour option is selected, rinse
temperatures will be elevated.
During a vapour cycle, you may
notice vapour exiting from the drain
hose of the washing machine, this
is normal and there is no cause for
alarm.
Vapour may not be present during the
entire vapour wash cycle.
Vapour function is more effective with
half load.
NOTE:
●
●
●
●
3.6 Settings
Child Safety Lock Option ( )
Your appliance is provided with CHILD
SAFETY LOCK which permits you to
leave the appliance unsupervised with
the door closed without having to worry
that children might be injured by or cause
damage to the appliance.
Set this option after pressing the
Start/Pause touchpad.
To activate the function, press
“Rinse + ( ) and Easy Iron ( )”
touchpads at the same time until the
display shows the symbol “ ”.
To set “Child Lock” option:
To deactivate the function, press
“Rinse + ( ) and Easy Iron ( )”
touchpads at the same time until the
symbol “ ” goes off.
This function remains enabled
even after the appliance is
switched off.
●
●
When selecting this option, the laundry is
gently washed and spun to avoid
creasing. In this way, ironing is easier.
The indicator of this option will be on.
Easy Iron Touchpad ( )
After selecting Delay End time, press
Start/Pause touchpad to start the
program. Machine will then countdown
and update time on the display every
hours until it reaches the starting point of
the wash cycle.
3.20 hrs.2.40 hrs.
Working Cycle
“Delay End” Time : 6 hrs.
Pressed
Start/Pause
End of
Cycle
Start the
Program
Countdown
If you wish to modify or cancel Delay End
option after starting the program, follow
the steps below:
set the washing machine to PAUSE by
pressing “Start/Pause” touchpad;
-
deselect this option by pressing “Delay
End” touchpad repeatedly till the
display shows delay time “ ”;
-
press the “Start/Pause” to start the
program.
-
Prewash Touchpad ( )
Select this option if you wish your laundry
to be pre-washed before the main wash.
Use this option for heavy soil. The
indicator of this option will be on.
When you set this function, put the
detergent into the “ ” compartment.
This function increases the program
duration.
This option allows you to adjust the wash
time. Press this touchpad repeatedly to
decrease or increase the wash time
according to the soil level of your wash.
Use the table below as a guide.
Soil Level Light Medium Normal Heavy
Wash Level

ENGLISH 13
BEFORE FIRST USE4.
This setting permits you to either enable
or disable the buzzer at the end of the
program. As an example, you might wish to
disable this buzzer when you start a wash
when going to bed, so that when the wash
finished approximately 1 hour later, it will not
disturb you through the night.
Error warning beeps such as critical
faults are not disabled.
Enabling/Disabling End-Of-Wash Buzzer
To disable the buzzer sound, press “Easy Iron
( ) and Prewash ( )” touchpads at the
same time for 3 seconds, and listen for
“BEEP, BEEP”.
To return to default configuration press these
2 touchpads at the same time for 3 seconds,
and listen for “BEEP”.
3.7 Start/Pause ( ) and
Add Clothes ( ) Touchpad
This touchpad has 2 functions:
●Start/Pause ( ):
To interrupt a program which is
running, press this touchpad to pause
the machine, the Start/Pause pilot
light flashes.
After you have selected the desired program
and options, press this touchpad to start the
machine. The Start/Pause pilot light will stop
flashing and remain lit until the water level is
above the bottom edge of the door then pilot
light goes OFF. If you have selected a
“Delay End” option, the countdown will
begin and will be shown in the display.
To restart the program from the point
at which it was interrupted, press this
touchpad again, the Start/Pause pilot
light will stop flashing.
●Add Clothes ( ):
While running a program, you may add
clothes by:
Pressing the “Start/Pause” touchpad
to pause the program.
You can only add clothes if
“Start/Pause” pilot light is lit.
-
Wait for the machine to come to a
complete stop before opening the
door.
-
Resume the program by pressing
“Start/Pause” touchpad again.
-
Add clothing and close the door.
-
Ensure that the electrical and water
connections comply with the installation
instructions.
Put 2 litres of water in the detergent compart-
ment for washing phase. This activates the
drain system.
1.
2.
3. Select a Cottons cycle at 90 °C,
without any laundry in the machine, to
remove any manufacturing residue
from the drum and tub then start the
machine.
During installation or before first use you may
observe some water in the machine. This is a
residual water left in the machine after a full
functional test in the factory to ensure the
machine is delivered to customers in perfect
working order and is no cause for concern.
NOTE
You cannot open the door if
the water inside the machine
drum are hot, the door
remains locked for your
safety. Although the LED
light still remain lit.

14 www.zanussi.com
5.2

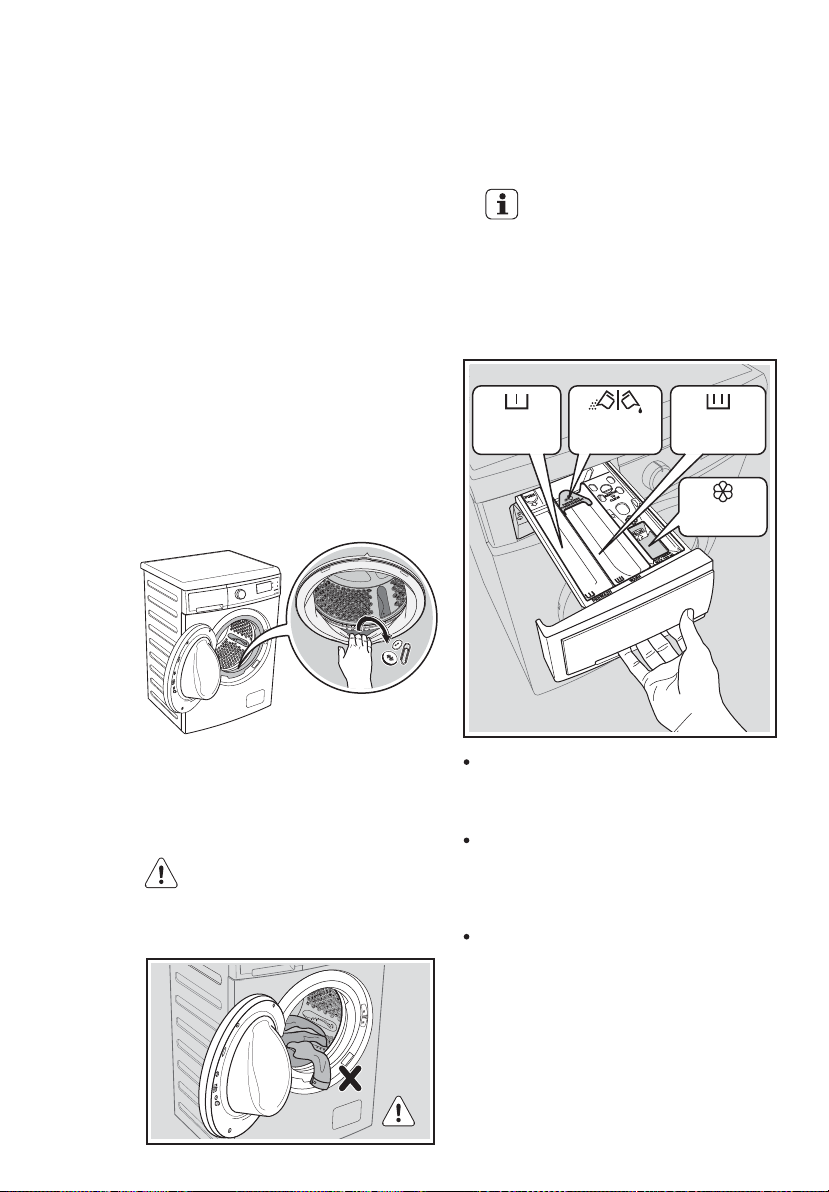

Detergent Dispenser Drawer
1.
The detergent dispenser is divided
into three compartments.
Using Detergent And
Additives
IMPORTANT: Please read
“Detergents Type and
Quantity of Detergent”on page
19 before use.
DAILY USE5.
Turn the knob to set a program. The
washing machine will propose a
temperature and automatically select
the spin value provided for the
program you have chosen.
1.
2.
5.1 Loading The Laundry
Connect the main plug to the main
socket.
Turn the water tap on.
3.
Place the laundry in the drum, one
item at a time, shaking them out as
much as possible. (Refer to page 18
“WASHING HINTS”)
5.
Close the door.
6.
Check and remove objects (if there
are any) that could be trapped in the
fold.
4.
Make sure that no laundry
remains between the seal and
the door.
The selector knob can be turned either
clockwise or anticlockwise.
Position “Off” to reset program/
switching OFF the machine.
At the end of the program the selector
dial must be turned to position “Off”, to
switch the machine off.
CAUTION
Compartment “SOFTENER”
Compartment “PREWASH”
This compartment is used for fabric
conditioner and starching agent.
This compartment is only used for
detergent when a Prewash is
selected.
Compartment “MAIN WASH”
This compartment is used for
detergent on all programs.
“Prewash”
“Detergent
flap”
Compartment
“Main Wash”
Compartment
“Softener”
Compartment

ENGLISH 15
Measure out the amount of
detergent required, pour it into the
main wash compartment.
Do not use gelatinous or thick
liquid detergents.
-
Do not put more liquid than the
maximum level.
-
Do not set the “Delay End”.
-
Do not set the “Prewash” phase.
-
When you use the liquid
detergent:
Pull out the dispenser drawer until
it stops.
-
-
Measure out the detergent and the
fabric softener;
2.
If you wish to carry out the
“Prewash” phase, pour it into the
compartment marked .
If required, pour fabric softener into
the compartment marked “ ”.
-
Close the drawer gently.
NOTE
-
-
Residues of detergent, softener and
water may remain in the dispenser.
It is recommended to clean the
dispenser regularly to remove any
residue.
The amount used must not exceed
the “MAX” mark in the drawer.
If you use thick softeners it is
recommended to dilute with water.
Detergent flap
Flap for powder or liquid detergent.
Position down:
for liquid
detergent.
Position up:
for powder
detergent
(factory
setting).

If you turn the program selector knob to
another program when the machine is
working (except “Off” to switch off the
machine), symbol “ ” will flash on display
along with buzzer sound to indicate a wrong
selection. The machine will not perform the
new selected program.
16 www.zanussi.com
Press the option touchpads, if you want
your laundry to be washed with special
functions.
Different functions can be combined
which is dependent on the program
selected.
If you want to adjust washing time, press
the “Time Adjust ( )” touchpad repeatedly
to increase or decrease washing time. See
Time Adjust guide on page 12.
If you want to define the end of the washing
program, press the “Delay End ( )”
touchpad repeatedly to choose your
washing machine working time.
To pause, press Start/ Pause. The
indicator will start flashing.
-
Press the Start/Pause again. The
program will continue.
-
Changing a running program is possible
only by resetting it.
Turn the program selector knob to the
position “Off” to cancel the program
and to turn off the appliance.
-
5.5 Interruption Of A Program
5.6 Changing A Program
It may be possible to change some of the
options after a wash program has started.
Turn the program selector knob to the
new program position and change any
available options. Press Start/Pause
to start the new program.
The appliance will not drain the
water (except programs; Spin,
Rinse + Spin, Vapour Fresh).
-
5.7 Changing The Options
Press the touchpad Start/Pause. The
indicator will start flashing.
1.
If available change the options that
you wish.
2.
Press Start/Pause again. The program
will continue.
3.
If you want your laundry to be spun or use
temperature different from the one
proposed by the washing machine, pess
the Spin “ ” and the temperature “ ”
touchpads repeatedly to change the spin
speed and temperature.
5.3 Options Setting
1.
2.
If an option is not compatible with
the wash program selected, symbol
“ ” will flash on display along
with buzzer sound.
-
-
The appliance will automatically adjust the
selected program duration according to the
type and size of the load.
-
The display will show adjusted program
duration.
-
To start a program, press the Start/Pause
touchpad. The corresponding pilot light will
stop flashing and a default program duration
will be displayed on the screen.
5.4 Starting A Cycle ( )
After approx. 15 minutes from the
start of a program:
If you press any touchpad while a program
is operating, symbol “ ” will flash on
display along with buzzer sound. (except
Start/Pause touchpad)
-
-
While a program or the Delay End is
operating, the appliance door is locked
and the display shows the indicator “ ”.
First, set the machine to PAUSE by
pressing the “Start/Pause” touchpad. Wait
until the door lock indicator “ ” goes off,
then the door can be opened.
If the door lock indicator “ ” does not
disappear, this means that the machine
is already heating and the water level is
above the bottom edge of the door or the
drum is turning. In this case the door
CAN NOT be opened. If you need to
open it, you must drain the water to open
the door.
In case of emergency please
refer to “Emergency door
opening” on page 27.
5.8 Opening The Door

When the program is completed
and the door lock indicator “ ”
goes off, you can open the door.
ENGLISH 17
5.10 When The Washing Program
Is Completed, But There Is Water
In The Drum
The drum turns regularly to prevent
the creases in the laundry.
You must drain the water to open the
door.
(Option “Rinse Hold” is used)
The indicator “Start/Pause” flashes to
remind you to drain the water.
-
-
-
The appliance stops automatically.
The acoustic signal will operate.
The display will show “ ”.
The indicator of the touchpad
Start/Pause goes off.
-
-
-
-
-
-
-
-
The door lock indicator “ ” goes off.
Remove the laundry from the
appliance. Make sure that the drum is
empty.
Keep the door partly open, to prevent
the mildew and odours.
Turn off the water tap.
5.9 At The End Of The Program
At the end of the program, the time
remaining can suddenly decrease
from 7 minutes or less to 0 due to the
overestimated total program time
during the load sensing phase. In
some cases (with perfectly balanced
load) the program time can be shorter
than the time estimated after the load
sensing phase is completed. This is a
normal behavior of the machine and
not a cause for concern as it does not
compromise its performance.
NOTE:
The door lock indicator “ ” is on.
The door stays locked.
1.
To drain the water:
Press the “Start/Pause ” touchpad.
The appliance drains the water and
spins with the maximum spin speed
for selected program.
Alternatively, before pressing the
“Start/Pause” touchpad, you can press
the “Spin ” touchpad to change the
spin speed. You can select “No Spin”,
if you want the machine to only drain
the water.
2.
turn the program selector knob to
the position “Off” to deactivate the
appliance.
3.
After approximately 18 hours, if you
do not press Start/Pause touchpad,
the appliance will drain and spin
automatically (except for “Wool”
program) .
All indicators and the display will
switch off.
The indicator of the touchpad
Start/Pause will flash slowly.
Press any touchpad to
reactivate the appliance.
5.11 AUTO Standby Mode
The AUTO Standby mode automati-
cally deactivates the appliance to
decrease the energy consumption
when:
You do not press any buttons for 5
minutes before you press
“Start/Pause”.
5 minutes after the washing program
ends, if you do not deactivate the
appliance, the energy saving
function activates.
Press any touchpad to
reactivate the appliance.
-
-
All indicators and the display will
switch off.
The indicator of the touchpad
Start/Pause will flash slowly.
-
-
Press any touchpad again to
show the last wash program.
Turn the selector knob to set a
new wash program.
-
-
-
Display will show the end of the
last wash.

18 www.zanussi.com

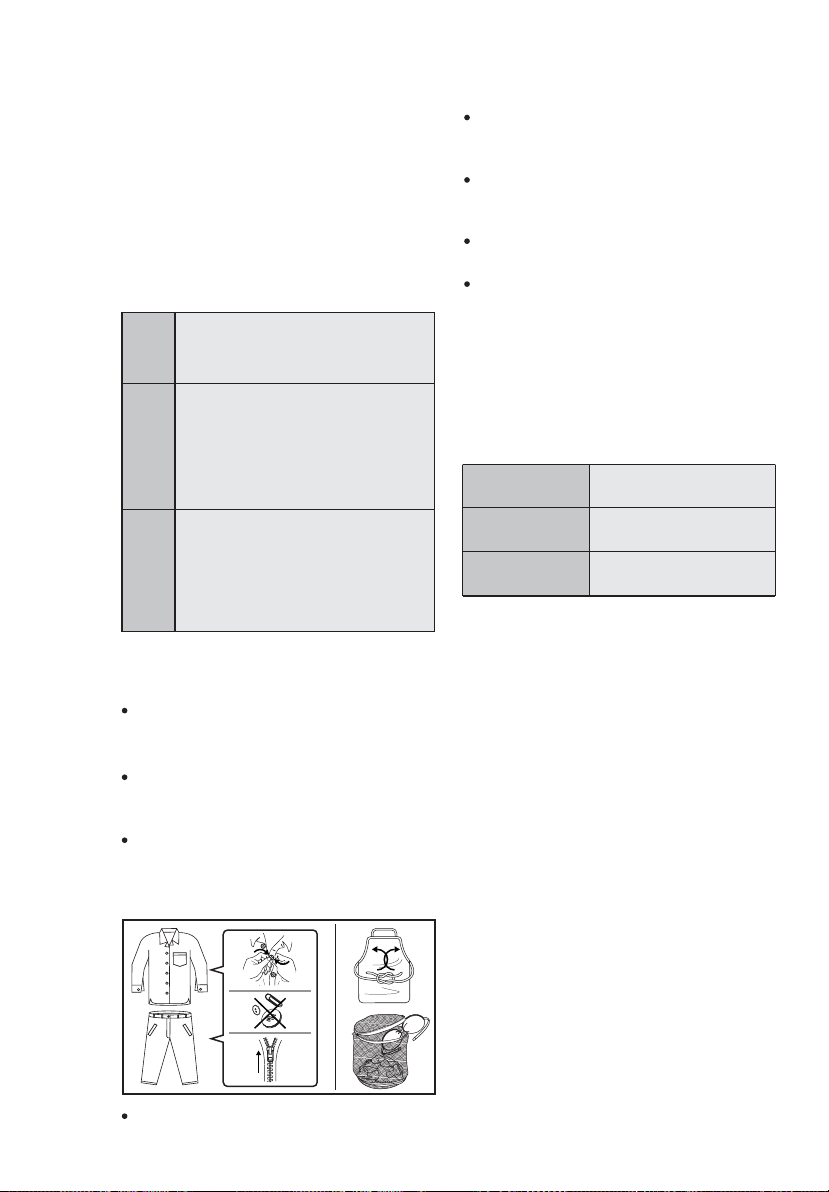

WASHING HINTS6.
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics,
delicates, woollens.
6.1 Sorting The Laundry
6.2 Temperatures
90°C
60°C
50°C
40°C
30°C
Cold
For normally soiled, colourfast
garments (e.g. shirts, night
dresses, pajamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton
(e.g.underwear).
For delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres and
woollens bearing the label pure
new wool, machine washable,
non-shrink.
For normally soiled white cottons
and linen (e.g. teacloths, towels,
tablecloths, sheets...).
Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.
New coloured items may run in the first
wash; they should therefore be
washed separately the first time.
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Remove hooks or tie them up in a bag
or a net.
Make sure that no metal objects are
left in the laundry (e.g. hair clips,
safety pins, pins).
6.3 Before Loading The Laundry
Recommended loads are indicated in the
program charts. General rules:
Washing a maximum load makes the
most efficient use of water and energy.
For heavily soiled laundry, reduce the
load size.
Cotton, linen: drum full but not too
tightly packed;
Synthetics: drum no more than
half full;
Delicate fabrics
and woollens:
drum no more than
one third full.
6.4 Maximum Loads
Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine
stain remover, lay the garment on a soft
cloth and dab the stain; treat several
times.
Dried grease stains: moisten with
turpentine, lay the garment on a soft
surface and dab the stain with the
fingertips and a cotton cloth.
Stubborn stains may not be removed by
just water and detergent. It is therefore
advisable to treat them prior to washing.
6.5 Removing Stains
Rust: oxalic acid dissolved in hot water or
a rust removing product used in cold
water. Be careful with rust stains which
are not recent since the cellulose
structure will already have been damaged
and the fabric tends to hole.
Wash bras, pantyhose and other
delicates in a mesh laundry bag, which
you can purchase from your
supermarket.
Make sure that you wash lint collectors
separately from lint producers.

ENGLISH 19
Mould stains: treat with bleach, rinse
well (whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft
cloth and dab the stain.
Lipstick: moisten with acetone (*) as
above, then treat stains with methylated
spirits. Remove any residual marks from
white fabrics with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink,
moisten the fabric first with acetone (*),
then with acetic acid; treat any residual
marks on white fabrics with bleach and
then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub
with detergent paste.
(*) do not use acetone on artificial silk.
Low sudsing detergent is required for this
washing machine to prevent oversudsing
problems, unsatisfied washing result and
harm to the machine. Low sudsing
detergents designed for front load
washing machines are labelled “Front
Loading”, “high efficiency”, “HE”, such as
Cold Power for Front Loaders or “Matic”.
6.6 Detergents Type And
Quantity Of Detergent
Do not use wrong types of detergent,
such as Top Loading, Handwash
detergent or Soap-Based products in
your frontload washing machine. This
can result in excessive suds, longer
cycle time, low spin speeds, poor
rinsing and overloading of the motor.
The choice and quantity of detergent will
depend on ;
type of fabric (delicates, woollens,
cottons, etc.) ;
degree of soil ;
size of the load ;
wash temperature ; and
hardness of the water used.
the colour of clothes ;
Information on hardness of the water in
your area can be obtained from the
relevant water supply company, or from
your local authority.
You may have to try using the detergent
quantity as per manufacturers’
instructions then compare the wash result
to the list below and adjust the amount of
detergent for your future washes
accordingly.
Water hardness is classified by so-called
“degrees” of hardness.
The choice of detergent and use of correct
quantities not only affects your wash
performance, but also helps to avoid waste
and protect the environment. Although
biodegradable, detergents contain
substances which in large quantities can
upset the delicate balance of nature.
Quantity of detergent to be used
the washload to turn grey,
greasy clothes.
sudsing,
inadequate rinsing.
reduced washing effect,
Not enough washing powder causes:
Too much washing powder causes:
you are washing a small load,
large amounts of foam during washing.
the laundry is lightly soiled,
Use less detergent if:
