2mtech Landnavi-rich7 User manual

GPS NAVIGATOR

LANDNAVI-RICH7

User Manual

Manufacturer :G

2MTECH Inc.

674-1, Naksanri, Waegeaneup, Chilgokgun,G

Gyeongbuk, South KoreaG

www.Landnavi.co.kr

User Manual

Greetings

Thank you for purchasing our product.

LANDNAVI product is Car Multimedia System enhances

your driving circumstances. You and your passengers can

enjoy Navigation, Movie, Music, Photos and etc in the car.G

Please read this manual carefully before using this product. G

www.Landnavi.co.kr

We give you all the supports and information through the

above web site. You can download the newest update files

and manuals from the web site. Please register the

customer information card in our web site for best service

to join some events and to get online support.G

1. Before Usage ------------------------------------------------ 3G

2. Usage ------------------------------------------------------- 12G

1. NAVIGATION-------------------------------------- 12G

2. FILE LIST ------------------------------------------ 13G

3. VIDEO PLAYER ----------------------------------- 14G

4. AUDIO PLAYER ----------------------------------- 15G

5. AV INPUT ----------------------------------------- 16G

6. UTILITY ------------------------------------------- 17G

7. PIP ------------------------------------------------- 20G

8. Settings ------------------------------------------- 25G

3. ETC ----------------------------------------------------------- 33G

1. SPECIFICATIONS -------------------------------- 33G

2. CERTIFICATION --------------------------------- 35G

3. CUSTOMER SUPPORT --------------------------- 36G

Contents

Warnings & Notifications

1. For better performance tuning of our product,G

the specifications can be changed without notice.G

2. For better performance tuning of our product,G

this user’s manual can be changed without notice.G

3. There might be some mistakes of technicalG

issues and omission in this user’s manual.G

4. Please read user’s manual carefully before usageG

and use this product correctly.G

5. This product is designed to be used in a carG

with proper installation.G

6. The rights of hardware, software, and data ofG

this product belong to 2MTECH Inc. The rights isG

protected by copyright law and international treaties.G

Unauthorized duplication or distribution of this rights,G

or any portion of it, may result in severe civil orG

criminal penalties, and will be prosecuted to theG

maximum extent possible under the law. G

* “This manual is standardize to S/W Ver 1.0.”G

1. For safety, please stop or park the car to operate this product.G

2. The voice and map information in this product cannot be G

guaranteed accurate as road layout may change. Always follow theG

posted road signs and traffic laws.G

3. Do not mount this product in a position which may obstruct the G

driver’s view or prevent the safe operation of the vehicle.G

4. Do not watch this product continuously. It may cause an accident.G

5. Please adjust the sound volume & LCD brightness properly.G

6. Do not use this product in the car when you turn off the engine. G

It may cause your car battery flat.G

7. Please use the provided accessories with this product.G

We only guarantee the performance of this product with provided G

accessories.G

8. For the initial power up or the case of no use for a long time, it G

may take up to 10 minutes to secure satellite information on G

outdoor place where you can see the sky.G

9. GPS signal cannot be received properly in following conditions; the

inside of car with special metal coating, the place inside of a building,

the place under a bridge, the place in a tunnel, and etc.G

Warnings & Notifications

1 | Before Usage

1. Do not disconnect the power cable during operationG

and do not disassemble this product. It may cause G

break-down or fire or explosion.G

2. Do not disconnect the cigarette power cord during G

operation. It may cause break-down.G

3. Do not put the product near or into the water. It may G

cause break-down or fire or electric shock.G

4. If there is any failure of product, please don’t use it G

and call to A/S center immediately.G

5. Do not drop the product and do not give an impact to G

the product. It may cause break-down.G

6. Do not put the product under sunshine and moisture G

in long term. It may cause break-down or fire or G

explosion.G

7. Do not remove SD card while operation. It may cause G

breakdown or malfunction.G

8. This product is designed to use DC12V~24V power.G

Warnings for system

Minimum specifications of computer

You need a computer to update firmware and map S/W forG

this product properly. G

Please check the minimum specification of computer.G

• Microsoft Windows 2000/XPG

• At least Pentium III 800MHzG

• At least 128MB Main MemoryG

• At least 2GB Hard Disk SpaceG

•USB*PortG

* It’s necessary when using the card reader provided.G

1 | Before Usage

Parts & Features

1 | Before Usage

Parts & Features

1) Some kind of devices cannot be supported.G

2) You can use USB memory stick and some kind of devices cannotG

be supportedG

3) Serial port is only used for emergency recovery by manufacturer.G

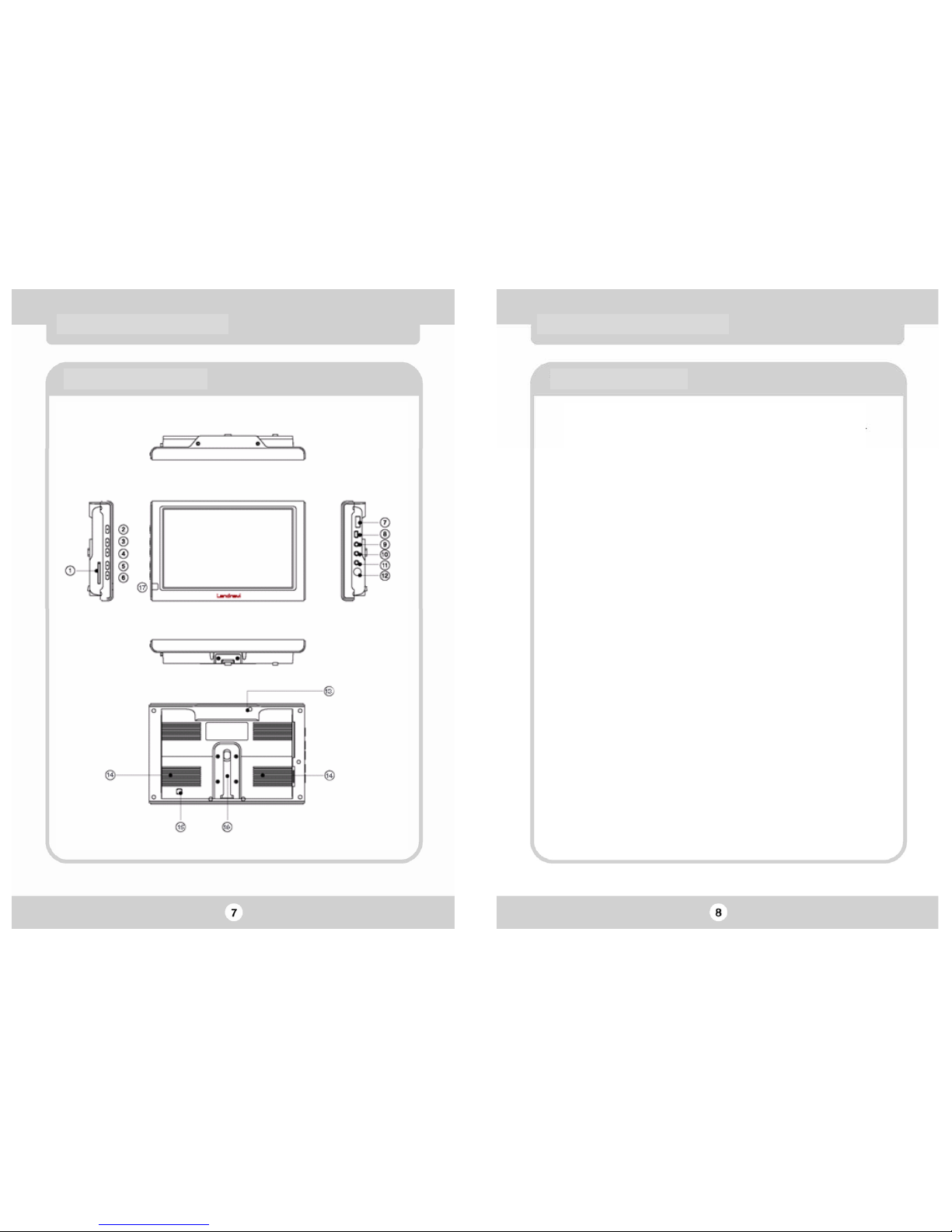

1. SD CARD SLOT (1)G

2. LCD ON/OFFG

3. VOLUME UP / RIGHTG

4. VOLUME DOWN / LEFTG

5. CONFIRM / MENUG

6. MUTE / UNMUTEG

7. USB 2.0 HOST (2)G

8. SERIAL PORT (3)G

9. AV IN 1G

10. AV IN 2 / REARCAM ING

11. EARPHONEG

12. DC ING

13. EXTERNAL GPS ANTENNA G

14. STEREO SPEAKERG

15. MAIN POWERG

16. GLASS MOUNTG

17. IR RECEIVERG

* Images are reference only, and can be changed without notice.G

* Accessories can be changed according to package.G

* Accessories can be changed according to improve quality orG

supply condition.G

* You can buy accessories in the website(www.landnavi.co.kr).G

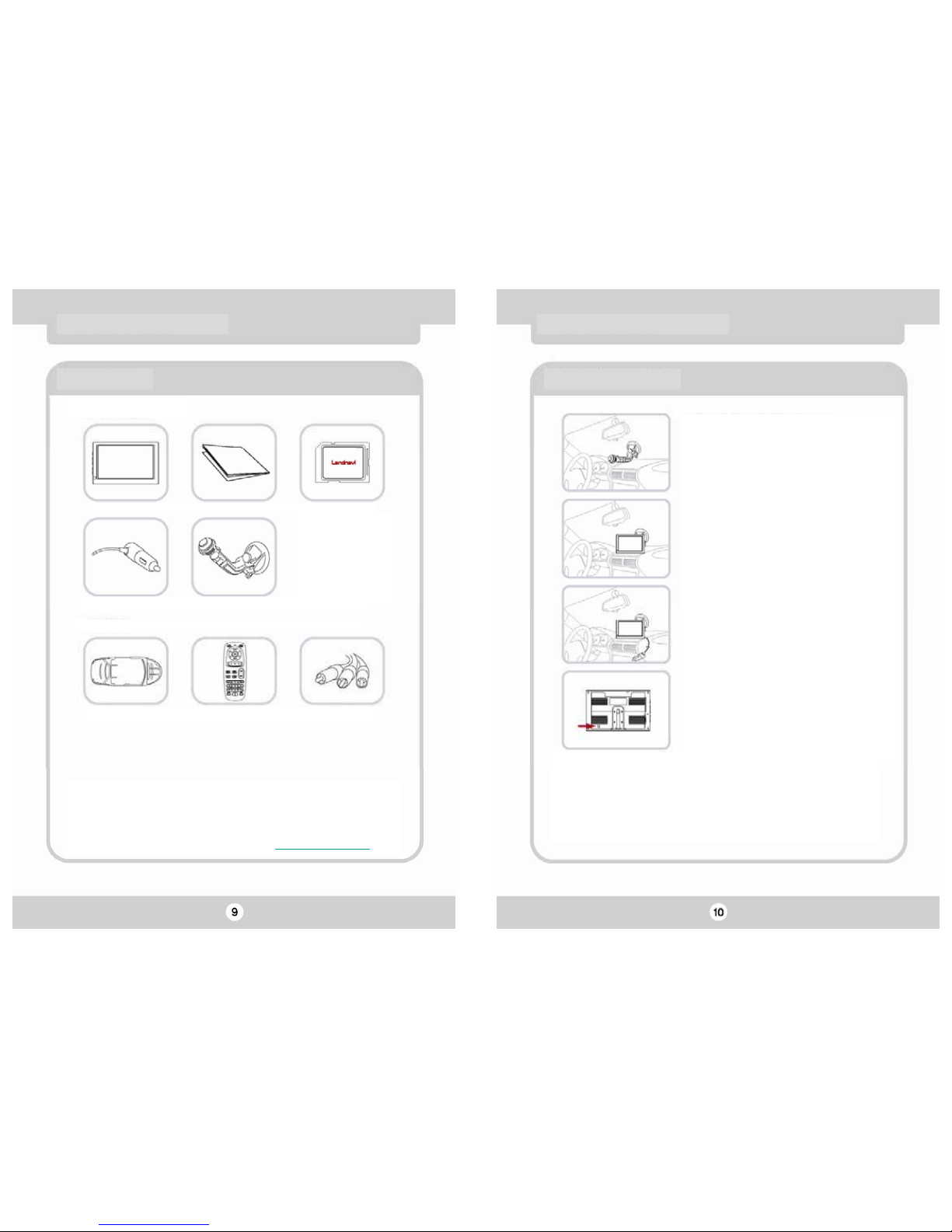

* Basic accessories

Accessories

1 | Before Usage

Clean the surface of the location G

you wish to place the mount G

bracket. Do not mount where the G

driver’s view will be obstructed .G

Slide the main system onto the G

mount clip and adjust the angle G

properly. Please check the mount G

and main system in proper position.G

Plug in the cigarette power cord G

to vehicle DC charger.G

After starting the engine, push the G

power button on the back side to G

power on the product.G

Installation

* Please pay attention that mount may fall if temperature is G

too hot or too cold. Please visit our website and see guideG

about mount management by weather.G

Main system User’s Manual SD Card G

Cigarette Power Cord Glass MountG

* Accessories sell separately

SD Card Reader Remote Controller AV CableG

1 | Before Usage

Navigation

You can use Navigation system with GPS.G

Map user manual is provided separately.G

Video Player

You can watch movie files.G

Audio Player

You can listen to music files.G

AV Input

You can connect external devices.G

Utility

You can use photo album and memo.G

Multitasking (PIP/NIP)

Playing MP3, AV IN etc with navigation at once.G

Setting

You can adjust configurations for the system.G

You can use high resolution(800x480) Navigation system.G

2-2 | NAVIGATION

* You can download recent released map data from website of map S/W manufacturerG

(www.congnavi.co.kr). You have to register first to download map data.G

QGwGGGzV~GGGGGGGGUG

XXG

XYG

2-3 | FILE LIST

2-4 | VIDEO PLAYER

1. USBG

2. SD CardG

3. Directory/File listG

4. Add all files G

include sub-directoryG

5. Add all filesG

6. Add selected fileG

7. Delete selected fileG

8. Delete all filesG

File list operation screenG

9. PlayG

10. List upG

11. List downG

12. Exit to main menuG

* You can edit the playing list for video player and audio playerG

1. Previous fileG

2. Play / PauseG

3. Stop G

4. Next fileG

5. CaptionG

6. Edit playing listG

7. Go to main menuG

Video player main screenG

8. Exit to main menu G

9. MuteG

10. Volume controlG

11. Playing timeG

12. Playing statusG

13. Total playing timeG

* Support DIVX, WMV7/8/9, MPEG, SMI(Subtitle) format files G

(Some video formats may not be supported.)G

* Some codec of movie files may not be supported in this productG

whether it played normally in PC.G

* Support DIVX, WMV7/8/9, MPEG, SMI(Subtitle) format files G

(Some video formats may not be supported.)G

XZG

X[G

2-5 | AUDIO PLAYER

2-6 | AV INPUT

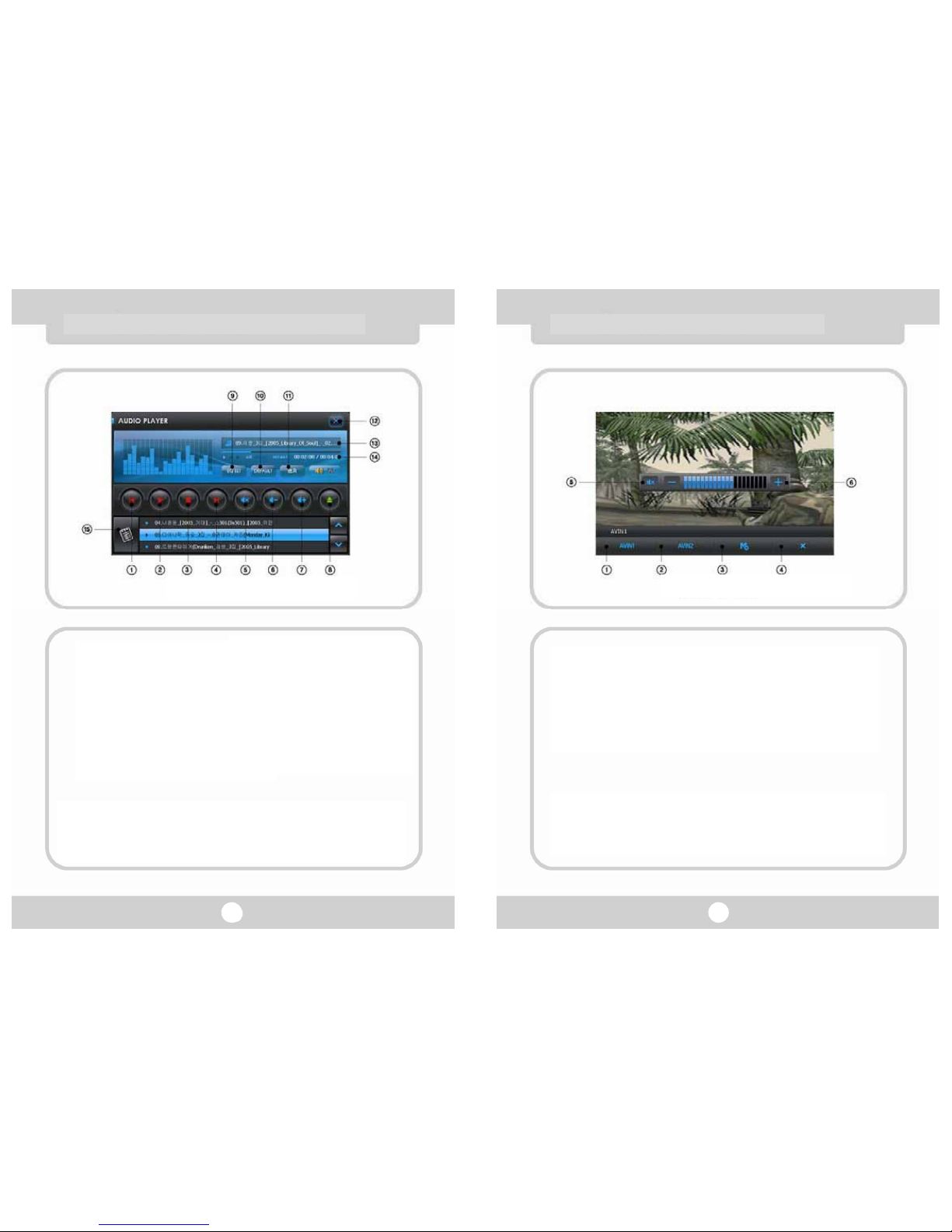

Audio player main screenG

1. Previous fileG

2. Play / PauseG

3. StopG

4. Next fileG

5. Mute / UnmuteG

6. Volume downG

7. Volume upG

8. Edit playing listG

9. Equalizer settingG

10. Equalizer G

11. Repeat optionG

12. Exit to main menuG

13. Playing listG

14. Playing timeG

15. View playing listG

* Support FLAC, APE, MP3, OGG, WMA format files G

(Some audio formats may not be supported.)G

* Some codec of music files may not be supported in this productG

whether it played normally in PC.G

1. AV Input 1G

2. AV Input 2G

3. Go to main menuG

4. Exit to main menuG

5. Mute / UnmuteG

6. Volume controlG

AV IN main screenG

* “No Signal” message will show when there is no video signal.G

* There can be noise of screen or sound depends on connectedG

AV device. This is not a fault of product but a problem of G

compatibility between devices.G

X\G

X]G

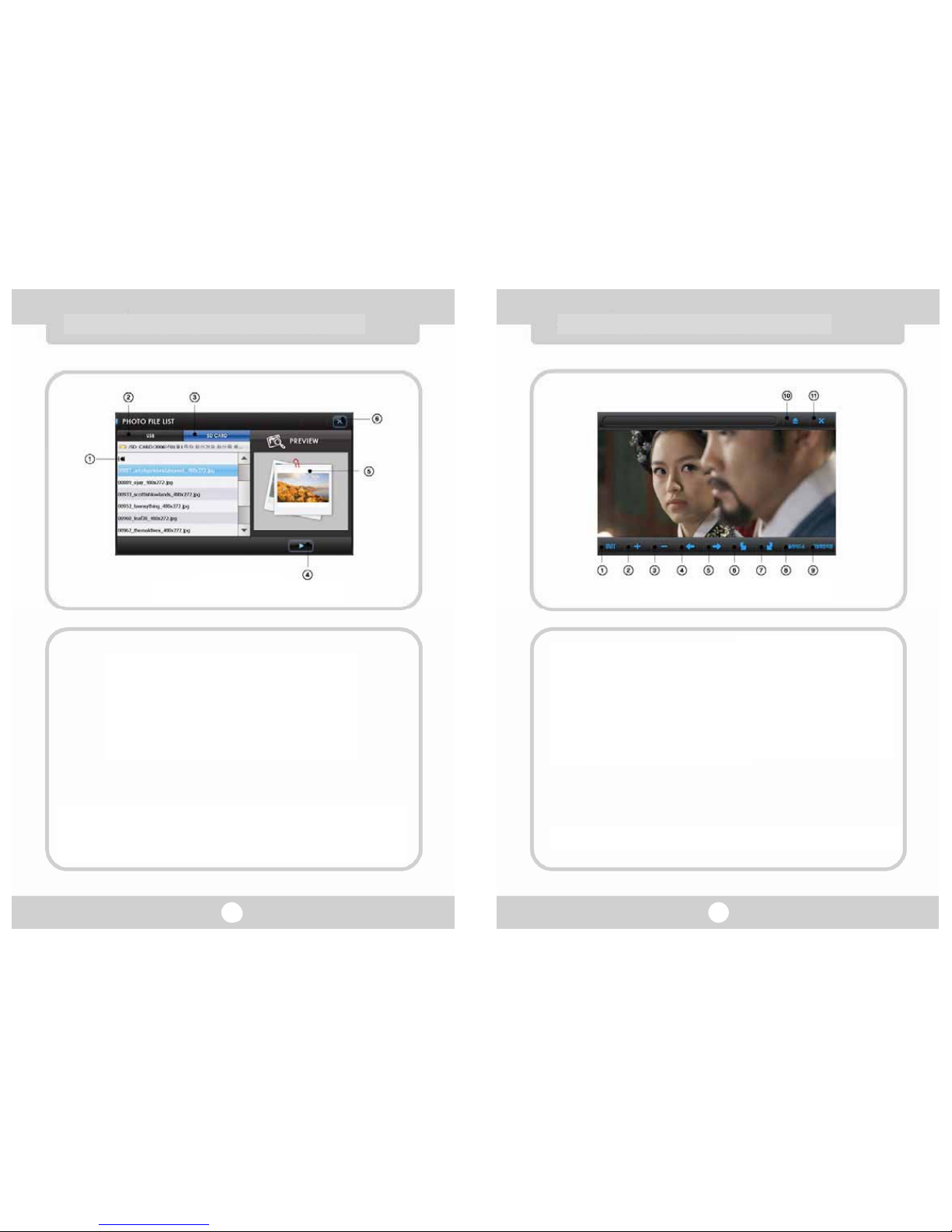

2-7 | UTILITY – PHOTO ALBUM

1. Photo directory / fileG

2. USBG

3. SD CardG

4. Full view of a selected photo fileG

5. Preview screenG

6. Exit to main menuG

Photo album preview screenG

* JPG, GIF, PNG, BMP formats are supported and some files may not beG

supportedG

* Image loading time depends on the size of the file. G

For proper image loading process, please resize image file under 500Kbyte.G

1. Initialize sizeG

2. EnlargeG

3. ReduceG

4. Previous fileG

5. Next fileG

6. Rotate to counterclockwiseG

7. Rotate to clockwiseG

Photo album main screenG

8. SlideshowG

9. Save as wallpaperG

10. File ListG

11. Exit to main menuG

* You can set the wallpaper image with your favorite images.G

X^G

X_G

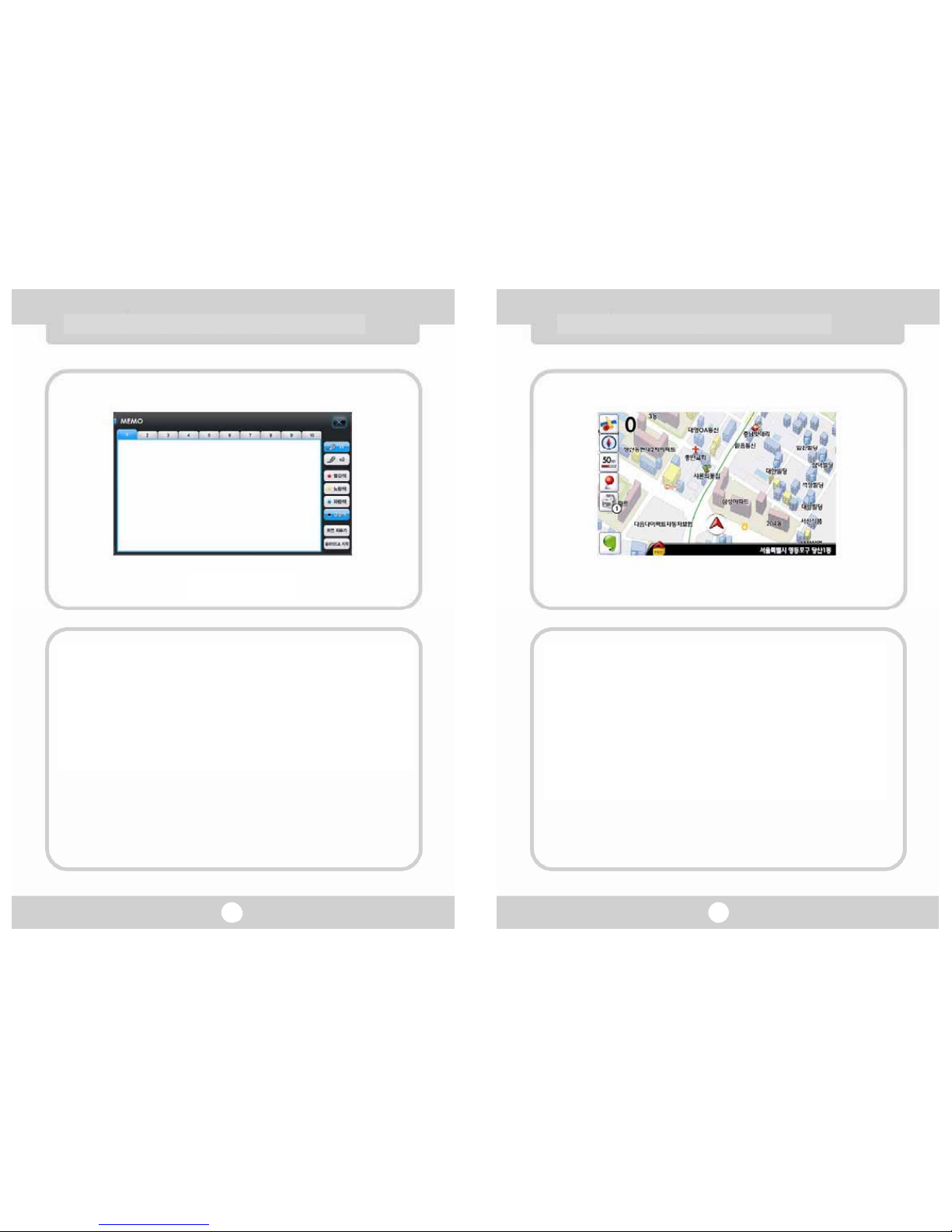

2-7 | UTILITY – MEMO

2-8 | PIP (MULTITASKING)

Memo screen

You can execute program with PIP mode.G

1. If you push PIP button, main menu will be appear and G

you can choose PIP menu you want.G

2. Also, if you push confirm button on the left side of G

terminal, main menu will appear and you can choose PIP G

menu you want. G

X`G

YWG

You can use up to 10 memo and written memo will be savedG

automatically saved in SD card when finishing memo program.G

Please do not use sharp tools to write memo. It can damageG

touch screen.G

Please write memo with moderate speed and accuracy. It may G

recognize incorrectly if you write too fast.G

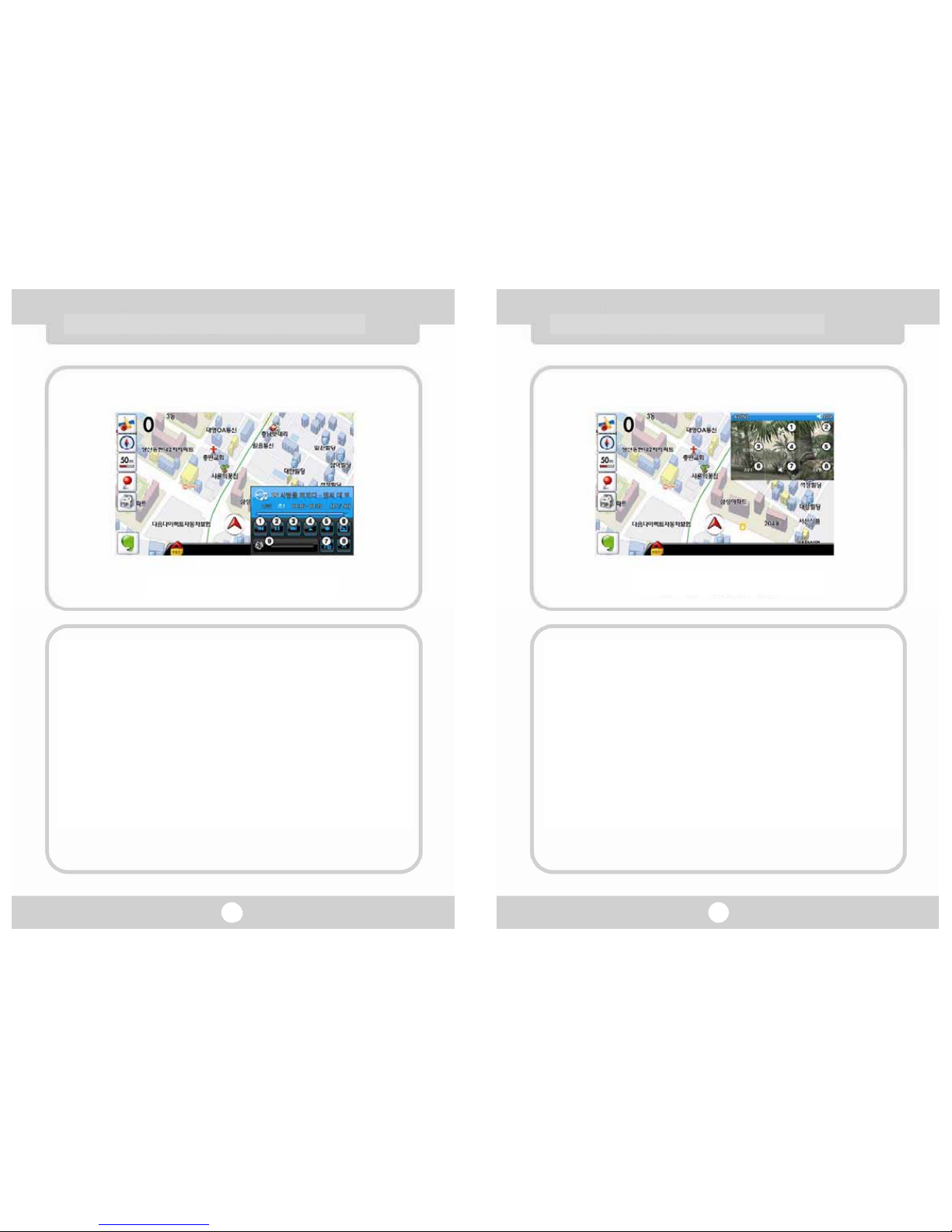

2-8 | PIP – AUDIO PLAYER

2-8 | PIP - AVIN

Executes audio player while navigation running.

When you run navigation, push MP3 button in the remote G

controller to operate PIP audio player with navigation.G

Or when you run audio player, push NAVI button in theG

remote controller to operate PIP audio player with navigation.G

1. Previous file 6. Minimize PIP to iconG

2. Play / Pause 7. Go to main menuG

3. Next file 8. Exit to main menuG

4. Playing list 9. Volume controlG

5. Move PIP windowG

PIP audio operation screenG

Executes AV IN while navigation running.

When you run navigation, push AV IN button in the remote G

controller to operate PIP AV IN with navigation.G

Or when you run AV IN, push NAVI button in the remote G

controller to operate PIP AV IN with navigation.G

1. Go to main menu 6. AV Input 1G

2. Exit to main menu 7. Mute / UnmuteG

3. Minimize PIP to icon 8. AV Input 2G

4. Move PIP windowG

5. Change PIP window sizeG

PIP AVIN operation screenG

YXG

YYG

2-8 | PIP – VIDEO PLAYER

2-8 | PIP – SMART BUTTON

Executes video player while navigation running.

When you run navigation, push number3 button in the remote G

controller to operate PIP video player with navigation.G

Or when you run video player, push NAVI button in theG

remote controller to operate PIP video player with navigation.G

1. Playing list 6. Change PIP window sizeG

2. Go to main menu 7. Play / PauseG

3. Exit to main menu 8. Mute / UnmuteG

4. Minimize PIP to icon 9. Caption G

5. Move PIP windowG

* There can be partially loss of picture and vision due to bit rate or G

size of movie file when you run VIDEO player with navigation.G

PIP video operation screenGPIP smart buttonG

you can use five section of the screen as a button.G

1. Volume downG

2. Volume upG

3. Previous file / Channel up / AV Input1G

4. Next file / Channel down / AV Input2G

5. Show menuG

* When PIP movie player or PIP AV IN is played as fullscreen mode,G

you can use smart menu as above.G

YZG

Y[G

2-9 | SETTING

You can change main menu type.G

1. Standard main menu typeG

2. User-define main menu typeG

Main menu typeG

* You can set the wallpaper image with your favorite images.G

You can change start program when you turn on the device.G

1. Main menuG

2. NavigationG

3. Navigation + Audio playerG

4. Video playerG

5. Audio playerG

6. AV ING

7. Last programG

Start program settingG

Y\G

Y]G

2-9 | SETTING

Sound settingG

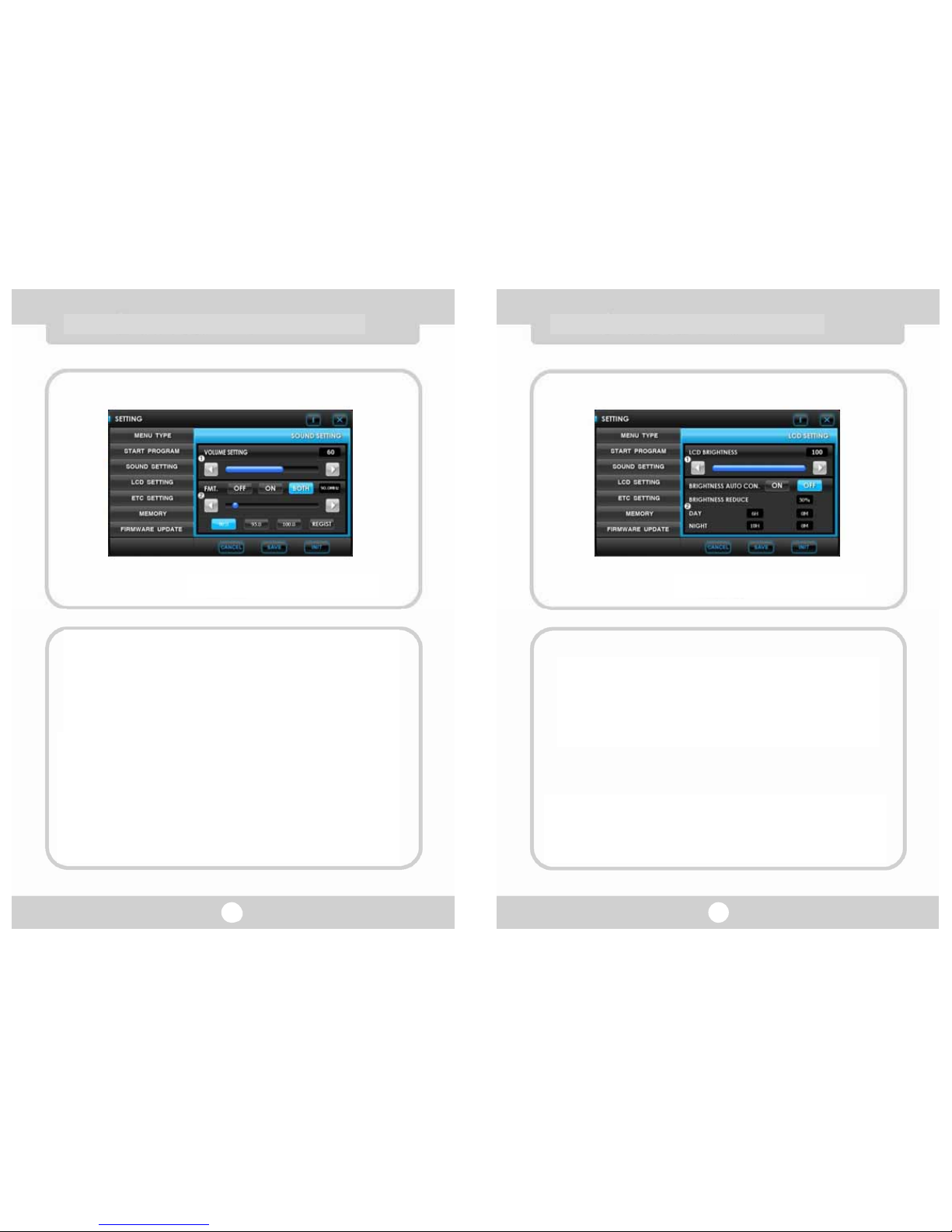

You can change main volume and FM Transmitter option.G

1. Volume controlG

2. FM Transmitter settingG

- OFF : Turn FM Transmitter off (Speaker: O / FM Radio: X)G

- ON : Turn FM Transmitter on (Speaker: X / FM Radio: O)G

- BOTH : Use both (Speaker: O / FM Radio: O)G

* To register FMT frequency as favoriteG

1. Select favorite button to saveG

2. Tune frequency you wantG

3. Push “Register” button to save as favoriteG

* You can listen in the sound with your car audio speaker when you select G

FM transmitter(ON / BOTH).G

* There can be some noise by the affection of internal / external conditionG

of a car or mounting position or other devices.G

* It is useful when you watch the movie and listen in the music.G

* You can change frequency by using volume key on the remote controller.G

You can change brightness control and night mode.G

1. Screen brightness controlG

2. Auto night mode changing optionG

Screen settingG

* Brightness is changing automatically if you directly set up the time zone.G

* It is useful when night driving by minimizing the reflection.G

* Auto brightness control is valid only GPS is successfully connected.G

Please move to good GPS signal area if you have some problem thatG

are not changing promptly.G

Y^G

Y_G

2-9 | SETTING

You can change other parts of the device.G

1. Touch setting (calibration of touch screen)G

2. Click sound setting – Beep sound when touch screenG

3. Rearcam setting – Auto detect of rear cameraG

ETC settingG

* We recommend that rear camera connect to AV Input 2 and install rear G

camera only in the authorized center.G

* When install or uninstall rear camera, please turn off the product.G

Unless, product can be damaged.G

* You should use authorized memory card by ZAMM.G

* Recognition error or speed problem can be occurred when using G

unauthorized SD card.G

* We support FAT/FAT32 format and some kind of devices cannot be G

recognized or need some time to recognize.G

* NTFS format cannot be recognize and please convert to FAT32 format.G

You can check storage device capacity.G

1. SD card capacity checkG

2. USB capacity checkG

Storage capacity checkG

Y`G

ZWG

2-9 | SETTING

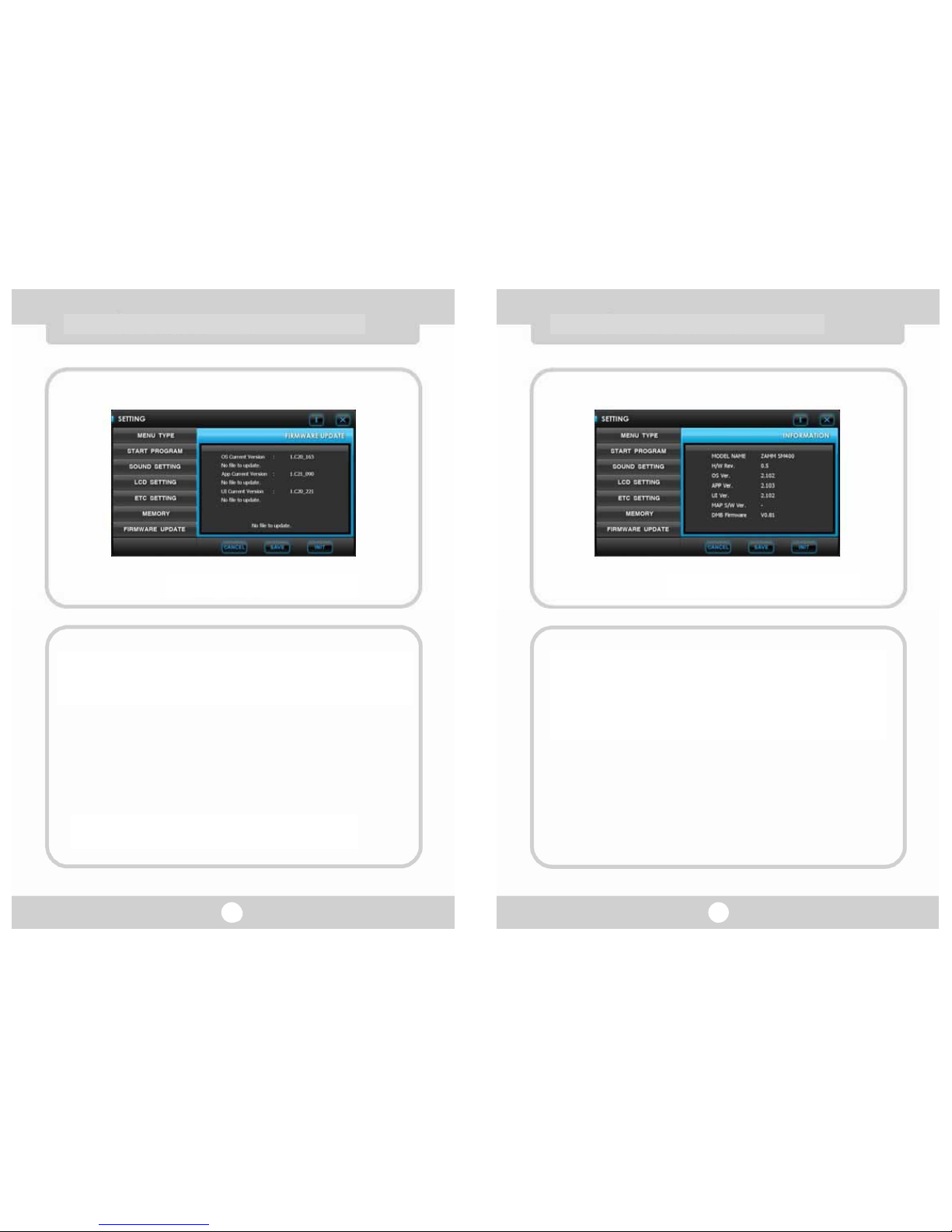

You can check the version of the product. G

Version information is required for quick and exact support G

when you need support.G

Firmware updateGVersion checkG

You can update the firmware.G

The update manual and update file will be distribute with ourG

Website(www.landnavi.co.kr).G

ZXG

ZYG

3-1 | SPECIFICATIONS

Product Specification

General InformationG

Model : G

shukuh}pTypjo^

Size/Weight : 185mm X 120mm X 29mm , 400gG

Chipset : AU1250 MIPS CPUG

Memory : 4MB NOR FLASH + 64MB NAND FLASHG

+ 128MB DDR2 SDRAMG

OS : WINCE 5.0 CoreG

LCD : DIGITAL 17.8cm (800X480) with touchscreenG

Power : DC 12V~24V, 1.5AG

USB : 2.0 Host X 1G

VIDEOG

Supported File : MPEG, WMV, DIVX, XvidG

Caption : SMIG

Frame : 30 Frame per second (720x480@30fps)G

AUDIOG

Speaker : 8Ohm 2W x 2G

Supported File : MP3, WMA, FLAC, APE, OGGG

Additional Function : FM TransmitterG

VIDEO INPUTG

Video Format : NTSC/PALG

Video Type : CVBSG

Audio : AV IN 1 : Stereo, AV IN 2 : StereoG

Product Specification

GPSG

Frequency : L1 (1575.42MHz)G

Receiving Type : C/A Code 12-ChannelG

FM TransmitterG

Sending Frequency : 88.5MHz~107.5MHzG

Channel : 96 channelsG

Antenna Power : 500 ɆV/mG

Antenna Type : Helical AntennaG

Modulation Type : FMG

Transmission Type : One Way TransmissionG

ZZG

Z[G

3-2 | CERTIFICATION

3-3 | CUSTOMER SUPPORT

Warranty

PRODUCT : Car Navigation SystemG

MODEL : G

shukuh}pTypjo^

Serial No. :G

Purchased Date :G

Purchased Place :G

Elements of Warranty

2MTECH Inc. warrants to the original retail owner for the duration of

this warranty; its LANDNAVI RICH7(hereinafter referred to as the

Product) to be free from defects in materials and craftsmanship with

only the limitations or exclusion set out below.G

Warranty Durations

This warranty to the original retail owner only, shall terminate and be

of no further effect ONE (1) Year after the date of original retail sale.

This warranty will be deemed invalid if the Product is; G

(A)Damaged or not maintained as reasonable and necessary; G

(B) Modified, altered or used as part of any conversion kits,

subassemblies, or any configurations not sold by 2MTECH, G

(D) Repaired by someone other than an authorized 2MTECH Repair

Agent,G

(E) Used in conjunction with any equipment or parts or as part of a

system not manufactured by 2MTECH, G

(F) Installed, programmed or serviced by anyone other than an

authorized 2MTECH Repair Agent, G

(G) broken by fire, earthquake, flood and natural disaster,G

(H) Where the Serial Number label of the product has been removed

or damaged beyond recognition. G

FCC Information

Z\G

Z]G

Table of contents

Popular GPS manuals by other brands

Nextar

Nextar X3I-02 - Automotive GPS Receiver manual

MICODUS

MICODUS MV901N user manual

Nextar

Nextar X3-01 - Satellite Navigation 3.5" Color Touch Screen... Hardware manual

Fitbit Zip

Fitbit Zip Charge 5 user manual

Furuno

Furuno GP-90 Operator's manual

Garmin

Garmin GPS 10 specification

Garmin

Garmin GPSMAP 3206 - Marine GPS Receiver owner's manual

Garmin

Garmin BMW Motorcycles Navigator Owner's manual and reference guide

Garmin

Garmin Approach G6 owner's manual

Salind

Salind 11 4G USA manual

Garmin

Garmin GPSMAP 3006C Quick reference guide

II Morrow Inc.

II Morrow Inc. Apollo SL60 Quick reference guide

Laminar Research

Laminar Research Van's RV-10 Pilots operating manual

Bushnell

Bushnell Yardage Pro XGC+ user manual

tbs electronics

tbs electronics RaceTracker user manual

Dynon Avionics

Dynon Avionics SkyView SE System installation guide

Shenzhen Chainway ITS Co.

Shenzhen Chainway ITS Co. CW-GPS701 user manual

INTELINK

INTELINK PET-210 manual

2MTECH Landnavi-RICH7 User manual

Popular GPS manuals by other brands
