3D Perception COMPACTVIEW SX60 User manual

2006 3D perception AS All rights reserved.
The copyright of this document is the property of 3D perception AS. The document is supplied on the
express terms that it is to be treated as confidential. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of 3D perception AS. The information in this document is subject to
change without notice and is provided ‘AS IS’.
C
OMPACT
V
IEW
SX60
U SER M ANUAL

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
ii
D OCUMENT S TATUS
Revision Month Year Paragraph(s) Prepared by Description of
Change
1 August 2006 All A F Rotheram Initial release
2 October 2007 21 A F Rotheram Remove RS232
3 February 2008 None D Kennedy Remove HA

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
iii
T ABLE OF C ONTENTS
1. I NTRODUCTION ...................................................................................................................1
2. S AFETY AND W ARNINGS .....................................................................................................2
2.1 Safety .......................................................................................................................2
2.2 Warning....................................................................................................................2
2.3 Potential Health Issues Related to Mercury Vapour...................................................3
2.4 Recycling Warning...................................................................................................4
2.5 Remote Control Warning..........................................................................................4
2.6 Warning Symbols .....................................................................................................4
3. O PTICAL L ENSES .................................................................................................................6
4. P ROJECTOR O VERVIEW .......................................................................................................8
5. K EYPAD ..............................................................................................................................9
6. I NDICATORS ......................................................................................................................11
7. R EMOTE C ONTROL ............................................................................................................13
8. C ONNECTOR P ANEL ..........................................................................................................16
9. S ET -U P .............................................................................................................................18
9.1 Set-Up Video..........................................................................................................18
9.2 Set-Up Computer....................................................................................................19
10. I MAGE A DJUSTMENTS .......................................................................................................20
11. L AMP O PERATION .............................................................................................................21
12. PIN C ODE .........................................................................................................................21
13. C EILING M OUNT ...............................................................................................................22
13.1 Fixing the Ceiling Mount........................................................................................22

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
iv
13.2 Ceiling Mount Cover ..............................................................................................23
14. U SING THE P ROJECTOR ......................................................................................................24
15. M ENU S YSTEM ..................................................................................................................25
15.1 Top Menu...............................................................................................................25
15.2 Picture Sub Menu ...................................................................................................26
15.3 Dynamic Sub Menu................................................................................................27
15.4 Advanced Sub Menu...............................................................................................28
15.5 Set-Up Sub Mneu ...................................................................................................29
15.6 Utilities Sub Menu..................................................................................................30
15.7 Control Sub Menu ..................................................................................................31
15.8 Lamp Sub Menu .....................................................................................................32
16. RS 232 AND LAN C ONTROL ..............................................................................................33
16.1 RS 232....................................................................................................................33
16.2 LAN .......................................................................................................................33
17. T ROUBLE S HOOTING .........................................................................................................34
17.1 No Image................................................................................................................34
17.2 Dark Image.............................................................................................................34
17.3 Flickering Image.....................................................................................................34
17.4 Unsharp Image .......................................................................................................35
18. M AINTENANCE ..................................................................................................................36
19. S ERVICE I NFORMATION .....................................................................................................37
20. L AMP C HANGE ..................................................................................................................38
21. T ECHNICAL D ATA .............................................................................................................40
21.1 Projector Unit.........................................................................................................40
21.2 Lenses ....................................................................................................................42
21.3 Connectors..............................................................................................................44
22. D ECLARATIONS .................................................................................................................47

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
v
22.1 FCC........................................................................................................................47
22.2 EN 55022 Warning.................................................................................................47
22.3 Canada....................................................................................................................47
23. L IMITED W ARRANTY , ‘FCC S TATEMENT ’ AND ‘T RADEMARKS C OPYRIGHT ’.......................48
24. C ONTACT US .....................................................................................................................50

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
1
1. I NTRODUCTION
The CompactView SX60 digital projector is designed with the latest state-of-the-art technologies
in illumination, imaging, optics, electronics, thermal and industrial design in order to serve
traditional as well as novel imaging applications across a variety of markets, offering features
such as:
•Professional Grade Powered Projection Lenses with bayonet mounts
•Dual Lamp System with separate lamps for improved life, redundancy and 24/7 operation
•Dual OptoMechanical Iris for variable contrast and brightness
•Mechanical Shutter for total black
•Single Chip DMD™ with DarkChip™ technology by Texas Instruments®
•High Contrast for vibrant colours and deep blacks
•High Resolution for unprecedented detail
•High Brightness for larger screens
•Deep Black for maximum dynamics
•Reduced Image Noise through high end signal processing
•Faroudja DCDi™ Video processing and de-interlacing
•Eco Mode for reduced power consumption and lower audible noise
•Variable Lamp Power for alignment of multi-screen configurations
•Long Life Lamp (up to 4000 hours) in low power ECO mode
•Stylish and Compact Design to fit most applications, installed or movable
•Multiple Lens Options for close-up front or rear projection and other applications
•Six Video and Graphics Inputs for virtually any video and data source
•Two Expansion Ports for application specific signal processing
•LAN, RS232 and USB ports for control and monitoring
NOTE: The specifications and functionality of the product may change without prior notice.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
2
2. S AFETY AND W ARNINGS
The CompactView SX60 user guide contains important information about safety precautions
and the set-up and use of the projector. Please read the manual carefully before you operate
the projector.
2.1 Safety
The CompactView SX60 complies with relevant safety regulations for data processing
equipment for use in an office environment. Before using the projector for the first time, please
read the safety instructions thoroughly.
2.2 Warning
Use only the cables and cords supplied with the projector or original replacement cables. Using
other cables or cords may lead to malfunction and permanent damage of the unit.
Always use 3-prong / grounded power cord to ensure proper grounding of the unit. Never use 2-
prong power cords, as this is dangerous and could lead to electrical shock.
Never open the unit. The projector contains no user serviceable parts. Refer all repairs to
qualified personnel only.
Make sure that no objects enter into the vents and openings of the set. Do not spill any liquids
on the projector or into the vents or openings of the unit.
Always remove lens cap before switching on the projector. If the lens cap is not removed, it may
melt due to the high energy light emitted through the lens. Melting the lens cap may
permanently damage the surface of the projection lens.
Do not look into the projection lens when the projector is switched on. The strong light may
permanently damage sight.
Do not look into the laser beam when activated on the remote control. Laser light may
permanently damage sight. Do not point laser beam on people.
Only place the projector on a stable surface, or mount it securely using an approved ceiling-
mount.
Do not drop the projector.
Always operate the projector horizontally, within the range of the adjustable rear feet. Operating
the unit in other positions may reduce lamp life significantly, and may lead to overheating,
resulting in malfunctioning.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
3
Always allow ample airflow through the projector. Never block any of the air vents. Never cover
the unit in any way while running. Allow for sufficient distance to walls and ceilings to avoid
overheating. Minimum safety distance to any side of the unit is 50 cm / 20” in any direction.
CAUTION! Hot air is exhausted from the rear vent. Do not place objects that are sensitive to
heat nearer than 50cm / 20” to the exhaust vent.
NOTE: The projector is designed for indoor use only. Never operate the unit outdoors.
Do not operate the projector outside its temperature and humidity specifications, as this may
result in overheating and malfunctioning.
Only connect the projector to signal sources and voltages as described in the technical
specification. Connecting to unspecified signal sources or voltages may lead to malfunction and
permanent damage of the unit.
Allow the unit to cool down for 60 minutes before lamp change.
2.3 P OTENTIAL H EALTH I SSUES R ELATED TO M ERCURY V APOUR .
This projector uses a very powerful UHP™ lamp for illumination to produce an extremely bright
image.
This technology is similar to other high-pressure discharge lamps that are extensively used in
cars, street lights and other lighting appliances today. These lamps, like fluorescent lighting,
contain small amounts of mercury. The amount of mercury present in a lamp is far below the
limits of danger set by the authorities.
It is very important that lamps containing mercury are treated properly to minimize potential
health hazards.
The UHP™ lamp, like any other high brightness projector lamp, is under high-pressure when
operating. While the lamp and the projector are carefully designed to minimize the probability of
lamp rupture, the lamp may break while operating and small amounts of mercury vapor may be
emitted from the projector. The probability of rupture increases when the lamp reaches its
nominal life. It is therefore highly recommended that the lamp is replaced when the rated lifetime
is reached.
As a general precaution, secure good ventilation in the room when operating the projector. If
lamp rupture occurs, evacuate the room and secure good ventilation. Children and pregnant
women in particular should leave the room.
When replacing a worn lamp, dispose of the used lamp carefully by proper recycling.
Mercury is a naturally occurring, stable metallic element that may pose a safety risk to people
under certain conditions. According to the Public Health Statement for Mercury published by the
Agency for Toxic Substances and Disease Registry (“ATSDR”, part of the United States Public
Health Service), the brain, central nervous system and kidneys are sensitive to the effects of
mercury, and permanent damage can occur at sufficiently high levels of exposure. Acute
exposure to high concentrations of mercury vapor can cause conditions such as lung and

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
4
airway irritation, tightness in the chest, a burning sensation in the lungs, coughing, nausea,
vomiting and diarrhea. Children and fetuses are particularly sensitive to the harmful effects of
metallic mercury to the nervous system.
Seek medical attention if any of the above symptoms are experienced or if other unusual
conditions are experienced following lamp rupture.
2.4 R ECYCLING W ARNING
This product contains chemicals, including lead, known to the State of California to cause birth
defects or other reproductive harm. Recycle properly, do not dispose of in ordinary waste!”
2.5 R EMOTE C ONTROL W ARNING
Laser radiation class II product; wavelength 670nm; maximum output 1mW.
Remote control complies with applicable requirements of 21 CFR 1040.10 and 1040.11.
Remote control complies with applicable requirements of EN 60 825-1: 1994 + A11
2.6 W ARNING S YMBOLS
READ USER GUIDE
Attention! Read the user guide for further information!
DANGEROUS VOLTAGE
Danger! High voltage inside the product!
HOT
Warning! Hot surfaces!
WAIT
Warning! Wait until cooled down!
MERCURY
Warning! Lamp contains mercury! Recycle properly, do not
dispose of in ordinary waste!
UV
Warning! UV radiation inside the product!

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
5
RECYCLE
Warning! Recycle properly, do not dispose of in ordinary
waste!
NO TELEPHONE
Warning! Do not connect to telephone lines!

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
6
3. O PTICAL L ENSES
A range of fixed and zoom lenses is available to cover most applications, for both front and rear
projection. The lenses are powered and fitted with a bayonet-mount for ease of installation.
Switch off all equipment before setting-up for proper function.
When mounting and changing lenses, be aware that the optical system is exposed to dust and
foreign particles as long as the lens is not attached to the system. Do not leave the lens mount
open longer than necessary to change lens. If a lens is not mounted, always insert the
protection lid to avoid dust and foreign particles entering the internal optics.
Never run the projector without lens mounted.

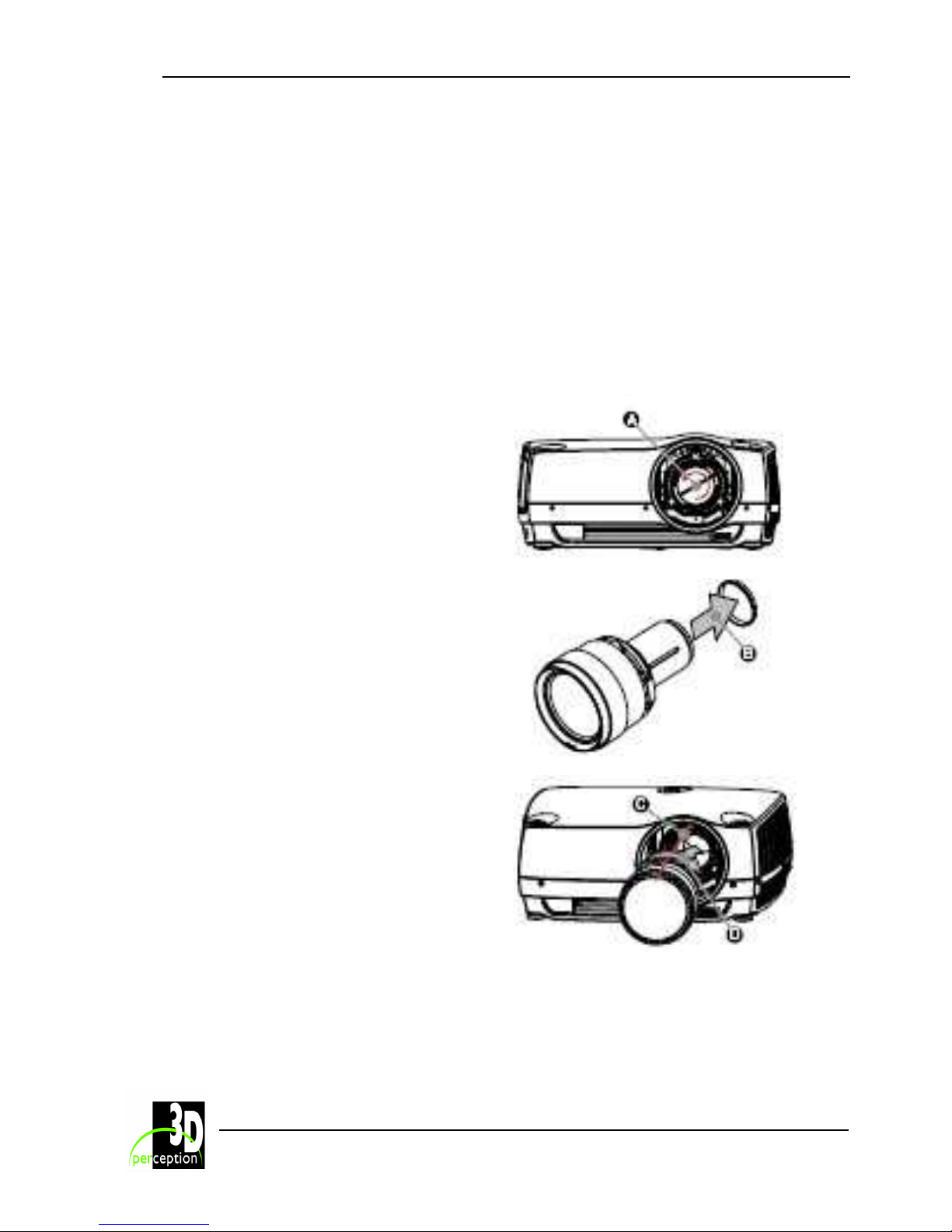

Remove the protection lid from the bayonet-
mount by turning the knob anti-clockwise. A
Remove the rear lens cap. B
Attach the projection lens using the bayonet
mount, observing the red insertion marks C
Turn the lens firmly clockwise until it stops with
a click. D

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
7

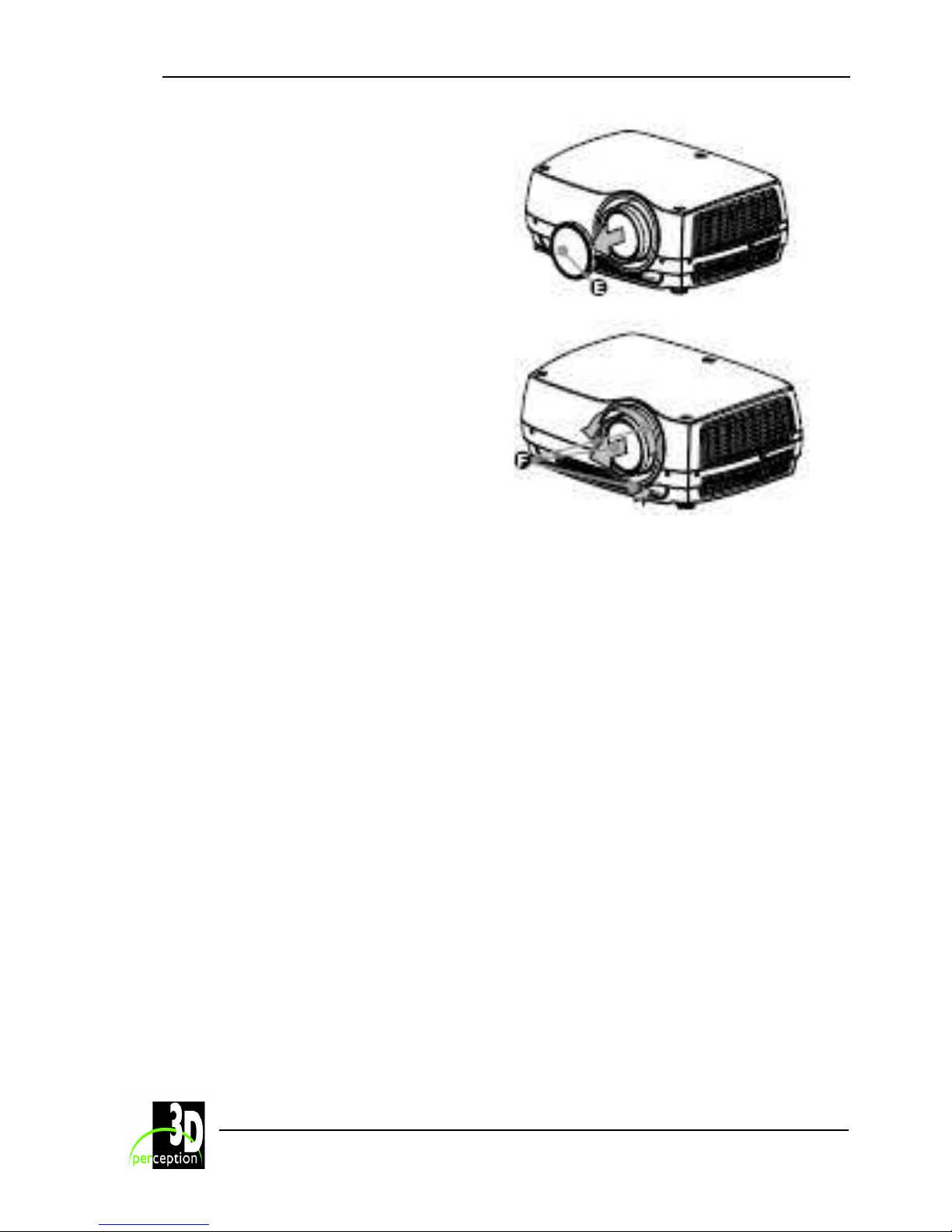

Remove the lens cap from the projection lens.
If you switch the projector on with the lens cap
in place, the lens cap may melt, damaging not
only the lens cap, but also the projection lens
and surrounding parts E
To change lens, first remove the current lens
by pushing the release button and twisting the
lens counter-clockwise until it comes loose. -
Pull the lens out. F
Insert the new lens as described above.
.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
8
4. P ROJECTOR O VERVIEW
Lens A
IR sensor B
Ventilation C
Lens release D
Power connector E
Keypad F
Connector panel G
LCD H
Lamp lids I
Adjustable feet J
Security lock K
Ceiling mount L

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
9

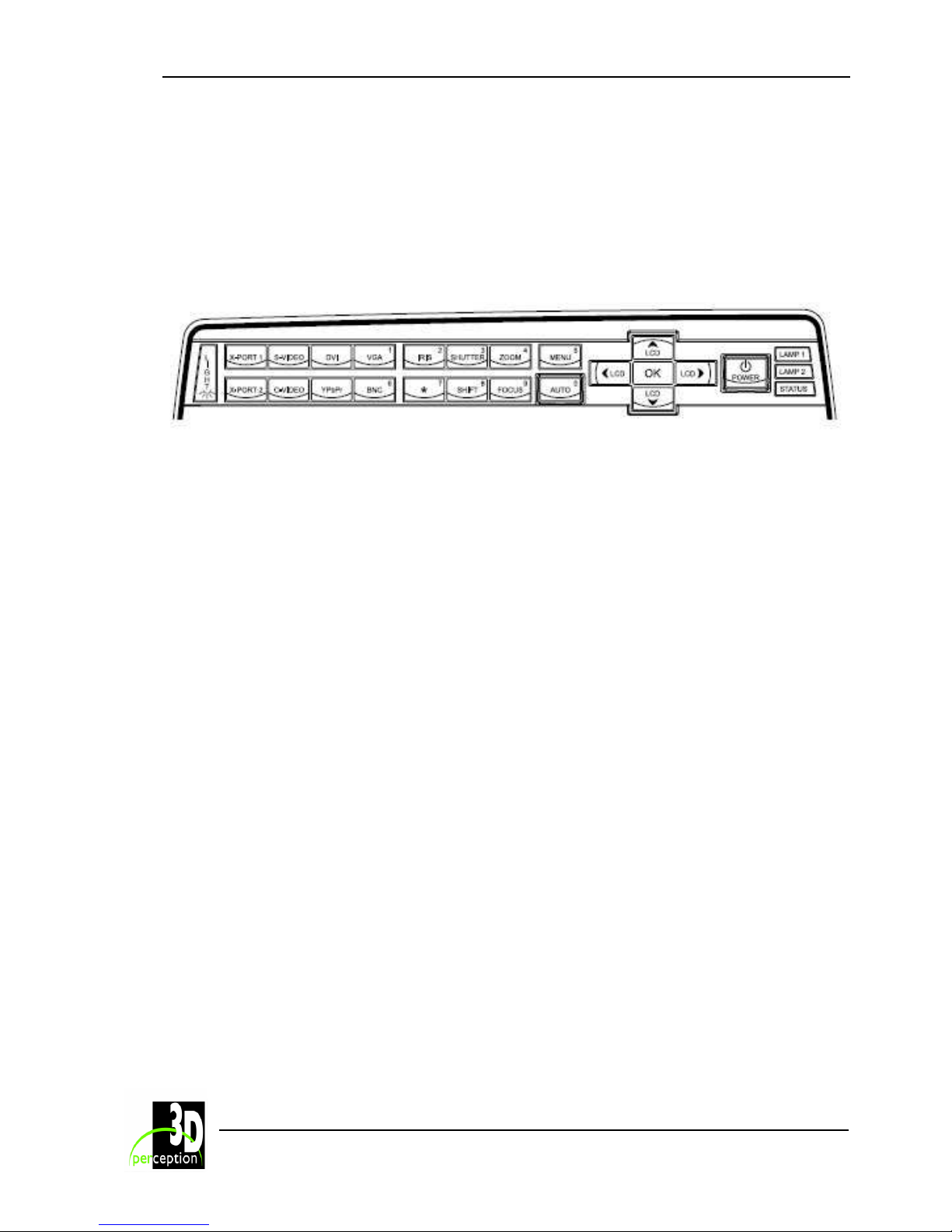

5. K EYPAD
The keypad is illuminated for operation in dark environments. Available functions are illuminated
in yellow while selected (active) functions are illuminated in green. Functions that are not
available are not illuminated.
In addition to the various functions, 10 keys are numbered 0-9. These keys are used for PIN
code and other numeric functions as applicable.
POWER
Switch the projector between on and standby modes. Press firmly once (1 second) to switch on.
Press firmly twice (1 second) to switch off.
AUTO
Adjust the projector to display a correct image, including position, width, height, contrast,
brightness and overall stability.
MENU
Activate the menu system. Use the four arrow keys to navigate and «OK» to activate.
ARROW KEYS
Use the arrow keys to navigate the menu system or to control lens and LCD functions.
OK
Confirm menu option when menu system is activated.
ZOOM
Select ZOOM then use arrow keys to zoom in or out.
FOCUS
Select FOCUS then arrow keys to focus the image
SHIFT
Select SHIFT then the arrow keys to shift the image up, down or sideways.
IRIS
Select IRIS then arrow keys to adjust to desired combination of brightness and contrast.
SHUTTER
Press SHUTTER to stop the projected image completely.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
10
VGA
Select the VGA input as active source.
DVI
Activate the DVI-D input.
BNC
Select BNC as source.
YPbPr
Activate the component video input.
S-VIDEO
Select super video as active source.
C-VIDEO
Activate the composite video input.
X-PORT 1
Activate the X-PORT 1. This key is enabled by the X-PORT 1 device as and when attached.
Functionality depends on the actual device connected (see separate user guide for this device).
X-PORT 2
Activate the X-PORT 2. This key is enabled by the X-PORT 2 device as and when attached.
Functionality depends on the actual device connected (see separate user guide for this device).
LIGHT
This key switches the illumination of the connector area on and off.
INDICATORS
NOTE: LAMP 1, LAMP 2 and STATUS indicators are not keys and should not be operated.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
11

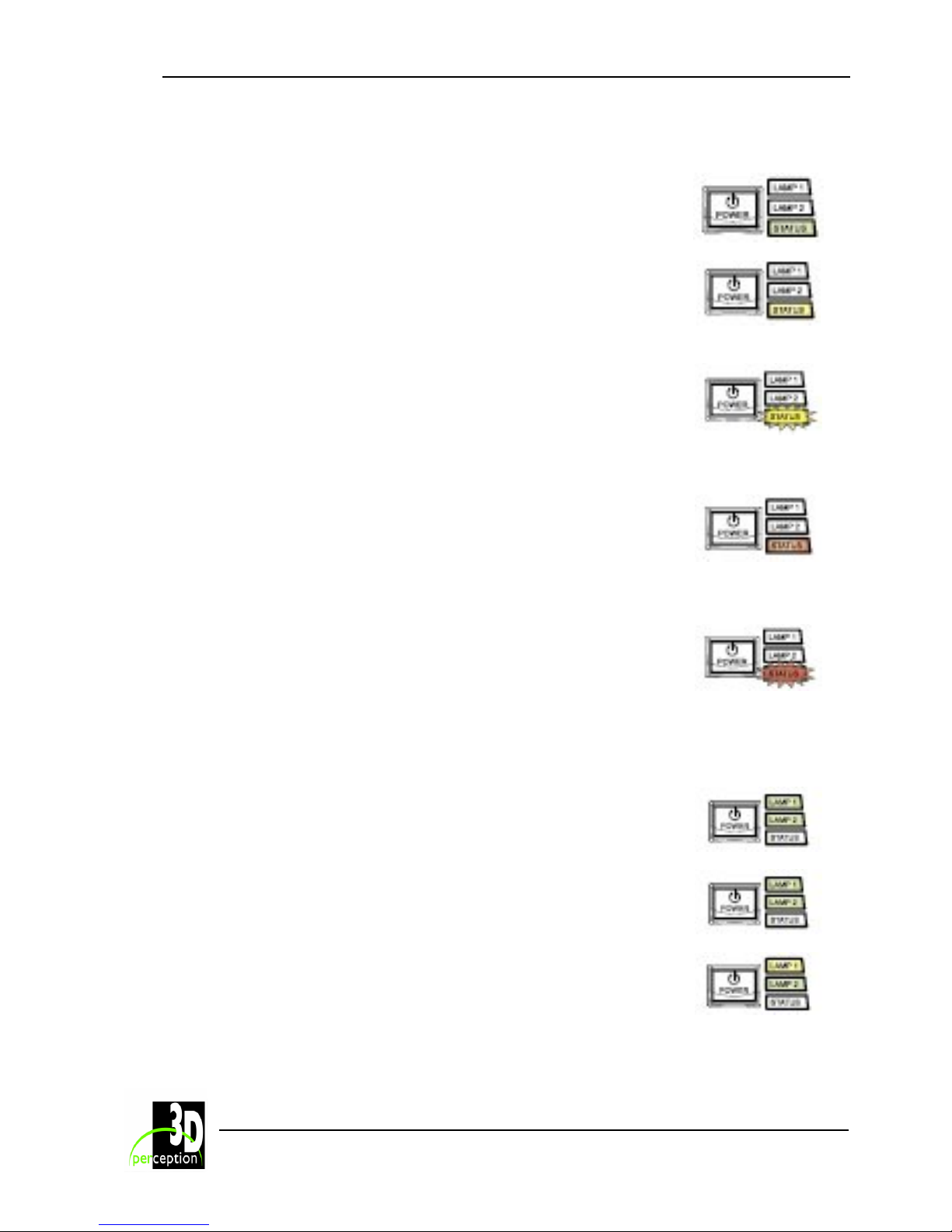

6. I NDICATORS
STATUS
Indicates the overall system status by green, yellow and red
colours.
PERMANENT GREEN LIGHT
The projector is turned on and in normal operation.
PERMANENT YELLOW LIGHT
The unit is in standby mode; no source(s) connected, or the
source(s) connected are inactive or switched off, thereby
activating the power-save function (DPMS). You may enable or
disable the power save function in the SET UP sub menu, DPMS
on or off.
FLASHING YELLOW LIGHT
Please wait. The yellow light will flash a period after power cord is
connected (10-15 seconds), and a period after going to standby
mode while lamp is cooling down (approximately 45 seconds).
The projector may not be turned on again until the light has
turned to permanent yellow.
FLASHING RED LIGHT
Projector is overheated. Turn off immediately! Check if air inlets
are covered or if ambient temperature is outside specifications.
The projector can not be restarted unless the power cord is
disconnected and reconnected again. If the projector continues to
flash red, you will need to return the unit for service
LAMP 1, LAMP 2
Indicate the status of each lamp by green and red colours.
PERMANENT GREEN LIGHT
The lamp is on and in normal operation.
PERMANENT YELLOW
The lamp is ready and in standby mode
FLASHING YELLOW
Please wait. Lamp is cooling down.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
12

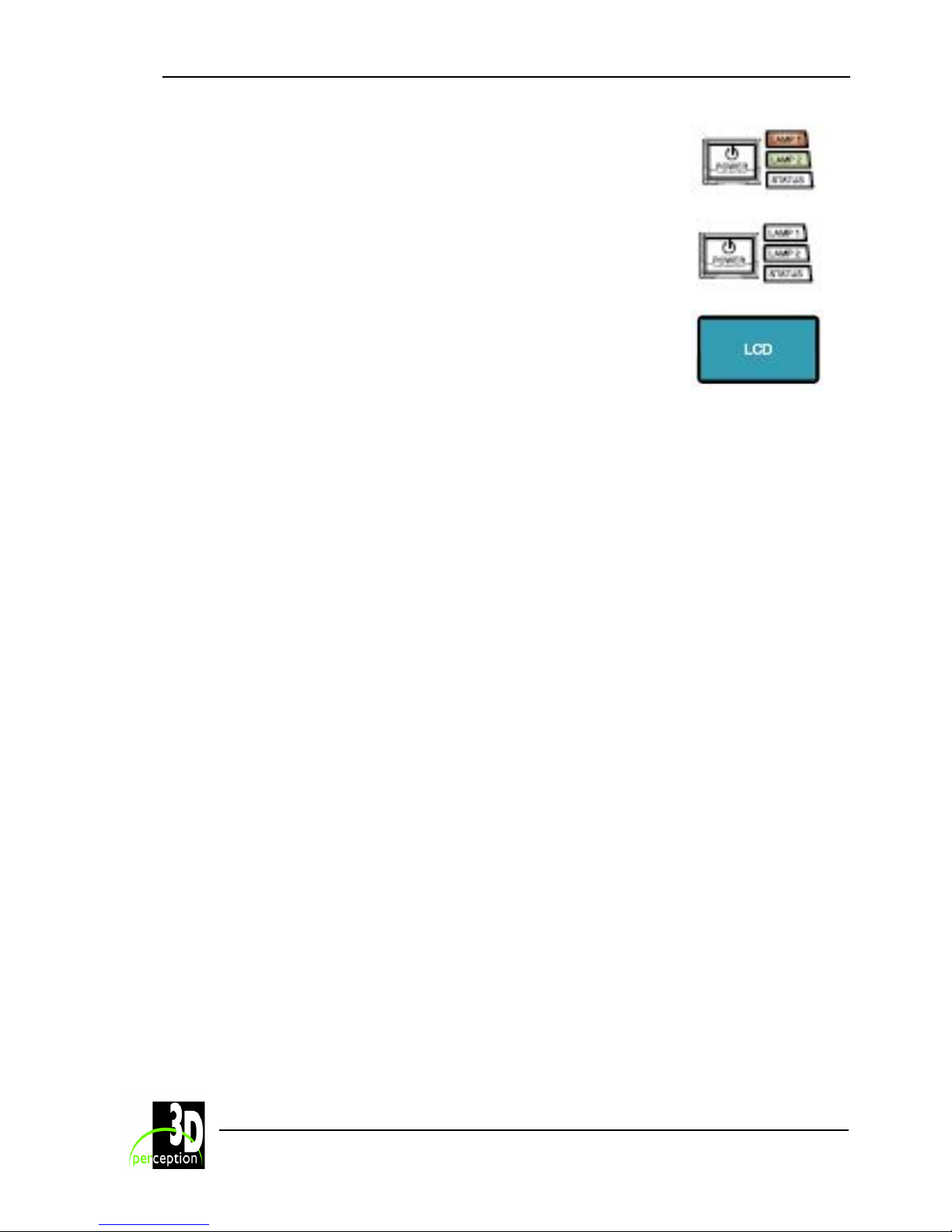

PERMANENT RED LIGHT
Lamp life has expired or lamp is not igniting or lamp door is open.
Please change projection lamp immediately. Failing to change
lamp may lead to lamp explosion.
NO LIGHT
No lamp inserted / connected
LCD
The projector is fitted with a backlit LCD screen that reports
system status. You can navigate the LCD screen by using the
arrow keys on the keypad.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
13
7. R EMOTE C ONTROL
The remote control allows flexible access to the projector settings, either through direct keys, or
through the menu system. The remote control is backlit for use in dark environments. It also has
a data-jack that allows for wired connection to the projector. When the wire is connected, the IR
(infra-red) beam and internal batteries are switched off.
The remote control can be operated either in
‘broadcast mode’, or ‘individual mode’. When
several projectors are in use in an installation,
individual control may be convenient.
Individual control is available either by wired
remote control, using the data-jack, or by
using an individual number code.
For individual control, first set the individual
RC ID code using the projector menu system,
see the UTILITIES sub menu.
To select a specific projector for control first
press the ‘*’ button in the lower keypad area
then the code that has been set in the target
projector.
A code can be in the range of ‘0’ to ’255’. ‘0’ is
reserved for broadcast. To select another
target, repeat the process by pressing ‘*’ and a
new code.
To exit individual control, press ‘*’’*’ twice or
press ‘*’ and ‘0’.
POWER
Switch the projector between on and standby modes.
AUTO
Adjust the projector to display a correct image, including position, width, height, contrast,
brightness and overall stability.
INFO
Display source and projector status on the screen.
BACKLIGHT
Switch the backlight on and off. The backlight will switch off automatically after ten seconds.
C-VIDEO
Select the composite video input as signal source.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
14
S-VIDEO
Select the super video input as signal source.
YPbPr
Select component video input.
DVI
Select the DVI input.
VGA
Select the VGA input.
BNC
Select the BNC input.
X-PORT 1, 2
Activates the X-PORT 1, 2. These keys are enabled by the X-PORT 1, 2 devices as and when
attached. Functionality depends on the actual devices connected
SHUTTER
Toggle the mechanical shutter on and off.
ZOOM
Press the ZOOM keys to zoom the image in and out.
FOCUS
Press the FOCUS keys to focus the image.
SHIFT
Press SHIFT, then the arrow keys to shift the image up, down or sideways.
IRIS
Press the IRIS keys to adjust the opto-mechanical stop to the desired combination of brightness
and contrast.
BRIGHT
Press BRIGHTNESS, then the arrow keys to adjust image brightness from dark to bright.
CONTRAST
Press CONTRAST, then the arrow keys to adjust the image contrast from soft to hard.
ASPECT
Cycle through the aspect ratios available with the current source.
MENU
Toggle the menu system on and off.
ARROW KEYS
Use the arrow keys to navigate in the menu system and other adjustments.

3D perception C OMPACT V IEW SX60
Revision 2 User Manual
15
LASER
Activate the built-in laser pointer.
CAUTION! Do not point laser beam at people. Do not stare into laser beam.
OK
Press OK to confirm selected option in menu.
GAMMA
Press GM+ or GM- to select between gamma settings.
STORE
Press STORE, then one digit 0-9, to store user setting in memory.
RECALL
Press RECALL, then one digit 0-9, to recall user setting from memory.
0-9
Used for various numeric functions.
