User’s ma n ual

(sh o r t form)

NVIP-2H-6201-II

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic

Equipment (2012/19/EU) and further amendments. By ensuring this product is disposed of correctly, you will

help to prevent potential negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

Out of concern for human health protection and friendly environment, we assure that our products falling under

RoHS Directive regulations, regarding the restriction of the use of hazardous substances in electrical and

electronic equipment, have been designed and manufactured in compliance with the above mentioned

regulations. Simultaneously, we claim that our products have been tested and do not contain hazardous

substances whose exceeding limits could have negative impact on human health or natural environment.

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member

States relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106,

with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE)

(OJ L 197, 24.7.2012, p. 38–71,with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substan-

ces in electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual;

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

TABLE OF CONTENTS ....................................................................................................4

1. FOREWORD INFORMATION................................................................................... ..5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimensions .............................................................................................7

1.4. Package contents .................................................................................................7

2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................8

2.1. Description of connectors and control tools........................................................8

2.2. Ethernet cable connecting ..................................................................................9

2.3. Camera mounting ..............................................................................................10

2.4. Starting the IP camera .......................................................................................11

2.5. Initial configuration via the web browser..........................................................12

2.6. Security recommendations for network architecture and configuration ......... 13

3. NETWORK CONNECTION USING WEB BROSWER .........................................14

3.1. Recommended PC specification for web browser .............................................14

3.2. Connection with IP camera via web browser.....................................................14

4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................16

4.1. Displaying live video. ........................................................................................16

5. ELECTRIC CONNECTORS AND ACCESORIES .................................................17

5.1. MicroSD card installation .................................................................................17

6. FACTORY SETTINGS RESTORING ......................................................................18

6.1. Software factory settings restoring via web browser .........................................18

6.2. Software factory settings restoring via NMS IPTool………...………………..18

6.3. Hardware factory settings restoring ......................………………..…………...19

TABLE OF CONTENTS

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

 Sensor resolution: 2.0 megapixels

 Mechanical IR cut filter (IR operation capability)

 Min. Illumination from 0.01 lx

 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

 Built-in webserver: camera configuration through the website

 Video compression: H.264, H.265, MJPEG

 Max. video resolution up to 1920 x1080

 Electronic Shutter from 1 s to 1/100000 s.

 Digital Noise Reduction (DNR)

 Highlight Compensation

 Back Light Compensation

 Reduction of image flicker (Antiflicker)

 The compression, resolution, speed and quality can be defined individually for each stream

 Supports up to 2 streams

 ONVIF Protocol Support

 RTSP protocol support for video transmission

 ROI zones

 Privacy Zones

 Micro SD Card Slot, capacity up to 128 GB

 Reset button

 Wide range of responses to alarm events: e-mail with attachment, SD card

 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

 Power supply: 12 VDC / PoE

FOREWORD INFORMATION

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.9” SmartSens

Number of Effective Pixels 1936 (H) x 1096 (V)

Min. Illumination 0.01 lx/F2.0 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter auto: 1 s ~ 1/100000 s

Digital Slow Shutter (DSS) up to 1 s

Wide Dynamic Range (WDR) yes

Digital Noise Reduction (DNR) 2D, 3D

Defog Function (F-DNR) yes

Highlight Compensation (HLC) yes

Back Light Compensation (BLC) yes

Reduction of image flicker

(Antiflicker) yes

LENS

Lens Type standard, f=2.8 mm/F2.0

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Level Adjustment yes

Switching Delay 2 ~ 120 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240,

320 x 240 (QVGA)

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode 2 streams

Video/Audio Compression H.264, H.265, MJPEG/G.711

Number of Simultaneous

Connections max. 3

Bandwidth 9 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, UPnP, QoS/DSCP,

IEEE 802.1X, PPPoE, SMTP

ONVIF Protocol Support Profile S/G

Camera Configuration from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software NMS, NVR-6000 Viewer

Mobile applications SuperLive Plus (iPhone, Android)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Motion Detection yes

Region of interest (ROI) 3

Video Content Analysis (VCA) line cross, zone entrance, Video Blurred

Image Processing sharpening, mirror effect, vertical flip, horizontal flip

Prealarm/Postalarm up to 2 s/up to 120 s

System Reaction to Alarm Events e-mail, e-mail with attachment, saving file on FTP server, saving file on

SD card

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

FOREWORD INFORMATION

1.3. Camera dimensions (mm)

Camera NVIP-2H-6201-II

1.4. Package contents

After opening the package make sure that the following elements are inside:

 IP camera

 Accessories bag

 Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not

compatible with IEEE 802.3af standard (items called “passive PoE power supply”). Damages

caused by the usage of improper power supply source are not covered by the warranty.

IR LED

LED Number 1

Range 30 m

Angle 120°

INTERFACES

Audio Input/Output 1 x Jack (3.5 mm)/-

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 128GB

INSTALLATION PARAMETERS

Dimensions (mm) with bracket: 75 (W) x 75 (H) x 170 (L)

Weight 0.4 kg

Degree of Protection IP 67 (details in the other chapters of this manual)

Enclosure aluminium, white, fully cable managed wall mount bracket in-set

included , IK10 impact rating

Power Supply PoE, 12 VDC

Surge protection TVS 4000 V

Power Consumption 3 W, 6 W (IR on)

Operating Temperature -30°C ~ 60°C

170

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

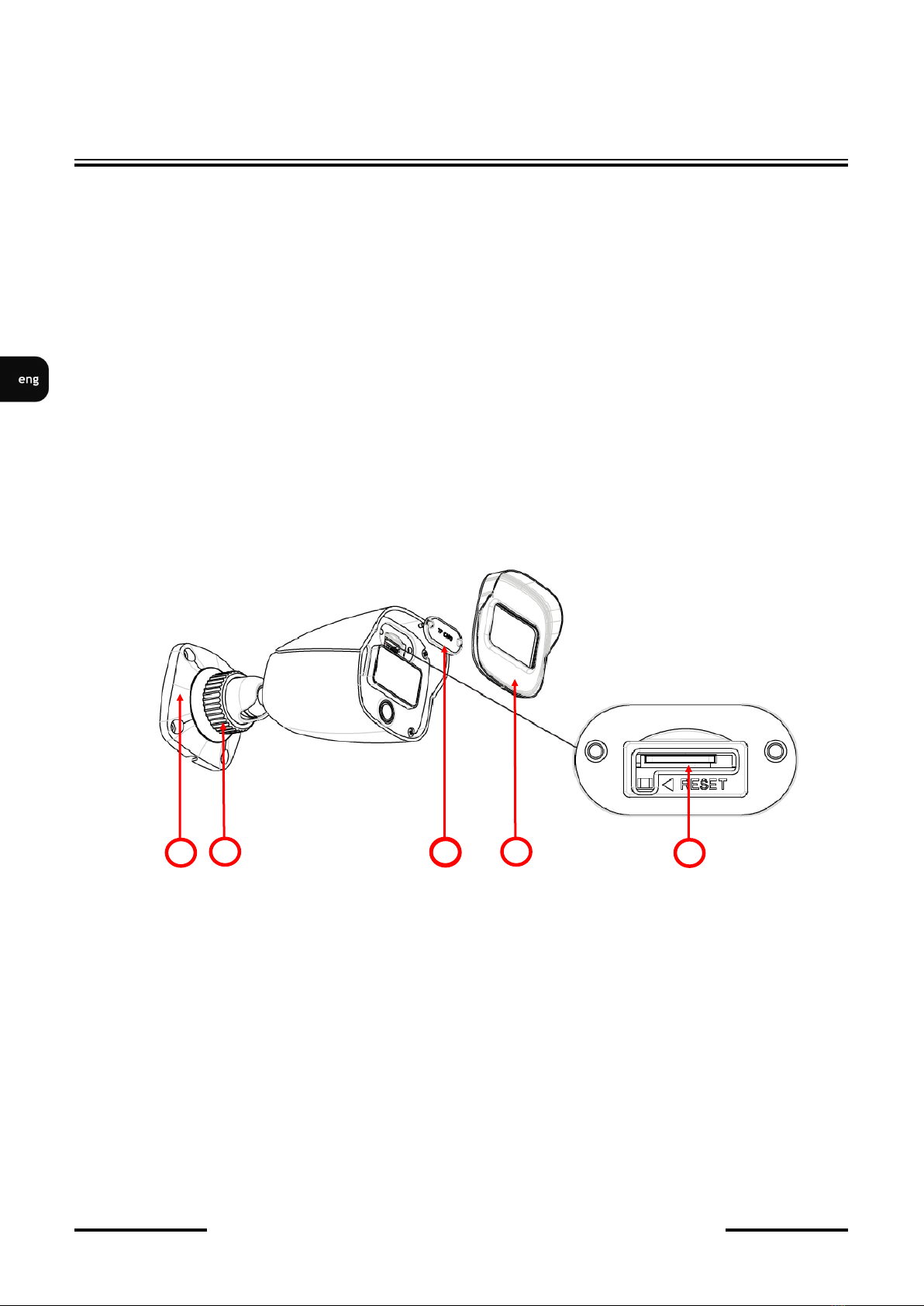

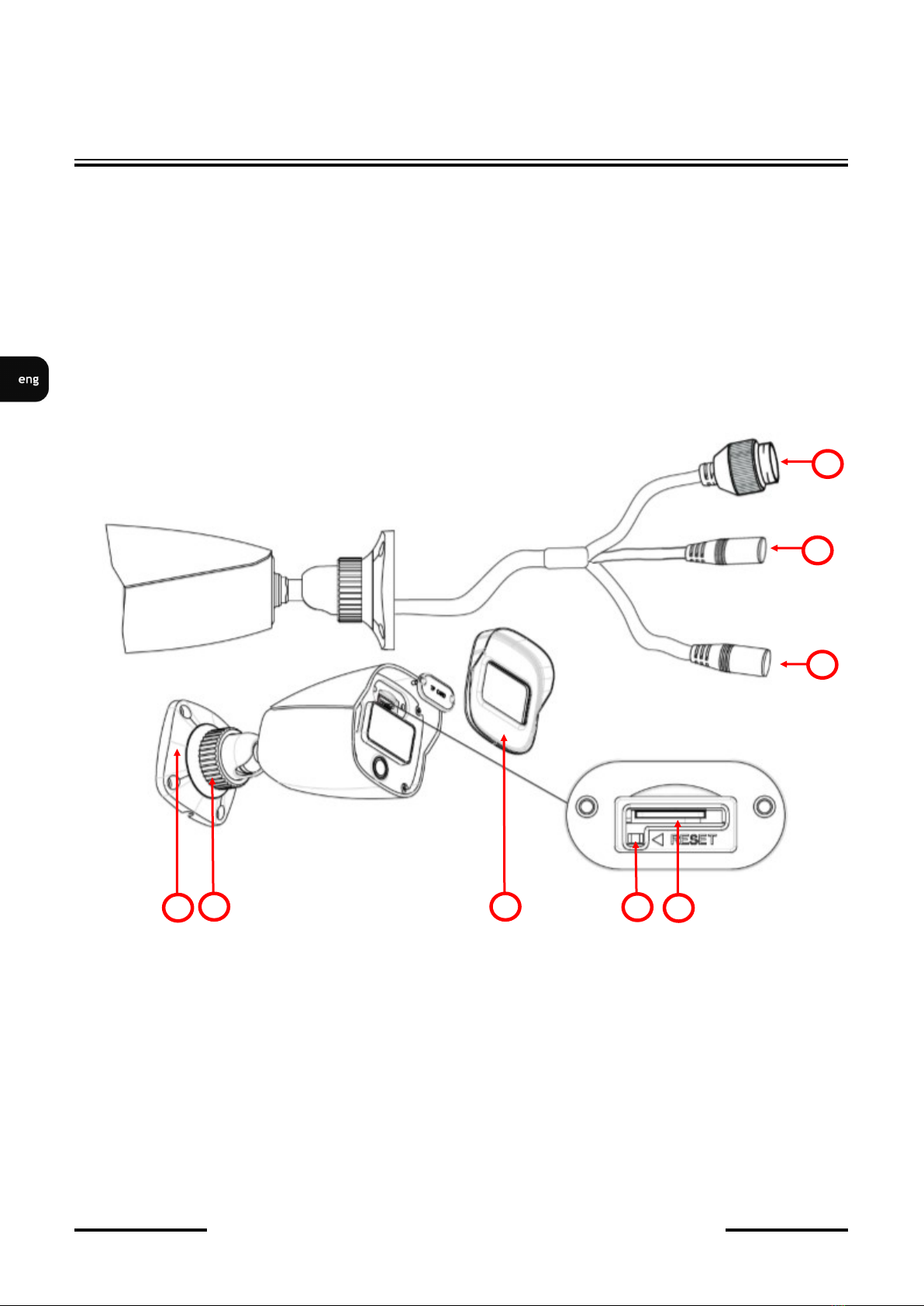

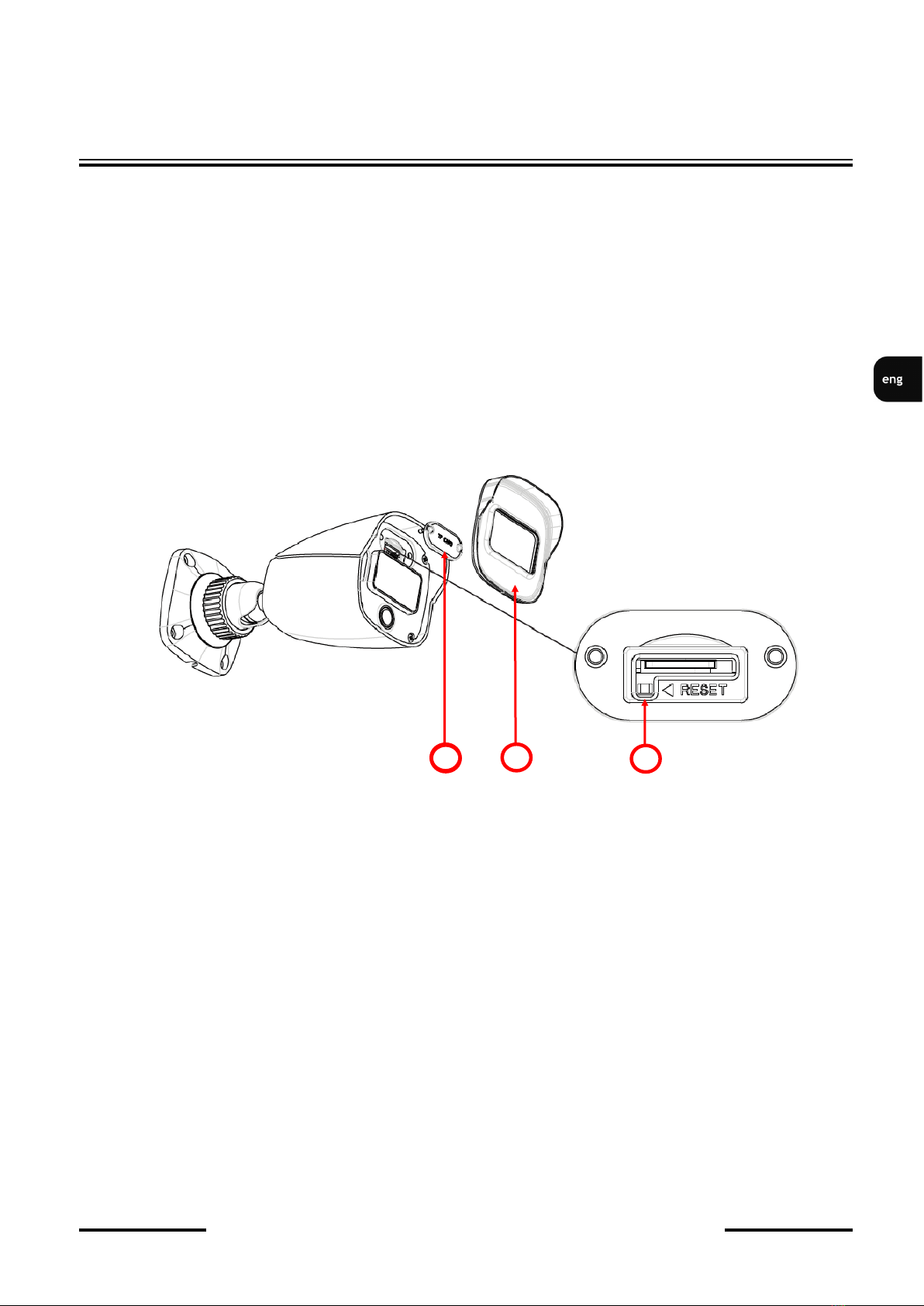

2.1 Description of connectors and control tools

1. 100 Mb/s Ethernet port (PoE RJ-45 connector)

2. Audio input (Jack 3.5 mm)

3. Power supply 12VDC

4. Base of camera

5. Counter nut

6. Plastic cover

7. Reset button

8. MicroSD card slot

678

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2.2. Ethernet cable connecting

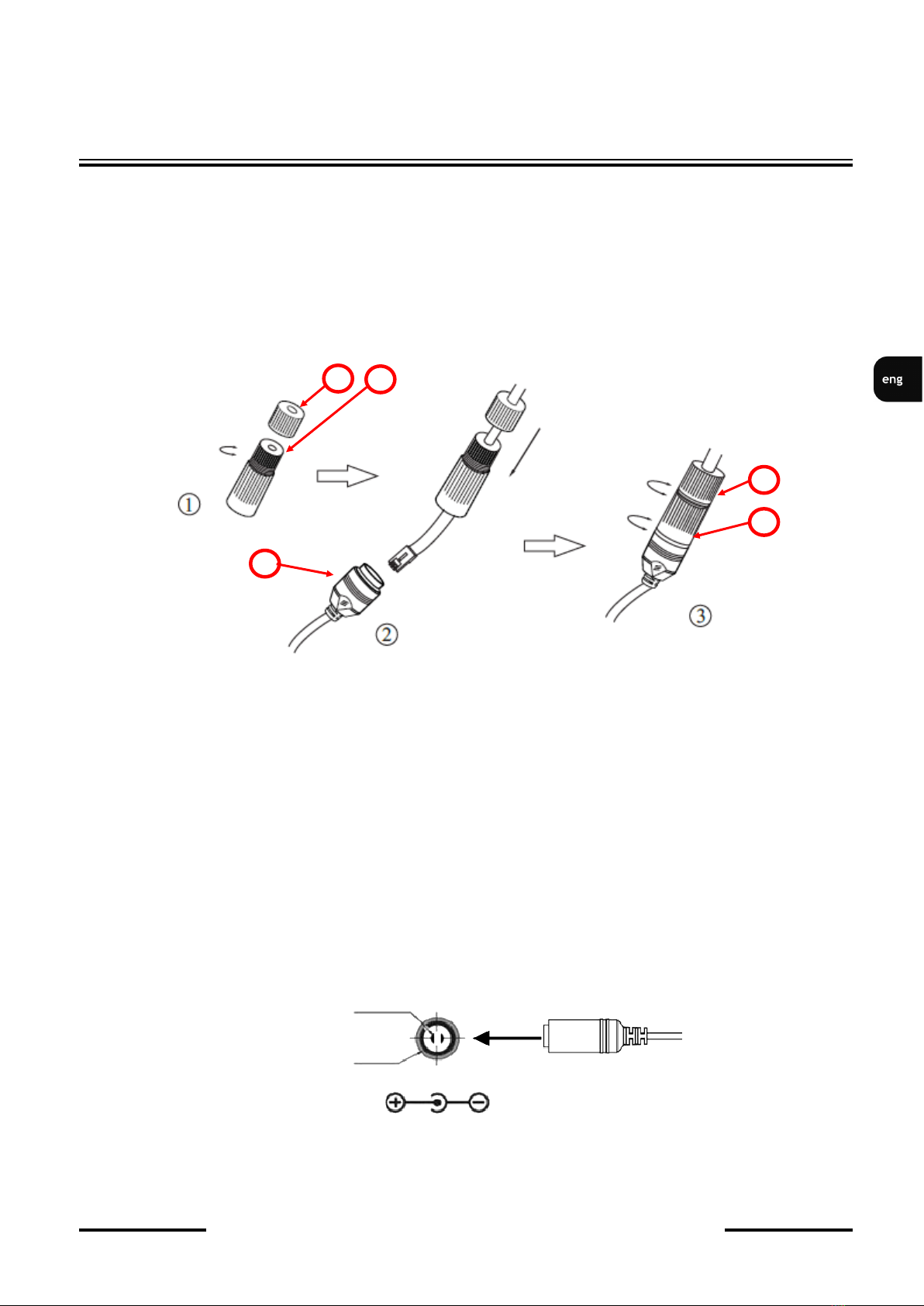

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (1) from the connector cover (2).

2. Route the network cable (without the RJ-45 plug) through the components (1) and (2), than crimp the

RJ-45 connector.

3. Plug the RJ-45 connector into the hermetic socket (3), screw the connector cover (2), and than the

nut (1).

CAUTION!

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the camera by connection cables. Connection

cables protection through i.e. sealing up is the camera installer duty. The manufacturer is not

liable for any camera damages caused as a result of failing in performing that activity by

installer, which also means that camera damaged in that way is not subject to warranty repairs.

CAUTION!

Camera power supply connector is not hermetic. Installer should seal this connector by himself.

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE (802.3af) power supply unit. If you’re using external power

supply please connect wires according to polarisation shown on picture:

CAUTION!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

12 VDC +

GND

Schema of 12VDC power supply connector

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

2.3. Camera mounting

To mount a camera please follow the instructions below:

 Unscrew the counter nut (2).

 Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern

and mark future drilling holes for screws and wires.

 Drill holes for screws, wires and base.

 Mount the camera base (1) using the supplied plugs and screws.

 If necessary, remove the plastic cover (4), unscrew the camera service panel (3), mount

microSD card in the socket (5), screw the camera service panel (3) and put on plastic cover(4).

 Connect the camera wires.

 Adjust camera position.

 Tighten to the stop counter nut (2).

CAUTION!

Please note that the wall or ceiling must have enough strength to carry the IP Camera.

CAUTION!

In order to obtain declared degree of protection please seal the camera bracket to prevent water

getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please

additionally seal the junction with appropriate sealing mass. Please pay special attention to any

mounting holes and if they are a loop-through ones, seal them too.

START-UP AND INITIAL CAMERA CONFIGURATION

123

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

2.4. Starting the IP camera

To run NOVUS IP camera you have to connect ethernet cable between camera and network PoE switch

with PoE support (IEEE 802.3af).

You can also power it from 12VDC power supply compatible with camera power supply specification.

After connecting power status red LED should light on. Initialization process takes about 2 minutes.

Then you can connect to the camera via web browser.

The recommended way to start an IP camera and perform its configuration is a direct connection to the

network switch which is not connected to other devices. To obtain further information about network

configuration parameters (IP address, gateway, network mask, etc.) please contact your network

administrator.

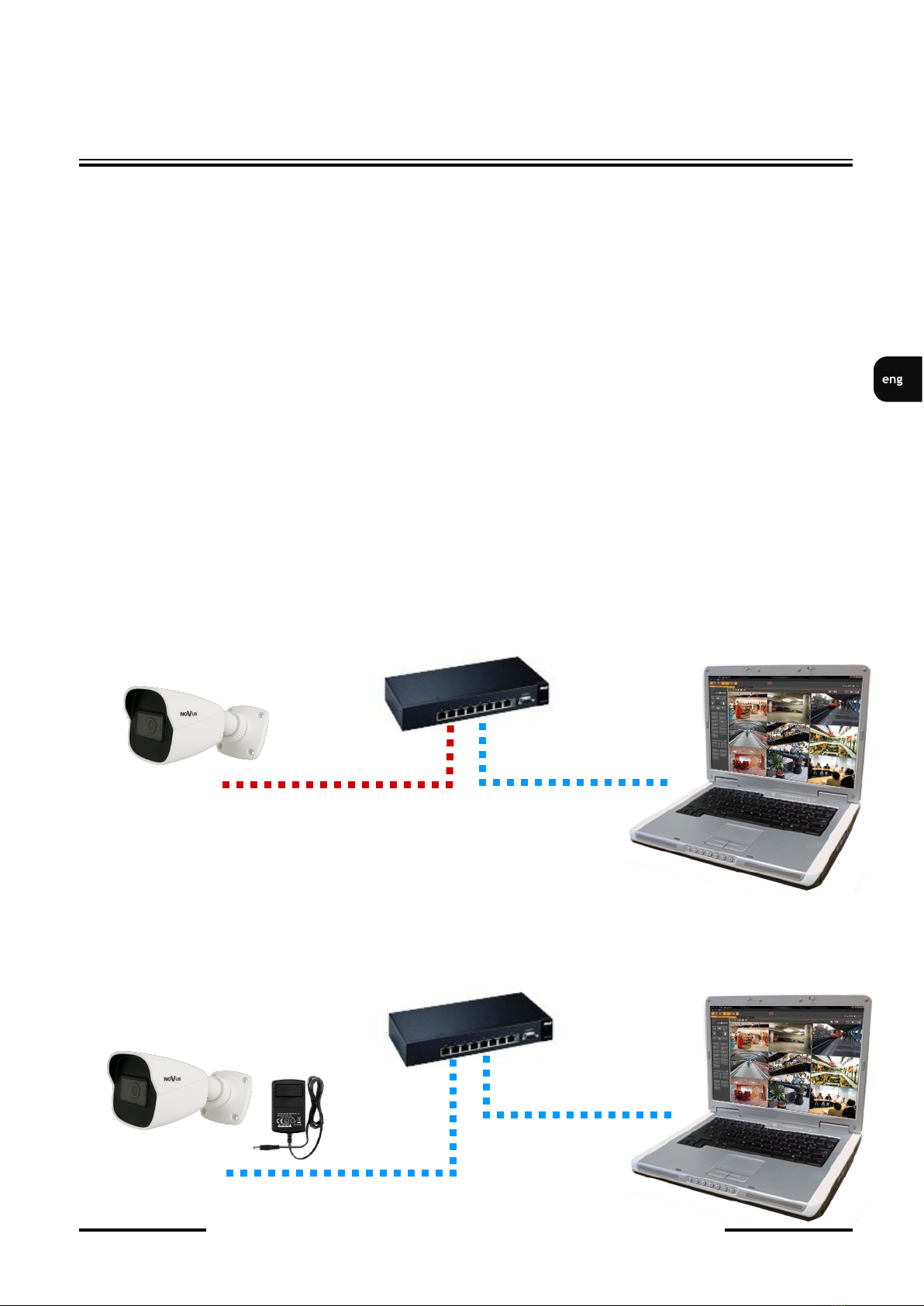

 Connection using network switch with PoE support

 Connection using external power supply and network switch

START-UP AND INITIAL CAMERA CONFIGURATION

IP Camera

Network transmission

Network Switch Computer

Network transmission

Power supply and

network transmission

Computer

IP Camera

Network PoE Switch

Network transmission

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

 Connection using external power supply directly to the computer

Information:

Power supply adapter is not included. Please use power adapter with parameters specified in user ‘s

manual.

2.5. Initial configuration via the web browser

The default network settings for NVIP-2H-6201-II camera are :

1. IP address= 192.168.1.200

2. Network mask - 255.255.255.0

3. Gateway - 192.168.1.1

4. User name - root

5. Password - pass

Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can

operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from

192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for

camera and PC computer

You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera

yourself or select DHCP mode (DHCP server is required in this method in target network) by using

web browser or by NMS software. When you use DHCP server check IP address lease and its linking

with camera MAC address to avoid changing or losing IP address during device operation or network/

DHCP server breakdown. You have to remember to use a new camera IP address after changing

network parameters.

After network setting configuration has been done, the camera can be connected to a target network.

START-UP AND INITIAL CAMERA CONFIGURATION

IP Camera

Network transmission - cross over cable

Computer

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

2.6. Security recommendations for network architecture and configuration

CAUTION!

Below are shown security recommendations for network architecture and configuration

of CCTV systems that are connected to the Internet to reduce the risk

of unauthorized interference with the system by a third party.

1. Absolutely change the default passwords and user names (if the device gives this possibility) of

all applied network devices (recorders, cameras, routers, network switches, etc.) to the

severely complexity password. Use lowercase and uppercase letters, numbers, and special characters

if there is such possibility.

2. Depending on the available functionality in the order to restrict access to the used network devices at

the administrator account level, it is recommended to configure the users accounts accordingly.

3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open the

access to recorder system from the Internet on all ports, which gives possibility for an unauthorized

interference with the system.

Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance

of the connection (detailed information about ports of communication in different models of recorders,

cameras, etc. can be found in the operating instructions).

4. Use routers with firewall function and make sure it is enabled and properly configured.

5. It is recommended to change the default network communication port numbers of used devices

if there is such possibility.

6. If used network devices has aUPnP feature and it is not used, turn it off.

7. If used network devices has aP2P feature and it is not used, turn it off.

8. If used network devices support HTTPS protocol for connection, it is recommended to use it.

9. If used network devices support IP filtering for authorized connections function, it is recommended

to use it.

10. If used recorder has two network interfaces it is recommended to use both of them to physically

separate network for cameras and network for Internet connection. The only device in the system,

accessible from Internet will be recorder - there will be no physically access directly to any camera.

START-UP AND INITIAL CAMERA CONFIGURATION

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

3. NETWORK CONNECTION USING WEB BROSWER

3.1. Recommended PC specification for web browser connections

Requirements below apply to connection with an IP camera, assuming smooth image display

in 1920x1080 resolution and 30 fps speed.

1. CPU Intel i7 3 GHz or faster

2. RAM Memory min. 6 GB

3. VGA card Nvidia GeForce 1GB

4. OS Windows 7 / 8 / 8.1 / 10

5. Network card 100/1000 Mb/s

3.2. Connection with IP camera via web browser

CAUTION!

To maintain correct operation as snapshot or video recording you must run the browser as an

administrator.

You have to enter camera IP address in the web browser address bar. If IP address is correct user login

window will be displayed:

In the Language box you can change the display language. Available languages: Polish, English and

others.

CAUTION!

Default user is root and default password is pass. The camera will ask you to change the default

password during the first login (recommended). To do this, check the Modify password option and then

enter and confirm the new password. In order to log into the camera without changing the password,

press the OK button. The message will be displayed each time you log in, until you change your

password, or select the Do not show again option.

NETWORK CONNECTION USING WEB BROWSER

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

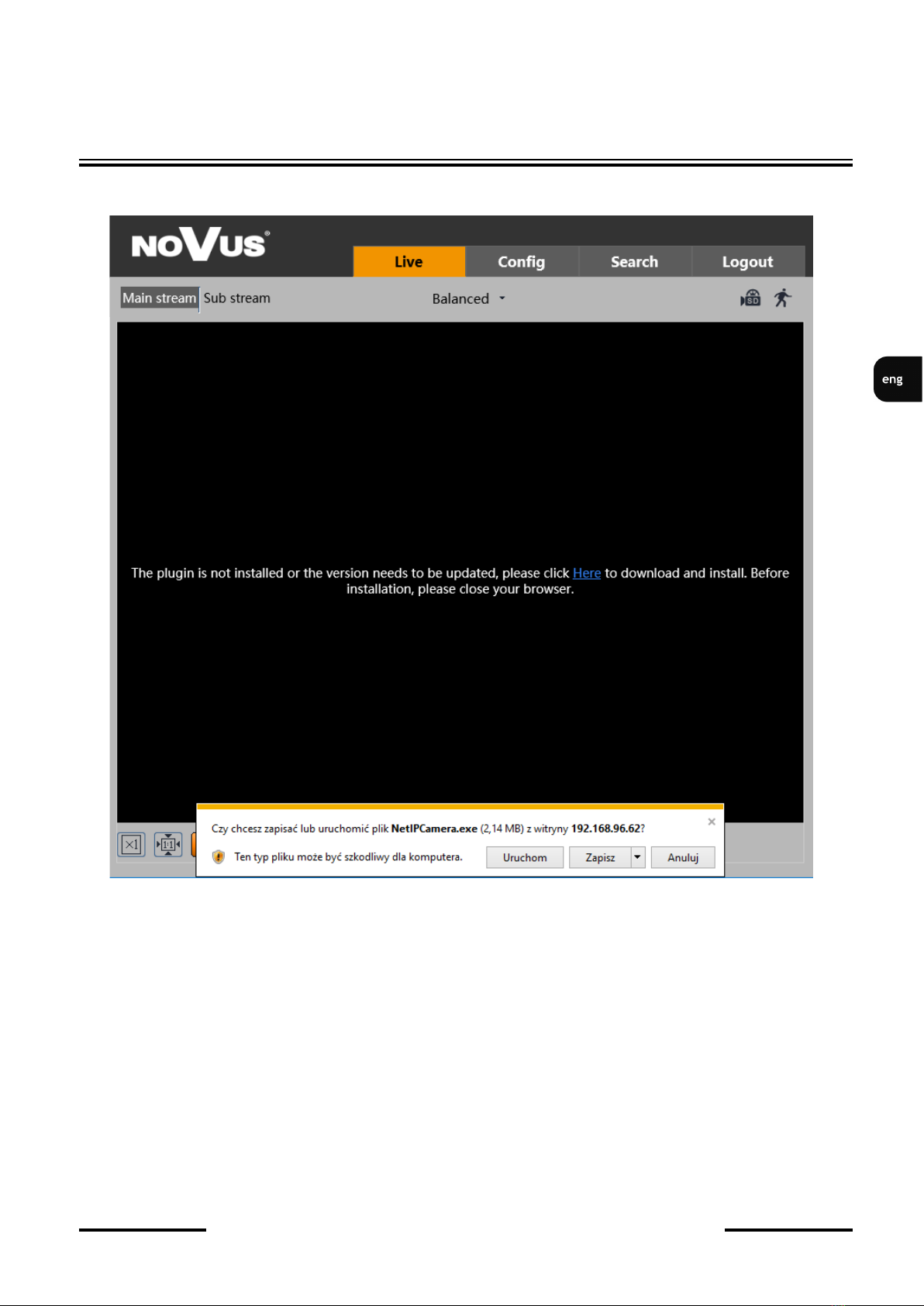

If you’re first time running the camera, you will see the screen as below.

To correctly camera working, you need a NetIPCamera plugin. You have to download and install it.

To do it just click Save button, then Run, close IE browser, choose the language, click Install button

and at the end click Finish button. After installation run IE browser.

CAUTION!

In Windows Vista/7/8/8.1/10 the ActiveX applet may be blocked by Windows Defender or User

account control. In such case you should allow to run this applet, or simply disable these functions.

CAUTION!

If the installation fails, changing security settings for the IE browser is required. In order to do that,

please select Enable for Initialize and script A ctiveX controls not marked as safe and Download

unsigned ActiveX controls option

NETWORK CONNECTION USING WEB BROWSER

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

4. WWW INTERFACE - WORKING WITH IP CAMERA

4.1 Displaying live video

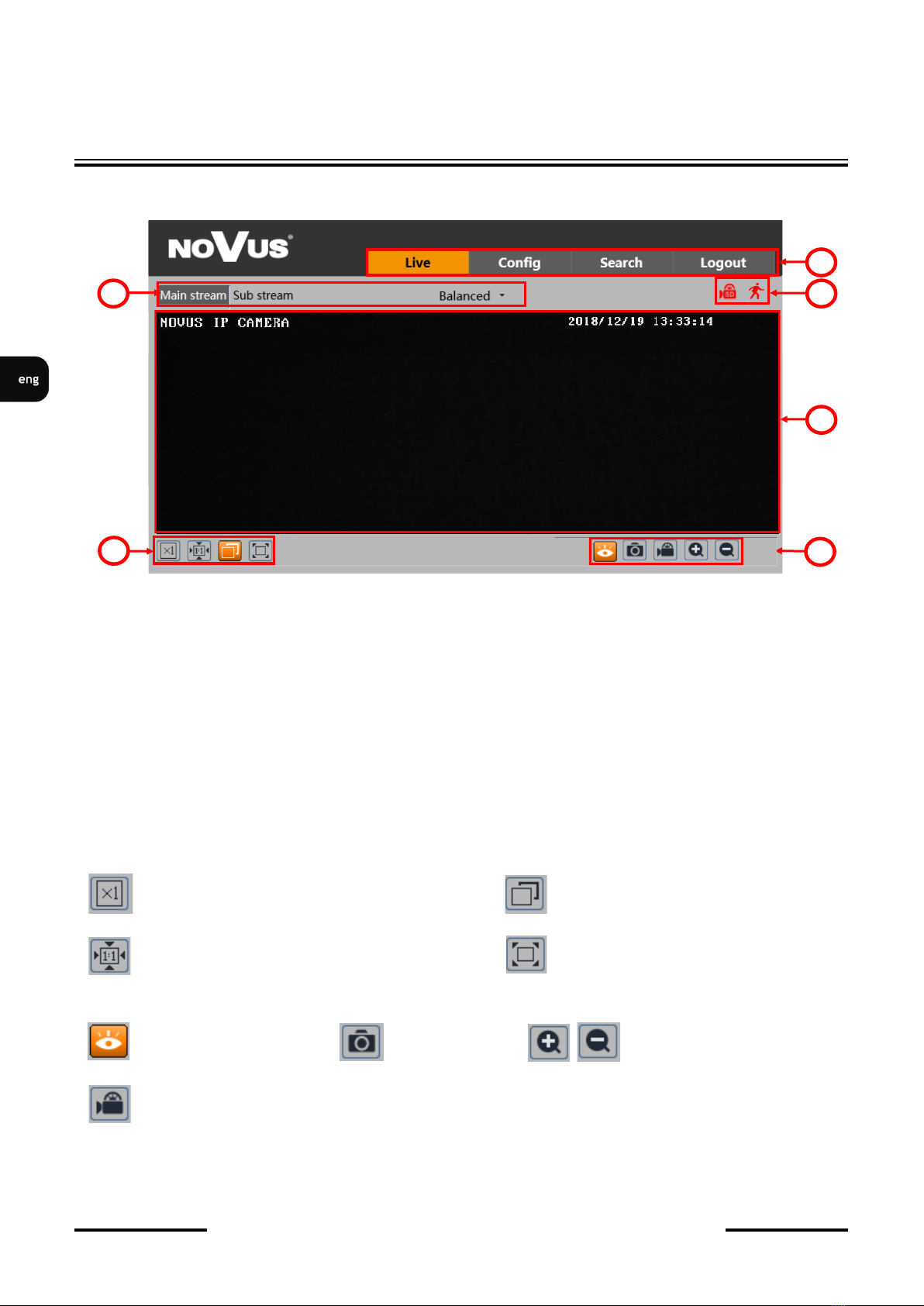

1. Camera menu

 Live - opens the camera live video

 Config - opens the camera configuration menu

 Search - opens the camera playback

 Logout - button used to log out the current user

2. The buttons for changing the displayed stream and fluency - allow to change the displayed stream to

Main stream, Sub stream and also allow you to choose between Real-time, Balanced and Fluent

fluency.

3. Alarm icons - icons showing the current status of some camera alarms.

4. Live video window

5. Image settings buttons - these buttons change the picture display mode in the live video preview

Original size Adapt

Proper size Full screen

6. Function buttons - these buttons allow you to enable / disable some of functions

Stop live view Snapshot Zoom In/Zoom Out (digital)

Start recording

WWW INTERFACE - WORKING WITH IP CAMERA

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

5. ELECTRIC CONNECTORS AND ACCESORIES

5.1. MicroSD card installation

Camera supports microSD cards up to a maximum size of 128GB. In order to install the card

properly, please follow the instructions below:

 Turn off the camera power.

 Remove the plastic cover (2), unscrew the camera service panel (1).

 Mount microSD card in the socket (3).

 Screw the camera service panel (1) and put on the plastic cover (2).

 Turn on the camera.

 Check the microSD card by checking its capacity in the “System” -> “SD Card” tab.

ELECTRIC CONNECTORS AND ACCESORIES

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

FACTORY SETTINGS RESTORING

6. FACTORY SETTINGS RESTORING

Restoring factory settings of the IP camera restores all default settings. This process takes about two

minutes. NOVUS NVIP-2H-6201-II cameras allow to restore defaults via:

 software (via web browser )

 software (via NMS IPTool)

 hardware (using reset button (RST))

6.1. Software factory settings restoring via web browser

Restoring factory settings via web browser allows you to optionally keep some settings, such as

network settings. To restore default settings go to: “Maintenance -> Backup and Restore” tab.

6.2. Software factory settings restoring via NMS IPTool

NMS IPTool (version 1.23.4 or later) allows to restore factory settings. To restore settings find camera

via NMS IPTool, click right mouse button and choose “ Restore default configuration”. In 30 seconds it

is required to turn the camera power off and on.

NVIP-2H-6201-II - User’s manual (short form) ver 1.0

6.3. Hardware factory settings restoring

In order to restore factory settings using reset button (RST), please follow the instructions below:

 Remove the plastic cover (2), unscrew the camera service panel (1).

 Press the reset button (3) and hold on for 10 seconds.

 Release button

 Screw the camera service panel (1) and put on the plastic cover (2).

 Log on after 2 minutes using default IP address (http://192.168.1.200) and default user name (root)

and password (pass).

FACTORY SETTINGS RESTORING

2020-07-20 MO PF (JZ)

AAT SYSTEMY BEZPIECZEŃSTWA Sp. z o.o.

431 Pulawska St., 02-801 Warsaw, Poland

tel.: +4822 546 07 00, fax: +4822 546 07 59

www.novuscctv.com

Table of contents

Languages:

Other AAT Holding Security Camera manuals

AAT Holding

AAT Holding NVIP-5VE-6202 User manual

Popular Security Camera manuals by other brands

Avigilon

Avigilon H5A installation guide

Panasonic

Panasonic KX-HCM280 operating instructions

Divis

Divis CH 03202 installation instructions

Q Imaging

Q Imaging QI Click user manual

Huawei

Huawei X3221-I quick start guide

D-Link

D-Link DCS-5020L user manual

ACTi

ACTi D52 Hardware user manual

Huviron

Huviron DC80IR manual

Honeywell

Honeywell EQUIP HD3MDIHX user guide

Vimtag

Vimtag VT-361 manual

Avonic

Avonic AV-CM41-VCUC-B user manual

Sony

Sony IPELA SNC-DH260 Quick manual

D-Link

D-Link DCS-8302LH user manual

Axis

Axis V5925 user manual

Sony

Sony IPELA SNC-CH110 user guide

TRENDnet

TRENDnet TV-IP252P - SecurView PoE Dome Internet Camera... Quick installation guide

ALIBI

ALIBI ALI-TP1002LS Quick installation guide

GE UVD-XP3DNR(-P) user manual

AAT Holding NVIP-2H-6201-II User manual

Popular Security Camera manuals by other brands
