ABACO MACHINES AWT7523C User manual

ABACO WORKING TABLE
(AWT7523C)
OPERATION MANUAL
ABACO MACHINES
ABACO MACHINES (USA)
14508 S. Garfield Ave., Paramount, CA 90723, USA
Tel : [phone] Fax : [phone]
Email : [email protected]
Website : www.abacomachines.com

APPLICABLE MODEL
of this WORKING TABLE:
AWT7523C
OPERATION MANUAL
ABACO MACHINES
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

INDEX
Item Pages
I Equipment General Information................................... 1
II Technical Specifications ............................................. 1
1) Dimensions ............................................................. 1
.........................................................2) Spare Part List 2
III Safety Instructions........................................................ 4
1) General Warnings, Cautions and Notes..................... 4
2) Device usage ........................................................... 5
IV Appendix ..................................................................... 7
V Technical Problems & Solutions.................................. 8
VI Inspection & Maintenance .......................................... 8
VII Warranty Policy............................................................ 9
Warranty Certificate .................................................... 10
General Safety Operation Manual Instructions Summary:
It is essential to carefully review and understood this Operation Manual
before operating the equipment. Failing to read and understand this entire
manual may cause injury or death to personnel, or damage to equipment
and the products that are being handled by this equipment if not properly
followed. This safety summary includes general safety precautions and
instructions that must be understood and applied before, during, and after
operations, as well as maintenance to ensure personnel safety and
protection of equipment. Prior to performing any task, the contents
included in this manual should be reviewed and fully understood.
This manual highlights essential operating or maintenance procedure,
practice, condition, statement, etc. that if not strictly observed, could result
in injury, or death of, personnel or long term hazards; could result in
damage to products being handled, or damage to/destruction of
equipment.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

Length (A)
inches (mm)
Width (B)
inches (mm)
Height (C)
inches (mm)
*
W.L.L.
lbs (kg)
75 ⁷⁄₈ (1927) 23 ¹⁵⁄₁₆ (608) 37 ¹⁵⁄₁₆ - 40 ⁹⁄₁₆
(965 - 1030) 4824 (2200)
Net Weight
lbs (kg)
169.4 (77)
- Working Table (AWT7523C) is used to put the stone slab for
grinding, polishing and drilling.
- Linking hooks are designed to create multi-way table layout
arrangements by combination of single tables. (Refer to page 7.)
- Rubber-lined table protects stone slabs from scratches or
damages.
- The design is convenient and efficient, can be assembled to suit
the shape and size of the stone slab.
- With the design of each detachable part should be easy to
disassemble, convenient for moving and repacking.
- It has a high level adjustment at the bottom of the table, helping
to adjust the surface of stone slab to be even.
- AWT7523C is made of square, rectangular steel tubes.
- In addition, it has four swivel casters for being easy to move the
table in any position.
I. EQUIPMENT GENERAL INFORMATION:
II. TECHNICAL SPECIFICATIONS:
1) Dimensions:
* W.L.L: Work Load Limit
1
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

3
02
08
12
22
01
04
04
07
01
20
01
04
04
08
04
CODE DESCRIPTION QTY.
AWT7523C-01
AWT7523C-02
AWT7523C-03
AWT7523C-04
AWT7523C-05
AWT7523C-06
AWT7523C-07
AWT7523C-08
AWT7523C-09
AWT7523C-10
AWT7523C-11
AWT7523C-12
AWT7523C-13
AWT7523C-14
AWT7523C-15
Middle Support
SPARE PARTS LIST
01
AWT7523C-16
AWT7523C-17
AWT7523C-18
AWT7523C-19
AWT7523C-20
02
40
04
04
AWT7523C-21
Bolt M10x20 16
AWT7523C-22 16
AWT7523C-23
Washer Ø10xØ20x2 16
Spring washer Ø10
POS.
Swivel caster
Rubber pad 2
Washer Ø10xØ20x1.5
Rubber pad 1
Right Frame
Circlip Ø12
Washer Ø12
Pusher, aluminum
Thread Shaft
Bottom Frame
Nut M10
Top Frame
Lock Nut M12
Height adjust handle
Locking Nut
Left Frame
Screw M4x15
Bolt M10x120
Bolt M10x70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

2) Spare part list:
2
Center Support Bar
(sold separately) can be attached if required.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

4
III. SAFETY INSTRUCTIONS:
1) General Warnings, Cautions and Notes:
a. Before operations:
Before operation make sure the following:
- All nuts and bolts are tightened securely.
- All four swivel casters are locked safely.
- The Working Table is placed on a flat and smooth surface, not on a
wavy or rough surface.
- The Working Table is in good operating condition.
- The rubber pad are clean, no dust, oil or debris on it.
- Confirm all the welded joints are free from any defects or damage,
such as separation, crack, and so forth.
- Use appropriate PPE (Personal Protective Equipment) to protect
against injury.
b. During operations:
- Make sure the weight of the slabs being placed is within the
specified W.L.L (Refer to the table at page 1).
- Follow the steps and instructions in this operation manual.
- For safety purposes, you (the operator) are responsible for
following all applicable laws and regulations in your region.
c. After operations:
- Clean the Working Table thoroughly after each use.
- Store in a well-ventilated place, avoid places with high heat or
humidity.
Note: See Maintenance Instructions section in this manual for more
details.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

2) Device usage:
Step 1: Lock four swivel casters (Figure 1.1).
Figure 1.1
Step 2: Place the stone slab on the table (Figure 2.1).
5
Stone slab
Figure 2.1
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

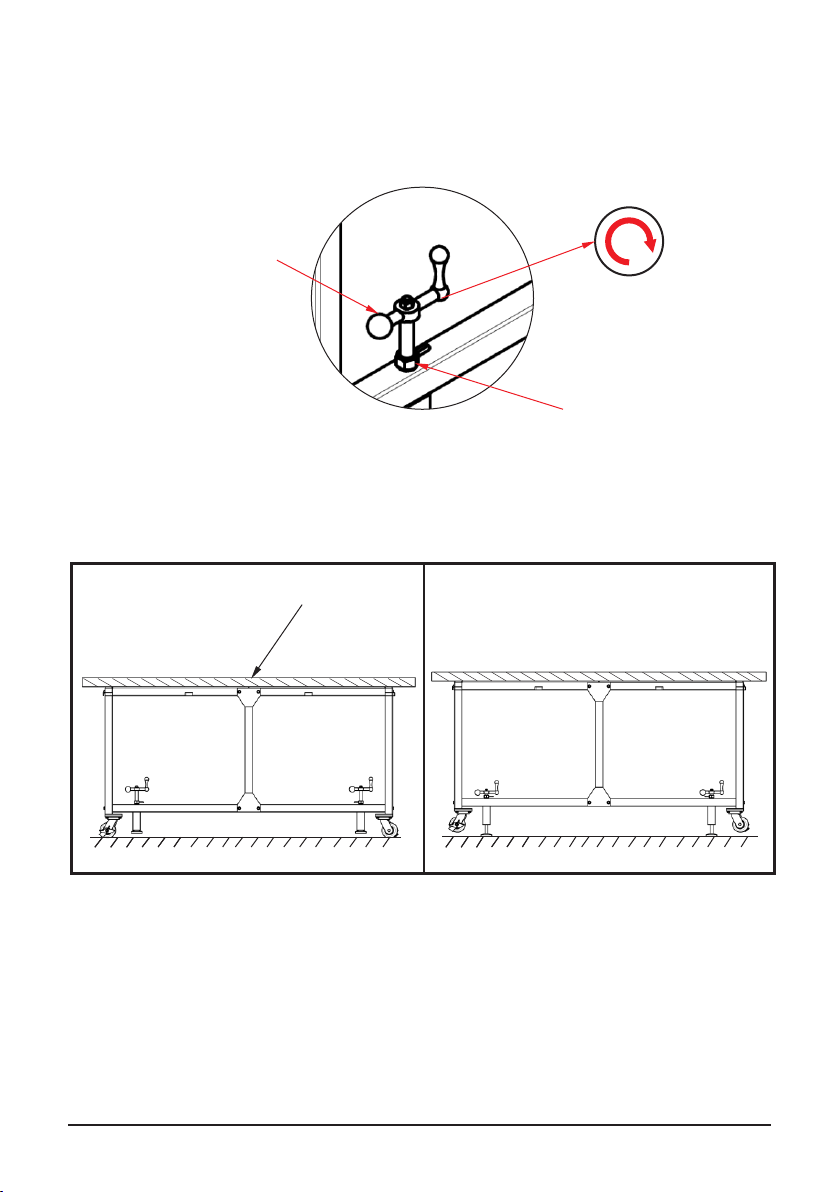

Before After
6
Stone slab
Figure 2.2
Locking nut
Height adjuster handle
Note: To adjust the stone slab surface even, loosen the locking nut
and rotate the handle clockwise (Figure 2.2).height adjuster
6
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

IV. APPENDIX:
Various ways to layout/display the Working Table.
Linking hook
7
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

8
V. TECHNICAL PROBLEMS & SOLUTIONS:
VI. INSPECTION & MAINTENANCE:
- Operator is responsible to check the equipment regularly, not
limited to check the welded parts without any defects or cracking,
etc. to ensure the equipment is in good operating conditions.
- Periodically, operator is responsible to schedule equipment
maintenance, especially for check and tighten the nuts and bolts.
- Always keep the equipment clean and away from grease or any
foreign substance as they may cling onto the table and prevent it
from scratching or operating improperly.
- Operator is recommended to always keep necessary spare parts on
hand for immediate maintenance or repair purposes before
operating.
- Operator is responsible to ensure all parts are genuine parts from
the manufacturer, and they are designed specifically for to be
installed to this equipment.
- Operator is responsible to ensure all repair installation are
performing appropriately and in safety manner.
- Store this equipment in a well-ventilated place (dry and cool),
avoid places with high heat and/or humidity.
- Keep maintenance records to ensure safety checks are carried out.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved
Threaded shaft
The swivel
casters are
hard to move.
Dust and/or
rust.
Clean, lubricate
and/or replace
with a new one.
Height
adjuster
handle is hard
to turn.
Dust, rust,
and/or
damage of
the threaded
shaft.
Clean, lubricate
and/or replace
with a new one.
Technical
problem Cause Solution Image

9
VII. WARRANTY POLICY:
At the time of delivery, it is necessary to inspect the Abaco
Working Table (AWT7532C) to make sure that it has not been
damaged during shipment. The product at the time of dispatch is
warranted to be free of defects in material or workmanship.
Claims for errors, shortages, defects, or nonconformities
ascertainable upon inspection must be made in writing within eight
business days from the date of product delivery. Claims not made as
provided above and within the applicable time period will be barred
and no other claims will be considered.
We provide a warranty on the one (1) year Abaco Working Table
(AWT7532C) from the date of purchase.
During warranty period, we will provide the replacement parts at
no charge (Please note: shipping and handling fees may apply).
Warranty coverage is void if:
- The operator failed to comply with the instructions in the
manual.
- The specifications are not followed.
- Damage is due to inadequate maintenance and inspections.
- Damage is due to improper storage and/or usage.
- Modification and repairs made to the equipment were performed
by the user/operator without the manufacture's knowledge and
agreement.
- Aftermarket or none genuine spare parts were used for repair
installation.
- Modification and repair installations were conducted by
uncertified individual.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

10
WARRANTY CERTIFICATE
You are kindly requested to read the following carefully.
PERIOD
The warranty starts from the date of purchase (date on
distributors invoice).
Warranty is valid for a period of twelve (12) months.
WARRANTY
This warranty is limited only to provide replacements of
the parts recognized by the Company as defective
(excluding worn-outs and consumables.)
The Company is not responsible for any misuse or abuse
of the product after purchase and/or caused by
negligence from the content of this manual.
In an event the equipment failed to operate and/or
required technical support, operator/user is responsible
for reaching out to our Customer Support Department.
One of our team member will inform you (operator/user)
of the appropriate procedures on how to file warranty
claim and advise you to your nearest approved service
center.
EXCLUSIONS
Warranty does not apply for damages or failures caused
by:
Misuses, errors in transportation, incorrect handling or
failing to maintain the equipment appropriately.
Use of non-genuine parts/accessories, or of incorrect
specs.
AWT7523C - Operation Manual ABACO MACHINES -All Rights Reserved

THIS MANUAL SHALL BE REVISED WITHOUT PRIOR NOTICE
FOR IMPROVEMENT PURPOSES
DO NOT COPY AND/OR QUOTE THE CONTENTS WITHOUT
PRIOR WRITTEN CONSENT OF ABACO MACHINES USA, Inc.
All Rights Reserved:
Abaco Machines USA, Inc.
E19
