Ablaze SS759C User manual

PLEASE ENSURE
Premium Range Back-Lit Mirrors
Installation Guide
SS759C / SS128C / RS600C / RS600W / RS900C / RS900W / S500C / S759C / S900C / S1200C / S1500C
SQ762W / SQ762C / R610W / R610C / RB610W / RB610C / SR759C / SR1118C

2
Installation
4
Technical Specifications
5
Safety & Care Information
6
Warranty Information
7
Contact Us
8
Contents

3

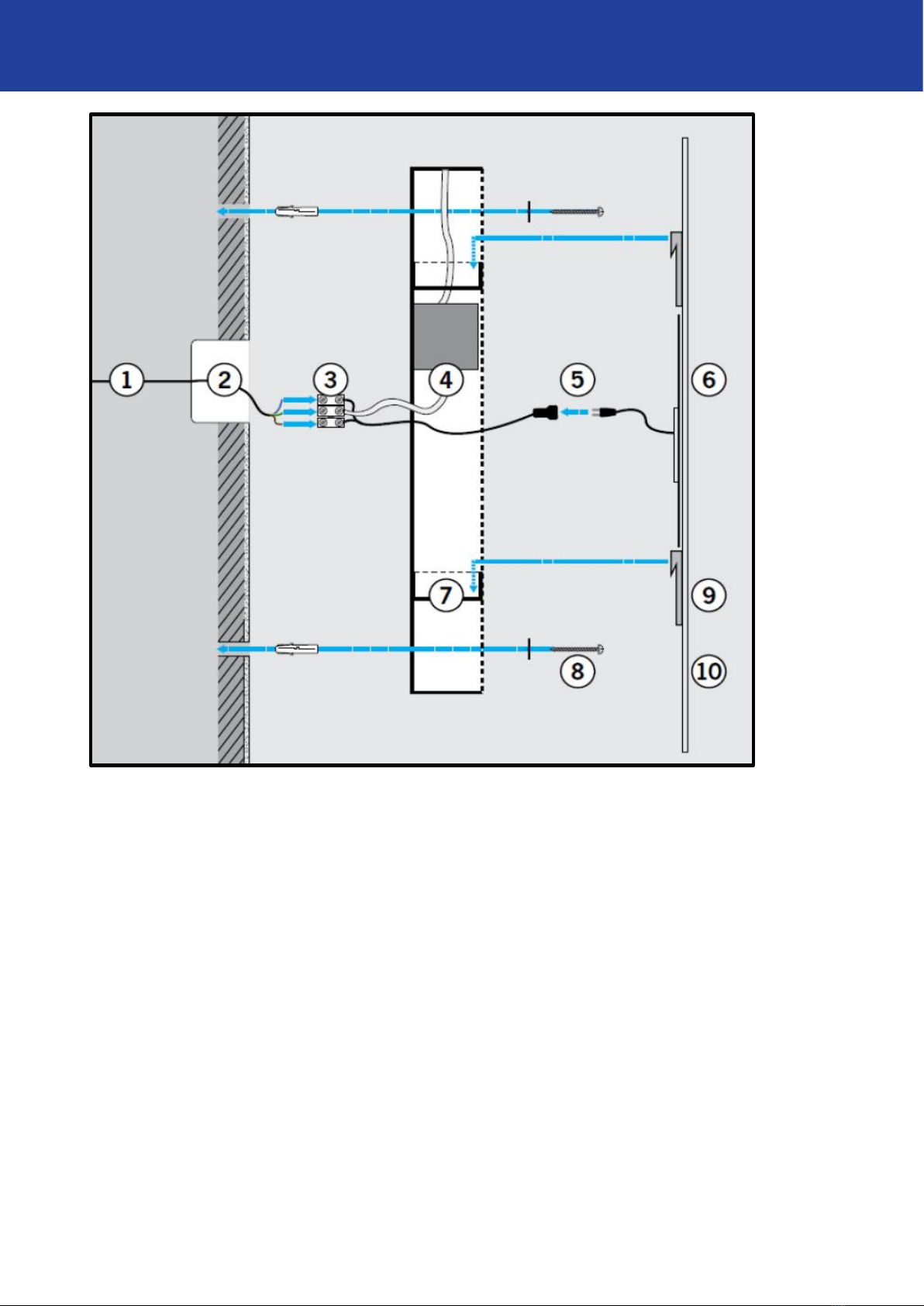

Key
1. Wall & mains supply
2. Junction box
3. Connection block
4. Transformer
5. Demister connection
6. Heating element
7. Backbox
8. Screw & wall plug
9. Metal hanger
10.
The Ablaze Premium Back-Lit Mirror models in this guide are designed to be
concealed wired (hardwired) through the back of the mirror and wired into a
separate switch, timer or PIR movement sensor. The Ablaze Premium Back-Lit
Mirrors come in two parts: the mirror with hangers and demister attached and
the backbox containing the lights and transformer. There is a small screw used
to secure these two parts together during transportation which needs to be
removed prior to installation.
Installation
Mirror

4
You will be installing the Ablaze Back-Lit Mirror as part of a high voltage mains electrical circuit.
To ensure your safety and to protect the mirror, switch off the mains power before you start the
installation.
The Ablaze Back-Lit Mirrors require mains supply and a switch/timer/PIR movement sensor.
Measure out and install all the necessary items before you install the mirror.
Remove the small fixing screw that holds the backbox to the mirror (see diagram below) and lift
the backbox away from the mirror. Place the backbox onto the wall central to your desired final
position. Whilst in position mark the four fixing holes. Drill pilot holes in the four marked position
and insert wall plugs. Screw the backbox into position. Pull the mains supply cable through the
centre of the backbox and wire into the connection block.
Connect the Thermomirror demister by slotting the black cable from the back of
the mirror into the black cable at the connection block. Line up the mirror above
the backbox and gently lower the mirror until the brackets clip into place and you
can feel the backbox take the weight of the mirror.
Installation
Please note the location of the screw will differ for each model
TRANSFORMER

5
H = Horizontal Mount
V = Vertical Mount
Supply Voltage
240V 50Hz
Wiring Method
Hardwired
Warranty
3yrs
Lighting Type
LED
SS759C
Cool
W900 x H750 x D43
H / V
86
Y
SS128C
Cool
W1200 x H800 x D43
H / V
108
Y
RS600C
Cool
600 ø x D43
N/A
41
Y
RS600W
Warm
600 ø x D43
N/A
41
Y
RS900C
Cool
900 ø x D43
N/A
79
Y
RS900W
Warm
900 ø x D43
N/A
79
Y
S500C
Cool
W750 x H500 x D45
H / V
39
Y
S759C
Cool
W900 x H750 x D45
H / V
55
Y
S900C
Cool
W900 x H900 x D45
N/A
68
Y
S1200C
Cool
W1200 x H800 x D45
H / V
103
Y
S1500C
Cool
W1500 x H800 x D45
H / V
115
Y
SQ762W
Warm
W762 x H762 x D45
N/A
47
Y
SQ762C
Cool
W762 x H762 x D45
N/A
47
Y
R610W
Warm
863 ø x D45
N/A
48
Y
R610C
Cool
914 ø x D45
N/A
50
Y
RB610W
Warm
610 ø x D45
N/A
18
N
RB610C
Cool
610 ø x D45
N/A
18
N
SR759C
Cool
W900 x H750 x D45
H / V
51
Y
SR1118C
Cool
W1200 x H800 x D45
H / V
66
Y
Technical Specifications

6
Ablaze Back-lit Mirrors should be installed and tested by a qualified electrician and in
accordance with current local regulations. Where possible the Ablaze Back-Lit Mirror
should be screwed into studs or other suitable dry wall anchors, if fixing to hollow
walls suitable anchors should be used.
Please read and understand this installation guide in before commencing installation.
If you have any queries in regards to installation, please call 1300 368 631.
•Observe and adhere to electrical guidelines when placing your Ablaze Back-Lit
Mirror in wet areas
•Ensure any timers or switches used are installed in correct zones according to the
IP rating of the timer/switch.
For best results clean mirrors with methylated spirits and water at a rate of 30%
methylated spirits and 70% water. Do not use Windex or similar chemical cleaning
products. Avoid getting water on the sides or back of the mirror as damage to the silver
backing can occur. In coastal areas it is recommended to wipe around the edge of the
mirror once a month to avoid salt build up that can cause silver creep.
Safety & Care Information

7
Thermogroup covers all its products with a satisfaction guarantee. In addition,
Thermogroup will supply a replacement product where a fault is shown to be caused
by manufacture, materials or workmanship providing the goods have been installed
correctly and according to installation instructions. This guarantee does not include
removal, freight or installation costs. Thermogroup’s products come with guarantees
that cannot be excluded under Australian Consumer Law and you are entitled to a
replacement or refund for a major failure & compensation for any other reasonable
foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
To use the warranty, repair or service the customer must provide purchase
invoice/receipt, and completed warranty registration form.
If the product develops a fault within the warranty period due to normal wear and tear,
Thermogroup at its discretion will recognise whether it’s a faulty product or not. If it is
impossible or not economical for the manufacturer to repair the product, the
manufacturer will replace the faulty product with a new unit of the same model or if
there is no stock available of the same model as the product, the manufacturer will
replace the product with a new unit of a similar size. No responsibility can be taken for
altered dimensions and lining up of existing holes.
The repair service offered within the warranty period only covers the faults and
problems as developed from the manufacturer’s errors. Any damage caused by
improper use or carelessness or incorrect wiring is not covered.
Thermogroup is not responsible for any monetary loss or injuries caused by improper
use of this product.
Warranty Information

8
Contact us
Thermogroup UK
[email protected]
www.thermogroupuk.com
0800 019 5899
Thermogroup EU
[email protected]
www.thermogroupeu.com
00353 (0)1 866 0584
Thermogroup AU
[email protected]
www.thermogroup.com.au
1300 368 631
