Abode GMM101B User manual

Model No: GMM101B
Microwave
User guide
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE

Contents
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
2
Thank you for purchasing your Abode Microwave.
To get the best from your new microwave, take a few moments to read
these instructions, and keep them in a safe place for future reference.
Should you require any further assistance, our friendly Customer
Service team will be happy to help.
Page
Safety instructions
…………………………….…. 3
How to install your microwave
………………………………… 8
How to recognise the parts of your microwave
………………………………… 9
How to assemble your microwave
………………………………… 9
How to recognise the control panel
………………………………… 10
How to use your microwave oven
………………………………… 11
How to change the fuse
………………………………… 13
What utensils to use
………………………………… 13
How to clean your microwave
………………………………… 14
How to solve common problems
………………………………… 15
Guarantee
………………………………… 16
Customer support
………………………………… 17
Connection
to the mains supply ………………………………… 18

3
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
When using the electrical appliance, the below basic safety
precautions should be followed:
•Read all instructions.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children unless they are aged from 8 years and
above and supervised.
•Only allow children to use the oven without supervision
when adequate instructions have been given so that the
child is able to use the oven in a safe way and understands
the hazards of improper use.
•This oven is a free standing appliance and should not be
placed inside a cabinet.
•Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.

•You should use microwave utensils only in line with these
instructions.
•When heating food in plastic or paper containers, keep an
eye on the oven due to the possibility of ignition.
•Microwave heating of beverages can result in delayed
eruptive boiling. Therefore care must be taken when
handling the container. The contents of feeding bottles and
baby food jars should be stirred or shaken and the
temperature checked before consumption, in order to
avoid burns.
•Keep the waveguide cover clean at all times.
•Wipe the oven interior with a soft damp cloth after each
use. If you leave grease or fat anywhere in the cavity it may
overheat, smoke or even catch fire when you next use the
oven.
•It is hazardous for anyone other than a trained person to
carry out and service or repair operation which involves
the removal of any cover which gives protection against
exposure to microwave energy.
•If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person. The door seals are located around the window on
the inside of the door. These seals are not airtight,
although no microwaves can be released, it is normal for a
small amount of air or steam to escape when the oven is in
use.
4
Safety instructions

•Liquid or other food must not be heated in sealed
containers since they are liable to explode.
•Leave a minimum of 30cm (12 inches) above the oven.
NEVER place items on top of the oven as this will block the
vents.
•Only use thermometers that are approved for use in
microwave ovens.
•Failure to keep the oven in a clean condition could lead to
deterioration in the interior surface of the microwave. This
could seriously affect the life of the appliance and possibly
result in a hazardous condition.
•The oven shall be regularly cleaned to remove any food.
•Do not cover ventilation on top of the microwave outer
casing can get extremely hot.
•If the supply (power) cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•If smoke is emitted, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
•Do not use the oven for any reason other than preparing
food, such as for drying clothes, paper or any other non-
food items, or for sterilizing purposes.
•Do not use the oven when it is empty. This could damage
the oven.
5
Safety instructions

6
Safety instructions
•Do not store anything in the oven, such as papers,
cookbooks and so on.
•Do not cook any food surrounded by a membrane, such as
egg yolks, potatoes, chicken livers, ready meals and so on
without piercing them several times with a fork.
•Never put any objects into the openings in the outer case.
•Never remove parts from the oven such as the feet, screws
and so on.
•Do not try to deep-fry foods in this oven.
•Heat from the contents of a container may be transmitted
to the container itself, so please be careful when removing
it from the oven. Please remember that the food or liquid
inside may release some steam or spit. Never cover any
container fully, always leave a gap for the steam to escape.
•Cooking utensils may become hot because of heat
transferred from the heated food. This is especially true if
plastic wrap has been covering the top and handles of the
utensil. You may need oven gloves to handle the utensil.
•Always test the temperature of cooked food, never eat or
drink food or liquid straight from the oven, allow it to
stand for a few minutes and stir to distribute the heat
evenly.
•When heating or cooking food that contain a lot of fat or
sugar, do not use plastic containers.

•Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven after it
has been turned off, This will allow the mixture to settle
and to prevent it from bubbling when the spoon is placed
in it, or a stock cube is added.
•When heating or cooking food or liquid, remember that
there are certain foods (such as Christmas puddings, jam
and mincemeat) which heat up very quickly.
•Always have the glass tray and turntable support in place
when using the oven.
•Do not cook food directly on the glass tray. Put food on a
suitable plate or in a bowl before putting it in the oven.
•To reduce the risk of fire in the oven cavity:
•Do not over cook food.
•Do not leave the microwave unattended while you are
using it.
•Remove wire twist-ties from bags before putting the bags
in the oven.
•If materials inside the oven catch fire: Keep the oven door
closed, turn the oven off at the wall socket or shut the
power off at the fuse box or circuit breaker panel.
•WARNING: This oven must be positioned so that the plug is
accessible and the plug socket is within easy reach of the
power cord.
7
Safety instructions

8
How to install your microwave
We’re here should you need us.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
1. Select a level surface that provides enough space for the outlet vents. Ensure the surface is
strong enough to support the oven. This oven is a free standing appliance and should not be
placed inside a cabinet.
2. A minimum clearance of 7.5cm (3 inches) is required between the oven and any adjacent
wall or vertical surface.
3. Leave a minimum of 30cm (12 inches) above the oven. Never place items on top of the oven as
this will block the vents.
4. Place the oven as far away from radios and TV’s as possible. Using the oven may cause
interference with reception.
5. The oven must be positioned so that the plug is accessible and the plug socket is within easy
reach of the power cord.
6. Plug the oven into a suitable 13 amp mains socket, make sure the voltage is the same as the rating
label (do not use extension cables or mains socket adaptors).
Warning:
•Do not install the oven over a cooker or other heat producing appliances. This will damage the
oven.
•Liquids and other foods must not be heated in sealed containers as they are liable to explode.

9
How to recognise the parts of your
microwave
Door Oven window Power level Timer
Waveguide cover
Door latches Door release
Door locks
Glass tray
Turn table support
How to assemble your microwave
1. Remove the tape holding
the turntable support to
the centre of the oven.
2. Place the glass tray onto
the turntable support.
Tape

Time
Turn the time dial to the desired cooking
time. You can set the time between 0 to 30
minutes.
The microwave will “DING” once the time
has finished.
Caution: If you remove the food from the
microwave before the timer has finished,
turn the dial anti-clockwise until it “DINGS”.
Door release
Press the door release to open the
microwave door.
10
How to recognise the control panel
Power Level
Turn the power dial to select the correct
power level for the food you are going
to cook.
Door
release
Power level % of full
power
Output
HIGH 100% 700W
M.HIGH 85% 595W
MED 66% 462W
M.LOW 48% 336W
DEFROST 40% 280W
LOW 17% 119W

11
How to use your microwave oven
Turn the power level dial to the required power
level, check on the food packaging for more
information.

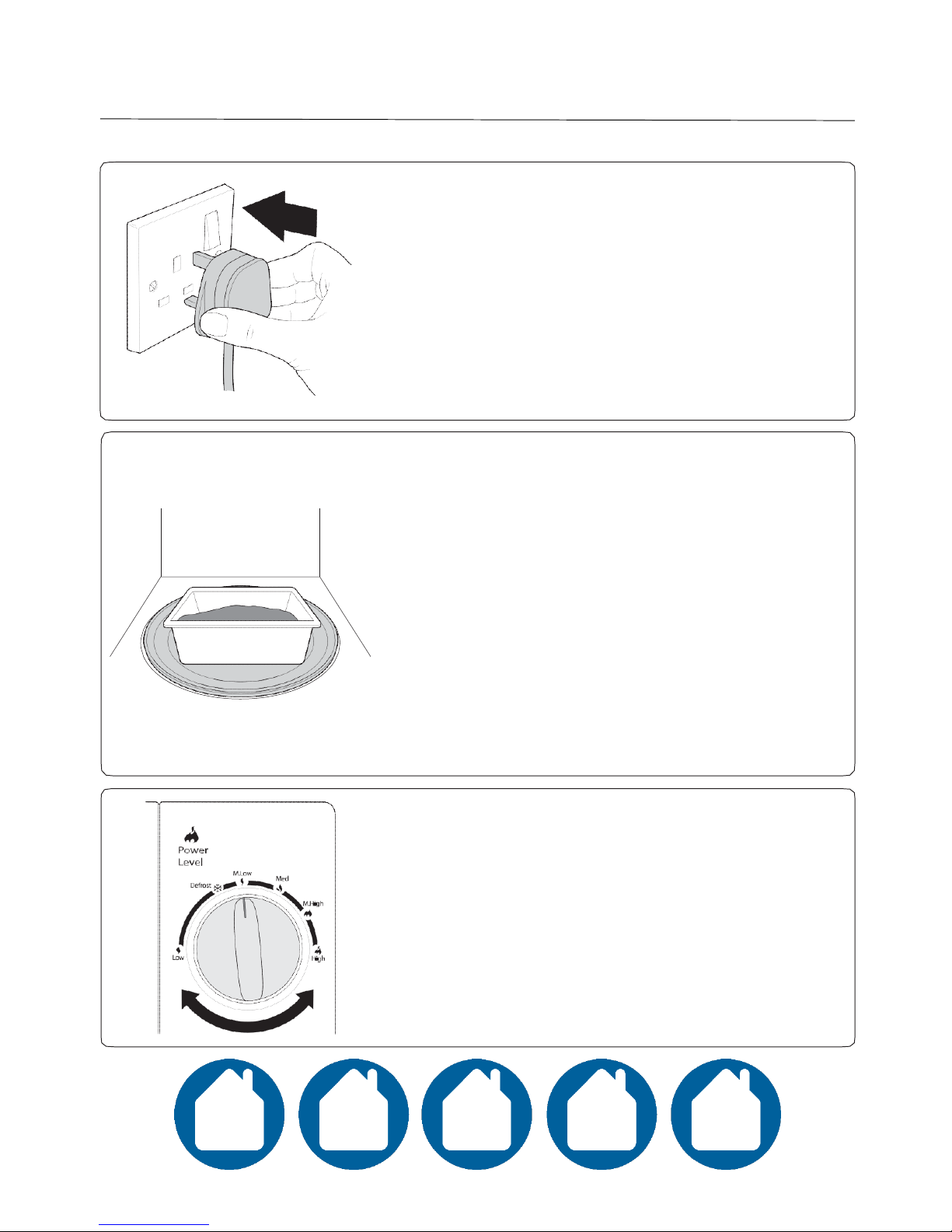

Slot the plug on the oven into a power socket
and switch the power on if a switch is fitted to
the socket.
Ensure the voltage is the same as on the rating
label on the oven.
Place the food you wish to cook or defrost in a
microwave safe container. Cover the food with a
suitable cover or microwave safe cling film.
Important: Always pierce the cling film or any
film covering with a fork.
Push the door release and place the food into the
microwave oven then close the door.
Place the container centrally on the glass plate in
the middle of the microwave oven.
If your are cooking multiple items ensure they
are equally spaced on the glass plate.

12
How to use your microwave oven
Door
release
Turn the timer dial to the required time (up to 30
minutes) to the desired time, check on the food
packaging for more information.
Important: If you are cooking the food for under
2 minutes, turn the dial past the 2 minute mark
then turn the dial back to 2 minutes.
Once the time has been set the microwave will
automatically turn on and start the cooking/
defrosting cycle.
Note: You can open the door by pressing the
door release during cooking to stir the food.
When you shut the door the microwave will
automatically continue the cooking cycle.
Leave for your food
in the oven for 30
seconds to 1
minute.
After the food has finished the cooking cycle the
microwave will “DING” and turn off. Leave the
food for 30 seconds to 1 minute.
Press the door release and remove your food
using a heat proof cloth or glove. Place the food
on a heat proof surface and serve.

13

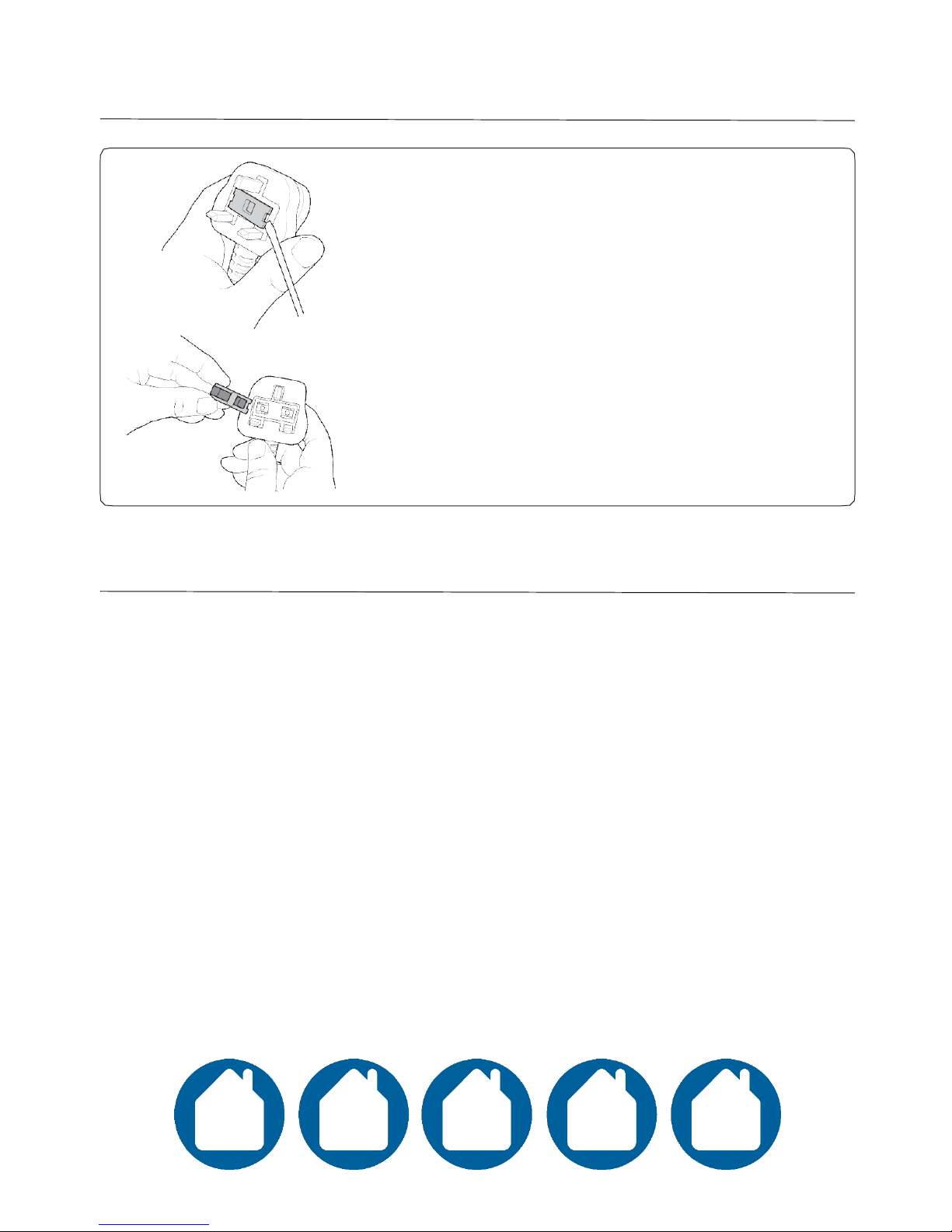

How to change the fuse
Slot the end of a screwdriver into the recess in the
plug cover.
Pull the fuse holder upwards until free of the plug.
Slide the fuse out of the fuse holder.
Slot the replacement fuse into the fuse holder.
Slot the fuse holder back into the recess in the
plug.
Push down on the fuse holder until it is locked
back in the plug.
WARNING: Only ever use a 13 amp fuse.
What utensils to use
Never use metal pans or dishes with metal handles in the microwave.
•Do not use anything with a metal trim.
•Do not use paper covered wire twist-ties on plastic bags.
•Do not use melamine dishes as they contain a material which will absorb
microwave energy. This may cause the dishes to crack or burn and will slow
down the cooking speed.
•Use only cookware that is approved to be used in a microwave oven.
•Do not cook using a container with a restricted opening such as bottles as
they may explode.
•Do not heat baby bottles with the teat left on and remove if placing the
bottle back in the oven.
•Only use thermometers that are approved for use in microwave ovens.

14
How to clean your microwave oven
• Before you clean the microwave oven, turn it off at the socket and unplug it.
• Keep the inside of the oven clean. When food or liquids stick to the oven walls, wipe
clean with a damp cloth. We recommend that you do not use harsh detergent or
abrasives.
• On the right hand side inside the oven there is the wave guide cover. Microwaves are
passed through this to enable you food to be cooked. It is important that this is kept
clean at all times. To clean the cover, wipe with a mild detergent and water then allow to
dry.
• You can clean the outside of the oven with a damp cloth and polish dry with a soft dry
cloth. Don’t allow water to seep into the ventilation openings.
• Wipe the door and window on both sides, the door seals and adjacent parts frequently
with a damp cloth to remove spills or spatters. Do not use abrasive cleaners.
• Do not allow the control panel to become wet. Clean with a soft damp cloth. Do not use
abrasives agents, detergents or spray-on cleaners.
• If steam builds up inside or around the outside of the oven door, wipe it away with a
soft damp cloth. This may happen when the microwave is used is a humid atmosphere.
• If the inside of the oven smells. Put a cup of water with the juice and the skin of a
lemon in a deep microwave safe bowl. Place the bowl into the microwave and heat for
3 minutes on full power. Wipe the ovens walls thoroughly then dry with a soft dry clean
cloth.
• Failure to keep the oven in a clean condition could lead to deterioration in the interior
surface of the microwave. This could seriously affect the life of the appliance and
possibly result in a hazardous condition.
• Regularly clean the turntable support and oven floor. Wipe the bottom of the oven with
a mild detergent and water, then dry with a soft cloth. You can wash the turntable
support in warm soapy water, dry thoroughly before replacing.
• Regularly remove the glass turn table and clean it in warm soapy water. Ensure the
turntable is thoroughly dry before replacing.
• When removing the turntable support from the oven, make sure it is correctly fitted
back into the microwave.
• NEVER attempt to remove the waveguide cover form the inside of the microwave.
• The oven should be regularly cleaned to remove any food deposits.

15
How to solve common problems
IMPORTANT: The microwave oven may cause interference to your radio, TV or
similar appliances. If it does you can reduce or eliminate the interference by
moving the radio, TV or similar appliance as far away from the microwave as
possible.
If the oven does not work:
• Make sure the oven is plugged in securely. If not then push the plug fully in.
• Check that the mains fuse has not been tripped. If it has, reset the fuse.
• If the fuse has not been tripped, check that another appliance will work in the
socket. If the appliance does not work then the socket may be faulty.
• If the socket works, replace the 13 amp fuse in the microwaves plug.
If the microwave will not heat food:
• Check to ensure the timer has not been set.
• Ensure the door is securely closed. If the door is not fully shut the microwave
will not operate, this is a safety feature.
• Check the child lock is not in operation.
Specifications
Rated voltage:
Operating frequency:
Power output:
Outside dimensions:
Oven capacity:
Weight (Approx):
230-240V/ 50Hz,
2,450MHz
700W
262mm (H) X 452mm (W) X 337mm (D)
17 Litres
10.5g

16
Guarantee
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original proof
of purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
•It must be used for domestic purposes only and for its intended use.
•This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
We’re here should you need us.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com

17
Customer support
You can attach your receipt to this page for proof of purchase.
This symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means
that the product/batteries should not be disposed of with your
general household waste.
Only discard electrical/electronic/battery items in separate
collection schemes, which cater for the recovery and recycling
of materials contained within. Your co-operation is vital to
make sure the success of these schemes and for the protection
of the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter
the instruction manual without prior notice.
Disposal information
We’re here should you need us
For Customer Services & Spare Parts please call
0845 209 7461
Opening times: Monday - Friday 8am –6pm &
Saturday 9am –1pm
Or visit us at www.productcareuk.com
Produced for:
Asda stores Ltd.
Leeds
LS11 5AD

18
Connection to the mains supply
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of AC230V -
240V ~ 50/60HZ.
Check that the voltage marked on the product corresponds with your
supply voltage.
This product is fitted with a 13A plug complying with BS1363.
If this plug is unsuitable or needs to be replaced, please note the following:
Important: The wires in the mains lead are coloured in accordance with
the following code:
GREEN/YELLOW-EARTH
BLUE-NEUTRAL
BROWN-LIVE

19
Connection to the mains supply
For UK use only –Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which is marked with the letter E or by the earth symbol or
coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected to
the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a13A(BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.

Model number: GMM101B
Site code:
15A.09.14.890
R2
