ABRACON CORPORATION ABBTM-NVC-EVK User manual

Bluetooth Module Evaluation Kit User Guide
HARDWARE DESCRIPTION:
Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK Bluetooth module evaluation kit is designed to facilitate engineering evaluation of
Abracon’s ABBTM-NVC-MDCSxx Bluetooth modules. The kit includes one main board, one Bluetooth module
at the customer’s choice and the corresponding adaptor board.
EVALUATION KIT MAIN BOARD:
The interfaces of the evaluation kit main board (ABBTM-NVC-BM-EVK) includes: DB9 RS232, USB UART
(please visit http://www.ftdichip.com/Drivers/VCP.htm for latest driver), 3.5mm jack audio input/output, several
buttons, LEDs.
In addition, mounting places are reserved on the main board for soldering the Apple authentication coprocessor
(2.0B or 2.0C). So it can also be used as a demo or test platform of Abracon’s iAP over Bluetooth solutions.
The main board also contains SPK_OUT and MIC_IN jack. There’s audio amplifier converting the differential
audio output from the Bluetooth module to single-ended, which can be output directly to a common 3.5mm
headphone. And with on board MIC bias circuits, a microphone can be inserted directly.
ABBTM-NVC-EVK
Ordering Information:
Part Number Description
ABBTM-NVC-EVK-42A Kit includes 1 main board;1 ABBTM-NVC-MDCS42A adaptor board with 1pc
ABBTM-NVC-MDCS42A mounted on the adaptor board; Mini B USB cable
ABBTM-NVC-EVK-56 Kit includes 1 main board;1 ABBTM-NVC-MDCS56 adaptor board with 1pc
ABBTM-NVC-MDCS56 mounted on the adaptor board; Mini B USB cable
ABBTM-NVC-EVK-71 Kit includes 1 main board;1 ABBTM-NVC-MDCS71 adaptor board with 1pc
ABBTM-NVC-MDCS71 mounted on the adaptor board; Mini B USB cable
ABBTM-NVC-MB-EVK Evaluation kit main board
ABBTM-NVC-MDCS42A-CON ABBTM-NVC-MDCS42A adaptor board, BT module is mounted on board
ABBTM-NVC-MDCS56-CON ABBTM-NVC-MDCS56 adaptor board, BT module is mounted on board
ABBTM-NVC-MDCS71-CON ABBTM-NVC-MDCS71 adaptor board, BT module is mounted on board
Figure 1: Evaluation Kit Main Board: ABBTM-NVC-MB-EVK

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
COMPONENT DESCRIPTION:
91 cm
106 cm
Figure 2: Evaluation Kit Main Board Layou
1. USB power & virtual COM: Mini B socket to power the board. And if USB to COM chip (label by 4) is mounted, it also
acts as a virtual COM port (USB to COM, a driver for Windows is needed).
2. DB9 port: This can be used to connect to a RS232 COM port.
3. DCE, DTE switch: Switches the connections of the TX and RX signals to the DB9’s pin 2&3.
4. USB connection to the adapter board: Mini B socket connect the USB D+/- to the adapter board sockets. With proper
firmware, the Bluetooth module can act as a USB HID device, or USB CDC device (so a virtual COM port to Bluetooth
SPP is achieved). And DFU (device firmware update) works on this port.
5. USB UART IC, FTDI’s FT232.
6. RS232 level shift chip for the DB9 RS232 port.
7. Reset button and Jumper: Reset button to reset the Bluetooth module on adapter board. The jumper set if it’s a high level or
low level trigger reset. Please also connect the “RESET” jumper in connector “23”.
8. Digital power switch: Switch for main 3.3v power supply. When switched to “ON” position, the corresponding LED will
light.
9. Digital power circuits: Power supply to adapter board and on board digital circuits.
10. Jumper selector for COM connection: Route the UART from the adapter board to DB9 or USB UART port.
11. Audio power switch: Switch for the 3.3v power supply of the audio headphone amplifier. It is also used as the mic bias.
When switched to “ON” position, the corresponding LED will light.
12. Audio power circuits. Power the on board audio amplifier and MIC Bias.
13. AUX LED 1: Connect to PIO2 of the adapter board. The function depends on firmware.
14. 3.5mm audio output jack.
15. Audio headphone amplifier. The differential audio output from the adapter board (connector labeled as 27) is amplified
and output to the 3.5mm jack
16. AUX LED 2: Connect to PIO3 of the adapter board. The function depends on firmware..
17. Button1: Connect to PIO3 of the adapter board.
18. Audio input jack: mic input
19. Microphone Bias circuit: Connect a microphone in 3.5mm jack and the signals are processed and routed to
MIC_LN,MIC_LP of the adapter board.
20. Button2: Connect to PIO4 of the daughter board.
21. DB25 parallel connector, for Abracon internal use only.
22. Parallel port circuits.
23. Jumpers to connect/disconnect signals to adapter board.
24. The socket of adapter board.
25. Mount place for Apple’s Authentication Coprocessor: 2.0C.
26. Mount place for Apple’s Authentication Coprocessor: 2.0B.
27. Jumpers to connect/disconnect signals to adapter board.

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
Power Switch (As shown in the red line to toggle switch)
Figure 3: Power switch
DB9 or USB-COM selection (jumper connections as shown in red line connect to DB9)
Figure 4: RS232 jumper connect
DB9 or USB-COM selection (jumper connections as shown in red line connect to USB-COM)
Figure 5: USB to serial jumper connect
FUNCTIONAL DESCRIPTION – SWITCH AND JUMPER SETTING
When use DB9, Switch to "DTE" if the EVK acts as a DTE
Figure 6: RS232 toggle switch (DTE)

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
When use DB9, Switch to "DTE" if the EVK acts as a DTE
Figure 7 : RS232 toggle switch (DCE)
Jumper for feeding a high level to the daughter board’s RESET when push RESET button.
Figure 8: Jumper setting for high effective RESET
Jumper for feeding a low level to the daughter board’s RESET when push RESET button
Figure 9: Jumper setting for low effective RESET

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
SCHEMATIC OF THE EVALUATION KIT MAIN BOARD
Figure 10: General schematic diagram
Figure 11: Module SPI and UART Schematic diagram

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
Figure 12: Audio input and output Schematic diagram

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
Figure 13: Apple authentication, button and LED Apple authentication
Figure 14: Top silk-screen
TOP SILK-SCREEN FIGURE

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide

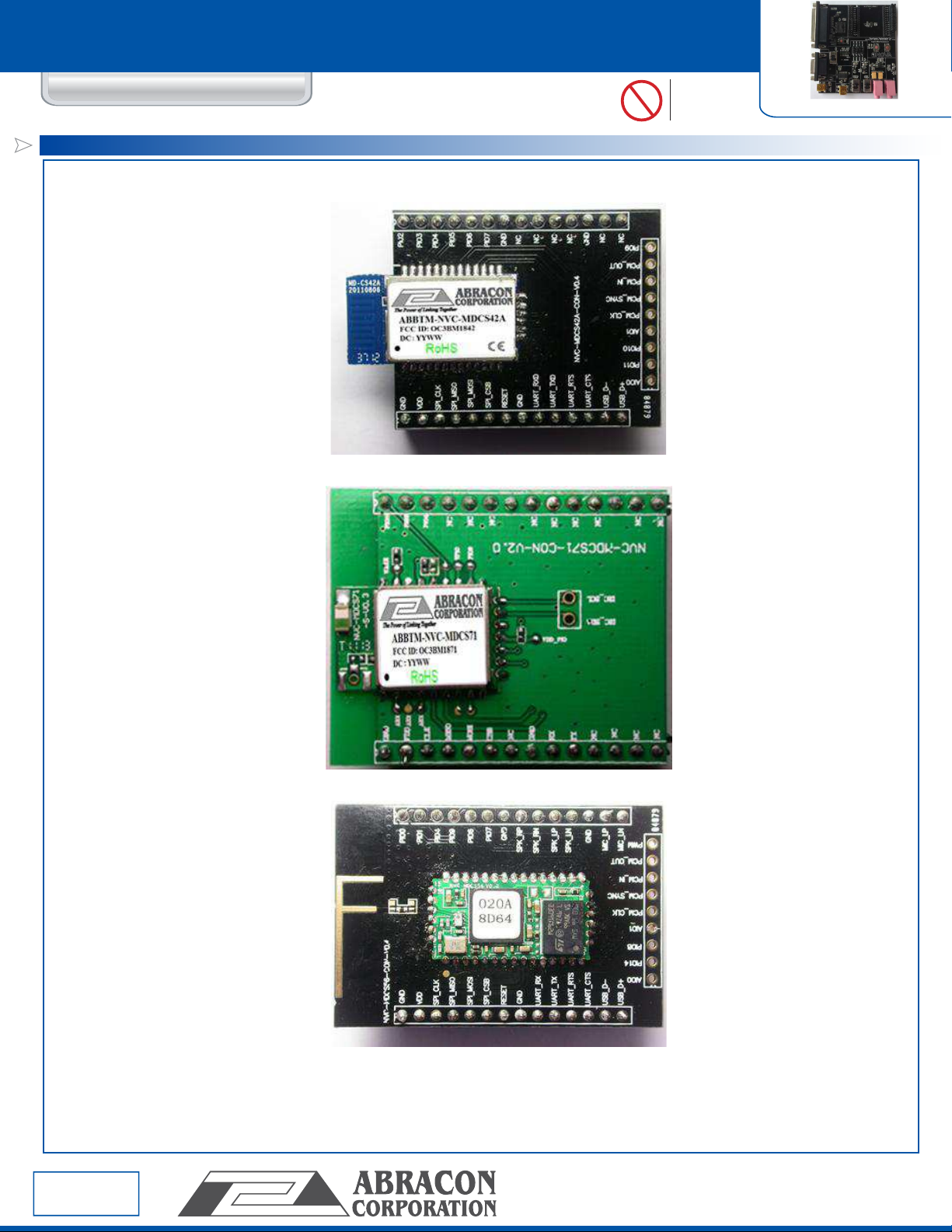

ADAPTOR BOARDS
Different adaptor boards are used to mate with the evaluation kit main board.
Figure 15: ABBTM-NVC-MDCS42A-CON (47.5 x 33mm)
Figure 16: ABBTM-NVC-MDCS71-CON (41 x 33mm)
Figure 17: ABBTM-NVC-MDCS56-CON (49 x 33.5mm)

Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
SERIAL INTERFACE COMMUNICATION
In this demo we use a tool “AccessPort” (Freeware, can be downloaded here http://www.sudt.com/en/ap/index.html) to
access the COM ports in Windows. Customers can use other tools (such as HypterTerminal) in a similar way.
1. Set the proper settings of the RS232 port.
Figure 18: Access port main window
Figure 19: “COM” port settings
2. When an adapter board (a ABBTM-NVC-MDCS42-CON is used here) plugged and the power is switch on, it might
show,
Figure 20: The Bluetooth module prints software version
and status when power on

3. Send a command to make the module discoverable. (“BC:MD=01”, refer to ACCI documents)

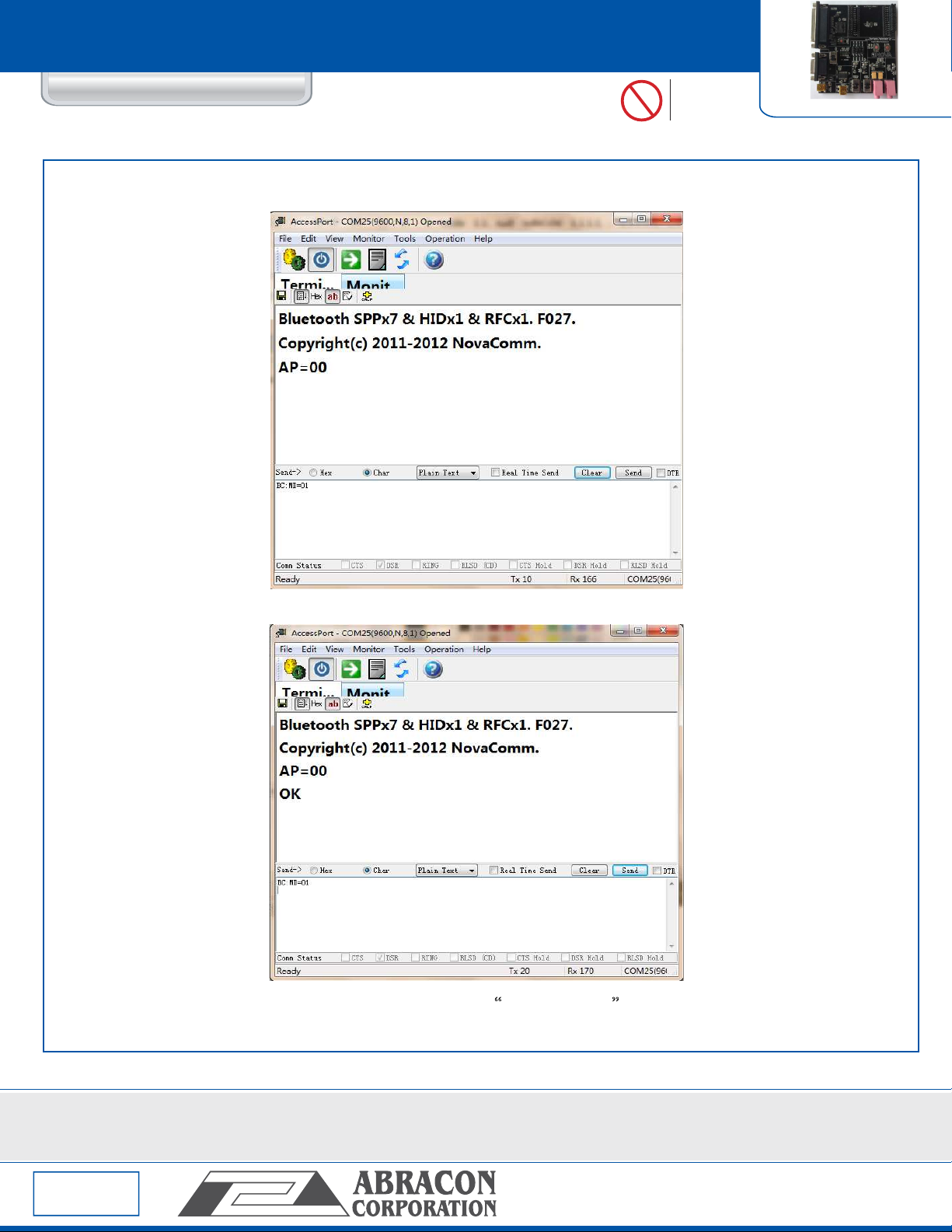

Figure 21: In send box type "BC:MD=01<RETURN>" and click “Send” button
Pb
RoHS
Compliant
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California
92688
tel [phone] |fax [phone]| www.abracon.com
Revised: 08.19.13
Visit www.abracon.com for Terms & Conditions of Sale
91cm x 106cm
ABBTM-NVC-EVK
Bluetooth Module Evaluation Kit User Guide
Figure 22: The Blutooth module reports “OK<CR><LF>”so it’s discoverable now
Note: <CR><FL> is the terminator of command line
ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent andauthorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
