SOLTEK SL-63AV User manual

This User‘s Guide & Technical Reference is for assisting system manufacturers and end-users in setting up and installing the
mainboard.
Everyefforthasbeenmadetoensurethattheinformationinthismanual
is accurate. Soltek Computer Inc. is not responsible for printing or
clericalerrors.Informationinthisdocumentissubjecttochangewith-
outnoticeanddoesnotrepresentacommitmentonthepartofSoltek
ComputerInc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for identifica-
tion purpose only. Product names appearing in this manual may or
may not be registered trademarks or copyrights of their respective
companies.
Soltek computer inc. Provides this manual “As is “ without war ranty of any kind, either express or implied, including but not lim-
ited to the implied warranties or conditions of merchantability or fit-
ness for a particular purpose. In no event shall Soltek computer inc.
Be liable for any loss or profits, loss of business, loss of use or data,
interruption of business, or for indirect, special, incidental, or conse-
quentialdamages of any kind, evenif Soltek computer inc. Hasbeen
advised of the possibility of such damages arising from any defect or
error in this manual or product.
© Copyright 1999 Soltek Computer Inc.
All rights reserved.
http://www.soltek.com.tw
e-mail:[email protected]
Model : SL-63AV+
Edition : March 2000
Version : 2.0
R

63AV+
2
CONTENT
MOTHERBOARD DIAGRAM.................................................... 5
JP3 / JP4: Bus Clock Select .................................................. 9
STANDARD CMOS SETUP.................................................... 12
BIOS FEATURES SETUP ...................................................... 14
CHIPSET FEATURES SETUP ............................................... 18
POWER MANAGEMENT SETUP........................................... 21
PnP/PCI CONFIGURATION SETUP ...................................... 25
LOAD SETUP DEFAULTS ..................................................... 28
CPU SPEED SETTING .......................................................... 29
INTEGRATED PERIPHERALS............................................... 31
SUPERVISOR/USER PASSWORD........................................ 35
IDE HDD AUTO DETECTION ................................................ 36
SAVE & EXIT SETUP............................................................. 36
EXIT WITHOUT SAVING........................................................ 36
Appendix A
FLASH MEMORY UPDATE INSTALLATION ......................... 37
Appendix B
DRIVER INSTALLATION ........................................................ 38

3
63AV+
Appendix C
THERMAL SENSOR CONNECTOR ...................................... 40

63AV+
4
SL-63AV+
VIA APOLLO PRO133 SOCKET-370
VIA APOLLO PRO133 VT82C693A chipset (FSB supports
133MHz).
CHIPSET
3x 3.3V DIMM sockets.
8MB to 768MB DRAM size.
SYSTEM MEMORY
2x Ultra ATA33/66 Bus Master IDE ports.
2x USB ports.
1x PS/2 mouse connector and 1x PS/2 keyboard connector.
1x 2.88MB Floppy port, 2x High Speed 16550A UART ports
and 1x IrDA TX / RX Header.
ONBOARD I/O
AT / ATX power supply connector.
Power-On by LAN(WOL), RTC Alarm, Modem Ring.
POWER
2MB FLASH BIOS.
Licensed AWARD BIOS, supports SCSI / ZIP / LS-120 / CD-
ROM boot and ACPI Power Management.
BIOS
1x AGP slot supports 1x / 2x mode bus; 4x PCI Bus Master
slots; 2x ISA slots.
SLOT
AT, 4 layers PCB, 22.0cm x 24.0cm size.
FORM FACTOR / PCB
F E A T U R E
Supports Intel PPGA Celeron 370 CPUs 300 ~ 533MHz or
higher.
Supports Intel FC-PGA Pentium III (Coppermine) CPUs 500E
~ 750 MHz or higher.
Supports Cyrix Joshua CPUs.
Supports 66/ 75*/ 83*/ 100/ 103*/ 105*/ 124*/ 133/ 140*/ 150*MHz
system bus speeds.
Clock multipliers up to 8x.
PROCESSOR

5
63AV+

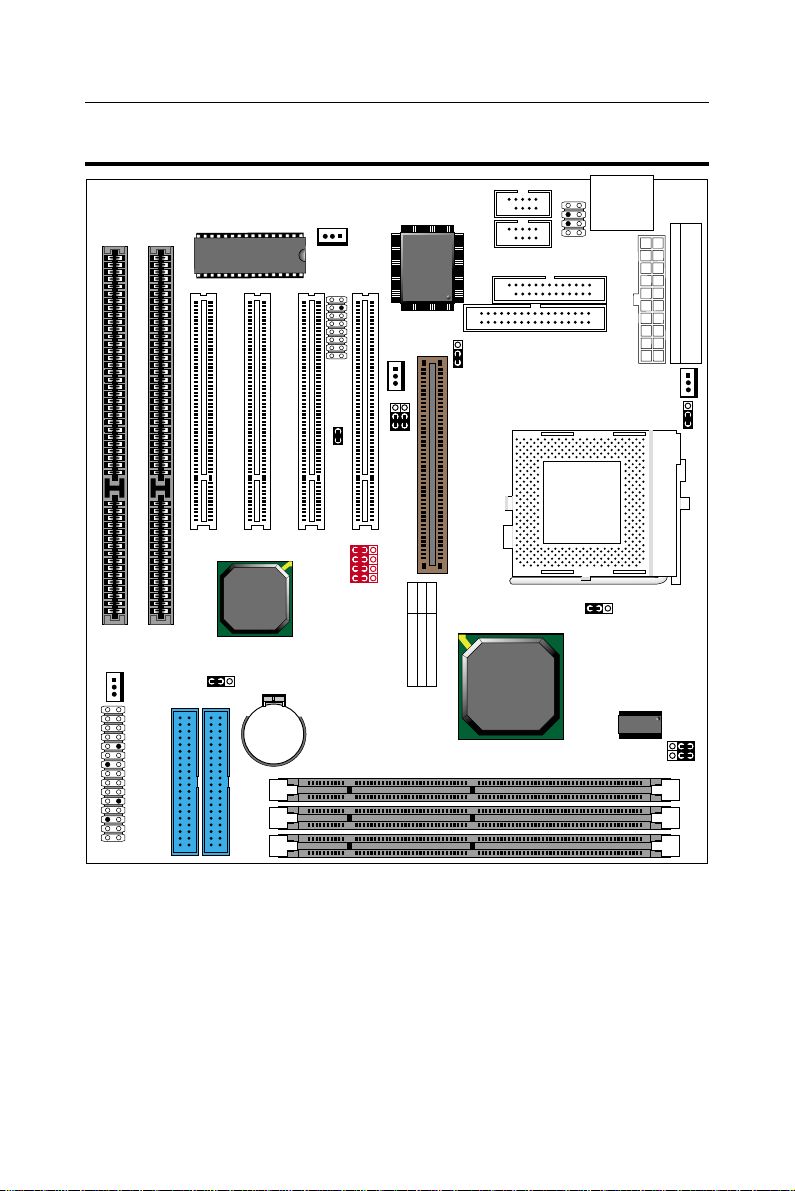

M O T H E R B O A R D D I A G R A M
Default setting: Intel Celeron 300A/66MHz.
NOTE: For 100/133MHz CPU environment, the SDRAM sepc must comply with PC-
100/PC-133 spec.
1 3
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
3
1
JP19
3
1
JP20
1 3
JP18
1 3
1 3
JP3
JP4
JBAT1
J3 J2
MS1
3 1 3 1
JP11 JP12
PFAN1
JWOL1
SFAN1
USB
JVGA1
CFAN1
HDD/LED
SPK RESET KE LOCK SUSLED
IR PWR SUSPEND
1 2
15 16
COM2
DIMM 1
DIMM 2
DIMM 3
IDE 2 IDE 1
LPT1
FDD1
COM1
ATX POWER
AGP
Li
Battery
PCI 1 PCI 2 PCI 3 PCI 4
ISA1
ISA2
FLASH BIOS
VIA
693A
VIA
596B
SOCKET 370
Intel
Cyrix
1-2 SHORT
JP18/JP19/JP20
2-3 SHORT
KB1
AT POWER
15 15
Clock
Generator
Winbond W83977AF /F

63AV+
6
C P U C L O C K S E T T I N G
CPU Type Configuration
CPU MODEL BUS RATIO BUS CLOCK
NOTE 1: Use jumper(hardware) settings > set JP13/JP14
JP15/JP16 manually.
NOTE 2: Use jumperless settings > JP13/JP14/JP15/JP16
must set to DEFAULT, that means all JP13/JP14/
JP15/JP16 are 1 & 2 short.
NOTE 3: (#) Pentium III Coppermin FC-PGA CPUs.
Celeron 300/66
(66MHz * 4.5x)
Pentium III 600EB/133
#
(133MHz * 4.5x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
Celeron 400/66
(66MHz * 6.0x)
Pentium III 600E/100
#
(100MHz * 6.0x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
Celeron 433/66
(66MHz * 6.5x)
Pentium III 650/100
#
(100MHz * 6.5x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
Celeron 466/66
(66MHz * 7.0x)
Pentium III 700/100
#
(100MHz * 7.0x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
Celeron 500/66
(66MHz * 7.5x)
Pentium III 750/100
#
(100MHz * 7.5x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
Celeron 533/66
(66MHz * 8.0x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP3
JP4
1 3
1 3
Pentium III 533EB/133
#
(133MHz * 4.0x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP3
JP4
1 3
1 3
Celeron 333/66
(66MHz * 5.0x)
Pentium III 500E/100
#
(100MHz * 5.0x)
Pentium III 667B/133
#
(133MHz * 5.0x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP3
JP4
1 3
1 3
Celeron 366/66
(66MHz * 5.5x)
Pentium III 550E/100
#
(100MHz * 5.5x)
Pentium III 733B/133
#
(133MHz * 5.5x)
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP3
JP4
1 3
1 3
JP3
JP4
1 3
1 3
JP3
JP4
1 3
1 3
JP3
JP4
1 3
1 3
JP3
JP4
1 3
1 3
JP3
JP4
1 3
1 3

7
63AV+
Bus Ratio Select
1 3
1 3
1 3
JP13~JP16
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
BUS RATIO
2.0x
3.0x
4.0x
5.0x
6.0x
7.0x
8.0x
JP13~JP16
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
1 3
1 3
JP13
JP14
JP15
JP16
1 3
1 3
BUS RATIO
2.5x
3.5x
4.5x
5.5x
6.5x
7.5x
By BIOS
(jumperless
setting)
(DEFAULT)

63AV+
8
J U M P E R S E T T I N G
#FAN1 FUNCTION
CFAN1 CPU FAN
SFAN1 CHASSIS FAN
PFAN1 POWER FAN
#FAN1: Onboard FAN (12V) Connector
Bus Clock JP3 / JP4
JP3 / JP4: Bus Clock Select
100MHz JP3
JP4
1 3
133MHz JP3
JP4
1 3
Auto Select 66/100/133MHz
(default) JP3
JP4
1 3

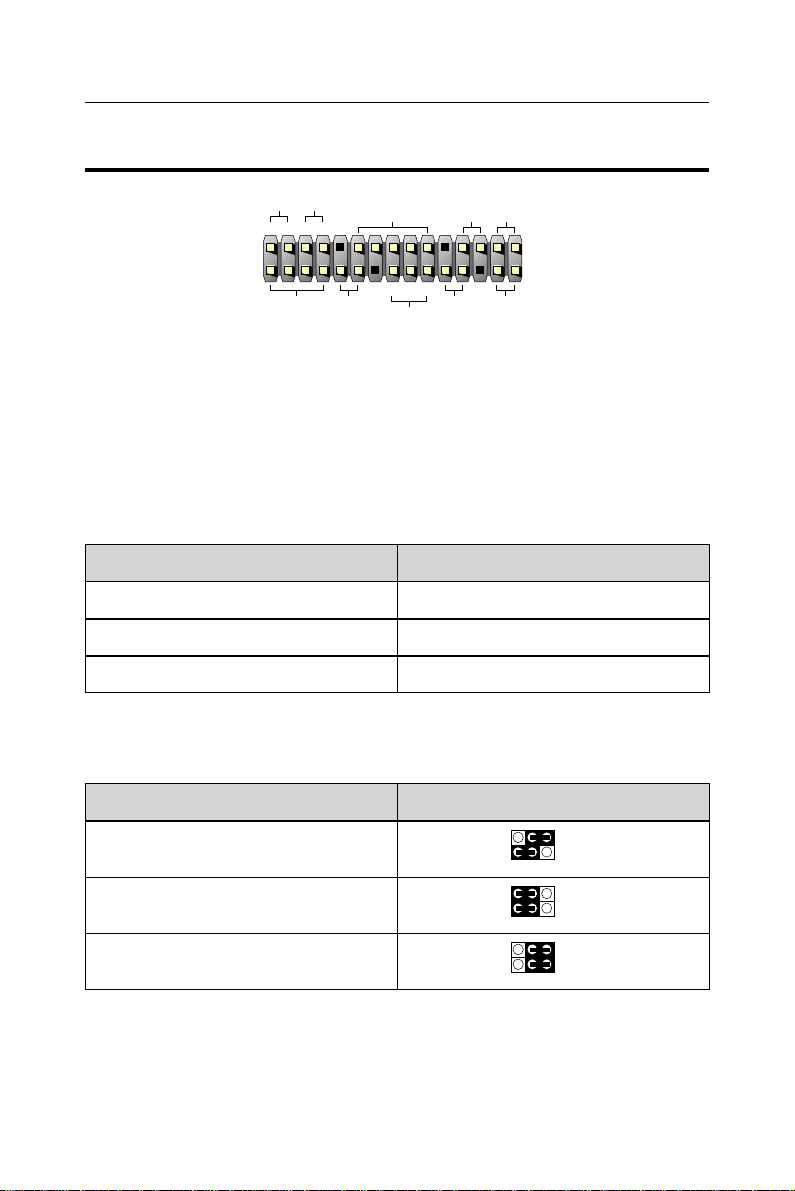

A1: 1st HDD LED
B. : INFRARED (IR)
D. : SUSPEND CONNECTOR
F. : RESET SWITCH
H. : KEYLOCK
A2: 2nd HDD LED
C. : POWER SWITCH
E. : SPEAKER
G. : POWER LED
I. : SUSPEND LED
1
1
15
15
EF G
C
H I
D
A1 A2 B
J2
J3
++
--
+-

9
63AV+
JP11 / JP12: USB Port Select
Redirect USB port1 to AGP
port
JP11 JP12
3
1
Redirect USB port1 to USB
connector (default)
JP11 JP12
3
1
USB Port JP11 / JP12
JVGA1: VGA Card
This jumper is set for the PCI VGA card only. Open this jumper when the system
is not able to boot up. If you use AGP card, it is important to set default with
JVGA1. JVGA1
For PCI VGA card
Normal (default)
JP18 / JP19 / JP20: Intel / Cyrix CPU Select
CPU TYPE
Intel CPU (Default)
Cyrix Joshua CPU
JP20
3
1
3
1
JP19
3
1
3
1
JP18
1 3
1 3

63AV+
10
KB1: Keyboard Connector
MS1: PS/2 mouse Connector
USB: USB Connector
JWOL1: Wake On LAN (WOL) Connector
This jumper is designed to use LAN to boot up the system. Connect the wake on
signal from LAN card to this connector.
***For support WOL, the ATX power supply has to have at least 5V/720mA
standby current.***
NOTE: “VIA Patch Code”, “VIA AGP VxD Driver” & “VIA PCI IRQ Routing
Miniport” installation, please refer to Appendix B.
JBAT1: Clear CMOS data
Clear the CMOS memory by shorting this jumper 2 & 3 momentarily, and then
remove the cap back to 1 & 2 to retain original CMOS setting.
JBAT1
Clear CMOS Data
Retain Data (default)
CMOS Status

11
63AV+ BIOS
This VIA82C693A chipset Apollo Pro-Plus comes with the AWARD BIOS from
AWARD Software Inc. Enter the AWARD BIOS program Main Menu by:
1. Turn on or reboot the system. After a series of diagnostic checks, the
following message will appear:
PRESS <DEL> TO ENTER SETUP
2. Press the <DEL> key and the main program screen will appear as follows:
3. Using the arrows on your keyboard, select an option, and press <Enter>.
Modify the system parameter to reflect the options installed in your
system.
4. You may return to the Main Menu anytime be pressing <ESC>.
5. In the Main Menu, “SAVE AND EXIT SETUP” saves your changes and
reboots the system, and “EXIT WITHOUT SAVING” ignores your changes
and exits the program.
ROM PCI / ISA BIOS (2A6LJSN9)
CMOS SETUP UTILIT
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
CPU SPEED SETTING
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
Esc : Quit
F10 : Save & Exit Setup
: Select Item
(Shift) F2 : Change Color

12
63AV+ BIOS
Standard CMOS Setup allows you to record some basic system hardware con-
figuration and set the system clock and error handling. You only need to modify
the configuration values of this option when you change your system hardware
configuration or the configuration stored in the CMOS memory gets lost or
damaged.
Run the Standard CMOS Setup as follows:
1. Choose “STANDARD CMOS SETUP” from the Main Menu and a screen
with a list of options will appear.
2. Use one of the arrow keys to move between options and modify the
selected options by using PgUp/PgDn/+/- keys.
STANDARD CMOS SETUP
ROM PCI/ISA BIOS (2A69KSNH)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) : Tue, Oct 19 1999
Time (hh:mm:ss) : 15 : 6 : 26
Drive A : 1.44, 3.5 in.
Drive B : None
Video : EGA/VGA
Halt On : All Errors
HARD DISK T PE SIZE C LS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : Auto 0M 0 0 0 0 0 AUTO
Primary Slave : Auto 0M 0 0 0 0 0 AUTO
Secondary Master : Auto 0M 0 0 0 0 0 AUTO
Secondary Slave : Auto 0M 0 0 0 0 0 AUTO
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
Esc : Quit
F1 : Help
: Select Item
(Shift) F2 : Change Color
PU/PD/+/- : Modify

13
63AV+ BIOS
3. Press <ESC> and follow the screen instructions to save or disregard
your setting.
Set the current date and time.
Date (mm:dd:yy)
Time (hh:mm:ss)
Thisfieldrecordsthespecification for all non-SCSI Hard Disk
Drives installed in your system. Refer to the respective docu-
mentation on how to install the drives.
Primary (Secondary)
Master / Slave
Set the field to the type(s) of Floppy Disk drive(s) installed in
yoursystem.
The choice:
360KB, 5.25in.
1.2MB, 5.25in.
720KB, 3.5in.
1.44MB, 3.5in.
2.88MB, 3.5in.
Drive A / B
Set the field to the type of video display card installed in your
system.
The choice:
Monochrome,
Color40x25,
EGA / VGA, (default)
Color80x25
Video
Set this warning feature for the type of errors that will cause
the system to halt.
The choice:
All Errors, (defaults)
No Errors,
All But Keyboard,
All But Diskette,
All But Disk / Key
Halt On

14
63AV+ BIOS
BIOS FEATURES SETUP
BIOS Features Setup allows you to improve your system performance or set
up system features according to your preference.
Run the BIOS Features Setup as follows:
1. Choose “BIOS FEATURES SETUP” from the Main Menu and a screen
with a list of options will appear.
2. Use one of the arrow keys to move between options and modify the
selected options by using PgUp/PgDn/+/- keys. An explanation of the
<F>keys follows:
<F1>: “Help” gives options available for each item.
<Shift> + <F2>: Change BIOS screen color.
<F5>: Get the previous values. These values are the values with the
user started in the current session.
<F6>: Load all options with the BIOS default values.
<F7>: Load all options with the Setup default values.
Virus Warning : Disabled
CPU Internal Cache : Enabled
External Cache : Enabled
CPU L2 Cache ECC Checking : Enabled
Quick Power On Self Test : Enabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Disabled
Boot Up NumLock Status : On
IDE HDD Block Mode : Enabled
Gate A20 Option : Fast
Memory Parity/ECC Check : Disabled
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select For DRAM > 64MB : Non-OS2
Video BIOS Shadow : Enabled
C8000-CBFFF Shadow : Disabled
CC000-CFFFF Shadow : Disabled
D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
D8000-DBFFF Shadow : Disabled
DC000-DFFFF Shadow : Disabled
ROM PCI/ISA BIOS (2A6LJSN9)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
ESC : Quit
F1 : Help
F5 : Old Value
F7 : Load Setup Defaults
: Select Item
PU/PD/+/- : Modify
(Shift)F2 : Color

15
63AV+ BIOS
ChooseEnabled(default)orDisabled.Thisoptionallowsuser
to enable or disable the external cache memory.
External Cache
Default is “A , C, SCSI”. This option determines which drive
to boot at first for an operating system.
Boot Sequence
ChooseEnabled(default)orDisabled.Thisoptionallowsuser
to enable or disable the CPU internal cache.
CPU Internal Cache
Thisoptionswapsfloppydriverassignmentswhenit’senabled.
The choice: Enabled, Disabled (default).
Swap Floppy Drive
ChooseEnabled(default)orDisabled.Thisoptionallowsuser
to speed up the Power-On-Self-Test routine.
Quick Power On Self
Test
Choose Enabled (default) or Disabled.
CPU L2 Cache ECC
Checking
Enabled(default):During POST, BIOSchecksthetracknum-
ber for Floppy Disk drive to see whether it’s 40 or
80 tracks.
Disabled: During POST, BIOS will not check the track num-
ber for Floppy Disk drive.
Boot Up Floppy Seek
Note: Many diagnostic (or boot manager) programs which
attempt to access the boot sector table can cause the
above warning message. If you will be running such a
program, we recommend that you disable the virus
protection first.
Enabled: Activates automatically when the system boots up
causing a warning message to appear if there is
anything attempting to access the boot sector or
Hard Disk partition table.
Disabled: No warning message will appear when there is
something attempting to access the boot sector or
Hard Disk partition table.
Virus Warning

16
63AV+ BIOS
ChooseNormal or Fast (default): This option allows the RAM
to access the memory above 1MB by using the fast gate A20
line.
Gate A20 Option
Choose Enabled or Disabled (default): Enable this option to
adjust the deystroke repeat rate.
Typematic Rate Setting
Choose 250 (default), 500, 750 and 1000. This option sets
the time interval for displaying the first and the second
characters.
Typematic Delay (Msec)
ChooseEnabledorDisabled (default). It determines whether
or not the MPEG ISA cards can work with PCI / AGP.
PCI / VGA Palette
Choose System or Setup (default). This option prevents un-
authorized system boot up or use of BIOS Setup.
Security Option
On (default): Activate the NumLock function at boot up.
Off: Close the NumLock function at boot up.
Boot Up NumLock
Status
Choose Enabled or Disabled.
Memory Parity / ECC
Check
Range between 6 (default) and 30 characters per second.
This option controls the speed of repeating keystrokes.
Typematic Rate
(Char / Sec)
Non-OS2 (default): For Non-OS/2 operating system.
OS: For OS/2 operating system.
OS Select for DRAM >
64MB
Note: Some older model Hard Disk drives do not provide
this function.
Choose Enabled (default) or Disabled. If your Hard Disk size
is larger than 540MB, choose Enabled, and if you are using
the IDE HDD Auto Detection option, the BIOS will choose
thisoptionautomatically.
IDE HDD Block Mode

17
63AV+ BIOS
3. Press <ESC> and follow the screen instructions to save or disregard
your setting.
These options are used to shadow other expansion card
ROMs.
C8000-CBFFF to DC000-
DFFFF Shadow
Enabled (default): Map the VGA BIOS to system RAM.
Disabled: Don’t map the VGA BIOS to system RAM.
Video BIOS Shadow

18
63AV+ BIOS
CHIPSET FEATURES SETUP
Chipset Features Setup changes the values of the chipset registers. These
registers control the system options.
Run the Chipset Features Setup as follows:
1. Choose “CHIPSET FEATURES SETUP” from the Main Menu and a
screen with a list of options will appear.
2. Use one of the arrow keys to move between options and modify the
selected options by using PgUp/PgDn/+/- keys.
Bank 0/1 DRAM Timing : SDRAM 10ns
Bank 2/3 DRAM Timing : SDRAM 10ns
Bank 4/5 DRAM Timing : SDRAM 10ns
SDRAM Cycle Length : 3
DRAM Clock : Host CLK
Memory Hole : Disabled
Read Around Write : Enabled
Concurrent PCI/Host : Disabled
System BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled
AGP Aperture Size : 64M
AGP-2X Mode : Disabled
OnChip USB : Enabled
USB Keyboard Support : Disabled
ROM PCI/ISA BIOS (2A6LJSN9)
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
ESC : Quit
F1 : Help
F5 : Old Value
F7 : Load Setup Defaults
: Select Item
PU/PD/+/- : Modify
(Shift)F2 : Color

19
63AV+ BIOS
Choose Enabled or Disabled (default). In order to improve
performance, certain space in memory can be reserved for
ISA cards. This memory must be mapped into the memory’s
space below 16MB.
Memory Hole
DRAMoptimizationfeature:Ifamemory read is addressed to
a location whose latest write is being held in a buffer before
beingwrittentomemory,thereadissatisfiedthroughthebuffer
contents, and the read is not sent to the DRAM.
The choice:
Enabled,
Disabled
Read Around Write
You can select CAS latency time in HCLKs of 2/2 or 3/3. The
systemboarddesignershouldhavesetthevaluesin thisfield,
depending on the DRAM installed. Do not change the values
in this field unless you change specifications of the installed
DRAM or the installed CPU.
SDRAM Cycle Length
The setting of this item must depend on the spec of PC100/
PC133. For example, if user chooses HCLK + 33M, that
means not only the motherboard but also the SDRAM needs
to comply with PC-133 spec.
Choice: Host CLK(default), HCLK-33M or HCLK+33M.
DRAM CLOCK
When disabled, CPU bus will be occupied during the entire
PCIoperationperiod.
The choice:
Enabled,
Disabled
Concurrent PCI / Host
Choose Enabled or Disabled (default). When Enabled, the
access to the system BIOS ROM addressed at F0000H-
FFFFFH is cached.
System BIOS
Cacheable
This item allows you to select the value in this field, depend-
ing on whether the board has paged DRAMs or EDO
(extended data output) DRAMs.
The choice:
EDO 50ns,
EDO 60ns,
Slow,
Medium,
Fast,
Turbo
Bank 0/1 2/3 4/5 DRAM
Timing

20
63AV+ BIOS
Choose Enabled or Disabled (default). When enabled, the
access to the VGA RAM addressed is cached.
Video RAM Cacheable
Enabled: Enables function when the USB keyboard is being
used.
Disabled (default): When the AT keboard is being used.
USB Keyboard Support
Thisshouldbeenabledif your system has a USB installed on
the system board and you wish to use it. Even when so
equipped,if you add a higher performance controller, you will
need to disable this feature.
The choice:
Enabled,Disabled
OnChip USB
Choose 4, 8, 16, 32, 64 (default), 128 or 256MB. Memory
map and graphics data structures can reside in a Graphics
Aperture. This area is like a linear buffer. BIOS will automati-
cally report the starting address of this buffer to the O.S.
AGP Aperture Size (MB)
Thisitem allowsuserto enable/disable theAGP-2x(133MHz
clock) mode.
AGP-2X Mode
3. Press <ESC> and follow the screen instructions to save or disregard
your setting.
