ABS ABT-2020MP User manual

Part number 20079, Rev 0
1
PREMIERE SOLID DOOR FREEZERS
ABT-2020MP, ABT-2030MP, ABT-3020MP, ABT-3030MP, ABT-3020AP
OWNER’S INSTRUCTIONS
This manual describes how to operate and care for your appliance to get the best, most efficient, performance.
READ THIS BOOK!
Note to Customer:
This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility
for its safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the
side of your packing carton, claims for loss or damage sustained in transit must be made on the carrier as
follows:
A.) Visible Loss, Damage, Shortage External Evidence of Loss or Damage: This type of damage
must be noted on the freight bill and acknowledged by the carrier’s agent (driver) at time of delivery.
Make sure you get a signed copy. Send a written request for an inspection to the carrier.
B.) Concealed Damage: This type of damage may not be discovered until the unit is being unpacked.
When concealed damage is discovered, stop unpacking immediately and contact the carrier
immediately to report the claim and request an inspection. This should be done as soon as possible
and, in any case, must be done within 15 days or receiving the merchandise. If at all possible, do not
move the item and save all packaging material for carrier’s inspection.
C.) FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE CARRIER REFUSING TO
HONOR YOUR COMPANY’S CLAIM. UNDER NO CIRCUMSTANCES SHOULD THE
MERCHANDISE BE RETURNED TO THE MANUFACTURER. NO RETURNS WILL BE ACCEPTED
WITHOUT PRIOR AUTHORIZATION.
Horizon Scientific
125 Varnfield Drive
Summerville, SC 29483
Phone: [phone]
Fax: [phone]
Warranty:
Two-Year Parts and Labor
5 Years Compressor Parts
Revision Date
08/30/2012

Part number 20079, Rev 0
2
Table of Contents
RECEIVING ............................................................................................................. 3
INSTALLATION........................................................................................................ 4
FREEZER OPERATION ............................................................................................. 6
CONTROL CENTER -- TEMPERATURE MONITOR SYSTEM........................................ 7
DIGITAL MICROPROCESSOR TEMPERATURE CONTROLLER .................................. 12
QUICK TROUBLESHOOTING GUIDE ...................................................................... 15
MAINTENANCE AND CLEANING ........................................................................... 17
PRODUCT WARRANTY.......................................................................................... 19
BEFORE CALLING THE MANUFACTURER’S TECHNICAL SERVICE DEPARTMENT,
please have the unit’s model and serial number ready as well as the problem
description. The model and serial number is located on the serial tag which can
be found on the interior left upper wall of the unit.
For convenience, you may want to record the following information here for easy
access in the future.
Model number: __________________________________
Serial number: __________________________________
Date of delivery: _________________________________

Part number 20079, Rev 0
3
RECEIVING
Your unit was built, packaged, and inspected with extreme care. We shipped it to you using
carriers we trust with a proven track record of careful handling, good customer service, and on
time delivery. Unfortunately, regardless of all of these efforts sometimes accidents happen and
occasionally those accidents result in shipping damage. When the carrier picked up the
merchandise from us, they assumed responsibility for its condition en route to you. Thus, any
claims for shipping damage must be filed with the carrier. Like anybody else, carriers don’t like
to pay out on insurance claims, so their claims procedures and requirements are very
restrictive. You should consult the carrier’s website for their specific claims procedures. You
should also know that time is of the essence.
There are two general types of shipping damage. The first is visible damage. This type of
damage includes visible loss, damage, shortage or any external evidence of loss or damage that
is visible at time of delivery. This type of damage must be noted in detail on your delivery
receipt. Make sure the driver signs and dates the delivery receipt, acknowledging the
damage. This has to happen at the time of delivery or it won’t happen at all. Keep a copy for
your records and send another to the carrier’s damage claims department along with a formal
request for an inspection report. Follow up with a phone call. Their contact information can be
found on the carrier’s web site.
The second type of shipping damage is concealed damage. This type of damage will probably
not be apparent at time of delivery and may not be discovered until unpacking and inspecting
the unit. Remember, time is of the essence here. You should unpack and inspect the unit as
soon as possible. Each day that passes reduces the likelihood that the carrier will pay the claim.
As soon as the concealed damage is discovered, stop unpacking and retain all packing
materials. Contact the carrier by phone to report the claim. Note the date and time and
person you spoke with. Get a claim number. Follow up with a written letter referencing the
claim number and including a formal request for an inspection. Again, consult the carrier’s
website for specific claim instructions and follow them precisely.
AS STATED ABOVE, THE CARRIER IS YOUR SOLE SOURCE FOR SATISFACTION OF A DAMAGE
CLAIM. UNDER NO CIRCUMSTANCES SHOULD THE MERCHANDISE BE RETURNED TO THE
MANUFACTURER. NO RETURNS WILL BE ACCEPTED WITHOUT PRIOR AUTHORIZATION.

Part number 20079, Rev 0
4

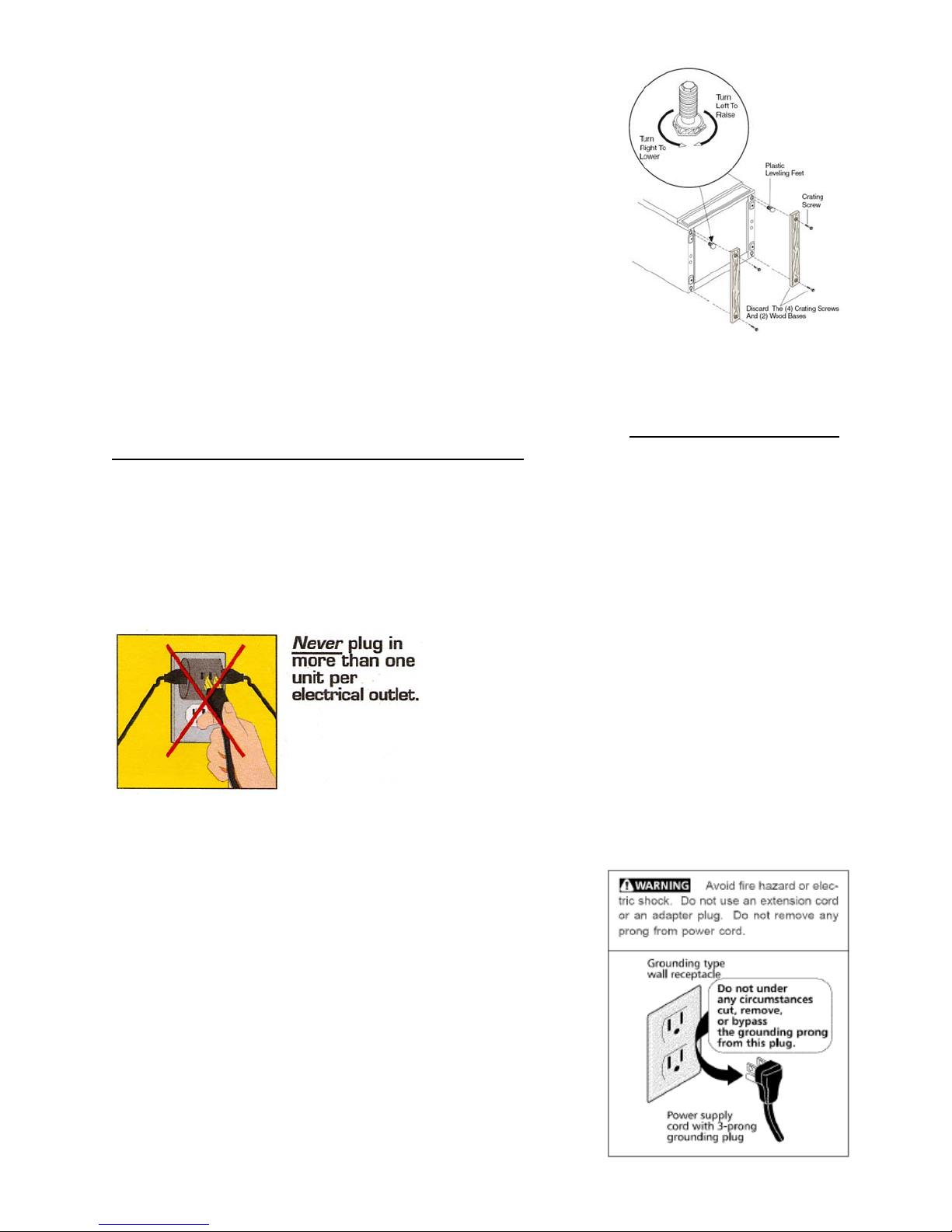

INSTALLATION
UNCRATING – This unit comes with an optional roller base so you
can unpack it in an open area and then place it on the roller base
to move to its normal location. Remove the wooden planks or
skid as shown. These units come with a caster platform (or roller
base). To place the unit on the roller base have one person tilt
the machine forward and hold it while a second person slides the
roller base in from the back. Note that the side without a top lip
goes towards the front of the unit. Once it is in as far as it will go,
have the second person lock the rear wheels and hold the base
firmly in place while the first person tilts the machine up and onto the roller base, pushing it
back until all 4 corners are on the base. You can now unlock the rear wheels and move the unit
to its final location. The freezer should be placed as close as possible to a dedicated power
outlet so an extension cord will not be needed. This unit requires a minimum of 4 inches of air
flow space in back and 3 inches on the sides and top. Once the unit is in place, the rear casters
on the roller base should be locked to prevent inadvertent movement.
LEVELING −Once the unit is in place (either on or off of the roller base) you can level it with the
screw-type adjustable leveling legs on the front corners of the unit. Turn counterclockwise to
raise the corner; turn clockwise to lower it. The unit may have a slight tilt from front to back
after the legs are installed. This is acceptable and is actually recommended.
POWER SOURCE – The supply circuit to this cabinet
must conform to all National and Local Electrical
Codes. Consult the cabinet Serial-Data plate for
voltage, cycle, phase, and amp requirements before
making connection. VOLTAGE SHOULD NOT VARY
MORE THAN 5% FROM SERIAL PLATE RATINGS. A
separate circuit is recommended to prevent possible
loss of product due to over-loading or failure of
other equipment on the same circuit. PROTECT THE CIRCUIT WITH A 20 AMP DELAY-TYPE FUSE
OR CIRCUIT BREAKER. Do not use an extension cord. Be sure your unit is properly grounded.
Use the 3-prong plug provided into a 3-prong grounded outlet.
(Only this method complies with national electrical codes, local
codes and ordinances.) Unless the above grounding method is
followed, you are not protected against severe or lethal shock
in the event of a short circuit of an electrical component or
wiring of the unit.
STARTING – There are no compressor shipping bolts to loosen
or valves to open. All that is necessary after the unit has been
placed on the roller base and leveled is to plug the service cord
into an electrical outlet When starting this new appliance,
allow the cabinet to operate a minimum of eight hours or until

Part number 20079, Rev 0
5
it has started cycling normally before placing product in the cabinet. The motor compressor
may start and stop several times when the unit is first started or after defrosting, especially if
the weather is very hot. This is normal. The motor compressor will cycle normally as soon as
the excess heat has been removed.
DOOR BINS (not applicable to all models)
Your unit may come equipped with storage bins in the door. Because of the temperature
characteristics of these units, items stored in these bins may not be maintained in the desired
temperature band. Please restrict the use of these bins for non-critical temperature storage.
ADJUSTABLE SHELF INSTALLATION (not applicable to all models)
Hook shelf clips onto pilaster strips (see Illustration). Position all four shelf clips equal in
distance from the floor for flat shelves. Wire shelves are oriented so that cross support bars are
facing down.
Place shelves on shelf clips making sure all corners are seated properly.
TEMPERATURE CONTROL
NOTE: The controls are preset at the factory to provide the desired air and product
temperatures inside of the units and require no further adjustment. Please contact the
manufacturer’s Technical Support Department before making any adjustment to make sure
the adjustment is necessary and, if so, to ensure it is performed properly.

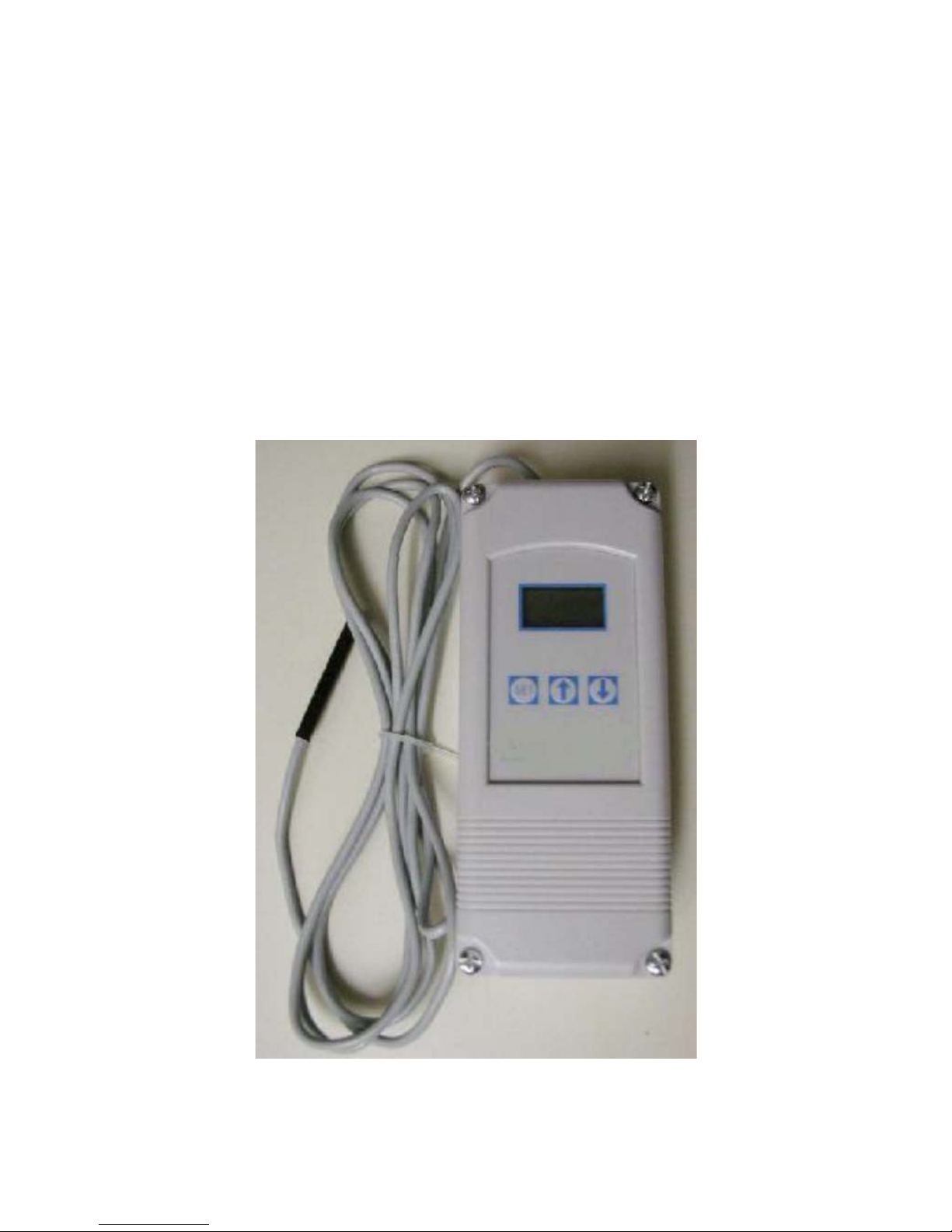

The Digital Microprocessor Temperature Controller is located inside the top of the unit behind
the Control Center. The operation of this controller is explained in the section starting on page
13 of this manual.

Part number 20079, Rev 0
6
FREEZER OPERATION
After the unit is properly installed and power is applied, it will take some time before the
system is cooled down to temperature and cycling normally. You should wait 8 hours on the
first startup before beginning to add product to the unit. This ensures that the unit is installed
and operating properly before being put into service. On subsequent startups (after cleanings,
for example), this wait time can be reduced to about 4 hours. After this wait time, the unit
should be cycling in the desired temperature range. The units are calibrated before leaving the
factory, so no adjustment should be necessary.
Loading the units will again cause temperature to rise as the warmer product is introduced into
the compartment. If a large amount of product is to be introduced, it is a good idea to do it in
stages, allowing several hours between stages to allow temperature to stabilize again before
introducing additional warm product. This will minimize the temperature transient while
loading. Other tips for successful loading include:
-Leave about 2-3 inches of free space along the back and sides of the unit to allow for proper
air flow and, therefore, more even cooling of the product.
-When loading the top shelf, avoid blocking the evaporator fan(s) (if installed). There should
be at least 4 inches of clearance below the fan(s) to allow proper air flow.
-Do not overload the unit. Recommended maximum load is about 75% of the chamber
volume. Additionally, the load should be distributed evenly from top to bottom and side to
side for best results.
These freezers come with 5 interior doors (one for each shelf) to help minimize the
temperature transients resulting from opening the main door. You should still minimize the
time the freezer door is open. On top of letting the cold air out, you are also letting warm,
moist air in which will result in the buildup of more frost in the unit.
Model ABT-3020AP has an auto-defrost feature. Every 6 hours, it will go into a defrost cycle to
remove frost build-up. During this cycle, which can last up to 25 minutes, the compressor is
turned off and defrost heaters are turned on in the evaporator section. This will cause a
temperature transient which will be seen in air temperature inside the unit but should not
significantly affect product temperatures. The other models need to be periodically defrosted.
This procedure is located in the Maintenance and Cleaning section of this manual.
Remember that the units are calibrated to the desired temperature range before leaving the
factory. We also do extensive testing to ensure that these temperatures will result in product
temperatures in the desired band. There should be no need to adjust the temperature control
on these units, but if it is necessary, they can be adjusted using the manual thermostat on the
back of the unit.
It is STRONGLY RECOMMENDED that you contact the manufacturer’s Technical Support
Department prior to performing any temperature adjustments to ensure the adjustment is
necessary and, if so, it is performed correctly.

Part number 20079, Rev 0
7

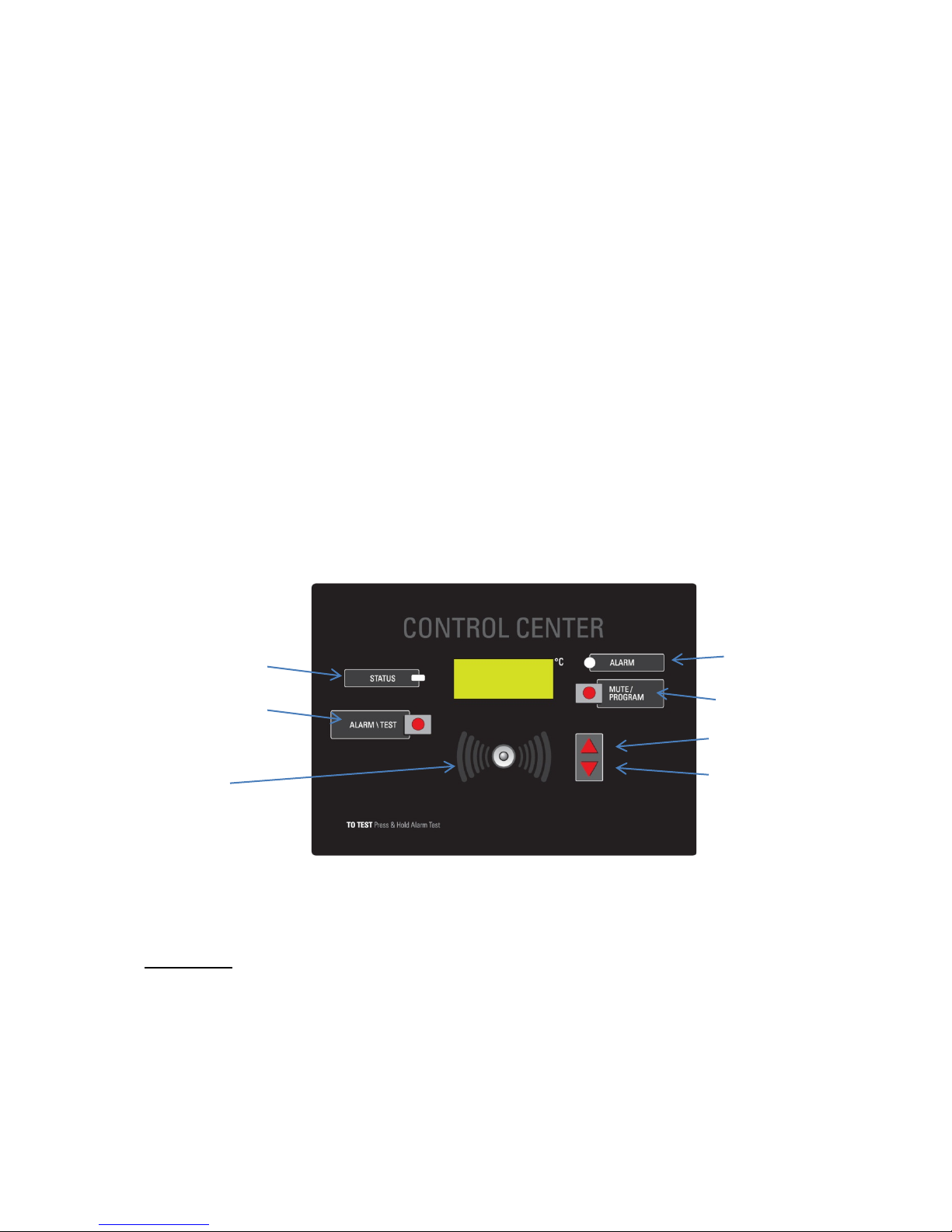

CONTROL CENTER -- Temperature Monitor System
The temperature control center (monitor) system on the front of the unit provides the
following functions-
-to provide an indication of the sample temperature inside of the compartment
-to provide a local alarm at the unit in the event an out of range temperature exists
-to provide the ability to connect remote systems to provide remote alarms or
notifications in the event of an out of range temperature.
-to provide the ability to adjust set points, as well as program and test other parameters
associated with the alarm system (i.e. delay times, system status).
-a battery backup, which will maintain the alarm system for several hours after a power
failure to allow for continued alarm and notification functions.
The temperature monitor system does NOT control the temperature of the unit. That function
is performed by the Microprocessor Digital Temperature Control, which is preset at the factory
and should not need to be adjusted by the user.
CONTROL CENTER PANEL
The LCD Display shows the temperature in ºC
•In the event of a loss of power, the display shows a BAT message to indicate that the
monitor is running on the battery. If the battery is low, the BAT message will blink.
ALARM
MUTE/PROGRAM
UP button
DOWN button
STATUS tri-color LED
ALARM/TEST button
Alarm beeper

Part number 20079, Rev 0
8
The STATUS tricolor LED shows the status of the unit.
Green = normal run mode
Amber = program mode
Red = temperature is out of range (The light blinks off briefly each second to show the
unit is active)
The ALARM/TEST push-button interrupts line power, to allow testing of the battery and the
alarm relay.
The bright red ALARM LED shows alarm conditions.
•In alarm mode, it flashes every half-second.
•In alarm mute mode, it gives a short blink every second.
•In battery mode, it gives a short blink every two seconds.
The BEEPER shows alarm conditions and user activity.
•In alarm mode, it gives a long beep.
•In alarm mute mode, it gives a short chirp.
•It gives an audible tick to indicate a button has been pressed.
The MUTE/PROGRAM button has three functions.
•In Normal Run mode, if the unit is beeping, pressing the button will mute the beeper for a
preset time. Each time the button is pressed the mute time resets.
•Holding the button down for two seconds takes the unit out of Normal Run mode and into
Programming mode. At the same time, it mutes the beeper.
•When in Programming mode, pressing the button steps the unit through the various
programming parameters.
The UP button has a different function for each operating mode.
•In Normal Run mode, pressing the button causes the high temperature set point to be
displayed.
•In Programming mode, pressing the button increases the displayed parameter value.
The DOWN button has a different function for each operating mode.
•In Normal Run mode, pressing the button displays the low temperature set point.
•In Programming mode, pressing the button decreases the displayed parameter value.

Part number 20079, Rev 0
9
BASIC OPERATION
The Control Center Monitor has two modes: NORMAL RUN MODE and PROGRAMMING MODE.
In Normal Run mode, the display shows the temperature that the probe is reading to the lowest
whole number, i.e., if it shows a value of 10.0ᵒ, the actual temperature can range from 10.0 to
10.9.
Press the UP button to cause the display to show the high temperature set point.
Press the DOWN button to cause the display to show the low temperature set point.
The Control Center compares the probe’s temperature reading to HIGH and LOW temperature
set points. The STATUS LED glows green when the probe reads an in-range temperature
(between the two set points) and red when the temperature is out of range (equal to or outside
the set points).
The Control Center will not declare an alarm until the out-of-range state has continued for a
specified time (the “alarm delay”). This alarm delay time is designed to prevent transient,
nuisance alarms.
When an alarm condition is declared, the BEEPER and ALARM LED will both activate. Press the
MUTE/PROGRAM button to stop the beeper for a specified time, changing the sound to short
‘chirps’. When the temperature goes back within range, and there are no out-of-range readings
for thirty seconds, the chirping stops and the MUTE/PROGRAM button resets. If another out-
of-range condition then occurs, the beeper will again start at full volume.
After the user-programmable “SILENCE” parameter times out, if the alarm condition still exists,
the beeper will annunciate again at full volume until MUTE/PROGRAM is pushed.
Battery Back-Up (B)
The Control Center has a battery back-up option. It ships with the battery in place and
connected. Remove the white nylon screw located on the lower left side of the module to
activate the battery option.
When line power is present, all of the normal features of The Control Center are operating.
When line power is lost, the battery provides power to maintain two important functions:
•Operate the audio and visual alarms. They flash/beep less frequently than usual, in order to
avoid draining the battery.
•Continue to display the temperature of the area being monitored. The display will flash, to
save power.

Part number 20079, Rev 0
10
Testing the battery:
The battery recharges when the unit is plugged into line power. To test the battery, push the
ALARM/TEST button on the front panel. The following should happen:
•The ALARM LED will flash red.
•The beeper alarm will begin to chirp.
•The remote alarm relay will switch.
PROGRAMMING
To program The Control Center Monitor:
1. Hold the MUTE button for two seconds to bring the unit into Programming mode.
2. The display will show the first parameter that can be programmed (high temperature limit).
The name of the parameter will flash, then the current value of that parameter.
3. To change the value of a parameter, press the UP or DOWN buttons. Pressing either button
will change the parameter value by one count.
4. Holding either button for half a second will change the parameter value by 10 counts. It will
continue to step by 10 for each push, so long as the pushes occur within a short period.
5. Once the Monitor is in Programming mode, each time the Mute button is pressed, the
display steps to the next parameter. As the display steps to the next parameter, the value
of the previous parameter is saved. Once the final parameter is reached, pressing the
MUTE button returns the monitor to Normal Run mode, saving the final parameter.
Description of Parameters for Control Center:
Hi (High Limit)
In Normal Run mode, the alarm will trigger if the probe reads a temperature equal to or above
the high temperature limit. The high temperature limit cannot be set above the operating
temperature range of the unit.
Lo (Low Limit)
When in Normal Run mode, the alarm will trigger if the probe reads a temperature equal to or
below the low temperature limit. The low temperature limit cannot be set below the operating
temperature range of the unit.
Ad (Alarm Delay)
The Control Center will not declare an alarm until the out-of-range state has continued for a
specified time (the “alarm delay”). This alarm delay time will prevent transient nuisance
alarms. The alarm delay time can be set for 0 to 30 minutes.

Part number 20079, Rev 0
11
rd (Relay Delay)
If there is an alarm condition, the relay contacts will switch. The relay delay parameter allows
the user to set the amount of time delay from the start of the alarm condition to the time the
relay contact switches. This keeps the relay from switching during short “nuisance alarms”.
The operator may set the relay delay time for 0 to 30 minutes.
SIL (Alarm Silence, or Alarm Mute Time)
This parameter sets the number of minutes the beeper will “chirp” when the mute button is
pressed during an alarm condition. After the Silence Time elapses, if the alarm condition still
exists, the beeper will begin to sound at full volume again. This parameter can be set from 5 to
120 minutes.
Remote Alarm Contacts
The Remote Alarm Relay is a single-pole double-throw (SPDT) relay that changes state
(switches) with the loss of line power or with the presence of an alarm condition.
NOTE: The relay is rated for pilot duty operation only. Do NOT use it for control switching. The
relay contacts and connections are rated at 30v/1A.
In normal applications, the relay signals remote alarms or central monitoring systems that an
alarm condition has occurred at the unit being monitored.
The relay will “pull-in” when line power is present. If an alarm condition lasts for a designated
time (the “relay delay”), the relay will “drop out”, causing the relay contacts to switch. If the
alarm condition does not last long enough for the relay delay to time out, the relay will not go
into its alarm position. The relay will also “drop out” if power to the alarm is lost, acting as a
power loss detector.
The diagram below is an example of hooking up our external relay output to a remote alarm.

Part number 20079, Rev 0
12
DIGITAL MICROPROCESSOR TEMPERATURE CONTROLLER
Product Description
The digital microprocessor temperature controller is designed to provide on/off control of
refrigerators or freezers. The controller also provides a constant readout of the air temperature
inside of the unit. A touch keypad allows the user to easily select the display units, set point,
differential set point, and heating or cooling mode.
Please Note: The digital temperature controller has been factory set and tested
to allow your unit to operate at its desired temperature cycle. Adjusting the
settings on the controller will alter these factory settings. WE STRONGLY
RECOMMEND YOU CONTACT THE MANUFACTURER’S TECHNICAL SUPPORT
DEPARTMENT BEFORE MAKING ANY ADJUSTMENTS TO THIS CONTROLLER.

Part number 20079, Rev 0
13
Programming
Procedure
Display
Description
Display
To start programming, press the SET
key once to access the Fahrenheit /
Celsius mode. The display shows the
current status,
Ffor Fahrenheit or C
for Celsius. Press up or down arrow to
toggle between the For C.
For C
Fahrenheit or
Celsius Scale
Press SET key again to access the
set point mode. The LCD will display
the current set point and S1 will be
blinking. Press the up and down keys
to adjust to the desired setting.
S1
(blinking)
Set point
Temperature
Press SET key again to access the
differential mode. The LCD will display
the current differential and
DIF1 will
be blinking. Press the up and down
keys to adjust to the desired setting.
DIF 1
(blinking)
Differential
Temperature
Press SET key again to access the
cooling or heating mode. The LCD
displays the current mode,
C1 for
cooling or
H1 for heating. Press up or
down key to toggle between
C1 and
H1
. Press the SET key again to exit
programming mode
C1 / H1 Cooling or Heating
mode

Part number 20079, Rev 0
14
Error Messages
Display Messages Corrective Action
E1
Appears when either the up or down
key is pressed when not in the
programming mode
If the E1 message appears even when
no keys are being pressed, replace
control.
E2
Appears if the control
settings are not
properly stored in memory.
Check all settings and correct if
necessary.
EP
Appears when the probe is open,
shorted or sensing a temperature that
is out of range.
Check to see if the sensed
temperature is out of range. If not,
check fo
r probe damage by comparing
it to a known ambient temperature
between
-
30°F and 220°F. Replace the
probe if necessary.
EE
Appears if the EPROM data has
been corrupted.
This condition cannot be field repaired.
Replace the control.
CL
Appears if
calibration mode has been
entered.
Remove power to the control for at
least five seconds. Reapply power. If
the CL message still appeared, replace
the control.

Part number 20079, Rev 0
15
QUICK TROUBLESHOOTING GUIDE
Check these items before calling for service
PROBLEM:
POSSIBLE CAUSE / SOULTIONS:
Unit does not run
•Electrical circuit is not 110-120V 60Hz.
•The power cord is not plugged in.
•No power at electrical outlet. Check to make sure
breaker is not tripped or fuse is not blown. Additionally,
make sure unit is not plugged into a Ground Fault Circuit
Interrupter (GFCI) type of outlet.
Unit does not maintain at the
proper temperature
•Check the room temperature. We recommend the
refrigerator or freezer should be placed in the air
conditioned room between 65°F to 85°F. If the room
temp is too warm, the refrigerator or freezer may not be
able to maintain the interior temp at proper range.
•Door is not closed properly.
•Amount of stored product is overloaded.
•Product replacements are pushed against rear wall or
interrupted the proper refrigerator air circulation. For
the proper air circulation, place the products evenly on
each shelf. Do not push against the refrigerator’s rear or
side walls.
•Evaporator is blocked by frost or ice. Remove the
products, unplug the refrigerator or freezer power, and
allow the unit to defrost. If the problem still exists, call
for service.
•3rd party thermometer is placed incorrectly. For proper
temperature monitoring, the thermometer should be
place in the middle of refrigerator.
PLEASE NOTE! Prior to shipment, each refrigerator and freezer
has been calibrated and tested at proper temperature range.
Appliance runs too long
•
Prolong door openings.
•Control set too cold.
•Room temperature is high which will make the unit work
harder to keep cool.
Temperature of external wall
surface is warm
•
The exterior walls can be as much as 30 degrees warmer
than room temperature due to the embedded
condenser coils. This is normal when the unit is
operating.

Part number 20079, Rev 0
16
PROBLEM:
POSSIBLE CAUSE / SOULTIONS:
Compressor noises
•Compressor may be overheated. Please check the room
temp and ensure the range is within 65°F to 85°F. If the
problem still exists, call for service.
Moisture collects inside
•Door gasket is not sealing properly. Check for debris,
cracks, and items passing through door at the gasket.
•The freezer is facing a doorway or is underneath of air
conditioning vent. Relocate the unit or redirect air vent.
•Too many door openings. Minimize time door is open.
•Hot, humid weather increases condensation.
•Make sure there is a water trap (U-shaped loop) in the
drain tube near the compressor. This will “trap” a small
amount of water in the loop and prevent air from
entering the chamber through the tube.
Moisture collects on outside
surface
•Hot, humid weather increases condensation.
•As humidity decreases, moisture will disappear.
Odor inside the unit
•
Interior needs to be cleaned. See section on
maintenance and cleaning in this manual.
•Make sure product containers are tightly sealed to
prevent leakage
Door will not close
•The unit is not level. Refer to the Leveling section at the
beginning of this manual
•Check for dirt and debris or items passing through the
door seal.
MOISTURE DURING THE SUMMER SEASON
The amount of moisture, condensation, or high humidity related issues increase during the summer
and, in most cases, will self-resolve when the weather cools down. Please note a refrigeration
system will NOT generate moisture or water but simply condenses the moisture that is already in
the chamber. Keeping the unit in an air conditioned, low humidity space will resolve many issues.
Other things you should check
1. Location of the freezer (See Quick Troubleshooting Guide above)
2. Door sealing and frequency of door opening event (See Quick Troubleshooting Guide above)
3. Make sure there is a water trap (U-shaped loop) in the drain tube near the end. This will
“trap” a small amount of water in the loop and prevent air from entering the chamber
through the tube.
Before calling the manufacturer’s Technical Support Department, please have the unit’s model
and serial number ready as well as the problem description. The model and serial number is
located on the serial tag which can be found on the interior left upper wall of the unit.

Part number 20079, Rev 0
17
MAINTENANCE AND CLEANING
Manual-Defrost Freezers (All models except ABT-3020AP) should be defrosted whenever ¼ to ½
inch of frost has accumulated. Use the procedures in the defrosting section starting at the
bottom of this page for best results. They should also be cleaned periodically. Use the cleaning
agents and suggestions in the table below for best results.
Model ABT-3020AP is an Auto-Defrost Freezer and requires little maintenance. Like the other
models, it should be cleaned periodically to keep it running efficiently. Use the cleaning agents
and suggestions in this table for best results.
CLEANING
PART
CLEANING AGENTS
TIPS AND PRECAUTIONS
Interior and Door
Liners
Soap and water
Baking soda and water
Use 2 tablespoons of baking soda in 1 quart of
warm water
Be sure to wring excess water out of sponge or
cloth before cleaning around controls, light bulb
or any electrical parts.
Door Gaskets
Soap and water
Wipe gaskets and their seating surfaces with a
clean soft cloth
Shelves
Soap and water
Do not wash removable shelves in dishwasher
Exterior and
Handles
Soap and water
Non Abrasive Glass
Cleaner
Do not use commercial household cleaners,
ammonia, or alcohol to clean handles
Use a soft cloth to clean smooth handles
Do not use a dry cloth to clean smooth handles
Manual Defrosting - All models except ABT-3020AP
It is important to defrost and clean the freezer when ¼ to ½ inch of frost has accumulated. Frost
may tend to accumulate faster on upper part of the freezer due to warm, moist air entering the
freezer when the door is opened. Between defrost evolutions; you can minimize frost build-up
by using a plastic scraper to remove frost. Scrape with a pulling motion. Never use a metal

Part number 20079, Rev 0
18
instrument to remove frost. Never use a damp cloth or wet hands as they will stick to the inside
surfaces when cold. When defrosting becomes necessary, disconnect freezer from power
source by unplugging to avoid electrical hazard. DO NOT ADJUST THE THERMOSTAT. Remove
the product and leave the door open while defrosting the freezer.

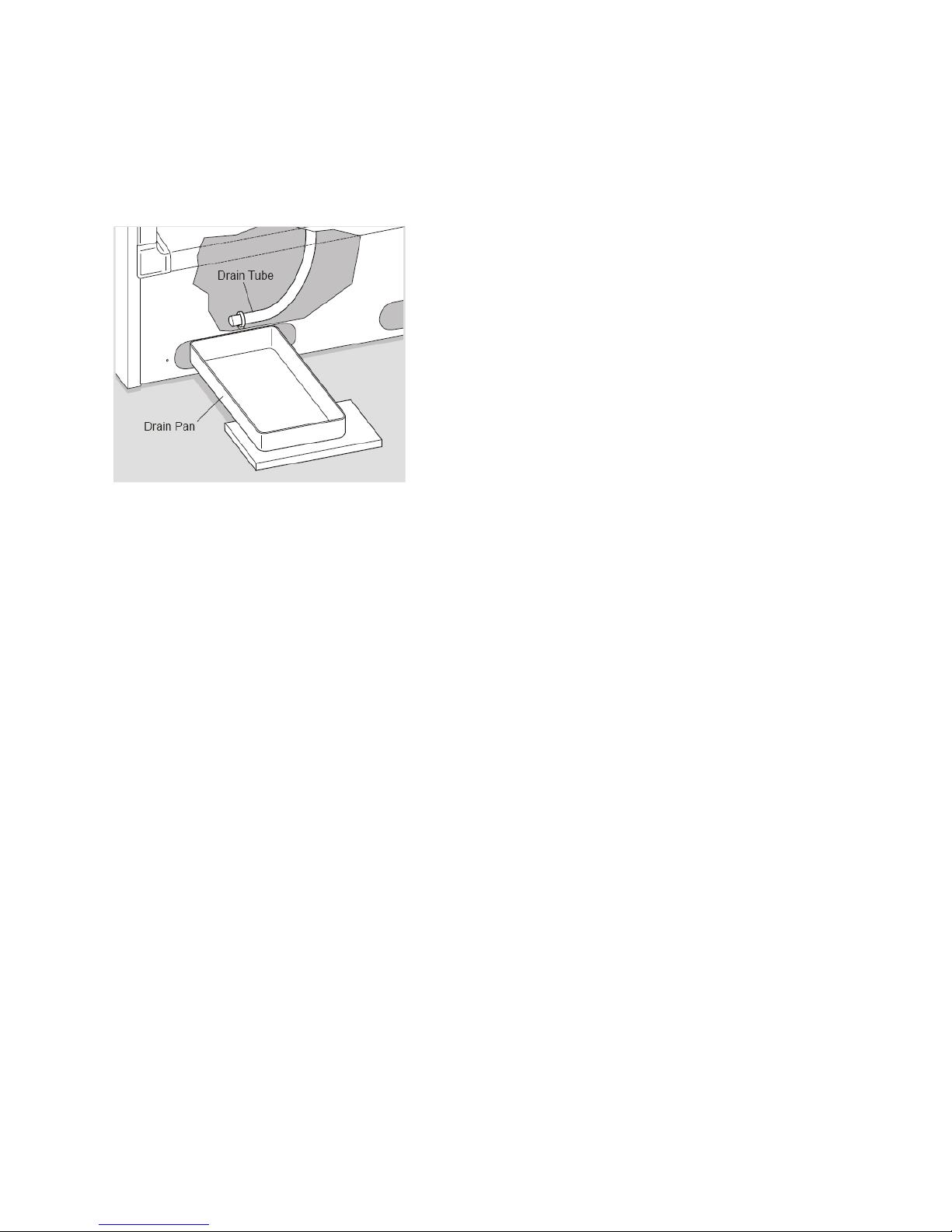

Remove the drain plug on the inside floor of the
freezer by pulling straight out. To access the external
drain tube on models with a base panel, first remove
the two screws from the base panel. Locate the drain
tube near the left center under the freezer. Place a
shallow pan under the drain tube. Defrost water will
drain out. Check the pan occasionally to ensure it does
not overflow. A ½ inch garden hose adaptor (available
at most hardware stores) can be used to drain the
freezer directly into a floor drain. Replace the drain
plug when defrosting is complete so warm air does not
enter the freezer through the hole.
Defrosting tips – If the frost is soft, remove it with a plastic scraper. If the frost is glazed and
hard, fill deep pans with hot water and place them inside on the freezer bottom. Close the
freezer door. Frost should soften in about 15 minutes. Repeat this procedure as necessary until
all frost is removed.
After defrosting - replace the drain plugs (if applicable) and remove any towels, tools, or pans
from the interior of the freezer. Clean the interior and exterior of the unit using the cleaning
suggestions on the previous page. Plug the unit back in and restore it to service per the
operation section of this manual.

Part number 20079, Rev 0
19
HORIZON SCIENTIFIC, INC. PRODUCT WARRANTY
Horizon Scientific, Inc. warrants to the original purchaser every new Horizon Scientific, Inc. refrigerated
unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, when such
unit is installed, used, and maintained in accordance with provided instructions, for a period of two (2)
years. The warranty period starts two weeks from the date of shipment from Horizon Scientific, Inc.
This two week period allows ample shipping time so that the warranty will go into effect at
approximately the same time your equipment is delivered. Unless subject to prior written agreement
with Horizon Scientific, Inc., this warranty does not allow for any warranty start deferment greater than
two weeks from date of shipment due to a delayed installation and/or start-up. By purchasing any
product from Horizon Scientific, Inc., you and any entity for which you are purchasing acknowledge and
agree to each and every provision contained herein, and all other Notices and Terms provided to
Purchaser by Horizon Scientific, Inc., which are hereby incorporated.
Under this warranty, Horizon Scientific, Inc., through its authorized service organizations, will repair, or
at its option, replace any part found to contain a manufacturing defect in material or workmanship
without charge to the owner for parts and service labor. Replacement or repaired parts will be
warranted for only the unexpired portion of the original warranty. Horizon Scientific, Inc. will not
assume any shipping or cartage costs for parts under warranty. These costs shall be paid by the
customer.
ADDITIONAL THREE YEAR COMPRESSOR WARRANTY
In addition to the two (2) year warranty stated above, Horizon Scientific, Inc. warrants its hermetically
and semi-hermetically sealed compressors to be free from defects in both material and workmanship
under normal use and service for a period of three (3) additional years from the end of the initial two (2)
year warranty period, but not to exceed five (5) years after shipment from Horizon Scientific, Inc.
Compressors determined by Horizon Scientific, Inc. to have been defective within this extended time
period will, at Horizon Scientific, Inc.'s option, be either repaired or replaced with a compressor or
compressor parts of similar design and capacity.
The three (3) year extended compressor warranty applies only to hermetically and semi-hermetically
sealed parts of the compressor and does not apply to any other parts or components, including, but not
limited to, cabinet, paint finish, temperature control, refrigerant, metering device, driers, motor starting
equipment, fan assembly or any other electrical components.
Horizon Scientific, Inc.’s sole obligation under this warranty is limited to either repair or replacement of
parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any
person to assume obligations other than expressly covered by this warranty.
NO CONSEQUENTIAL DAMAGES. Horizon Scientific, Inc. is not responsible for economic loss; profit loss;
or special, indirect or consequential damages, including without limitation, losses or damages arising
from contents spoilage claims whether or not on account of refrigeration failure, electrical failure,
power failure, or compressor failure. HORIZON SCIENTIFIC, INC.’S MAXIMUM CUMULATIVE LIABILITY
RELATIVE TO ALL CLAIMS AND LIABILITIES, INCLUDING OBLIGATIONS UNDER ANY INDEMNITY, WHETHER
OR NOT INSURED, SHALL NOT EXCEED THE COST OF THE PRODUCT(S) GIVING RISE TO THE CLAIM OR
LIABILITY.

Part number 20079, Rev 0
20
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the
original purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties
herein made and shall void all warranties, express or implied, including any warranty of merchantability
or fitness for a particular purpose.
NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. There are
no other warranties, express, implied, or statutory, except the two (2) year warranty and the additional
three (3) year compressor warranty as described above. These warranties are exclusive and in lieu of all
other warranties, including implied warranty and merchantability or fitness for a particular purpose.
There are no warranties which extend beyond the description on the face hereof, whether based on
contract, warranty, tort (including negligence), strict liability, indemnity, or any other legal theory, and
whether arising out of warranties, representations, instructions, installations, or non-conformities from
any cause. Purchaser further acknowledges that the purchase price of the Product reflects these
warranty terms and remedies.
ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION,
FIRE, FLOOD OR OTHER EXTERNAL CAUSES.
Horizon Scientific, Inc. is not responsible for the repair or replacement of any parts that Horizon
Scientific, Inc. determines have been subjected after the date of manufacture to alteration, neglect,
abuse, misuse, accident, damage during transit or installation, fire, flood or other external causes. It
does not apply to defects resulting from failure to properly install, operate or maintain the product in
accordance with the printed instructions provided, or damage caused by the storage of any corrosive
material that comes in contact with the interior or exterior portions of the cabinet, or the use of spark
producing equipment or containers (such as galvanized or carbonized steel containers) that come in
contact with any interior portion of the cabinet.
OUTSIDE U.S./CANADA. This warranty does not apply to, and Horizon Scientific, Inc. is not responsible
for, any warranty claims made on products sold or used outside the United States and Canada.
CHOICE OF LAW/VENUE. The laws of the State of South Carolina shall govern the validity, interpretation
and enforcement of this warranty, regardless of conflicts of law principles. Purchaser agrees that proper
venue for any action to enforce the terms of this warranty shall be the Dorchester County District
Courts, South Carolina. Purchaser submits the jurisdiction of such courts over the Purchaser and the
subject matter of any such action. Any action for breach of these warranty provisions must be
commenced within one (1) year after that cause of action has accrued.
WARRANTY CLAIMS. To obtain prompt warranty service, simply contact the manufacturer at 800-648-
4041. Horizon Scientific, Inc.’s shipping records showing date of shipment shall be conclusive in
establishing the warranty period. All claims should include: model number of the refrigerator, the serial
number of the cabinet, proof of purchase, date of installation, and all pertinent information supporting
the existence of the alleged defect. Any repairs must be authorized by Horizon in order for the warranty
to be honored.
