Accetel SW-020T User manual

SW-020T
INSTRUCTION MANUAL
ENGLISH/ ESPAÑOL/ PORTUGUÊS

INSTRUCTION MANUAL
(ENGLISH)

Please read the manual before use.
The information in this document won't bemodified
or extended in accordance with any notice.
The watch should be charging 2 hours at leastbefore
use.
1. Product specification
◆Model:SW-020T
◆CPU RTL8762C ARM Cortex-M0 53MHz
◆Memory:RAM 128Kb+ ROM 64Mb
◆Capacitive touch screen 1.4” 240*240 pixel IPS
◆Bluetooth version 5.0
◆Function:Temperature, Heart Rate, Push Dial, Do not
disturb, Daily activity, Sleep, Notification (G-mail,
Facebook, Skype, WhatsApp and so on)
◆Battery Lithium-ion 3.7V/160mAh

2. Product details
2.1 Product details
(1) Power on: Long press the watch button for 3 seconds to
turn it on, and the main page of the watch will be displayed
after booting.
(2) Touch screen operation: Swipe to the right to the menu
page, then tap the function icon to enter the corresponding
sub-interface.
(3) Bright screen: When the watch is in the state of interest
screen, you can touch the screen bright screen. If the turn
button is turned on in the APP, the user can also achieve the
bright screen by turning the wrist, and the watch is displayed
after the screen is bright. Main interface.
(4) Shutdown: Click the Setting icon, click System - Shut down,
click to shut down.

3. Products quick into
3.1 Products quick into
Touch dial definition
(1) Long press the main interface: enter the home page
thumbnail, you can view it left and right, click touch to switch
the home page.
(2) Slide to the right: display function list -> Daily activity,
Temperature, Heart rate, Message, Sports, Sleep, Weather,
Music, Relax, Timer, Find phone, Setting, etc., click touch to
enter the corresponding function (list can be up and down
Slide)
(3) Sliding down: Display date, Bluetooth, power function
icons are: Timer, Brightness, Setting, Do Not Disturb mode.
(4) Slide up: Information storage, Heart rate monitoring, Daily
activity.
(5) Slide to the left: display the static icon, click to enter the
corresponding function, right stroke to return to the previous
level.

3.2 Clock Display
Setting method：
Power on,when the watch in clock mode, please long
press middle screen and set different clock interfaces if you
like.
4. Product quick use
4.1 Download and install
You have to download and install the " HitFit Pro " App
from APP Store or Google PlayStore:
4.2 Connection and Synchronize data
4.2.1 Bluetooth connection
4.2.1.1 For Android:
Open HitFit Pro -- Click “Device”in bottom --“Device
Connection”--Searching Device.
Click OK and Click Pair to bind watch as below.

Open“HitFit Pro”- left slide menu bar - Device - select the
corresponding device icon - search for the corresponding
Bluetooth address pairing
4.2.1.2 For IOS:
Connect step 1: Open“HitFit Pro”app, “Add device ” on
screen to search Bluetooth devices nearby, find watch name
SW-020T and paired it in app. Once SW-020T connected will
show in the phone's Bluetooth menu screen as below
pictures.
Open“HitFit Pro”- left slide menu bar - Device - select the
-corresponding device icon - search for the corresponding
Bluetooth address pairing.

Connect step 2: Now the Bluetooth menu interfacedisplays
SW-020T connected successfully as below picture shows.
After connected successfully, as shown by the icon on
the left.

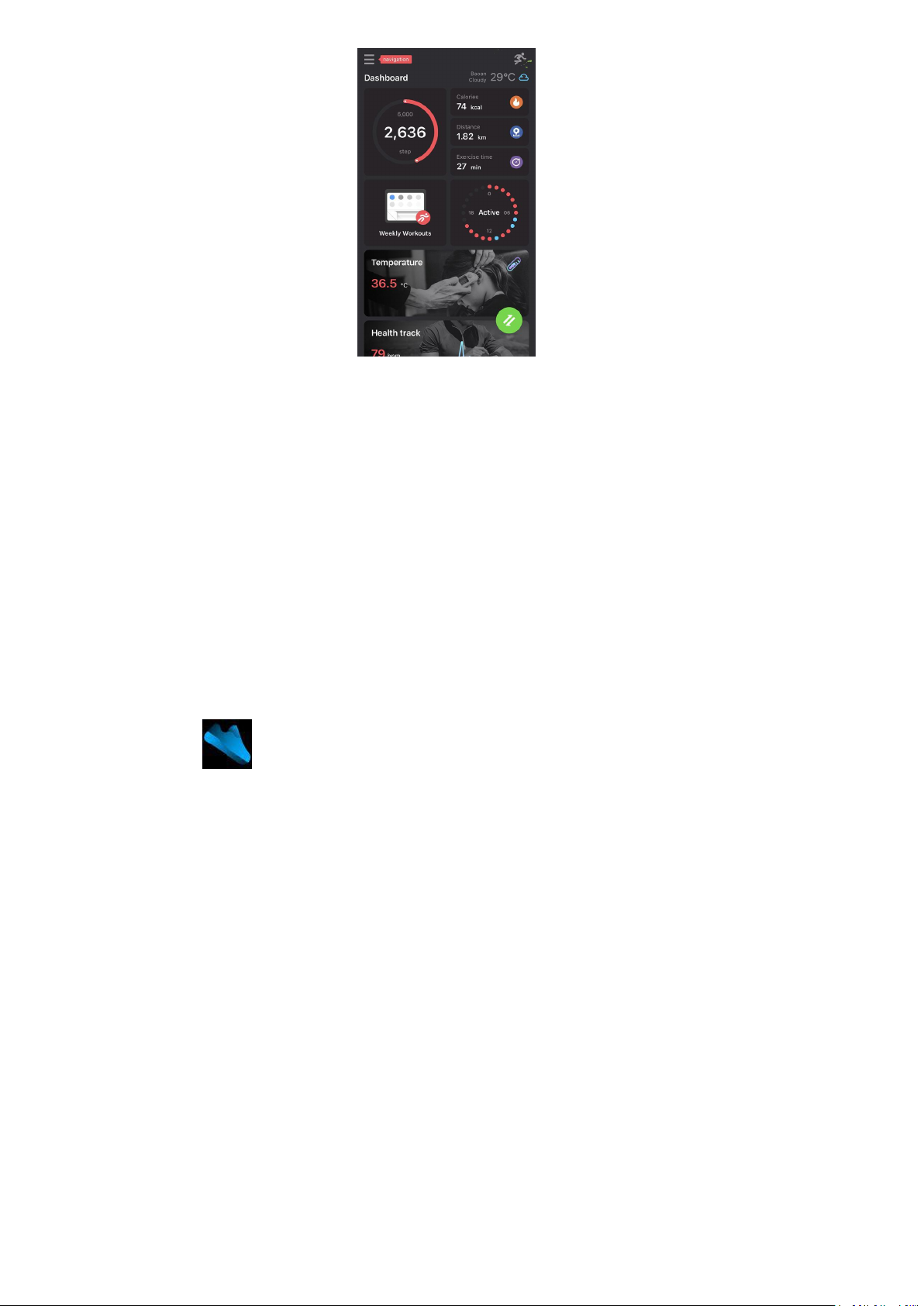

4.2.2 Synchronizing data
Pair your watch with " Hitfit Pro " App, Press " " to
sync data. Your data will be shown on App accordingly.

Notice：
Please don’t shut the Bluetooth notify service when you
are clearing software by background or close background
application software. It will affect the sync function
between watch and phone if shut it.
4.3 Basic function
4.3.1 Daily activity
(1) Function introduction: The watch will display the user's
total number of steps on the day, walking distance, calories
burned on the same day, and the data will be cleared at 0
o'clock every day.
(2) Operation instructions: The main interface slides left and
right and clicks the motion data to switch to the step counter
interface. After no operation for 3 seconds, the screen is
automatically turned off.

4.3.2 Sports
In sports mode: the single-point function icon allows you to
enter sports modes such as walking, running, riding, climbing,
and basketball.
4.3.3 Heart rate
(1) Function introduction:
Heart rate measurement: The watch will measure the user's
heart rate under the heart rate measurement interface. After
the test is completed, the vibration will display the result.
After no operation, the screen will automatically go out.
(2) Operating instructions:
Heart rate measurement: slide to the left on the main
interface and click the heart rate static icon to switch to the
heart rate measurement interface. Once the interface is
entered, the measurement will start. During the
measurement, the interface value will be zero. After the
measurement is completed, the value will be displayed. If the
result cannot be detected, it will always be displayed. The
display value is zero until standby.

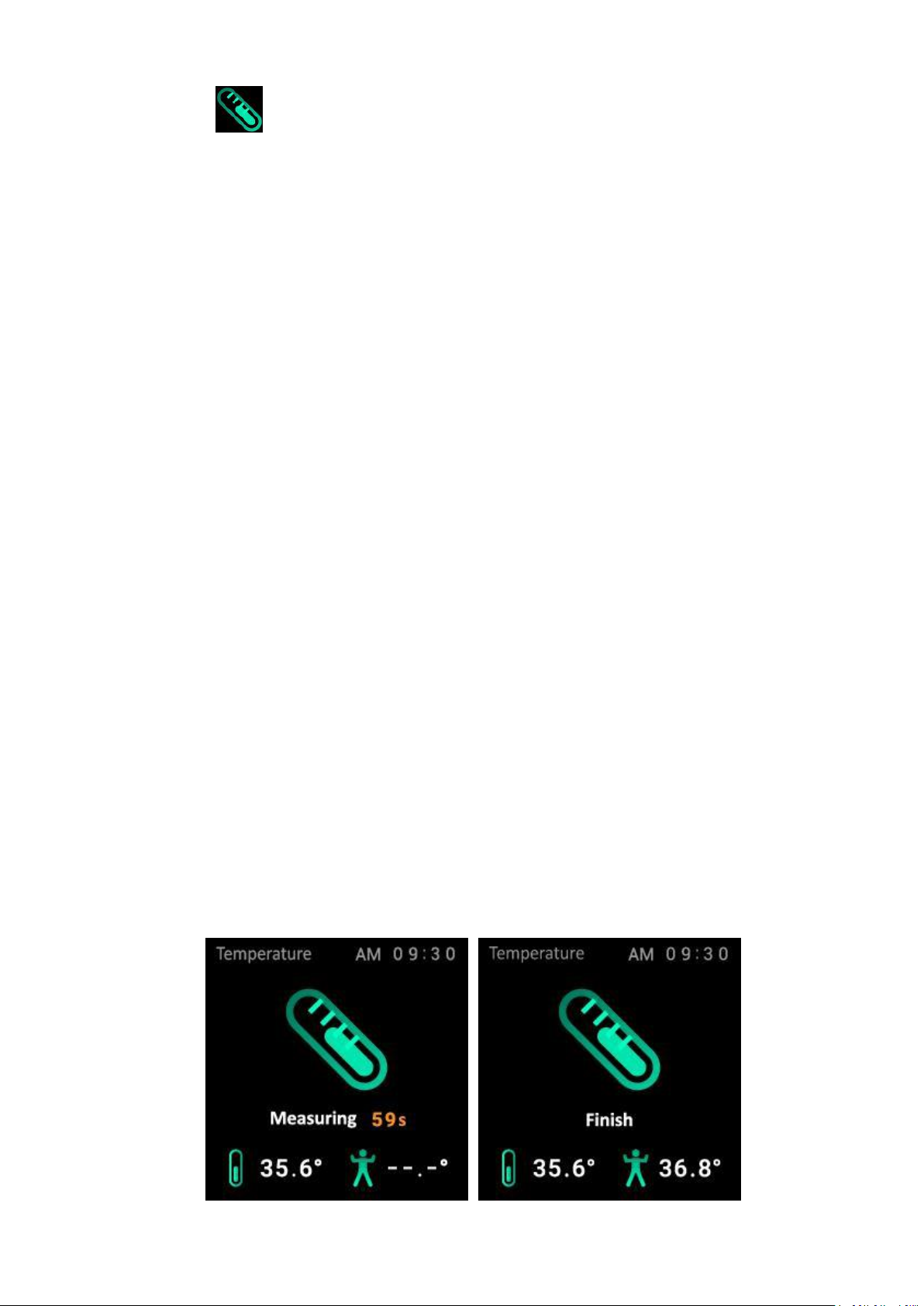

4.3.4 Temperature
(1) Function introduction:
Temperature measurement: The watch will measure the
user's temperature under the temperature measurement
interface. After the test is completed, the vibration will
display the result. After no operation, the screen will
automatically go out.
(2) Operating instruction:
Temperature measurement: slide to the left on the main
interface and click the temperature static icon to switch to the
temperature measurement interface. Once the interface is
entered, the measurement will start. The left data is for Body
surface temperature, it is changed in real time. The right data
is for Body temperature, measuring 60s to complete the
measurement. During the measurement, the interface value
will be show “--.-”. After the measurement is completed, the
value will be displayed.

4.3.5 Sleep
(1) Function introduction: The watch will display the user's
sleep time the night before. (Sleep measurement time 21:30 -
12:00 next day)
(2) Operation instruction: slide the main interface left and
right, click sleep to switch to the sleep interface, you can view
the sleep time of the previous day.
4.3.6 Weather
After connected with HitFit Pro, the watch will show local
weather.
4.3.7 Message
When connected to Bluetooth, notifications from yourphone
will be sent to your watch. (You need to open the push switch
in the app in advance)
4.3.8 Music
After connected with the Bluetooth,you can manipulate

Mobile to play music and adjust the volume, voice will come
out from mobile phone.
4.3.9 Timer
Swipe left on the main page and click the stop icon static icon
to switch to the stopwatch interface. Click to start timing.
During the timing, you can pause/start switching with a single
touch. Slide the stopwatch function to the right of the
stopwatch interface and return to the static function page.
4.3.10 Find phone
When you connect your phone, the phone vibrates andrings
when you click the Find Phone icon.
4.3.11 Relax
Adjust your breathing and relax.
4.3.12 Setting
Screen display: Including Change dial,Brightness,
Screen time,Turn wrist wake setting.
Do no disturb: set enter or exit do no disturb mode.
Vibration: set vibration intensity.
System: Including System version,Shut down,
Reset setting.

5. Caveat
Please follow the doctor's instructions and measure the
results of self-diagnosis and treatment. Users with blood
circulation disorders and blood diseases should be treated
under the guidance of a doctor. The measurement results of
this product are for reference only and are not intended for
any medical use or basis.

MANUAL INSTRUCCIÓN
(ESPAÑOL)

Lea el manual antes de usar.
◆La información en este documento no se modificaráni
ampliará de acuerdo con cualquier aviso.
◆El reloj debe cargarse al menos 2 horas antes de su uso.
1. Especificaciones del producto
◆Modelo:SW-020T
◆CPU RTL8762C ARM Cortex-M0 53MHz
◆Memoria: RAM 128Kb+ ROM 64Mb
◆Pantalla táctil capacitiva 1.4” 240*240 píxel IPS
◆Bluetooth versión 5.0
◆Función: Temperatura, Frecuencia cardíaca,
◆Dial de presión, No molestar, Actividad diaria, Sueño,
Notificación (G-mail, Facebook, Skype, WhatsApp,
etc.)
◆Batería de Ion de litio 3.7V/160mAh
2. Detalles de producto
2.1 Detalles de producto

(1) Encendido: mantenga presionado el botón del reloj
durante 3 segundos para encenderlo, y la página principal del
reloj se mostrará después del arranque.
(2) Operación de la pantalla táctil: deslice hacia la derecha a la
página del menú, luego toque el ícono de función para
ingresar a la interfaz secundaria correspondiente.
(3) Pantalla reluciente: Cuando el reloj está con pantalla en
modo funcionamiento, puede tocar la pantalla. Si el botón de
giro está encendido en la aplicación, el usuario también
puede lograr encender la pantalla girando la muñeca, y el
reloj se muestra después de que la pantalla brille. Interfaz
principal.
(4) Apagado: Haga clic en el icono Configuración, haga clic en
Sistema - Apagar, haz click para apagar.
3. Producto con facilidad de manejo
3.1 Rápida accesibilidad

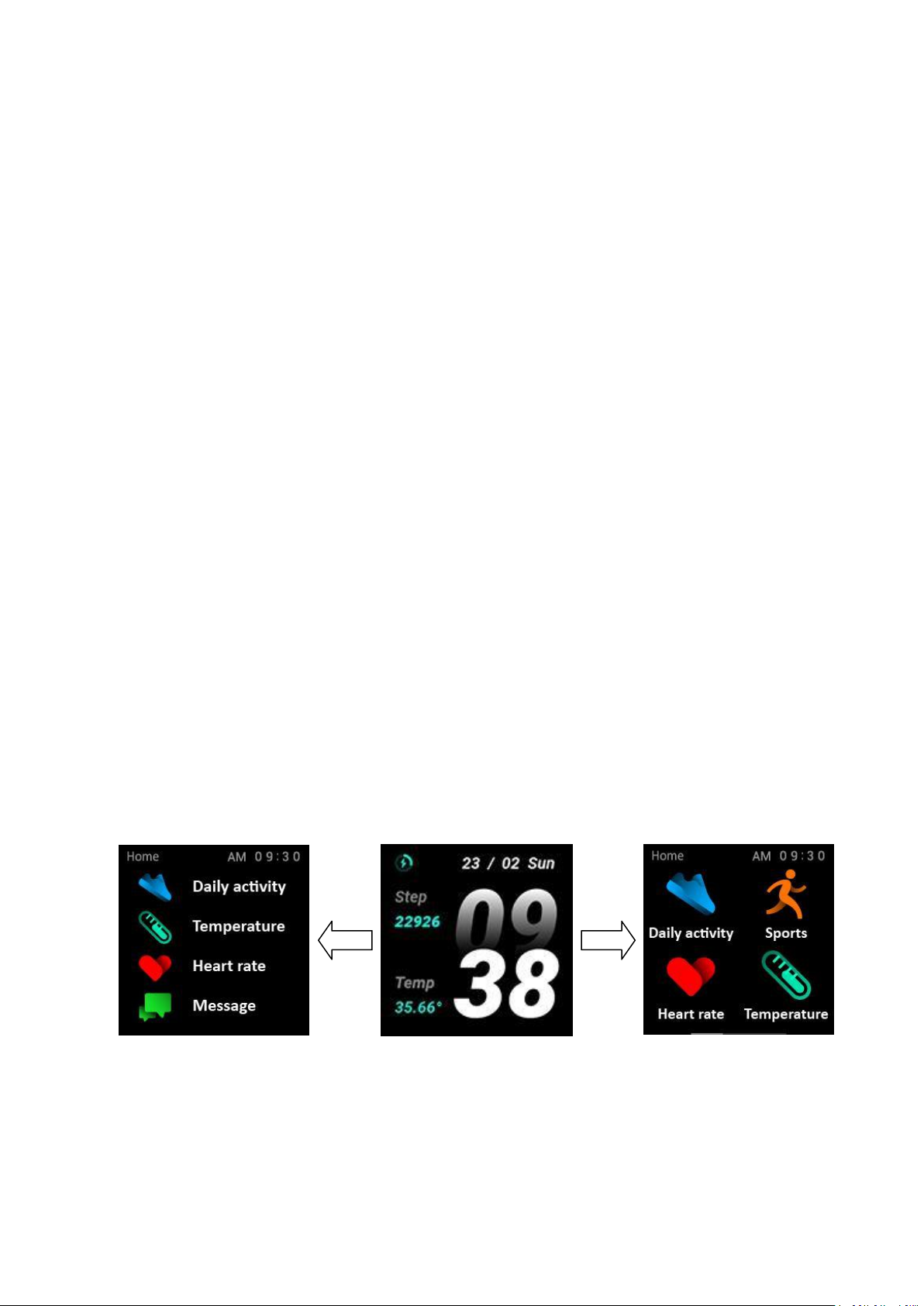

Definición de marcación táctil
(1) Mantenga pulsada la interfaz principal: introduzca la
imagen de la página de inicio, puedes deslizar hacia la
izquierda y a la derecha, haz clic para cambiar la imagen
principal.

(2) Deslice a la derecha: mostrar la lista de funciones ->
Actividad diaria, Temperatura, Frecuencia cardíaca, Mensaje,
Deportes, Dormir, Tiempo, Música, Relajarse, Temporizador,
Buscar teléfono, Configuración, etc., haga clic en el toque para
entrar en la función correspondiente (la lista puede deslizarse
de arriba hacia abajo)
(3) Deslizamiento hacia abajo de la pantalla aparece la fecha,
Bluetooth y iconos de la función de la duración de la batería
que son: el temporizador, brillo, configuraciones, como el
Modo No molestar.
(4) Deslice hacia arriba: almacenamiento de información,
monitoreo de frecuencia cardíaca, actividad diaria.
(5) Deslice hacia la izquierda: muestre el ícono estático, haga
clic para ingresar a la función correspondiente, toque a la
derecha para regresar al nivel anterior.

3.2 Visualización del reloj
Método de ajuste：
Enciende el reloj, cuando la pantalla este en modo reloj,por
favor mantenga presionado la pantalla central y configurar
diferentes interfaces de reloj que desea.
4. Uso rápido del producto
4.1 Descargar e instalar
Tienes que descargar e instalar la aplicación " HitFit Pro "
del APP Store o Google PlayStore:
4.2 Conexión y sincronización de datos
4.2.1 Conexión de Bluetooth
4.2.1.1 Para Android:
Abre la aplicación HitFit Pro —Haz clic en el botón
“dispositivo” -- “conexión de dispositivo” —buscar dispositivo.
Haga clic en Aceptar y haga clic en Emparejar para enlazar el
reloj como se muestra a continuación.
Abrir "HitFit Pro"- en la barra de menú de diapositivas

izquierda - Dispositivo - seleccione el icono del dispositivo
correspondiente - busque el emparejamiento del nombrede
Bluetooth correspondiente
4.2.1.2 Para IOS:
Paso 1 para la conexión: Abra la aplicación "HitFit Pro",
"Agregar dispositivo" en la pantalla para buscar dispositivos
Bluetooth cercanos, encontrar el nombre del reloj SW-020T y
emparejarlo en la aplicación. Una vez que SW-020T esté
conectado se mostrará en la pantalla del menú Bluetooth del
teléfono como se muestra en a continuación.
Abrir "HitFit Pro"- desliza hacia la izquierda de la barra de
menú - Dispositivo - seleccione el icono correspondiente del
dispositivo - busque el emparejamiento del nombre del
Bluetooth correspondiente.
