Action Sports Equipment S002023 User manual

2 Unit Swing Set
S002023
Instruction Manual
WARNING: To ensure your safety, please do not attempt to assemble this swing set without reading this instruction
manual carefully. Failure to comply with this warning may result in injury and/or property damage.
• Prior to assembly, this swing set includes small parts/accessories that are not suitable for children under 3 years
of age as they may cause a choking hazard.
• This swing set should be assembled by 2 adults.
• Only use this swing set on a so, flat level surface.
• This swing set has a maximum user weight of 34kg per seat (20kg for the nursery swing). The total
weight on the swing set at any time must not exceed 68kg.
• Only one child per seat at any time.
• This swing set is suitable for children 3-9 years of age, 18 months - 3 years for nursery swing.
• This swing set is designed for outdoor domestic use only, it is not intended for commercial use in play centres,
nurseries, etc.
For parts and service enquiries, please contact Action Spares on 1800 465 070 or e-mail service@
actionspares.com.au

2
S002023 Action 2 Unit Swing Set
Contents
3Important Safety Information
5Parts List
6Hardware List
7Assembly Instructions
12 Warranty Information

3
S002023 Action 2 Unit Swing Set
Important Safety Information
To reduce the risk of serious injury, read the entire manual before you assemble or use this swing set. In
particular, please note the following safety precautions. Please keep this manual in a safe place for future
reference. Failure to assemble and maintain this product correctly may cause injury to the user.
1. Prior to assembly, this swing set includes small parts/accessories that are not suitable for
children under 3 years of age as they may cause a choking hazard.
2. This swing set should be assembled by 2 adults.
3. This swing set is designed for domestic use only, it is not intended for commercial use in
play centres, nurseries, etc.
4. This swing set is designed for use by children 3-9 years of age, 18 months - 3 years for
nursery swing.
5. This swing set has a maximum user weight of 34kg per seat (20kg for the nursery swing),
totalling 68kg across the entirety of the swing set.
6. Do not install this product over concrete, asphalt or any other hard surface.
7. Do not orientate the swing set directly towards the sun.
8. There should be at least 2m of space surrounding the swing set from any structure of
obstruction such as a fence, garage, house, wall, overhanging branches, laundry lines,
electrical wires, etc.
9. Regularly check the swing set for wear and damage, replace any worn or damaged parts
immediately. Remove the swing set from use until replacement parts are fitted. Check all
hardware regularly and tighten when required.
10. Do not overtighten the nuts and bolts. Use hand tools only, do not use power tools as this
can weaken the connection points.
11. The minimum distance between any swing and the ground is 350mm.
12. Swings must not exceed an angle of 60 degrees from the ground.)
13. This swing set must be anchored firmly into the ground using the included ground pegs.
14. Children must be supervised by an adult at all times when the swing set is in use.
15. Only 1 child should use each swing (unless specifically designed for 2 children) at any time.
16. Do not stand on the seats when using the swing set.
17. Do not use the swing set when it is wet as it will become slippery and serious injury may
result.
18. Do not climb on or jump from the swing set when it is in motion.
19. Do not climb or hang on the frame of the swing set.

4
S002023 Action 2 Unit Swing Set
20. Do not allow additional foreign objects to be attached or used with the swing set.
21. Do not walk close to, in front of or behind the swing set when in use as moving units can
cause serious injury.
22. Do not wear apparel such as hats with straps, helmets, scarves, garments with pull strings
or any other item of loose clothing while using the swing set as children can get trapped
and may be unable to free themselves causing serious injury.
23. Do not twist swing ropes or wrap them over the top bar.
Important Safety Information (cont)

5
S002023 Action 2 Unit Swing Set
Parts List
Part
No. Description Qty
1 Top Bar A 1
2 Top Bar B 1
3 Upper Leg 4
5 Lower Leg 4
7 Side Bar 2
48 Corner Bracket 2
Part
No. Description Qty
49 Top Bar Bracket 2
12 Nursery Swing 1
13 Pin 2
14 Swing Seat 2
47 Ground Peg 4

6
S002023 Action 2 Unit Swing Set

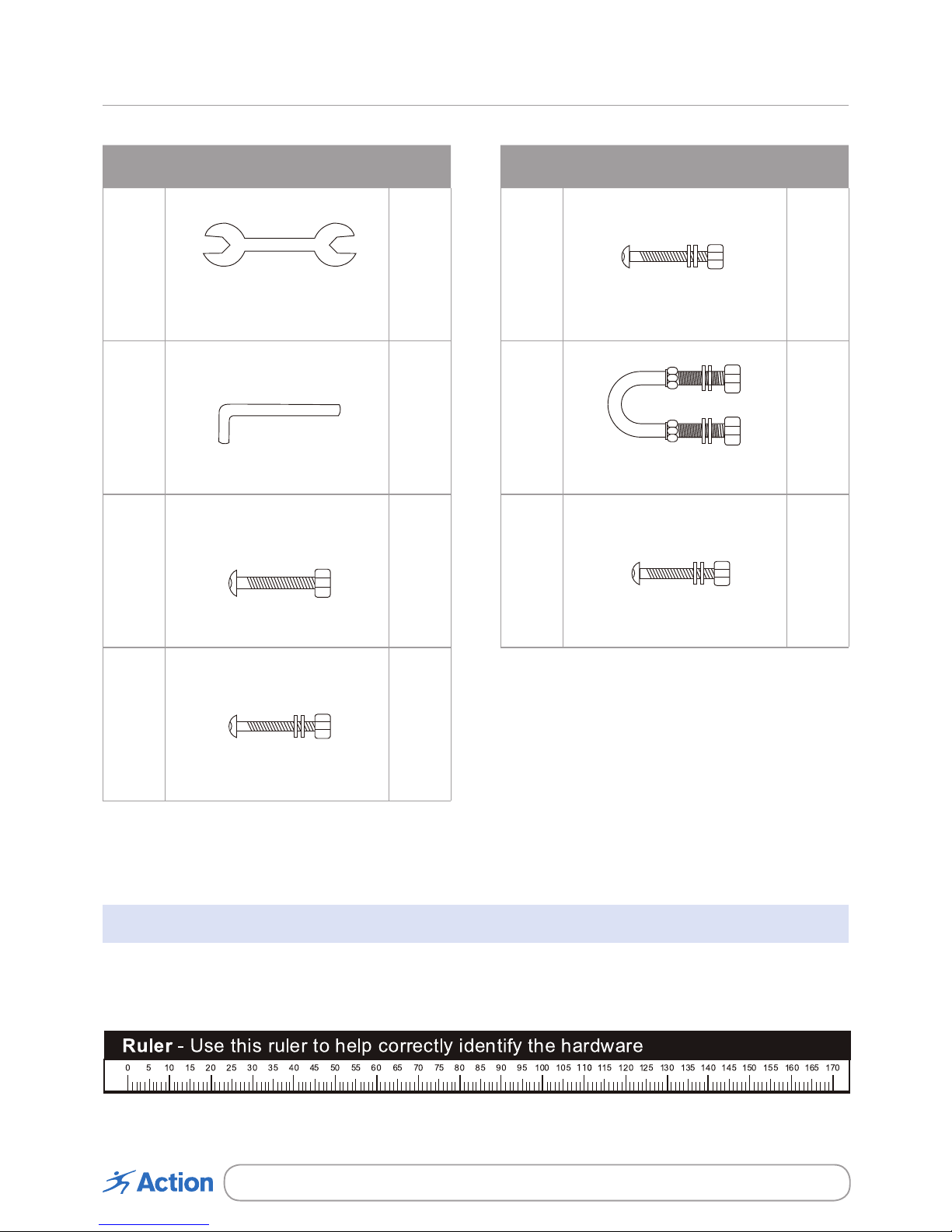

Hardware List
Part
No. Description Qty
15 Spanner 1
16 Allen Key 1
C14 M8x58mm Bolt 2
G15 M8x55mm Bolt 4
Part
No. Description Qty
G16 M8x47mm Bolt 4
S1 M8 U-Bolt 6
F2 M6x44mm Bolt 4
Note: Some parts may be supplied pre-assembled.

7
S002023 Action 2 Unit Swing Set
Assembly Instructions
Prior to assembling this swing set, remove all parts from the carton and check to ensure that all parts
listed in the Parts List and Hardware List (on pages 5 & 6) are present. If you’re missing any of the parts,
please call our National Service Centre to have replacement parts sent out prior to beginning assembly
(details can be found in the warranty pages at the end of this manual).
Note: It is recommended that 2 adults assemble this swing set.
Step 1
Note: When assembling the swing set, it is recommended that you only tighten the hardware enough
so that it is finger tight . Once the swing set is completely assembled and moved into the location in
which it will be used, insert the ground pegs and completely tighten the hardware. This will allow the
swing set to adjust to the surface and reduce the "sway" of the unit.
Connect Top Bar A (1) and Top Bar B (2). Place 2 x Top Bar Brackets (49) over the top and bottom of Top
Bar A (1) and Top Bar B (2), secure these into place using 2 x M8x58mm Bolts (C14).
1
48
48 2
C14 C14

8
S002023 Action 2 Unit Swing Set
Assembly Instructions (cont)
Step 2
Attach 1 x Corner Bracket (48) to Top Bar A (1) using 2 x M8x55mm Bolts (G15). Repeat this for the other
side and attach 1 x Corner Bracket (48) to Top Bar B (2) using 2 x M8x55mm Bolts (G15).
Step 3
Insert 2 x Upper Legs (3) into one of the Corner Brackets (48) and secure these into place using 2 x
M8x47mm Bolts (G16). Repeat this for the other side, insert 2 x Upper Legs (3) into the opposite Corner
Bracket (48) and secure these into place using 2 x M8x47mm Bolts (G16).
1
3
333
G16
G16
G16
G16
48
48
48
48
2
G15
G15
G15
G15

9
S002023 Action 2 Unit Swing Set
3
1
2
48
48
3
5
5
5
5
12
3
3
14
12
7
7
49
49
3
13
You can check
the seat is
aligned as you
will be able to
see through
the holes on
the sides of the
seat.
Assembly Instructions (cont)
Step 4:

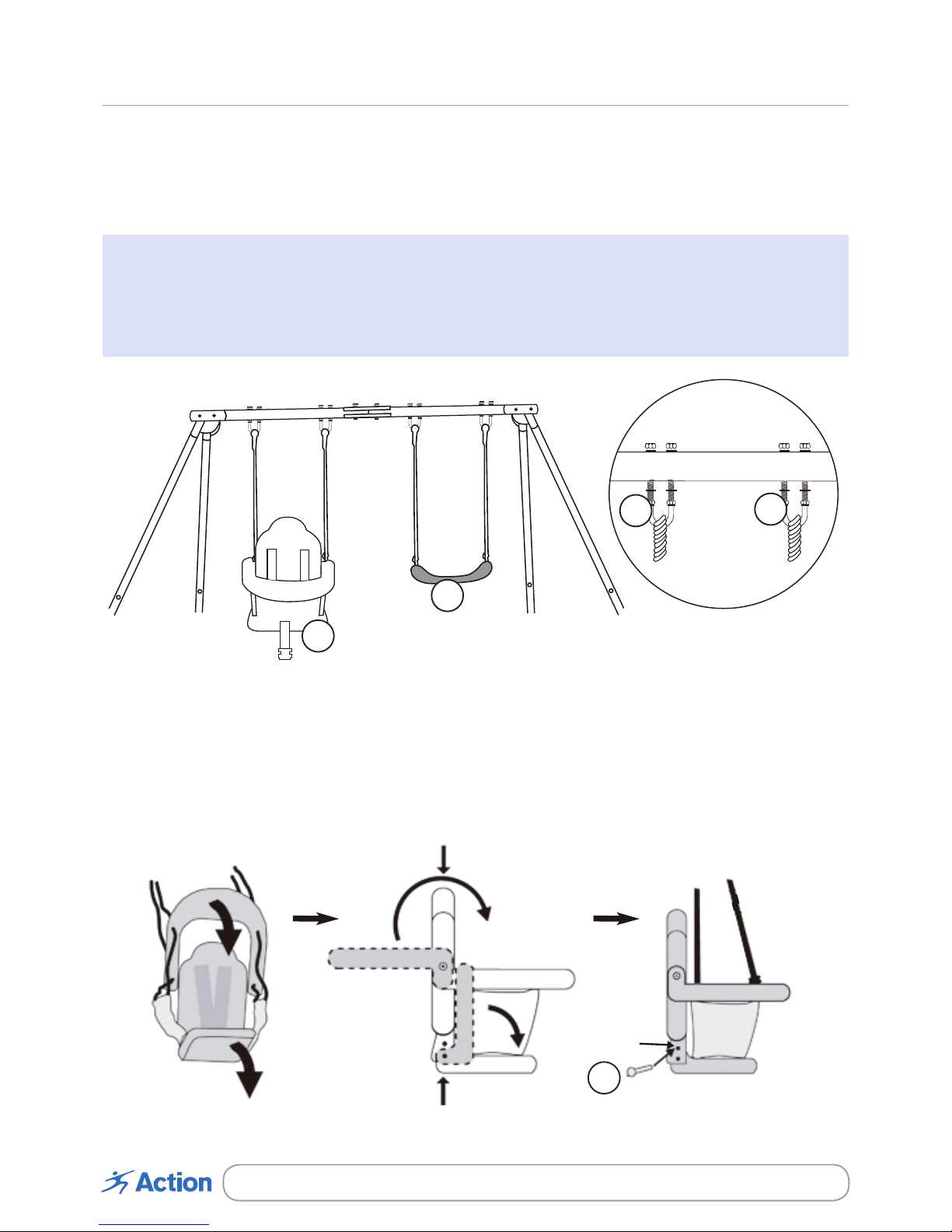

Attach 2 x Swing Seat (14) or alternatively 1 x Swing Seat (14) and 1 x Nursery Swing (12) to the Top Bar
using 4 x M8 U-Bolts (S1).
Note: 2 x M8 U-Bolts (S1) will be pre-attached to each swing.
Ensure that at least 3 threads from the M8 U-Bolt (S1) protrude through the Top Bar when
assembling the swing set.
Should the rope come off the bearing during use, stop using the swing seat immediately and place the
rope back over the bearing before using the swing seat again.
To set up the Nursery Swing (12) for use, carefully fold the armrest over the backrest and then fold the
base down. Position the back rest so that it is at a 90 degree angle to the base, then push it down until
it clicks into place. Next align the armrest so that it is at an angle of slightly less than 90 degree to the
backrest and push the sides together until they fit into the backrest. Finally place the 2 x Pins (13) into
the base of the Nursery Swing (12). Ensure that the seat is aligned properly before placing the pins into
the seat, if the pins are forced into the seat when it hasn’t been aligned correctly it will cause the pins to
break.
48
C14
C14
G15
S1
13
S1
14
12

10
S002023 Action 2 Unit Swing Set
Assembly Instructions (cont)
3
1
2
48
48
3
5
5
5
5
12
3
3
14
12
7
7
49
49
3
13
Step 5
Place 2 x Lower Legs (5) into the base of 2 x Upper Legs (3) on one side of the swing set, ensuring that
the holes in the tubes line up. Take 1 x Side Bar (7) and place it on the outside of the legs, secure the legs
and side bar into position using 2 x M6x44mm Bolts (F2).
Repeat this for the other side of the swing set, place 2 x Lower Legs (5) into the base of the 2 x Upper
Legs (3) ensuring that the holes in the tubes line up. Take 1 x Side Bar (7) and place it on the outside of
the legs, secure the legs and side bar into position using 2 x M6x44mm Bolts (F2).
3
3
3
55
F2
5
7
7

11
S002023 Action 2 Unit Swing Set
Assembly Instructions (cont)
STEP 6

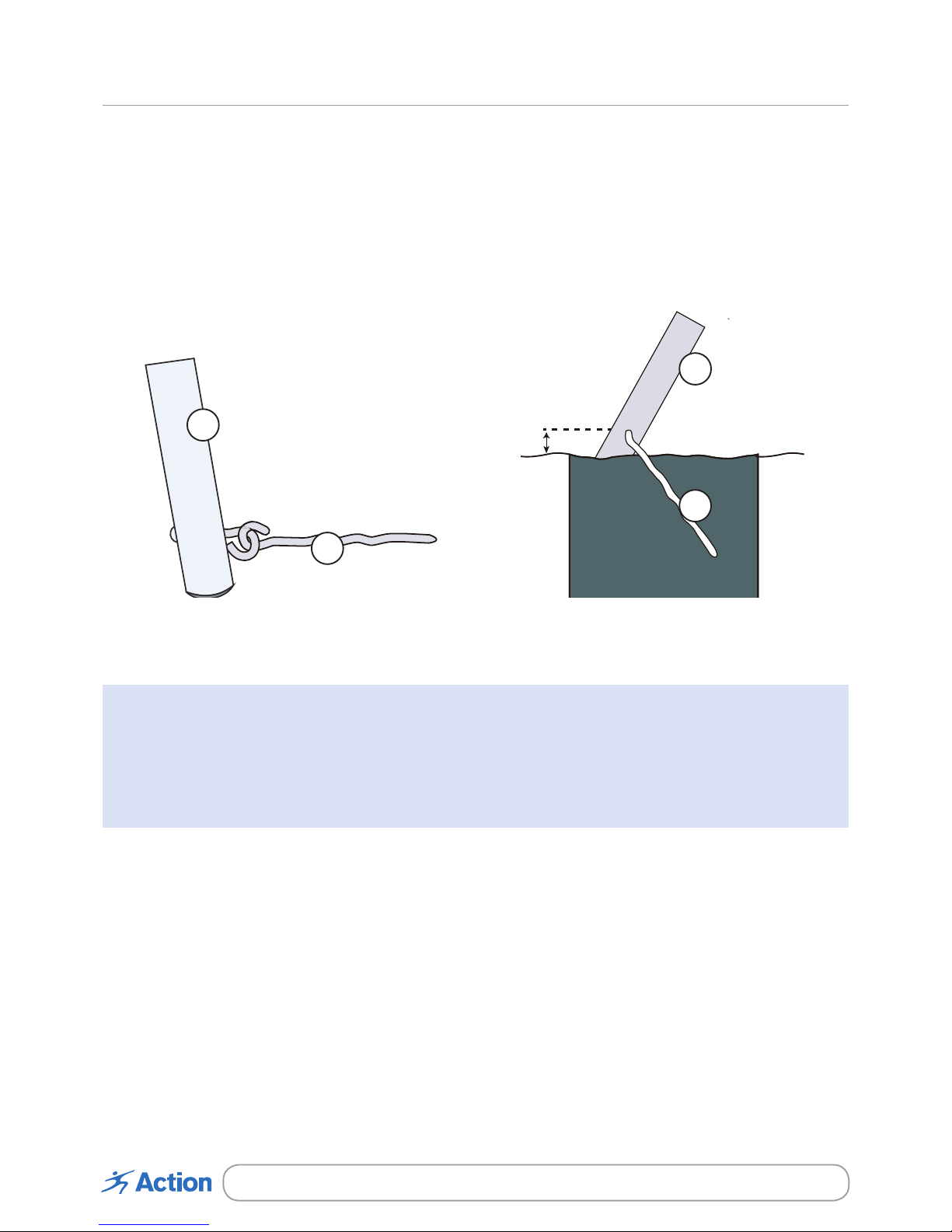

Place the 4 x Ground Pegs (47) through the holes at the base of the Lower Legs (5) and secure them into
place by fixing them into the ground.
Warning: For safety reasons this swing set MUST be anchored into the ground. To carry out this
procedure you must hammer the included ground pegs into the ground at the angle shown in the
picture above. The ground pegs must pull into hard earth and hold firmly. We highly recommend
that the ground pegs be concreted but this is optional. However, if the ground is so and the ground
pegs can easily be pulled out by hand once installed then concreting is essential. Contact our Service
Centre for more information if you are ensure regarding the installation of the ground pegs.
Soil
30mm
5
5
47
47

12
S002023 Action 2 Unit Swing Set
Warranty Information
Congratulations on your purchase!
This Action 2 Unit Swing Set is warranted to be free from defects in material and workmanship under
normal use and service conditions for a period of 2 years on the frame and 12 months on all other parts,
from the date of purchase of this article. Evidence of unfair usage or incorrect adjustment by the owner
will void this promise.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure.
The benefits conferred by this warranty are in addition to the consumer guarantees and other rights and
remedies in respect of the product which the consumer has under the Australian Consumer law.
Conditions of Warranty
All warranty coverage extends only to the original retail purchaser from the date of purchase. Please
keep your receipt, tax invoice or other proof of purchase.
This warranty does not extend to any damage to a product caused by abuse, improper or abnormal
usage, or repairs not provided by us or our Service Centre. Nor does this warranty extend to products
used for commercial or rental purposes. This warranty does not cover ordinary wear, tear and
weathering, failure to follow directions, improper installation, improper maintenance or acts of God (such
as damage caused by storms, lightning, heavy winds and by snow or ice).
Making A Warranty Claim
In order to make a claim under this warranty please direct your enquiries to our Service Centre. You can
contact them on our Freecall 1800 465 070 number or send mail to them at National Service Centre:
2/24 Anderson Road, Smeaton Grange, NSW 2567 – if mailing please include your contact details.
A service representative will then assist you in the appropriate action to be taken. For efficient processing
of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased
the item from, and the brand on the product. Photos of the product, and scans of receipts, may be
requested to assist with your claim.

13
S002023 Action 2 Unit Swing Set
Warranty Information (cont)
The service centre representative will assess the claim. If:
1) there is a minor fault, they can offer either a replacement spare part, replacement unit, repair or
other suitable remedy.
2) there is a major fault, they can offer a replacement, repair or suggest you return to the store you
purchased it from for a full refund.
Please note: a request for compensation will need documentary evidence of the loss or damage
suffered. It will also need to be evidenced that such a loss was a reasonably foreseeable result of a
failure to comply with a consumer guarantee under the Australian Consumer Law.
3) The product was damaged through abnormal use, no refund or repair can be offered.
The sending of replacements, spare parts or the cost of repair carried out will be organized and covered
by the Service Centre. If collection of the item is required this will be organized by the Service Centre and
at our expense. Do not return any products without authorization as this will be at your expense.
Our sales and service centre has been set up to provide assembly assistance, replacement parts and
accessories, and to efficiently handle all warranty related matters. Please note upon receiving your
warranty claim our Service Centre will send, via post or email, a repair and refurbished goods or parts
notice.
SERVICE CENTRE
Contact details and hours of operation.
Freecall 1800 465 070
9:00am – 4:30pm Monday to Friday (excluding Public Holidays)
9:00am – 3:00pm Saturday
This product is warranted and distributed by:
Action Sports of 48B Egerton St, Silverwater NSW, 2128
Phone: [phone]
© 2017 Action Sports Equipment Pty Ltd.
