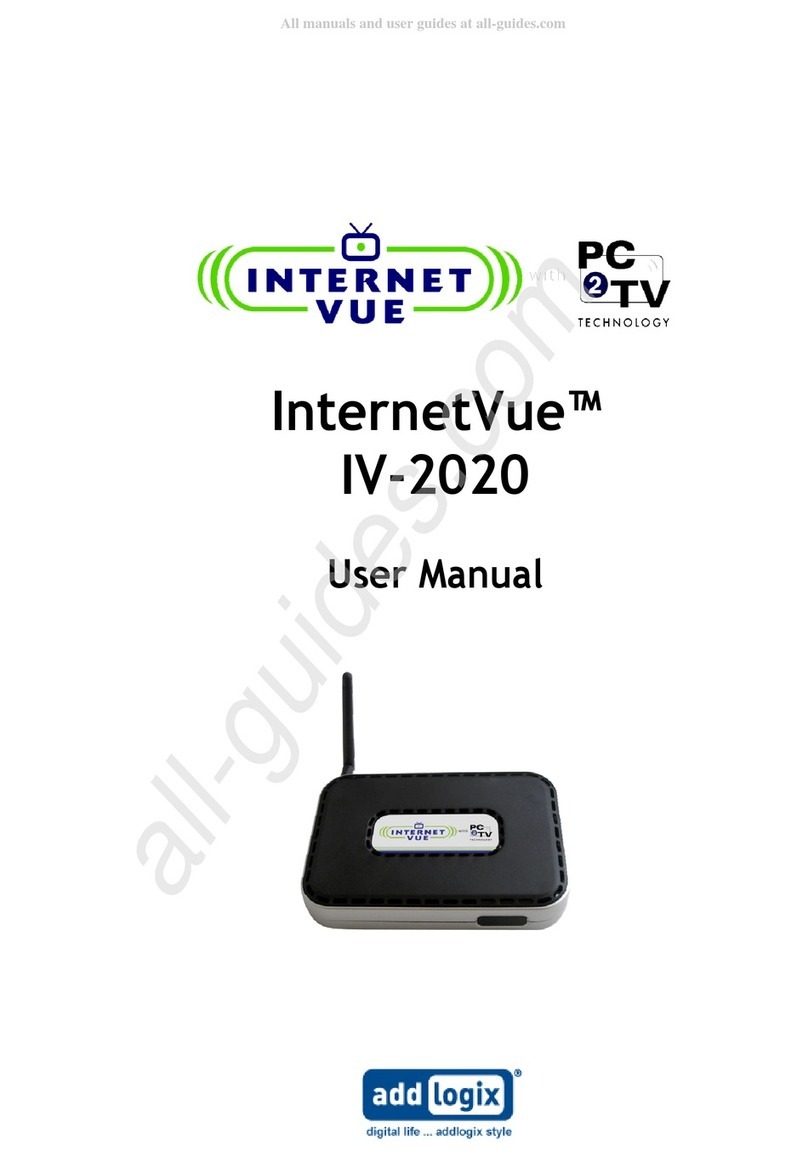

Addlogix InternetVue IV-2020 User manual
InternetVue™
IV-2020
User Manual
3.04.58
NOV0507
2
Table of Contents
Introduction .................................................................................................................................... 3
Product Specifications ........................................................................................................................ 3
Retail Box ontents ........................................................................................................................... 4
Ports and onnectors .........................................................................................................................4
Overall Requirements......................................................................................................................... 5
onfiguration Options ........................................................................................................................ 6
onfiguration A: Wireless / Wireless ...................................................................................................6
onfiguration B: Wireless / Wired ...................................................................................................... 7
onfiguration : Wired / Wired ......................................................................................................... 7
onfiguration D: Wired / Wireless ...................................................................................................... 7
Installation Procedure ........................................................................................................................ 8
onfiguration Wizard ....................................................................................................................... 10
TV Type..................................................................................................................................... 11
onnection Summary..................................................................................................................... 12
Password Setup ........................................................................................................................... 13
Device Name (SSID)....................................................................................................................... 14
Wireless Network ......................................................................................................................... 15
onfiguration A......................................................................................................................... 15
onfiguration B......................................................................................................................... 17
onfiguration ......................................................................................................................... 17
onfiguration D......................................................................................................................... 17
onfiguration Summary.................................................................................................................. 18
Factory Reset ................................................................................................................................ 19
P 2TV Software.............................................................................................................................. 19
Main P 2TV Window...................................................................................................................... 20
P 2TV Advanced Settings ............................................................................................................... 20
P 2TV Advanced Settings ............................................................................................................... 21
Summary................................................................................................................................. 21
Device Settings ......................................................................................................................... 22
About the Security Access Number feature .................................................................................... 23
TV Type .................................................................................................................................. 24
TV Type .................................................................................................................................. 24
Internet onnection ................................................................................................................... 25
T P/IP Settings ...................................................................................................................... 25
Wireless Settings .................................................................................................................... 25
Advanced ................................................................................................................................ 26
Password Setup ...................................................................................................................... 26
Upgrade ............................................................................................................................... 26
Video Settings ....................................................................................................................... 26
Pan and Scan ...................................................................................................................... 26
Troubleshooting Tips........................................................................................................................ 27
If InternetVue does not appear on the list of available wireless networks .................................................... 27
If you cannot connect to the Internet while projecting ........................................................................... 27
If your video performance is sluggish ................................................................................................. 27
If your InternetVue™ fails to connect on repeated attempts ..................................................................... 27
If you see black border on the TV ..................................................................................................... 27
If the video pauses at the beginning of the sequence for less than 2 seconds and restarts ................................ 28
If the DVD or video playback is jerky or does not display on the TV screen ................................................... 28
If the video appears excessively blocky .............................................................................................. 28
The following messages for Vista are normal........................................................................................ 28
Registration and Support................................................................................................................... 28
3.04.58
NOV0507
3
Introduction
ongratulations, and thank you for your InternetVue™ purchase. InternetVue™ will allow you to
display your P ’s screen contents on any TV or projector wirelessly. You will be able to view
videos, digital photos, websites, and just about anything on your P , will be shown on your TV.
Moreover, your P ’s audio will also be heard from your TV or audio system.
InternetVue™ is a two-part solution – a software component and a hardware receiver/decoder
module. The software running on the P (a) captures the audio stream and video display
information, then sends that data to the receiver (b) as standard T P/IP packets. The receiver box
becomes a node on the network, either wired or wireless. The receiver not only decodes the
incoming packets back to analog audio and video signals for the TV (c), but it can also serve as a
wireless bridge (d), relaying your internet connection between the P and your wireless gateway
(e).
Product Specifications
Maximum Output Resolution 1280 x 720 @ 60 Hz (Photo
mode)
Industry
ertifications
RoHS, UL, cUL, F Part 15 lass
B, E
omposite Video Formats NTS , PAL Wireless Encryption TKIP only
Interfaces and Ports RJ45 10/100Base-TX
omponent Video
omposite Video
3.5mm stereo jack
Reverse SMA Antenna
Operating System
Support
Windows XP Home and
Professional (32-bit and 64-bit)
SP2, Windows 2000 Professional
SP4, Windows Vista (32-bit and
64-bit)
Networking Standards IEEE 802.11b/g, IEEE 802.3 Input Power 5V D
Max. Wireless Data Rate 54 Mbps Dimensions 1.38” x 5.91” x 3.15”
Wireless Frequency Band 2.4 GHz ISM band Weight 7.5 oz
Wireless Security Standards WEP 64/128-bit HEX/AS II,
WPA, WPA-PSK
a
b
c
d
e
Internet
3.04.58
NOV0507
4
Power Audio
CVBS
Pr
Pb
RJ45
Factory Reset Button
Antenna
Retail Box Contents
Ensure that your InternetVue™ kit has all the following items. Otherwise, contact Tech
Support for more information.
InternetVue™
Receiver
Application CD Quick Start Guide
AC Power Adapter Audio Cable Video Cable Ethernet Cable
Ports and Connectors
InternetVue™ has two sets of output video connectors, and one audio output connector. For video,
there are the omponent Video and omposite video outputs.
omposite Video ( VBS) is an older standard, and is very common in all kinds of display devices. Its
connector is denoted by a yellow center insulator. omposite Video carries a specific video format
depending on the country of usage. In the USA, the video format is NTS . NTS video frames
consist of 525 lines of vertical resolution, shown at 29.97 frames per second.
omponent Video (Y-Pr-Pb) is a newer standard, capable of carrying signals from 480i up to 1080p.
InternetVue™ can output up to 720p using this interface. omponent Video is commonly used in
high-definition TVs and projectors, and is the preferred interface for maximum image clarity, color
vibrancy, and sharpness.
Audio output is through a 3.5mm
stereo mini-jack. An included audio
cable has dual stereo R A connectors
on the opposite end.
The RJ45 connector is for wired
10/100Base-T networking. This
interface will not affect the wireless
networking operation of the unit.
The factory reset button must only be
used when necessary. To perform a
factory reset, depress the button for
at least 10 seconds, remove power,
wait 10 seconds, then re-attach power.
3.04.58
NOV0507
5
Overall Requirements
1. TV, projector, or other display device with component or composite video inputs.
For the best possible InternetVue™ experience, an HDTV with component inputs is best. PCs
with dual/ uad-core processors and/or faster speed and more memory will result in smoother
video playback especially when viewing content from the web.
2. P onfiguration:
oWindows XP Home/Pro SP2, 2000 SP4, Vista (all versions) with administrator privileges
oPentium 4 or M, 1.8 GHz or faster
o512MB RAM or more
oWired (10/100BT) or wireless (802.11 b/g) network connection; WEP, WPA/WPA-PSK with
TKIP encryption supported. For AES encryption support, please check the InternetVue™
support website.
Recommended PC Configuration:
These recommendations are for optimized viewing of full-motion video through InternetVue™.
Pentium 4 or M, 2.0 GHz or newer, dual or quad-core PU
Wired (100BT) or wireless (802.11 g)
No unnecessary applications running in the background
If using a notebook, laptop, or tablet, Power Scheme should be set to “Desktop”, or
attach power supply for maximum performance.
Optional:
•Wired or wireless internet connection for internet access while using InternetVue™
3.04.58
NOV0507
6
Configuration Options
There are four possible ways to interface the InternetVue™, your P , and your internet connection.
However, keep in mind that the internet connection is not necessary. Select which onfiguration
works best for you from the table below.
Configuration A B C D
P Network
onnection Type
Wireless Wireless Wired Wired
Internet Router
Type
Wireless Wired Wired Wireless
Configuration A: Wireless / Wireless
In this onfiguration, your P communicates to
InternetVue™ via wireless networking. The
InternetVue™ then enables its “AP+” feature which
allows it to connect your P to your existing wireless
router/gateway at the same time. Any form of wireless
security enabled on your router/gateway will be
automatically detected and used between the
InternetVue™ and your P . You may be asked to
provide wireless security passwords/passkeys. Write it
down here for future reference:
3.04.58
NOV0507
7
Configuration B: Wireless / Wired
In this onfiguration, your P communicates to
InternetVue™ via wireless networking. The
InternetVue™ is directly connected to your
router/gateway via the wired network connection.
Internet access is relayed through the
InternetVue™ to your P via wireless networking.
Configuration C: Wired / Wired
In this onfiguration, your P communicates to both
the InternetVue™ and your router/gateway through
wired network connections.
Configuration D: Wired / Wireless
In this last onfiguration, your P utilizes its wired network
connection for internet access from the gateway/router,
while sending A/V to the InternetVue™ through the wireless
connection.
3.04.58
NOV0507
8
Installation Procedure
Make sure that the TV or projector and the InternetVue™ is unpowered. onnect the
InternetVue™ receiver box to your TV or projector’s appropriate AV inputs.
TV with omponent Video Inputs (Best Quality):
TV with omposite Video Input:
onnect the power adapter to the InternetVue™ D power jack input first (a), then plug in the
power adapter into an A outlet (b). Turn on your TV or projector and select the appropriate AV
input. If your configuration involves a wired connection to the InternetVue™, go ahead and
connect it to your router using an Ethernet cable.
(a)
(b)
3.04.58
NOV0507
9
The InternetVue™ will auto-
detect which output is being used
to connect to the TV. In about
30-60 seconds, it will be fully
initialized, and the following
“Welcome Screen” will come up
on your TV or projector:
This confirms the connection between the
InternetVue™ receiver and the TV or projector. Now,
you can begin installation of the P 2TV software on
your computer by inserting the D into your P ’s D-
ROM drive. Follow all onscreen instructions and
prompts.
NOTE: If you have an existing PC2TV software installation, please UNINSTALL IT FIRST.
To do this, click on START
ALL PROGRAMS
PC2TV
UNINSTALL. Follow the
instructions. A syste reboot ay be required.
Launch the P 2TV application by
double-clicking its icon on
your Windows desktop.
Typically, the P 2TV will connect to
your InternetVue™ receiver
automatically when there are no other
receivers on the wired LAN or within
wireless range.
P 2TV Welcome Screen
shown on your TV
PC2TV
-
HD
3.04.58
NOV0507
10
In the event that there is more than one
InternetVue™, the Select Output Display window
will appear. Here, you can select the
InternetVue™ receiver by its “Wireless ID” as
shown in the image of step 3 above.
Depending on your InternetVue™ receiver’s
internal firmware, the P 2TV software may
prompt you to upgrade its firmware to the latest
version for optimal performance. Simply follow
the instructions as this is done automatically.
When the P 2TV software connects to the InternetVue™ for the very first time after initial
installation, it automatically launches the onfiguration Wizard. The onfiguration Wizard allows
you to select various options for Internet onnections as well as personal preferences and
protection settings such as user passwords and display access codes.
Configuration Wizard
The onfiguration Wizard runs after initial installation of the P 2TV software. The wizard will
guide you through a step-by-step process. Follow the instructions, select the appropriate options,
and then click NEXT until completed.
3.04.58
NOV0507
11
TV Type
Allows you to select between a standard TV or an HDTV. The HDTV setting supports higher
resolutions like 1280 x 720 for Photo mode.
3.04.58
NOV0507
12
Connection Summary
This shows the video output options, and allows you to select between composite and component.
3.04.58
NOV0507
13
Password Setup
This screen allows you to create a password to prevent others from changing your configuration.
This is completely optional.
3.04.58
NOV0507
14
Device Name (SSID)
This allows you to change the “Wireless ID” broadcasted by the InternetVue™. This is useful when
multiple receivers are present. You can assign any four-character alphanumeric suffix to each
InternetVue™ box. The InternetVue™ receiver will then have an SSID of “P 2TV-xxxx” where the
“xxxx” is the four-character alphanumeric name entered.
3.04.58
NOV0507
15
Wireless Network
Select the correct settings here for internet access while connected to the InternetVue™ receiver.
The correct option here is based on your configuration as described in the beginning of this
manual.
onfiguration A
Select “ onnect to external networks using wireless”
Select the wireless gateway/router you wish to connect to for internet access. If wireless
security is present, the icon next to the SSID will have a padlock icon and the security type
shown:
If you are connecting to a wireless
gateway/router with security, you will
be prompted to enter the passkey
The same exact key, encryption type,
channel, and security will be
automatically detected, must and will
be used by the InternetVue™ receiver.
AES encryption compatibility is not guaranteed. Please disable AES encryption on your
wireless gateway/router if problems arise.
1
3.04.58
NOV0507
16
You can also manually enter the wireless gateway/router SSID, channel, security and
encryption details by clicking on this button (1 – see previous page). The following window
will appear:
If the entered passkey, channel, SSID, or security type is incorrect, P 2TV will prompt you to
try again. lick YES:
3.04.58
NOV0507
17
onfiguration B
Select “ onnect to external networks using wired ethernet”
onfiguration
Select “None”
onfiguration D
Select “None”
In configurations B and D, only your P and the InternetVue™ communicate wirelessly; the internet
connection to the gateway/router is wired. Wireless security can be enabled between the P and
the InternetVue™ by clicking on the “Enable Display Encryption” checkbox (1).
The following window will appear. Enter 8 to
23 characters here. This will create a secure
connection between the InternetVue™ and
your P .
1
3.04.58
NOV0507
18
Configuration Summary
This screen displays summary of the selections made and connections between various devices.
Click the Cancel button at the bottom of the screen to e it the Configuration Wizard at any time or
click on Finish at the end of the wizard. After initial completion of the Configuration Wizard, the
standard PC2TV application window will appear the ne t time it is run. The only way to invoke the
Configuration Wizard again is to perform a Factory Reset, or clicking on the Wizard Button, see p. 22.
Depending on the settings made,
PC2TV software may force the
InternetVue™ receiver to reboot.
If so, the following message will
appear. Click OK.
The reboot process may take 30-
60 seconds. Once the Welcome
screen is up on your TV, you now
can start the PC2TV software.
3.04.58
NOV0507
19
Factory Reset
Sometimes a factory reset is necessary to clear all settings in the
InternetVue™ receiver. It will be brought back to the factory default
state. The SSID may change, and starting the P 2TV software will
invoke the onfiguration Wizard once again.
To perform a factory reset, make sure the InternetVue™ receiver is
powered on and running for a few minutes. This is to ensure that it is not initializing. Press
the Factory Reset Button for 10 seconds continuously, then release. After 30-60 seconds,
the Welcome Screen will appear on the TV. Otherwise, try removing the power adapter
from the InternetVue™ for 10 seconds, then re-attach the power jack.
PC2TV Software
lick on the P 2TV icon on the Windows desktop (or from Start/All Programs).
Shutting down P 2TV can be done by clicking on the X
on the upper-right corner of the application.
The application automatically scans for InternetVue™ devices. If there is only one InternetVue™,
you will be connected to that unit automatically. Otherwise, you will be presented with the
“PC2TV Display List” window. Here, you can select which InternetVue™ receiver to connect to:
Factory Reset Button
3.04.58
NOV0507
20
Main PC2TV Window
lick
Hide/Mute
to blank the
video and mute the audio.
lick
VIDEO
to increase frame
rate at a reduced resolution.
This will switch you to 800x600
for smoothest playback. Best
for videos and movies.
lick
PHOT
O
to sharpen image
quality and increase the
resolution, but at a reduced
frame rate. Best for viewing
photographs, reading text, or
slow-moving images.
lick here to toggle the
Advanced Settings.
lick here to select a
different InternetVue™
receiver. You will be shown
the “P 2TV Display List”
window (see previous page).
Signal Strength meter of
connected wireless
gateway/router
The Title Bar shows
the name of the
InternetVue™ receiver
currently connected
Other Addlogix TV Receiver manuals
