LG LST-5100P User manual

High Definition
Television Receiver
OWNER’S MANUAL
MODEL : LST-5100P
Before connecting, operating or adjusting this product,
please read this owner’s manual carefully and completely.

2
Safety Precautions
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.
CAUTION
DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY WITHOUT WRITTEN AUTHORIZATION FROM LG
ELECTRONICS CORPORATION. UNAUTHORIZED MODIFICATION COULD VOID THE USER’S AUTHORITY TO
OPERATE THIS PRODUCT.
THIS EQUIPMENT IS INTENDED TO RECEIVE AND DECODE SIGNALS TRANSMITTED ACCORDING TO DVB
AND IS INTENDED TO BE USED WITH AN APPROPRIATE ANTENNA AND DISPLAY DEVICE THAT YOU MUST
PROVIDE.
CAUTION:
•The appliance is not intended for use by young children or infirm persons without supervision.
•Young Children should be supervised to ensure that they do not play with appliance.
•If the appliance is supplied from a cord extension set or an electrical portable outlet device, the cord extension
set on electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of
moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED
TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PROD-
UCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC
SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERA-
TURE ACCOMPANYING THE APPLIANCE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.

INTRODUCTION
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions. - All these safety and oper-
ating instructions should be read before the product is
operated.
2. Keep these instructions. - The safety, operating and
use instructions should be retained for future refer-
ence.
3. Heed all warnings. - All warnings on the product and
in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use
instructions should be followed.
5. Do not use this apparatus near water. – For exam-
ple: near a bath tub, wash bowl, kitchen sink, laundry
tub, in a wet basement; near a swimming pool; etc.
6. Clean only with dry cloth. – Unplug this product from
the wall outlet before cleaning. Do not use liquid
cleaners.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation, to ensure reliable operation of the product,
and to protect it from over- heating. The openings
should never be blocked by placing the product on a
bed, sofa, rug or other similar surface. This product
should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided
and the manufacturer’s instructions have been
adhered to.
8. Do not install near any heat sources such as radi-
ators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.

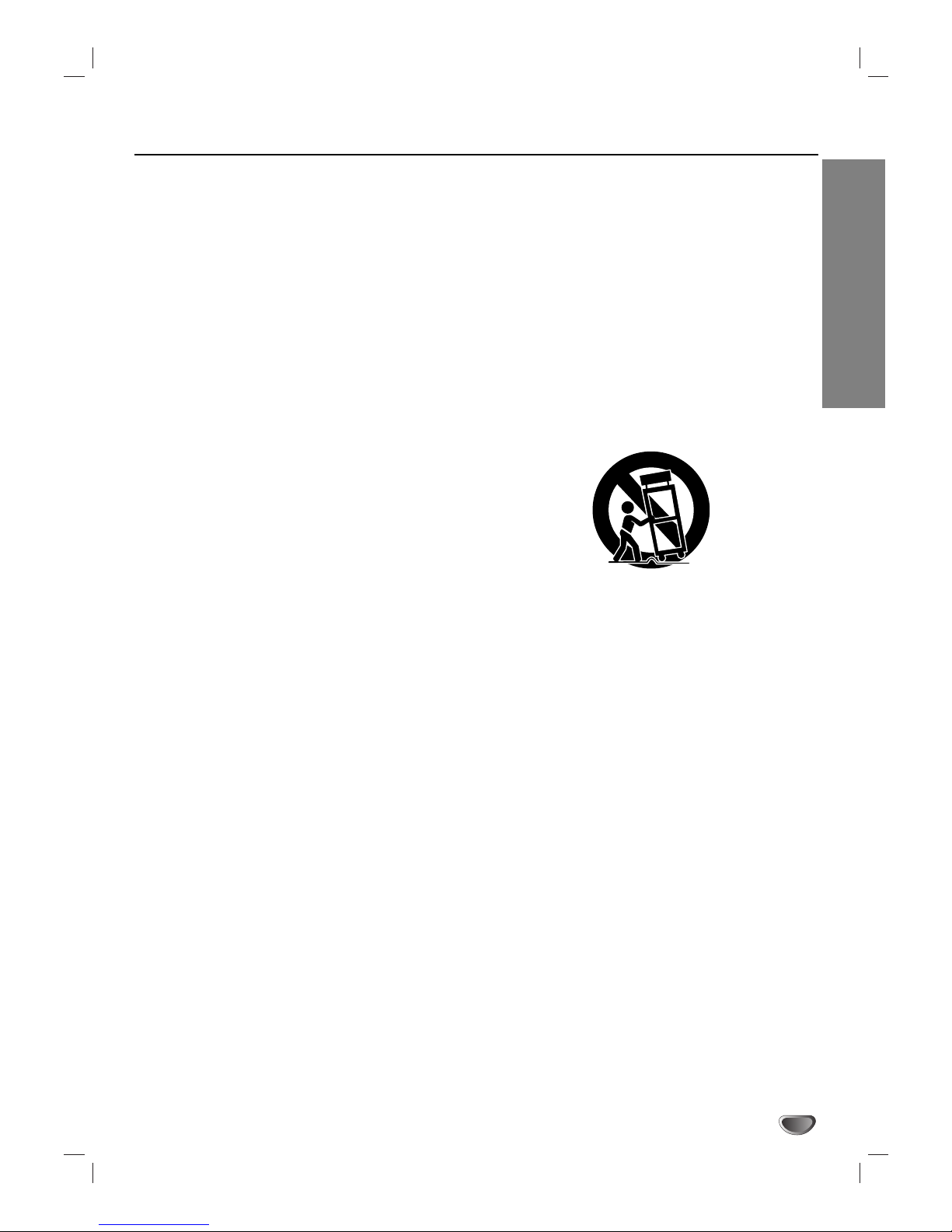

12. Use only the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with appa-
ratus. When a cart is used, use caution when
moving the cart/ apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or mois-
ture, does not operate normally, or has been
dropped.
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS INSTALLATION
AND OPERATING GUIDE AND THOSE MARKED ON THE UNIT. RETAIN THIS GUIDE FOR
FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock
or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for
installation, use, and servicing.
This unit does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

4
Table of Contents
INTRODUCTION
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front Panel Controls and Display Window . . . . . . 5
Remote Control Key Functions . . . . . . . . . . . . . . . 6
Unpacking HDTV Receiver and
Accessories/Connection Overview. . . . . . . . . . . . . 7
Connection Panel Overview . . . . . . . . . . . . . . . . . . 8
INSTALLATION
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15
Antenna Connections. . . . . . . . . . . . . . . . . . . . . . 9
Analog Monitor Connections . . . . . . . . . . . . . . . 10
HD Monitor Component (YPbPr) Connections . . 11
HD Monitor RGB Connections . . . . . . . . . . . . . . 12
HD Monitor DVI-HDTV Connections . . . . . . . . . . 13
VCR Connections . . . . . . . . . . . . . . . . . . . . . . . 14
Amplifier (Receiver) Connections . . . . . . . . . . . . 15
Setting the Display Format . . . . . . . . . . . . . . . . . . 16
MENU OPERATION
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
General Operation . . . . . . . . . . . . . . . . . . . . . . . 17
Setup Menu Options. . . . . . . . . . . . . . . . . . . . . 18-19
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Auto Programme . . . . . . . . . . . . . . . . . . . . . . . . 18
Programme Edit. . . . . . . . . . . . . . . . . . . . . . . . . 18
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . 19
Audio Menu Options . . . . . . . . . . . . . . . . . . . . 20-21
Audio Option . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . 20
Audio Variable . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Special Menu Options . . . . . . . . . . . . . . . . . . . 22-23
Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lock (Parental Control) Menu Options . . . . . . 24-26
Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Change PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Block Programme . . . . . . . . . . . . . . . . . . . . . . . 25
Parental Guidance . . . . . . . . . . . . . . . . . . . . . . . 26
NORMAL OPERATION
Information Displays . . . . . . . . . . . . . . . . . . . . 27-28
Programme Banner Display . . . . . . . . . . . . . . . . 27
Programme Information Display . . . . . . . . . . . . . 28
Programme Guide . . . . . . . . . . . . . . . . . . . . . . . . . 29
Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . 30
Programme Selection
Programme Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 30
V
Volume olume Adjustment Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 30
Signal
Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 30
Teletext Operation . . . . . . . . . . . . . . . . . . . . . . 31-32
REFERENCE
Programming the Remote Control to Operate
the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Remote Control Codes for TVs . . . . . . . . . . . . 34-35
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
Manufactured under license from Dolby Laboratories. Dolby,
and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. Copyright
1992-1997 Dolby Laboratories. All rights reserved.

INTRODUCTION
5
Front Panel Controls and Display Window
Remote Control Sensor
Receives signals from the remote control.
Display Window
EXIT
Clears all on-screen displays and returns to
normal viewing from any menu.
SELECT
If the main menu is displayed, pressing the (SELECT) button will activate
the selected MENU option. If the (SELECT) button is pressed while you
are in normal viewing, the Programme Banner will be displayed.
Arrow Buttons (33/ 44/ 11/ 22)
Allow you to navigate on-screen menus and to adjust the system settings and preferences. Use
the arrow keys to move to a menu option and then use the (SELECT) button to access it.
If no menu is displayed,the LEFT/RIGHT arrows control the volume setting and the
UP/DOWN arrows select programmes.
MENU
Shows the main menu on the screen.You can return to
normal viewing by pressing the EXIT button.
DISPLAY FORMAT
Sets the output resolution to formats and chooses the correct display
format for your TV.
POWER
Turns the HDTV Receiver on or off.
1080i 720p 576p 576i DVI RGB YPBPR
Standby Indicator
Lights when the HDTV
Receiver is turned off.
Resolution Indicator
Indicates output resolution.
Connection Indicator
Indicates output connection.
Character Indicators
Indicates programme number, volume level, etc.

6

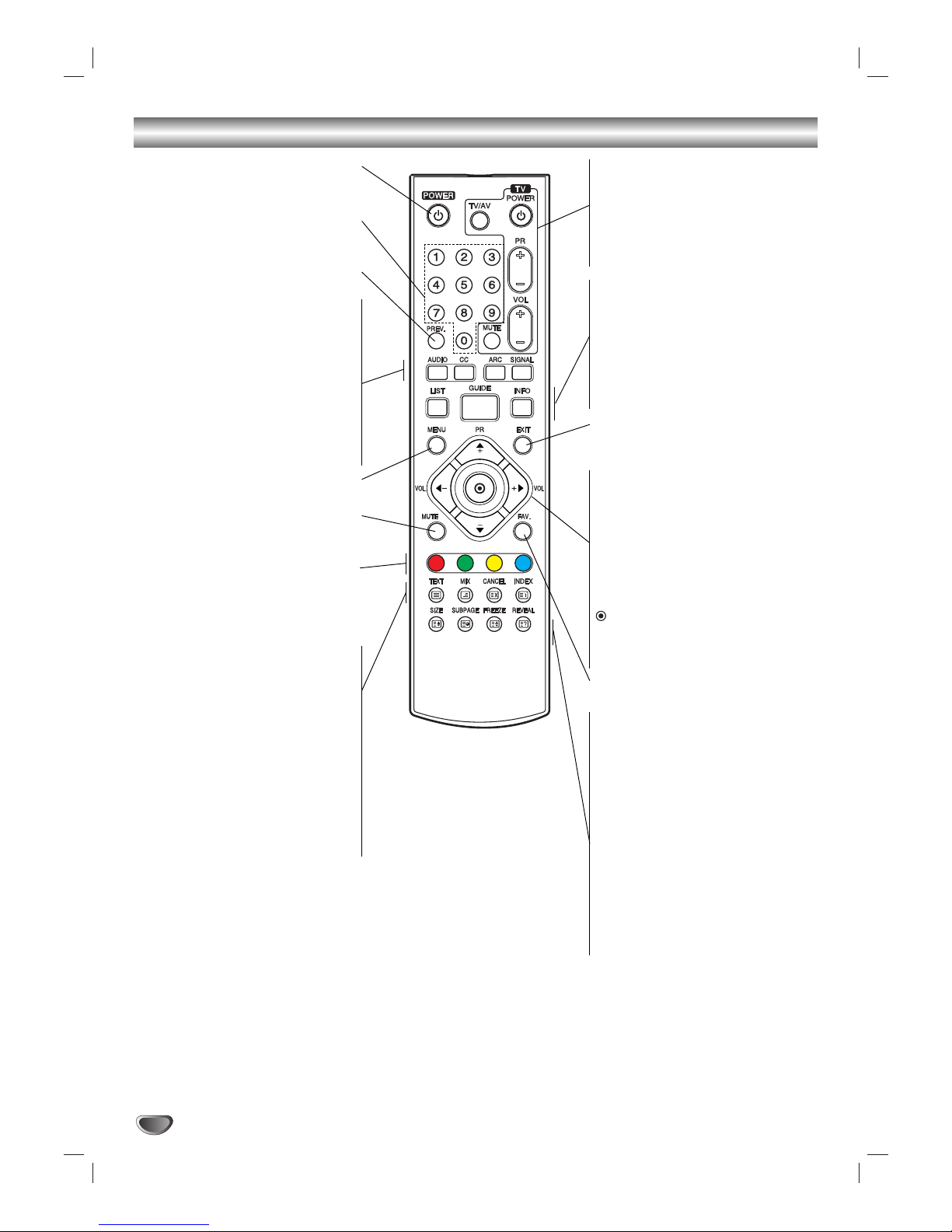

Remote Control Key Functions
POWER
Turns the HDTV Receiver ON and
OFF.
Numbers
Chooses programmes and enters
programming information.
PREV.
Turns to the previous programme.
AUDIO
Selects programme’s audio language
options if available.
CC
Selects caption mode if available.
ARC
Changes the picture aspect ratio.
SIGNAL
Shows the signal strength of the
current programme.
MENU
Accesses or closes main menu.
MUTE
Pauses the audio temporarily. That
is, volumes on/off temporarily.
COLOR Buttons
It’s for teletext application.
Pressing RED or GREEN buttons
pages through the Programme Guide
menu.
TEXT
Switches between teletext mode and
normal TV viewing.
MIX
Selects the background for teletext
screen (Opaque, User Transparency,
Transparency).
CANCEL
Hides the teletext screen except
page number.
INDEX
Moves to Index screen. If Index page
is not present, moves to page 100.
TV Control Buttons
-POWER: Turns the TV on or off.
-TV/AV: Selects the TV’s source.
-PR +/–: Selects TV’s programme.
-VOL +/–: Adjusts TV’s volume.
-MUTE: Temporarily turns TV sound
OFF, press again to restore.
LIST
Displays the programme list.
GUIDE
Displays the Programme Guide.
INFO
Shows the current station and
programme information on the
screen.
EXIT
Removes all on-screen displays and
returns to TV viewing from any menu.
ARROW Buttons (33/ 44/ 11/ 22)
Selects options in a menu.
VOL +/-
Changes volume.
PR +/-
Selects a memorized programmes.
Pressing these buttons pages
through the Teletext menu.
(SELECT)
Completes the programme number
input and promptly tunes to selected
programme.
FAV.
Changes to the favorite programme.
SIZE
Enlarges the text size to double in
the teletext mode.
SUBPAGE
Searches the sub-page using the
sub-code.
FREEZE
Freezes the current image during TV
viewing. Pressing the button again
returns the image to live video.
Holds the teletext display and stops
the automatic page change in the
teletext mode.
REVEAL
Displays concealed information.

7
INTRODUCTION

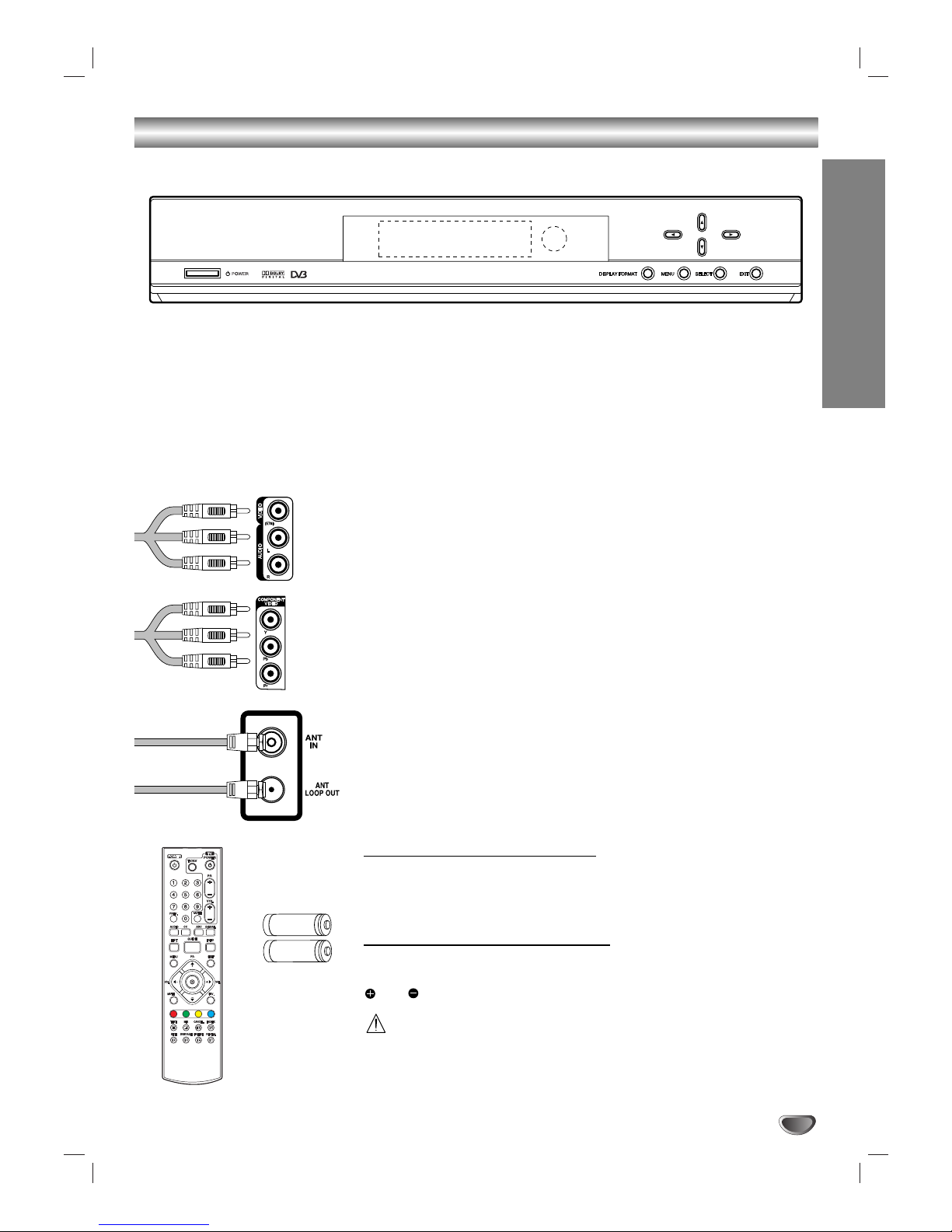

Unpacking HDTV Receiver and Accessories/Connection Overview
Audio/Video Jacks and Cables
The Audio/Video jacks provide excellent picture and sound quality. They are
used for making most Audio/Video connections between components. The
Audio/Video jacks may be color coded (yellow for video, red for right audio,
and white for left audio). If your component has only one input for audio
(mono), connect it to the left (white L/mono) audio jack on the HDTV
Receiver.
Component Out Jacks and Cables
Component Cables are used to connect the HDTV Receiver to an industry
standard YPbPr compatible HD Monitor (green for Y, blue for Pb, and red
for Pr). Remember to connect the left and right audio cables. The YPbPr
Component jacks carry only the picture signals, not the sound.
ANT LOOP OUT Jack, and RF Cable
ANT LOOP OUT provides an RF connection between the HDTV Receiver
and the TV and provides the signal of ANT IN jack to TV.
Remote Control
In addition to the HDTV Receiver, the remote control can be programmed to
control many other devices.
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
Distance: About 7 m from the front of the remote sensor.
Angle: About 30° in each direction of the front of the remote sensor.
Remote Control Battery Installation
Remove the battery cover on the rear of the remote control, and insert two
batteries (size AAA) with
and aligned correctly. Reinstall cover.
Caution
Do not mix old and new batteries. Never mix different types of batteries (stan-
dard, alkaline, etc.).
Make sure you have received all the accessories listed below with the High Definition Television Receiver.
AAA
AAA
High Definition Television Receiver
The HDTV Receiver is capable of receiving signals from over-the-air antenna sources and
sending the signals to your TV.
Included with the Receiver are the following accessories.
Audio Cable Video Cable
Component (YPbPr) Cable RF Cable
Remote Control 2 AAA Batteries

8

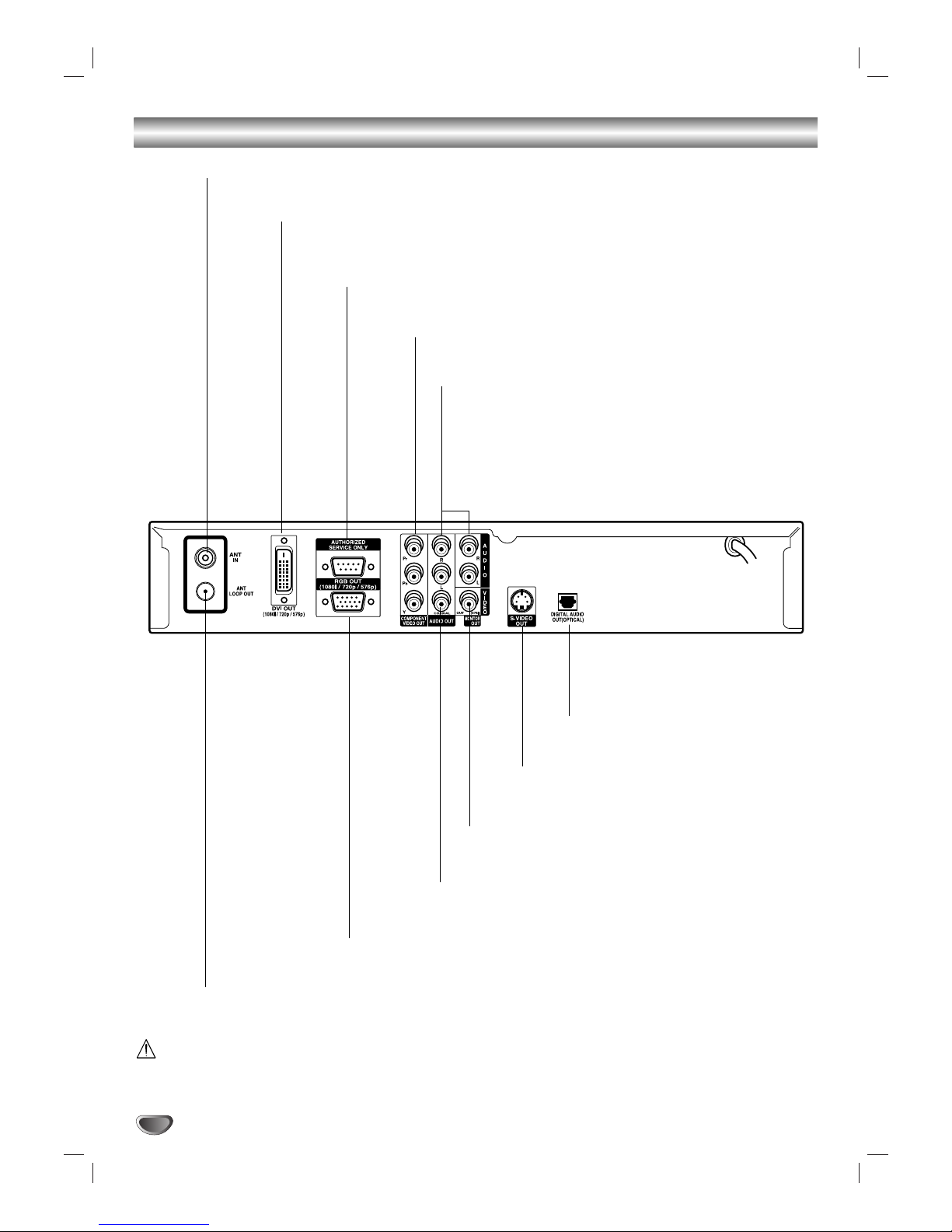

Connection Panel Overview
Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
ANT LOOP OUT
RF output to TV ’s “Antenna In ” jack or other devices.
VIDEO OUT
Connect to a TV with video inputs.
AUTHORIZED SERVICE ONLY
Is used only for authorized service purposes.
DVI OUT
Connect to a TV with DVI-DTV
connector.
COAXIAL (Digital audio out jack)
Connect to digital (coaxial) audio equipment.
COMPONENT VIDEO OUT
Connect to a TV with YPbPr inputs.
ANT IN
Connect to HDTV signal source;external/internal antenna.
OPTICAL (Digital audio out jack)
Connect to digital (optical)audio
equipment.
RGB OUT
Connect to a TV with RGB-DTV inputs.
S-VIDEO OUT
Connect to a TV with S-Video inputs.
Variable AUDIO OUT (Left/Right)
Connect to a TV, Amplifier, Receiver or Stereo System.

INSTALLATION
9
Connections

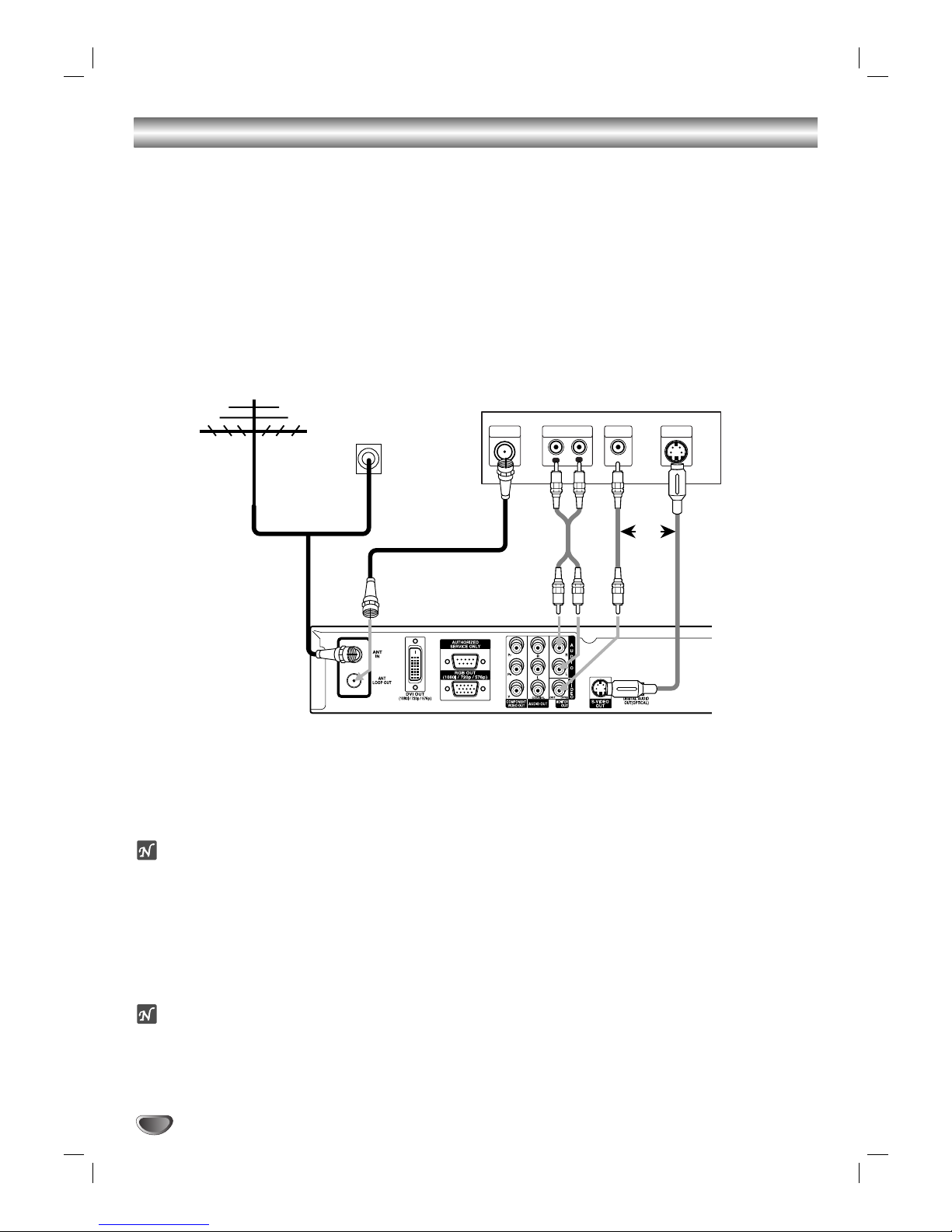

Antenna Connections
11
Connect the “Antenna” to the “ANT IN” jack on the HDTV Receiver using a coaxial RF cable.
ote
There might be some areas where the signal strength could be too high. If so, you may need to connect the
antenna to an attenuator. Screw the attenuator onto the “ANT IN” jack.
22
Connect the “ANT LOOP OUT” jack on the HDTV Receiver to the “Antenna In” jack on your TV using a coaxial
RF cable.
L
R
Y
Pb
Pr
COMPONENT VIDEO INPUT AUDIO INPUT
L
VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
TV or Other Device Connection Panel
HDTV Receiver Connection Panel
Antenna
Wall Jack Panel
Antenna

Connections (Continued)
10
Display Formats Overview
•The HDTV Receiver offers various display formats and multiple video outputs.When the HDTV Tuner is connected
to A/V systems, the HDTV Tuner can provide video signal formats 1080i, 720p, 576p, and 576i.
•1080i, 720p, 576p, and 576i modes are available for component video (YPbPr)outputs.
•1080i, 720p, and 576p modes are available for RGB and DVI outputs.
•576i mode is available for VIDEO, S-VIDEO, and COMPONENT VIDEO outputs.
•The HDTV Tuner has two digital audio outputs;Dolby Digital 5.1 and PCM.The HDTV Tuner sends out a digital
audio signal to OPTICAL and COAXIAL audio outputs when digital broadcasts are being received by the HDTV
Tuner.
Analog Monitor Connections
11
Connect the “Antenna” to the “ANT IN” jack on the HDTV Receiver using a coaxial RF cable.
ote
There might be some areas where the signal strength could be too high. If so, you may need to connect the
antenna to an attenuator. Screw the attenuator onto the “ANT IN” jack. (Refer to page 9.)
22
Connect the “ANT LOOP OUT” jack on the HDTV Receiver to the “Antenna In” jack on your TV using a coaxial
RF cable.
33
Connect the “AUDIO OUT” and “VIDEO OUT” jacks on the HDTV Receiver to the “A/V IN” jacks on your TV
using RCA-type cables. If your TV is equipped with an S-Video jack, use the S-VIDEO OUT jack.
(The Output Selection must be set to YPbPr, refer to Display Format Setup on page 16.)
ote
When using Composite VIDEO OUT (yellow connector) or S-video outputs from HDTV Receiver, MENU will only
appear and operate if 576i format is selected.
Antenna
Wall Jack Panel
OR
L
R
AUDIO INPUT
L
VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
TV Connection Panel
HDTV Receiver Connection Panel
Antenna
OR

INSTALLATION
11
Connections (Continued)
HD Monitor Component (YPbPr) Connections
11
Connect the “Antenna” to the “ANT IN” jack on the HDTV Receiver using a coaxial RF cable.
ote
There might be some areas where the signal strength could be too high. If so, you may need to connect the
antenna to an attenuator. Screw the attenuator onto the “ANT IN” jack. (Refer to page 9.)
22
Connect the “ANT LOOP OUT” jack on the HDTV Receiver to the “Antenna In” jack on your TV using a coaxial
RF cable.
33
Connect the “COMPONENT OUT” jacks on the HDTV Receiver to the “COMPONENT IN” jacks of your TV
using RCA-type cables. (The Output Selection must be set to YPbPr, refer to Display Format Setup on page
16.)
44
Connect the L/R “AUDIO OUT” jacks on the HDTV Receiver to the L/R “AUDIO IN” jacks on your TV using
RCA-type cables.
ote
1080i, 720p, 576p, and 576i modes are available for component video (YPbPr) outputs.
Y
Pb
Pr
COMPONENT VIDEO INPUT
L
R
AUDIO INPUT VIDEO
INPUT
ANTENNA
INPUT
Antenna
Wall Jack Panel
OR
HD Ready TV Connection Panel
HDTV Receiver Connection Panel
Antenna

12
Connections (Continued)
HD Monitor RGB Connections
11
11
Connect the “Antenna” to the “ANT IN” jack on the HDTV Receiver using a coaxial RF cable.
ote
There might be some areas where the signal strength could be too high. If so, you may need to connect the
antenna to an attenuator. Screw the attenuator onto the “ANT IN” jack. (Refer to page 9.)
22
Connect the “ANT LOOP OUT” jack on the HDTV Receiver to the “Antenna In” jack on your TV using a coaxial
RF cable.
33
Connect the “RGB OUT” jack on the HDTV Receiver to the “RGB IN for DTV” jack of your TV using VGA-type
connector. (The Output Selection must be set to RGB, refer to Display Format Setup on page 16.)
44
Connect the L/R “AUDIO OUT” jacks on the HDTV Receiver to the L/R “AUDIO IN” jacks on your TV using
RCA-type cables.
ote
1080i, 720p, and 576p modes are available for RGB outputs.
Antenna
Wall Jack Panel
OR
Antenna
L
R
AUDIO INPUTRGB INPUT VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
HD Ready TV Connection Panel
HDTV Receiver Connection Panel

Connections (Continued)
INSTALLATION
13
HD Monitor DVI-HDTV Connections
11
Connect the “Antenna” to the “ANT IN” jack on the HDTV Receiver using a coaxial RF cable.
ote
There might be some areas where the signal strength could be too high. If so, you may need to connect the
antenna to an attenuator. Screw the attenuator onto the “ANT IN” jack. (Refer to page 9.)
22
Connect the “ANT LOOP OUT” jack on the HDTV Receiver to the “Antenna In” jack on your TV using a coaxial
RF cable.
33
Connect the “DVI OUT” jack on the HDTV Receiver to the “DVI IN for DTV” jack of your TV using DVI-D type
connector. (The Output Selection must be set to DVI, refer to Display Format Setup on page 16.)
44
Connect the L/R “AUDIO OUT” jacks on the HDTV Receiver to the L/R “AUDIO IN” jacks on your TV using
RCA-type cables.
ote
•1080i, 720p, and 576p modes are available for DVI outputs.
•ADVI-HDTV input is one that is compliant with EIA-861 specifications. Check your TV or monitor's user manual to
find out if the TV or monitor's DVI input is compliant with these specifications.
•Some HD Monitors designed for PC applications using DVI-D may not work with this connection.
DVI-HDTV INPUT
L
R
AUDIO INPUT VIDEO
INPUT
S-VIDEO
INPUT
ANTENNA
INPUT
Antenna
Wall Jack Panel
OR
Antenna
HD Ready TV Connection Panel
HDTV Receiver Connection Panel

14
Connections (Continued)
VCR Connections
Connect the L/R “AUDIO OUT” jacks and “VIDEO OUT” jack on the HDTV Receiver to the “A/V in” jacks on your
VCR using RCA-type cables. (If your VCR is equipped with an S-Video jack, use the “S-Video” jack.)
Caution
If the Output Selection is set to YPbPr and 576i display format is selected, the VCR will record an onscreen
display onto the tape during recording if:
the programme is changed with PR (+/–)
the sound level is adjusted with VOL (+/–)
or by pressing the (SELECT) button, etc.
ote
The caption signal is recorded when the display format settings are set to 576i. (Refer to page 16.)
L
R
AUDIO INPUT
L
VIDEO
INPUT
VCR Connection Panel
HDTV Receiver Connection Panel

INSTALLATION
15
Connections (Continued)

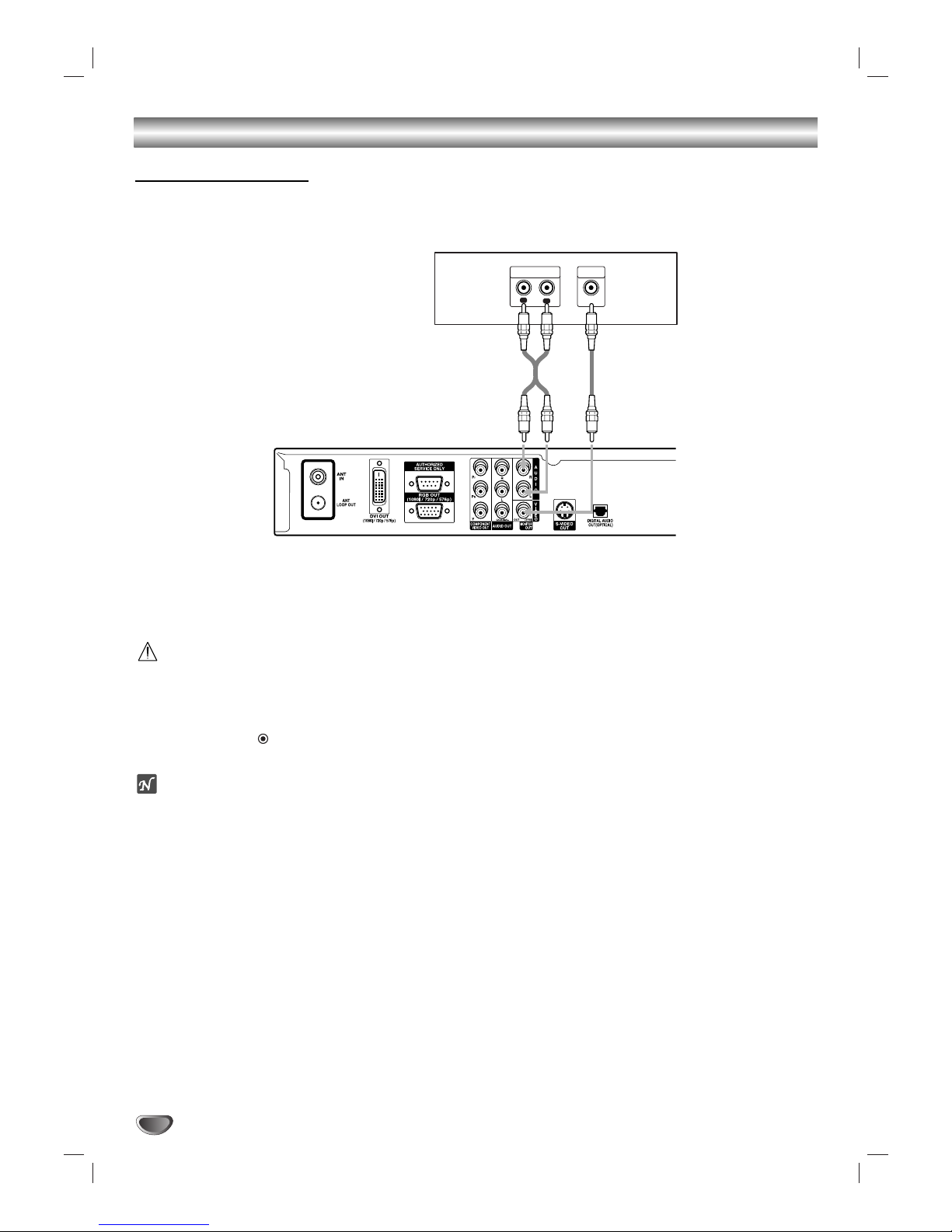

Amplifier (Receiver) Connections
Connecting to an amplifier equipped with two channel analog stereo or Dolby Surround
Connect the Left and Right AUDIO OUT jacks on the HDTV Receiver to the audio left and right in jacks on your
amplifier, receiver, or stereo system, using the supplied audio cables.
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video
receiver equipped with a multi-channel decoder (Dolby Digital™)
Connect one of the HDTV Receiver’s DIGITAL AUDIO OUT jacks (OPTICAL or COAXIAL) to the corresponding
input jack on your amplifier. Use an optional digital (optical or coaxial) audio cable.
Digital Multi-channel sound
Adigital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video
receiver that supports one or more of the audio formats supported by your HDTV Receiver (Dolby Digital). Check
the receiver manual and the logos on the front of the receiver.
R
L
AUDIO INPUT DIGITAL INPUT
OPTICALCOAXIAL
HDTV Receiver Connection Panel
Amplifier (Receiver) Connection Panel
OR

Setting the Display Format
16
The HDTV Receiver provides several display formats. The DISPLAY FOR-
MAT button on the front panel changes the output resolution. The output res-
olution may be converted from the original broadcast format.
Display Format Setup
11
Press DISPLAY FORMAT once on the front panel.
The current output signal will appear in the display window.
22
Depending on the type of Monitor that the HDTV Receiver is con-
nected to, press DISPLAY FORMAT or 11/ 22repeatedly on the front
panel to select desired output connector. (YPbPr, RGB, or DVI.)
Press MENU button if you wish to exit the display format setting.
33
Use SELECT on the front panel to confirm your output connector
selection.
The current output resolution will appear in the display window.
44
Depending on the type of Monitor that the HDTV Receiver is con-
nected to, press DISPLAY FORMAT or 11/ 22repeatedly on the front
panel to select desired output resolution. (1080i, 720p, 576p, 576i)
Press MENU button if you wish to return to the output connector setting
mode.
55
Press (SELECT) on the front panel to confirm your output resolu-
tion selection.
Display Format setup is finished.
otes
• You can exit Display Format Setup mode by pressing EXIT on the front
panel.
•The S-VIDEO and VIDEO OUT jacks’ signals are converted from all for-
mats to 576i format.
•When using Composite video or S-video outputs from HDTV Receiver, on-
screen display will only appear and operate if 576i format is selected.
Display Format modes Input Signal format Output Signal format
1080i all formats 1080i
720p all formats 720p
576p all formats 576p
576i all formats 576i
OUTPUT CONNECTION AVAILABLE FORMATS
COMPONENT VIDEO OUT 1080i/720p/576p/576i
RGB OUT 1080i/720p/576p
DVI OUT 1080i/720p/576p
VIDEO OUT All formats converted to 576i
S-VIDEO OUT All formats converted to 576i
DISPLAY FORMAT

MENU OPERATION
17
Initial Settings
In this menu system, there are several ways to customize the settings pro-
vided. Most menus consist of three levels to set up the options, but some
require greater depth for the variety of settings. If you press the MENU but-
ton, only the first and second level of the menu system will appear on the TV
screen. The third level can be displayed by pressing (SELECT). If a menu
has more than three levels, the pop-up dialogue box will be displayed as the
fourth or fifth level. For navigating the menu levels, you will see “ 22” on the
right side of the menu label to help you go to the next level.
To show and remove the Menu:
Press the MENU button on the remote control to display the menu. A second
press of the MENU button or a press of the EXIT button will take you back to
TV viewing.
To go to the next level:
Press “ (SELECT)” (or “ 22”) on the remote control.
To go back to the previous level:
Press MENU (or “ 11”) on the remote control.
General Operation
11
Press MENU.
The main menu will appear.
22
Use 33/ 44to select the desired menu option.
33
While the desired menu option is selected, press 22or (SELECT)
to move to the second level.
44
Use 33/ 44to select the second menu option.
55
Press 22or (SELECT) to move to the third level.
Some menu options require additional steps.
66
Press MENU to return to the previous menu or press EXIT on the
remote control to return to TV viewing.
ote
If your TV is in zoom mode, the menu screen may be cut off.
In this case, set the TV’s zoom mode to normal to display the menu properly.

18
Setup Menu Options
ote
PIN is needed to access the SETUP menu if [Lock System] option is set
to [On].

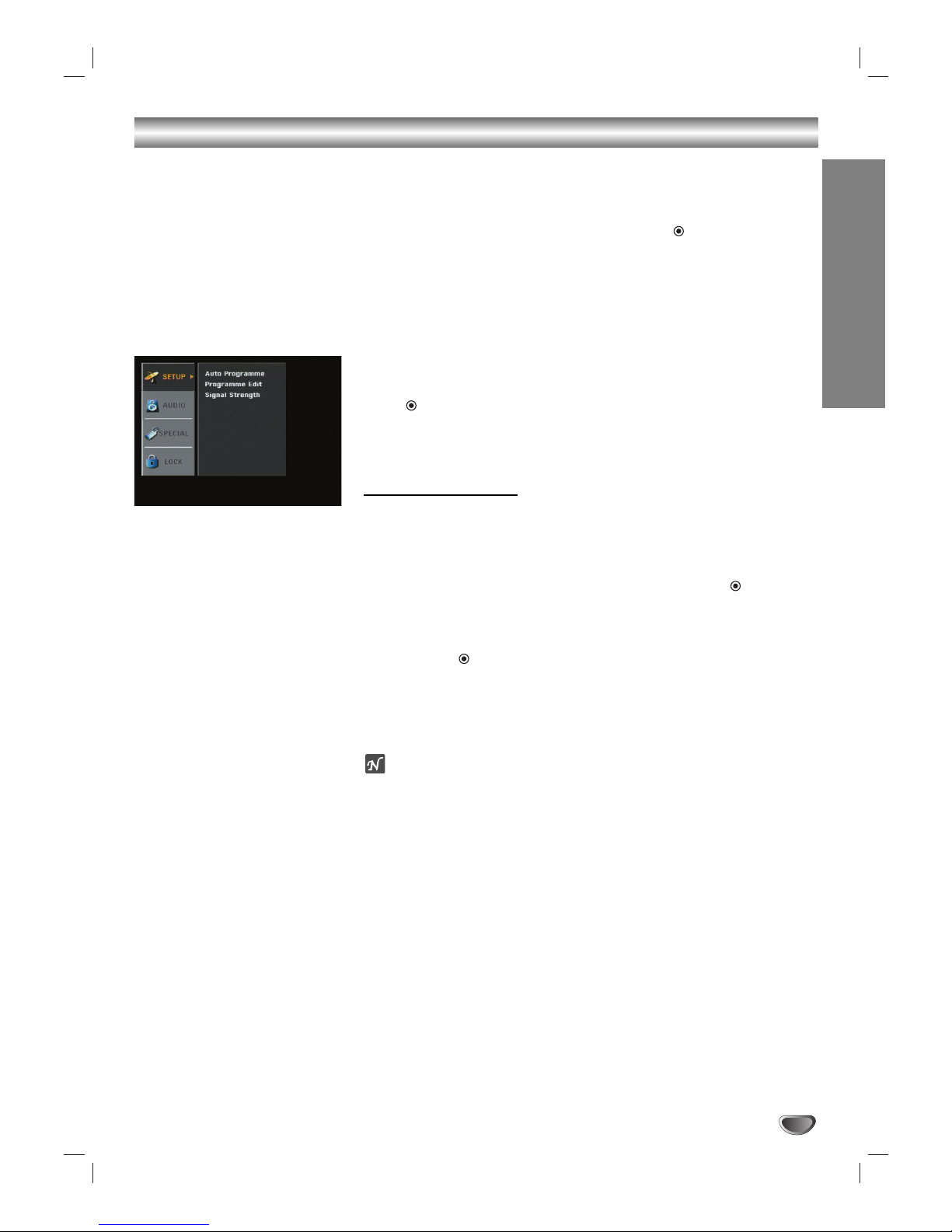

Auto Programme
Automatically finds all programmes (digital), and stores all the active pro-
grammes found on the programme list. Inactive or weak programmes may
not appear on the list.
11
Press MENU to display the on-screen menu.
22
Select the SETUP menu using 33/ 44then press (SELECT) or 22to
move to the second level.
33
Select the Auto Programme using 33/ 44then press (SELECT) or
22to move to the third level.
44
Select the “1.DTV” using 33/ 44then press (SELECT).
The programme search process begins. You can stop the process by
pressing (SELECT), MENU or EXIT.
55
When programme search is complete, the lowest programme num-
ber found appears on the TV screen.
Programme Edit
Programme Edit allows you to add or skip programmes from the programme list
in memory manually and create your own favorite list of favorite programmes.
11
Press MENU to display the on-screen menu.
22
Select the SETUP menu using 33/ 44then press (SELECT) or 22to
move to the second level.
33
Select the Programme Edit using 33/ 44then press (SELECT) or 22.
Programme Edit menu appears.
To skip a programme
Select a programme on the programme editing menu then press blue
button to skip the programme. The skipped programme number will dim.
When a programme number is skipped it means that you will be unable
to select it using the PR (+/-) button during normal TV viewing. If you
want to select the skipped programme, directly enter the programme
number with the number buttons or select it in the Programme List
menu.
To block a programme
Select a programme on the programme editing menu then press yellow
button to block the programme. (See page 25 for more details.)
To create a FAVOURITE LIST:
Select a programme on the programme editing menu then press FAV. to
add the programme to the FAVOURITE LIST.
Only the programmes on the programme editing menu can be added to
the surf list.
44
Press MENU to return to the previous screen or press EXIT on the
remote control to return to TV viewing.
Note: If you access this menu
when resolution is set to 576p,
720p, or 1080i, the VIDEO OUT
and S-VIDEO OUT jacks’ signals
are blocked. Press EXIT button to
restore the output signals.

Setup Menu Options
MENU OPERATION
19
ote
PIN is needed to access the SETUP menu if [Lock System] option is set
to [On].
Signal Strength
Shows the strength bar for incoming signal to help you adjust the antenna to
the correct position from your location.
11
Press MENU to display the on-screen menu.
22
Select the SETUP menu using 33/ 44then press (SELECT) or 22.
33
Select the Signal Strength using 33/ 44.
The signal strength bar will be displayed.
44
Press MENU to return to the previous screen or press EXIT on the
remote control to return to TV viewing.
ip
You can also view signal strength bar by pressing SIGNAL on the remote
control.

Audio Menu Options
20

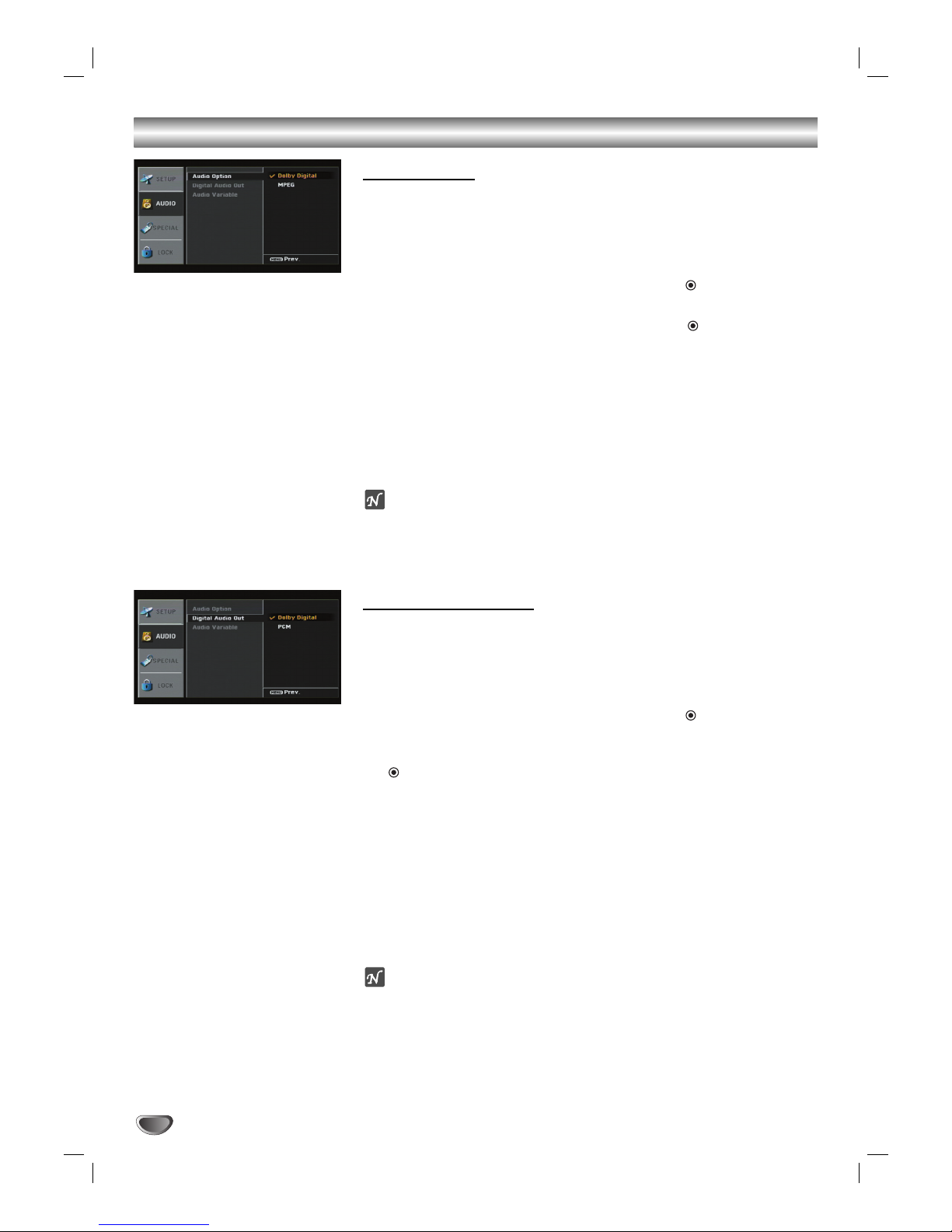

Audio Option
The Audio Option allows you to select an audio stream for the TV pro-
gramme being received.
11
Press MENU to display the on-screen menu.
22
Select the AUDIO menu using 33/ 44then press (SELECT) or 22.
33
Select the Audio Option using 33/ 44then press (SELECT) or 22.
44
Select the desired mode using 33/ 44.
Dolby Digital: Dolby Digital audio stream is received.
MPEG: MPEG audio stream is received.
55
Press MENU to return to the previous menu or press EXIT on the
remote control to return to TV viewing.
otes
•If the selected audio stream is not received, original audio stream will be automati-
cally selected.
•You cannot change the “Audio Option” setting when the current programme’s digital
picture grade is SD (Standard Definition).
Digital Audio Output
Sets the HDTV Receiver’s digital Audio Output according to the type of audio
system you use.
11
Press MENU to display the on-screen menu.
22
Select the AUDIO menu using 33/ 44then press (SELECT) or 22.
33
Select the Digital Audio Out option using 33/ 44then press
(SELECT) or 22.
44
Select the desired audio output using 33/ 44.
Dolby Digital: Select “Dolby Digital” if you connected the HDTV
Receiver’s DIGITAL OUT jack to a Dolby Digital decoder (or an amplifi-
er or other equipment with a Dolby Digital decoder).
PCM: Select when the HDTV Receiver’s DIGITAL OUT jack is con-
nected to a 2-channel digital stereo amplifier.
55
Press MENU to return to the previous menu or press EXIT on the
remote control to return to TV viewing.
otes
•If you select the “Dolby Digital” and current audio stream is not “Dolby Digital”, the
HDTV Receiver outputs the “PCM” signal from DIGITAL AUDIO OUT jacks (OPTI-
CAL and COAXIAL).
•The “Digital Audio Out” is fixed to “PCM” when the “Audio Option” is set to “MPEG”,
•You cannot change the “Digital Audio Out” setting when the current programme’s
digital picture grade is SD (Standard Definition).
