QUARTZ PATIO HEATER
PHP-2000DI
Instruction Manual
Thank you for purchasing this infrared heater. We hope you will be
completely satisfied with this product. To ensure this, please read these
instructions carefully before use and keep them in a safe place.

Part Description
1 Heating Element Assembly
2 Knob
3 Body
4 Position Indication Plate
5 Pull Switch
6 Tube Cover
7 Upper Post Assembly
8 3 -M5 X 6 Screw
9 Middle Post
10 3-M5 X 6 Screw
11 Lower Post Assembly
12 Clamp
13 Power Cord
14 Base Cover
15 4-M6 X 30 Screw
16 Base Assembly
1-WARNINGS
■ This electrical appliance complies with technical safety and
electromagnetic compatibility standards.
■ Never touch your heater when in operation (risk of burns).
■ Never touch it with wet hand.
■ Never rotate the heating part of the appliance during operation. To
change the tit angle of the heating part, we advise you to wait for 15
minutes after the appliance has been switched off.
■ Never place anything on your heater's safety guard as this may cause
overheating (e.g. towels)
Never use your appliance to dry washing.
■ Although the heating element has stopped glowing, it may still be live and
potentially dangerous. Check that the selection indicator (5) is in position
off before taking any action.
■ Switch off your appliance:
-After use
-In the event of malfunction
-Before cleaning it.
■ Never operate your appliance if it has fallen over.
■ Never dismantle your appliance. An incorrectly repaired appliance maybe
dangerous to the user. If you encounter any problems, please take it to
one of the Approved Service Centers in our custome service network
■ The warranty will be void in the event of damage arising from improper
use.

■ Do not use this heater in the immediate surrounding of a bath, a shower
or a swimming pool.
■ This movable appliance is designed for use in gardens, and can be used
indoor and outdoor. The warranty will not apply to appliances used for
professional usage. Although the heater may be used outdoors, the main
plug must only be connected to the supply indoors.
■ The heater is provided with an anti-tilt switch will switch off the heater if it
is overturned, and will switch it on again automatically when it is restored
to its upright position.
■ The instruments in the minimum installation height 1.8 meters
2-VOLTAGE
Before using the appliance at the first time, ensure that your mains
voltage corresponds to voltage indicated on the appliance. It is a class I
appliance and must be earthed.
3-SAFETY
CAUTION: Before fitting or removing the appliance, ensure that the
heater's power line supplying the heater is disconnected. Check that
the power line is connected to a 30mA differential circuit breaker.
■ This appliance is designed for use in gardens ,and any room in your
house, including those where there is a risk of splashing. The
installation and use of your appliance must comply with the
applicable standards in your country.
■ When it is switch on, an electrical heating appliance reaches very
high temperature libel to cause burns. Make sure that all other
users are aware of the risks.
■ If you have any doubts concerning installation possibilities for this
heater, please consult a qualified electrician.
■ Children, the elderly and the infirm may not always be aware of the
danger involved in using electrical appliances. Never allow this
appliance to be used without supervision.
■ The appliance must be positioned so that the plug is accessible.
■ If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similar qualified person in order
to avoid a hazard
■ The heater must not be located immediately below a socket-outlet
■ Do not use this heater with a programmer, timer or any other device
that switches the heater on automatically, since a fire risk exists if
the heater is covered or positioned incorrectly.
■ Do not place the appliance close to curtains and other combustible
materials.

4-HOW TO ASSEMBLE
■Before installing your appliance, you must disconnect the
electrical supply at the circuit breaker.
1>to fix the chassis to the ground , take off eight piec
es of M6*30, make base and base asembely sperate, take 3-
Expansion screws to fix in the ground. match with the hol
e .take 3-M4*50 Screw to fix the base on the ground, cov
er the base asembly. match with the hole, take 4-M6*30 Sc
rews to fixi the base asembly.(as below picture)

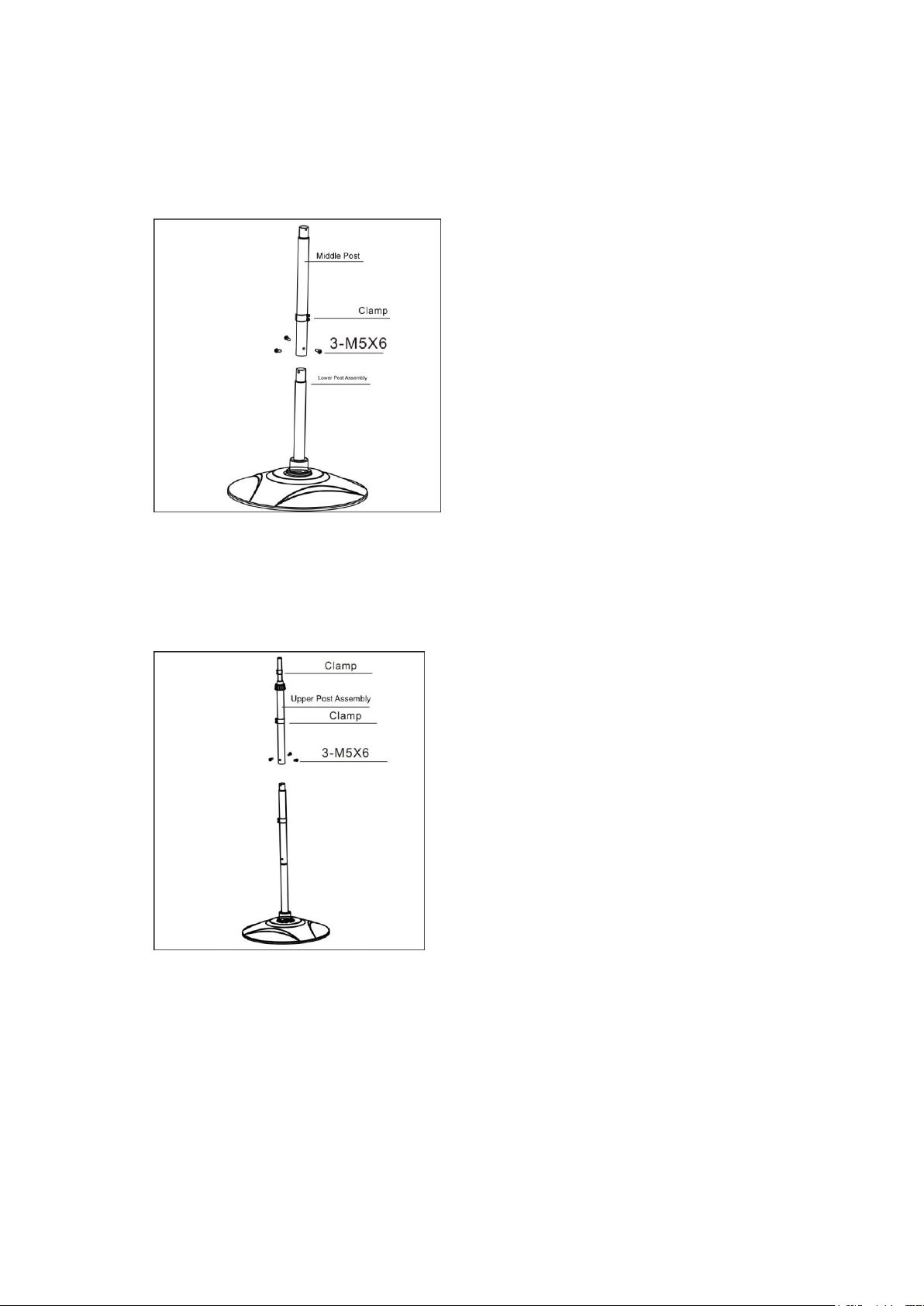

2>Insert the lower post assembly
(11) into the base assembly (16)
and then fix it tightly by means
of 4-M6X30 screw, and insert
the clamp (12) into the lower post
(11). (as below picture)

3> Join the Lower Post Assembly
(11) and the Middle Post (9)
together with 3-M5X6 screw
(as below picture)
4>Join the Upper Post Assembly
(7) and the Middle Post (9)
together with 3-M5X6.screw
(as below picture)
5>Join the Heating ElementAssembly
(1) and the Upper Post Assembly (7)
together ,then fix them tightly by
rotating the Knob, and put the power
cord supply into the clamp.(as below picture)

6>. According to the request of use angle,
Heating Element Assembly can adjust
Angle at 0º~45º.(as below picture)
5-OPERATION
The appliance is switched on by means of the pull switch (5). The slight
vibration noticeable when the appliance is switched on will stop after a
few seconds.
6-OUTPUT
-Position 0: Stop
-Position 1: 650W (normal power)
-Position 2: 1300W (intermediate power)
-Position 3: 2000W (full power)

7-MAINTENANCE
Your appliance dose not requires any particular maintenance. However,
in the event of a malfunction, please consult an Approved Service
Center.
1，This appliance is not intended for use by persons (including children) with reduced
physical,sensory or mental capabilities.or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
2，Children should be supervised to ensure that they do not play with the appliance.
