Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass it on to any subsequent owner of the appliance.
The following symbols are used in the text:
Safety instructions
Warning! Notes that concern your personal safety.
Attention! Notes that show how to avoid damage to the appliance.
Useful tips and hints
Environmental information
152950 74/0en 2-10-2006 10:24 Pagina 2

CONTENTS
Operating instructions 4
Safety instructions 4
Disposal 6
Economical and ecological dishwashing 6
Description of the appliance 7
The control panel 8
Audible signals 10
Prior to using for the first time 11
The water softener 11
Filling with dishwasher salt 14
Rinse aid 15
In daily use 17
Loading cutlery and dishes 17
The lower basket 19
The cutlery basket 20
The upper basket 21
Adjusting the height of the upper basket 22
Use of detergent 23
Different kinds of detergent 24
Washing programmes 26
Starting a washing programme 27
Maintenance and cleaning 30
Cleaning the filters 30
Something not working 33
Service and Spare Parts 36
Customer Care Department 37
Guarantee Conditions 38
Technical specifications 40
Installation instructions 41
Building-in 41
Levelling 41
Fixing to the adjacent units 41
Water supply connections 42
Water inlet hose with safety valve 43
Water outlet hose connection 44
Electrical connection 45
Hints for test centres 47
Contents
3
152950 74/0en 2-10-2006 10:24 Pagina 3

OPERATING INSTRUCTIONS
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of
technology and the Appliance Safety Act. We as manufacturers,
however, see ourselves as being obliged to familiarise you with the
following safety instructions.
It is most important that this instruction book should be retained
with the appliance for future reference. Should the appliance be
sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is left with
the appliance in order that the new owner can get to know the
functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety.
You MUST read it carefully before installing or using the
appliance.
If you are unsure about any aspect of the information in this
book, please contact our customer care department on 08705 950
950
Installation
●Check your dishwasher for any transport damage. Never connect a
damaged machine. If your dishwasher is damaged, you should
contact your supplier.
●For safety reasons it is dangerous to alter the specifications or
attempt to modify this product in any way.
●Any electrical and plumbing work required to install this appliance
should be carried out by a qualified and competent person.
●Care must be taken to ensure that the appliance does not stand on
the electrical supply cable.
●The sides of the dishwasher must never be drilled to prevent
damage to hydraulic components.
Child safety
●This appliance is designed to be operated by adults.
●Children should not be allowed to tamper with the controls or play
with the product.
Operating instructions
4
152950 74/0en 2-10-2006 10:24 Pagina 4

●Ensure the packaging materials for this appliance are kept away
from children so as to prevent the risk of injury or suffocation.
●The water in your dishwasher is not for drinking. Detergent residues
may still be present in your machine. Keep children well away from
your dishwasher when the door is open.
●Keep all detergents in a safe place out of children's reach.
Your dishwasher in day-to-day use
●Items that are contaminated by petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals must not be washed in this
dishwasher.
●Under no circumstances should you open the door whilst the
appliance is in operation, especially during the washing phase, hot
water may escape. However, if the door is opened, a safety device
ensures that the machine stops.
●Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
●Long bladed knives stored in an upright position are a potential
hazard.
●Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
●Ensure that the door of the dishwasher is always closed when it is
not being loaded or unloaded. In this way you will avoid anybody
tripping over the open door and hurting themselves.
●When finishing loading or unloading close the door, as an open
door can be a hazard.
●Do not sit or stand on the open door.
●Isolate the appliance from the power supply and turn off the water
supply after use.
●This product should be serviced by an authorised service engineer,
and only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the machine
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Force Centre. Always insist on genuine
spare parts.
Operating instructions
5
152950 74/0en 2-10-2006 10:24 Pagina 5

Operating instructions
6
Disposal
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with standard international abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material.
>PS< for polystyrene, e.g. padding material (always CFC-free).
>POM< for polyoxymethylene, e.g. plastic clips.
Cardboard packaging is manufactured from recycled paper and should
be deposited in the waste paper collection for recycling.
As and when you cease to use your dishwasher and withdraw it from
service, your should render it unserviceable before having it disposed
of.
Warning! Children at play could lock themselves in your dishwasher or
otherwise endanger their lives. Therefore cut off the power supply
cable and make the door closing device unusable to prevent children
from being trapped inside.
For the disposing of the appliance please take it to a recycling centre
or to your dealer who may, for a small contribution to the costs,
dispose it for you.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Economical and ecological dishwashing
●Ensure that the water softener is correctly adjusted.
●Do not pre-wash under running water.
●Select the wash programme to suit the nature and degree of
the soiling on the dishes.
●Do not use more detergent, dishwasher salt and rinse aid
than is recommended in these operating instructions and by
the manufacturer of the respective product.
152950 74/0en 2-10-2006 10:24 Pagina 6

Operating instructions
7
Description of the appliance

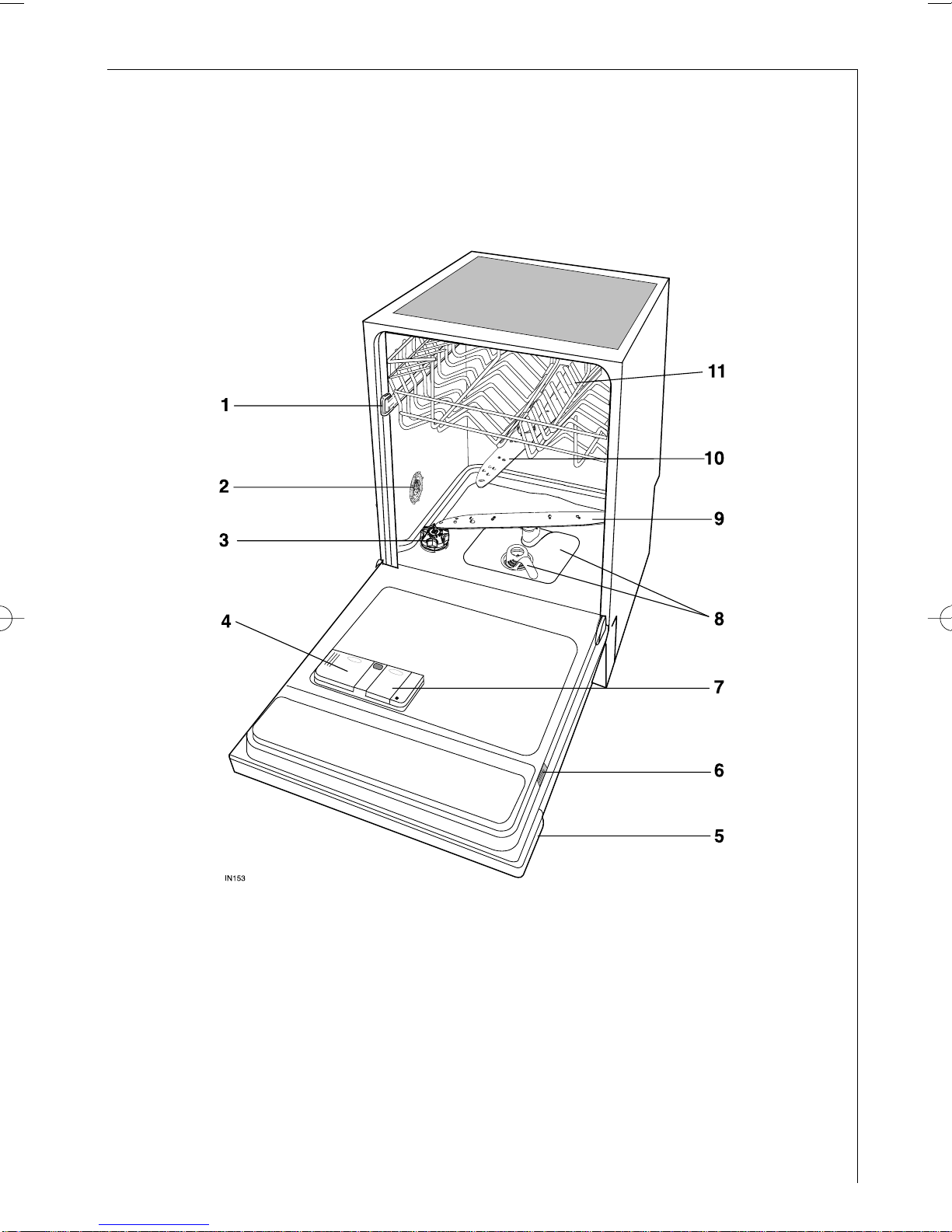

1. Upper basket stop
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Control panel
6. Rating plate
7. Rinse aid dispenser
8. Filters
9. Lower spray arm
10. Upper spray arm
11. Upper basket
152950 74/0en 2-10-2006 10:24 Pagina 7

Operating instructions
8

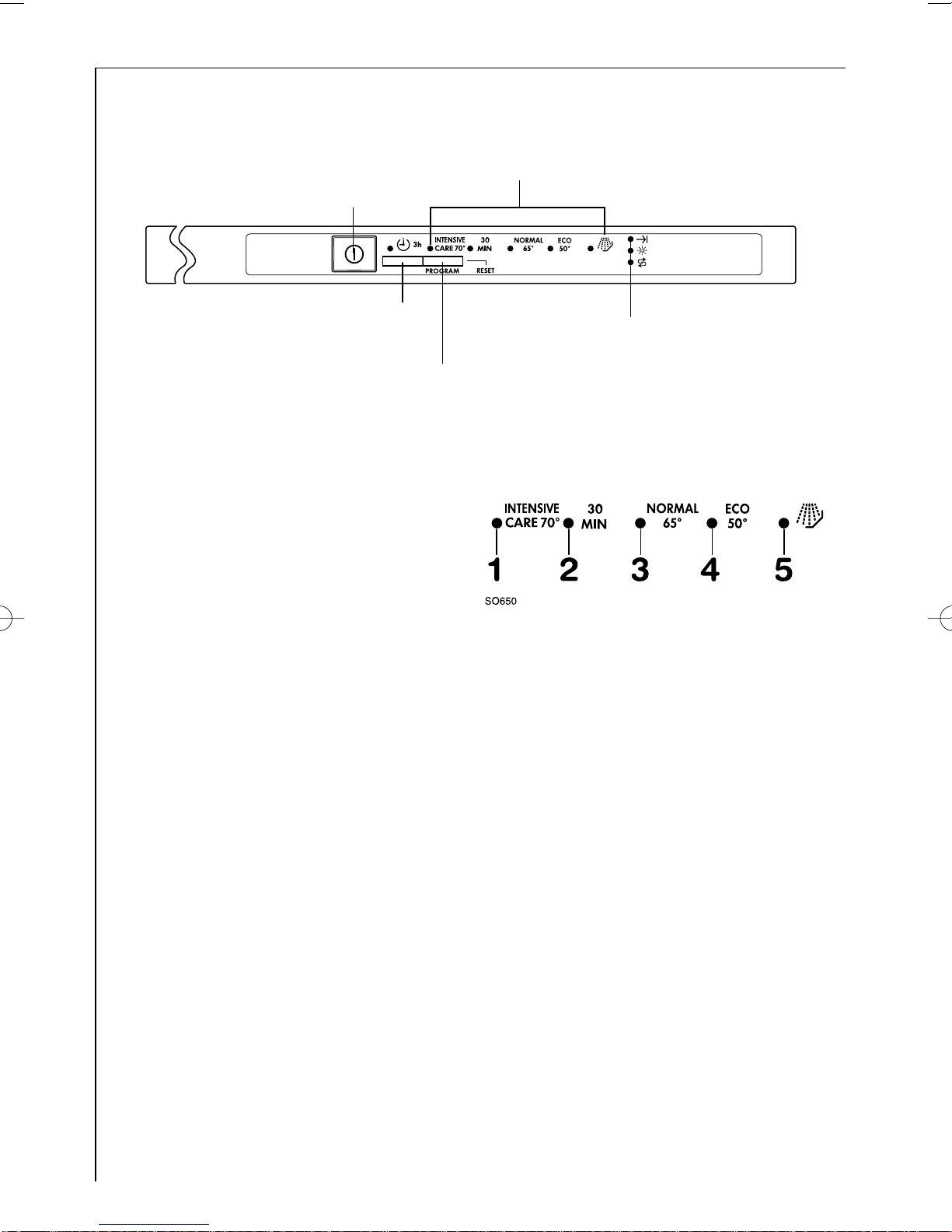

Programme selection/cancel button (RESET):the selection of a
washing programme occurs by the means of this button, press it until
the indicator light corresponding to the desired washing programme
illuminates (see "Washing programmes" chart). The end of programme
indicator light flashes.
Once the washing programme has been set, close the dishwasher’s
door, the programme will start automatically.
With this button it is also possible to:
- cancel a washing programme in progress,
- set the level of the water softener (see specific paragraph),
- deactivate/activate the audible signals.
Delay start button: this option allows the start of the washing
programme to be delayed by 3 hours; the corresponding indicator light
illuminates.
On/Off button Washing programmes
Programme selection/cancel button
Delay start button
The control panel
Indicator lights
Programme indicator lights
152950 74/0en 2-10-2006 10:25 Pagina 8

Operating instructions
9
Indicator lights: have the following meanings:
The salt and rinse aid indicator lights are never illuminated while a
washing programme is running even if filling with salt and rinse aid is
necessary.
End of programme, illuminates when the washing
programme has ended.
It also has added functions of visual signalling as:
- the setting of the water softener,
- deactivation/activation of the audible signals,
- intervention of an alarm due to the malfunction of the
machine.
Rinse aid refilling indicator light, illuminates when the rinse
aid has run out.
Salt refilling indicator light, illuminates when the salt has
run out.
152950 74/0en 2-10-2006 10:25 Pagina 9

Operating instructions
10
Audible signals
Audible signals have been introduced to help indicate which
operations the dishwasher is performing.
- end of washing programme,
- malfunction of the machine.
Deactivation/activation of the audible signals
Factory setting: audible signals activated.
1. With the dishwasher switched off, press the On/Off button.
The end of programme indicator light flashes (setting mode).
In case salt and/or rinse aid refilling is necessary the corresponding
indicator lights illuminate.
If one of the washing programme indicator lights is on, this means
that a washing programme has been set.
The setting must be cancelled: press for about 3 seconds the
programme selection/cancel button; the indicator light of the set
programme turns off and the end of programme indicator light
flashes, indicating that the set programme has been cancelled and
that the machine is now in setting mode.
2. Press and keep pressed the programme selection/cancel button
until programme indicator light 1flashes and programme indicator
light 2illuminates with a fixed light.
Press the programme selection/cancel button again, programme
indicator light 1illuminates with a fixed light and programme
indicator light 2starts flashing.
Wait until programme indicator light 1turns off, programme
indicator light 2goes on flashing and the end of programme
indicator light illuminates with a fixed light.
This indicates that you have activated the function for the
deactivation/activation of the audible signals.
The constant illumination of the end of programme indicator light
means that the audible signals are activated.
3. To deactivate the audible signals, press the programme
selection/cancel button again, the end of programme indicator
light turns off indicating that the audible signals are deactivated.
4. To memorise the operation, switch off the machine by pressing the
On/Off button or wait for about 60 seconds, after which the
machine will automatically return to setting mode.
To activate the audible signals again simply follow the above
operations until the end of programme indicator light illuminates.
152950 74/0en 2-10-2006 10:25 Pagina 10

Operating instructions
11
Prior to using for the first time
Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply with the
installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill with
dishwasher salt
5. Fill the rinse aid dispenser.
Note:
If you want to use the "3 in 1" combi detergents, read carefully
the informations given in "Different kinds of detergents".
The water softener
The dishwasher is equipped with a water softener designed to remove
minerals and salts from the water supply, which would have a
detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your
water is.
Water hardness is measured in equivalent scales, Clarke degrees, French
degrees (°TH) and mmol/l (millimol per litre - international unit for the
hardness of water).
The softener should be adjusted according to the hardness of the water
in your area. Your local Water Authority can advise you on the
hardness of the water in your area.
The water softener must be set in both ways: manually, using the water
hardness dial and electronically, using the function buttons on the
control panel.
152950 74/0en 2-10-2006 10:25 Pagina 11

Operating instructions
12
a) Setting manually
1. Open the dishwasher door.
2. Remove the lower basket from the dishwasher.
3. Turn the water hardness dial to position 1 or 2 (see table).
4. Replace the lower basket.
The dishwasher is factory set at
position 2.
Adjusting the water
hardness setting
10
9
8
7
6
3
1
no salt
necessary
Manually Electronically
2
1
Number of flashes of the
“end of programme”
indicator light
2
Water hardness
64 - 88
53 - 63
46 - 52
36 - 45
28 - 35
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
13 - 17 1,9 - 2,5
< 5 < 0,7
5 - 12 0,7 - 1,8
23 - 27
18 - 22 3,3 - 3,9
2,6 - 3,2 5
4
10
9
8
7
6
3
1
2
5
4
Clarke
degrees
91 - 125
76 - 90
65 - 75
51 - 64
40 - 50
19 - 25
< 7
7 - 18
33 - 39
26 - 32
°TH mmol/l
152950 74/0en 2-10-2006 10:25 Pagina 12

Operating instructions
13
b) Setting electronically
The dishwasher is factory set at level 5.
1. With the dishwasher switched off, press the On/Off button.
The end of programme indicator light flashes (setting mode).
In case salt and/or rinse aid refilling is necessary the corresponding
indicator lights illuminate.
If one of the washing programme indicator lights is on, this means
that a washing programme has been set.
The setting must be cancelled: press for about 3 seconds the
programme selection/cancel button; the indicator light of the set
programme turns off and the end of programme indicator light
flashes, indicating that the set programme has been cancelled and
that the machine is now in setting mode.
2. Press and keep pressed the programme selection/cancel button
until programme indicator light 1flashes and programme indicator
light 2illuminates with a fixed light.
Wait until programme indicator light 2turns off, programme
indicator light 1goes on flashing and simultaneously the end of
programme indicator light starts flashing.
This indicates that you have activated the electronic setting
function of the water softener.
The current level is indicated by a sequence of flashes of the end of
programme indicator light, a sequence of intermittent audible
signals and a pause of a few seconds (see chart).
Example: 5 flashes + pause + 5 flashes signals etc...= level 5
3. To change the level, press the programme selection/cancel button.
Each time the button is pressed the level changes. (For the selection
of the new level, see chart).
Examples:
if the current level is 5, by pressing the programme
selection/cancel button once, level 6 is selected.
if the current level is 10, by pressing the programme
selection/cancel button once, level 1 is selected.
The end of programme indicator light remains off for a few
seconds and then starts flashing indicating the new selection is set.
4. To memorise the operation, switch off the machine by pressing the
On/Off button or wait for about 60 seconds, after which the
machine will automatically return to setting mode.
152950 74/0en 2-10-2006 10:25 Pagina 13

Operating instructions
14
Filling with dishwasher salt
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a
dishwasher, especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete washing
programmes.
This will prevent any grains of salt or salty water, which may have
been spilt, remaining on the bottom of the machine for any period
of time, which may cause corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the cap of
the salt container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary only
before filling with salt for the first time).
3. Using the funnel provided, pour in the
salt until the container is full.
4. Replace the cap making sure that
there is no trace of salt on the screw
thread or on the gasket.
5. Replace on the cap tightly turning it
clockwise until it stops with a click.
The salt container will require topping up periodically. You are
reminded of this by the salt indicator light on the control panel which
comes on when the salt has finished.
The salt indicator light on the control panel can remain
illuminated for 2-6 hours after the salt has been replenished,
assuming the dishwasher remains switched on. If you are using
salts that take longer to dissolve then this can take longer. The
function of the machine is not affected.
Do not worry if water over flows from the unit when filling with salt,
this is quite normal.
152950 74/0en 2-10-2006 10:25 Pagina 14

Operating instructions
15
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, and spot and streak free drying.
The dispenser, which is positioned inside the door, holds about 110 ml
of rinse aid, which is sufficient for 16 - 40 dishwashing programmes,
depending upon the dosage setting.
Filling with rinse aid
1. Open the container by pressing the release button (A).
2. Add the rinse aid until the container is completely full. The
maximum level for filling is indicated by “max”.
Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during filling with an absorbent cloth
to avoid excess foaming during the next wash.
Only use branded rinse aid for dishwashers. Never fill the rinse aid
dispenser with any other substances (e.g. dishwasher cleaning
agent, liquid detergent). This would damage the appliance.
152950 74/0en 2-10-2006 10:25 Pagina 15

Operating instructions
16
Adjusting the dose
According to the finish and drying results obtained, adjust the dose of
rinse aid by means of the 6 position selector (position 1 minimum
dosage, position 6 maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of
water or lime spots on the dishes after
washing.
Reduce it if there are sticky whitish
streaks on the dishes or a bluish film on
glassware or knife blades.
Top up the rinse aid when the indicator light on the control panel
illuminates.
152950 74/0en 2-10-2006 10:25 Pagina 16

Operating instructions
17
In daily use
• Check if it’s necessary to refill with dishwasher salt or rinse aid.
• Load cutlery and dishes into the dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for the cutlery and dishes.
• Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water
may not be washed in the dishwasher.
•When loading the dishes and cutlery, please note:
- Remove all left over food and debris.
- Soften remnants of burnt food in pans.
•When loading the dishes and cutlery, please note:
- Dishes and cutlery must not impede the rotation of the spray arms.
- Load hollow items such as cups, glasses, pans etc, with the opening
downwards so that water cannot collect in the container or a
deep base.
- Dishes and items of cutlery must not lie inside one another, or
cover each other.
- To avoid damage to glasses, they must not touch.
- Lay small objects in the cutlery basket.
•Plastic items and pans with teflon have a tendency to retain
water drops; these items will not dry as well as porcelain and steel
items.
152950 74/0en 2-10-2006 10:25 Pagina 17

Operating instructions
18
For washing in the dishwasher the following cutlery/dishes
are not suitable:
•Cutlery with wooden, horn, china or
mother-of-pearl handles
•Plastic items that are not heat
resistant
•Older cutlery with glued parts that
are not temperature resistant
•Bonded cutlery items or dishes
•Pewter or copper items
•Lead crystal glass
•Steel items prone to rusting
•Wooden platters
•Items made from synthetic fibres
•Only wash stoneware in the dishwasher if it
is specifically marked as being dishwasher-
safe by the manufacturer.
•Glazed patterns may fade if machine
washed frequently.
•Silver and aluminium parts have a tendency
to discolour during washing. Residues, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
•Some types of glass can become dull after a
large number of washes.
are of limited suitability:
152950 74/0en 2-10-2006 10:25 Pagina 18

Operating instructions
19

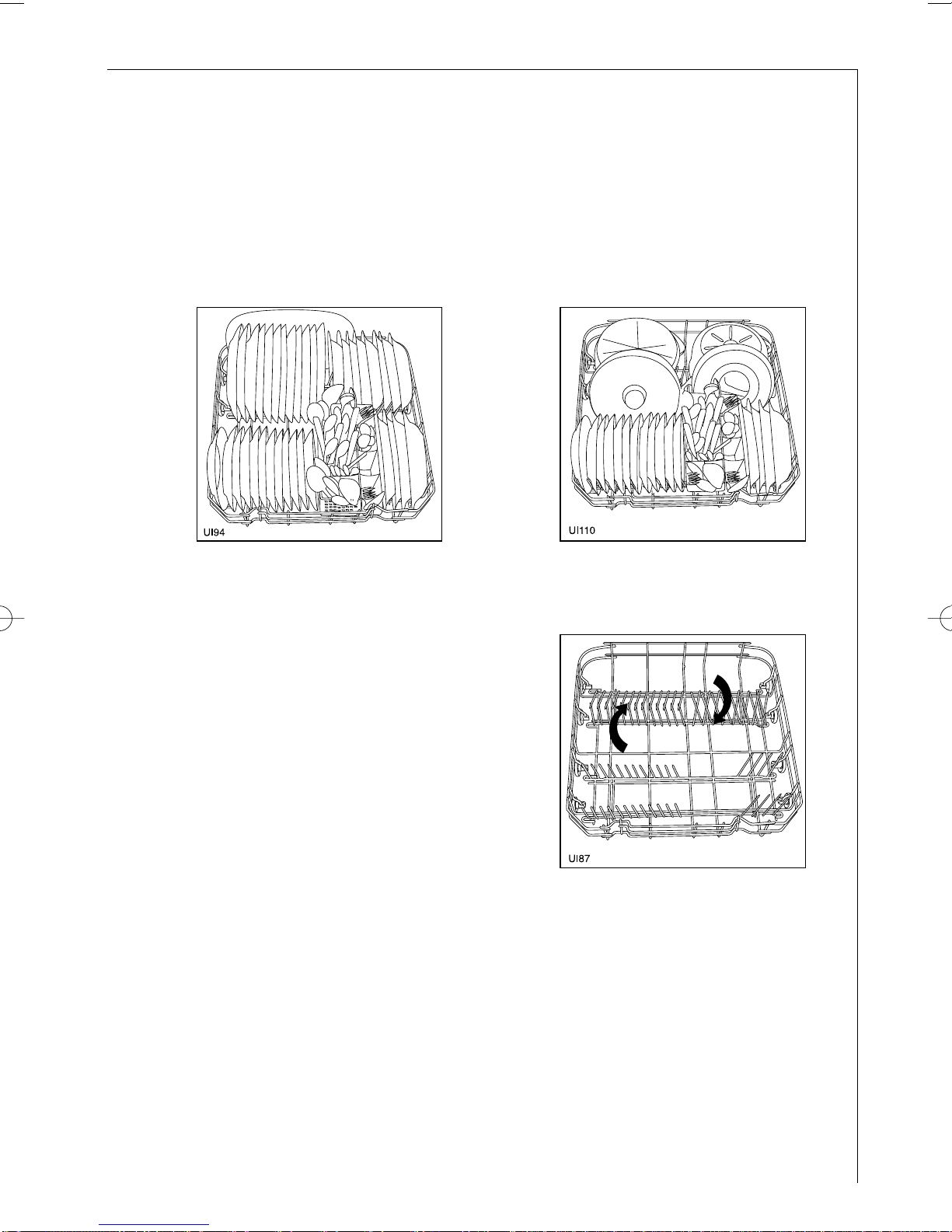

Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates, salad
bowls, cutlery etc.
Serving dishes and large lids should be arranged around the edge of
the basket, ensuring that the spray arms can turn freely.
The two rows of prongs on the lower basket can be easily lowered to
allow you to load pots, pans and bowls.
152950 74/0en 2-10-2006 10:25 Pagina 19

Operating instructions
20
The cutlery basket
Long bladed knives stored in an upright position are a potential
hazard.
Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as knives.
Forks and spoons should be placed in the removable cutlery basket
with the handles facing downwards and the knives with their handles
facing upwards.
If the handles protrude from the bottom of the basket, obstructing the
lower spray arm, load the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent them from sticking together.
For best results we recommend you to use the
cutlery grids provided (if the size and
dimensions of the cutlery allow it).
1
2
152950 74/0en 2-10-2006 10:25 Pagina 20
