1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Internally the appliance becomes hot when in
operation. Do not touch the heating elements that are
in the appliance. Always use oven gloves to remove or
put in accessories or ovenware.
•Before maintenance cut the power supply.
ENGLISH 3

•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Do not activate the appliance when it is empty. Metal
parts inside the cavity can create electric arcing.
•If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
qualified person.
•Only a qualified person can carry out any service or
repair operation that involves the removal of a cover
which gives protection against exposure to microwave
energy.
•Do not heat liquids and other foods in sealed
containers. They are liable to explode.
•Only use utensils that are suitable for use in
microwave ovens.
•When heating food in plastic or paper containers,
keep an eye on the appliance due to the possibility of
ignition.
•The appliance is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
•If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
•Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling
the container.
•The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
www.aeg.com
4

•Eggs in their shell and whole hard-boiled eggs should
not be heated in the appliance since they may
explode, even after microwave heating has ended.
•The appliance should be cleaned regularly and any
food deposits removed.
•Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need
to be replaced, this must be carried
out by our Authorised Service Centre.
• Do not let mains cables to come in
touch with the appliance door,
specially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
ENGLISH 5

2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household
only.
• Do not change the specification of
this appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with
wet hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration
to the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Make sure the cavity and the door are
wiped dry after each use. Steam
produced during the operation of the
appliance condensates on cavity walls
and can cause corrosion.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Remaining fat or food in the
appliance can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of
detergent.
2.5 Internal light
• The type of light bulb or halogen
lamp used for this appliance is only
for household appliances. Do not use
it for house lighting.
www.aeg.com
6

WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.

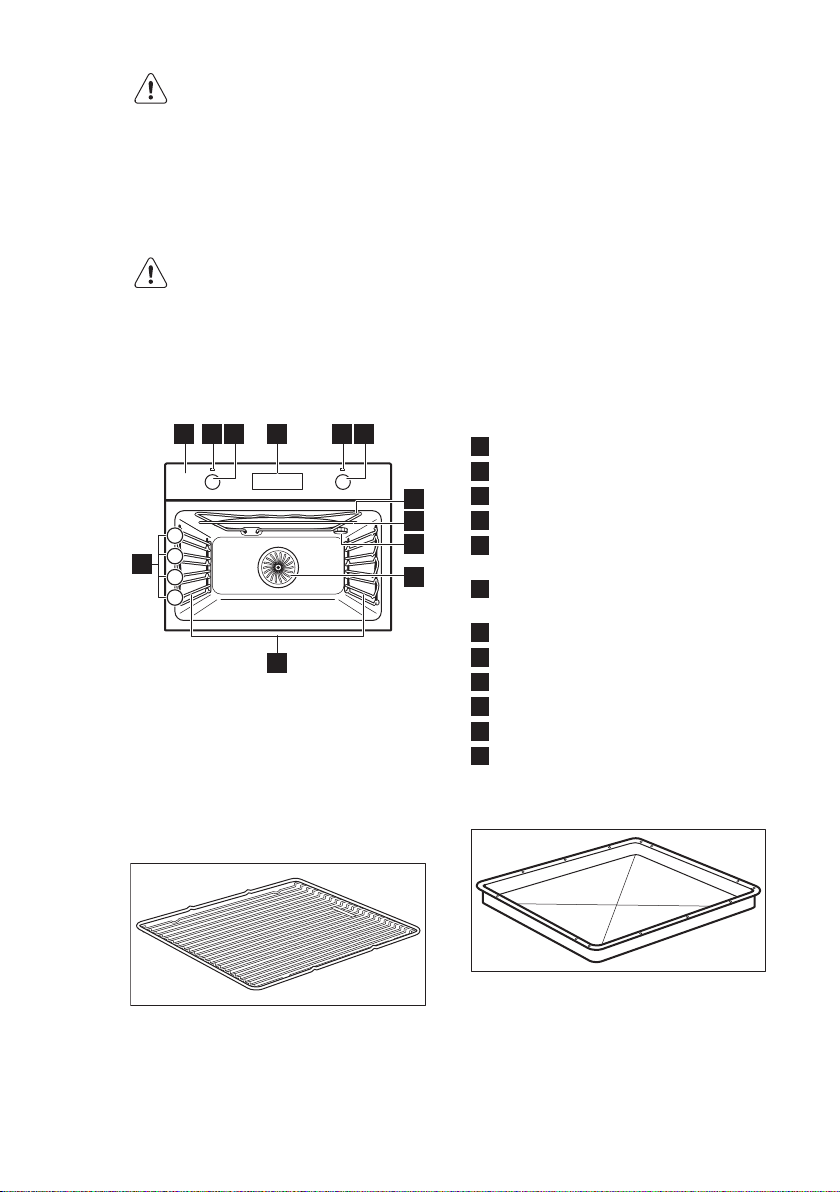

3. PRODUCT DESCRIPTION
3.1 General overview
1 3 642 5
12
4
3
1
210
11
7
8
9
1Control panel
2Power lamp / symbol / indicator
3Knob for the oven functions
4Electronic programmer
5Temperature and microwave power
lamp / symbol / indicator
6Knob for the temperature /
microwave power
7Heating element
8Microwave generator
9Lamp
10 Fan
11 Shelf support, removable
12 Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
ENGLISH 7

4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and
cleaning" chapter.
Clean the appliance before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
4.2 Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few
seconds the display shows the software
version.
After the software version goes off, the
display shows and "12:00". "12"
flashes.
1. Press or to set the current
hour.
2. Press to confirm. This is necessary
only when you set the time for the
first time. Later the new time will be
saved automatically after 5 seconds.
The display shows and the set
hour. "00" flashes.
3. Press or to set the current
minutes.
4. Press to confirm. This is necessary
only when you set the time for the
first time. Later the new time will be
saved automatically after 5 seconds.
The display shows the new time.
4.3 Changing the time
You can change the time of day only if
the oven is off.
Press .
The set time and symbol flash in the
display.
To set a new time, refer to "Setting the
time".
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and
deactivating the appliance
It depends on the model if
your appliance has knob
symbols, indicators or
lamps:
• The indicator comes on
when the oven heats up.
• The lamp comes on when
the appliance operates.
• The symbol shows
whether the knob
controls the oven
functions or the
temperature.
1. Turn the knob for the oven function
to select an oven function. This
www.aeg.com
8

automatically activates the appliance
with a default settings.
2. Turn the knob for the temperature /
microwave power to set a
temperature.
3. To deactivate the appliance, turn the
knob for the oven functions to the off
position.
5.3 Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the lamp without a cooking function.
Microwave Creates the heat directly in the food. Use it to heat pre-
prepared meals and drinks, to defrost meat or fruit, and
to cook vegetables and fish.
True Fan Cook-
ing
To bake on up to 2 shelf positions at the same time and
to dry food. Set the temperature 20 - 40 °C lower than
for Conventional Cooking.
Pizza Setting To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. Set the temperature 20
- 40 °C lower than for Conventional Cooking.
Conventional
Cooking
To bake and roast food on 1 shelf position.
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Defrost To defrost frozen food.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
ENGLISH 9

5.4 Display
A B C
D
EFG
A) Timer
B) Heat-up and residual heat indicator
C) Microwave function
D) Core temperature sensor (selected
models only)
E) Door lock (selected models only)
F) Hours / minutes
G) Clock functions
5.5 Buttons
Button Function Description
CLOCK To set a clock function.
MINUS To set the time.
MICROWAVE To set the Microwave function. Hold the
button for more than 3 seconds to acti-
vate or deactivate the oven lamp.
PLUS To set the time.
TEMPERATURE To check the oven temperature or the
temperature of the core temperature sen-
sor (if applicable). Use only while an oven
function is in operation.
5.6 Heat-up indicator
When you activate an oven function, the
bars in the display come on one by
one. The bars show that the oven
temperature increases or decreases.
6. MICROWAVE MODE
6.1 Setting the Microwave
function
Do not let the appliance operate when
there is no food in it.
1. Turn the knob for the oven functions
to select the Microwave function .
The display shows a default microwave
power and then a default value of the
Duration function.
2. Press and turn the knob for the
temperature / microwave power to
change the microwave power
settings. The power settings changes
in 100 W steps.
3. Press and then / to change
the Duration settings.
The appliance automatically starts to
operate after few seconds. When the set
time ends, an acoustic signal sounds and
the Microwave function deactivates
automatically.
4. Turn the knob for the oven functions
to the off position.
When the Microwave function is running
you can:
www.aeg.com10
