AG Neovo DF-55 User manual

Important Safety Instructions ..................................................................1
1.1 Safety precautions and maintenance………………………............1
1.2 Use…………………………………………………………..…..…..…4
1.3 Installation Notes……………………………………………..…..…...6
Package Content .......................................................................................9
2.1 Unpacking………………………………………………….…………..9
2.2 Accessories……………………………….…………….………….…11
2.3 Overview……………………………………………………..……….13
Setting Up the Display ............................................................................15
3.1 Step1 : Tear down the downside covers………………..…………15
3.2 Step2 : Place the upside part into downside part………………...16
3.3 Step3 : Connect the LVDS and 24V………………………..……...18
3.4 Step4 : Reinstall the downside covers………………………….....19
3.5 Step5 : Open the user door, Connect by HDMI connector………20
3.6 DF-55 Full Size Stand installation………………………………….21
3.7 DF-55 Full Size Stand counterweight mounting position…......…23
3.8 Using the Remote Control………………………………….……….24
3.9 OSD Setting Menu…………………………………………..……….25
Trouble shooting .....................................................................................29
Specifications ........................................................................................ 30
Product Dimensions ...............................................................................31
TABLE OF CONTENTS

1.1 Safety precautions and maintenance
WARNING:
Use of control, adjustments or procedures other than those
specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and
using your display:
Operation:
•Keep the display out of direct sunlight and away from stoves or any other
heat sources.
•Remove any object that could fall into ventilation holes of power box or
prevent proper cooling of the display’s electronics.
•Don’t block the ventilation holes on the power box.
•When positioning the display, make sure the power plug and outlet are
easily accessible.
•When turning off the display by detaching the power cord, wait 6 seconds
before re-attaching the power cord for normal operation.
•Ensure the use of an approved power cord provided byAUO at all times.
If your power cord is missing, please contact your local service center.
•Don’t subject the display to severe vibration or high impact conditions
during operation.
•Don’t knock or drop the display during operation or transportation.
•Provide an earthing connection before the mains plug is connected to the
mains.And, when disconnecting the earthing connection, be sure to
disconnect after pulling out the mains plug from the mains.
Important Safety Instructions
1

Maintenance:
•To protect your display from possible damage, do not put excessive
pressure on the display.
•Unplug the display if you are not going to use it for an extensive period of
time.
•Unplug the display if you need to clean it with a slightly damp cloth. The
screen may be wiped with a dry cloth when the power is off. However,
never use organic solvent, such as, alcohol, or ammonia-based liquids to
clean your display.
•To avoid the risk of shock or permanent damage to the set, do not
expose the display to dust, rain, water or an excessively moist
environment.
•If your display becomes wet, wipe it with dry cloth as soon as possible.
•If a foreign substance or water gets in your display, turn the power off
immediately and disconnect the power cord. Then remove the foreign
substance or water.
•Don’t store or use the display in locations exposed to heat, direct sunlight
or extreme cold.
Important Safety Instructions
2

Read and follow these instructions when connecting and using your
display:
•Unplug the display if you are not going to use it for an extensive period of
time.
•Unplug the display if you need to clean it with a slightly damp cloth. The
screen may be wiped with a dry cloth when the power is
off. However, never use alcohol, solvents or ammonia-based liquids.
•Consult a service technician if the display does not operate normally after
having followed the instructions in this manual.
•Keep the display out of direct sunlight and away from stoves or any other
heat sources.
•Remove any object that could fall into the vents or prevent proper cooling
of the display’s electronics.
•Don’t block the ventilation holes on the power box.
•Keep the display dry. To avoid electric shock, do not expose it to rain or
excessive moisture.
•When turning off the display by detaching the power cable or DC power
cord, wait for 6 seconds before re-attaching the power
cable or DC power cord for normal operation.
•To avoid the risk of shock or permanent damage to the set do not expose
the display to rain or excessive moisture.
•When positioning the display, make sure the power plug and outlet are
easily accessible.
Important Safety Instructions
3

Remote Controller Precautions：
•This product requires remote switch (ON/OFF) from Front Side ; the
Back Side only has OSD function operated by remote controller.
Front Side (450 nits) Back Side(450 nits)
The Front Side have a user
door.
Important Safety Instructions
1.2 Use
4

Disconnect devices:
•For pluggable equipment, the socket-outlet shall be installed near the
equipment and shall be easily accessible.
Important Safety Instructions
5

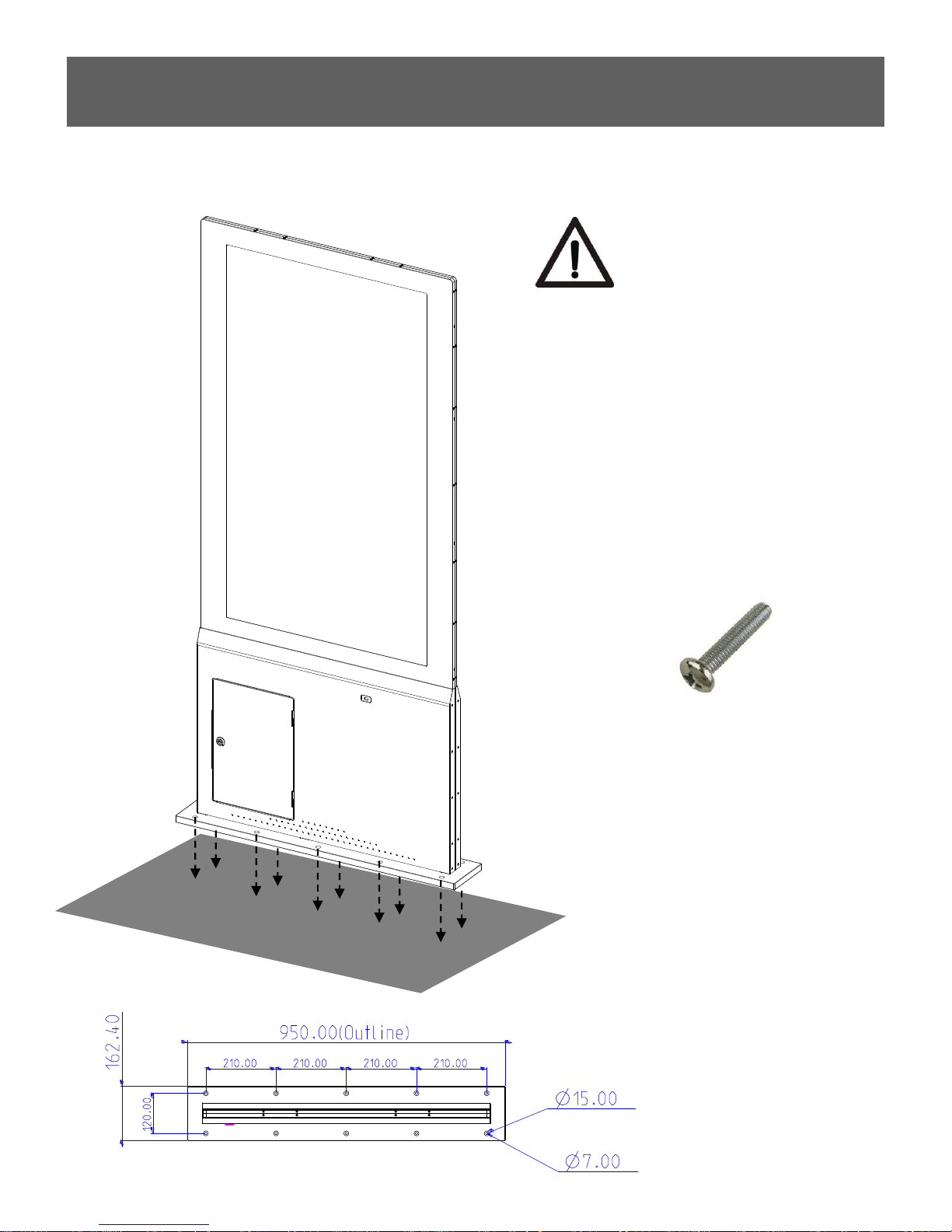

Please make sure you
have a solid installation.
(Locks on the ground)
As shown in the picture.
You can install
Dual-sided display by
screws x10 (M6x20mm)
Ground
Important Safety Instructions
1.3 Installation Notes
6

IPC installation:
•Dual-sided display (DF-55) contains a metal plat, it is used to fix your
IPC.
•The relative position of the screw holes is shown below. You can
choose the suitable screw holes to use.
•The dimensions of IPC space : 270*181*26.5mm
screws (M3x6.5mm)
Please put the
IPC I/O
Interface down
Important Safety Instructions
7

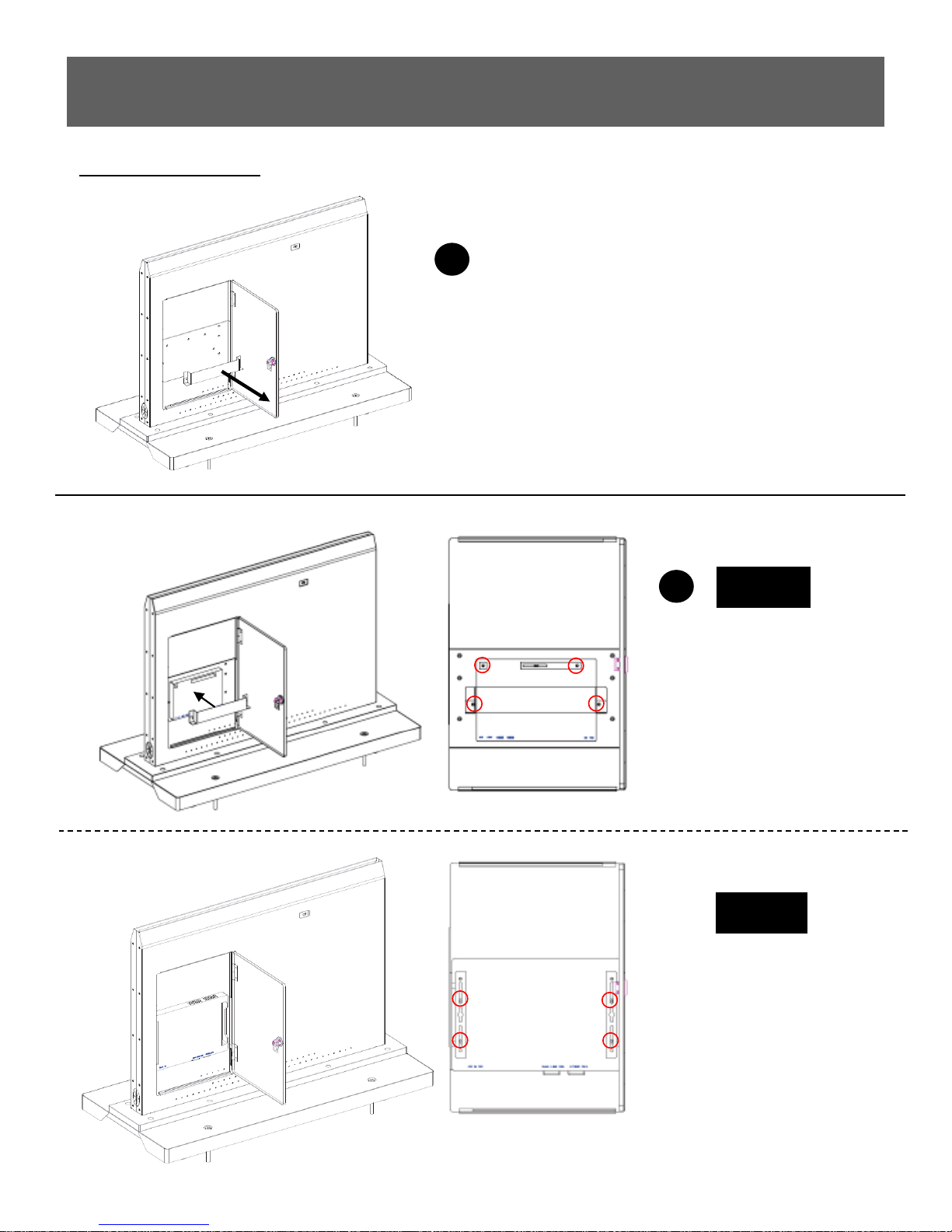

IPC installation:
1
Tear down the IPC fixed
sheet metal first
2
Set & fix the IPC &
Reinstall the IPC fixed
sheet metal
By screws x 4
(M3x6.5mm)
IPC01
Set & fix the IPC (Don’t
need reinstall the IPC
fixed sheet metal)
By screws x 4
(M3x6.5mm)
IPC02
Important Safety Instructions
8

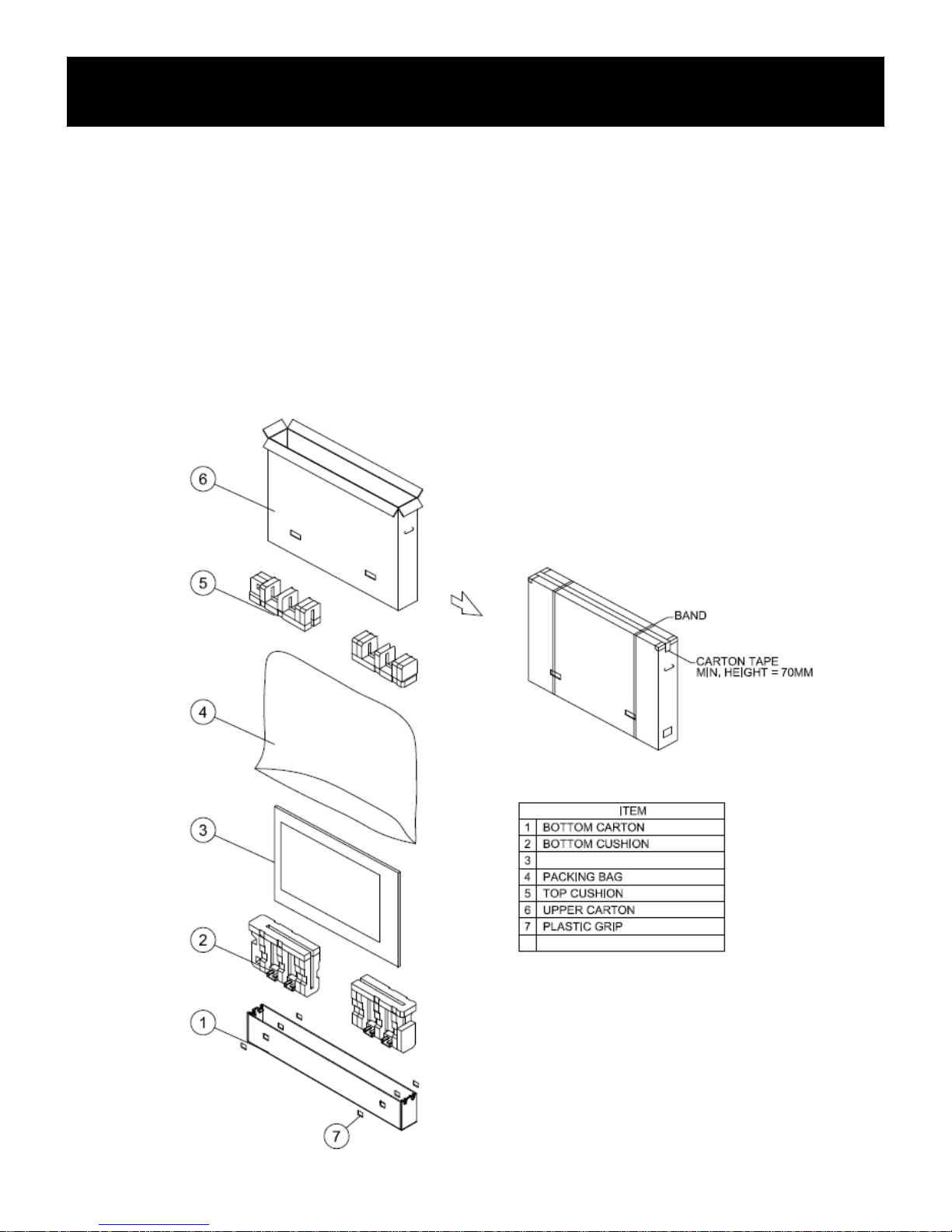

•This product is packed in a carton, together with the standard
accessories.
•Due to the size and weight of this display it is recommended for two
people to move it.
•After opening the carton, ensure that the contents are complete and in
good condition.
Package 1
Package Content
2.1 Unpacking
9
DF-55 DUAL SET

Package 2
Package Content
10

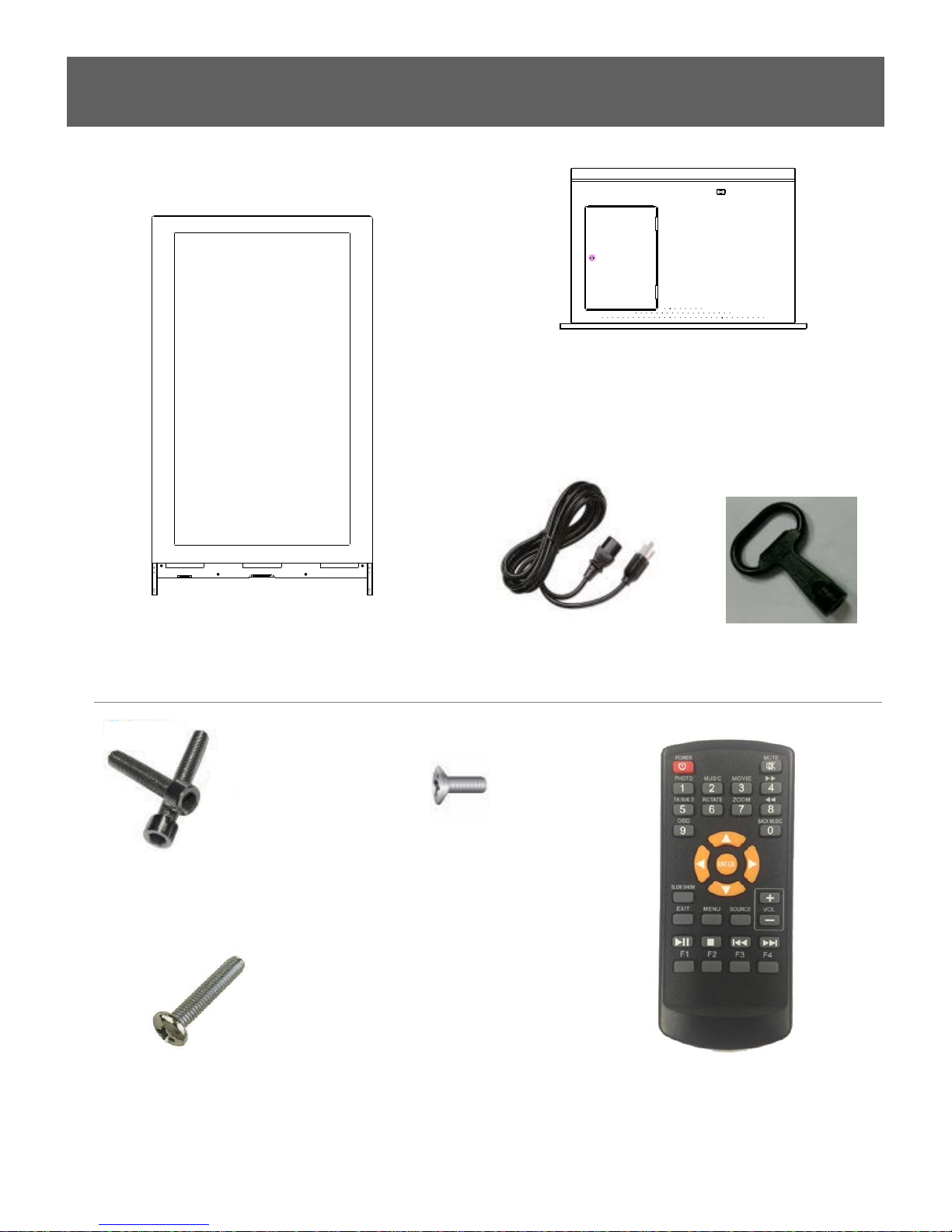

Dual-Sided Display
(upside part : DF-55 dual set) Power Cord x1
Remote Controller x1
(Battery : CR 2025 3V)
Dual-Sided Display
(downside part :
Bottom housing)
M5x30mm screw x2
M6x20mm screw x10
Key x1
M4x8mm screw x8
Package Content
2.2 Accessories
11

Full Size Stand
(with wheels)
M10x100mm screw x4
Package Content
12

Front View Back View
Top View
Side View
Package Content
2.3 Over View
13

1. Display (Dual-sided)
2. Display Set
3. Remote control sensor(Dual-sided)
4. Stand (with use hole x 10)
5. User Door (with locker)
1
2
4
5
3
Package Content
14

Putting the down half part upside ,
and tear down the downside covers.
screws x 20 (M3x6mm)
Setting Up The Display
3.1 Step1 : Tear down the downside covers
15

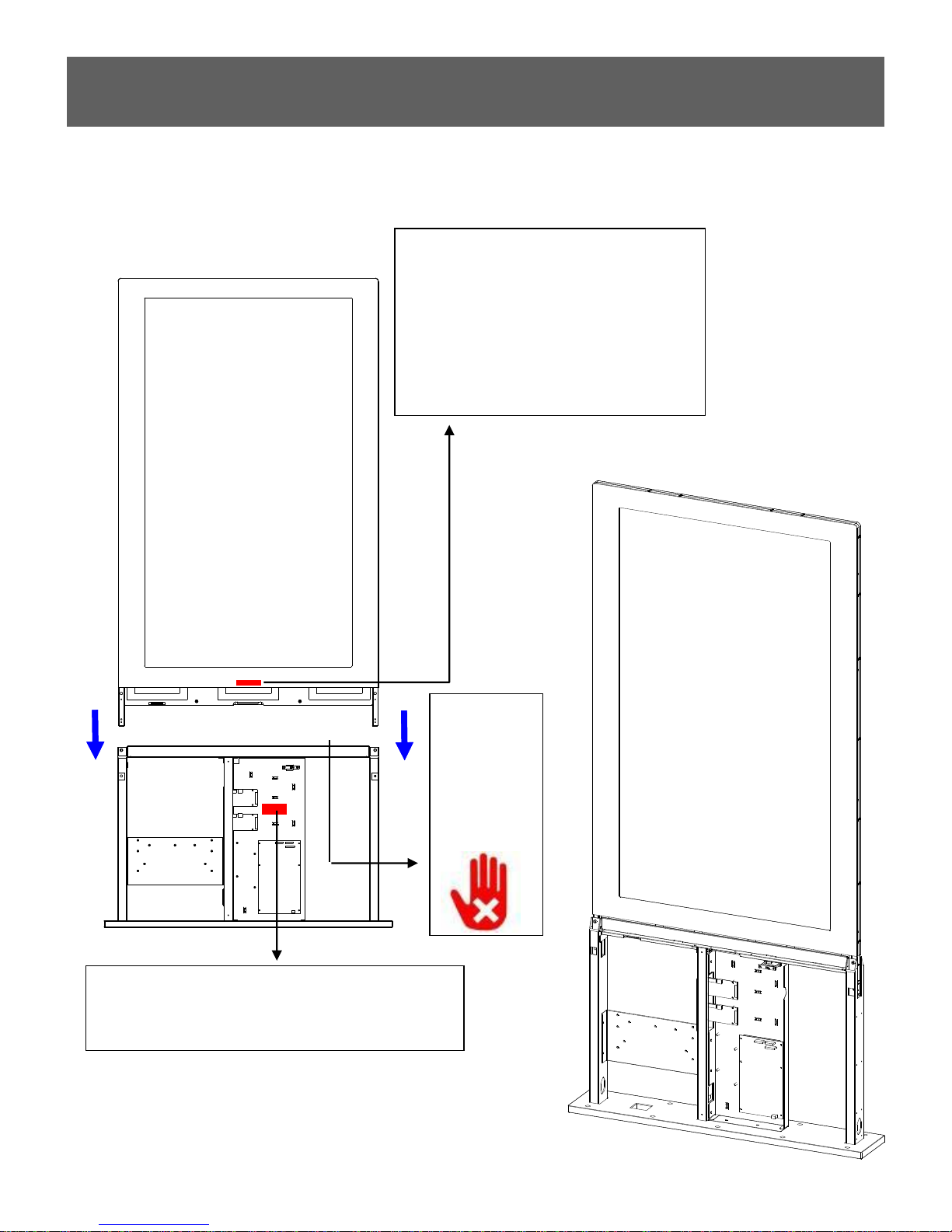

Don’t put
anything
on the
crossbar
when you
set up it.
Notice:
The upside part front side
have a Product Label.
When you place the upside
part into the downside part
please notice this side have
facing the front.
Notice:
The downside part front side have a
Product Label.
Setting Up The Display

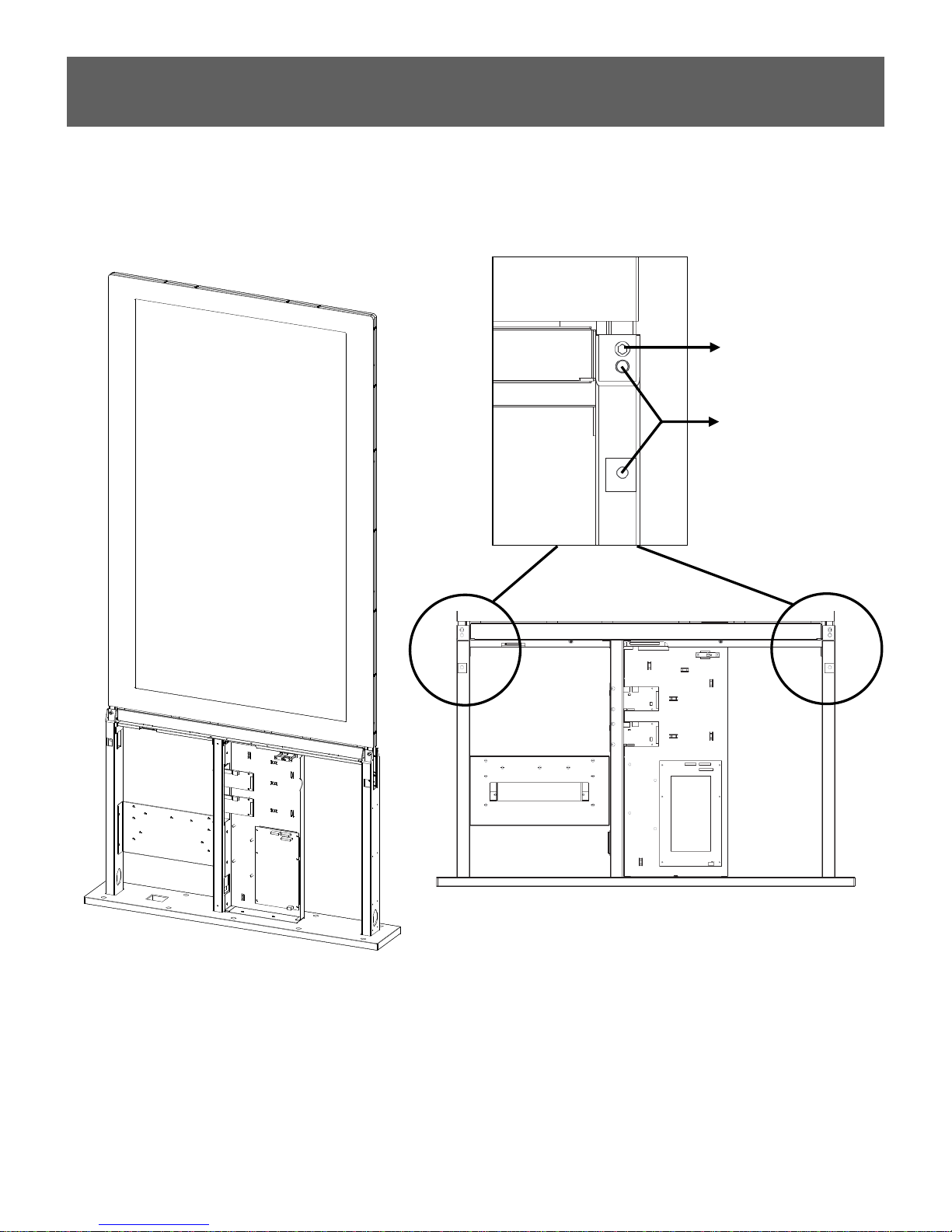

3.2 Step2 : Place the upside part into downside
part
16

Place the upside part
into downside part
screws x 2 (M5x30mm)
screws x 8 (M4x8mm)
M5x30mm screw
x 1 (front)
M4x8mm screw
x 4 (front, back)
Setting Up The Display
17

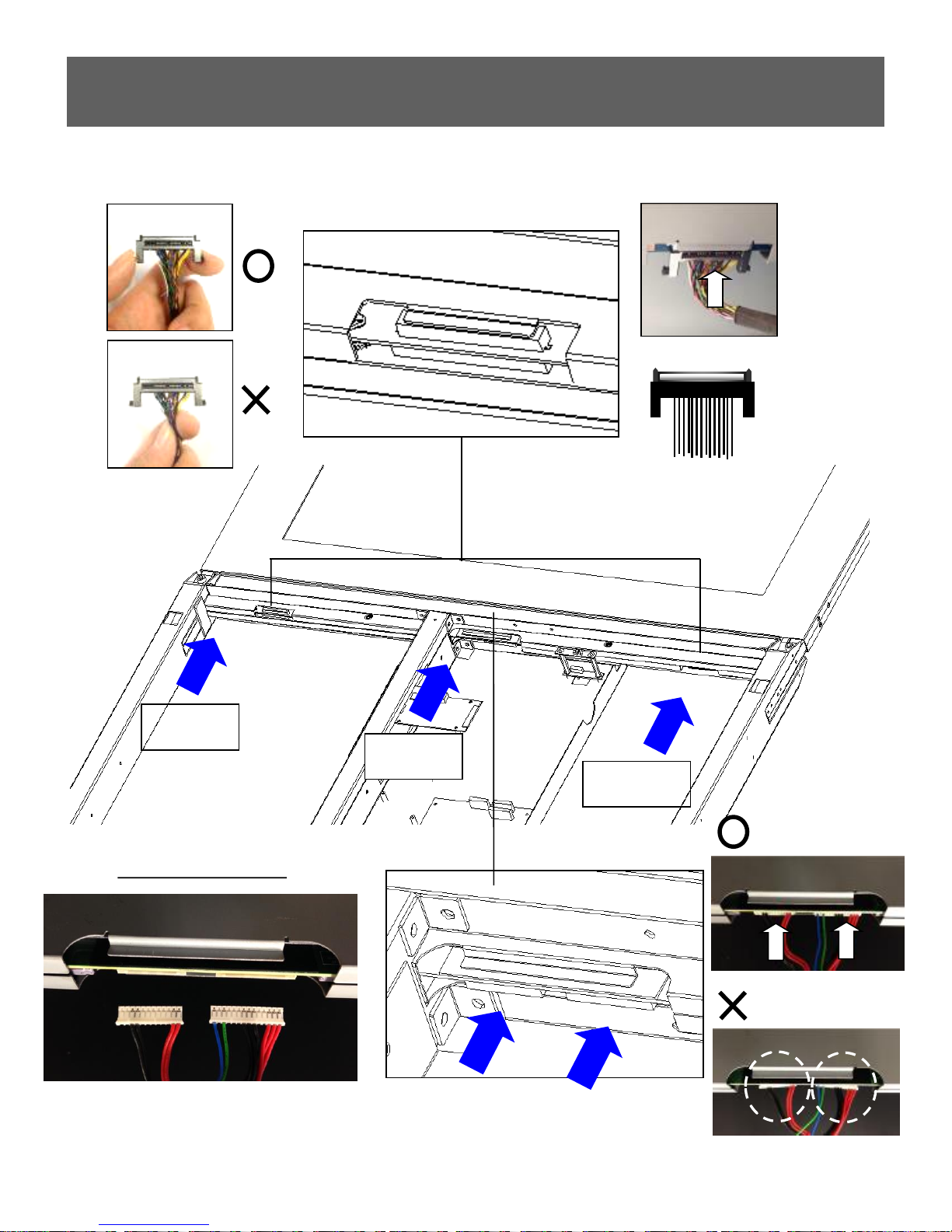

LVDS 24V LVDS
LVDS
Connector
14pin
12pin
12pin 14pin
24V Connector
Setting Up The Display
3.3 Step3 : Connect the LVDS and 24V
18
