Order# XXXXX - MOD-1363 - iPad Kiosk
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
- Assembly
1
2
3
5
6
7
4
Item
1
2
3
4
5
6
7
Qty.
1
1
1
1
1
1
1
Description
32.07” TSP49 Curved SEG Extrusion
32.07” TSP49 Curved SEG Extrusion
32.07” TSP49 Curved SEG Extrusion
32.07” TSP49 Curved SEG Extrusion
20”w TSP49 Horizontal SEG Extrusion
20”w TSP49 Horizontal SEG Extrusion
16.4170”w Z45 Horizontal Extrusion w/ 6”w S10
Bolt
*
Steps:
1) Connect [1] to [2] and [3] to [4].
2) Connect [1/2] and [3/4] with [5].
3) Slide [7] into groove.
4) Connect [1/2] and [3/4] with [6] and assembled lightbox.
5) Attach assembled frame to base with bolts.
6) Attach front SEG graphics.
7) Position part [7] and lock in place.
8) Attach iPad mount see detail.
-- Continued page 2 --
Graphic Removal
To remove the graphic from
the frame, locate the fabric
pull tab. Gently pull up on the
tab to remove the fabric.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
Graphic: To Ensure Proper Fit
It is important to first insert
graphic into each alternate
corner then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Corner A
Corner D
Corner B
Corner C
7
S10
S10
V20’s
Do not remove
bolts from V20’s
*
Apply SEG graphic and position extrusion [7]
by loosening set screws, sliding into place, and
tightening set screws. S10 extrusion should
poke through hole in graphic. Loosen bolts on
iPad mount (Do Not Remove) and slide V20’s
into S10 groove. tighten bolts to secure.
Mount Attachment
Z45
Mount
Mount
Bolt
Bolt
V20
TSP49
Z45
S10
TSP49
Lock
Tighten setscrew
to secure
extrusions
TSV1 Lock Detail
TSV1
Lock
TSV1
Lock
TSV1
Lock
TSV1
Lock

www.classicexhibits.com
866.652.2100
© 2014
Order# XXXXX - MOD-1363 - iPad Kiosk
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
- Assembly (Cont’d)
Steps (Cont’d):
09) Attach clamshell with iPad and arrage cords.
10) Attach PR63 for wire management.
11) Apply back SEG graphic to assembled frame.
When assembled
Power Foam Lining
Removed
Home Button Shield
Optional Cover for Home Button
1) Remove foam lining from inside bottom of
clamshell as shown.
2) Attach Home Button Shield with double-sided
tape to inside of clamshell, keeping top of
shield flush with clamshell opening as shown.
NOTE: This is a permanent fix and can’t be easily
removed.

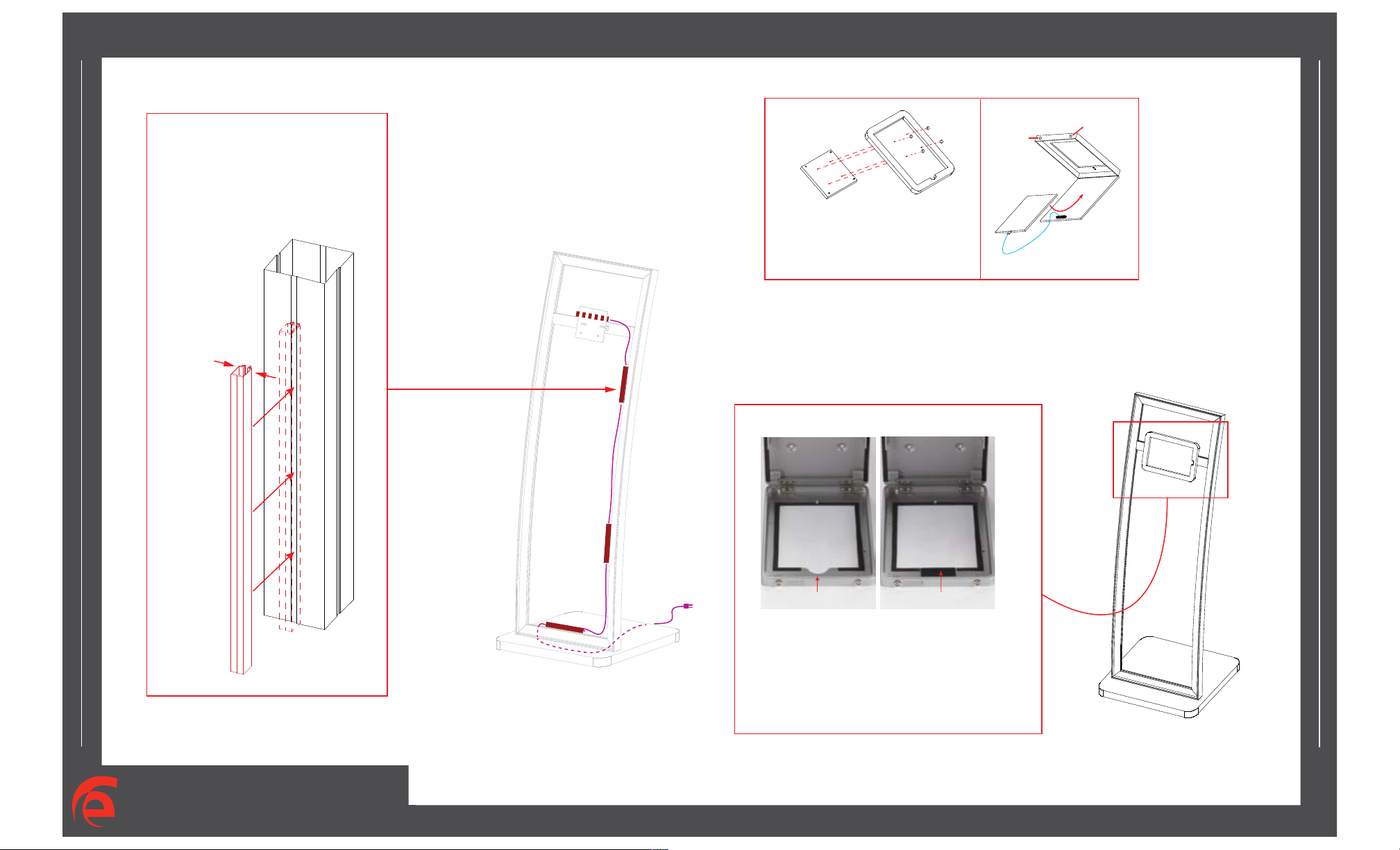

Wire Management Attachment
Clamshell
Attachment
Steps:
1) Run cords through plastic conduit.
2) Attach conduit where indicated by
pinching the opening and inserting
into the groove.
PR63 for wire management
PR63 for wire
management
Hex
Nuts
Mounting Plate
Bolt iPad clamshell to mounting
plate with hex nuts.
Wire
Access
iPad
Lock
Lock

www.classicexhibits.com
866.652.2100
© 2014
Order# XXXXX - MOD-1363 - iPad Kiosk
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
- General Information
The Tool Typical Connection
Horizontal Inline Connection (remove only one setscrew)
Base Plate Connection Vertical Connection
(remove only two setscrews)
Most Visionary Designs exhibits can be
assembled with the supplied Hex Key Tool.
Occasionally, a flat head screwdriver may
be required.
Most horizontal extrusion connections have a patented expandable lock. This lock inserts into
the groove of an opposing extrusion. Tightening the lock with the Hex Key Tool expands the lock
and creates a strong positive connection.
Remove only (1) setscrew when disassembling. Replace setscrew in
extrusion after assembling it. Before packing, replace setscrew in
extrusion to avoid losing it.
Attach base plate to round or square
vertical extrusion using the bolt provided.
Be careful not to strip the threads.
When vertical extrusions are packed in
portable cases rather than crates or
tubs, they must broken down into
smaller sections which then require
assembly.
Remove only (2) setscrews when
disassembling. Replace setscrews in
extrusion after assembling it. Before
packing, replace setscrews in extrusion
to avoid losing them.
Using Your Setup Instructions
The Visionary Designs Setup Instructions are created specifically for your
configuration. They are laid out sequentially, including an exploded view of
the entire display, and then a logical series of detailed steps to assemble the
main structure and components. We encourage you to study the instructions
before attempting to assemble your exhibit.
Each page reminds you to tighten the setscrews after disassembling your
exhibit to prevent loss of the locks and setscrews (see below in RED).
This is VERY IMPORTANT.
Cleaning and Packing Your Display
1) Use care when cleaning aluminum extrusion or acrylic inserts. Use only
non-abrasive cleaners.
2) When cleaning laminate inserts or countertops, use mild cleansers and a
soft material such as cotton.
3) Keep all display components away from extreme heat and long exposure
to sunlight to avoid warping and fading.
4) Retain all packing material. It will make re-packing much easier and will
reduce the likelihood of shipping damage.
Typical Connection (cont’d)
Numbered Label
Each extrusion contains a numbered label which
corresponds with setup instructions.
The label is located within a groove of the extrusion
(when possible). With Visionary Designs the labels
contain Black numbers unless otherwise specified.
Detail C EliateDDliateDDetail B
Detail A
Setscrews

www.classicexhibits.com
866.652.2100
© 2014
Order# XXXXX - MOD-1363 - iPad Kiosk
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
- Packing Instructions

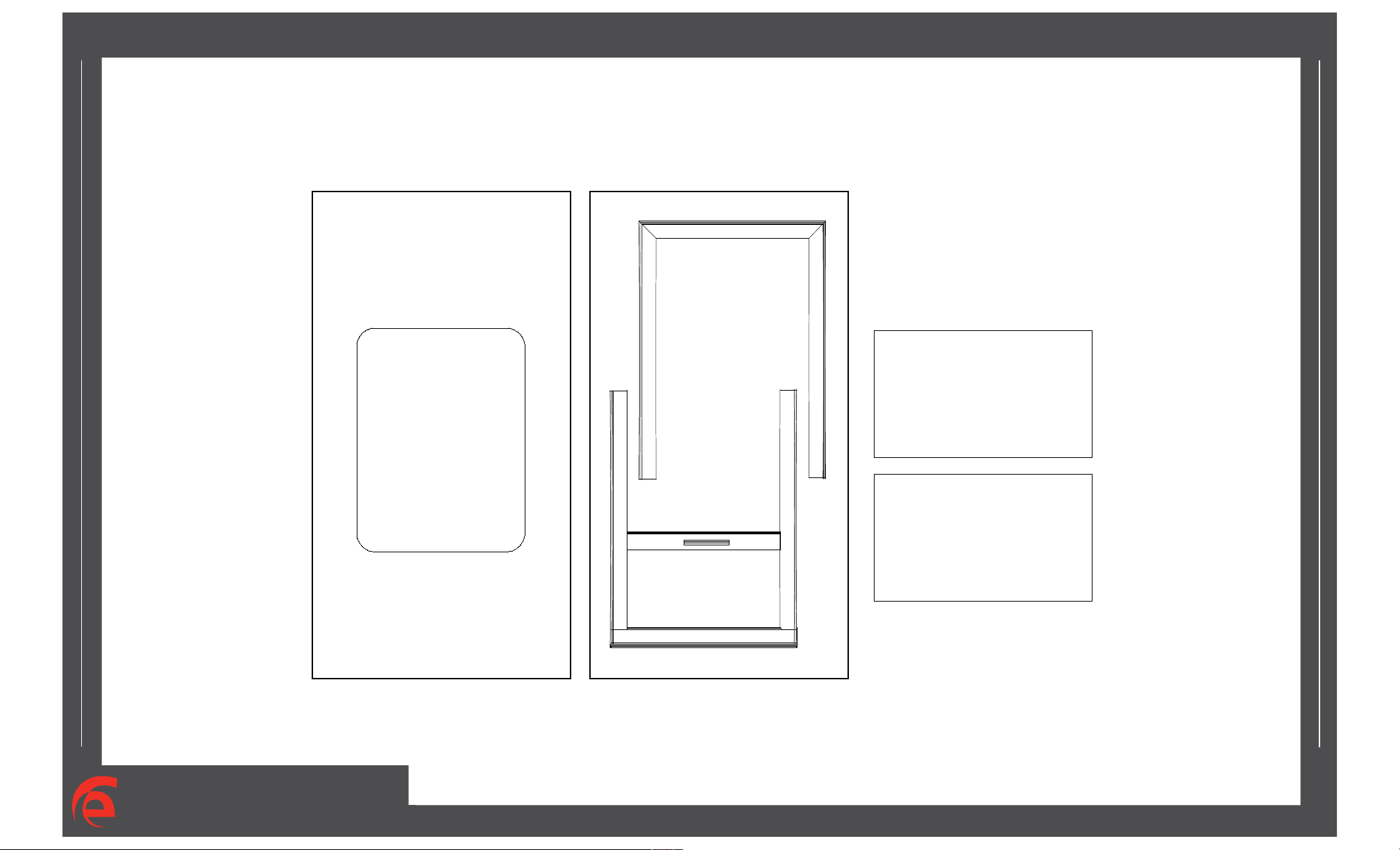

Level 1 Level 2
Setup Hardware
Base
Partly
Assembled
Frame
Top View of Each Level
Graphics
