KeyWest Technology BREEZE User manual

BREEZE PLAYER INSTALLATION GUIDE
FOR THE ASROCK MOTHERBOARD
VERSION 1.7
JULY 2015

BREEZE PLAYER INSTALLATION GUIDE
2
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
BREEZE SUPPORT
Technical
Technical Support is included at no charge. Questions or issues can be submitted by phone, e-
mail and chat to Keywest Technology Technical Support.
Contact information:
Phone: [phone], Option #2
E-mail: [e-mail]
Chat: live chat assistance is available at http://www.breezedigitalsignage.com/support
Documentation
Breeze Documentation (Full):
http://helpdesk.keywesttechnology.com/index.php?/Knowledgebase/Article/View/167/0/bre
eze-documentation
Training Videos
http://www.breezedigitalsignage.com/tutorials/

BREEZE PLAYER INSTALLATION GUIDE
3
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
TABLE OF CONTENTS
Breeze Support...................................................................................................................... 2
Technical................................................................................................................................. 2
Hardware .............................................................................................................................. 4
Player Diagrams...................................................................................................................... 4
Player Accessories .................................................................................................................. 5
Install Players.......................................................................................................................... 5
Connect to a Breeze Server.................................................................................................... 6
Player Registration.................................................................................................................. 6
Stop & Start the Player Software........................................................................................... 8
Stopping Breeze Player ........................................................................................................... 8
Starting Breeze Player:............................................................................................................ 9
Audio Configurations........................................................................................................... 10
Sound Control Panel ............................................................................................................. 10
Audio Output ........................................................................................................................ 11
Network Connections .......................................................................................................... 12
Static IP Address ................................................................................................................... 12
Wireless Connection............................................................................................................. 14
Confirm Internet Connectivity .............................................................................................. 16
Other Player Functions ........................................................................................................ 17
Factory Reset........................................................................................................................ 17

BREEZE PLAYER INSTALLATION GUIDE
4
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
HARDWARE
Player Diagrams
(Front)
(Back)

BREEZE PLAYER INSTALLATION GUIDE
5
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
HARDWARE
Player Accessories
Your Breeze player will include the following accessories.
Accessories:
1. 19.5V power supply (1)
2. Power Cord
3. Wireless antenna (1)
4. Mounting bracket (1)
5. Player-mounting screws (4)
If the player kit that you received did not include all of the accessories, please notify Keywest
Technology Technical Support.
Install Players
Connect the Breeze Player:
Video Output:
1. Connect the HDMI cable to the HDMI output (#7) on the Breeze
Player.
2. Connect the other end of the HDMI cable to the display monitor,
television, or video distribution system.
Note: A HDMI to VGA adapter is required if the monitor has VGA input only.
Ethernet:
1. Connect the Ethernet cable to the Ethernet input (#6) on the Breeze Player.
Power:
2. Plug the power cord into to the 12V power supply and the electrical outlet. Plug the
12V power supply into the Breeze Player (#3).
Speakers:
3. Connect the audio cables from the TV display to the speaker output (#10) on the Breeze
Player.

BREEZE PLAYER INSTALLATION GUIDE
6
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
CONNECT TO A BREEZE SERVER
Player Registration
Your player must be registered to communicate with a Breeze server and to receive playlists.
Register the Breeze Player:
The Breeze player connects to a Breeze server using the server’s sub domain. If you do not
know the sub domain of your Breeze server, Keywest Technology Technical Support can
provide you with it.
1. Enter your Breeze server’s sub domain in the URL field.
2. Username and Password correspond to credentials used to login to the Breeze server.
3. Player Name is the name the player will have in the Players tool in the Breeze server. It
is recommended that a player be named according to its location when employing
multiple players.

BREEZE PLAYER INSTALLATION GUIDE
7
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
CONNECT TO A BREEZE SERVER
Player Registration (continued)
Default Playlist:
The default playlist loaded on your player will begin showing once the player is registered.
Players Tool:
The Players tool in the Breeze server is where a user can interface with the player device.
1. Go to the Players tool in your Breeze server.
2. Your newly added player is in the Players group.
Note: If the Players tool is open when the player is added, the player cannot be seen until the
page is refreshed. A refresh button is included in the Players tool for convenience.

BREEZE PLAYER INSTALLATION GUIDE
8
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
STOP &START THE PLAYER SOFTWARE
Stopping Breeze Player
To stop the Breeze player software, you will need to connect a mouse and keyboard to the
player or establish a remote connection to the player.
Stop the BreezePlayer Software:
1. Click the Escape key on your keyboard until the Breeze player desktop displays.
Stop the BreezeMonitor Software:
Once the Breeze player software has stopped, you’ll need to also stop BreezeMonitor to
prevent the software from restarting automatically.
1. Click the Dash Home Icon from the Launcher bar on the far left hand side of the player
desktop.
2. From the Dash Home window, type terminal into the Dash Home search bar.
3. Click the Terminal icon to open a terminal window.

BREEZE PLAYER INSTALLATION GUIDE
9
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
STOP &START THE PLAYER SOFTWARE
Stopping Breeze Player (continued)
4. Within the Terminal window, type the command pkill BreezeMonitor and press the
Enter key.
Starting Breeze Player:
Restarting the BreezeMonitor software ensures the device will detect when the player
software is not running and automatically restart after a certain period of time, usually about 2
minutes.
Restart the Player Software:
1. To restart the Breeze player software, double click the BreezeMonitor desktop icon. This
restarts BreezeMonitor and BreezePlayer.

BREEZE PLAYER INSTALLATION GUIDE
10
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
AUDIO CONFIGURATIONS
Sound Control Panel
Your Breeze player will be configured to use the speaker output (green). The output and audio
levels can be adjusted in the sound control panel.
Open the Sound Control Panel:
1. From the desktop of the Breeze player, click the System drop down menu in the top
right corner of the player desktop.
2. From the System drop down menu, click System Settings.
3. Within the Systems Settings window, click the Sound icon.

BREEZE PLAYER INSTALLATION GUIDE
11
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
AUDIO CONFIGURATIONS
Audio Output

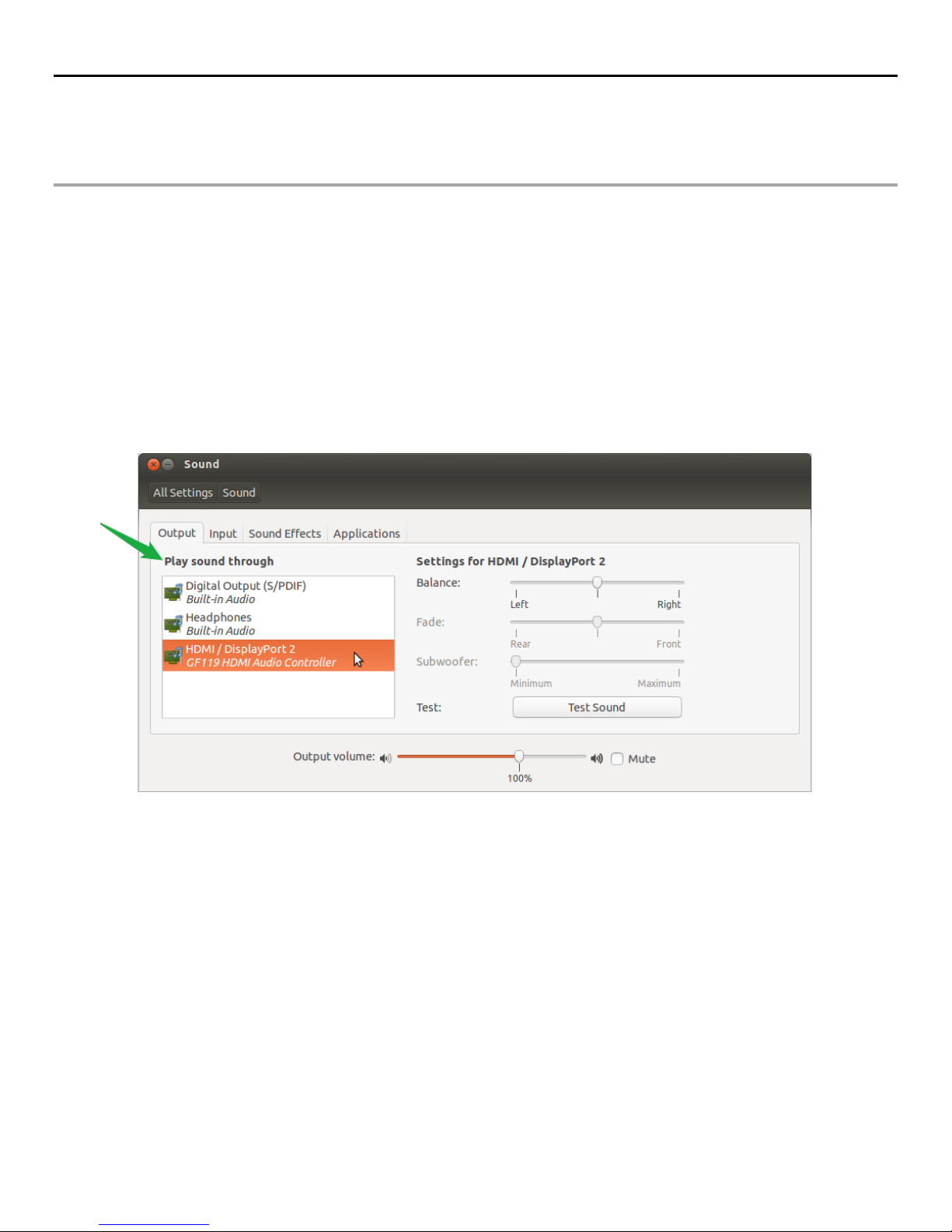

Change the Audio Output:
1. Within the sound control panel, click the Output tab.
2. To switch from the headphones or speaker output (green) to the HDMI audio output,
click HDMI/DisplayPort2 in the Play sound through window.
a. The player volume can be increased or decreased by adjusting the Output volume
slider bar at the bottom of the sound control panel.
3. Close the Sound control panel to apply the changes.

BREEZE PLAYER INSTALLATION GUIDE
12
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
NETWORK CONNECTIONS
Static IP Address
Out of the box, the Breeze player is configured to use DHCP and it will automatically obtain an
IP address for you. If the player does not automatically obtain an IP address, please contact
your network administrator. A static IP address can be assigned to the wired or wireless
connections using the following steps.
Assign a Static IP Address:
1. From the Networking and Connections drop down menu, click Edit Connections.
2. Within the Network Connections window, click the Wired tab.
3. From the Wired tab, click on your wired connection.
4. With the wired connection selected, click Edit.

BREEZE PLAYER INSTALLATION GUIDE
13
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
NETWORK CONNECTIONS
Static IP Address (continued)
5. In the Editing Wired connection… window, click the 1Pv4 Settings tab.
6. Select Manual from the Method drop down menu.
7. To input your TCP/IP settings, click the Add button.
a. DNS Servers should be separated by a comma and no spaces.
8. Click the Save button to apply the changes.

BREEZE PLAYER INSTALLATION GUIDE
14
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
NETWORK CONNECTIONS
Wireless Connection
The first step to connecting the Breeze player to your wireless network is confirming that
networking is enabled.

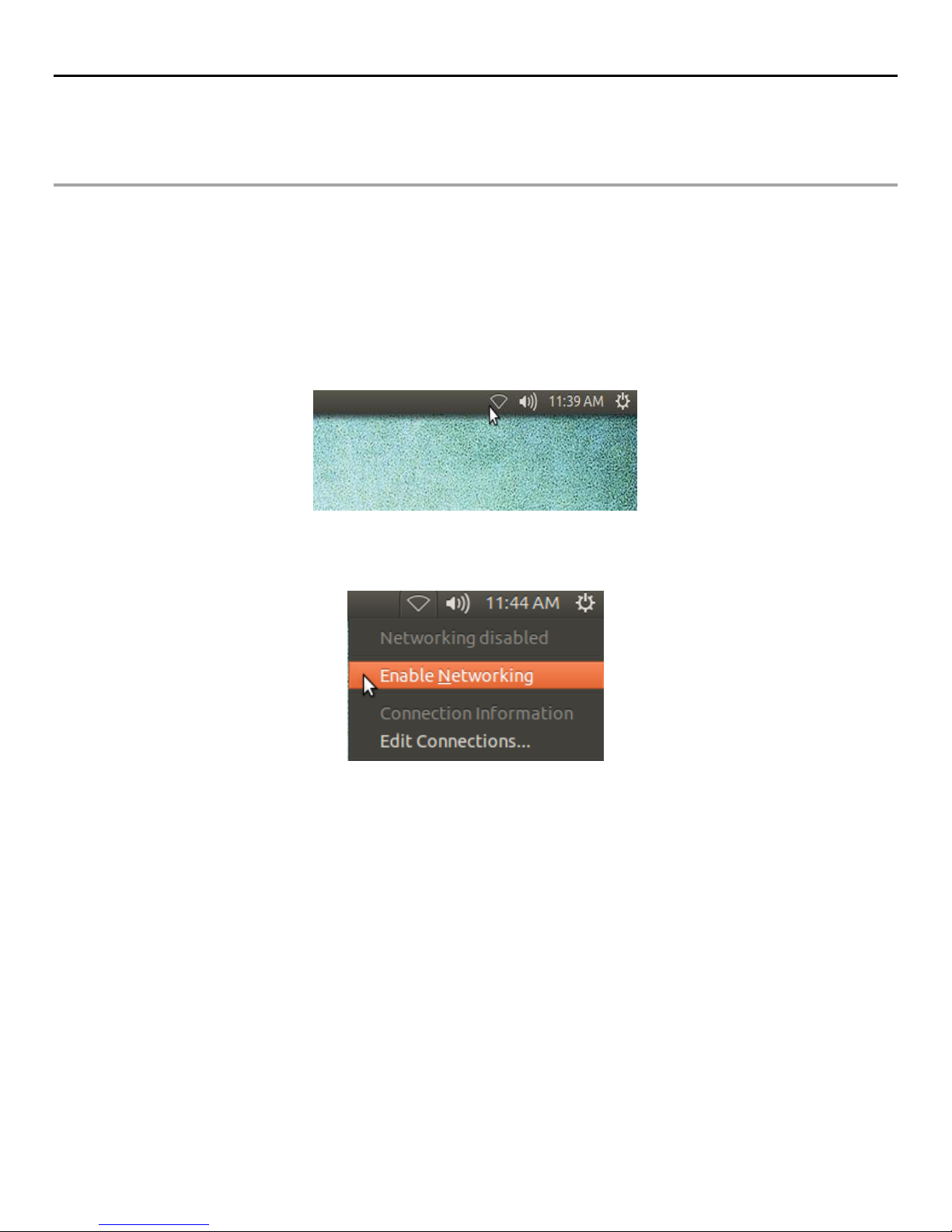

Confirm Networking is Enabled:
1. From the desktop of the Breeze player, click the Networking and Connections drop
down menu in the top right corner of the player desktop.
2. Click Enable Networking if this option not already checked.
Once networking is enabled, you’ll need to also confirm that wireless is enabled.

BREEZE PLAYER INSTALLATION GUIDE
15
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
NETWORK CONNECTIONS
Wireless Connection (continued)
Enable Wireless Connection:
1. From the Networking and Connections drop down menu, click Enable Wireless.
2. From the Networking and Connections drop down menu, select your wireless network.
a. If your wireless network is not listed, refresh the list of available wireless
networks. This can be done by unchecking and rechecking Enable Wireless from
the Networking and Connections drop down menu.
3. Input the password for your wireless network and click Connect.

BREEZE PLAYER INSTALLATION GUIDE
16
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
NETWORK CONNECTIONS
Confirm Internet Connectivity
Once your player is connected to the wired or wireless internet connection, you can then use
the Mozilla Firefox web browser to confirm internet connectivity.
Open Firefox:
1. Click the Dash Home Icon from the Launcher bar on the far left hand side of the player
desktop.
2. From the Dash Home window, type Firefox into the Dash Home search bar.
3. Click the Firefox web browser icon to open.
Open a Web Page:
1. Within in the Firefox window, click where it says, “Go to a Website” and input the web
address breezedigitalsignage.com.
2. Press the Enter key or click the green Go button to browse.

BREEZE PLAYER INSTALLATION GUIDE
17
Copyright © 2015 Keywest Technology, Inc. All Rights Reserved
14563 W 96th Terrace • Lenexa KS 66215 USA • Need Support? Mailto:[e-mail]
OTHER PLAYER FUNCTIONS
Factory Reset
Factory Reset returns all Breeze player software configurations to the default settings, or to
the configuration the player had when it was shipped from the factory. This erases the
player’s cache, where playlists and media items are stored on the player, and the registration
to a Breeze server. The Ubuntu operating system configurations, such as audio and network
settings, remain unchanged.
Reset All Player Configurations:
1. Click the Dash Home Icon from the Launcher bar on the far left hand side of the player
desktop.
2. From the Dash Home window, type ‘file’ into the Dash Home search bar and select the
Files application.
3. In the Home directory, double-click on the Factory Reset icon.
4. After the player configuration has been reset to the default settings, the player will need
to be registered to a Breeze server before it can receive playlists..
