RHEA COMPACT REMOTE COMMAND CONSOLE
USER MANUAL
RHEA Satellite Compact
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.2/10
WARNING
We strongly recommend that you fully read these instructions before operating the RHEA Satellite Compact
for the first time (see section 2 –Use).
The RHEA Satellite Compact is a remote control screen that connects to a RHEA Compact device.
Read the RHEA Compact user manual.
To make it easier for the different users to access more detailed information, this manual is divided into 3
sections:
•Section 1: general information.
•Section 2: end user instructions for use.
•Section 3: technical information for servicing and maintenance personnel.
PACKING LIST
•RHEA Satellite Compact unit.
•Serial link cable with the RHEA Compact.
•User Manual.

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.3/10
TABLE OF CONTENTS
SECTION 1 - GENERAL INFORMATION....................................................................................................................4
1.1 Safety instructions.........................................................................................................................................4
1.2 Regulatory standard ......................................................................................................................................4
1.3 Normative standards .....................................................................................................................................4
1.4 Classification..................................................................................................................................................4
1.5 Labelling .........................................................................................................................................................5
1.6 Physical characteristics of the RHEA Satellite Compact ..........................................................................5
1.7 Description of the device –Overview ..........................................................................................................6
1.8 Storage Instructions ......................................................................................................................................7
1.9 Disposing of the unit .....................................................................................................................................7
SECTION 2 - USE.........................................................................................................................................................8
2.1 Description of the installation ......................................................................................................................8
2.2 Description of use..........................................................................................................................................9
2.3 Using the emergency stop button................................................................................................................9
SECTION 3 - MAINTENANCE - REPAIR ..................................................................................................................10
3.1 Cleaning ........................................................................................................................................................10
3.2 Warranty........................................................................................................................................................10
3.3 Model identification .....................................................................................................................................10

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.4/10
SECTION 1 - GENERAL INFORMATION
1.1 SAFETY INSTRUCTIONS
•READ THESE INSTRUCTIONS THOROUGHLY and strictly follow the chronological order of
installation, start-up and maintenance.
•The device can be used up to 2,000 m in altitude with temperatures from +5°C to +35°C (41°F to 95°F)
and a relative humidity of 99% non-condensing.
•Do not allow any liquid to penetrate the device.
•Do not place the device near a heat source.
•Do not use the device in the presence of flammable gases.
•Do not twist, stretch or damage the serial link cable.
•Avoid unplugging the serial link cable while in use
ATTENTION : BEFORE ANY WORK ON A RHEA Satellite Compact ELECTRICAL COMPONENT,UNPLUG THE SERIAL
LINK CABLE.
ATTENTION : WORK ON THE RHEA Satellite Compact IS STRICTLY RESERVED FOR airinspace®MAINTENANCE
STAFF OR DULY TRAINED PERSONNEL.
THE USER IS LIABLE FOR ANY DAMAGE,REGARDLESS OF ITS NATURE,CAUSED BY NON-COMPLIANCE
WITH THE USAGE RULES AND SAFETY INSTRUCTIONS.
1.2 REGULATORY STANDARD
RHEA Satellite Compact devices are CE-marked and comply with European regulations
European Electromagnetic Compatibility Directive (EMC) 2014/30/EU
1.3 NORMATIVE STANDARDS
NF EN 61326 (2013): “Electrical equipment for measurement, control and laboratory use - EMC requirements
- Part 1: general requirements”
1.4 CLASSIFICATION
Electrical protection class
Class III
Degree of protection against water and solids
IP 40

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.5/10

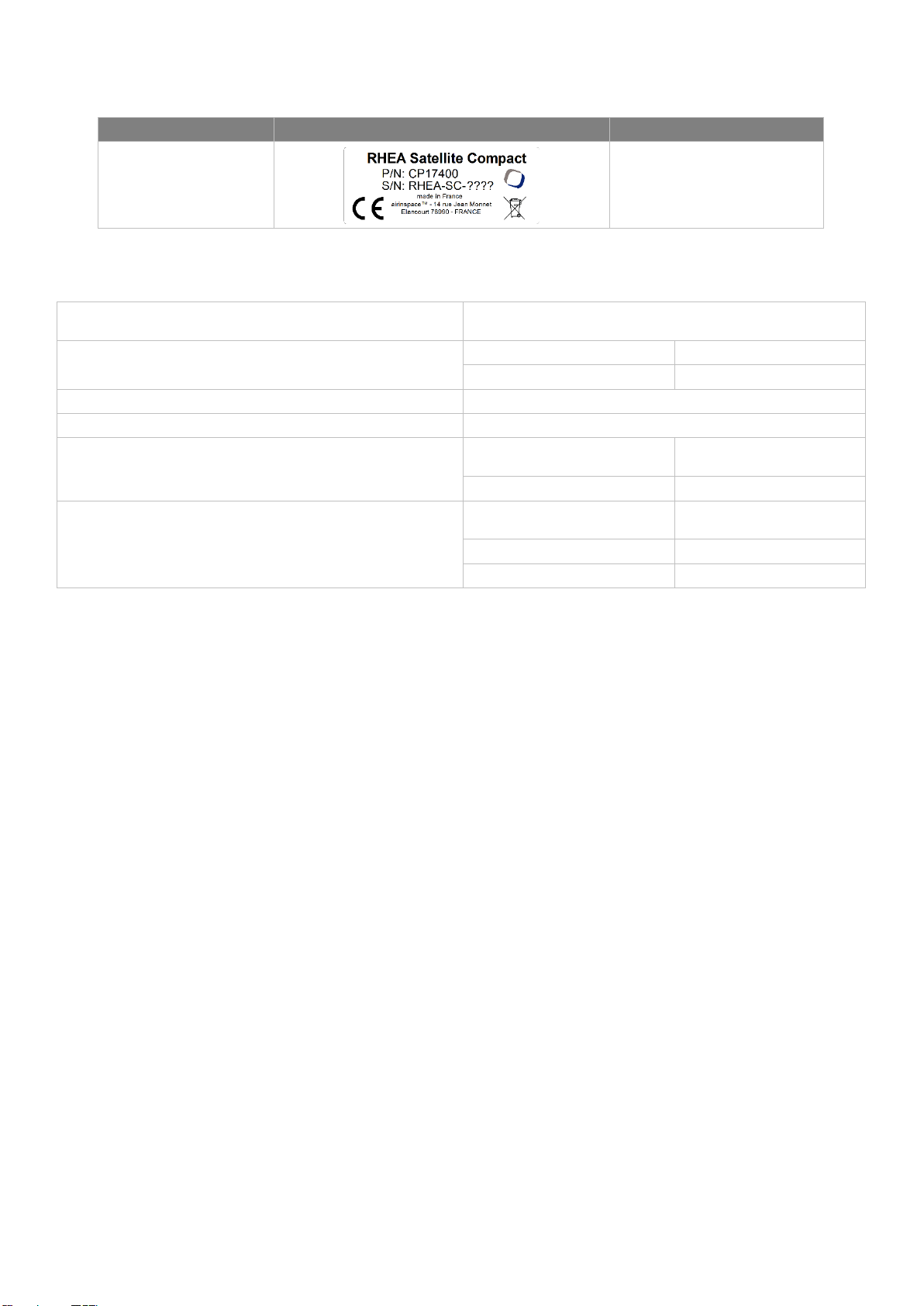

1.5 LABELLING
Label
Description
Position
Product
Back of the unit
1.6 PHYSICAL CHARACTERISTICS OF THE RHEA SATELLITE COMPACT
NOTA :The information contained in this table is for information only. For any information on measurements
and tolerance intervals, please contact airinspace®at the address provided at the end of this
document.
Electrical supply
Via the interface cable linked to the RHEA Compact/+5V DC –500
mA
Water/solids protection index
Complete device
IP40
Control panel
Waterproof touchscreen
Overall dimensions
H 100 x L 175 x D 60 mm
Weight of the RHEA Satellite (excluding link cable)
350 g
Environmental operating range
Temperature
+5 °C to +35 °C
(41°F to 95°F)
Relative humidity
< 99% non-condensing
Environmental storage range
Temperature
5°C to 35°C
(41°F to 95°F)
Relative humidity
20% to 90%
Dust level
< 1 mg/m3(0.01 mg/ft3)

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.6/10

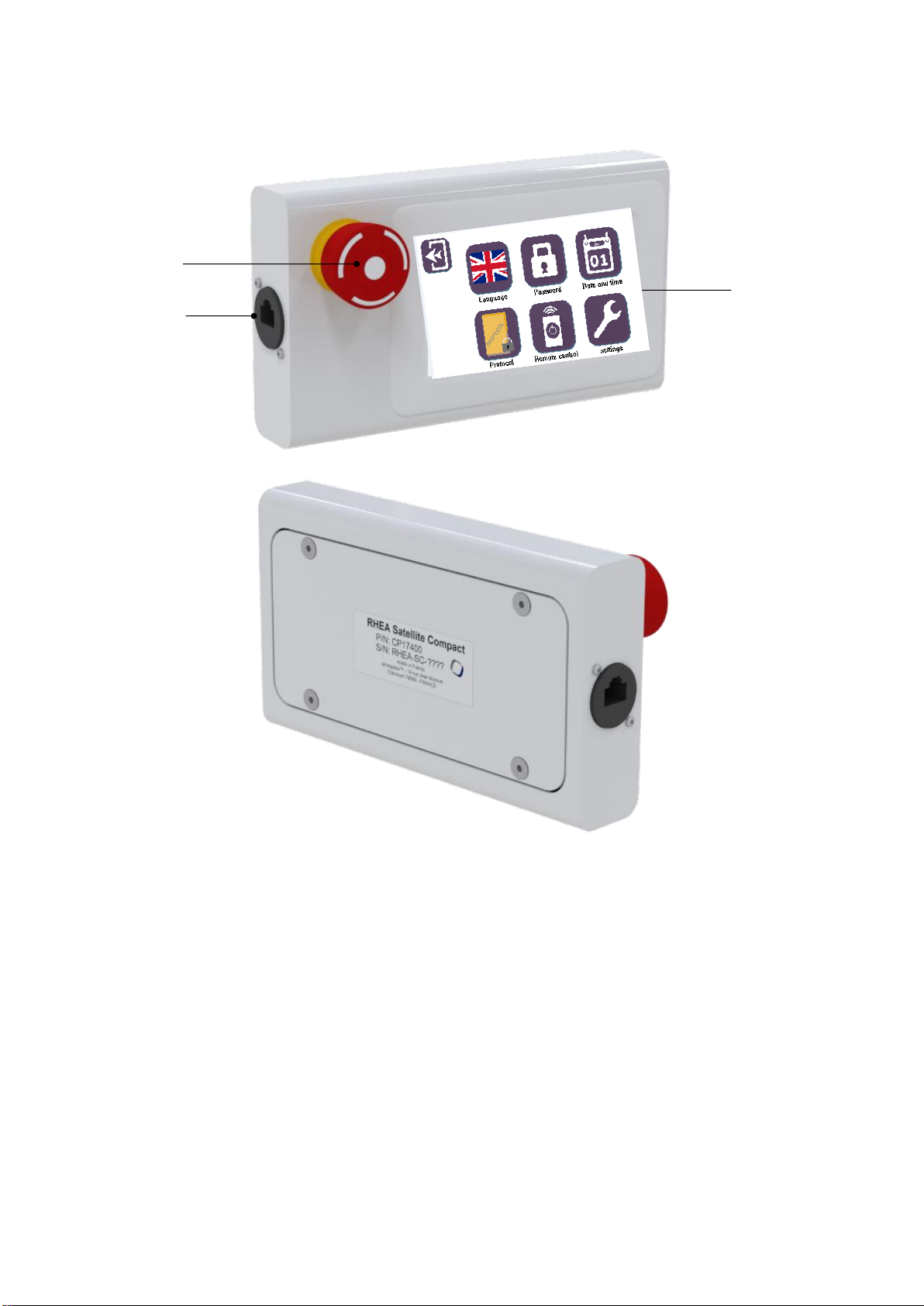

1.7 DESCRIPTION OF THE DEVICE –OVERVIEW
1
Emergency stop button
2
Touchscreen
3
RJ45 connector
1
3
2

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.7/10
1.8 STORAGE INSTRUCTIONS
The unit must be stored in a clean area with an atmosphere not polluted by industrial activities.
The unit must be protected from dust, direct sunlight, heat sources, frequent changes in temperature and
humidity, chemicals or other products.
Storage temperature: +5°C to +35°C. (41°F to 95°F)
Relative humidity: 20% to 90%.
Dust level: less than 1 mg/m3. (0.03 mg/ft3)
1.9 DISPOSING OF THE UNIT
This product is covered by European Directive 2012/19/EC dated 4 July 2012 on waste electrical and electronic
equipment (WEEE) and is part of category 6. “Electrical and electronic tools (with the exception of large-scale
stationary industrial tools)” as defined in annex I to this directive.

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.8/10
SECTION 2 - USE
2.1 DESCRIPTION OF THE INSTALLATION
The RHEA Satellite Compact is designed to be used with the RHEA Compact and requires no external power
supply. Once the link between the RHEA Compact and the RHEA Satellite Compact has been established,
the RHEA Satellite Compact acts as a remote screen, making it possible to control the RHEA Compact from
a distance.
1- Connect one end of the link cable to the RHEA Compact.
2- Connect the other end of the link cable to the RHEA Satellite Compact unit

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.9/10
3- Connect the power supply cable of the RHEA Compact.
4- The screen of the RHEA Satellite Compact switches on; the equipment is ready for use.
2.2 DESCRIPTION OF USE
The RHEA Satellite Compact is connected to the RHEA Compact via a flat 5 m serial link cable (provided with
the RHEA Satellite) which can slide under doors. The RHEA Satellite Compact is powered through this serial
link cable.
This control unit allows you to configure the RHEA Compact from the outside via a 4.3 inch touchscreen, and
monitor the progress of the disinfection cycle at any time.
The unit is also used to stop the RHEA Compact via the emergency stop button. The emergency stop button
acts by sending information to the RHEA Compact controller card.
2.3 USING THE EMERGENCY STOP BUTTON
The RHEA Satellite is fitted with an emergency stop button that can stop the decontamination cycle at any
time by pressing it.
When the emergency stop button is pressed, the RHEA Compact is stopped; an alarm message appears (see
below).
To return to the main menu, turn the emergency stop button and place it in its initial position, then press the
icon at the bottom right of the alarm message.

User guide RHEA Satellite Compact EN_ed01_04-juillet-2019
pg.10/10
SECTION 3 - MAINTENANCE - REPAIR
3.1 CLEANING
Use a single-use or recyclable wipe.
3.2 WARRANTY
Contact your local airinspace® dealer.
Note: any problems arising from an unauthorised repair attempt, modification, fall, use at incorrect voltage
or operations that do not comply with the instructions in the User Manual are not covered by the warranty.
3.3 MODEL IDENTIFICATION
When contacting airinspace®or a dealer, please provide the serial number for the RHEA Satellite and its
date of purchase:
CONTACT airinspace®
airinspace S.E.
14, Rue Jean Monnet
78990 Elancourt
France

[phone]

[phone]
[email protected]m
www.airinspace.com
