AirPatrol Lite WiFi 2 Installation instructions

AirPatrol WiFi Version 2
Full Manual
V4.2

Index
•What AirPatrol WiFi does? 3
•Lights and buttons 4
•WiFi Network 5
•Installing AirPatrol Wifi 6
•Quick Setup steps 7
•AirPatrol WiFi setup 8
•Sending commands (low heat mode) 21
•Add / delete favourites 22
•Settings menu 23
•Alarms settings 24
•Local weather report 27
•Timer function / Scheduled events 28
•Celsius / Fahrenheit conversion 31
2

What AirPatrol WiFi does?
3
AirPatrol WiFi is a heat pump and air conditioner (AC) controller you operate with a mobile phone
or tablet. It is compatible with all major manufacturers’ ACs and smartphones.
(see www.airpatrol.eu for the complete list)
The easiest way to use AirPatrol WiFi is with a Smartphone, using the AirPatrol app downloadable
from Google Play (for Android phones ) or App Store (for iPhone). AirPatrol WiFi allows you to
have long distance control over the mode of the pump, room temperature, fan speed and mode
settings. AirPatrol WiFi can also inform you about high or low room temperature and humidity, air
conditioner / heat pump service intervals, connection failures.

Lights and buttons
4
The controller has 4 LED indicators and 2 buttons for easy setup. It has also hidden infrared (IR)LEDs that
transmit your commands to the AC and IR receiver for auto-detection and custom presets.
LED 1 - Power
on –switched on
blinking –software updating
off –switched off
LED 2 –IR (InfraRed) LED
on –transmitting IR signal
LED 3 –WiFi connection LED
on –connected with access point and internet
blinking –starting connection or no connection to internet
off –no connection
LED 4 - Pairing
on –pairing mode active
off –pairing mode inactive
PAIRING button
Use the PAIRING button to pair your phone or tablet
with AirPatrol controller by following the steps
described in mobile application.
TEST button
Short push turns the AC or heat pump ON/OFF. Use
the TEST button to confirm that the IR beam from
the controller reaches the heat pump.
NB! Hold both buttons for 5 seconds to make full
reset.

WiFi Network
•AirPatrol WiFi requires a router that is compatible with IEEE 802.11 b/g/n standards.
•Only IEEE 802.11a/ac (and other, more exotic 802.11) standards are not supported.
•AirPatrol WiFi supports open networks, WEP, WPA-PSK and WPA2-PSK security modes
•Only 2.4GHz band is supported (5GHz band is not supported)
•Make sure you have good WiFi signal at the location you are installing AirPatrol controller.
5

Installing AirPatrol WiFi
6
AirPatrol WiFi should be mounted near AC’s or heat pump’s indoor unit, with its IR transmitter pointing to
the unit. This way the IR beam reaches the AC’s sensor most efficiently.
All mounting configurations are possible as long as IR transmission from the controller to the pump works.
NB! Thick carpets and dark floors can distort the IR beam. Make sure the IR beam reaches the pump’s
sensor by using the controller’s Test function.
To see if AirPatrol WiFi can send commands to your AC or heat pump, turn off the pump and press the
controller’s TEST button. When the connection is established, AirPatrol WiFi turns the pump on with its last
settings and you can proceed using the controller.

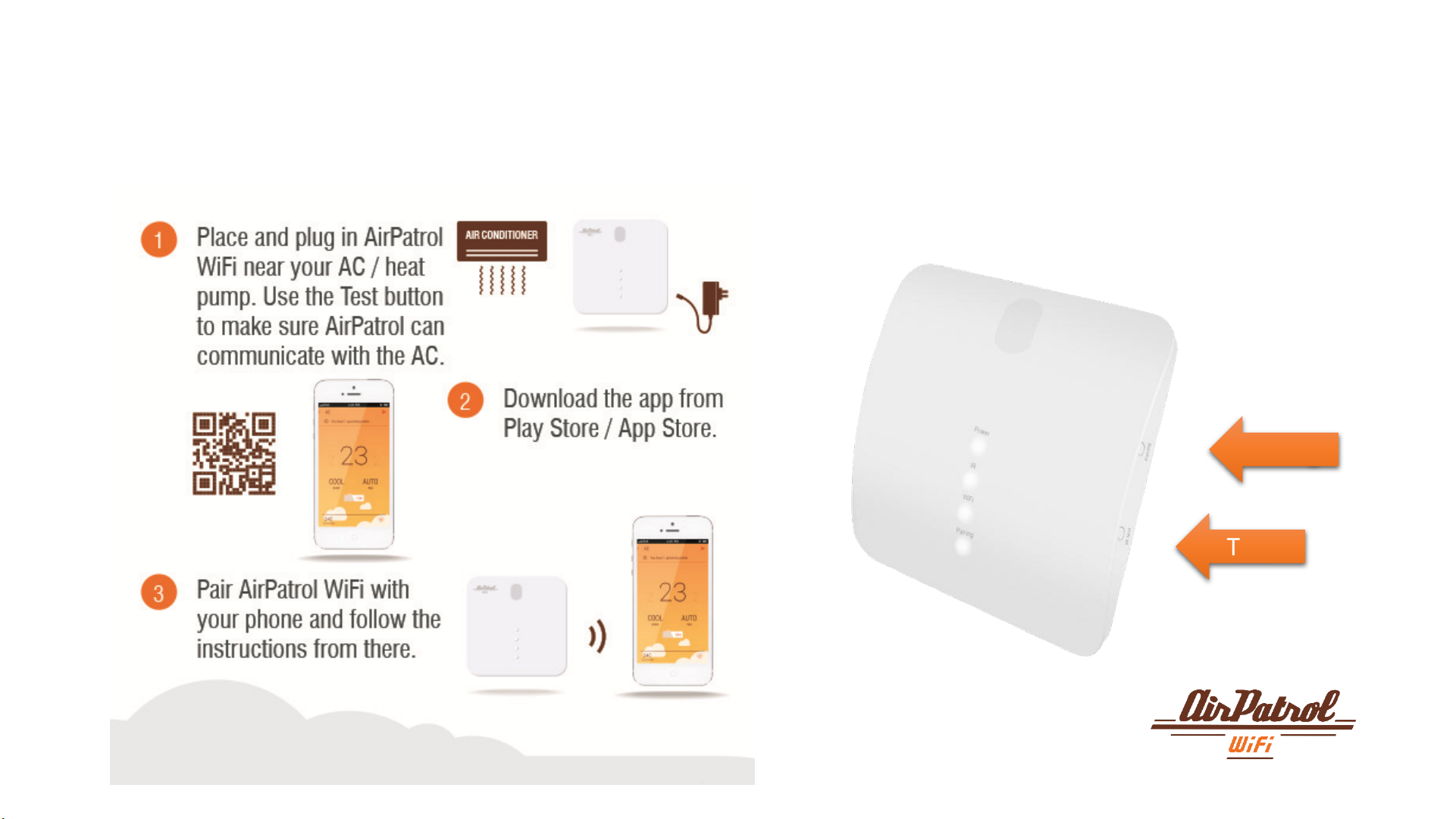

First please follow Quick Guide steps:
7
Pairing
Test

AirPatrol WiFi Setup
Start AirPatrol app and choose WiFi as
controller type.
8

AirPatrol WiFi Setup
1
Controller ID

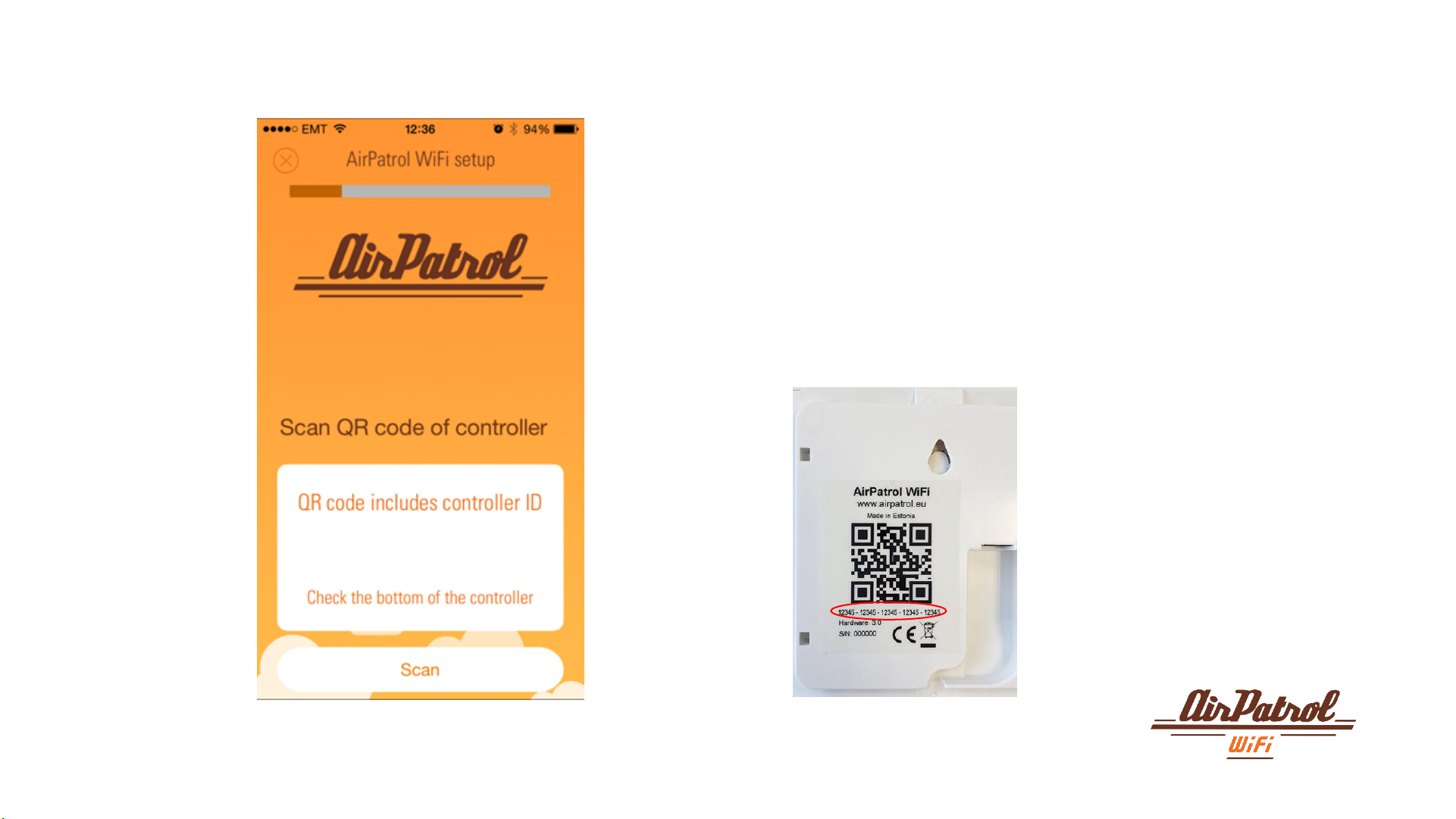

Scan the QR code under your AirPatrol WiFi
controller.
Do not worry if you cannot read the QR code,
you can enter the ID manually.
9

AirPatrol WiFi Setup
1.1
Controller ID
App will notify you if QR code scanning was
successful and you can proceed to the next
step.
10

AirPatrol WiFi Setup
1.1.1
Controller ID
In case something went wrong or
you are unable to scan QR code
you can either choose scan again
or enter ID manually.
1.1.2
Controller ID
Entering ID manually - please
type the ID code and choose
firmware version of your
cont-roller. They can be
located under the controller
just below the QR code.
11
In case QR code scanning was unsuccessful:

AirPatrol WiFi Setup
2
Connecting to WiFi &
pairing

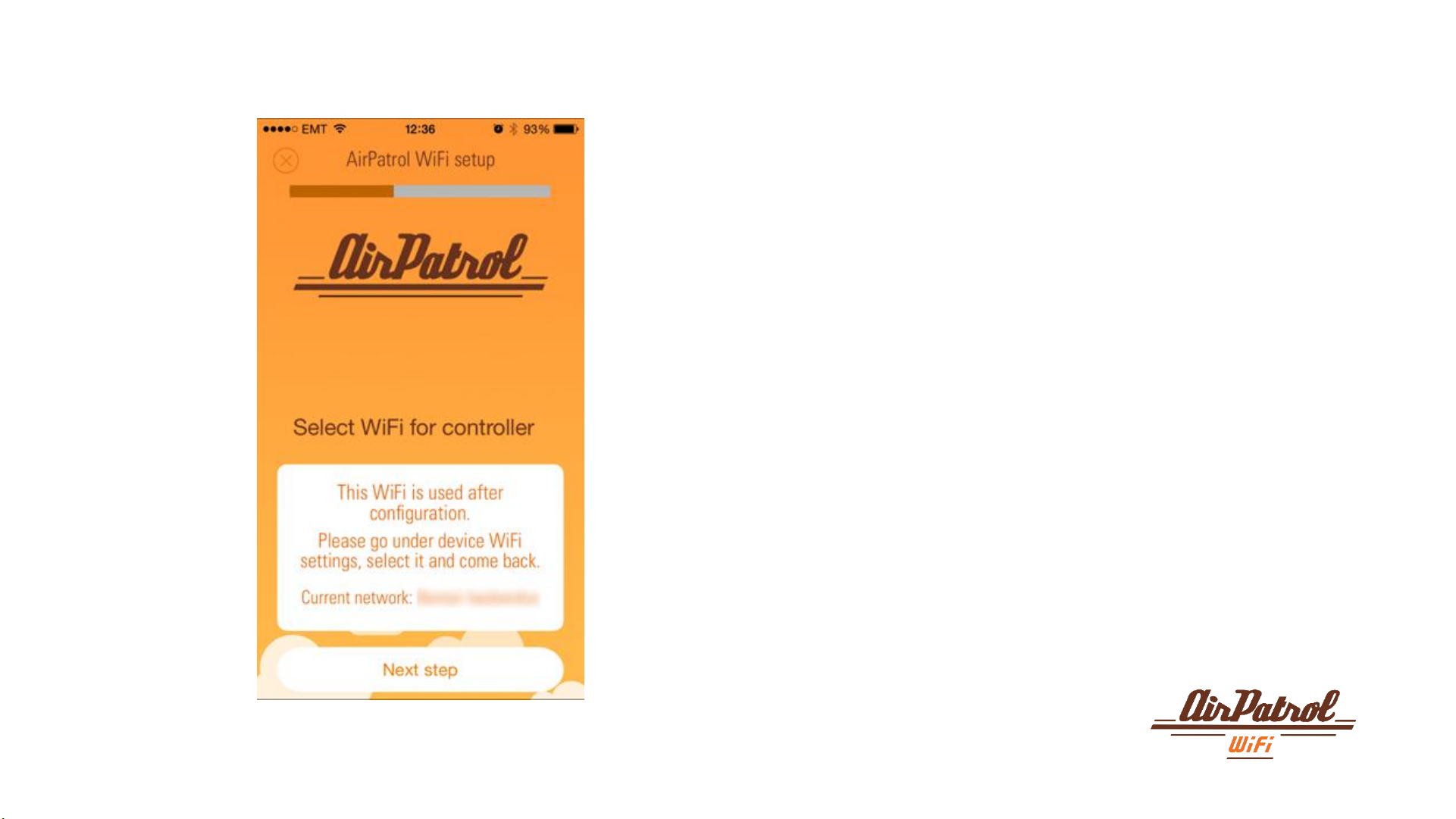

Select WiFi for your AirPatrol controller.
This is the WiFi network your AirPatrol
controller will use for communication (for
example your home WiFi)
12

AirPatrol WiFi Setup
2.2
Connecting to WiFi &
pairing
You will be then asked to enter your WiFi
network password.
In case you do not have a password
protected network then leave it empty.
13

AirPatrol WiFi Setup
2.3
Connecting to WiFi &
pairing
Next you will be asked to pair AirPatrol App
with AirPatrol WiFi controller.
Pairing LED will light up
14
Pairing

AirPatrol WiFi Setup
2.4
Connecting to WiFi &
pairing
Next you will be asked to select temporary
network for the pairing process. Please go
under device WiFi settings, select AirPatrol
WiFi and return to AirPatrol app.
AirPatrol controller creates temporary WiFi
to receive network information from your
smartphone.
15

AirPatrol WiFi Setup
2.5
Connecting to WiFi &
pairing

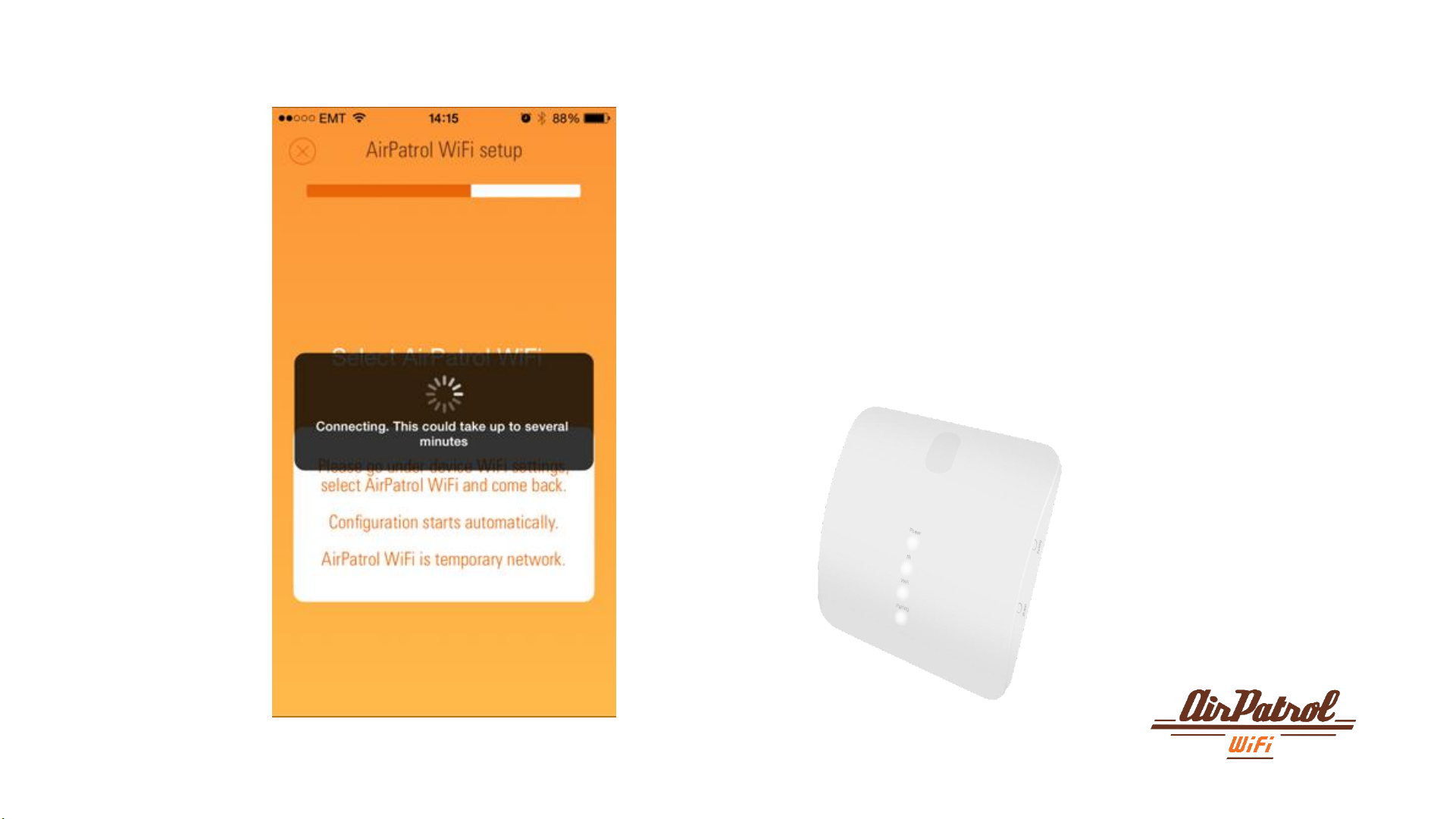

AirPatrol controller is now connecting to
WiFi network.
16

AirPatrol WiFi Setup
2.6
Connecting to WiFi &
pairing

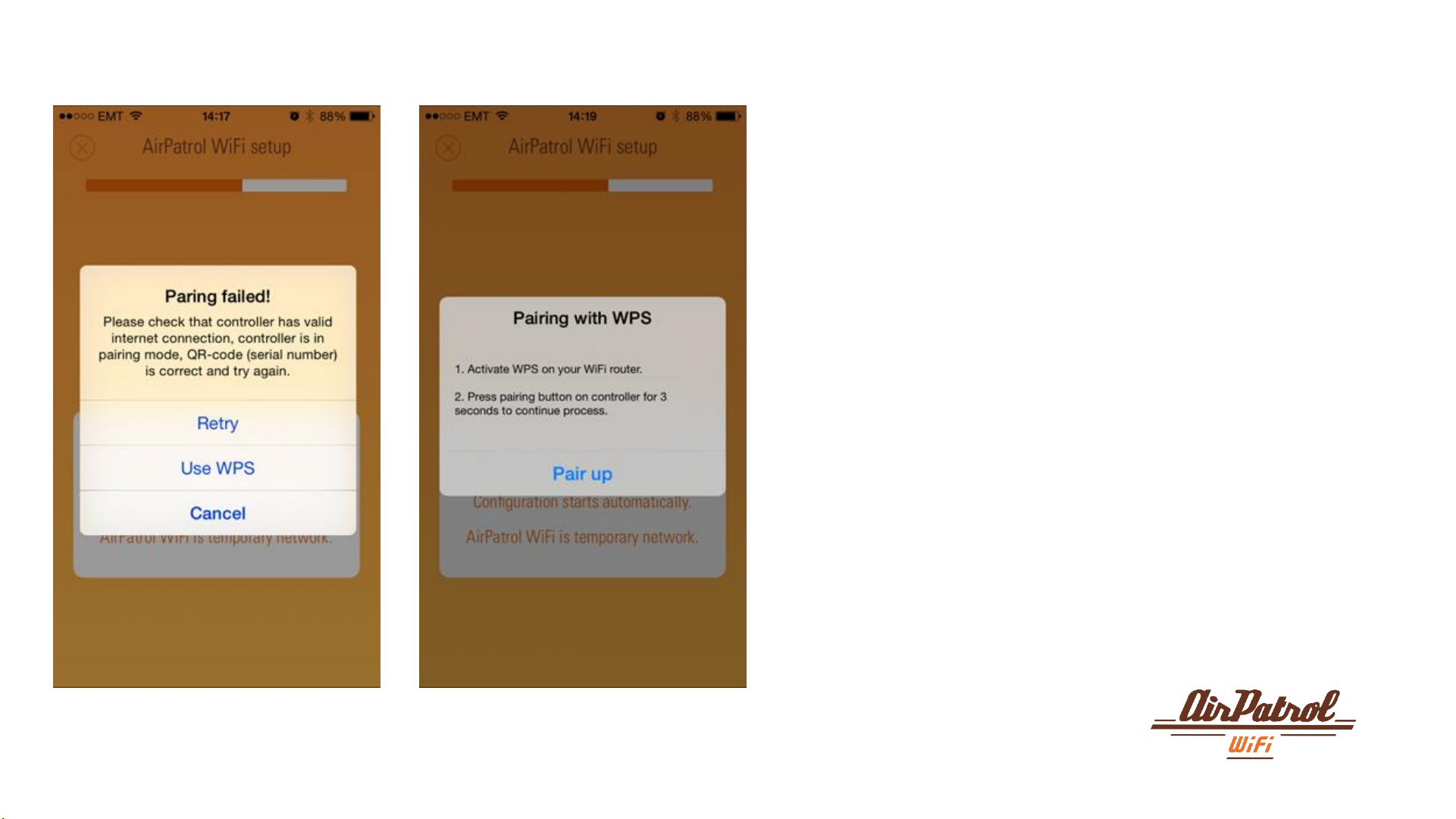

If the pairing process failed then:
A) Check that WiFi password was entered
correctly.
OR
B) Activate WPS on your WiFi router and
press pairing button for 3 seconds on
your AirPatrol controller.
17

AirPatrol WiFi Setup
2.7
Connecting to WiFi &
pairing
You will be notified when pairing is
successful.
Pairing LED will turn off.
Only Power and WiFi LEDs are on.
18

AirPatrol WiFi Setup
3
Information
In the last step you are asked to select your
AC brand, model and give it a name.
After that press DONE.
19

AirPatrol WiFi
Main view
This is the main view for AirPatrol App.
To control your device just touch anywhere
on the selected device area.
20
