AirPicnic APN212 User manual

USER MANUAL
APN212
PORTABLE AIR-CONDITIONER
Thank you for selecting super quality air conditioner. Please be sure to read
this manual carefully before using it. Any question, please contact the
professional service for help.

CONTENTS
CONTENTS...................................................................................................................1
IMPORTANT SAFEGUARDS.................................................................................2
FEATURES AND PARTS LIST..............................................................................4
PANEL CONTROL......................................................................................................5
REMOTE CONTROL.................................................................................................6
OPERATION METHODS..........................................................................................7
INSTALLATION............................................................................................................8
WATER DRAINGE METHODS ............................................................................10
MAINTENANCE.........................................................................................................11
TROUBLE SHOOTING...........................................................................................13
INSTALLATION ACCESSORIES........................................................................14
APPENDIX...................................................................................................................15
1

IMPORTANT SAFEGUARDS
Important Safeguards.
•Read all instructions.
•Disconnect the power plug before dismantling, assembling or before
cleaning.
•Avoid touching mobile parts of the appliance.
•Never insert fingers, pencils or any other objects though the guards whenever
the power plug is connected, especially while running.
•The appliance is not intended for use by young children or infirm persons
unless they have been adequately supervised by a responsible person to
ensure that they can use the unit safely.
•Young children should be supervised to ensure that they do not play with the
appliance.
•Do not use the appliance for any other purpose than its intended use.
•The appliance must not be used if the guards are not fastened according to
instructions.
•When the power cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
•Do not use your appliance with an extension cord unless it has been checked
and tested by a qualified electrician or electrical supplier.
•Return to the authorized service agent.
•The air conditioning unit must always be stored and transported upright,
otherwise you may cause irreparable damage to the compressor; in
case of doubt we suggest to wait for at least 24 hours before you start
the air-conditioning unit.
•Avoid restarting the air conditioning unit unless 4 minutes have passed since
being turned off, or the compressor may get damaged.
•Never use the mains plug as a switch to start and turn off the air conditioning
unit. Use the provided ON/OFF switch located on the control panel.
•Always place the portable air conditioner on a dry stable surface.
2

Energy Saving Tips.
Do not cover or restrict the airflow from the Outlet or Inlet grills.
The minimum distance from furniture and wall should be 50cm.
Keep blinds and /or draperies, on any windows, closed during the sunniest
part of the day.
Keep the filters clean. Under normal conditions, the filters should be
cleaned approximately every 30 days. Since the filters remove airborne
particles, more frequent cleaning maybe necessary, depending on the
indoor air quality.
Set the fan speed switch to high cool and the thermostat to the coolest
position for the initial start-up, then set the Fan switch to Low cool and
lower the thermostat to a comfortable setting.
Suggestions:
If room temperature is higher than 40℃, cooling function will not become well;
if room temperature is lower than 7℃, heating function will not become well.
Please do not use this air conditioner.
3

FEATURES AND PARTS LIST
Features:
·No installation is required.
·Easily moved . The handle makes moving more convenient.
·Streamline colorful screen display .
·LED colorful screen display.
·Water-cooled mode is most energy saving and environment protect.
·Low noise and strong wind .
·Unique economic function.
·Auto swing makes wind blow from left to right automatically.
·Three-minute restart delay to protect compressor.
Parts list:
1. control panel
2. horizontal louver
3. vertical louver
4. air inlet grille
5. castor
6. exhaust duct
7. handle
8. air outlet grille
9. power cord and plug
10.water injection port
11.power and hook
12.air filter
4

PANEL CONTROL
CAUTIONS: If the unit is turned off in cool /dry/ heat mode and restarted
immediately , then it will wait at least 3minutes before running again.
1. Buttons
Timer: press this button to set the timer
Swing: press this button to make the vertical louver swing automatically.
Press once again, the swing will stop.
Speed: press this button for 5 seconds to select high, middle or low fan
Speed.
Up/down: press up or down button to set temperature or adjust the time in
Timer mode. Press both buttons to vary from Celsius to Fahrenheit.
Mode: press this button to select cool, heat, dry or fan mode (heat mode
only in YPC-H models).
Econ: press this button to a set energy saving mode (only in heat and cool
mode). This set temperature is 27℃in cool mode and 23℃in heat
mode . The fan speed is low. These data can’t be changed. The LED
display will flash or accordingly. Press again to cancel it when
or is flashing.
Power: press this button to turn on/off the unit.
2. LED display
Timer indicator
Dry, cool, fan and heat mode indicator (no in cooling only
model)
High, middle and low fan speed indicator
Water Full indicator
Water Injection indicator
IR receiver window
Indicate the time and temperature. Display EX (X=2,3) when
there is something wrong (refer to Self diagnosis function).
Display E4 when coil is defrosted.
5

Celsius degree and Fahrenheit degree indicator.
REMOTE CONTROL
Power Press this button to turn/off the unit.
Timer Press this button to set the timer.
Swing Press this button to make the vertical
louver swing automatically
Vary from Celsius degree to Fahrenheit
degree.
Cool Press this button to choose Cool mode.
Heat Press this button to choose Heat mode.
Dry Press this button to choose Dry mode.
Fan Press this button to choose Fan mode.
Up Press Up or Down button to set temperature
Down or adjust the time in Timer mode.
High Press this button to select high fan speed.
Med Press this button to select middle fan speed.
Low Press this button to select low fan speed.
Econ Press this button to a set energy saving mode only in Cool and
Heat mode. The set temperature is 27℃in cool mode and 23
℃heat mode The fan speed is low. These data can’t be
changed.
NOTE: To vary from Celsius to Fahrenheit by control panel, press both Up
and Down button at least 2 seconds.
6

mer set -off r button when the unit is on. The LED will flash_ _five from
2n check remnant time by pressing Timer button. It
3.Set timer-on button when the unit is off. Same as timer-off set. Once the
Cooling/Heating and Dehumidifying operation
.Cooling/Heating operation
OPERATION METHODS
Ti
1.Set timer
Press the Time
Times. During this period press Up or Down button to adjust set time
0.5h to 24h. It will vary 0.5h each time in 3h and 1h each time hereafter. The
set time will flash 5 times after adjusting. When it will display temperature
again. Once the set time end, the unit will turn off automatically.
. Change the set time
When Timer is on, you ca
will flash 5 times. Press Up or Down button to adjust set time. The set time
can also be cancelled if you press the Timer button once again during the
flashing time.
Press the Timer
set time end, the unit will turn on automatically.
1Press Mode button or /to choose Cool/heat mode.
n oPress Up or Down butto r to set a proper room temperature.
F). Th seThe range is 18~30℃(64-86°e temperature will increase or decrea
1℃or 1°F each time.
Press Speed button or to choose a proper fan speed.
Press Swing button or t d t the direction of vertical louver.o a jus
2.Adjust horizontal louver by hand.
Dehumidifying operation
Press Mode button or to choose Dry mode. The fan speed is Low,
Nl mode, when the water Injection indicates lights, you can inject
with the drainpipe in heat and dehumidifying
LED displays room temperature. These cannot be adjusted.
OTE:
1. In coo
some water through the injection port before cooling operation (no
longer than High level).
2. You should drain water
mode. The unit will stop work when water level exceeds the high level.
3. Do not use air exhaust duct when in Dry or Fan modes
7

4. If your room is directly exposed to the sun, draw the curtains please.
1.Selection of Installation Place .
.AIR Exhaust Duct Mounting Method
th of the air exhaust duct is between
peci
. Window Kit Installation d to fit most standard vertical and horizontal
INSTALLATION
Install the unit on a flat and dry place
Leave at least 50cm space around the
unit(when the hose is not connected).
(Fig.5)
2
1) Fix the square end of the exhaust dust to
the exhaust terminal of the unit.
2) Put the other end (discharge) to the
nearest window. Leave at least 50cm
ally according to the
place around it.
NOTE:
The leng
600mm to 1700mm (adapters included). We
suggest using the minimum length of the air
exhaust dust. That can save energy for you.
This length has been designed es
specifications of the air conditioner .Do not use an extension or
exchange of a different hose as that may lead to malfunction.
3

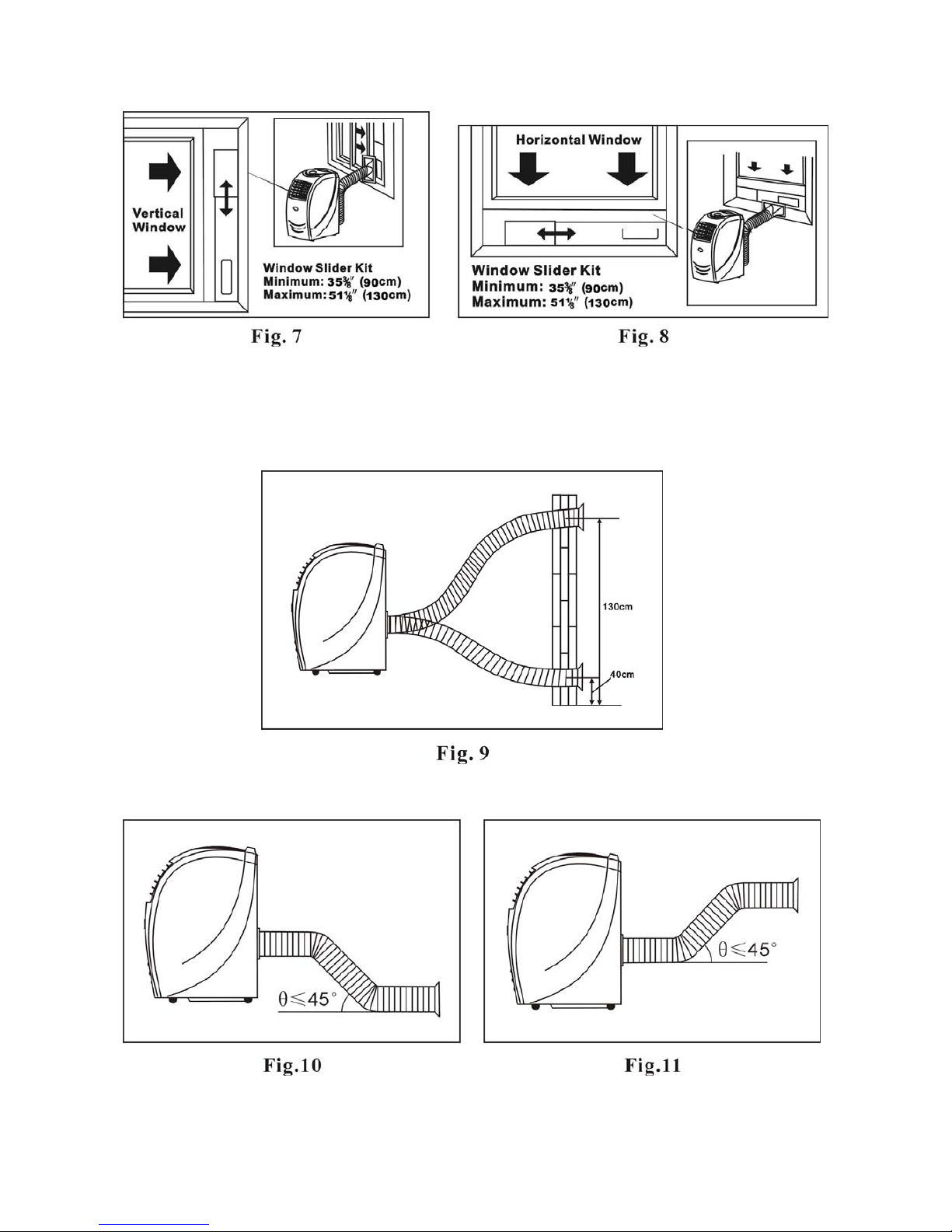

The window kit has been designe
windows. However, it may be necessary for you to modify some aspects of the
installation procedures for certain types of windows. Please refer to the
illustrations. (Fig.7 and Fig.8)
8

4.Mounting illustrations
1.mounting in the wall
2.correct bending
3.wrong bending
9

WATER DRAINGE METHODS
This product has a self-evaporative system. The condensing water
will recycle to cool the condenser. This water-cooled mode can not
only improve cooling efficiency and decrease noise, but also save
energy for you.
* When in cooling mode, the water from the evaporator will flow into a inside
pan. When the water reaches the low level, the water pump will work until
the water is under the low level. When the water reaches the high level, the
compressor will stop working, and the water pump, lower fan motor and
upper fan motor will work on all the time.
* When in heating mode, the water pump won't work.
* When the water is full, the water full indicator will light and the compressor
will stop working. The buzzer will buzz 10 times every 5 minutes until the
water is below the high level or drained by hand. When the alarm stops and
after three-minutes restart delay, the unit will
work normally.
* Move the unit gently when the water is high. If
01
not , the water may spill from the inside of the unit.

* When the water in the cave is not enough for pumping, the pump will stop
working. At the same time, the Water Injection indicator on the control panel
will illuminate ( ), you had better inject some water into the water draw
carefully. In order to avoid the water flooding from the under pan, you should
inject water no more than 1800ml (three cups). This operation helps save
20%-30% energy for you.
MAINTENANCE
Cleaning
Turn off the unit and pull the plug out of the socket before any cleaning.
1.Clean the surface
Clean the surface of the unit with a duster or a half-wet soft cloth.
Do not use chemical solvent like benzene, alcohol, gasoline and etc,
Or the surface may be damaged or even deformed.
2. Clean the air filter
If the air filter is blocked with a lot of
dust, the efficiency will reduce. You’d
better clean the filter every two weeks.
1) Pull out the air filter as Fig.14.
2) Wash the air filter by immersing
it gently into warm(under 40°C or 104°
F)water with neutral detergent. Rinse
the filter and dry it in a shaded place.
3) Push the air filter back into the
original position.
End of season
1.Pull out the plug from the drain mouth and remove the water from the drain
pan. You can remove the water entirely by slanting the unit back.
Setting the fan mode, then press the Fan button for 5 seconds until the lower
fan works. After that, operate the unit in fan mode for half a day until the pipe is
11

dry. In this way the inside of the unit can be dried and the mildew growth can
be suppressed.
2.Switch off the unit and disconnect the plug from the power supply.
3.Tie the cable with sting.
4.Remove the air exhaust duct and keep it carefully.
5.Wrap the unit with the plastic bag, and keep it in a dry place.
6.Take the batteries out of the remote control and keep them well.
12

TROUBLE SHOOTING
Before contacting professional service, please firstly check it
yourself referring to the followings.
Trouble Check Solution
The unit doesn’t
operate at all.
Is power fail?
Is plug out?
Is power fuse or switch off?
Is the set time suitable?
Is water full alarm on?
It is normal.
Insert the plug into the
socket steadily.
Change the fuse or switch
on.
Change the set time.
Pour the water.
Cooling/Hating
efficiency is not
good
Is air inlet or outlet blocked?
Is there any other heat
source in room?
Are air filters very dirty?
Is the set temperature
suitable?
Is fan speed set at low?
Clear off the blocks.
Move the heat source.
Clean the air filter.
Change temperature.
Select suitable fan speed.
Too noisy and
vibration
It is the inner liquid
(refrigerant) flowing inside.
Is it inclined?
It is normal.
Place it in a flat place.
The unit starts
and stops
frequently
Is the voltage normal?
Is the exhaust tube fixed
rightly or is it bended?
Have you added extra
exhaust tube
Turn off the unit if the
voltage is abnormal.
Set the exhaust tube
correctly.
Remove the extra tube.
Stop running and pull the plug out in case something
enumerated below happens. Then contact the professional
service for help.
·The fuse and switch often break.
·The power cord superheat or sleeve of the cord is broken.
·There is abnormal odor or smoke comes out of the unit.
Self-diagnosis function
Check code Diagnosis of malfunction
E2 Room temperature faults
E3 Faulty coil temperature
Note:When display E4, it means that the coil is defrosted. That is the normal
status.
13

INSTALLATION ACCESSORIES
Description:
Flexible exhaust hose with adapters ……2/set
Window exhaust adapter (flat mouth)……1pc
Adjustable window slider kit ………………2/set
From 35 3/8” (90cm) up to 51 1/8” (130cm)
Screw (the length is 3/8”)………………………1pc
Water cup ………………………………………1pc
41

APPENDIX
Fuse Parameter
Type: FSD
Voltage: 250V
Current: 3.15A
Disposal: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
15
