INSTRUCTION MANUAL
Split System Air Conditioner
Wall-mounted type Ceiling-mounted type Recessed type
KS2432 TS2432 XS1822, XS1852
KS3032 TS3632 XS2432
KS3632 TS4232 XS3632
XS4232
COOL/FAN Model
Save These Instructions!
Pub. OI-85464189201002 ©SANYO 2000

Features
These air conditioners are equipped with cooling function. Details on this function are provided below; refer
to these descriptions when using the air conditioner.
•Microprocessor Controlled Operation
The interior compartment of the remote control
unit contains several features to facilitate
automatic operation, easy logically displayed for
easy use.
•Simple One-touch Wireless Remote Control
The remote control unit has several features to
facilitate automatic operation.
•24-hour clock with ON/OFF Program Timer
The wireless remote controller allows you to set
up a wide variety of time based operations.
Such functions include automatic on/off with
time settings, same time on/off every day, on
timer and off timer.
•1-Hour OFF Timer
This timer can be set to automatically turn off
the unit at any time after one hour.
•Night Setback
Pressing this button changes the setting of the
room temperature thermostat, allowing you to
set the temperature at whatever level that you
find comfortable.
•Automatic and 3-step Fan Speed
Auto/High/Medium/Low
•Air Sweep Control
This function moves a flap up and down in the
air outlet, directing air in a sweeping motion
around the room and providing comfort in every
corner.
•Automatic Restart Function for Power Failure
Even when power failure occurs, preset
programmed operation can be reactivated once
power resumes.
•Anti-Mold Filter
This unit is equipped with an anti-mold filter
that inhibits the growth of mold and bacteria.
2OI-201-02EG

Contents
Page
Features.................................................................................................................. 2
Product Information .............................................................................................. 3
Alert Symbols ........................................................................................................ 3
Installation Location.............................................................................................. 4
Electrical Requirements ........................................................................................ 4
Safety Instructions ................................................................................................ 4
Names of Parts ...................................................................................................... 5

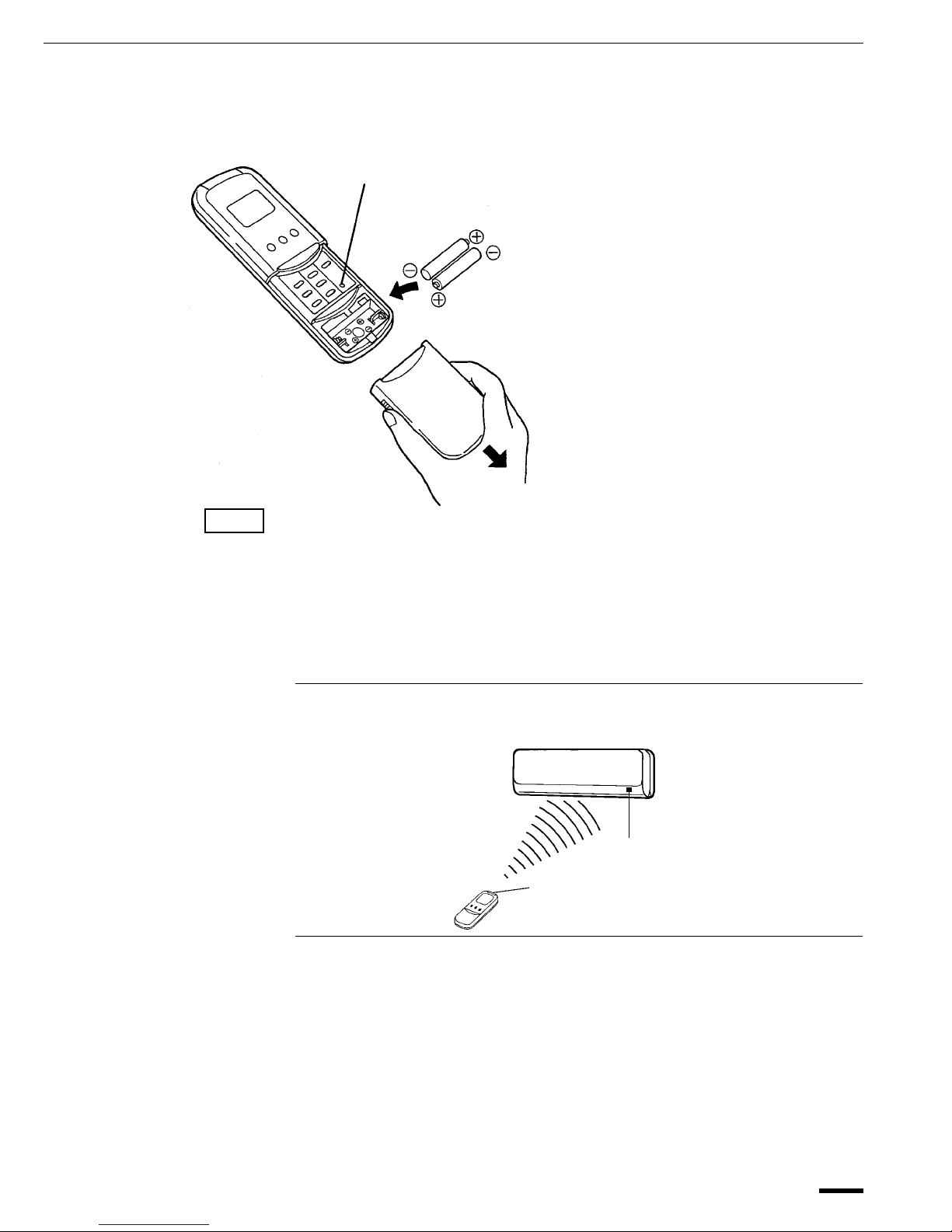

Using the Remote Control Unit ......................................................................... 11

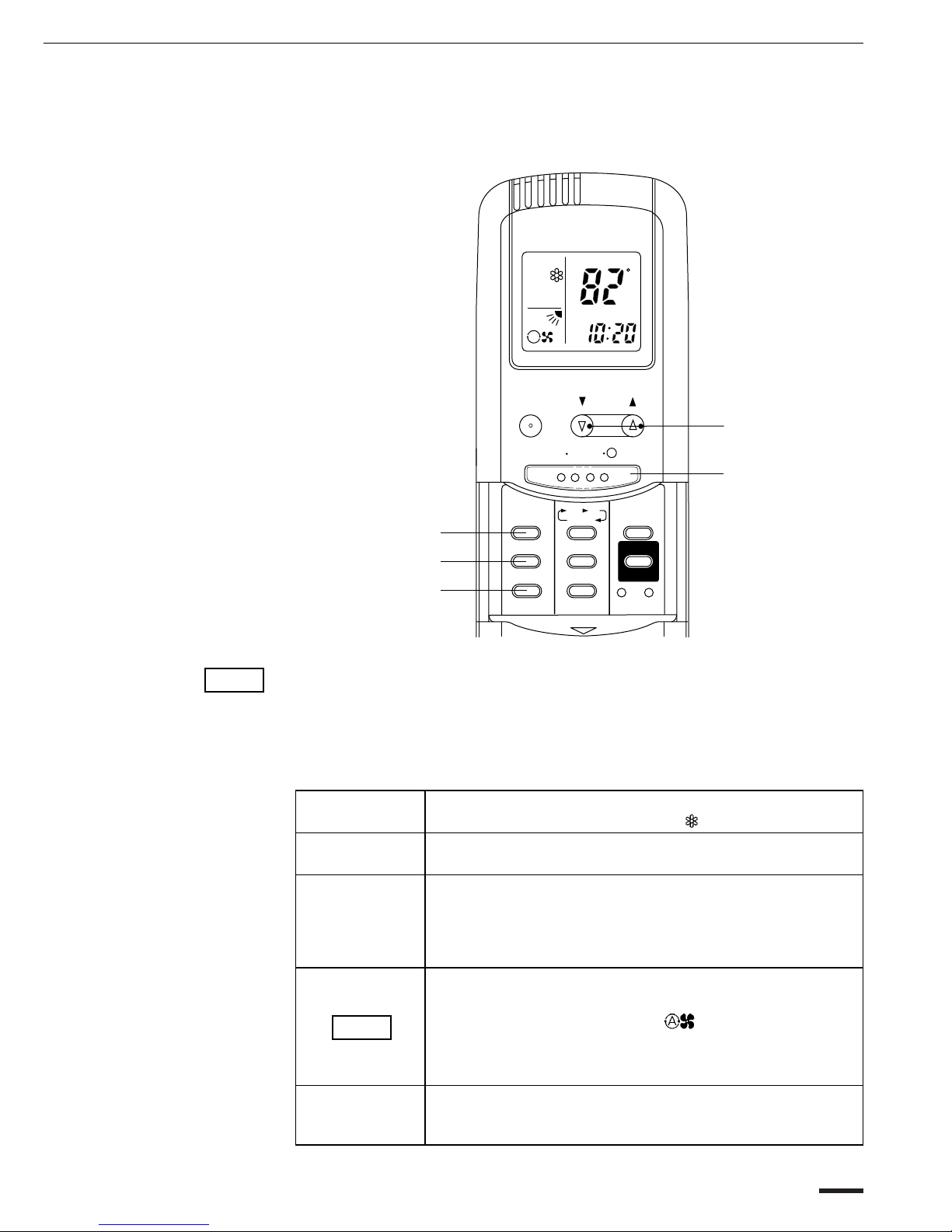

Operation with the Remote Control Unit.......................................................... 13
1. Operation ............................................................................................... 13

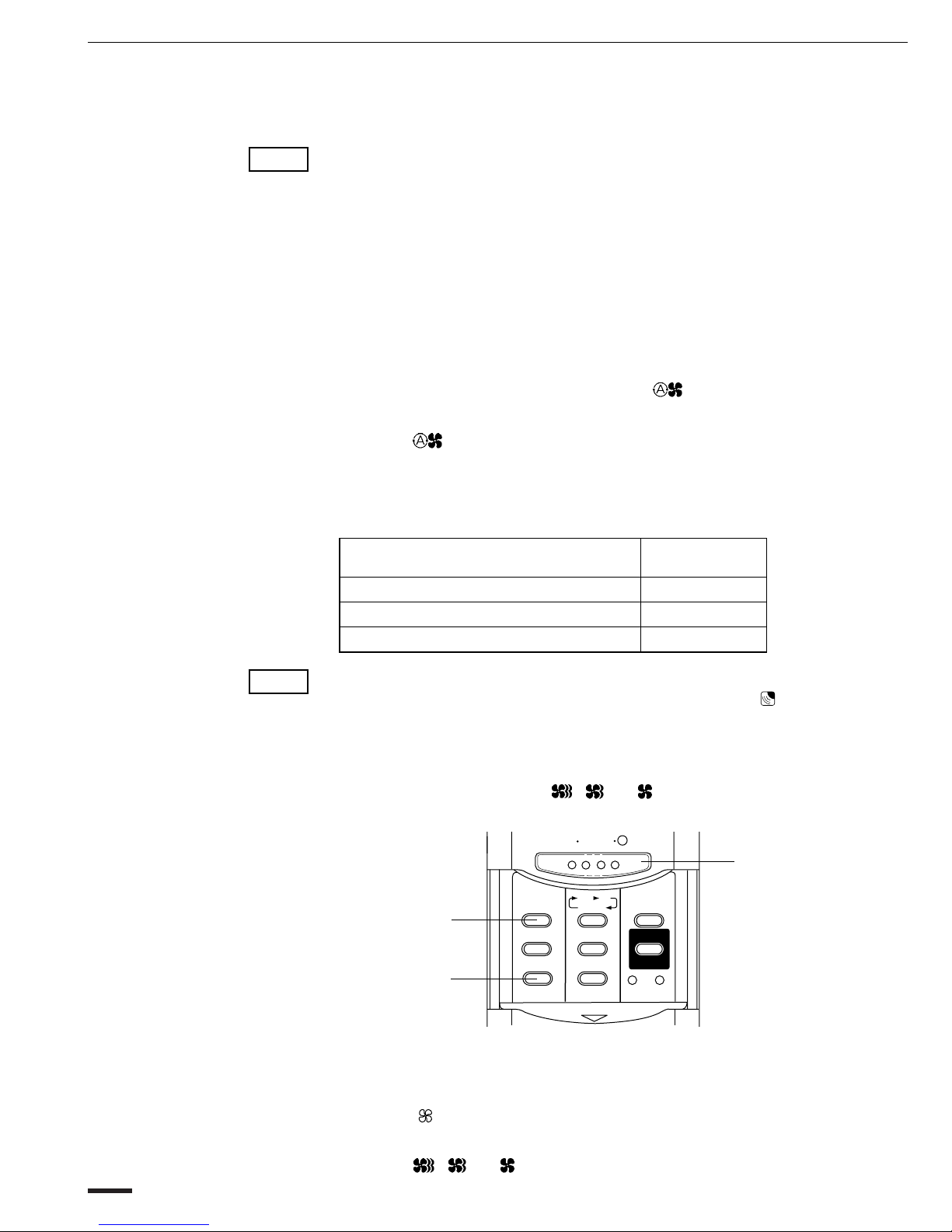

2. Adjusting the Fan Speed...................................................................... 14
3. Fan Only................................................................................................. 14

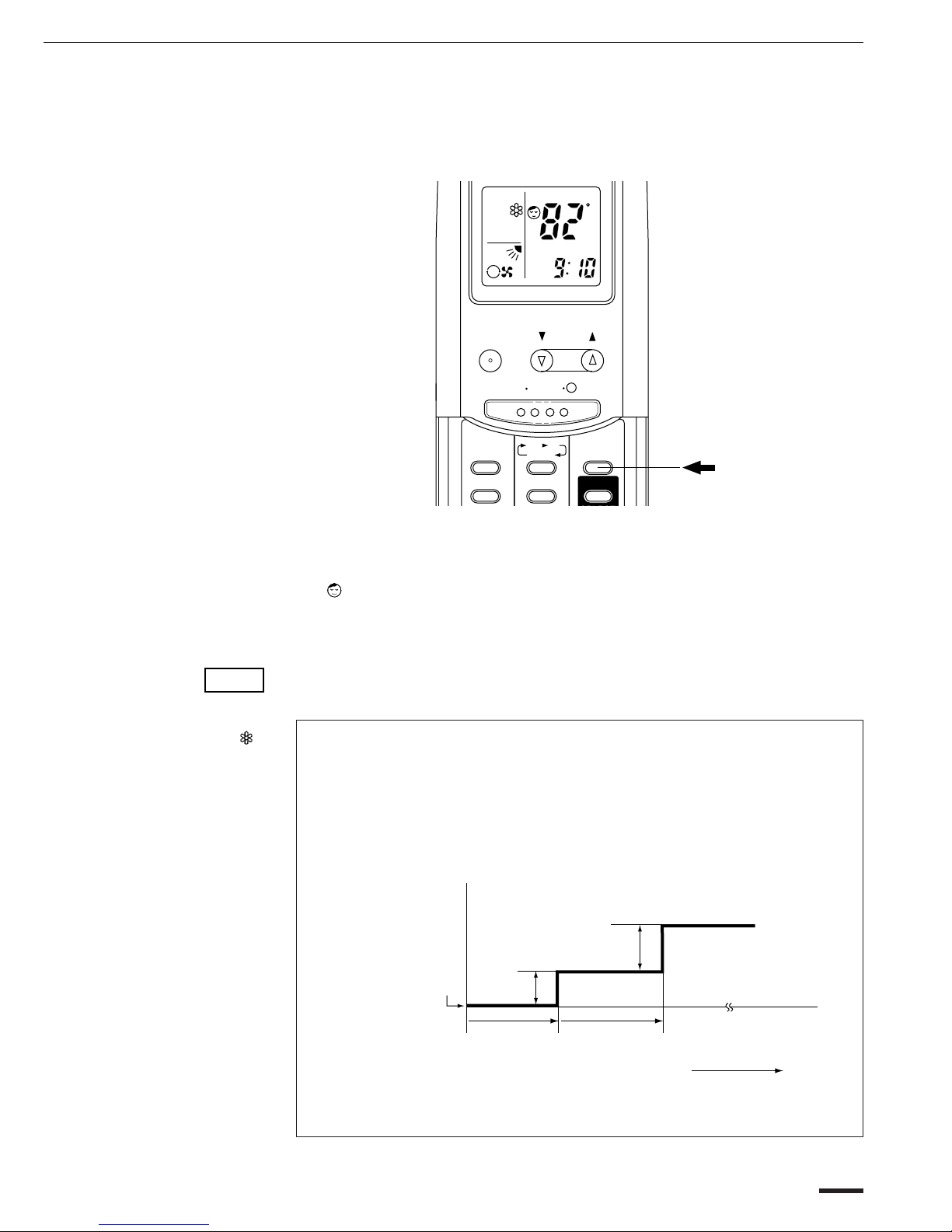

4. Night Setback Mode ............................................................................ 15
Special Remarks ................................................................................................. 16

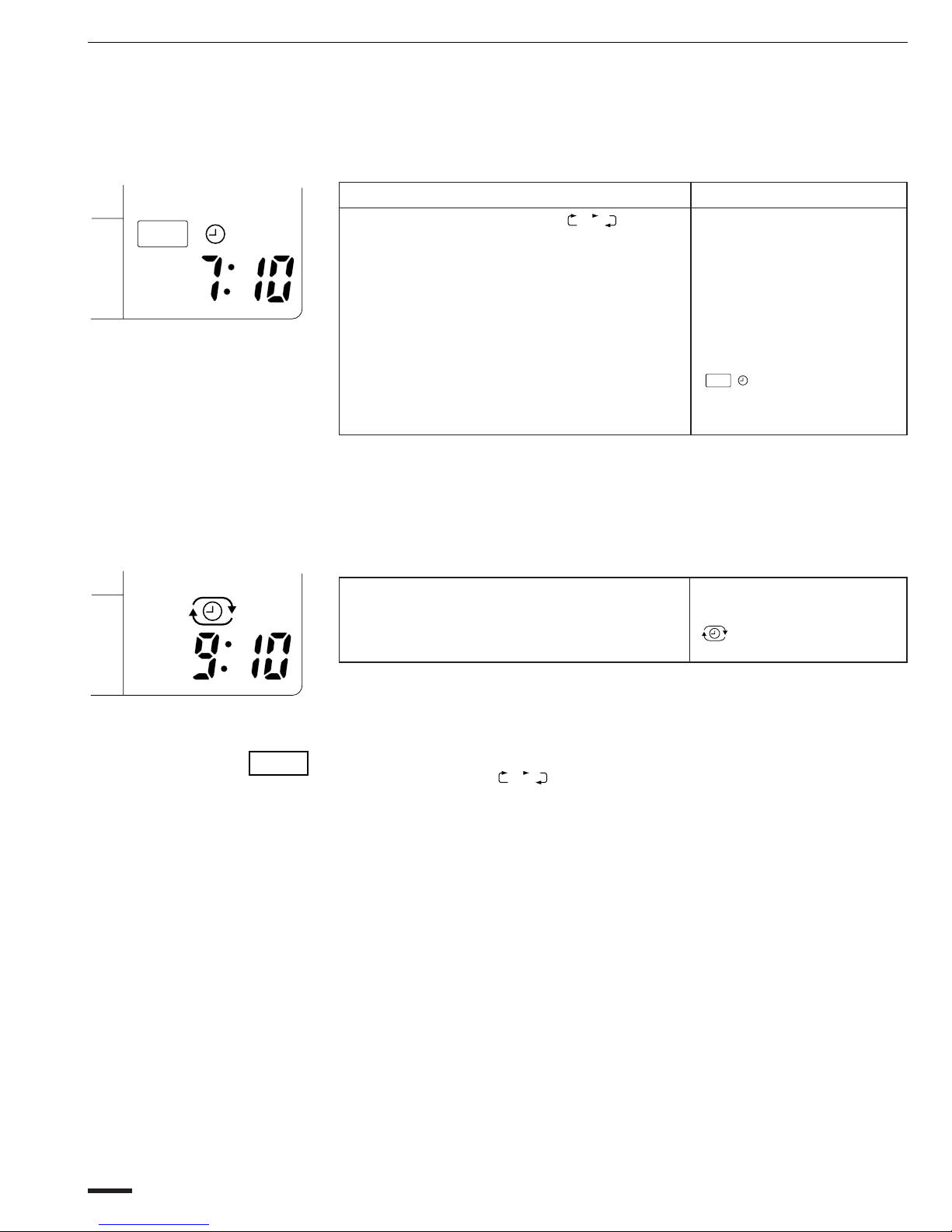

Setting the Timer ................................................................................................ 17
Using the 1-Hour OFF Timer.............................................................................. 19
Adjusting the Airflow Direction ......................................................................... 20
Operation without the Remote Control Unit .................................................... 20
Care and Cleaning............................................................................................... 21
Troubleshooting................................................................................................... 23
Tips for Energy Saving....................................................................................... 23
Operating Range ................................................................................................. 23
Product Information
If you have problems or questions concerning your Air Conditioner, you will
need the following information. Model and serial numbers are on the
nameplate on the bottom of the cabinet.
Model No. Serial No.
Date of purchase
Dealer’s address
Phone number
Alert Symbols
The following symbols used in this manual, alert you to potentially
dangerous conditions to users, service personnel or the appliance:
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
CAUTION This symbol refers to a hazard or unsafe
practice which can result in personal injury
or product or property damage.
3OI-201-03EG

Installation Location
•We recommend that this air conditioner be installed properly by
qualified installation technicians in accordance with the Installation
Instructions provided with the unit.
•Before installation, check that the voltage of the electric supply in your
home or office is the same as the voltage shown on the nameplate.
•Do not install this air conditioner where there are fumes or flammable
gases, or in an extremely humid space such as a greenhouse.
•Do not install the air conditioner where excessively high heat-
generating objects are placed.
Avoid: •To protect the air conditioner from heavy corrosion, avoid installing the
outdoor unit where salty sea water can splash directly onto it or in
sulphurous air near a spa.
•The unit may malfunction when the receiver in the indoor unit is
exposed to the inverter lamp light.
Electrical Requirements
1. All wiring must conform to the local electrical codes. Consult your
dealer or a qualified electrician for details.
2. Each unit must be properly grounded with a ground (or earth) wire or
through the supply wiring.
3. Wiring must be done by a qualified electrician.
•Power supply: 60 Hz, single-phase, 230/208 volts.
CAUTION
Safety Instructions
•Read this Instruction Manual carefully before using this air conditioner.
If you still have any difficulties or problems, consult your dealer for
help.
•This air conditioner is designed to give you comfortable room
conditions. Use this only for its intended purpose as described in this
Instruction Manual.
•Never touch the unit with wet hands.
•Never use or store gasoline or other flammable vapor or liquid near the
air conditioner — it is very dangerous.
•This air conditioner has no ventilator for intaking fresh air from
outdoors. You must open doors or windows frequently when you use
gas or oil heating appliances in the same room, which consume a lot of
oxygen from the air. Otherwise there is a risk of suffocation in an
extreme case.
CAUTION •Do not turn the air conditioner on and off from the power mains switch.
Use the ON/OFF operation button.
•Do not stick anything into the air outlet of the outdoor unit. This is
dangerous because the fan is rotating at high speed.
•Do not let children play with the air conditioner.
•Do not cool the room too much if babies or invalids are present.
To warm up the system, the power mains
must be turned on at least five (5) hours
before operation. Leave the power mains
ON unless you will not be using this
appliance for an extended period.
(CL MODEL)
Power mains
ON
4OI-201-04EG

Names of Parts
Each air conditioner as shown below consists of an indoor unit and an
outdoor unit. You can control the air conditioner with the remote control
unit.
NOTE This illustration is based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner which
you have selected.
Air intake The return air in the room is drawn into this section and passes through
air filters which remove dust and foreign particles.
Air outlet Conditioned air is returned to the room through the air outlet (ceiling
and wall mounted type) or four air outlets (Recessed type).
The direction of airflow can be adjusted as desired using the remote
control unit.
Remote control unit The wireless remote control unit controls power ON/OFF, operation
mode selection, temperature, fan speed, timer setting, and air sweeping.
Refrigerant tubes The indoor and outdoor units are connected by copper tubes through
which refrigerant gas flows.
Drain tube Moisture in the room is condensed and drains off by means of this tube.
Outdoor (condensing) unit The outdoor unit contains the compressor, fan motor, heat exchanger
coil, and other electrical components.
Recessed typeCeiling mounted type
Air outlet
Remote control
unit
Drain tube
Refrigerant
tubes
Air intake
Air
intake
Air outlet
Remote
control
unit
Drain tube
Refrigerant
tubes
Wall mounted type
Air intake
Air outlet
Remote control unit Drain
hose
Refrigerant
tubes
5OI-201-05EG

Unit Display and Operation Selector
OPERATION
lamp
TIMER
lamp
Remote control
receiver
Recessed type Ceiling mounted type
Air filter
Recessed type
Air intake
grille
Operation selector
Ceiling mounted type
Air intake grille
Finger-hold
Operation selector
6OI-201-06EG

Unit Display and Operation Selector (continued)
REMOTE CONTROL
receiver
This section picks up infrared signals from the remote control unit
(transmitter).
Operation selector
ON position This position is for operating the air conditioner with the wireless
remote control unit.
Set the selector normally in this position.
OFF position Switch the selector to the OFF position if you are not going to use
the air conditioner for a few days or longer.
The OFF position does not disconnect the power. Use the main
power switch to turn off power completely.
TEST position This position is used only when servicing the air conditioner.
CAUTION Do not set at the TEST position for normal operation.
OPERATION lamp This lights when the system is in the continuous COOL or FAN
mode.
TIMER lamp This lamp lights when the system is being controlled by the timer.
OPERATION lamp
TIMER lamp Operation selector
REMOTE CONTROL receiver
INDOOR UNIT
7OI-201-07EG

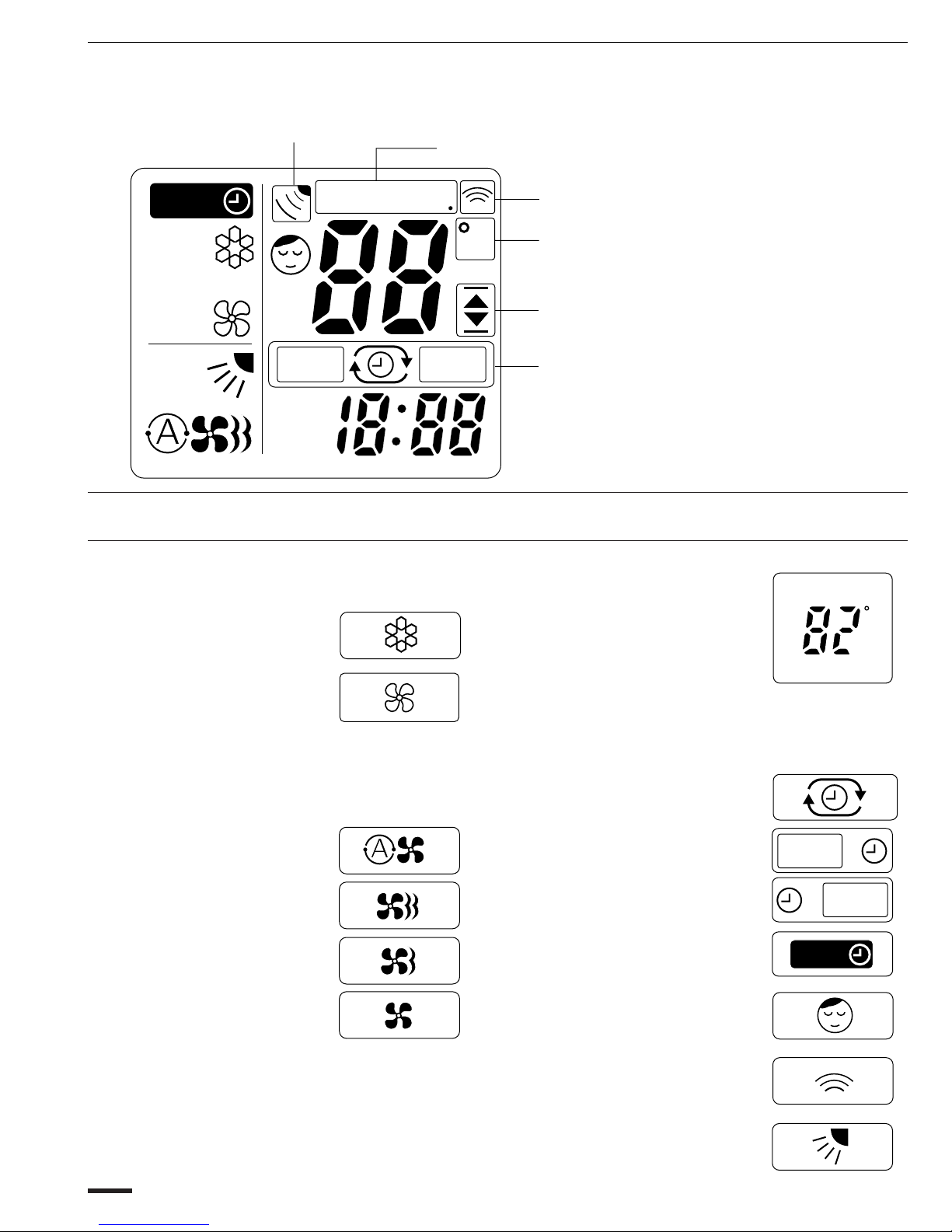

Remote Control Unit (Display)
ON OFF
HR. F
SET TEMP
1
AM
PM
(1) Operation mode
COOL .......................................
FAN ..........................................
(2) Fan speed
Automatic operation ..............
HIGH ........................................
MEDIUM..................................
LOW.........................................
ON
Displayed when transmitting data
Displayed when setting temperature
Displayed when temperature is shown
Displayed when the temperature setting is
at the upper or lower allowable limit
Displayed when setting timer
F
OFF
HR.
1
Symbols
Displayed when main unit sensor is in use
(3) Set temperature
60–88°F
When set to 82 °F ...........
Current temperature
indication .........................
(4) Timer
24-hour clock with ON/OFF
Program Timer .......................
24-hour ON Timer..................
24-hour OFF Timer.................
1-hour OFF Timer...................
(5) NIGHT SETBACK ....................
(6) Confirmation of
transmission ...........................
(7) Sweep indication....................
8OI-201-08EG

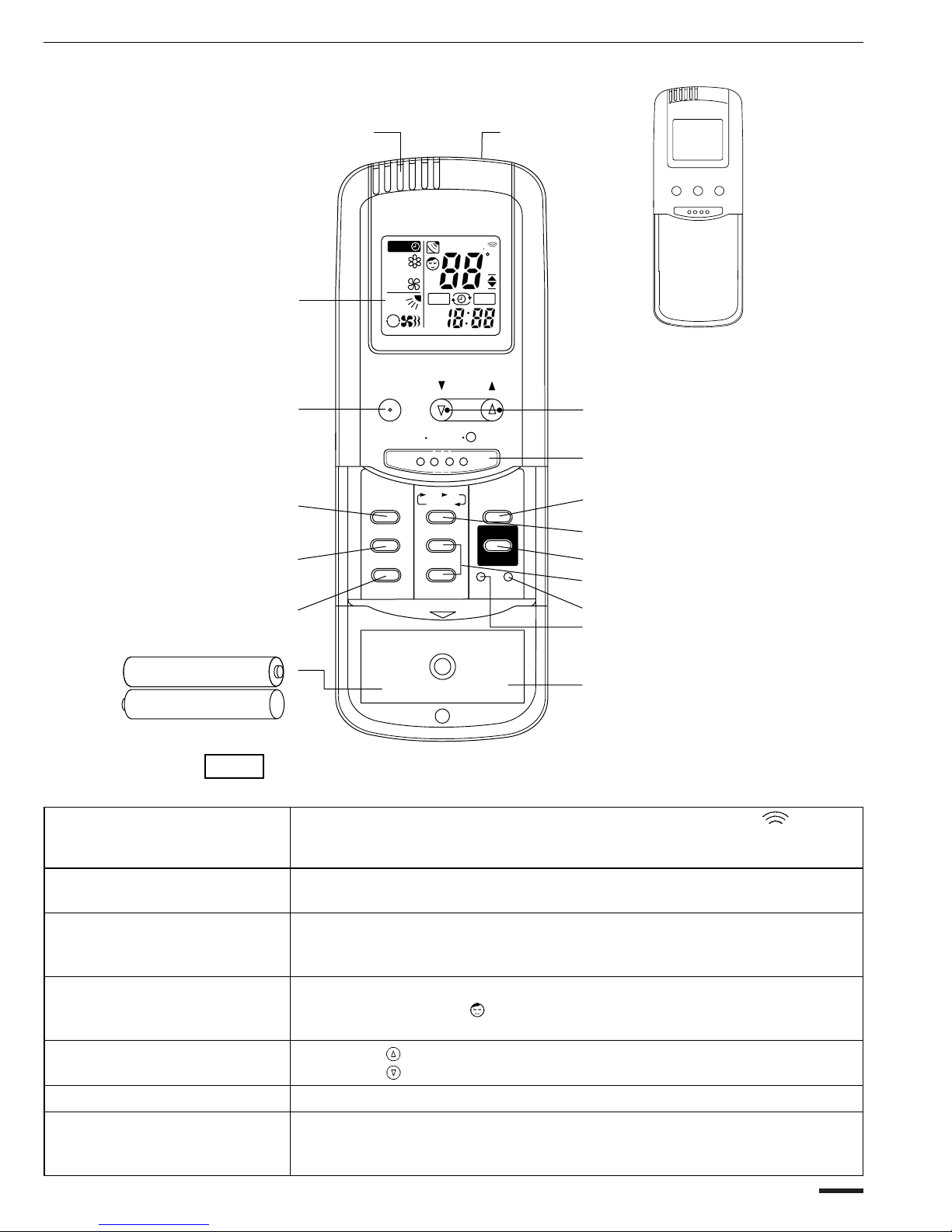

Remote Control Unit
NOTE The illustration above pictures the remote control unit after the cover has
been lowered and removed.
Transmitter When you press the buttons on the remote control unit, the mark
appears in the display to transmit the setting changes to the receiver in
the air conditioner.
Sensor A temperature sensor inside the remote control unit senses the room
temperature.
Display Information on the operating conditions is displayed while the remote
control unit is switched on. If the unit is turned off, only the mode that
was set previously is still displayed.
NIGHT SETBACK button For details, see ‘‘Night Setback Mode’’. When you press this button in
the COOL mode, the mark appears in the display, and the remote
control unit will automatically adjust the set temperature to save energy.
TEMP. setting buttons Press the button to increase the set temperature.
Press the button to reduce the set temperature.
ON/OFF operation button This button is for turning the air conditioner on and off.
Timer setting buttons First, press the PROGRAM button to select the mode you want.
Each time you press the ‘‘HH’’ button, the hours advance by one.
Each time you press the ‘‘MM’’ button, the minutes advance by one.
AIR CONDITIONER
Transmitter
Display
ON/OFF operation button
FLAP button
TEMP. setting buttons
1 HR. TIMER button
NIGHT SETBACK button
MODE selector button
Battery compartment
(Slide the cover to expose the
batteries.)
FAN SPEED
selector button ACL button
Program button
A/C SENSOR button
Timer setting buttons
ON I /OFF
1HR.
TIMER TEMP.
MODE
FLAP
FAN SPEED
SELECT
HH TIMER
SELECT
MM
TIME SET
NIGHT
SETBACK
BATTERIES
ACL A/C
SENSOR
OFF ON
CLOCK
AIR CONDITIONER
ON OFF
HR. F
SET TEMP
1
AM
PM
A
(Cover closed)
Sensor
TIMER SELECT button
9OI-201-09EG

Remote Control Unit (continued)
NOTE •The remote control unit sends the temperature signal to the air
conditioner regularly at three minute intervals. If the signal from the
remote control unit stops for more than ten minutes due to the loss of
the remote control unit or other trouble, the air conditioner will switch
to the temperature sensor which is built into the indoor unit and control
the room temperature. In these cases, the temperature around the
remote control unit may differ from the temperature detected at the air
conditioner’s position.
•Operation when the outdoor temperature is low
If an indoor unit connected to a ‘‘CL-’’ type outdoor unit is operating in
the cooling mode during the winter months when the outdoor
temperature is low, setting the FAN SPEED selector to (low fan speed)
can result in intermittent operation to prevent freezing. In such cases,
use the (high fan speed) or (medium fan speed) setting instead.
PROGRAM button For details, see ‘‘Setting the Timer’’.
Press this button to select the mode you want to program.
TIMER SELECT button No display : The timer does not operate.
: The air conditioner stops at the set time.
: The air conditioner starts at the set time.
: The air conditioner stops and starts, or starts and stops, at
the set times every day.
MODE selector button
(COOL)
(FAN)
Use this button to select COOL or FAN mode
: The air conditioner makes the room cooler.
: The air conditioner works only as a circulation fan.
FLAP button Press this button to select the sweep function, which moves the flap up
and down automatically.
: The flap moves up and down automatically.
FAN SPEED selector
button
: The air conditioner automatically decides the fan speeds.
: High fan speed
: Medium fan speed
: Low fan speed
1 HR. TIMER button
(1-HOUR OFF TIMER)
: When you press this button, regardless of whether the unit is
operating or stopping, the unit operates for one hour and then
shuts down.
ACL button
(ALL CLEAR)
Puts the remote control unit into pre-operation status. Always press this
button after replacing the batteries.
A/C SENSOR button When you press this button (use a small-tipped object such as a
ballpoint pen), the mark will appear at the display. And the room
temperature is detected by the sensor which is built into the indoor unit
and the air conditioner is controlled accordingly.
NOTE If the remote control is located near a heat source, such as a space
heater or in direct sunlight, press the A/C SENSOR button to switch to
the sensor on the indoor unit.
OFF
ON
HR.
1
10 OI-201-10EG

Using the Remote Control Unit
How to Install Batteries
1. Slide the cover in the direction
indicated by the arrow and remove
it.
2. Install two AAA alkaline batteries.
Make sure the batteries point in
the direction marked in the battery
compartment.
3. Use a thin object such as the tip of
a pen to press the ACL button.
NOTE •The batteries last about six months, depending on how much you use
the remote control unit. Replace the batteries when the remote control
unit’s display fails to light, or when the remote control cannot be used
to change the air conditioner’s settings.
•Use two fresh leak-proof type-AAA alkaline batteries.
•In replacing batteries, follow the instructions as mentioned in the
sub-section ‘‘How to Install Batteries’’.
•If you do not use the remote control unit more than 1 month, take out
the batteries.
How to Use the Remote
Control Unit
When using the remote control unit, always point the unit’s transmitter
head directly at the air conditioner’s receiver.
Remote Control Unit
Installation Position
The remote control unit may be operated either from a non-fixed position
or from a wall-mounted position. To ensure that the air conditioner operates
correctly, DO NOT install the remote control unit in the following places:
DO NOT •In direct sunlight
•Behind a curtain or other places where it is covered
•More than 26 ft. away from the air conditioner
•In the path of the air conditioner’s airstream
•Where it may become extremely hot or cold
•Where it may be subject to electrical or magnetic noise
•Where there is an obstacle between the remote control unit and air
conditioner (since a check signal is sent from the remote control unit
every 3 minutes)
ACL button
Air conditioner
(Indoor unit)
Remote control
unit
Receiver
(Transmitter head)
11OI-201-11EG

Using the Remote Control Unit (continued)

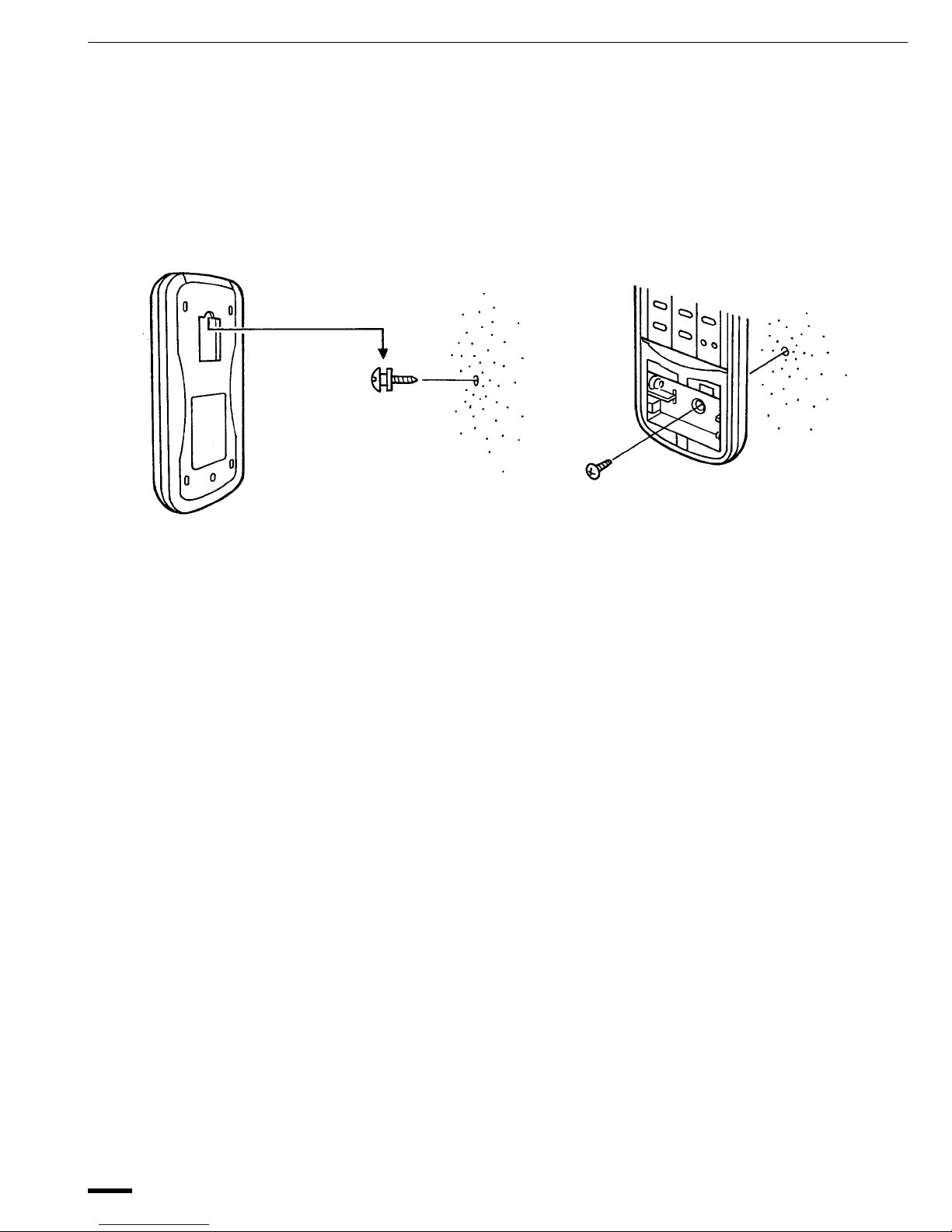

Mounting the Remote
Control Unit
Mounting on a wall A. Removable mounting
1) Momentarily hold the remote control unit at the desired mounting
position.
2) Confirm that the air conditioner responds correctly when you press
keys on the remote control from that position.
3) After confirming correct operation, use a screwdriver to screw the
mounting screw into the wall.
4) Hang the remote control unit from the mounting screw.
B. Non-removable mounting
1) Momentarily hold the remote control unit at the desired mounting
position.
2) Confirm that the air conditioner responds correctly when you press
keys on the remote control from that position.
3) After confirming correct operation, use a screwdriver to screw the
mounting screw into the wall.
4) Remove the batteries of the remote control unit.
5) Use a screwdriver to screw the remote control unit securing screw
into the wall through the hole in the battery compartment.
6) Replace the batteries.
7) Again confirm that the remote control unit operates correctly.
(Packed in the
indoor unit)
(Packed in the
indoor unit)
Removable mounting Non-removable mounting
Wall Wall
12 OI-201-12EG

Operation with the Remote
Control Unit
1. Operation
NOTE Check that the circuit breaker on the power panel is turned on and that the
operation selector of the indoor unit is in the ON position.
Press the setting buttons as described below and change the settings as
desired.
STEP 1 Set the MODE selector button to COOL.
For cooling operation →
STEP 2 To start the air conditioner, press the ON/OFF operation
button.
STEP 3 Press the TEMP. setting buttons to change the
temperature setting to the desired temperature.
Adjustable temperature range:
88 °F max.
60 °F min.
STEP 4 Set the FAN SPEED selector button to the setting you
want.
NOTE If the fan speed is set to (Automatic), the fan
speed switches automatically, according to the
difference between the actual room temperature and
the temperature setting.
STEP 5 Press the FLAP button and set the airflow direction as
desired.
(Refer to ‘‘Adjusting the Airflow Direction’’ on page 20.)
To stop the air conditioner, press the ON/OFF operation button again.
ON I /OFF
1HR.
TIMER TEMP.
MODE
FLAP
FAN SPEED
SELECT
HH TIMER
SELECT
MM
TIME SET
NIGHT
SETBACK
BATTERIES
ACL A/C
SENSOR
OFF ON
CLOCK
AIR CONDITIONER
HR.
1
A
1
AM
F
STEP 5
STEP 1
STEP 4
STEP 3
STEP 2
13OI-201-13EG

Operation with the Remote Control Unit (continued)
NOTE •Choose the best position in the room for the remote control unit, which
also acts as the sensor for room comfort and transmits the operating
instructions. Once you’ve found this best position, always keep the
remote control unit there.
•This appliance has a built-in 3-minute time delay circuit to ensure
reliable operation. When the operation button is pressed, the
compressor will start running within three minutes. In the event of
power failure, the unit will stop. When the power is restored, the unit
will restart automatically after three minutes.
2. Adjusting the
Fan Speed
A. Automatic Simply set the FAN SPEED selector to the position.
A microcomputer in the air conditioner automatically controls the fan speed
when the mode is selected. When the air conditioner starts operating,
the difference between the room temperature and the set temperature is
detected by the microcomputer which then automatically switches the fan
speed to the most suitable level.
Cooling mode:
When difference between room
temperature and set temperature is FAN SPEED
4 °F and over High
Between 4 °F and 2 °F Medium
Below 2 °F Low
NOTE The above table assumes that the sensor on the remote control is being
used. If the sensor on the indoor unit is being used (the indicator is on),
actual operation may differ slightly from the operation described in the
table.
(Refer to ‘‘A/C SENSOR button’’ on page 10.)
B. Manual If you want to adjust fan speed manually during operation, just set the FAN
SPEED selector as desired. [ ,,or ]
3. Fan Only
If you want to circulate air without any temperature control, follow these
steps:
STEP 1: Press the MODE selector button to switch to the fan mode.
()
STEP 2: Press the ON/OFF button.
STEP 3: Press the FAN SPEED button to select the fan speed of your choice
(,,or ).
ON I /OFF
MODE
FLAP
FAN SPEED
SELECT
HH TIMER
SELECT
MM
TIME SET
NIGHT
SETBACK
BATTERIES
ACL A/C
SENSOR
OFF ON
CLOCK
STEP 1
STEP 3
STEP 2
14 OI-201-14EG

Operation with the Remote Control Unit (continued)
4. Night Setback Mode
Night Setback Mode is used for saving energy.
Press the NIGHT SETBACK button while operation.
The mark appears in the display.
To release the night setback function, press the NIGHT SETBACK button
again.
NOTE The night setback mode cannot be used during automatic operation.
In Cooling Mode:
()
ON I /OFF
1HR.
TIMER TEMP.
MODE
FLAP
FAN SPEED
HH TIMER
SELECT
MM
NIGHT
SETBACK
OFF ON
CLOCK
AIR CONDITIONER
HR.
1
APM
F
When the night setback mode is selected, the air conditioner
automatically raises the temperature setting 2 °F when 30 minutes
have passed after the selection was made, and then another 2 °F after
another 30 minutes have passed, regardless of the indoor
temperature when night setback was selected. This enables you to
save energy without sacrificing comfort. This function is convenient
when gentle cooling is needed.
Setting
temperature
Press the
NIGHT SETBACK
button
2°F
2°F
30 min. 30 min.
Time
15OI-201-15EG

Special Remarks
Power failure
during operation
•In the event of power failure, the unit will stop. When the power is
resumed, the unit will restart automatically after three minutes.
Remote Control Unit •The remote control unit sends the setting condition to the air
conditioner regularly at three minute intervals.
16 OI-201-16EG

Setting the Timer
1. How to set the
present time
(Example) To set to 9:10 p.m.
2. How to set the
OFF time (Example) When air conditioner is running, turning it off at 11:30 p.m.
ON I /OFF
MODE
FLAP
FAN SPEED
SELECT
HH TIMER
SELECT
MM
TIME SET
NIGHT
SETBACK
BATTERIES
ACL A/C
SENSOR
OFF ON
CLOCK
PM
Operation Indication
1. Press the Program button ( OFF ON
CLOCK ) three
times.
The time indication alone
flashes.
2.
•Press the HH button until PM 9 is
displayed.
•Press the MM button until 10 is displayed.
The display will auto-
matically stop flashing
except for the ‘‘:’’ symbol
after 10 sec.
OFF
PM
1. Press the Program button ( OFF ON
CLOCK ) once. The timer OFF and
time indications flash.
2.
•Press the HH button until PM 11 is
displayed.
•Press the MM button until 30 is displayed.
The display will change
automatically back to
show the present time
after 10 sec.
3. Press the TIMER SELECT button once to
set OFF time.
The present time and
OFF are displayed.
17OI-201-17EG

Setting the Timer (continued)
3. How to set the ON time (Example) When air conditioner is off, starting operation at 7:10 a.m.
4. How to set a program
for daily ON/OFF
operation
(Example) When air conditioner is running, starting operation at 7:10 a.m.
and turning it off at 11:30 p.m.
NOTE You can check the timer ON/OFF times after you have set them by pressing
the Program button ( OFF ON
CLOCK ).
ON
AM
Operation Indication
1. Press the Program button ( OFF ON
CLOCK ) twice. The timer ON and time
indications flash.
2.
•Press the HH button until AM 7 is
displayed.
•Press the MM button until 10 is displayed.
The display will change
automatically back to show
the present time after 10
sec.
3. Press the TIMER SELECT button three
times to set ON time.
The present time and
ON are displayed.
4. Press the ON/OFF button to start the air
conditioner.
The present time is
displayed.
PM
1. Set the timer ON/OFF times as shown in
3.
2. Press the TIMER SELECT button twice to
set the ON/OFF combination timer.
is displayed.
18 OI-201-18EG

Using the 1-Hour OFF Timer
1. 1-Hour OFF Timer This function causes the unit to operate for one hour and then stop,
regardless of whether the unit is on or off when this button is pressed.
The HR.
1indicator in the display indicates that this function is operating.
Setting procedure:
Regardless of whether the unit is operating or stopped, press the 1 HR.
TIMER button.
HR.
1appears in the display.
Cancellation procedure:
Press the ON/OFF operation button to turn the unit off, wait for the unit to
stop operating, and then press the ON/OFF operation button again. The
1-Hour Timer function is now cancelled and the unit operates normally.
NOTE •If, while the 1-Hour Timer function is operating, the 1 HR. TIMER button
is pressed once to cancel the function and then again, the unit continues
to operate for one hour from that point in time and then stops.
2. Operation Together
with the Program
Timer
•The Program Timer and 1-Hour OFF Timer may be used together.
•It is not possible to use the OFF Timer and 1-Hour OFF Timer together.
Whichever function is set last takes precedence.
If the 1 HR. TIMER button is pressed while the TIMER OFF function
operates, the OFF Timer is cancelled and the unit will stop operating
one hour later.
HR.
1
ON I /OFF
1HR.
TIMER TEMP.
FLAP HH TIMER
19OI-201-19EG

Adjusting the Airflow Direction
A. Horizontal (Wall mounted type only)
The horizontal airflow can be adjusted by moving the vertical vane to the
left or right.
B. Vertical
Confirm that the remote control unit has been turned on. Press the FLAP
button to start the flap moving up and down ( ). If you want to stop the
flap movement and to direct the air in the desired direction, press the FLAP
button again. In the COOL mode, don’t direct the flap down more than 30 °
(KS, TS Types), or leave it in the vertical position (XS Type), otherwise
condensation may drip onto the floor. Zone ‘‘A’’ (KS, TS Type) and any
position other than vertical (XS Type) are the recommended flap positions
for cooling.
CAUTION Do not move the flap with your hands.
Operation without the Remote
Control Unit
If you have lost the remote control unit or it has trouble, follow the steps
below.
1. When the air conditioner is stopped.
If you want to turn on the air conditioner, switch the operation selector to
the OFF position, and then to the ON position.
NOTE The set temperature and fan speed are automatically set at the
last selection before stopping.
2. When the air conditioner is running.
If you want to turn off the air conditioner, switch the operation selector to
the OFF position.
Indoor unit
(Wall mounted type)
Zone
‘‘A’’
for
COOLING
Left
Vertical
vane
Right
30°
Flap
Air outlet
grille Down
Up
ON I /OFF
MODE
FLAP
FAN SPEED
SELECT
HH TIMER
SELECT
MM
TIME SET
NIGHT
SETBACK
BATTERIES
ACL A/C
SENSOR
OFF ON
CLOCK
INDOOR UNIT
Operation
selector
Flap
(Wall mounted type)
20 OI-201-20EG
