4
• Breathing smoke, fumes, or dusts produced in applications such as welding, cutting, grinding, painting, deburring
are hazardous to user’s health. Proper ventilation or use of well maintained fume extraction and/or dust collection
equipment helps the user avoid these hazards.
• Breathable contaminants may not be visible or have an odor.
• Stop operation and leave the area immediately if 1) breathing becomes dicult, 2) experience dizziness,
impaired vision, 4) or eye/nose/mouth irritation.
• Improper use can be hazardous.
• All users must carefully read and understand this instruction manual prior to use
• No objects, such as tools, should be placed on the machine.
• When moving machine, care should be taken to ensure the users feet remain clear of the wheels.
• Machine weights 287 lbs without a capture arm, proper care should be taken when moving.
• Motor should not contact any objects, and all motor repairs should be performed while the power switch is o
and the power source is disconnected. Operator should not touch motor during use.
• Blower assembly should not contact any objects, and all blower repairs should be performed while the power
switch is o and the power source is disconnected. Operator should not touch blower during use.
• For maintenance of any and all components, power switch must be o and the power source disconnected
• It is your responsibility to follow all applicable ANSI, OSHA, UL, CSA, National & Local Fire Codes, and other
regulatory guidelines covering the safe use of equipment that extracts fumes, collects dusts, and exhausts
ltered air either indoors or outdoors.
• Before use, inspect the unit for damage and verify it is working properly.
• Only qualied persons should install, operate, maintain, or repair this unit.
• Do not modify or repair the unit with parts or accessories not supplied by the manufacturer.
• Consult lter manufacturer’s instructions for lter use and reuse, including instructions for cleaning.
1.1 Symbols
1.2 Users Responsability
1.3 Fume Extraction Hazards
HOT
PARTS
MOVING
PARTS
ELECTRIC
SHOCK
WARNING!
DANGER!
This manual uses
several symbols to
highlight specic
hazards. Be familiar
with these symbols and
when you see them in
this manual, read
adjoining warning text
to avoid the hazard.
SECTION 1 - SAFETY PRECAUTIONS OF FUME & DUST EXTRACTION/COLLECTION
DO
NOT
USE
READ
BEFORE
USE
This manual contains specic cautionary statements related to worker safety.
To protect yourself and others, read this manual thoroughly and follow as directed
before use. Not all hazards of fume & dust control are listed in this manual, and
no hazards related to welding, cutting, grinding, painting, deburring
or other applications are listed. Consult a qualied safety professional.
Do not use this equipment:
• To extract combustible dusts, liquid vapors, aggressive fumes such as acids.
• To extract smoke or fumes above 180°F / 82°C.
• If the power cord has been damaged or ground (third prong) removed.
• Without a lter.

5
• Dusts from many metalwork, welding, cutting, grinding, painting, or deburring applications can be combustible.
• Do not use or install equipment where any potential for combustible fumes or dusts are present, until a
qualied person has indicated it is safe to do so.
• Never use or install equipment where the potential for combustible fumes or dusts are present without a
re/explosion protection system.
• If you are unsure if the product you purchased is correct for your application, call AirSTORM at 1-888-256-7359.
1.4 Dust Collection Hazards
1.5 Safety Stickers
• This machine is equipped with safety stickers to remind operators of the inherent dangers during use and maintenance.
• The stickers are only reminders, and all safety precautions contained in this manual must be well understood
and adhered to by all users.
• See APPENDIX 6: Sample Safety Stickers for example of stickers applied to machine.
SECTION 2 - SPECIFICATIONS
2.1 Diagram & Description

6
For information on inspecting and cleaning lter, or purchasing replacement lters, contact AirSTORM at 1-888-256-7359
2.4 Filter Specications
2.2 Product Specications
2.3 Arm Specications
Part # 11348238 11348237
Arm Length (ft.) 6 10
Motor (H.P.) 1.5 1.5
RPM 1750 1750
Power Phase (hz) 1P/60Hz 1P/60Hz
@120V (amps) 13.2 13.2
Airow 800 800
Cord Length (ft.) 15 15
Arm dimensions (LxD) 6’x6’ 10’x6’
Product dimensions
(WxHxL) 23”x34”x35” 23”x34”x35”
Net Weight (lbs.) 287 322
Replacement
Part #
Arm
Length
(ft.)
Net
Weight
(lbs.)
11348240 630
11348239 10 36
Part # 11348241
Eciency Merv 15
Filter media Nanober
Media area 128 Sq.ft.
Coating Fire retardant
End cap Open/closed
Cleaning method Compressed air only
Max temp 82 °C / 180 °F
Flange None

!
7
3.1 To Setup or Install Safely
• Do not place unit near ammables or combustible surface.
• Refer to SECTION 2: Specications, to know the electrical requirements of the unit
you are installing and ensure adequate input power that is properly sized, rated, and
protected.
• This unit must be grounded for safe operation.
3.2 Un-Packaging

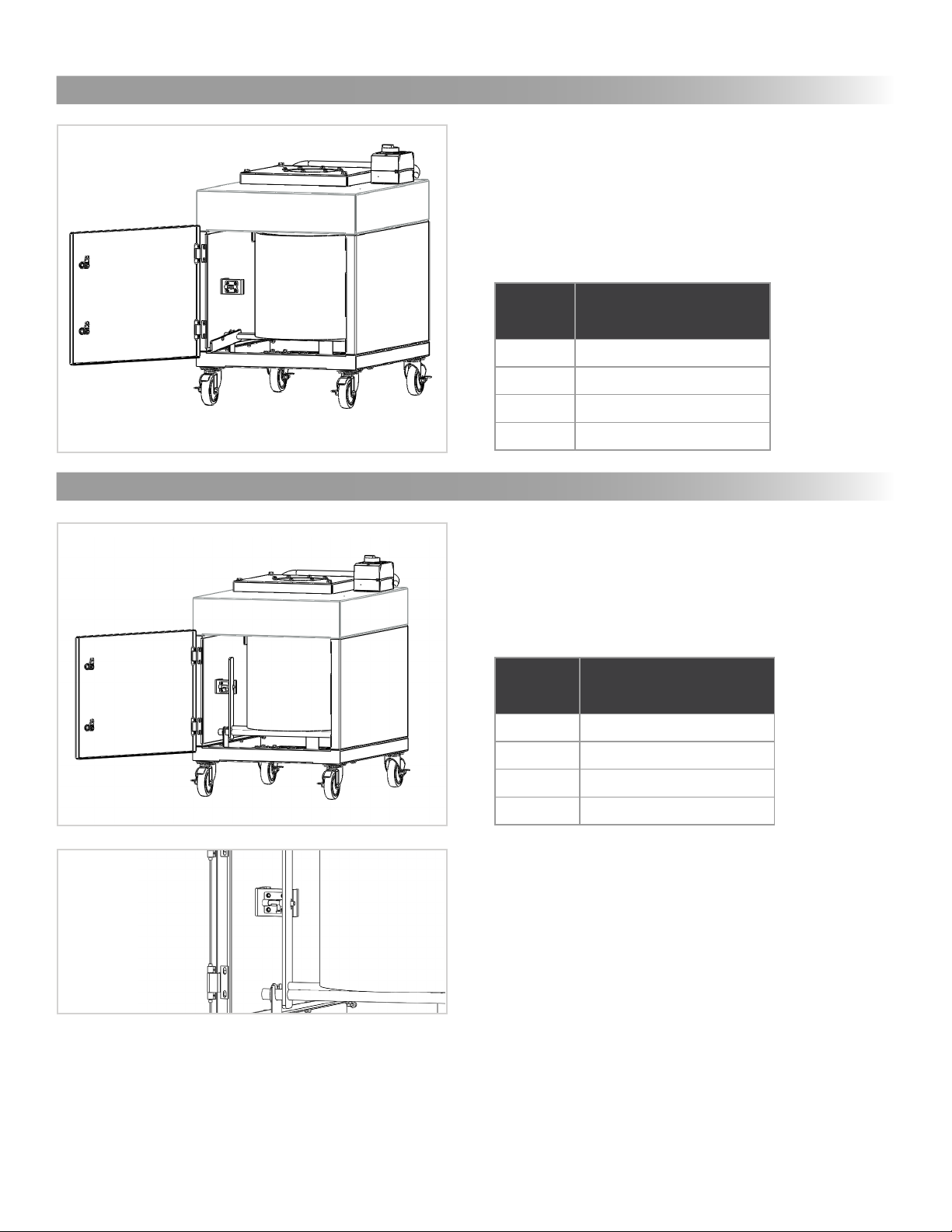

3.4 Mounting Options
• Arm-To-Blower Direct Installation: Follow guidelines in APPENDIX 3: Arm-to-Blower Direct Installation.
3.5 Electrical Options
SECTION 3 - PRE-INSTALLATION
1. Immediately upon receiving the unit, carefully examine the carton for damage during transit.
2. Use lift forks or truck to move
3. Remove packing material.
4. Avoid tipping or inverting during handling.
5. The item serial number, model, and electrical ratings are listed on the nameplate. Record this information in
the Maintenance Record provided in APPENDIX 2: Maintenance Record, or your own preventative maintenance system.
• Single-Phase Unit: See APPENDIX 1A: Electrical Diagram [120 VAC] Single-Phase Power for wiring
instructions. Have a certied electrician install unit according to local regulations.
3.3 Tools Required
1. 7/16 Socket or Wrench
2. 9/16 Socket or Wrench
3. Torque Wrench
The tools above are required for unit assembly.

!
8
4.2 Controls
• Read and understand SECTION 1: Safety Precautions and SECTION 4: Operation
before use
• Read and understand all Material Safety Data Sheets and Manufacturer’s instructions of all
process materials, consumables, and equipment used in conjunction with this equipment.
• Keep away from all mechanical moving parts including motor, gears, and other pinch points.
• Do not use product without rst conrming if a Spark Arrestor is required and installed for
the type of dust, or fumes you are extracting and/or collection. If you are unsure, call a
AirSTORM representative at 1-888-256-7359
4.1 To Operate Safely
SECTION 4 - OPERATION
• Read and understand SECTION 1: Safety Precautions and ensure SECTION 3: Pre-Installation has been
followed.
• Before plugging unit in to an input power source, look at the manufacturer’s label located on the exterior of the
unit and ensure the source is correctly sized in terms of Voltage and Amperes.
• Prior to use in your application, turn the unit ON, and perform a function test. To do so:
1. LOOK: Have the front and back doors been closed properly.
2. Turn switch to ON position.
3. LOOK: Is the unit level, stable, and that nothing is obstructing the extraction path.
4. LISTEN: Does the motor and suction sound smooth and within expected volumes.
5. FEEL: Place your hand on top of the unit and sense for unexpected vibration. Place you hand in front of
the intake hood/surface and sense for expected level(s) of suction.
• Inform all potential users of this equipment where they may nd and review this manual.
4.3 Pre-Use Checklist
• The machine controls are basic, and consist solely of a power switch with ON
and OFF positions.

9
4.4 Principles of Operation
This product is designed to capture and clean smoke and dust from medium & heavy duty welding, soldering, and
grinding applications. When operating, air is drawn in to the nozzle, passes through the 6” diameter hose, then
through the air cleaner’s ltration system, and is exhausted through the rear discharge.
This product consists of four basic components:
1. Capture Arm(s)
2. A blower
3. Cartridge Filter
4. Motor & Electrical assemblies
• The operator is to positon the machine within operating distance, and activate the caster wheel brakes.
• The operator can then position the capture arm close enough to the worksite to capture all dust and fumes that
will be produced.
• Ensuring that all safety procedures have been followed, the operator can turn on the machine and begin working.
• When not in use, the machine should be turned o.
4.5 Failure Event
If, for some reason, during operation there is an accident, a blockage occurs, the Minihelic displays abnormal pressure
dierences, or the machine begins to act abnormally, the operator should immediately shut o the machine. This is
considered a machine failure and the following steps should be taken:
1. Turn the power switch to the OFF position.
3. Seek medical attention if an accident occurred.
4. Follow the guidelines in SECTION 5: Maintenance and Troubleshooting.
Remember, under no circumstance should the machine be turned back on while performing maintenance.

!
!
!
10
SECTION 5 - MAINTENANCE & TROUBLESHOOTING
5.1 To Maintain this Product Safely
5.2 Tools Required
EYE
PROTECTION RESPIRATOR GLOVES
WASTE
CONTAINER
REPLACEMENT
FILTER
(if required)
• Read and understand SECTION 1: Safety Precautions and SECTION 4: Operation be-
fore maintenance.
• Do not breathe the dust collected from product while changing/cleaning lters or performing
maintenance on this product.
• Disconnect power before performing any maintenance on unit, including lter inspection. The
input power to this unit is high voltage, and touching any live electrical parts can cause fatal
shocks or severe burns. Do not touch live electrical parts.
• Keep away from all mechanical moving parts including motor, gears, and other pinch points
while operating.
• Operating this unit causes some parts to heat to a point that will burn bare hands. Before
maintenance allow parts to cool, or use proper tools and personal protection equipment
during maintenance.
