AirTight W-68 User manual

Installation Guide
W-68 Access Point/Sensor

This page is intentionally left blank.

W-68 Installation Guide 1
END USER LICENSE AGREEMENT
Please read the End User LicenseAgreement before installing the W-68Access Point/Sensor. The End User
License Agreement is available at the following location http://www.airtightnetworks.com/fileadmin/pdf/AirTight-
EULA.pdf.
Installing the W-68Access Point constitutes your acceptance of the terms and conditions of the End User License
Agreement.
DISCLAIMER
THE INFORMATION IN THIS GUIDE IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
AIRTIGHT®NETWORKS, INC. IS NOT LIABLE FORANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT.
THIS PRODUCT HAS THE CAPABILITY TO BLOCK WIRELESS TRANSMISSIONS FOR THE PURPOSE OF
PROTECTING YOUR NETWORK FROM MALICIOUS WIRELESS ACTIVITY. BASED ON THE POLICY
SETTINGS, YOU HAVE THE ABILITY TO SELECT WHICH WIRELESS TRANSMISSIONS ARE BLOCKED AND,
THEREFORE, THE CAPABILITY TO BLOCK AN EXTERNAL WIRELESS TRANSMISSION. IF IMPROPERLY
USED, YOUR USAGE OF THIS PRODUCT MAY VIOLATE US FCC PART 15 AND OTHER LAWS. BUYER
ACKNOWLEDGES THE LEGAL RESTRICTIONS ON USAGE AND UNDERSTANDS AND WILL COMPLY WITH
US FCC RESTRICTIONS AS WELLAS OTHER GOVERNMENT REGULATIONS. AIRTIGHT IS NOT
RESPONSIBLE FOR ANY WIRELESS INTERFERENCE CAUSED BY YOUR USE OF THE PRODUCT.
AIRTIGHT NETWORKS, INC. AND ITS AUTHORIZED RESELLERS OR DISTRIBUTORS WILLASSUME NO
LIABILITY FOR ANY DAMAGE OR VIOLATION OF GOVERNMENT REGULATIONS ARISING FROM YOUR
USAGE OF THE PRODUCT, EXCEPTAS EXPRESSLY DEFINED IN THE INDEMNITY SECTION OF THIS
DOCUMENT.
LIMITATION OF LIABILITY
AirTight Networks will not be liable to customer or any other party for any indirect, incidental, special,
consequential, exemplary, or reliance damages arising out of or related to the use of AirTight Wi-Fi, AirTight WIPS,
AirTight Cloud Services, and AirTight devices under any legal theory, including but not limited to lost profits, lost
data, or business interruption, even ifAirTight Networks knows of or should have known of the possibility of such
damages. Regardless of the cause of action or the form of action, the total cumulative liability of AirTight Networks
for actual damages arising out of or related to the use of AirTight Wi-Fi, AirTight WIPS, AirTight Cloud Services or
AirTight devices will not exceed the respective price paid for AirTight Wi-Fi, AirTight WIPS, AirTight Cloud Services,
or AirTight devices.
Copyright © 2015 AirTight®Networks, Inc. All Rights Reserved.
Powered by Marker PacketTM, Active ClassificationTM, Live EventsTM, VLAN Policy MappingTM, Smart ForensicsTM,
WEPGuardTM and WPAGuardTM. AirTight Networks and the AirTight Networks logo are trademarks and AirTight is
a registered trademark of AirTight Networks, Inc.
This product contains components from Open Source software. These components are governed by the terms
and conditions of the GNU Public License. To read these terms and conditions visit
http://www.gnu.org/copyleft/gpl.html.
Protected by one or more of U.S. patent Nos. 7,002,943; 7,154,874; 7,216,365; 7,333,800; 7,333,481; 7,339,914;
7,406,320; 7,440,434; 7,447,184; 7,496,094; 7,536,723; 7,558,253; 7,710,933; 7,751,393; 7,764,648; 7,804,808;
7,856,209; 7,856,656; 7,970,894; 7,971,253; 8,032,939; and international patents:AU 200429804; GB 2410154;
JP 4639195; DE 60 2004 038 621.9; and GB/NL/FR/SE 1976227. More patents pending. For more information on
patents, please visit: www.airtightnetworks.com/patents.

W-68 Installation Guide 2
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FOR MOBILE DEVICE USAGE (>20cm/lowpower) Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and your
body.
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
Note: The country code selection is for non-US models only and is not available to all US models. Per FCC
regulations, all Wi-Fi products marketed in the US must be fixed to US operation channels only.

W-68 Installation Guide 3
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ce dispositif est conforme a la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de
licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositifne doit pas produire de
brouillage prejudiciable, et (2) ce dispositif doit accepter tout brouillage re , y compris un brouillage susceptible
de provoquer un fonctionnement indesirable.
CAUTION
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
AVERTISSEMENT
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont reserves uniquement pour une utilisation a
l’interieur afin de reduire les risques de brouillage prejudiciable aux systemes de satellites mobiles utilisant les
memes canaux;
(ii) De plus, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance sont
designes utilisateurs principaux (c.-a-d., qu’ils ont la priorite) pour les bandes 5250-5350 MHz et 5650-5850
MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
FOR MOBILE DEVICE USAGE (>20cm/low power)
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance 20cm between the radiator and your
body.
Declaration d’exposition aux radiations
Cet equipement est conforme aux limites d’exposition aux rayonnements IC etablies pour un environnement
non controle. Cet equipement doit @tre installe et utilise avec un minimum de 20 cm de distance entre la
source de rayonnement et votre cmps.

W-68 Installation Guide 4
About this Guide
This installation guide explains how to mount the W-68 access point (AP)/sensor and the various configuration
details.
Important! Please read the EULA before installing the W-68. Installation constitutes your acceptance of the
terms and conditions of the EULA mentioned above in this document.
Intended Audience
This guide can be referred by anyone who wants to install and configure the W-68 access point.
Document Overview
This guide contains the following chapters:
1. Package Contents
2. W-68 Overview
3. Installing the W-68
4. Manually Configuring W-68
5. Config Shell Commands
6. Troubleshooting
Note: All instances of the term ‘server’ in this document refer to the AirTight Wi-Fi / AirTight WIPS server,
unless the server name or type is explicitly stated.
Product and Documentation Updates
To receive important news on product updates, please visit our website at http://www.airtightnetworks.com.
We continuously enhance our product documentation based on customer feedback. To obtain the latest copy of
this document, visit http://www.airtightnetworks.com/home/support.html.
Contact Information
AirTight® Networks, Inc.
339 N, Bernardo Avenue, Suite #200,
Mountain View, CA 94043
Tel: [phone]
Fax: [phone]
For technical support, send an email to [e-mail].

W-68 Installation Guide 5
1. Package Contents
Please ensure that the items shown in Figure 1-1 are included in the W-68 device package:
Figure 1-1 W-68 Package Contents
Note: The MAC address of the device is printed on a label at the bottom of the product and the packaging box.
Note down the MAC address, before mounting the device on the ceiling or at a location that is difficult to access.
If the package is not complete, please contact AirTight®Networks, Inc. technical support at
[e-mail], or return the package to the vendor or dealer where you purchased the product.
IMPORTANT! The device is intended for industry/enterprise/commercial use only. The device cannot be sold
retail, to the general public or by mail order. It must be sold to dealers or have strict marketing control.

W-68 Installation Guide 6
2. W-68 Overview
W-68 is a 2x2 802.11a/b/g/n/ac access point/sensor. This chapter provides an overview of the W-68 and
describes the side and the rear panels.
The left panel of the W-68 has 7 LEDs that indicate the working of the device.
Figure 2-1 Left Panel of W-68
The following table indicates the device states based on the LEDs.
Table 2-1 LED Details for W-68 in the AP/Sensor mode
Power WLAN
2.4/5 GHz Uplink LAN1, LAN2, LAN3, LAN4 Description
Solid
Green Any Solid Green On/Off The AP is receiving power and is working normally. The AP is connected to the server.
Solid
Green Slow Blink Orange Slow Blink Green On/Off The AP upgrade is in progress.
Solid
Green Any Off On/Off The AP is unable to get Ethernet link.
Solid
Green Any Fast Blink Green
On/Off The AP did not receive a valid IP address via the
DHCP.
Solid
Green Any Slow Blink Green On/Off The AP is unable to connect to the server.
Off Off Off Off The AP is not powered on or it is in the process of
starting up.
Note: LAN1, 2, 3, 4 is ON if the link is up, and is OFF if the link is down on the respective LAN ports.
The 2.4 GHz /5 GHz LED blinks when there is activity on either of the radios.
The rear panel of the W-68 has an Ethernet port labelled LAN1, that enables you to connect the device to a wired

W-68 Installation Guide 7
LAN through a switch or a hub and provides the power for the device by using the 802.3af standard.
Figure 2-2 Rear Panel of W-68
Table 2-2 Rear Panel Port Settings for W-68
Port Description Connector
Type Speed/Protocol
Pass-through port
This is a wired port that facilitates
extension of the wired network after the
AP is mounted on the wall. Another
device can be plugged in to the pass-
through port on the right side of the W-68
device. The traffic on the pass-through
port does not interfere with the AP traffic.
No policies can be applied on the pass-
through port traffic.
RJ45 -
Uplink (PoE) port
Enables you to connect the device to a
wired LAN through a switch or a hub. The
device can then communicate with the
server. This port also provides the power
for the device using the 802.3af standard
RJ45
10/100/1000 Mbps
Ethernet
Power over Ethernet

W-68 Installation Guide 8
Figure 2-3 Right side of W-68
The right side of the W-68 device has the following
Power Receptacle: The power receptacle enables the user to power on the device using 48 V DC power
adapter.
Reset Pin Hole: The Reset Pin Hole is on the right side of the device as shown in the figure above. The
Reset Pin Hole resets the W-68 device to factory defaults. To reset the device, power cycle the device
(remove the power cable once and connect it back again) and while plugging the power cable back into
the power source, press and hold down the Reset Pin Hole for 45 seconds until the power, WAN, 2.4/5
GHz LEDs go green,amber respectively. Pressing the Reset Pin Hole while the device is running will not
have any effect. When you reset the device, the following settings are reset:
oConfig shell password is reset to config.
oServer discovery value is erased and changed to the default, wifi-security-server.
oAll the VLAN configurations are lost.
oDevice mode is changed to Sensor Only.
oIf static IP is configured on the device, the IP address is erased and DHCP mode is set.
After reset, all the LEDs will blink once, indicating that the reset is successful, and the system boot
sequence is initiated.
Pass-through Port: The pass-through port is used to plug in a device into another wired port that is
available on the wall where the AP is installed. The pass-through port at the rear of the device and pass-
through port on the right side of the device are internally connected.

W-68 Installation Guide 9
Figure 2-4 Bottom Panel of W-68
Table 2-3 Bottom Panel Ports for W-68
Port Description Connector Type Speed/Protocol
LAN 1
LAN 2
LAN 3
LAN 4
Enables you to connect a device to a wired LAN
through a switch or a hub. The device can then
communicate with the server.
The LAN 4 port can provide power for a device
connected to it using the 802.3af standard, only if
the W-68 access point is powered by an 802.3at
power supply.
RJ-45 10/100/1000 Mbps Gigabit
Ethernet

W-68 Installation Guide 10
3. Installing the W-68
When the W-68 functions as a WIPS sensor, it monitors your network and communicates with the server to guard
your corporate network against over-the-air attacks.
Clients can connect to your corporate network in wireless mode through the W-68 AP(s).
The W-68 must be plugged into your corporate network to perform the above-mentioned operation.
As a WIPS sensor, W-68 can be configured in one of the following two modes:
Sensor Mode: This is the default mode. In this mode, the device can be connected to a trunk port
(802.1Q capable) on a switch. The device then monitors the VLANs that are configured on that trunk port
and are chosen by the user. In this mode, the W-68 can monitor up to 16 VLANs. The wireless interface
of the sensor is enabled for WIPS operations.
Network Detector (ND) Mode: This mode needs to be explicitly configured. In this mode, the device can
be connected to a trunk port (802.1Q capable) on a switch. The device then monitors the VLANS that are
configured on that trunk port and are chosen by the user. In this mode, the W-68 can monitor up to 100
VLANs. The wireless interface of the ND is disabled.
Important: To prevent disconnection or tampering by unauthorized personnel, it is extremely important to install
the device such that it is difficult to unplug the device from the network or from the power outlet.
Zero-Configuration of W-68 as Sensor
Zero-configuration is supported under the following conditions:
The device is in sensor mode.
A DNS entry wifi-security-server is set up on all the DNS servers. This entry should point to the IP
address of the server. By default, the device looks for the DNS entry wifi-security-server.
The device is placed on a subnet that is DHCP enabled.
Important: If the device is placed on a network segment that is separated from the server by a firewall, you must
first open port 3851 for User Datagram Protocol (UDP) and Transport Control Protocol (TCP) bidirectional traffic
on that firewall. This port number is assigned to AirTight®Networks. If multiple devices are set up to connect to
multiple servers, zero-configuration is not possible. In this case, you must manually configure the sensors. Refer
to Manually Configuring W-68 for further details.
The steps to install the device with no configuration (zero-configuration) are as follows.
1. Mount the device
2. Power on the device.
3. Connect the device to the network.
Connecting W-68
This involves mounting the W-68, powering on the device, and connecting it to the wired network.
Mount W-68
Take a configured W-68, that is, ensure that a static IP is assigned to the device or the settings have been
changed for DHCP. Note the MAC address and the IP address of the device in a safe place before it is installed in
its appropriate location. The MAC address of the device is printed on a label at the rear side of the product.
Recommended: You should label the devices using MAC addresses or at least your own convention. For
example, use serial numbers, so that you can easily identify the devices.

W-68 Installation Guide 11
Wall Mounting
Use the mounting bracket to install the W-68 on the wall. To mount the device:
1. Attach the mounting bracket to the wall by using the mounting hardware kit.
.
2. Plug the Ethernet cable and, optionally, a pass-through cable, if any, into the Uplink port and the
pass-through port respectively.

W-68 Installation Guide 12
Alternatively, you could seat an 8-wire Ethernet cable with a punch-down tool into the punch-down block provided
at the rear of the W-68 device. The upper punch-down block is for the uplink or PoE.The lower punch-down block
is for the pass-through port.
An 8-pin Ethernet cable has four pairs of color-coded wires.
The following image and table explain the color codes of the wires the 8-pin Ethernet cable in detail.
PIN# Wire Color
1 White/orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
The following image illustrates two cables, one punched down into the uplink punch-down block and the other into
the pass-through punch-down block.

W-68 Installation Guide 13

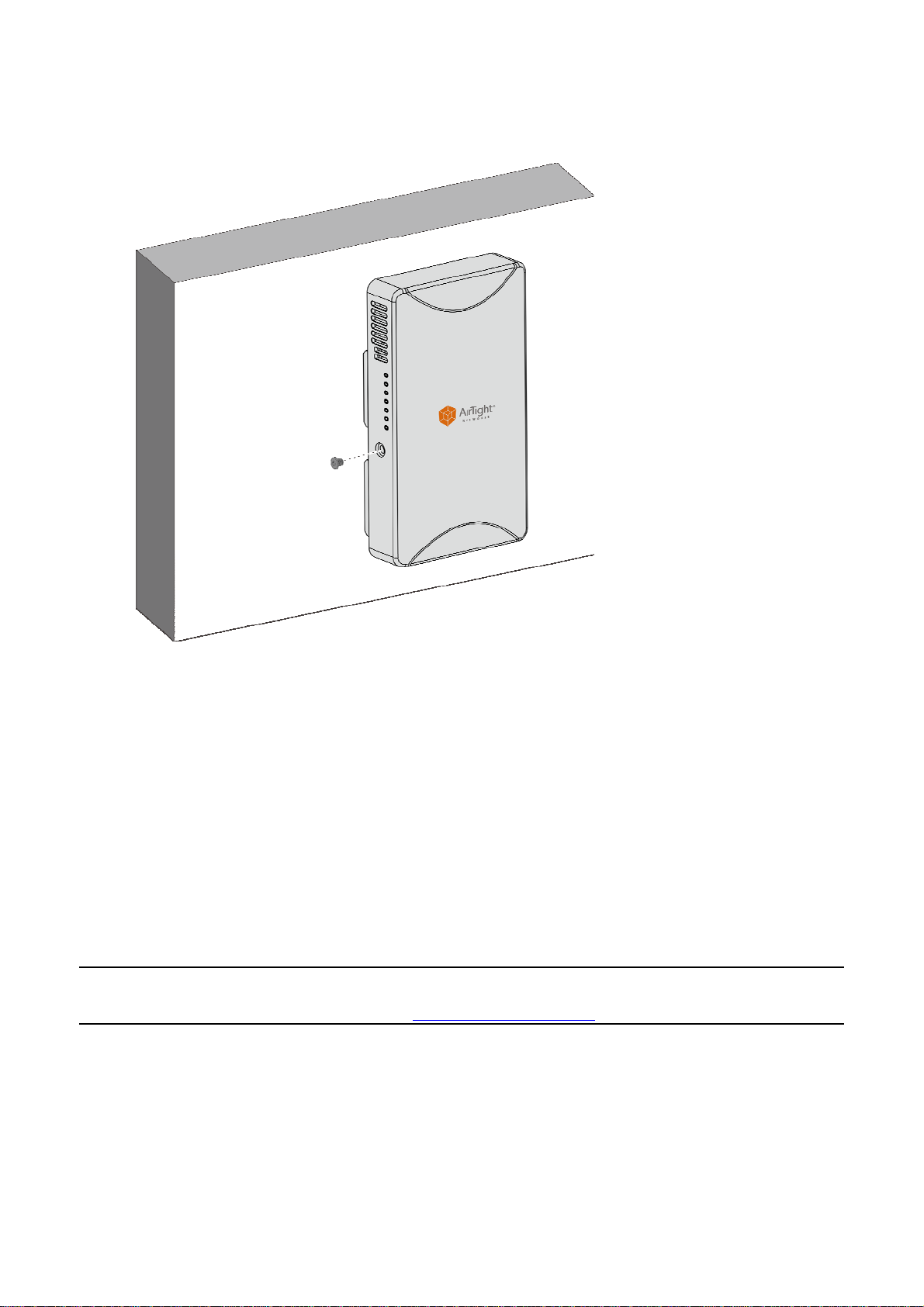

3. Insert the provided short screw into the side of the W-68 device.
4. The device is ready for use.
Power on W-68
A W-68 device can be powered on by 802.3af Class 0 Power Over Ethernet (PoE) of Nominal input voltage 48V
DC. You can connect the device to the network using PoE or a power adapter.
Connect W-68 to the Network
To connect W-68 to the network, perform the following steps.
1. Ensure that a DHCP server is already available on the network to enable network configuration of the W-
68.
2. Add the DNS entry wifi-security-server on all DNS servers. This entry should point to the IP address of
the server.
3. Ensure that DHCP is running on the subnet to which the device will be connected.
Important: If DHCP is not enabled on a subnet, the device cannot connect to that subnet with zero-configuration.
If the DNS entry is not present on the DNS servers or you do not have the DHCP server running on the subnet,
you must manually configure the device. Refer to Manually Configuring W-68 for further details.
Using W-68 with PoE
To power on and connect W-68 to the network using PoE, do the following:
1. Connect one end of the network interface cable to the Ethernet port at the rear of the W-68.
2. Connect the other end of the network interface cable to the Ethernet jack that provides PoE power.

W-68 Installation Guide 14

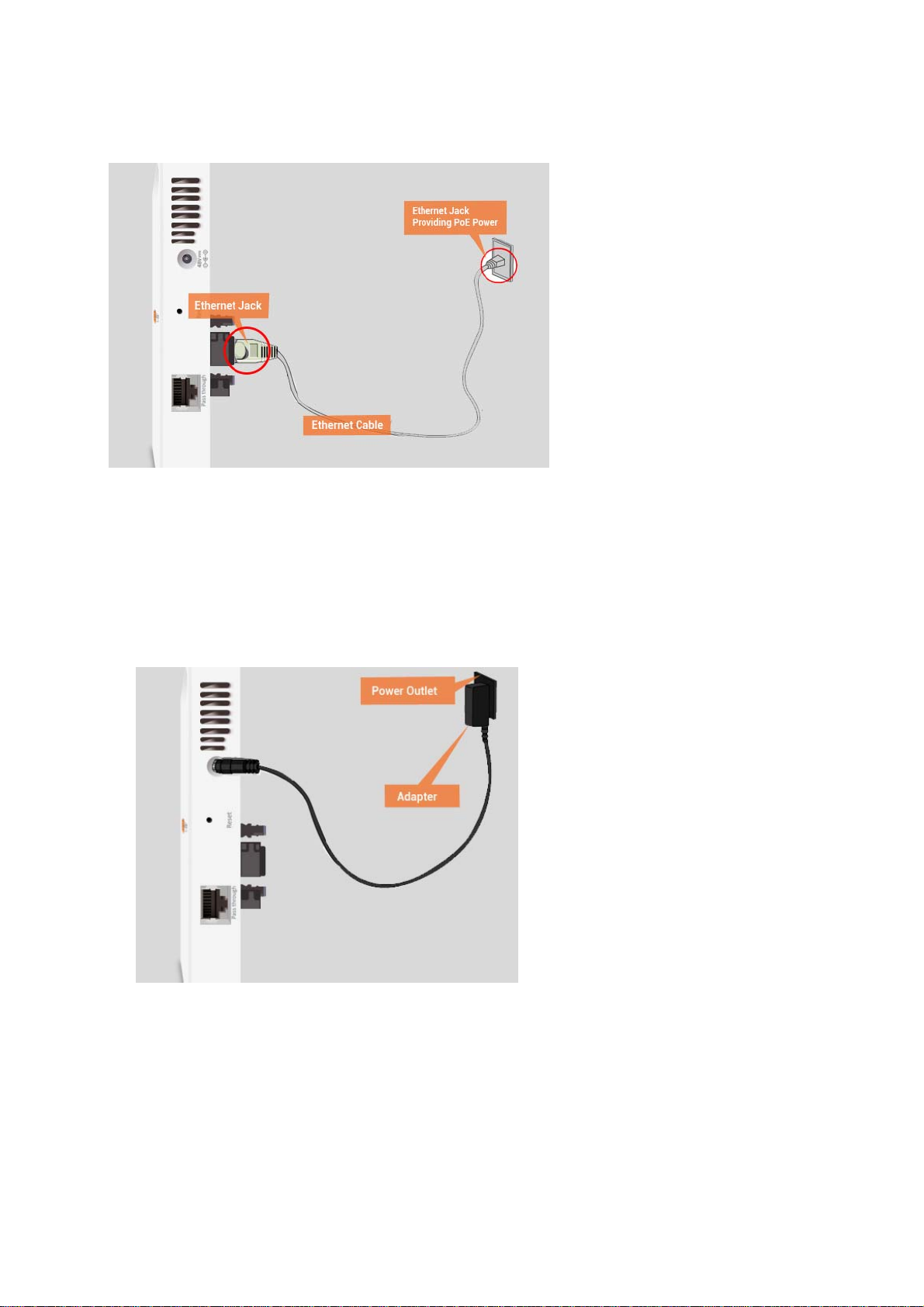

Figure 3-1 Power Up and Connect W-68 using PoE
Using W-68 with power adapter
To power up the device, perform the following steps:
1. Plug the power cable into the DC power receptacle at the rear of the device.
2. Plug the other end of the power cable into an 110V~240V 50/60 Hz AC power source.
Wait until the device is ready. Refer to the respective LED details table based on the configured device
mode.
Figure 3-2 Power Up W-68
To connect W-68 to the network, perform the following steps:
1. Ensure that a DHCP server is available on the network to provide network configuration to the W-68.
2. Connect one end of the network interface cable to the Ethernet port at the rear of the W-68.
3. Connect the other end of the network interface cable to an Ethernet jack on the desired subnet.
Wait until the device is ready (approx. 10 minutes).

W-68 Installation Guide 15
Figure 3-3. Connect W-68 to network
4. Check the status LEDs on the device. If all LEDs have a solid color glow, then the device is operational
and connected to the server.
5. Log on to the server through SSH and run the get sensor list command.
You would see a list of all AirTight devices that are recognized by the server. AirTight Cloud Services
users can go to the Devices tab and check whether the device is visible under the Devices tab.
The device is configured and ready to go operational.
Note: If the zero configuration is not successful, the device must be configured manually. Refer to Manually
Configuring W-68 for details.
IMPORTANT! The device is subject to professional installation only.Additionally, if the device is being installed in
outdoor environment in the US region, the device template must be appropriately configured and applied on the
device by using the AirTight Management Console. You must ensure that the frequencies designated for indoor
use are not configured in the device template applied on any device installed in an outdoor environment.

W-68 Installation Guide 16
4. Manually Configuring W-68
Important: If the installation in the previous chapter was successful, stop! You do not need to configure the
device manually.
Introduction
Manual configuration of W-68 is typically required in the following cases:
Devices cannot connect to the server through zero-configuration.
Device needs to be configured in the ND mode.
Sensor Only (SO) devices cannot connect to the server through zero-configuration. The DNS entry for the
server has been changed to an entry other than wifi-security-server or a DNS server is not present in
the network. This is applicable for multi-server installations.
Device is placed on a subnet that is not DHCP enabled.
Configuring AP through Config Shell
The Config Shell supports a pre-defined set of commands used to configure the W-68 device. Log in to the device
console using the SSH shell.
The steps to configure the device manually through the SSH shell are as follows:
1. Log in and change the default password
2. Set Server Discovery
3. Set Sensor Mode
4. Configure Network Settings
Log in and Change the Default Password
Log in to the Config Shell using the user name config and password config. Change the default password using
the passwd command. You can change the device password using device templates. Refer to Manage Device
Template section under the AirTight Management Console Configuration chapter, in the AirTight Management
Console User’s Guide for more details.
Recommended:Although not mandatory, as a best practice we recommend that you change the default password.

W-68 Installation Guide 17
Set Server Discovery
The next step is to set the server discovery information. The following are the types of server discovery:
Server IP based discovery (preferred)
Service Location Protocol (SLP) based discovery (if wifi-security-server service has been configured)
Use the set server discovery command to point the AP device to the correct server.
Figure 4-1 The set server discovery Command
Note: If IP address/ host name based discovery is being used and more than one server is present on the network,
then you must enter the IP address of the appropriate server.
Set Sensor Mode
The next step is to set the mode of the sensor. There are two possible modes:
Sensor Mode: This is the default mode. In this mode, the device can be connected to a trunk port
(802.1Q capable) on a switch. The device then monitors multiple VLANs that are configured on that trunk
port and are chosen by the user. The wireless interface of the sensor is enabled. In this mode, a W-68
can monitor up to 16 VLANs.
ND Mode: This mode needs to be explicitly configured. In this mode, the device can be connected to a
trunk port (802.1Q capable) on a switch. It then monitors multiple VLANs that are configured on that trunk
port and are chosen by the user. The wireless interface of the ND is disabled. In this mode, a W-68
functioning as a WIPS sensor can detect and monitor up to 100 VLANs.
Use the set mode command to set the device mode for W-68.
Figure 4-2 The set mode Command for W-68

W-68 Installation Guide 18
Configure Network Settings
After the mode is set, you have to configure the network settings. For the Network Detector/Sensor mode, use the
set vlan config command to configure the IP addresses on the ND.
With the set vlan config command, you can do the following.
Add /modify VLAN settings to be configured with DHCP.
Add/modify VLAN settings to be configured with a static IP address.
Set communication VLAN.
To configure VLANs, do the following.
1. Type the set vlan config command to configure all the VLANs.
2. Choose option 1to configure VLANs for DHCP and option 2to configure VLANs with static IP address.
The device will restart / reboot after the VLAN configuration.
To configure VLANs with DHCP, you must provide comma-separated VLAN IDs.
