AKA AK552017UHDS User manual

55’’ UHD SMART
WITH ANDROID TVTM
Model Number: AK552017UHDS
INSTRUCTION MANUAL

2
Congratulations on choosing to buy an AKAI product.
All products brought to you by AKAI are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 1 Year
Warranty.
We hope you will enjoy using your purchase for many years to come.
Welcome
NOV 2017

3
Contents
Welcome 2
Remote Control 4
Important Safety Instructions 9
Installation 14
Controls and Connections 17
Getting Started 25
Basic Operations 28
Electronic Program Guide (EPG) 30
Recording 31
Media Playback 34
Smart TV 37
Menu Settings 42
FAQs 49
Specifications 51
Other Useful Information 52

4
Remote Control
Connect the USB RF receiver dongle
(included with Remote Control) to USB
1 or USB 2 port before using the remote
control.

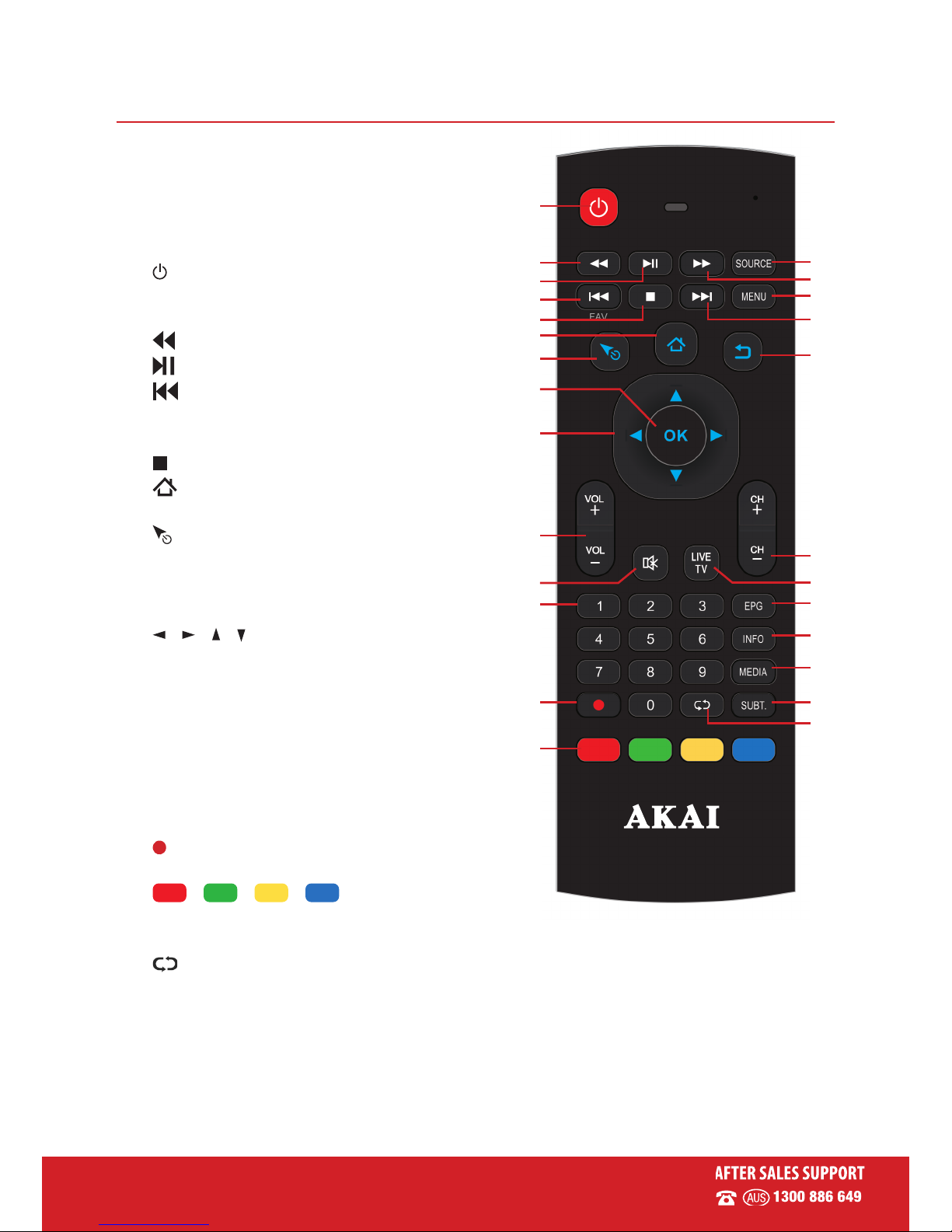

1 (ON/STANDBY): Set the unit in
standby mode; press it again to switch
it on.
2 : Move fast backward.
3 : Start or pause playing.
4 : Play previous file.
FAV: Display the favourites channels list
(DTV).
5 : Stop playing.
6 (HOME): Enter the HOME page
(Smart TV).
7 (MOUSE) *: Turn on/off Airmouse
function (Smart TV).
8 OK: Confirm your selection.
Display the channels list (DTV).
9 / / / :Press the LEFT/RIGHT UP/
DOWN buttons to navigate the on-
screen menus and adjust the system
settings to your preference.
10 VOL +/-: Turn the volume up/down.
11 MUTE: Mute the sound. Press it again
to restore the sound.
12 NUMBER BUTTONS (0-9): Select a TV
channel directly when watching TV.
13 (RECORD): Record a program (digital
TV only).
14 / / / BUTTONS:
Perform the corresponding functions
shown on the On-Screen Display.
15 : Return to previous channel.
16 SUBTITLE: Select available subtitles.
17 MEDIA: Enter USB (or Media) mode
directly.
18 INFO: Display information of the current
program.
2
4
3
1
5
6
7*
8
9
10
11
12
13
14
26
25
24
23
22
21
20
19
18
17
16
15
* The USB RF receiver dongle
needs to be connected for the
Airmouse function to work.

5
Remote Control (Cont.)
2
4
3
1
5
6
7*
8
9
10
11
12
13
14
26
25
24
23
22
21
20
19
18
17
16
15
Remote Control Keyboard Tips:
• To enter UPPERCASE letters, press the
‘Caps’ button first. Press the 'Caps' button
again to return to lowercase.
• To enter numbers and characters shown
on the keys in blue, press the ‘Alt’ button
first, followed by the chosen letter button.
Press the 'Alt' button again to return to
normal mode.
• The ‘Del’ button on the keyboard
performs the backspace function.
• As an alternative to the keyboard, you can
use the on-screen keyboard.
• The USB RF receiver dongle must be
connected for the keyboard to operate.
19 EPG: Launch the Electronic Program
Guide (digital signals only).
20 Live TV: Enter Live TV directly.
21 CH +/-: Press to play the next or
previous channel.
22 (RETURN): Return to previous
page (Smart TV).
23 : Play next file.
24 MENU: Display the main menu; press
again to return to the previous menu.
25 : Move fast forward.
26 SOURCE: Select the input source.
NOTE: There is a built-in keyboard on the back
of the remote control for easy operation (Smart
TV only).

6
Airmouse
Remote Control (Cont.)

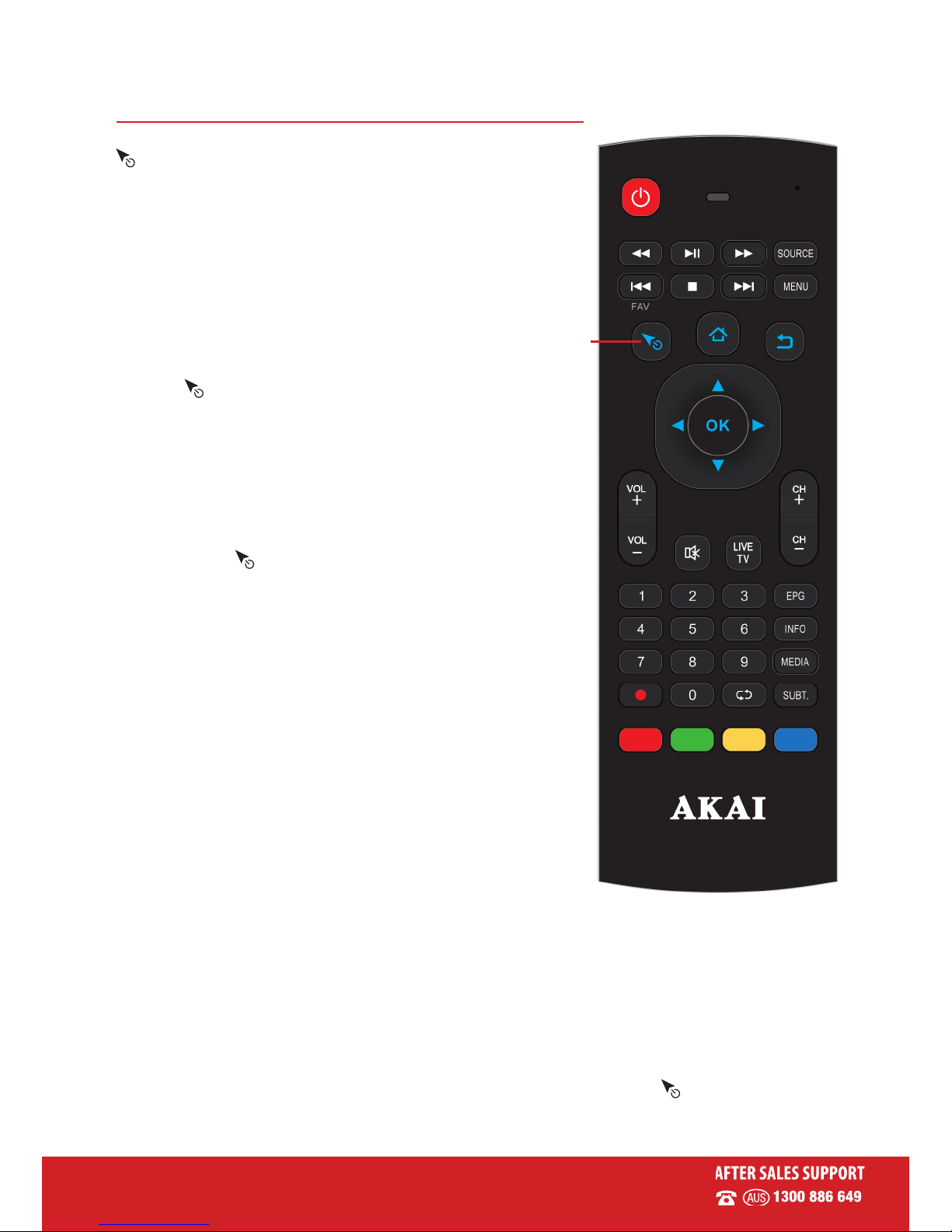

Airmouse function
• Airmouse enables you to navigate the
web browser and apps by moving the
remote control, which in turn moves the
cursor.
• For Airmouse to work, you need to
connect the supplied USB RF Receiver
dongle to one of the USB ports.
• To activate the Airmouse function, press
the button. The mouse cursor will
appear on the screen.
• To scroll web pages, press and hold the
OK button, move the remote up or down,
then release the button when you reach
your desired spot on the web page.
• To deactivate the Airmouse function,
press the button again. The mouse
cursor will disappear from the screen.
NOTE: If no actions are made for 20 seconds
or longer, the Airmouse function will turn off
automatically.
1. While the TV is ON and the USB dongle is
connected, point the remote control at the IR
receiver sensor at the bottom-right corner of the TV,
and press and hold the OK button and the MUTE
button on the remote control at the same time.
2. When the LED indicator on the remote control starts blinking, let go of the
buttons. The LED will blink three times and then stay lit.
3. Unplug the dongle and plug it back again.
4. The LED indicator will flash three times again. Pairing has been completed.
5. To make sure that the pairing has been successful, press the Airmouse button
and the cursor should appear on-screen. If not successful, repeat steps 1-4.
Pairing the Remote Control and the USB RF
Receiver Dongle
If you get a new/replacement remote control or a USB
dongle, you will need to pair them with each other.

7

Remote Control (Cont.)
Using the Remote Control
Inserting Batteries
Install the batteries as illustrated in Fig. 1, right.
• Open the cover at the back of the remote control
unit completely.
• Insert two AAA size batteries according to the
polarity markings (+ / -) inside the compartment.
Make sure the batteries are correctly aligned and
properly pushed into place so they can power the
remote control unit.
• Slide the cover back into position.
NOTE: When testing the remote control unit after
replacing the batteries, make sure the TV is
properly connected to the mains power supply.
Battery Service Life
• The service life of batteries depends on usage and
environmental conditions. They should normally last
for about one year.
• If the remote control fails to work even when it is
operated near the TV, replace the batteries.
Push
Press
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (for example, Manganese and
Alkaline batteries) together.
• Note that there are chargeable and non-chargeable batteries. Do not
attempt to charge non-chargeable batteries.
• Remove the batteries from the remote control unit if you do not intend to
use the unit for a long time.
• When discarding used batteries, follow any guidelines for recycling and
disposal of batteries that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to fire or other sources of
extreme heat.

8

Remote Control (Cont.)
Using the Remote Control

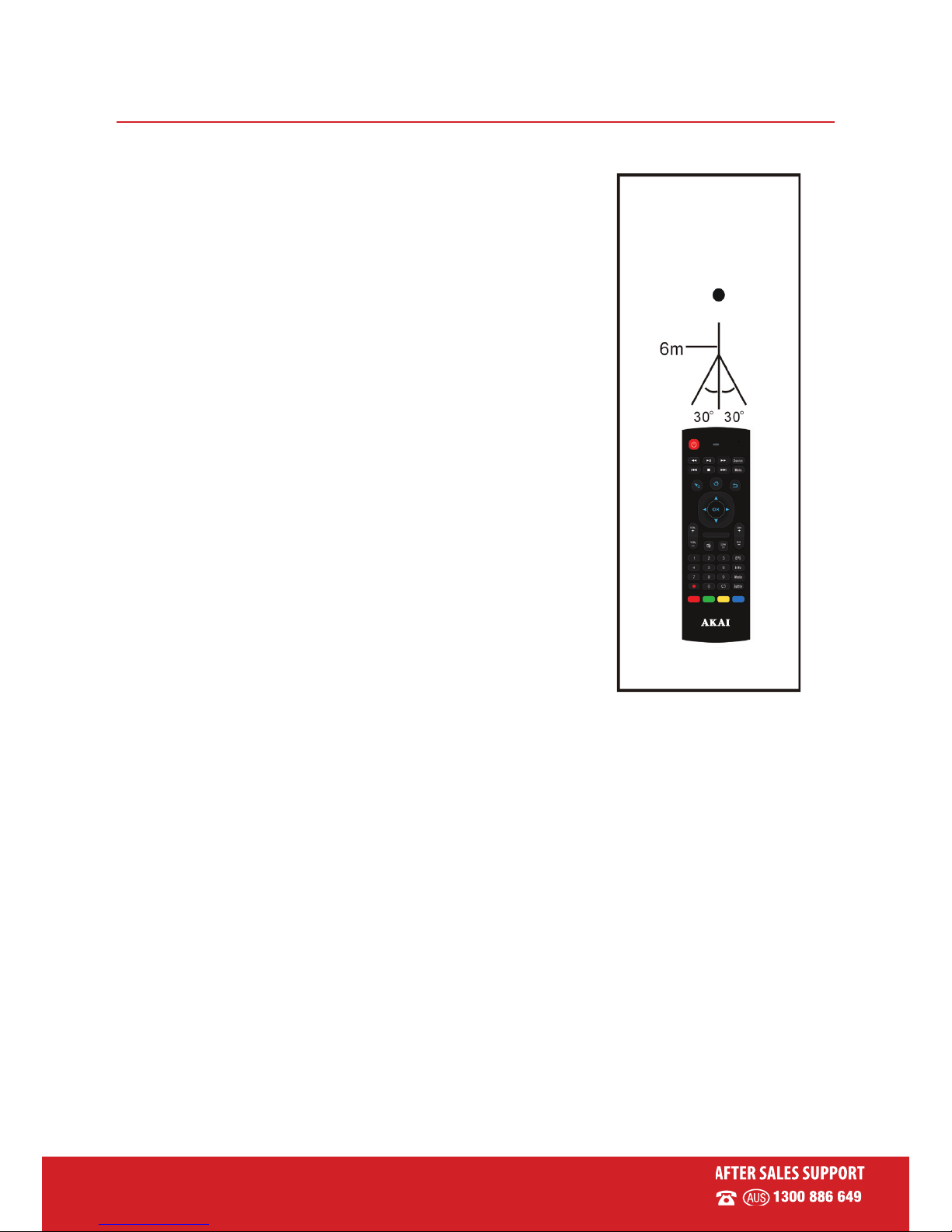

To use the remote control, point it towards the
remote sensor at the front of the television.
The remote control has a range of up to
approximately six metres (6m) from the TV at an
angle of up to 30 degrees each to the right and
left of the sensor, as illustrated on the right.
The remote control will not operate if its path is
blocked.
NOTES:
• Do not drop, step on or otherwise impact
the remote control. This may damage the
parts or lead to malfunction.
• The operating distance may vary according
to the brightness of the room.
• Do not point bright lights at the remote
control sensor.
• Do not place objects between the remote
control and the remote control sensor.
• Do not use this remote control while
simultaneously operating a remote control
for other devices.
Remote Control
Sensor

9
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the completed warranty card, purchase receipt and carton. The
safety precautions enclosed herein reduce the risk of fire, electric shock and injury
when correctly adhered to. Follow all instructions and take notice of all the warnings.
This product complies with Australian Safety standard AS/NZS 60065:2012 + A1
:2015 to ensure the safety of the product.
The lightning flash with an arrowhead
symbol within an equilateral triangle is
intended to alert you to the presence
of non-insulated dangerous voltage
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equi-lateral triangle is intended to
alert you to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the product.
To reduce the risk of electric shock, do not remove
the cover (or back).
This unit contains no user-serviceable parts inside.
Refer all servicing to qualified service personnel only.
IMPORTANT INFORMATION
If the television is not positioned in a sufficiently stable location, it can be a potential
hazard and may fall. Many injuries, particularly those to children, can be avoided by
taking simple precautions:
• Use cabinets or stands recommended by the manufacturer of the television.
• Only use furniture that can safely support the television.
• Ensure the TV is not overhanging the edge of the supporting furniture.
• Do not place the TV on tall furniture (for example on a cupboard or bookcase)
without anchoring both the furniture and the TV to a suitable support.
• Do not place the TV on cloth or other materials between the TV and supporting
furniture.
• Educate children about the dangers of climbing on furniture to reach the
television or its controls.
The RCM is a visible indication of a product’s compliance with all applicable ACMA
regulatory arrangements, including all technical and record-keeping requirements.
IMPORTANT WARNINGS AND CAUTIONS
• Only connect this TV to a mains socket with a protective earthing connection.
• Do not change or modify the appliance in any way.
• Only use the attachments/accessories specified by the manufacturer.

10
General Safety Instructions (Cont.)
Installation
Follow instructions: Only install this TV set in accordance with the instructions in
this manual. If a television is not positioned in a sufficiently stable location, it can be
potentially hazardous due to falling and can cause injury, particularly to children.

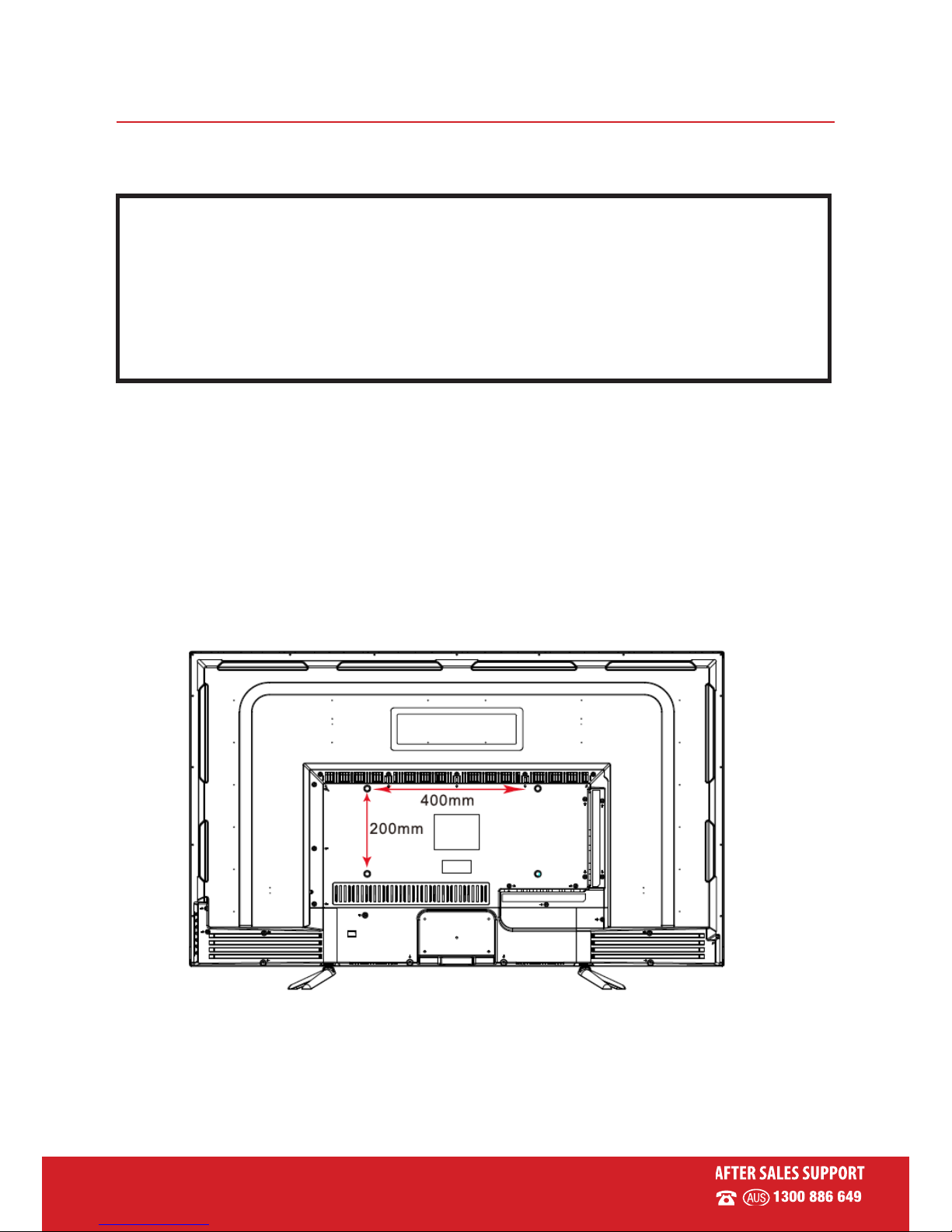

• This TV is equipped with standard wall-mounting points, and we recommend that a
wall bracket be installed between the TV and the wall to prevent the TV from falling
from a cabinet. (The bracket is not included.)
To prevent injuries from your television falling, take a few simple precautions:
• When deciding on where to put the TV, make sure the location is:
• Well ventilated, and away from damp and cold.
• Protected from overheating and away from direct sunlight.
• Away from moisture drips or splashes.
• Protected from excessive dust or grease.
• Bookcase: Do not install this equipment in a confined space such as a bookcase or
similar unit.
• Heat: Do not install the TV set near heat sources such as radiators, stoves or other
audio visual equipment (including amplifiers) that produce heat.
• Water: Do not place containers with liquids (such as vases) or with small metallic
objects on top of the unit. If liquid enters the unit or any metal object falls into the
unit, it may result in short-circuit, fire or electric shock.
• Fire or explosion: Do not use or store flammable or combustible materials near the
unit. Doing so may result in fire or explosion. Do not place any naked flame sources,
such as lit candles, cigarettes or incense sticks on top of the TV set.
• Antenna: Install the antenna away from high-voltage power lines and
communication cables and make sure it is installed securely. If the antenna touches
a power line, contact with the antenna could result in fire, electric shock or serious
injury.
• Ventilation: Install the unit at an adequate distance from the wall to ensure sufficient
ventilation. If the temperature inside the unit rises, it may result in fire.
Electrical Safety and Cord Handling
• Voltage: Before installing this TV set, make sure your outlet voltage corresponds to
the voltage stated on the appliance rating label.
• Protect from moisture: To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture; do not use it anywhere near water; do not touch
the power plug with wet hands.
• Damage: Do not use a damaged power cord, plug or loose outlet. Doing so may
cause an electric shock.
• Power outlet: Do not plug several devices into the same outlet. Doing so may
cause the outlet to overheat and start a fire. Make sure the outlet is readily
accessible during operation of the equipment.

11
General Safety Instructions (Cont.)
• Power plug: Make sure the plug is properly installed before inserting it fully into the
outlet. A loose or improperly inserted power plug may cause a fire.
• Protect the cord: Do not bend, twist or kink the power cord excessively. Do not
allow anything to rest on or roll over the power cord and antenna cable. Doing
so may cause a fire or an electric shock. Do not run the power cord near heat-
producing appliances such as radiators, stoves or irons. The excessive heat could
melt the insulation and expose live wires, resulting in fire or electric shock.
• Disconnect: Always grasp the plug when disconnecting the power cord. Pulling the
cord can damage the internal wire and may cause a fire.
• Lightning storms: Unplug this TV during lightning storms or when unused for long
periods of time. Not doing so may result in fire or electric shock.
Usage Conditions and Restrictions
• Adjustments: Follow the instructions in this manual when installing and adjusting
the TV set. Only adjust those controls that are covered in this manual, as improper
adjustment of other controls may result in damage. If this happens, unplug the TV
set and have it serviced by appropriately qualified personnel, or phone the after
sales support line for advice.
• Ventilation: Do not cover the ventilation openings with items such as newspapers,
tablecloths, curtains etc. as this could impede ventilation.
• Cabinet slots: Do not insert objects of any kind into this unit through the cabinet
slots, as they could touch the current-carrying parts or short-circuit parts, resulting
in fire, electric shock or damage to the unit.
• Smoke or odour: If you notice any unusual odours or smoke around the unit,
immediately disconnect the unit from the outlet and contact the service centre.
Failure to do so may result in fire or electric shock.
• When not in use: When not using the unit for long periods of time, disconnect the
power cord from the wall outlet. Dust could accumulate over time on the unit and
cause it to generate heat and ignite, or deteriorate insulation, which in turn may
result in an electrical fire.
• Moving: When moving the unit, be sure to turn it off and unplug it from the wall
outlet. Moving the unit with the power cord connected to the outlet may cause
damage to the cord, resulting in fire or electric shock.
• Batteries: When removing the batteries from the remote control, make sure to keep
them out of reach of infants and children. Seek medical attention immediately if a
child has swallowed a battery.
WARNING!
Batteries must not be exposed to excessive heat such as direct sunlight,
fire or other souces of heating.

12
General Safety Instructions (Cont.)
• Usage restriction: This product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instructions concerning
use of the product by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the TV.
Cleaning and Maintenance
• Unplug: To reduce the risk of fire and electric shock, always unplug the TV before
cleaning.
• Cleaning: Only use a soft, dry cloth for cleaning the TV; do not use a damp cloth.
Never clean with industrial strength polish, wax, benzene, paint thinner, air freshener,
lubricant, detergent or other chemicals. Wipe off any moisture, dirt or dust on the
power plug pins with a clean, dry cloth.
• Repair: If the unit requires repair, contact the after sales support line; never
disassemble or modify the unit or attempt to service it yourself.
• Service: Refer all servicing to qualified service personnel. Servicing is required when
the TV has been damaged in any way, such as when the power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the TV, when the
TV has been exposed to rain or moisture, does not operate normally, or has been
dropped.

13
Moving, Installing and Wall-Mounting the TV
When removing the TV from its original packaging, moving the TV to a different
location, cleaning, installing and wall mounting the TV, make sure you take the below
precautions:
• Always move the TV with two people, both holding it with both hands on either
side of the TV.
• Do not apply any pressure directly to the front screen of the TV - the LCD screen
may be damaged if not handled carefully.
• Be careful of the TV stand if it is attached to the TV.
• Always place the TV on a stable, flat and clean surface.
• Children should never be allowed to play with the TV or move the TV.
General Safety Instructions (Cont.)
WARNING!
• Never tamper with any components inside the TV, or any other adjustment
controls not mentioned in this manual. All LED LCD TVs are high voltage
instruments.
• All repairs to this TV must only be performed by qualified TV service
personnel. There are no user-serviceable components within this TV. Changes
or modifications to this TV, including changes to parts, components and
constructional attributes that are responsible for safety and regulatory
compliance, may result in non-compliant and unsafe operation of this
equipment.

14
Unpacking and Preparing the TV
Remove the TV carefully from its packaging, be careful not to apply any
pressure to the front of the LCD screen. Some accessory items may be
located in cut-out sections of the internal packaging, so make sure you check
the entire packaging to not miss any items. Once all items are removed from
the packaging, use the list below to check there are no items missing:
1 x 55" UHD LED LCD Smart with Android TV
2 x Base Stands
1 x Remote Control
1 x USB RF Receiver Dongle
2 x “AAA” size batteries
4 x Screws (for assembling the base stands to the TV)
1 x Instruction Manual
1 x Quick Start Guide
1 x Warranty Card
Once all the accessory items have been accounted for, prepare your TV for
installation – you can either use it standing up on the supplied base stands on
suitable furniture, or mounted to a wall. You will find installation instructions
for both options on the following pages.
After having installed the base stands (or wall-mounted the TV), follow the
instructions in the “Controls and Connections” section to ensure that your
TV is correctly connected to your TV antenna and related AV equipment (e.g.
Blu-ray player, amplifier, soundbar, etc.).
The TV panel may be awkward to install on your own.
We recommend you ask someone to help with installation and/or removal of the
stand.
Installation

15

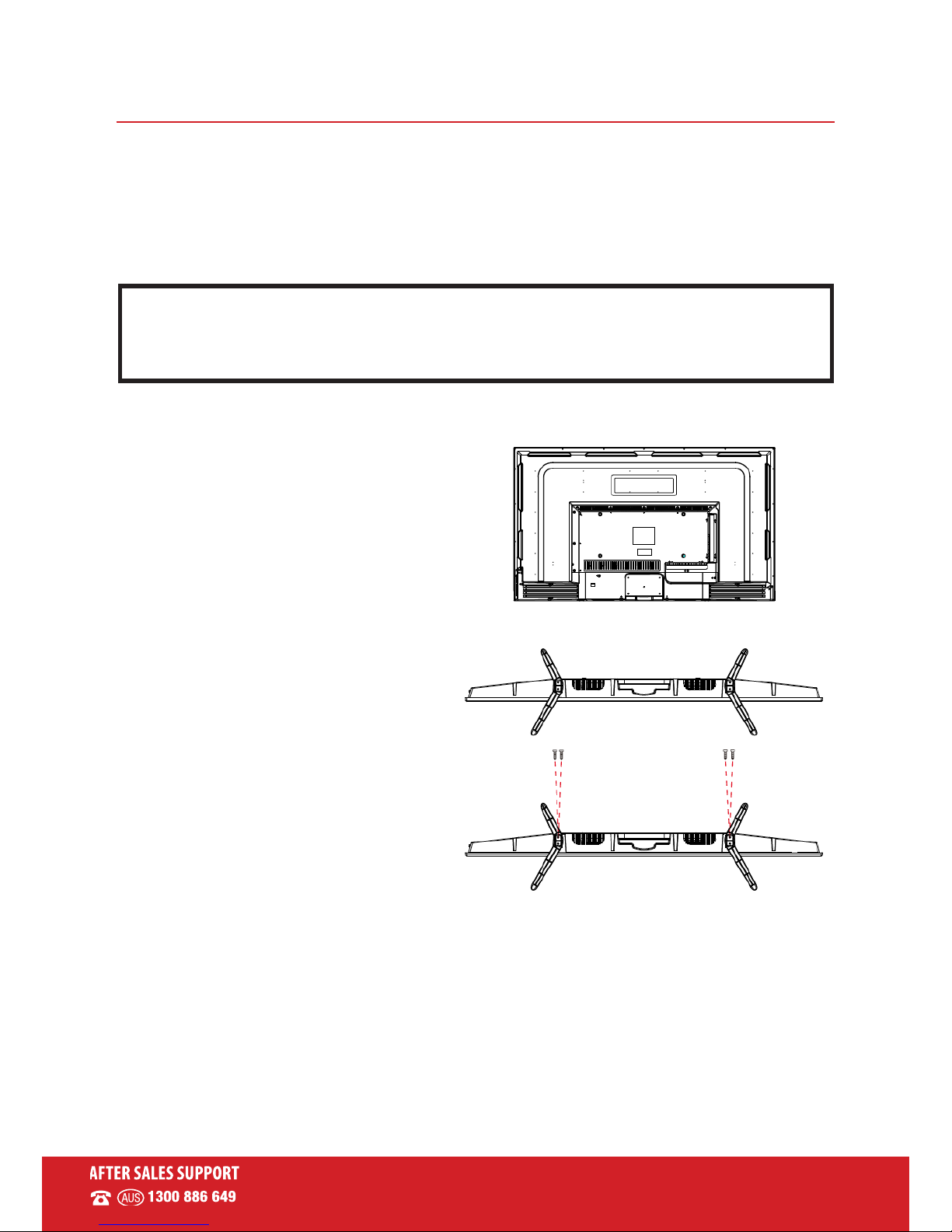

Attaching the Stand
Step 1
Place a soft cushioned material
onto a flat surface to prevent
damaging the screen panel. Then
place the TV screen flat on top,
with the screen side facing down,
as illustrated on the right (1).
Step 2
Align the stand leg to the
installation point, as illustrated on
the right (2).
Step 3
Tighten the screws (supplied) with
a screwdriver to affix the stand to
the panel, as illustrated on the right
(3).
CAUTION!
• Do not apply excessive force as this may damage the screw holes.
• Unplug the power plug first when installing or removing the TV Stand.
• To avoid any damage to this TV, we recommend you ask someone to
help with installation and/or removal of the stand.
Installation (Cont.)
IMPORTANT!
Make sure the TV set is unplugged from the power supply before
installing or removing the stand.
Your TV is packaged with the two stand legs separate from the cabinet.
Before using the TV, install the stand as described below, or if you want to
mount it to a wall, see the following page for mounting advice (note: the wall
mount itself is not supplied).

16
Installation (Cont.)
• The TV set is equipped with holes on the back panel for use with wall-
mounting brackets (not included). Please use the illustration below as a
reference when buying wall-mounting brackets.
• Use 4 x standard M6*12mm screws (or longer, depending on the mounting
bracket) to mount this TV.
IMPORTANT!
• Make sure the TV set is unplugged from the power supply before
removing the stand and mounting it to a wall.
• We recommend that you contact a professional for assistance when
wall-mounting the TV. We assume no liability for any damage to the prod-
uct or injury to yourself if you mount the TV.
Back of the TV
NOTE: The screws in the package are for securing the TV stand only. If you
are wall-mounting the TV, please consult a professional installer for
further instructions on bracket support and wall support.
Wall-Mounting Instructions

17
Controls and Connections
Front View
Rear View
NOTE: See the next page for a detailed description of all sockets on the back panel.
1. Display Screen
2. Remote control sensor/Power indicator: In standby mode the indicator
light is red; when switching on the unit the indicator light is blue.
3. SOURCE button : Select the input source.
4. MENU button: Enter the menu settings page.
5. CH +/- : Select the next/previous channel, or navigate up/down.
6. VOL +/- : Increase/decrease the volume level, or navigate left/right.
7. STANDY/ON button: Switch the TV to ON or Standby mode.

18
Controls and Connections (Cont.)
1. Power cord
2. LAN: Connect the Ethernet cable to the home network modem.
3. Video input (Composite): Supports SD picture quality connections.
4. L-R Audio inputs: Shared between Composite and Component video inputs.
5. PC (VGA) input: Connect to a PC or other device with a VGA interface.
6. PC AUDIO input: Connect audio from your PC via a 3.5mm connector.
7. HDMI inputs: Provides a UHD-quality digital video/audio connection between the
TV and any HDMI devices, such as a DVD player, gaming console or A/V receiver.
The HDMI 1 port supports ARC function.
8. ANTENNA input: For connection of the external TV antenna.
9. Y/Pb/Pr input (Component): Supports both SD (Standard Definition) and HD
(High Definition) picture quality.
10. Coaxial S/PDIF output: Connect to an external digital audio device.
11. LINE OUT (Audio): Audio output at a low amplification level. Connect an external
digital audio device and use its amplifier to control sound output.
12. Micro SD card slot: Connect a Micro SD card for multimedia file playback.
13. USB ports: Connect a USB storage device for PVR recording and multimedia file
playback.

19
Controls and Connections (Cont.)

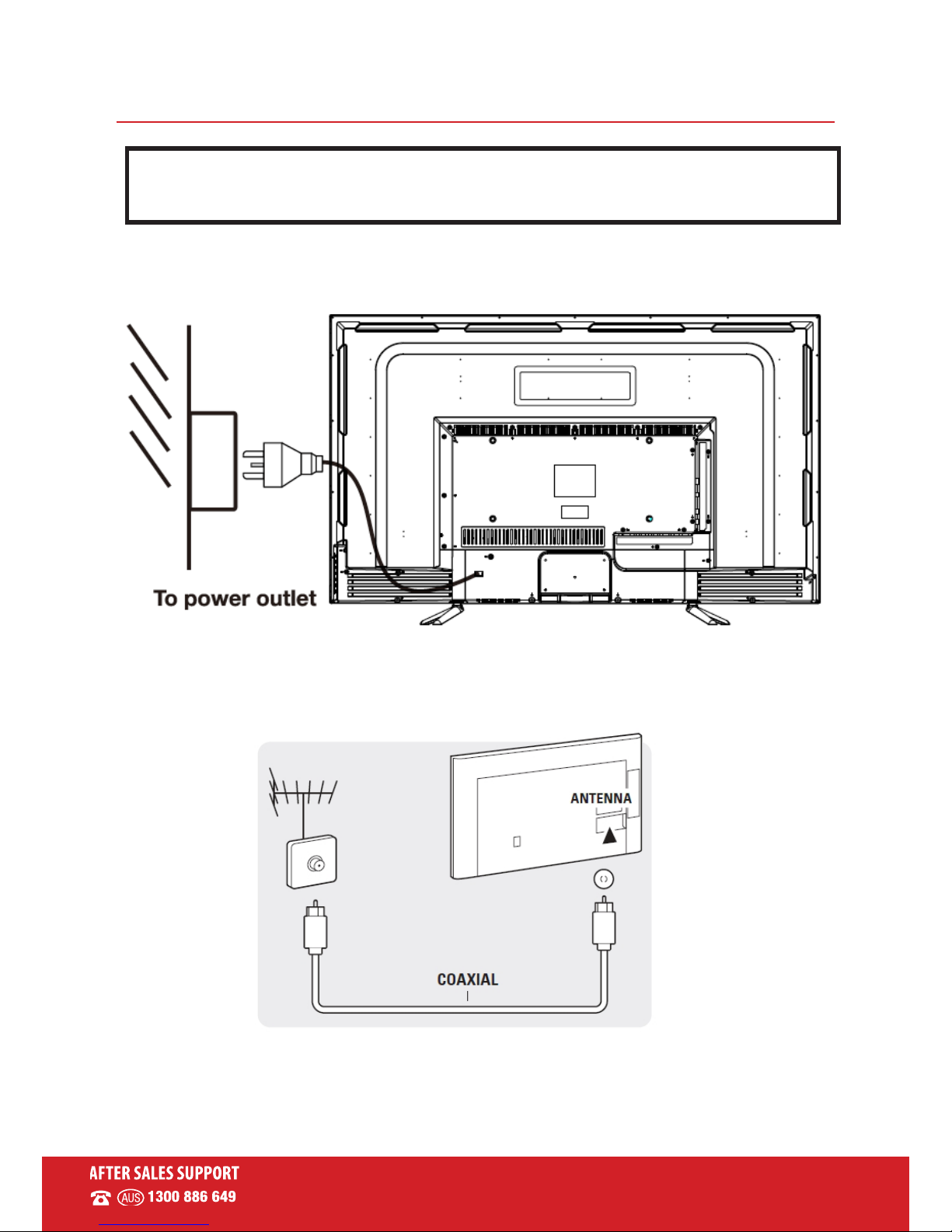

Connecting to an AC Power Source
IMPORTANT!
Read all instructions before connecting the TV to other equipment.
Connecting an External Antenna
For the best picture quality, we recommend connecting the TV set to an
external antenna.
NOTE: At this stage, TV programming in Australia is not available in Ultra HD.
Therefore, the result of upscaling and displaying HD broadcast signals on an Ultra
HD TV can be 'soft' images, which don’t have the detail or smoothness you see when
watching the same content on an HD TV.

20


Controls and Connections (Cont.)
USB Connection

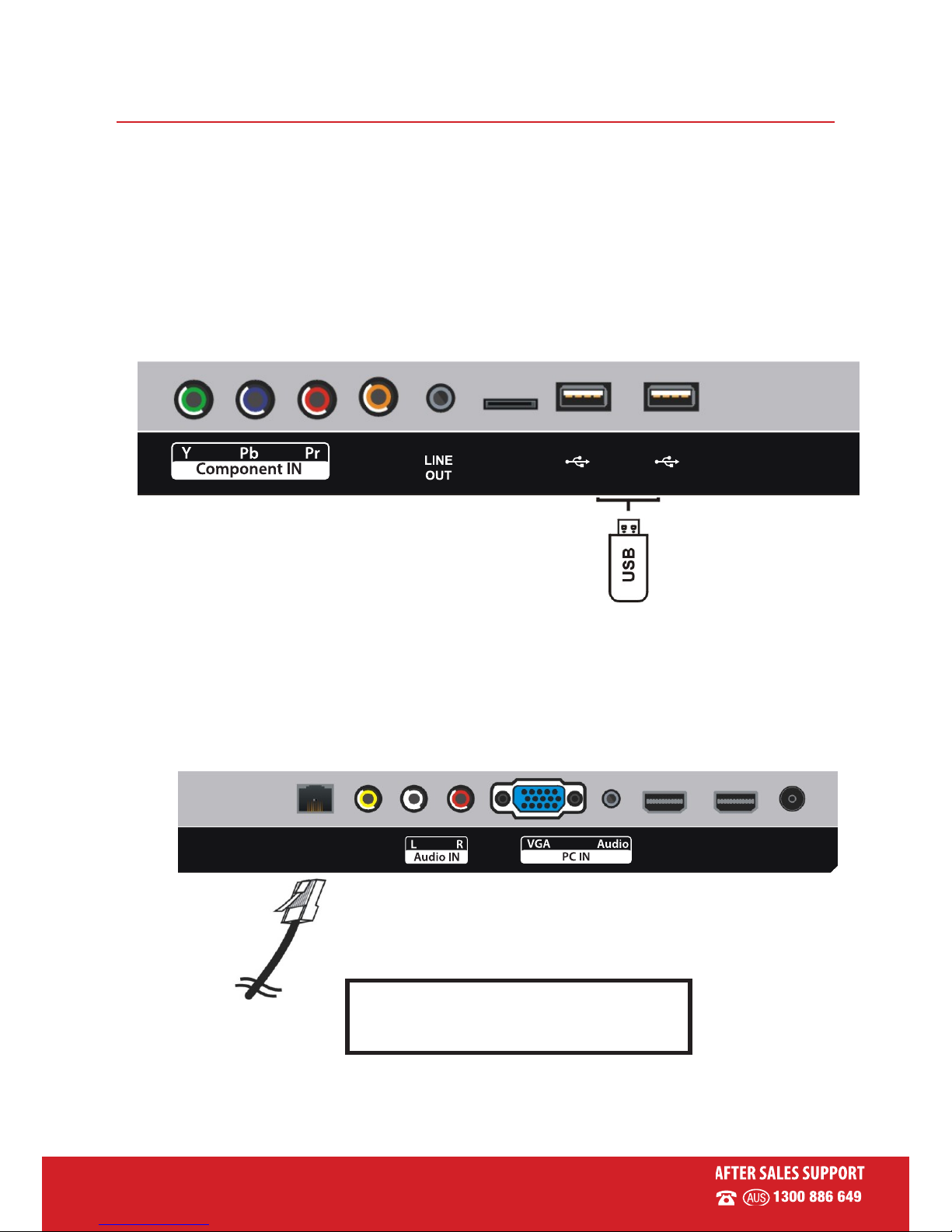

• Connect the USB RF receiver dongle (included with the remote control)
to enable the 'Airmouse' function and navigation buttons for the remote
control.
• Insert a USB memory device into the USB port for PVR recording, time-
shifting and playback of video/music/photo multimedia files.

USB Device
(not included)
LAN Connection
Use a LAN cable (not included) to connect
this TV with an available network.
MICRO SD
COAX
OUT
12
LAN ANTENNA IN
HDMI 1
(ARC)
(CVBS)
VIDEO IN
HDMI 2
AC 100-240V
50/60Hz
