Toshiba 65 X98 Series User manual
OPERATING INSTRUCTIONS
55/65 X98 Series
English - 1 -
Contents
Environmental Information....................................... 2
Disposal Information................................................ 2
Ultra HD (UHD)........................................................ 3
High Dynamic Range (HDR) /
Hybrid Log-Gamma (HLG) ...................................... 3
Dolby Vision............................................................. 3
OLED TV Operations............................................... 3
Standby Notifications............................................... 4
TV Control & Operation ........................................... 4
Using Main TV Menu............................................... 4
Inserting the Batteries into the Remote ................... 6
Power Connection ................................................... 6
Antenna Connection................................................ 6

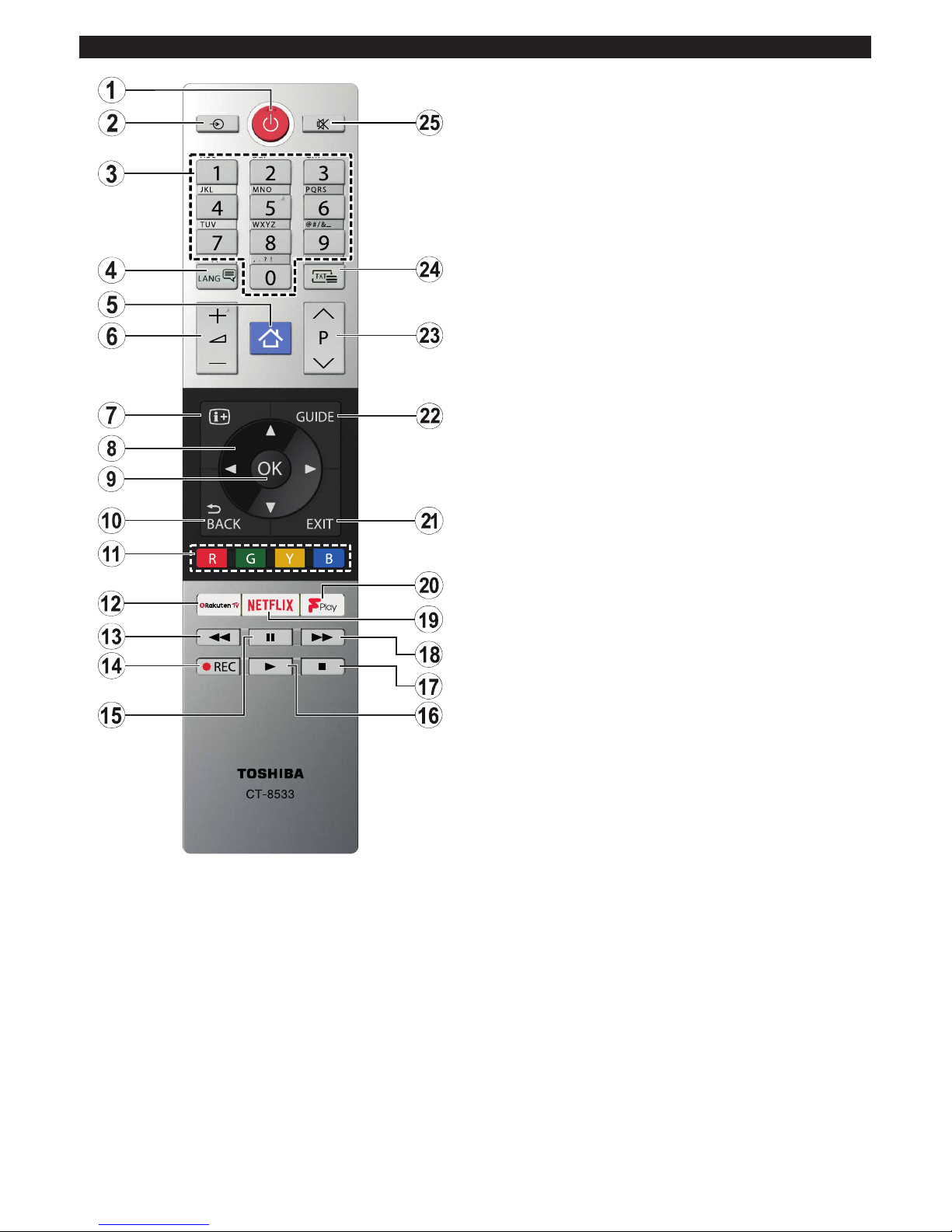

Remote Control ....................................................... 7
Remote Control- 2 (optional) ................................... 8
Connections............................................................. 9
Switching On/Off.................................................... 10
First Time Installation............................................. 10
Media Playback via USB Input .............................. 11
USB Recording...................................................... 11
Media Browser....................................................... 12
FollowMe TV.......................................................... 13
CEC....................................................................... 13
E-Manual ............................................................... 13
Settings Menu Contents ........................................ 14
General TV Operation ........................................... 20
Using the Channel List .......................................... 20
Configuring Parental Settings................................ 20
Electronic Programme Guide ................................ 20
Teletext Services ................................................... 21
Software Upgrade.................................................. 21
Troubleshooting & Tips.......................................... 22
PC Input Typical Display Modes............................ 22
AV and HDMI Signal Compatibility ........................ 23
Supported File Formats for USB Mode ................. 24
Video File Formats ................................................ 24
Picture File Formats .............................................. 24
Audio File Formats ................................................ 24
Subtitle File Formats.............................................. 25
Supported DVI Resolutions ................................... 26
Connectivity........................................................... 27
Wired Connectivity................................................. 27
Wireless Connectivity ............................................ 27
Wake ON ............................................................... 28
Wireless Display.................................................... 29
Connecting Bluetooth Devices (optional) .............. 29
Connectivity Troubleshooting ................................ 29
Using Audio Video Sharing Network Service......... 30
Apps ...................................................................... 30
Freeview Play Platform.......................................... 31
Internet Browser .................................................... 31
HBBTV System...................................................... 32
Smart Center ......................................................... 33
Alexa Ready Feature (optional)............................. 35
English - 2 -
Environmental Information
This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:
If you set the Energy Saving to Minimum or Medium the TV will reduce the energy consumption accordingly.
If you like to set the OLED Luminance to a fixed value set as Custom and adjust the OLED Luminance
(located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to
turn this setting off.
Note: Available Energy Saving options may differ depending on the selected Mode in the Settings>Picture menu.
The Energy Saving settings can be found in the Settings>Picture menu. Note that some picture settings will
be unavailable to be changed.
If pressed Right button or Left button consecutively, “S
Proceed and press OK to turn the screen off immediately. If you don’t press
any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen
on again.
Note: Screen Off option is not available if the Mode is set to Game.
When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce
energy consumption.
Disposal Information
Disposal of products
separated at the recycling centres.
By participating in separate collection of products and batteries, you will help to assure the proper disposal of
products and batteries and thus help to prevent potential negative consequences for the environment and human
health.
For more detailed information about the collection and recycling programmes available in your country, please
European Battery Directive, then the chemical symbols for lead (Pb), mercury (Hg) and/or
By participating in separate collection of batteries, you will help to assure the proper disposal of products and
batteries and thus help to prevent potential negative consequences for the environment and human health. For
more detailed information about the coIIection and recycling programmes available in your country, please contact
•
English - 3 -
Ultra HD (UHD)
TV supports Ultra HD (Ultra High Definition - also
known as 4K) which provides resolution of 3840 x
2160 (4K:2K). It equals 4 times the resolution of Full
HD TV by doubling the pixel count of the Full HD TV
both horizontally and vertically. Ultra HD contents are
supported from HDMI, USB inputs and over DVB-T2
and DVB-S2 broadcasts.
Using this feature the TV can reproduce greater
dynamic range of luminosity by capturing and then
combining several different exposures. HDR/HLG
promises better picture quality thanks to brighter, more
realistic highlights, more realistic colour and other
improvements. It delivers the look that filmmakers
intended to achieve, showing the hidden areas of
dark shadows and sunlight with full clarity, colour and
detail. HDR/HLG contents are supported via native
and market applications, HDMI, USB inputs and over
DVB-S broadcasts. Set the related HDMI source
input as Enhanced from the Sources option in the
Settings>System menu in order to watch HDR/HLG
content, if the HDR/HLG content is received through
an HDMI input. The source device should also be at
least HDMI 2.0a compatible in this case.
Dolby Vision™ delivers a dramatic visual experience,
astonishing brightness, exceptional contrast, and vivid
colour, that brings entertainment to life. It achieves this
stunning image quality by combining HDR and wide
colour gamut imaging technologies. By increasing the
brightness of the original signal and using a higher dy-
namic colour and contrast range, Dolby Vision presents
amazing true-to-life images with stunning detail that
other post-processing technologies in the TV aren’t
able to produce. Dolby Vision is supported via native
and market applications, HDMI and USB inputs. In
the Settings>Picture>Mode menu two predefined
picture modes will be available if Dolby Vision content
is detected: and
Dark. Both allow the user to experience the content
in the way the creator originally intended with different
ambient lighting conditions.
OLED panels have some procedures in order to extend
the panel lifetime and provide protection from image
sticking problem.
OLED Fast Panel Clean
• After every 4 hours of use, the TV will perform OLED
Fast Panel Clean operation automatically when next
time the TV is switched into standby mode. If the TV
is in Store Mode this operation will be performed
every time the TV is switched into the standby mode.
• It will take about 6 minutes. In order not to interrupt
the operation it is recommended to wait until the
operation is completed.
• The LED will be blinking during the operation.
• When the operation is complete, the TV will switch
into standby mode.
• This operation can be interrupted by cutting the
power supply to the TV or switching the TV on. In
this case OLED Fast Panel Clean operation will
performed when next time the TV is switched into
standby mode.
• This operation can be performed manually
using the OLED Fast Panel Clean option in the
Settings>Picture>Advanced Settings menu. In this
case. This operation will take about 10 minutes and
then the TV will be switched off automatically. Do not
unplug the mains lead during this period.
• This operation will be performed automatically every
time the TV is switched on.
• Do not do anything during boot-up procedure. Do
not interrupt the process.
• It will take about 6 seconds for the first picture to
appear on the screen.
• The boot logo will thus appear later and will remain
for a lesser period of time on the screen.
OLED Panel Noise Clean
• This operation will be performed automatically at any
time of the day when the TV is switched into standby
mode after every 1500 hours of use.
• First, OLED Fast Panel Clean operation will be
performed when the TV is switched into standby
mode.
• Then the TV will remain in standby mode for a period
of 1 hour in order to cool down the panel.
• After a period of 1 hour in standby mode the TV will
switch on with blank screen and OLED Panel Noise
Clean function will be performed if the panel is at
proper temperature.
• This will take about 1 minute and during the operation
the LED will blink and a horizontal line will appear
on the screen, moving from the top to the bottom
of the screen.
• After OLED Panel Noise Clean operation is
completed the TV will switch into standby mode.
• OLED Panel Noise Clean operation can be
interrupted at any time by cutting the power supply
to the TV or switching the TV on.
• If OLED Panel Noise Clean operation is interrupted
a massage will appear on the screen stating that
the OLED Panel Noise Clean operation was
interrupted when next time the TV is switched on.
English - 4 -
In this case OLED Panel Noise Clean operation
will be performed when next time the TV is switched
into standby mode.
• This operation can be performed manually using
the OLED Panel Noise Clean option in the
Settings>Picture>Advanced Settings menu. This
operation will take about 1 hour and then the TV will
be switched off automatically. Do not unplug the
mains lead during this period. It is not recommended
to perform this operation more than once a year or
unless requested by authorised service personnel.
Pixel Shifting
• The images will be automatically shifted one pixel
every three minutes to prevent image sticking.
If the TV does not receive any input signal (e.g. from
an aerial or HDMI source) for 3 minutes, it will go
into standby. When you next switch-on, the following
message will be displayed: “
” Press OK to continue.
The option(in the Settings>System
>More menu) could have been set to a value between
1 and 8 hours by default. If this setting is not set as Off
and the TV has been left on and not been operated
during the set time, it will switch into standby mode
after the set time has expired. When you next switch-on
the TV, the following message will be displayed. “
” Press OK
to continue. Before the TV switches into standby mode
a dialogue window will be displayed. If you do not
press any button the TV will switch into the standby
mode after a waiting period of about 5 minutes. You
can highlight Yes and press OK to switch the TV into
standby mode immediately. If you highlight No and
press OK, the TV will remain on. You can also choose
to cancel the function from this dialogue.
Highlight and press OK, the TV will remain on
and the function will be cancelled. You can enable this
function again by changing the setting of the
OFF option from the Settings>System>More menu.
P+
V+ V-
P-
The joystick allows you to control the Volume /
Programme / Source and Standby-On functions of
the TV.
Note: The position of the joystick may differ depending on
the model.
To change volume: Increase the volume by pushing
the joystick right. Decrease the volume by pushing
the joystick left.
To change channel: Scroll through the stored
channels by pushing the joystick up or down.
To change source: Press the centre of the joystick
in, the sources list will appear on the screen. Scroll
through the available sources by pushing the joystick
up or down.
Press the centre of the joystick in
and hold it down for a few seconds, the TV will turn
into standby mode.
Press the centre of the joystick in,
the TV will turn on.
Note: Main menu OSD cannot be displayed via control button.
Operation with the Remote Control
Press the Menu button on your remote control to
display main menu. Use the directional buttons and
OK button to navigate and set. Press
or Menu button to quit a menu screen.
Input Selection
Once you have connected external systems to your
TV, you can switch to different input sources. Press the
Source button on your remote control consecutively
to select the different sources.
You can change the channel and adjust the volume
by using the Programme and buttons
on the remote.
When the Menu button is pressed, the main TV menu
will appear at the bottom of the screen. You can
navigate through the menu items using the directional
buttons on the remote. To select an item or see the
sub-menu options of the highlighted menu press OK
button. When you highlight a menu option some of the
sub-menu items of this menu may appear on the upper
side of the menu bar for quick access. To use a quick
access item highlight it, press OK and set as desired
using the Left/Right directional buttons. When finished
press OK or button to exit.
Press Exit button to close the main menu.
Home
When main menu is opened Home menu bar will
be highlighted. The content of the Home menu can
be customised by adding options from other menus.
Just highlight an option and press the Down direction
button on the remote. If you see Add to Home option
English - 5 -
you can add it to the Home menu. Same way you can
delete or change the position of any item in the Home
menu. Press the Down direction button and select the
delete or move icon and press OK. In order to move
a menu item use the Right and Left direction buttons
to select the position that you want the item to move
to and press OK.
You can access the electronic programme guide menu
using this option. Refer to Electronic Programme
section for more information.
Channels
You can access the Channels menu using this option.
Refer to Using the Channel List section for more
information.
Timers
You can set timers for future events using the options of
this menu. You can also review the previously created
timers under this menu.
To add a new timer select the Add Timer tab using the
Left/Right buttons and press OK. Set the sub-menu
options as desired and when finished press OK.A new
timer will be created.
To edit a previously created timer, highlight that timer,
select the Edit Selected Timer tab and press OK.
Change the sub-menu options as desired and press
OK to save your settings.
To cancel an already set timer, highlight that timer,
select Delete Selected Timer tab and press OK. A
confirmation message will be displayed. Highlight Yes
and press OK to proceed. The timer will be cancelled.
It is not possible to set timers for two or more events
that will broadcasted in different channels at the same
time interval. In this case you will be asked to choose
one of these timers and cancel others. Highlight the
timer you want to cancel and press OK,Options menu
will be displayed. Then highlight and press
OK to cancel that timer. You will have to save changes
after that. In order to do that press OK, highlight Save
Changes and press OK again.
Recordings
You can manage your recordings using the options
of this menu. You can playback, edit, delete or sort
previously recorded events. Highlight a tab by using
the Left or Right direction button and press OK to see
available options.
Recording Settings
You can also configure your recording preferences
using the Settings tab in the Recordings menu.
Highlight Settings tab by using Left or Right button
and press OK. Then select the desired item in the
sub-menu and set by using Left or Right button.
Start early: You can set recording timer’s starting
time to start earlier by using this setting.
End late: You can set recording timer’s end time to
end later by using this setting.
Max Timeshift: This setting allows you to set the
maximum duration for the timeshift recording.
Available options are approximate and the actual
recording time may change in practice depending on
the broadcast. The reserved and free storage space
values will change according to this setting. Make
sure that you have enough free space otherwise
instant recording may not be possible.
Auto discard: You can set the Discard type as
None, Oldest, Longest or Shortest. If it is not
set to None, you can set the Unplayed option as
Included or Excluded. These options determine
the preferences for deleting the recordings in order
to obtain more storage space for ongoing records.
Hard disk information: You can view detailed
information about the USB storage device connected
to your TV. Highlight and press OK to see and press
to close.
Format Disk: If you want to delete all files on the
connected USB storage device and convert the disk
format to FAT32, you can use this option. Press OK
button while the Format Disk option is highlighted.
A menu will appear on the screen, requiring you
to enter the PIN(*). After you enter the PIN, a
confirmation message will be displayed. Select Yes
and press OK to start formatting the USB storage
device. Select No and press OK to cancel.
(*) Default PIN could have been set to 0000 or 1234. If you
have defined the PIN(is requested depending on the country
selection) during the First Time Installation use the PIN
that you have defined.
Settings
You can manage the settings of your TV using the op-
tions of this menu. Refer to Settings Menu Contents
section for more information.
Apps
When your TV is connected to the Internet related
contents will also be available, including Apps related
contents. Using the Apps menu you can access and
manage your applications. You can add new apps from
the market or delete the existing ones. Refer to Apps
section for more information.
Source
You can manage your input source references using
the options of this menu. To change the current source
highlight one of the options and press OK.
Source Settings
Regular, Enhanced and
Regular
English - 6 -
and Enhanced
of the selected HDMI source. To be able to watch 4K or
Enhanced
Regular
.
Remove the back cover to reveal the battery
compartment. Insert two size AAA batteries. Make
sure the (+) and (-) signs match (observe correct
polarity). Do not mix old and new batteries. Replace
only with same or equivalent type. Place the cover back
on. A message will be displayed on the screen when
the batteries are low and must be replaced.
Note that when the batteries are low, the performance
of the remote control may be impaired.
Power Connection
IMPORTANT: The TV set is designed to operate on a
supply. After unpacking, allow the
TV set to reach the ambient room temperature before
you connect the set to the mains. Plug the power cable
to the mains socket outlet.
Antenna Connection
Connect the aerial or cable TV plug to the AERIAL
INPUT (ANT-TV) socket or satellite plug to the
SATELLITE INPUT (ANT SAT) socket located on the
rear bottom side of the TV.
1
2
ANT SAT ANT-TV
Satellite
Aerial or cable
If you want to connect a device to the TV, make sure
that both the TV and the device are turned off before
making any connection. After the connection is done,
you can turn on the units and use them.
English - 7 -
Remote Control
Switches On / Off the TV
Source: Shows available broadcast and content
sources
Switches the channel, enters
a number or a letter in the text box on the screen.
Language: Switches among sound modes
(analogue TV), displays and changes audio/subtitle
language and turns subtitles on or off (digital TV,
where available)
Menu: Displays TV menu
Info: Displays information about on-screen content,
shows hidden information (reveal - in TXT mode)
Helps navigate menus,
content etc. and displays the subpages in TXT
mode when pressed Right or Left
OK: Confirms user selections, holds the page (in
TXT mode), views Channels menu (DTV mode)
Returns to previous screen, previous
menu, opens index page (in TXT mode)
Follow the on-screen
instructions for coloured button functions
Launches the Rakuten TV application
Rewind: Moves frames backwards in media such
as movies
Record: Records programmes
Pause: Pauses the media being played, starts
timeshift recording
Play: Starts to play selected media
Stop: Stops the media being played
Fast Forward: Moves frames forward in media
such as movies
Netflix: Launches the Netflix application
Freeview Play: Connects to the Freeview Play
platform where you can access available catch-up
TV services
Exit: Closes and exits from displayed menus or
returns to previous screen
Displays the electronic programme guide
Text: Displays teletext (where available), press
again to superimpose the teletext over a normal
broadcast picture (mix)
Mute: Completely turns off the volume of the TV
English - 8 -
Remove the back cover to reveal the battery
compartment. Insert two size AAA batteries. Make
sure the (+) and (-) signs match (observe correct
polarity). Do not mix old and new batteries. Replace
only with same or equivalent type. Place the cover
back on.
Switches On / Off the TV
Menu: Displays TV menu
Displays the electronic programme guide
Helps navigate menus,
content etc. and displays the subpages in TXT
mode when pressed Right or Left
OK: Confirms user selections, holds the page (in
TXT mode), views Channels menu (DTV mode)
Returns to previous screen, previous
menu, opens index page (in TXT mode)
Select the coloured button you want to use from the
dialogue box and press OK. Follow the on-screen
instructions for coloured button functions
and
Select the button you want to use from the dialogue
box and press OK
Use the media buttons to control the playback of
the media. Control elements to play, pause, stop,
rewind and fast forward the media will be available.
Select the REC button and press OK to record a
programme or select the Pause(II) button and press
OK to start timeshift recording
Select the button and press OK to switch
among sound modes (analogue TV), display and
change audio/subtitle language and turn subtitles
on or off (digital TV, where available)
Launches the Rakuten TV application
Netflix: Launches the Netflix application
Freeview Play: Connects to the Freeview Play
platform where you can access available catch-up
TV services
Select the button you want to use from the dialogue
box and press OK
Use the numeric buttons to switch the channel,
enter a number or a letter in the text box on the
screen.
Select the TEXT button and press OK to display
teletext (where available). Press again to
superimpose the teletext over a normal broadcast
picture (mix)
Select the CEC button and press OK to terminate
the function that enables you to control the
connected CEC device with the TV remote.
Exit: Closes and exits from displayed menus or
returns to previous screen
Source: Shows available broadcast and content
sources
English - 9 -
Connections
Connector Type Device
Connection
AUDIO IN
Audio
Connection
YPbPr/PC Audio Cable
HDMI
Connection
SPDIF SPDIF
(Optical Out)
Connection
Connection
Composite Audio Video Cable
HEADPHONE Headphone
Connection
(side)
Connection
Component Video (YPbPr ) Cable
Connection
CI
Connection
(side)
CAM
module
LAN Ethernet
Connection
LAN / Ethernet Cable
Connection
To enable PC/YPbPr audio, you will
need to use the back audio inputs
with a YPbPr/PC audio cable for
audio connection. When using the
wall mounting kit (available from
a third party in the market, if not
supplied), we recommend that you
plug all your cables into the back of
the TV before mounting on the wall.
Insert or remove the CI module only
when the TV is SWITCHED OFF.
You should refer to the module
instruction manual for details of
the settings. The/Each USB input
of your TV supports devices up to
500mA. Connecting devices that
have current value above 500mA
may damage your TV. When con-
necting equipment using a HDMI
cable to your TV, to guarantee
sufficient immunity against parasitic
frequency radiation and trouble-free
transmission of high definition sig-
nals, such as 4K content, you have
to use a high speed shielded (high
grade) HDMI cable with ferrites.
If you want to connect
a device to the TV, make
sure that both the TV
and the device are turned off
before making any connection.
After the connection is done, you
can turn on the units and use
them.
(*) For external subwoofer connection
English - 10 -
Connect the power cord to a power source such as a
wall socket (220-240V AC, 50 Hz).
To switch on the TV from standby mode either:
• Press the button, or a
numeric button on the remote control.
• Press the centre of the joystick on the TV in or push
it up/down.
Press the button on the remote control or
press the centre of the joystick on the TV in and hold
it down for a few seconds, the TV will switch into
standby mode.
Note: When the TV is switched into standby mode, the standby
LED can blink to indicate that features such as Standby
Search, Over Air Download or Timer is active. The LED can
also blink when you switch on the TV from standby mode.
First Time Installation
When turned on for the first time, the language
selection screen is displayed. Select the desired
language and press OK. In the following steps of
the installation guide, set your preferences using the
directional buttons and OK button.
On the second screen set your country preference.
Depending on the Country selection you may be asked
to set and confirm a PIN at this point. The selected PIN
cannot be 0000. You have to enter it if you are asked
to enter a PIN for any menu operation later.
You can activate Store Mode option in the next step.
This option will configure your TV’s settings for store
environment and depending on the TV model being
used, the supported features of it may be displayed on
the side of the screen as an info banner. This option
is intended only for store use. It is recommended to
select Home Mode for home use. This option will be
available in Settings>System>More menu and can
be turned off/on later. Make your selection and press
OK to continue.
Depending on the model of your TV and the country
selection Privacy Settings menu may appear at
this point. Using this menu you can set your privacy
privileges. Highlight a feature and use Left and
Right directional buttons to enable or disable. Read
the related explanations displayed on the screen
for each highlighted feature before making any
changes. You can use buttons to
scroll up and down to read the entire text. You will
be able to change your preferences at any time
later from the Settings>System>Privacy Settings
menu. If the Internet Connection option is disabled
screen will be skipped
and not displayed. If you have any questions,
complaints or comments regarding this privacy
policy or its enforcement, please contact by email at
Next and press OK button on the remote
control to continue and the
menu will be displayed. Please refer to
Wake On
as OffNext
and press OK
On the next screen you need to agree to the terms
and conditions of Freeview Play to make use of the
related services. Scroll the page to read the entire text
using the up/down directional buttons or Programme
buttons. Highlight Yes and press OK on the remote
to confirm and proceed. Highlight No and press OK to
proceed without confirmation. For further requirements
for Freeview Play services refer to the Freeview Play
Platform section.
On next screen you can set broadcast types to be
searched, set your encrypted channel searching
and time zone (depending on the country selection)
preferences. Additionally you can set a broadcast
type as your favourite one. Priority will be given to the
selected broadcast type during the search process
and the channels of it will be listed on the top of the
channel list. When finished, highlight Next and press
OK to continue.
To turn a search option for a broadcast type highlight
it and press OK. The checkbox next to the selected
option will be checked. To turn the search option off
clear the checkbox by pressing OK after moving the
focus on the desired broadcast type option.
Digital Aerial: If broadcast search option
is turned on, the TV will search for digital terrestrial
broadcasts after other initial settings are completed.
If broadcast search option
is turned on, the TV will search for digital cable
broadcasts after other initial settings are completed.
A message will be displayed before starting to search
asking if you want to perform cable network search. If
you select Yes and press OK you can select Network
or set values such as Frequency, Network ID and
Search Step on the next screen. If you select No
and press OK you can set Start Frequency, Stop
Frequency and Search Step on the next screen.
When finished, highlight Next and press OK button
to continue.
Note: Searching duration will change depending on the
selected Search Step.
Satellite: If Satellite broadcast search option is turned
on, the TV will search for digital satellite broadcasts
after other initial settings are completed. Before
English - 11 -
satellite search is performed some settings should be
made. Antenna Type menu will be displayed first. You
can select Antenna Type as Direct, Single Satellite
or DiSEqC switch by using Left or Right
buttons. After selecting your antenna type press OK to
see the options to proceed. Continue, Transponder
list and options will be available. You
can change the transponder and LNB settings using
the related menu options.
• Direct: If you have a single receiver and a direct
satellite dish, select this antenna type. Press OK to
screen and press OK to scan for services.
• If you have multiple
receivers and a single satellite cable system, select
this antenna type. Press OK to continue. Configure
settings by following instructions on the next screen.
Press OK to scan for services.
• DiSEqC switch: If you have multiple satellite dishes
and a DiSEqC switch, select this antenna type.
Press OK DiSEqC
options (if available) on the next screen. Press OK
button to scan the first satellite in the list.
Analogue: If Analogue broadcast search option is
turned on, the TV will search for analogue broadcasts
after other initial settings are completed.
After the initial settings are completed TV will start
to search for available broadcasts of the selected
broadcast types.
While the search continues current scan results will
be displayed at the bottom of the screen. After all the
available stations are stored, Channels menu will be
displayed. You can edit the channel list according to
your preferences using the Edit tab options or press
the Menu button to quit and watch TV.
While the search continues a message may appear,
asking whether you want to sort channels according
to the LCN(*). Select Yes and press OK to confirm
(*) LCN is the Logical Channel Number system that organizes
available broadcasts in accordance with a recognizable
channel number sequence (if available).
Note: Do not turn off the TV while initializing first time
installation. Note that, some options may not be available
depending on the country selection.
You can connect 2.5” and 3.5” inch (HDD with external power
supply) external hard disk drives or USB memory stick to your
TV by using the USB inputs of the TV.
IMPORTANT! Back up the files on your storage devices
before connecting them to the TV. Manufacturer will
not be responsible for any file damage or data loss.
Certain types of USB devices (e.g. MP3 Players)
or USB hard disk drives/memory sticks may not be
compatible with this TV. The TV supports FAT32 and
NTFS disk formatting but recording will not be available
with NTFS formatted disks.
While formatting USB hard drives which have
more than 1TB (Tera Byte) storage space you may
experience some problems in the formatting process.
Wait a little while before each plugging and unplugging
as the player may still be reading files. Failure to do
so may cause physical damage to the USB player
and the USB device itself. Do not pull out your drive
while playing a file.
You can use USB hubs with your TV’s USB inputs.
External power supplied USB hubs are recommended
in such a case.
It is recommended to use the TV’s USB input(s)
directly, if you are going to connect a USB hard disk.
Note: When viewing image files the Media Browser menu
can only display 1000 image files stored on the connected
USB device.
Recording a Programme
IMPORTANT: When using a new USB hard disk
drive, it is recommended that you first format the
disk using your TV’s Format Disk option in the
menu.
To record a programme, you should first connect a USB
disk to your TV while the TV is switched off. You should
then switch on the TV to enable the recording feature.
To use recording your USB drive should have 2 GB free
space and be USB 2.0 compatible. If the USB drive
is not compatible an error message will be displayed.
To record long duration programmes such as movies, it
is recommended to use USB Hard disk drives (HDD’s).
Recorded programmes are saved into the connected
USB disk. If desired, you can store/copy recordings
onto a computer; however, these files will not be
available to be played on a computer. You can play
the recordings only via your TV.
Lip Sync delay may occur during the timeshifting. Radio
record is supported. The TV can record programmes
up to ten hours.
Recorded programmes are split into 4GB partitions.
If the writing speed of the connected USB disk is not
sufficient, the recording may fail and the timeshifting
feature may not be available.
It is recommended to use USB hard disk drives for
recording HD programmes.
Do not pull out the USB/HDD during a recording. This
may harm the connected USB/HDD.
If the AC cord is unplugged while there is an active
USB-recording timer setting, it will be cancelled.
Multipartition support is available. A maximum of two
different partitions are supported. The first partition
of the USB disk is used for USB Recording ready
features. It also must be formatted as the primary
partition to be used for the USB Recording ready
features.
English - 12 -
Some stream packets may not be recorded because
of signal problems, as a result sometimes videos may
freeze during playback.
Record, Play, Pause, Display (for playlist dialogue) keys
can not be used when teletext is on. If a recording starts
from timer when teletext is on, teletext is automatically
turned off. Also teletext usage is disabled when there
is an ongoing recording or playback.
Timeshift Recording
Press Pause button while watching a broadcast to
activate timeshifting mode. In timeshifting mode, the
programme is paused and simultaneously recorded to
the connected USB disk.
Press Play button again to resume the paused
programme from where you stopped. Press the Stop
button to stop timeshift recording and return to the
live broadcast.
Timeshift cannot be used while in radio mode.
You can use the timeshift rewind featureafter resuming
normal playback or fast forward option.
Instant Recording
Press Record button to start recording an event
instantly while watching a programme. You can press
Record button on the remote control again to record
the next event after selecting the next programme from
within the electronic programme guide. Press Stop
button to cancel instant recording.
You can not switch broadcasts or view the media browser
during the recording mode. While recording a programme
or during the timeshifting, a warning message appears
on the screen if your USB device speed is not sufficient.
Watching Recorded Programmes
Select Recordings from the menu. Select a
recorded item from the list (if previously recorded).
Press the OK button to view the Options menu. Select
an option then press OK button.
Note: Viewing main menu and menu items will not be available
during the playback.
Press the Stop button to stop a playback and return
to the Recordings.
Slow Forward
If you press Pause button while watching recorded
programmes, the slow forward feature will be available.
You can use Fast Forward button to slow forward.
Pressing Fast Forward button consecutively will
change slow forwarding speed.
Recording Configuration
Select the Settings tab in the menu
to configure the recording settings and press OK.
Format Disk: You can use the Format Disk option for
formatting the connected USB disk. Your PIN will be
required to use the Format Disk feature.
Note: Default PIN could have been set to 0000 or 1234. If you
have defined the PIN(is requested depending on the country
selection) during the First Time Installation use the PIN that
you have defined.
IMPORTANT: Formatting your USB drive will erase
ALL the data on it and it’s file system will be converted
to FAT32. In most cases operation errors will be fixed
after a format but you will lose ALL your data.
If “ ”
message is displayed on the screen while starting a
recording, try restarting the recording. If you still get
the same error, it is possible that your USB disk does
not meet the speed requirements. Try connecting
another USB disk.
You can play back music and movie files and display
photo files stored on a USB storage device by
connecting it to your TV. Connect a USB storage device
to one of the USB inputs located on the side of the TV.
After connecting a USB storage device to your TV
menu will be displayed on the screen.
You can access the content of the connected USB
device any time later from the Sources menu. Select
the related USB input option from this menu and press
OK. Then select the file of your choice and press OK
to display or play it back.
You can set your Media preferences by using
the Settings menu. Settings menu can be accessed
via the information bar which is displayed on the
bottom of the screen when pressed the Info button
while playing back a video file or displaying a picture
file. Press the Info button, highlight the gear wheel
symbol positioned on the right side of the information
bar and press OK. Picture Settings, Sound Settings,
and Options menus will be
available. The contents of these menus may change
according to the type of the currently open media file.
Only Sound Settings menu will be available while
playing back audio files.
Loop/Shuffle Mode Operation
Start playback and activate
All files in the list will be
continuously played in
original order
Start playback and activate
The same file will be
played continuously
(repeat)
Start playback and activate
All files in the list will be
played once in random
order
Start playback and activate ,
All files in the list will be
continuously played in
the same random order
To use the functions on the information bar highlight the
symbol of the function and press OK. To change the
status of a function highlight the symbol of the function
and press OK as much as needed. If the symbol is
marked with a red cross, that means it is deactivated.
English - 13 -
You can personalize your TV and see your favourite
image or photo on the screen each time your TV boots
up. To do this, copy your favourite image files into a
USB disk and open them in the . Select
USB input from the Sources menu and press OK.
When you have chosen the desired image, highlight
it and press OK to view it in full screen. Press the
Info button, highlight the gear wheel symbol on the
information bar and press OK. Select Options and
press OK to enter. option will be
available. Highlight it and press OK again to choose the
image as custom boot logo. A confirmation message
will be displayed. Select Yes and press OK again. If
the image is suitable(*) you will see it on the screen
during the TV’s next boot up.
Note: If you perform a First Time Installation the TV will
return to using the default logo, if any.
(*) Images must have an aspect ratio between 4:3 to 16:9
and they must be in .jpeg, .jpg or .jpe file formats. The image
cannot be set as boot logo, which’s resolution doesn’t appear
on the info banner.
With your mobile device you can stream the current
broadcast from your smart TV using the FollowMe
feature. Install the appropriate Smart Center
application to your mobile device. Start the application.
For further information on using this feature refer to
the instructions of the application you use.
Note: Depending on model, your TV may not support this
function. The application may not be compatible with all
mobile devices. Both of the devices must be connected to
the same network.
CEC
This function allows to control the CEC-enabled
devices, that are connected through HDMI ports by
using the remote control of the TV.
The CEC option in the Settings>System>More menu
should be set as at first. Press the Source
button and select the HDMI input of the connected
CEC device from the Sources List menu. When
new CEC source device is connected, it will be listed
in source menu with its own name instead of the
connected HDMI ports name(such as DVD Player,
Recorder 1 etc.).
The TV remote is automatically able to perform the
main functions after the connected HDMI source has
been selected. To terminate this operation and control
the TV via the remote again, press and hold the “0-
Zero” button on the remote control for 3 seconds.
You can disable the CEC functionality by setting the
related option under the Settings>System>More
menu accordingly.
The TV supports ARC (Audio Return Channel). This
feature is an audio link meant to replace other cables
between the TV and an audio system (A/V receiver or
speaker system).
When ARC is active, the TV does not mute its other
audio outputs automatically. You will need to decrease
TV volume to zero manually if you wish to hear the
ARC audio only (same as optical or co-axial digital
audio outputs). If you want to change connected
device’s volume level, you should select that device
from the source list. In that case volume control keys
are directed to connected audio device.
Note: ARC is supported only via the HDMI3 input.
System Audio Control
Allows an Audio Amplifier/Receiver to be used with
the TV. The volume can be controlled using the
remote control of the TV. To activate this feature set
the Speakers option in the Settings>System>More
menu as Amplifier. The TV speakers will be muted
and the sound of the watched source will be provided
from the connected sound system.
Note: The audio device should support System Audio Control
feature and CEC option should be set as Enabled.
You can find instructions for your TV’s features in the
E-Manual.
To access the E-Manual, enter Settings menu, select
Manuals and press OK.For quick access press Menu
button and then Info button.
By using the directional buttons select a desired
category. Every category includes different topics.
Select a topic and press OK to read instructions.
To close the E-Manual screen press the Exit or Menu
button.
Note: Depending on model, your TV may not support this
function. The contents of the E-Manual may vary according
to the model.
English - 14 -
Settings Menu Contents
Picture Menu Contents
Mode
You can change the picture mode to suit your preference or requirements. Picture mode can
be set to one of these options: Cinema, (optional), Sports, Dynamic and Natural.
Dolby Vision Modes: If Dolby Vision content is detected Dolby Vision Dark and Dolby Vision Bright picture
mode options will be available instead of Cinema and Natural modes.
Contrast Adjusts the light and dark values on the screen.
Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colours.
Energy Saving For setting the Energy Saving to Custom, Minimum, Medium, Screen Off or Off.
Note: Available options may differ depending on the selected Mode.
OLED Luminance This setting controls the OLED luminance level. This function will be inactive if the
Energy Saving is set to an option other than Custom.
Advanced Settings
Dynamic
Contrast
You can change the dynamic contrast ratio to desired value.
Noise Reduction If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce
the amount of noise.
Colour Temp Sets the desired colour temperature value. Cool, Normal, Warm and Custom options
are available.
White Point If the Colour Temp option is set as Custom, this setting will be available. Increase the
‘warmth’ or ‘coolness’ of the picture by pressing Left or Right buttons.
OLED Fast Panel
Clean
You can perform this panel maintenance operation manually to protect the OLED panel
and extend its life time. This operation will take about 10 minutes and then the TV will be
switched off automatically. Do not unplug the mains lead during this period. Refer to the
section for more information before you perform this operation.
OLED Panel
Noise Clean
You can perform this panel maintenance operation manually to protect the OLED panel
and extend its life time. This operation will take about 1 hour and then the TV will be
switched off automatically. Do not unplug the mains lead during this period. It is not
recommended to perform this operation more than once a year or unless requested
by authorised service personnel. Refer to the section for more
information before you perform this operation.
Picture Zoom Sets the desired image size format.
Picture Shift This option may be available depending on the Picture Zoom setting. Highlight and
press OK, then use directional buttons to shift the picture upwards or downwards.
Movie Sense
(optional)
Press left/right buttons to set Movie Sense to Low, Medium, High or Off. While Movie
Sense is active, it will optimize the TV’s video settings for motional images to acquire
a better quality and readability.
Movie Sense
Demo (optional)
When Movie Sense option is set to Low, Medium or High, this option will be available.
Press OK button to activate the demo mode. While demo mode is active, the screen will
be divided into two sections, one displaying the movie sense activity, the other displaying
the normal settings for TV screen.
Film Mode Films are recorded at a different number of frames per second to normal television programmes.
Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
HDMI Full Range While watching from a HDMI source, this feature will be visible. You can use this feature
to enhance blackness in the picture.
English - 15 -
Notification
Sets the notification appearance preference for Dolby Vision contents. When set as On,
Dolby Vision logo will be displayed on the lower right side of the screen when Dolby
Vision content is detected.
PC Position Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position This item shifts the image horizontally to the right hand side or left hand side of the screen.
This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock Dot Clock adjustments correct the interference that appear as vertical banding in dot
intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase Depending on the input source(computer etc.) you may see a hazy or noisy picture on
the screen. You can use phase to get a clearer picture by trial and error.
Reset Resets the picture settings to factory default settings (except mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture menu
while in PC mode.
English - 16 -
Sound Menu Contents
Adjusts the volume level.
Selects the equalizer mode. Custom settings can be made only when in User mode.
Adjusts whether the sound comes from the left or right speaker.
Headphone
Sets headphone volume.
Please ensure before using headphones that the headphone volume is set to a low
level, to prevent damage to your hearing.
Sound Mode You can select a sound mode (If the viewed channel supports).
(optional) Press OK to open the Bluetooth menu screen. Using this screen you can discover and
connect the Bluetooth wireless technology enabled sound devices to your TV.
Sets the sound to obtain fixed output level between programmes.
When you connect an external amplifier to your TV using the headphone jack, you can
select this option as Lineout. If you have connected headphones to the TV, set this
option as Headphone.
Please ensure before using headphones that this menu item is set to Headphone. If it
is set to Lineout, the output from the headphone socket will be set to maximum which
could damage your hearing.
(optional) Enables or disables the Dynamic Bass.
DTS TruSurround Enables or disables the DTS TruSurround.
Digital Out
Sets digital out audio type.
Controls the bass gain level. Use Left or Right button to set.
English - 17 -
Network Menu Contents
Network Type
Disable the network connection or change the connection type.
Scan Wireless
Networks
Start a search for wireless networks. This option will be available if the Network Type
is set as Wireless Device.
Press WPS on your
wifi router
If your modem/router device has WPS, you can directly connect to it using this option.
Highlight this option and press OK. Go to your modem/router device and press the
WPS button on it to make the connection. This option will be available if the Network
Type is set as Wireless Device.
Internet Speed Test Start a speed test to check your connection bandwidth. The result will be displayed on
the screen when finished.
Advanced Settings Change the IP and DNS configurations of your TV.
Wake On Enable or disable this feature by setting it as On or Off.
Note: For detailed information on the options of this menu refer to the Connectivity section.
Installation Menu Contents
Automatic channel
scan (Retune)
Displays automatic tuning options. Searches and stores aerial DVB stations.
Searches and stores cable DVB stations. Analogue: Searches and stores
analogue stations.
Manual channel
scan
This feature can be used for direct broadcast entry.
Network channel
scan
Searches for the linked channels in the broadcast system. Searches for aerial
network channels. Searches for cable network channels. Satellite: Searches
for satellite network channels.
Analogue fine tune
You can use this setting for fine tuning analogue channels. This feature is not available
if no analogue channels are stored and if currently watched channel is not an analogue
channel.
Satellite Settings
Displays satellite settings. Satellite list: Displays available satellites. You can Add,
Delete satellites or Edit satellite settings on the list. Antenna installation: You can
change satellite antenna settings and/or start a satellite scan.
Installation Settings
(optional)
Displays installation settings menu. Your TV will search for new or
missing channels while in standby. Any new found broadcasts will be shown. Dynamic
Channel Update(*): If this option is set as Enabled, the changes on the broadcasts
such as frequency, channel name, subtitle language etc., will be applied automatically
while watching.
(*) Availability depends on model.
Clear Service List Use this setting to clear channels stored. This setting is visible only when the Country
option is set to Denmark, Sweden, Norway or Finland.
Select Active
Network
This setting allows you to select only the broadcasts within the selected network to be
listed in the channel list. This feature is available only for the country option of Norway.
Signal Information You can use this menu item to monitor signal related information such as signal level/
quality, network name etc for available frequencies.
First time installation Deletes all stored channels and settings, resets TV to factory settings.
English - 18 -
System Menu Contents
Conditional Access
Controls conditional access modules when available.
Language
You may set a different language depending on the broadcaster and the country.
Privacy Settings (*) Manage your privacy privileges for smart TV related applications. Press OK to enter
the menu and set according to your preferences.
Parental
Enter correct password to change parental settings. You can easily adjust Menu Lock,
Maturity Lock, Child Lock or in this menu. You can also set a new PIN
or change the Default CICAM PIN using the related options.
Note: Some menu options may not be available depending on the country selection in the First Time
Installation. Default PIN could have been set to 0000 or 1234. If you have defined the PIN(is requested
depending on the country selection) during the First Time Installation use the PIN that you have defined.
Sets date and time.
Sources
Edit the names, enable or disable selected source options. There are also Regular,
Enhanced and options available for HDMI sources. Regular and Enhanced
options are affecting the colour settings of the selected HDMI source. To be able to
watch 4K or HDR/HLG (optional) images from an HDMI source related source setting
should be set as Enhanced if the connected device is compatible with HDMI 2.0 and
subsequent versions. Set as Regular if the connected device is HDMI 1.4 compatible.
Set accordingly or disable the related HDMI source by setting as .
Displays accessibility options of the TV.
Hard of Hearing
Enables any special feature sent from the broadcaster.
Audio
Description
A narration track will be played for the blind or visually impaired audience. Press OK
to see all available Audio Description menu options. This feature is available only if
the broadcaster supports it.
Note: Audio description sound feature is not available in recording or time shifting mode.
Netflix
If this feature is supported by your TV, you can view your ESN(*) number and deactivate
Netflix.
(*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
More
Displays other setting options of the TV.
Menu Timeout
Changes timeout duration for menu screens.
If set as Off the standby LED will not light up when the TV is in standby mode.
You can enable or disable this feature by setting it as On or Off.
Software
Upgrade
Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application
Displays current software version.
This option is used to select which subtitle mode will be on the screen ( subtitle /
Teletext subtitle) if both is available. Default value is subtitle. This feature is available
only for the country option of Norway.
Sets the desired time for the TV to automatically go into standby mode when not being
operated.
Biss is a satellite signal scrambling system that is used for some broadcasts. If you
need to enter Biss key on a broadcast, you can use this setting. Highlight Key and
press OK to enter keys on the desired broadcast.
Store Mode Select this mode for store display purposes. Whilst Store Mode is enabled, some items
in the TV menu may not be available.
feature allows you to share files stored on your smartphone or tablet pc. If you have
a compatible smartphone or tablet pc and the appropriate software is installed, you can
share/play photos on your TV. See instructions of your sharing software for more information.
English - 19 -
Power Up Mode This setting configures the power up mode preference. Last State and options
are available.
Enable or disable the virtual remote feature.
CEC With this setting you can enable and disable CEC functionality completely. Press Left
or Right button to enable or disable the feature.
CEC Auto Power
On
This function allows the connected HDMI-CEC compatible device to turn on the TV
and switch to its input source automatically. Press Left or Right button to enable or
disable the feature.
Speakers To hear the TV audio from the connected compatible audio device set as Amplifier.
You can use the remote control of the TV to control the volume of the audio device.
Smart Remote
Press OK to open the Smart Remote menu screen. Using this screen you can discover
and connect the Bluetooth wireless technology enabled remote controller devices to
your TV.
(*)
Delete All Coo
(*)
OSS Displays Open Source Software license information.
(*) These features may not be available depending on the model of your TV and the selected country in the First Time Installation.
This manual suits for next models
1
Table of contents
