Akura MIC 707DR User manual

Customer Help Line 01422 203676
INSTRUCTION MANUAL
MIC 707DR

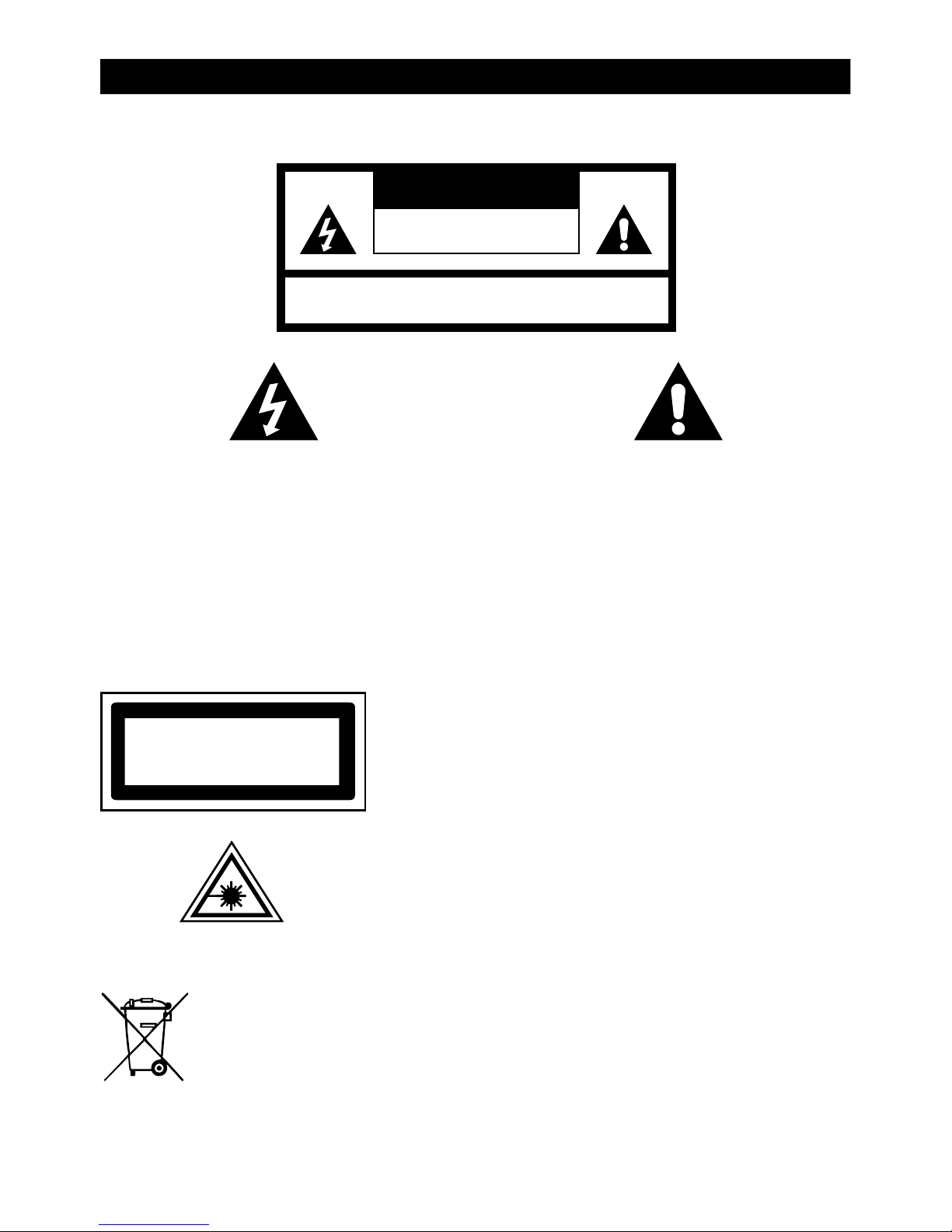

WARNING
Page 1
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING : SHOCK HAZARD-DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
LIGHTNING FLASH WITH ARROWHEAD SYMBOL -
within an equilateral triangle, is intended to alert the
user to the presence of uninsulated dangerous
voltage within the products enclosure that may be of
sufficient magnitude to constitude a risk of electric
shock to persons.
EXCLAMATION POINT - within an equilateral triangle,
is used to indicate that a specific component shall be
replaced only by the component specified in that
documentation for safety reason.
The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:
CLASS 1 LASER PRODUCT LABEL -
This label is attached to the place as illustrated to inform that the
apparatus contains a laser component.
WARNING LABEL INFORMING OF RADIATION -
This label is placed inside the unit. As shown in the illustration. To
warn against further measures on the unit. The equipment contains
a laser radiating laser rays according to the limit of laser product of
class 1.
CLASS 1 LASER PRODUCT
KLASS 1 LASER APPARAT
LUOKEN 1 LAISERLAITE
KLASSE 1 LASER PRODUKT
The crossed out “Wheelie bin” is intended to show that this appliance
must not be placed with ordinary household waste.
When this appliance has reached the end of its useful life. It must be
disposed of in accordance with local by-laws. Consult your local waste
disposal authority. (WEEE Directive)

Page 2
SAFETY INSTRUCTIONS
1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl,
kitchen sink, laundrytub, swimming pool or in a wet basement.
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper
ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in
installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances
(including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the
operating instructions or as marked on the appliance.
9. GROUNDING - Precautions should be taken to ensure that the grounding means of an appliance is not defeated.
10. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them.
11. POWER LINES - An outdoor antenna should be located away from power lines.
12. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into
the enclosure through openings.
13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.
14. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating
instructions. All other servicing should be referred to qualified service personnel.
Notes:
a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconncet the AC cord and remove all the batteries. Then turn the power
back on.
BEFORE OPERATION
Notes: CONCERNING COMPACT DISCS.
Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:
a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

Page 3

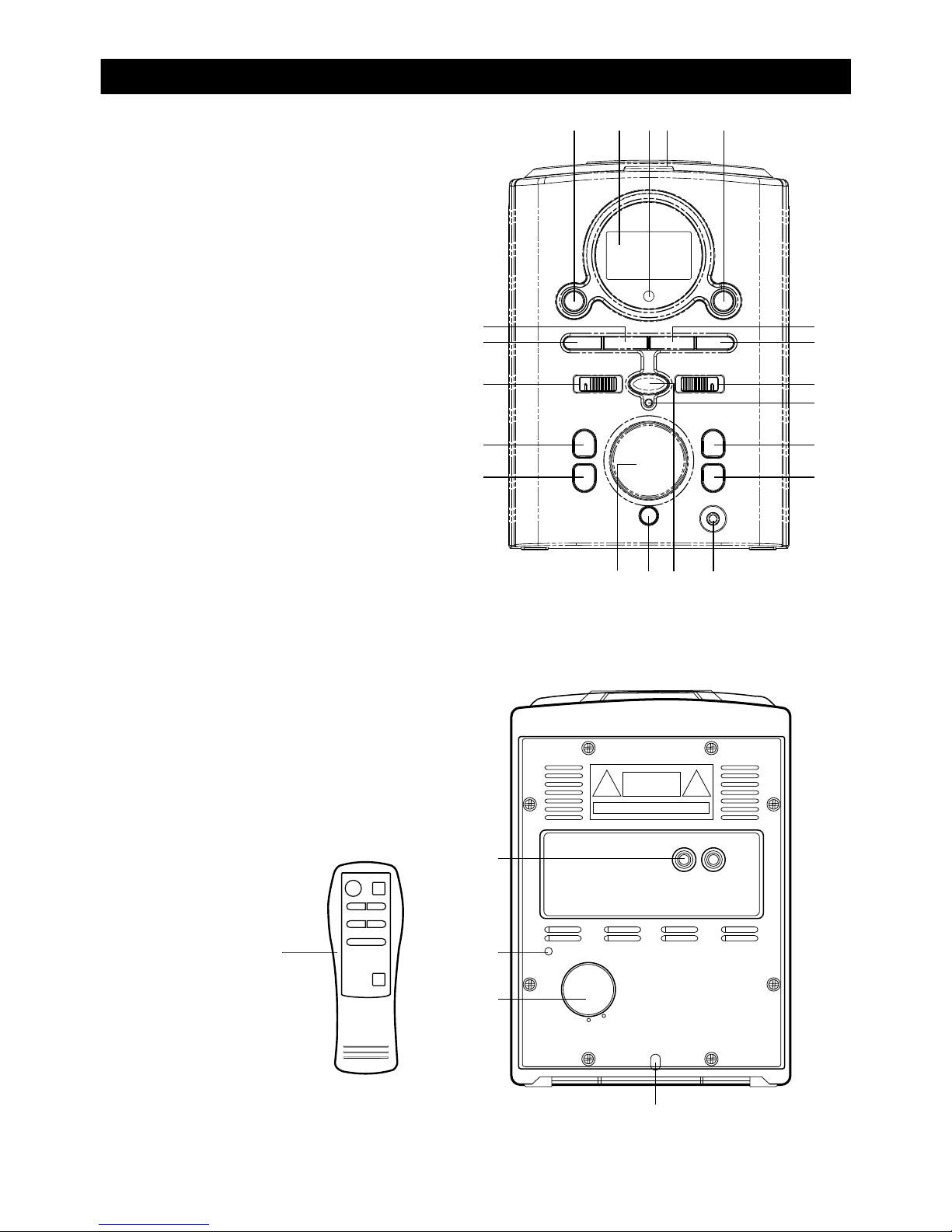

LOCATION OF CONTROL
1.) REPEAT
2.) LCD DISPLAY
3.) REMOTE SENSOR
4.) CD OPEN BUTTON
5.) MOMERY
6.) STOP
7.) PREVIOUS
8.) FUNCTION SELECTOR / POWER OFF
9.) HOUR
10.) MINUTE
11.) PLAY / PAUSE
12.) NEXT
13.) BAND / FM STEREO SELECTOR
14.) FM STEREO INDICATOR
15.) VOLUME UP
16.) VOLUME DOWN
17.) TUNING CONTROL
18.) TIME SET
19.) BASS BOOSE
20.) HEADPHONE JACK
21.) FM ANTENNA
22.) BATTERIES BACKUP
23.) LEFT / RIGHT SPEAKER JACK
24.) AC POWER CORD
25.) REMOTE CONTROL
23
21
22
24
1 5
6
7
8
9
10
11
12
13
15
14
16
2 3 4
17 18 19 20
25

Page 4
BATTERY INSTALLATION
Insert 2 x “AAA” size batteries into the battery compartment. Be sure that the batteries are inserted
correctly to avoid damage to the remote control. Always remove the batteries when the remote
control will not be used for a long period of time, as this will cause leakage to the batteries and
subsequently damage to your set.
Notes:
- Use batteries of the same type. Never use different types of batteries together.
- If the distance required between the remote control and the appliance decreases, the batteries
are exhausted. In this case replace the batteries with new one.
SENSOR WINDOW OF THE RECEIVER
- Even if the remote control is operated within the effective range, its operation may be impossible if
there are any obstacies between the appliance and the remote control.
- If the remote control is operated near other appliances which generate infrared rays, or if other
remote control devices using infrared rays are used near the appliance, it may operate incorrectly.
REMOTE CONTROL
1. MEMORY
2. VOLUME UP
3. VOLUME DOWN
4. NEXT / FORWARD
5. BACK / REW
6. PLAY / PAUSE
7. STOP
8. REPEAT
1
3 2
5 4
6
7
8
Exhausted batteries must be disposed of carefully. Do not brak open or throw on a fire

Page 5
Before Connection
Connection
Caution
Turn off the power of all the equipment before making connections.
Read instructions of each component you intend to use with this unit.
• Be sure to insert each plug securely. To prevent hum and noise, do not
bundle the mains lead with speaker leads or other leads.
Positioning of the Speakers
The positioning of speakers differs according to the size and acoustics of the listening
room. While actually listening to a program source, try various speaker positions to
determine which layout provides the best surround effect.
Place the speakers connected to “L” to your left, and “R” to your right.
Speaker Connections
Caution
To avoid damaging the speakers with sudden high level signals, be sure to switch the
power off before connecting the speakers.
• Speaker Jacks
Connect the SPEAKER PLUGS to the SPEAKER JACKS located on the rear
of the unit.
• How to Connect
RIGHT SPEAKER PLUG: Red jack
LEFT SPEAKER PLUG: White jack
1. Plug Right Speaker Cable to Red Speaker Input
2. Plug Left Speaker Cable to White Speaker Input
SPEAKER
RL
(RED) (WHITE)

Page 6
CD OPERATION
1 Switch to “CD” mode, unit will turn “ON” automatically.
2 Press “Open” button to open CD door (“-“ and present time appears on display)
• Place the disc with label facing up on the disc tray.
• Hold the disc without touching either of its surface position with printed
title side facing up, align it with the guides and place it in its proper
position.
3 Close the CD door unit it “Clicks” (Total track number in Disc on display).
4 Press “Play” Disc play automatically
5 Stopping play
Press “Stop” button once to stop play
• If you press the “play” button again, play starts automatically from first track.
Skip and Searching
Next or Back Button:
Press these buttons to go to the previous / next track
Repeat
1 Press repeat key once.
2 LCD will show “Repeat 1”, indicating repeat of single track.
3 Press repeat key again to repeat all tracks and “repeat all” appears on display.
4 Press repeat key again to terminate.
CD Memory
Up to 20 tracks can be programmed for disc play in any order.
Before use, be sure to press STOP button
1 Set CD mode.
2 Press the “Memory” button, the display will show “Memory 01”, moreover, it will
indicate program no. and digits for track no.
3 Select a desired track by using the skip buttons.
4 Press the “Memory” button again to confirm desire track into program.
5 Repeat step 2 and 3 to enter additional memories into the program.
6 When ALL the desired tracks have programmed. Press “Play / Pause” button to
play the disc in the order you have programmed.
7 Press “Stop” button to terminal program play.

ON HANDLING DISCS ON CLEANING DISCS
Do not touch the playback side of the disc.
Do not attach paper or tape to disc.
Fingerprints and dust on the disc casue picture
and sound deterioration. Wipe the disc from the
centre outwards with a soft cloth. Always keep
the disc clean.
If you can not wipe off the dust with a soft cloth,
wipe the disc lightly with a slightly moistened soft
cloth and finish with a dry cloth.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or anti-
static spray for vinyl Lps. It may damage the disc.
Page 7
RADIO OPERATION
1 Set the function selector to “Radio” position
2 Select desire Band (Radio frequency Digit will appear on display)
3 Adjust radio frequent to your desire station by using the tuner control
4 Adjust Volume Control for volume level
FM / FM-Stereo Reception
• Set to FM mode position for “MONO” reception
• Set to “FM-ST” position for “FM-Stereo” reception. The Stereo indicator
light up to show “FM Stereo” mode.
Sound Effect
1 Press “BASS” Button for Ex-Bass Boost
2 Press again “BASS” button to terminate Ex-Bass effect
Clock Setting
1 Press and hold “Time Set” button
2 Press “Hour” button to set Hour
3 Press “Minute” button to set Minute
4 Release all button to confirm setting
• Confirmed setting will appear on display

Specifications
Power Supply : 230V ~ 50Hz
Power Consumption : 20 Watt
Output Power(RMS) : 2 x 2W
Terminal impedence : Speaker 8ohms
Main Unit Dimensions : 224(L) x 150(W) x 206.6(H)mm
Net Weight : 2.3kg
Gross Weight : 3kg
Tuning Frequency : AM: 540-1600 KHz
FM: 88-108 MHz
If you are still having difficulty please call the Technical help line. Ring 01422 203676 (Normal
rates apply).
Opening hours Mon-Fir 8 am - 8 pm. Sat 9 am - 4 pm. Sun 11am - 4 pm. “Bank holidays as
Sun”
Fault Guide.
Symptom Fault Action
No power to player. Check the power plug is in
firmly and connected to a
power supply.
If batteries are fitted, ensure
they are new and fitted the
correct way round.
Dead. No Operations
Function switch in incorrect
position.
Switch to CD or Radio
No Radio operations but Led
lit
Function switch set to CD Switch to Radio. Turn up the
volume.
No Radio stations on MW Poor signal area Rotate the case of the radio as
the internal aerial is
directional. The extending rod
aerial is not in use on AM
No Radio stations on FM Poor signal area Extend and rotate the rod
aerial.
Dirty or damaged disc Carefully clean the disc and
place in the player label side
up.
Not playing CD’s
Dirty laser lens Carefully clean the lens with a
“cotton bud”.
Page 8
Should you experience any problems please see guide below before calling the help line
Speaker Dimensions : 135(L) x 150(W) x 192(H)mm

IMPORTANT
Page 9
If the mains plug requires replacement, please follow the following instructions.
DO NOT CONNECT THE CENTRE PIN (EARTH).
Connect the Blue wire to the (N) terminal ( this may be
coloured blue).
Connect the Brown wire to the (L) terminal adjacent to
the fuse ( this may be coloured brown).
This appliance must have a 3A fuse fitted.
