V-Page VP4X
User’s Guide
August 18, 2020
4-ZONE INTELLIGENT PAGING STATION

2
August 18, 2020
TABLE OF CONTENTS
TABLE OF CONTENTS ............................................................................................................... 2
WELCOME!.................................................................................................................................... 4
PRODUCT FEATURES................................................................................................................. 5
TECHNICAL SUPPORT............................................................................................................... 5
GETTING STARTED .................................................................................................................... 6
HARDWARE INSTALLATION.......................................................................................................................................... 6
LINKING TO A Q-SYS CORE.......................................................................................................................................... 6
AUDIO CONFIGURATION .............................................................................................................................................. 6
HARDWARE INFORMATION .................................................................................................... 7
HARDWARE OVERVIEW ................................................................................................................................................ 7
ZONE STATUS LEDS...................................................................................................................................................... 8
CONFIGURATION OF DIP SWITCHES ........................................................................................................................... 8
CONNECTORS .............................................................................................................................................................. 11

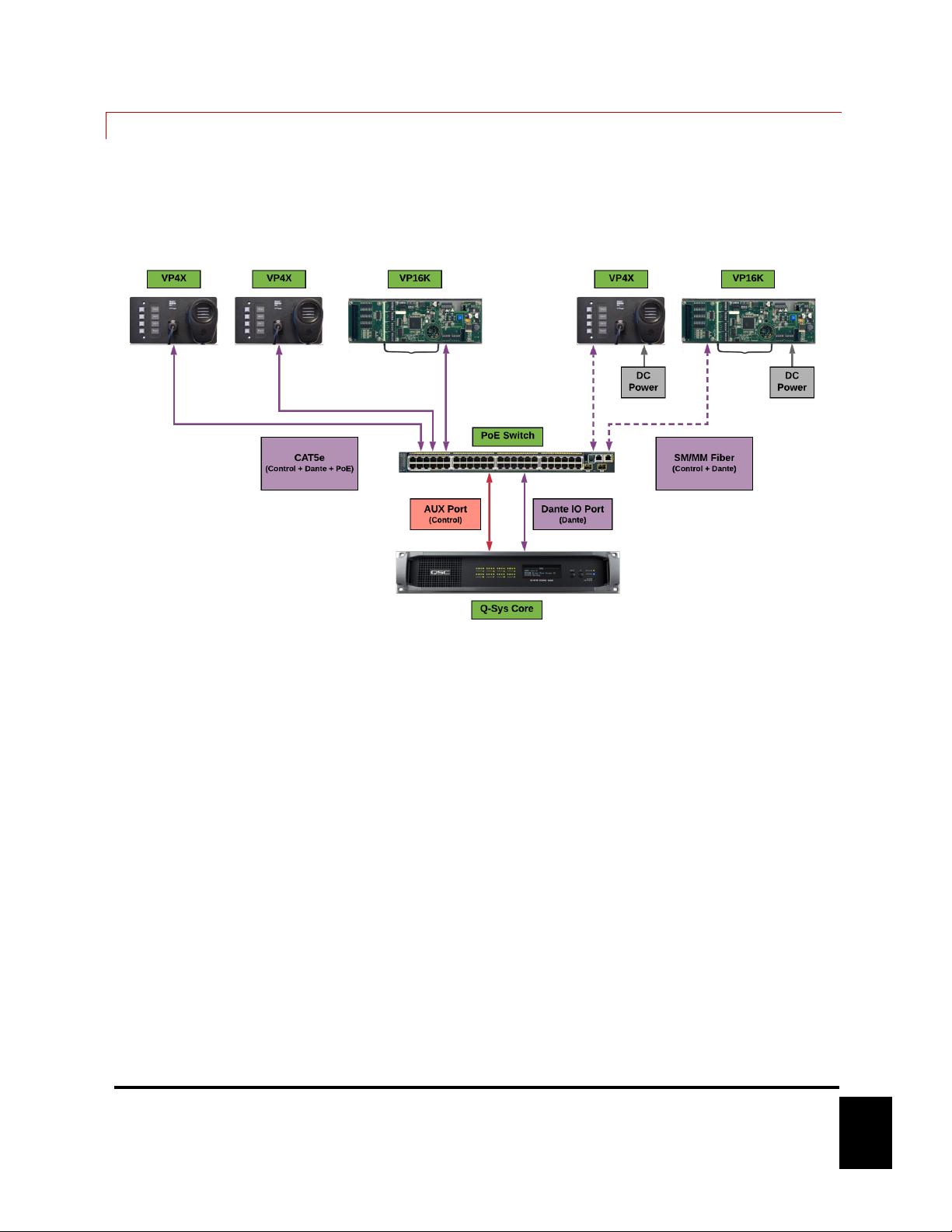

NETWORK ARCHITECTURE................................................................................................... 14

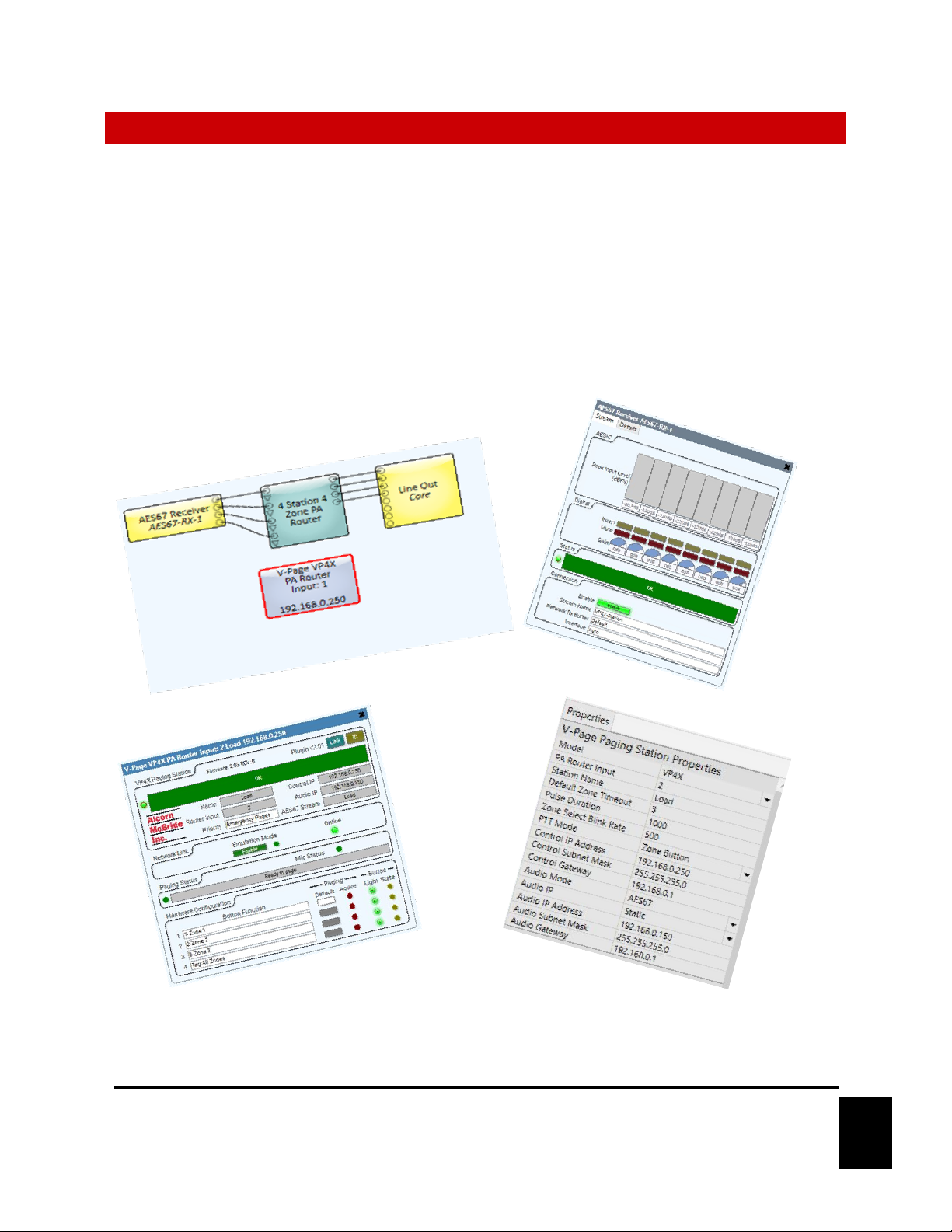

Q-SYS CONFIGURATION AND PLUGIN .............................................................................. 16

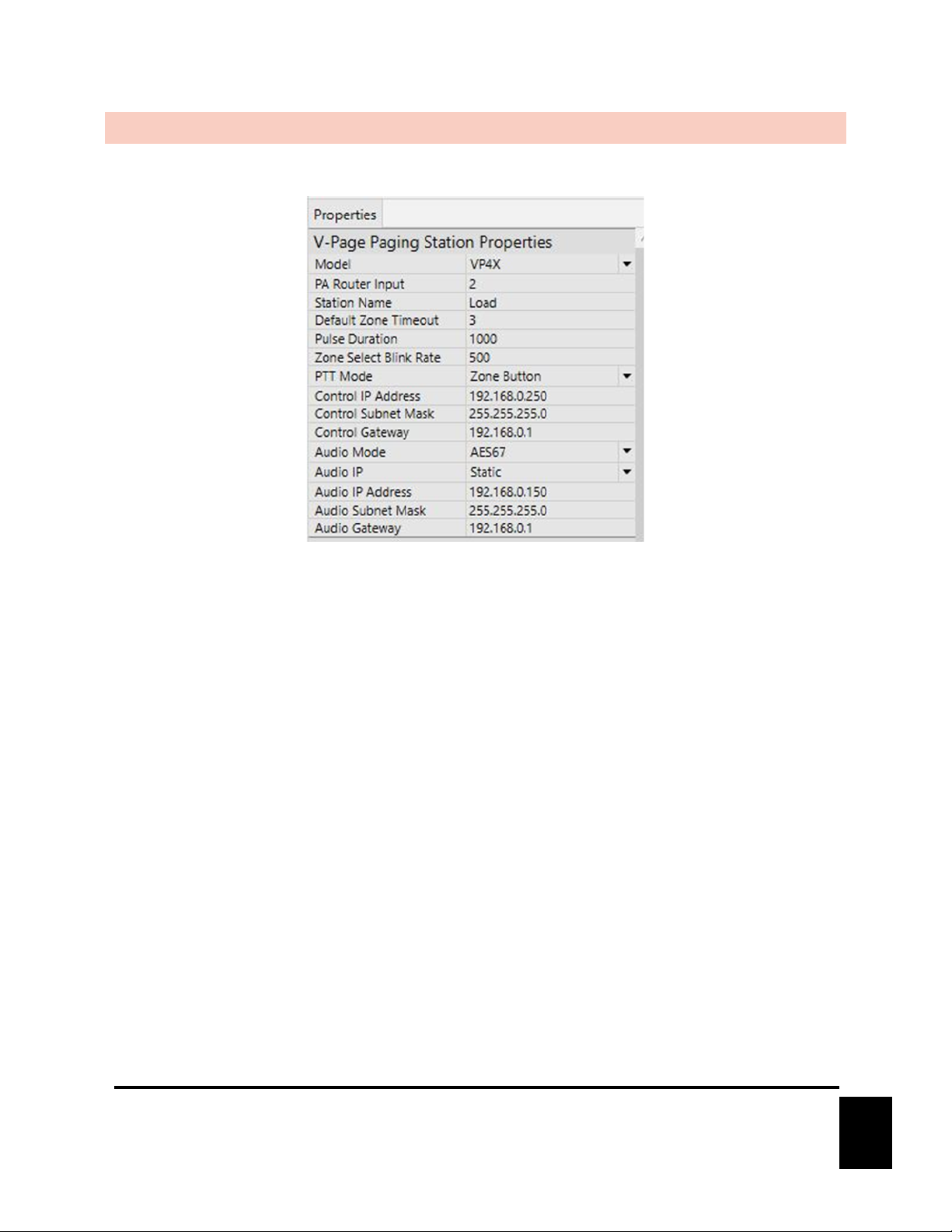

PAGING STATION PROPERTIES.................................................................................................................................... 17

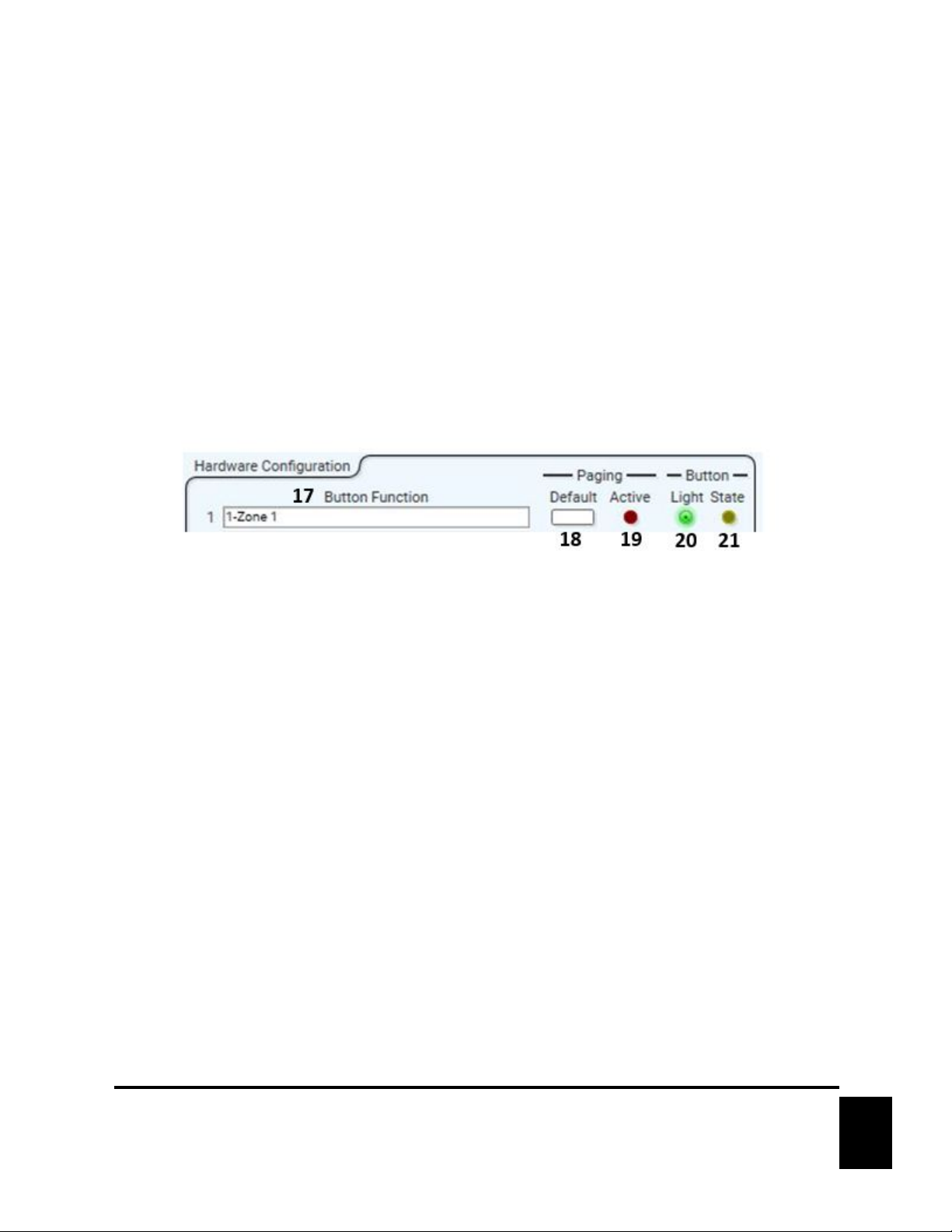

PAGING STATION USER INTERFACE .......................................................................................................................... 18
LINKING STATION TO QSYS ........................................................................................................................................ 21
DANTE CONTROLLER SOFTWARE ...................................................................................... 21
AES67 AUDIO CONFIGURATION ...................................ERROR! BOOKMARK NOT DEFINED.
FIRMWARE UPDATE................................................................................................................. 25
FIRMWARE UPDATE PROCEDURE............................................................................................................................... 25
TROUBLESHOOTING GUIDE / FAQ ...................................................................................... 26
LOCATING A V-PAGE ON A NETWORK.............................................................................. 28
ACCESSORIES ............................................................................................................................ 29
RM-VP4......................................................................................................................................................................... 29

3
August 18, 2020
RM-VP4VC12 .............................................................................................................................................................. 29
MIC-US600EL.............................................................................................................................................................. 30
SPECIFICATIONS....................................................................................................................... 31
CONTROL ..................................................................................................................................................................... 31
AUDIO ........................................................................................................................................................................... 31
PHYSICAL ....................................................................................................................................................................... 31

4
August 18, 2020
WELCOME!
Thank you for purchasing the Alcorn McBride V-Page paging station!
What makes V-Page truly special is its ability to provide facility-wide paging using industry-standard Dante or
AES67 network audio and the Q-Sys™ PA Station Protocol.
The V-Page VP4X is a four-button station that comes with a push-to-talk microphone and integrated mounting
bracket. The station is just the right size for a standard 4-gang wall box, making it a fantastic off-the-shelf paging
solution that’s ready to go right out of the box. Zone assignments, button and indicator behaviors, and zone
priorities are all easily configured within in the Q-Sys Designer and Administrator software.
For easy and reliable installation, a single Ethernet (Cat5e or greater) cable carries audio, power, control and
monitor data between the V-Page station and the Q-Sys system. This allows you to incorporate as many as 256 V-
Page stations using a single Q-Sys core by simply connecting them to Power Over Ethernet (PoE) network
switches. For stations that are far from the equipment room, V-Page even supports an SFP network transceiver
(not included) for reliable long-distance communications.
For applications where you wish to build your own custom paging console, be sure to check out our V-Page
VP16K paging station kit. The V-Page VP16K supports up to 16-zones of paging and is designed to be mounted
inside a custom console. It includes all of the accessories needed to wire up your custom-installed buttons and
indicators.

5
August 18, 2020
PRODUCT FEATURES
The V-Page VP4X offers a wide range of features including:
• 4 Illuminated Paging Zone Buttons
• Dante & AES67 Network Audio
• Seamless Q-Sys Integration
• Audio, Control, and Power over Ethernet
• SFP Ethernet Support
• Customizable Label Inserts
• Adjustable Mic Gain
• Configurable LED Brightness
• Mounts in a Standard 4-gang Box
TECHNICAL SUPPORT
Now that we’ve tantalized you with all of the wonderful things this product can do, I’ll bet you’re chomping at the
bit to flip all the switches and push all the buttons. Not so fast! Before we get to the fun stuff, we just want to
take a moment to remind you that we are here to help. Chances are that you’re building something really cool
and we want you to have access to the resources and support you need to be successful.
To start, you’ll find a wealth of information on our website. This includes Application Notes that give you detailed
documentation and examples for how this product is used in common types of themed entertainment projects.
You’ll also find the latest downloads for software, firmware, drawings, 3D models, cutsheets, and other helpful
resources on our Support page. The Knowledge Base is especially handy for common questions and helpful
troubleshooting tips. And last, but certainly not least, you always have our friendly and mildly entertaining staff
available by email or telephone.
Training
https://www.alcorn.com/training
Application Notes
https://www.alcorn.com/applications
Support Resources
https://www.alcorn.com/support
Knowledge Base (FAQ)
https://alcornmcbride.zendesk.com/hc/en-us
Email Support
[email protected]
Telephone Support
[phone] (Mon-Fri 9am-6pm EST)

6
August 18, 2020
GETTING STARTED
Alright, time to roll up your sleeves and get to work! This section will guide you through basic concepts that will
help you get on your way with V-Page.
Each V-Page station communicates with a Q-Sys Core via network connection using a plugin. To install this plugin,
you need to download the file from our website (https://alcorn.com/products/vp4x/) and copy and paste the
component to your design.
*You must be running Q-Sys Firmware 7.0.0 or above and V-Page firmware 2.00 or above for the Plugin to
work. To learn how to do a firmware update please refer to the firmware update section of this manual.
There are three steps that need to be completed to ensure that V-Page and Q-Sys function together properly.
1. Hardware Installation
2. Linking to a Q-Sys Core
3. Audio Configuration
HARDWARE INSTALLATION
a. Make sure that all the dip switches are in the OFF Position
b. Power on V-Page by connecting Ethernet port to the Power Over Ethernet (PoE) switch and wait 10
seconds for V-Page unit to initialize. If no Power Over Ethernet (PoE) is available, refer to the VP4X
Hardware section to learn about using an external power supply.
c. Be sure to have your V-Page units on the same network as the Q-Sys Core
LINKING TO A Q-SYS CORE
a. Single click the V-Page Plugin block for the station you would like to link and ensure your property
settings are configured. (Refer to Plugin Properties section of this manual).
b. Connect to the Q-Sys Core and then double click to open the plugin.
c. Press and hold buttons 1, 2 and 4 simultaneously on the V-Page hardware for 5 seconds.
d. On the Q-Sys plugin, on the top right corner click “Link”.
The station LED’s will blink for a second and the station will re-boot. After a few seconds the station LED’s
will be solid green and the plugin “Online” LED will light up.
NOTE: Make sure that you have assigned a gateway in the Q-sys core and that your network
infrastructure allows for both broadcast and multicast traffic.
AUDIO CONFIGURATION
a. Launch the Audinate Dante Controller software.
b. Click on the “Device Info” tab and double click on the V-Page station.
c. Enable AES67 under the AES67 tab and reboot the interface.
d. Once the interface has been rebooted, it’s time to create an AES67 multi-cast flow. Click on “Add
Multicast Flow”.
e. Check the “AES67 Flow” box. Add your channel into the new flow. Click “Create”.
f. In Q-Sys Designer, double click your AES67 Receiver Module and pick the new Stream Name.

7
August 18, 2020
HARDWARE INFORMATION
HARDWARE OVERVIEW
Buttons
Button Labels
Microphone Clip
Microphone Connector
Ethernet (SFP)
Ethernet (RJ45)
Button Label Insert

8
August 18, 2020
ZONE STATUS LEDS
On the V-Page VP4X, each zone select pushbutton has an integrated bi-color LED.Here are the various states
and what they indicate:
LED State
Description
Blinking Green
Zone Selected
Solid Green
Zone Available
Solid Red
Zone Unavailable (Page in Progress)
Off
Button Unused
All Chasing Green (1, 2, 3, ...)
Link Active
All Blinking Red (Slow)
Unconfigured or Unable to Connect to Q-Sys Core
All Blinking Red (Fast)
Firmware Update Mode
NOTE: These indicators can be overridden using the Breakaway feature of the V-Page plugin. This allows you to take
manual control of the LED status using IO pins in Q-Sys designer.
CONFIGURATION OF DIP SWITCHES
The configuration DIP switches are located on the side of the V-Page. Changing the states of these switches,
either during power-up or normal operation, can alter the behavior of the V-Page. The default position for all the
switches for normal operation is OFF (UP).
V-Page can power up in one of the following modes (based on switches configuration):
• Normal Mode
• Factory Test Mode
• Firmware Update Mode
During power up, the state of some switches (ON or OFF) may result in action. During runtime, toggling the DIP
switch (OFF => ON => OFF) may perform a specified action. See the descriptions below.

9
August 18, 2020
DIP SWITCH 1: LINK MODE
RUNTIME – LINK:
OFF => ON => OFF: Activate/deactivate Link. Toggle once to activate, toggle again to deactivate. Link will also
exit on successful completion or will auto-exit after 60 seconds (default).
Link can be used in conjunction with Q-Sys to assign station ID, static IP/Port and Q-Sys feedback information to
the V-Page. In a sense, this pairs the V-Page with a specific Q-Sys Core.
When the Link mode is active, the Green LEDs will illuminate one at a time in a sequential chasing pattern.
DIP SWITCH 2: FIRMWARE UPDATE MODE / RESET FACTORY DEFAULTS
POWER UP – FIRMWARE UPDATE MODE:
ON: Enter Firmware Update mode. In this mode of operation, V-Page disregards all its settings and the rest of
the DIP switches and uses a default IP of 192.168.0.254. Web server serves up Firmware Update page. For a
detailed explanation on Updating V-Page firmware, see the Firmware Update section.
To exit Firmware Update Mode, return the switch to OFF position and perform a power cycle.
OFF: Default state of the switch for normal operation.
NOTE: It’s advised to use AMI Terminal to invoke the firmware update. The V-Page will enter the firmware update
mode on the last known IP instead of fixed 192.168.0.254
RUNTIME – LOAD FACTORY DEFAULTS (IN NORMAL OPERATION MODE ONLY):
OFF => ON => OFF: Perform factory defaults. All LEDs will light up solid RED for a few seconds, then V-Page
will perform reset to defaults. Any stored settings will be erased from non-volatile memory and restored to their
factory defaults. This affects Dante settings as well.
NOTE: Loading Factory Defaults will erase all V-Page settings!!

10
August 18, 2020
DIP SWITCH 3: FACTORY TEST MODE
POWER UP – FACTORY TEST MODE:
ON: Used for Factory Testing purposes only.
OFF: Default state of the switch for normal operation.
NOTE: Firmware Update DIP Switch 2 must be OFF!
NOTE: Factory Test Mode is mainly used for troubleshooting. It is NOT a requirement to program the V-Page as all the
parameters can be programmed while operating in the normal mode.
NOTE: While in Test Mode, V-Page will not fully operate as a paging station.
DIP SWITCH 4: SPARE (NOT IN USE)
This DIP Switch is currently not in use.
POWER UP/RUNTIME:
ON: Not in use.
OFF: Default state of the switch for normal operation.

11
August 18, 2020
CONNECTORS
POWER INPUT
An external power input is provided if you decide not to use the Power-Over-Ethernet feature (circled in red
below). The Power connector pinout is shown below (looking from the front of the connector). Polarity is also
label on the bottom of the PCB.
The power input accepts 5VDC to 37VDC at 1A Max.

12
August 18, 2020
MICROPHONE INPUT
The microphone connector pinout is shown below. Pin numbers are also printed on the bottom of the PCB.
This input is designed for dynamic microphones and also includes a Push-to-Talk (PTT) input.
This connector on the V-Page VP4X comes pre-wired to a 5-pin XLR connector mounted on the front of the unit
that is designed to interface to the included microphone. If you wish to remotely wire a microphone, this
connector can be removed and replaced with cover plate that is included in the product packaging.
Here is the pinout of the 5-pin XLR connector harness:
Phoenix Connector
Wire Color Code
5-Pin Female XLR
1
BLACK
1
2
RED
2
3
WHITE
3
4
YELLOW
4
5
BLUE
5

13
August 18, 2020
ETHERNET (RJ45)
A standard RJ-45 Ethernet Jack is used for the network connection and Power Over Ethernet (PoE power.
ETHERNET (SFP)
A small form factor pluggable (SFP) transceiver connector is available to provide support for a fiber-optic
alternative to the RJ45 port. Both Single-Mode and Multi-Mode modules are compatible. Make sure that the same
SFP module model is used on both ends of the fiber optic connection to ensure compatibility.

14
August 18, 2020
NETWORK ARCHITECTURE
V-Page is part of a system consisting of a Q-Sys Core, network hardware, and the V-Page stations themselves.
A single network connection handles both control and audio transport this connection can either be via CAT5e
Ethernet cables or Single-Mode/Multi-Mode Fiber Ethernet cables if the length exceeds 300 ft.
When using CAT5e, power can be provided directly over the Ethernet connection via PoE. Since the SFP
connection is not capable of providing power, a local DC power supply is required whenever you’re using this
interface for a fiber-based Ethernet connection.
One important thing to understand is that each V-Page station has two network interfaces that are switched into a
single physical port; one for Control and the other for Network Audio (Dante or AES67). Also, Q-Sys cores
handle AES67 and Dante very differently. AES67 can be utilized on the same network as Q-Lan, while Dante
requires a dedicated Dante IO card to be installed within the Q-Sys core.
With all of these factors in mind, here are the network architectures we recommend depending on which audio
network protocol you choose to use.
AES67 NETWORK ARCHITECTURE
The biggest advantage of using AES67 is that it co-exists peacefully with the native Q-Lan protocol used by Q-Sys
DSP cores. This means that you can interface to both the audio and control interfaces of the V-Page stations
simply by connecting one of the Q-Lan ports to the V-Page network.

15
August 18, 2020
DANTE NETWORK ARCHITECTURE
This is the recommended method where Dante Audio and Control are using the same network switch. Q-Lan and
Dante require a different QoS configuration while the AUX Network of the Q-Sys core acts as a generic ethernet
port. This makes the AUX connector the ideal path to interface to the Control interface of the V-Page stations.
Dante traffic must be routed to a separate network connection on the Dante IO card within the Q-Sys core.

16
August 18, 2020
Q-SYS CONFIGURATION AND PLUGIN
V-Page communicates with a Q-Sys system to enable paging zones, determine zone priority, etc. This is
accomplished using the built-in Q-Sys Zone PA Router. The V-Page station can also be configured directly from
within a Q-Sys plugin, and then transferred to the physical station when it is “Linked” to the Q-Sys Core.
We utilize the built-in Q-Sys paging station capabilities of the station router to handle the PA routing of audio and
zone selection. With Q-Sys you can assign zones to different outputs Q-Sys Administrator. For more details on
this topic please refer to the help file on the Q-Sys Designer software.
Note: All Dante devices use PTP for clock synchronization and require Q-Sys core's PTP config to
be set to domain 0. IEEE 1588 Priority 1 is set to 249 and Priority 2 is set to 112 for BMC purposes.
PTP information (domain, priorities, etc) are not configurable in the units.

17
August 18, 2020
PAGING STATION PLUGIN PROPERTIES
• Model: The user can select the proper model number of each station.
• PA Router Input: The input number to the PA Router component.
• Station Name: User defined name of each station.
• Default Zone Timeout: The amount of time in seconds set by the user before going back
to the default zone set by the Default button.
• Pulse Duration: Value in milliseconds of LED buttons blinking
• Zone Select Blink Rate: The amount of time in milliseconds for all the buttons once is
selected.
• PTT Mode: The user can enable the microphone by press and hold a zone button (Zone
Button mode) or by choosing Mic Button mode.
• Control IP Address: The IP address of the network control of the unit entered by the
user or fully populated once an IP is being assigned by a switch in DHCP mode.
• Control Subnet Mask: The subnet mask of the control network of the unit.
• Control Gateway: The gateway settings of the control network.
• Audio Mode: User defined setting if hardware allows it. Can either be Dante or AES67.
• Audio IP: The IP address of the audio network of the unit entered by the user or fully
populated once an IP is being assigned by a switch in DHCP mode.
• Audio Subnet Mask: The subnet mask of the audio network of the unit.
• Audio Gateway: The gateway settings of the audio network.

18
August 18, 2020
PAGING STATION PLUGIN INTERFACE
1. Title Bar: Basic plugin information.
2. Firmware: Current V-Page station firmware version.
3. Plugin:Current Plugin version
4. Link: Use this button to associate a physical station with the plugin component (refer to “Linking a
Station” section on the next page).
5. ID: Pressing the Button will make the front buttons of the V-Page station blink momentarily

19
August 18, 2020
6. Status Bar: A graphic representation of the V-Page connection status.
a. RED - Disconnected
b. GREEN - Connected
7. Station Name: A unique descriptive name to differentiate from other V-Page stations.
8. Router Input: The station ID, corresponding to the station number on the PA Router.
9. Priority: Station priority according to the PA settings on Q-sys administrator.
10. Control IP Address: The IP Address of the V-Page station.
11. Audio IP Address: The IP Address of the audio stream.
12. Audio Stream: The type of digital audio stream used (Dante or AES67).
13. Emulation Mode: Allows the plugin and V-Page station to be tested without a core.
14. Online: LED is on if the V-Page station is currently connected to the Core.
15. Paging Status and LED: Indicates when the station is ready to page, actively paging, or unable to page.
16. Mic Status LED: Turn to bright green LED once the microphone is turn on.

20
August 18, 2020
1. Button Function: Use this to assign functions to the V-Page buttons.
a. Zone Select -These zones can be administered through Q-sys administrator
b. Breakaway –Button is used for manual control of Q-Sys IO pins
17. Default: This setting specifies a default zone button that will be selected once a page is complete.
18. Active: LED will light up when the zone is in use.
19. Light: Will emulate the current condition of the button indicator (Red = Busy, Green = Ready, etc.)
20. State LED:
• Breakaway Mode: Determines the mode of the station buttons.
• Off: Operate as a regular zone selection button
• Toggle: When pressed, the control pin ‘Breakaway State LED’ will toggle states. (01), 10).
This can be used to interface to other control pins within Q-sys like mute functions. In this
mode, the button LED will represent the state of the ‘Breakaway State LED’ control pin.
• Trigger: This is like the toggle mode except that the control pin ‘Breakaway State LED’ will
momentarily pulse to a value of 1. In this mode, the V-Page button LED can be manually
controlled using the control pin ‘Breakaway Input LED’.
