ALEA FWAP-1550H series User manual

User Manual
※※※※PROMPT※※※※
Application caution of equipment:
1, Installation and debugging of the EDFA should be done only by qualified or experienced
technician;
2, Do not turn on the device before it connects to the system,or without rubber cover,in
case of the connectors being burnt out;
3, Do not look directly into optical output port with naked eyes while the EDFA is operating;
4, EDFA with output power ≥21dBm per port is made with factory setting"safe pluggable
mode" status "ON" with default output power 19dBm in order to protect the connectors
from burning out by misoperation.Please turn off this function After the optical output
connection is completed, the power will return to the output specification or set.

User Manual
User Manual
FWAP-1550H 32X22
PON & CATV WDM EDFA

User Manual
Catalog
1．Production Description................................................................................................................ - 1 -
2. Equipment structure.......................................................................................................................- 2 -
3.MAIN technical index...................................................................................................................... - 3 -
4.Operation Instruction...................................................................................................................... - 4 -
5. STATUS ALARM DESCRIPTION................................................................................................- 6 -
6. Application of network................................................................................................................... - 7 -
7.Optical connection attention.......................................................................................................... - 8 -
8. Caution.............................................................................................................................................- 8 -
9. GUARANTEE AND MAINTENANCE MATTERS..................................................................... - 9 -

User Manual
- 1 -
1．PRODUCTION DESCRIPTION
1.1 Introduction
FWAP-1550H series EYDFA optical amplifier combiner is the latest equipment of optical
transmitting system for PON+CATV FTTH/FTTP. It realizes the combination function of OLT PON
and CATV 1550nm after optical signal is amplified. In detail, there is one way CATV input plus
16/32/64 routes PON signal in and the 16/32/64 routes which have 1490+1310+1550nm
combined output 1550nm with 30 to 45dBm total power. This equipment is well compatible to the
OLT/ONU of HUAWEI, ZTE, FiberHome etc and no data lost which owns high cost performance.
Ordinary erbium doped fiber amplifier (EDFA) has advantages of low noise, high gain, wider
bandwidth, high efficient pumping and stable operating, which is widely used in CATV system.
However, along with the implement of fiber to the house (FTTH), system C/N will be worse
significantly when EDFA uses as cascade amplification. Therefore, EDFA is required to produce
high saturation output power and low distortion as shown as 13dBm to 23dBm (approximate.
27dBm limited) for EDFA saturated output power. Moreover, the gain fiber of EDFA is single mode
and single packed fiber. Optic of pump is directly coupling into fiber but the diameter of fiber is very
small therefore it requires single mode of pump optic. Semiconductor of single mode only supports
hundreds milliwatt of output power and it is limited by the area of pump which makes high power
pump optic cannot be coupling. It consequently causes serious output power of optical laser. In
case, it develops double-cladding fiber internationally and solve the problem of listed weakness of
single packed fiber which improves 1 to 2 level for output power. It then drives the development of
high power optical amplifier. After several years’ research, our company overcome multiple
technical difficulties, high power ytterbium-erbium co-doped double-cladding fiber amplifier was
developed for CATV system to fit the requirement of FTTH and FTTB after conquer many
technical difficulty.
This serious product adopts JDSU,ⅡⅥ，LUMENTUM etc multimode high power pump laser
as pump source and American OFS closed beam splitter as double-cladding synthesizer. Built-in
stable optical power circuit and laser thermoelectricity freezer guarantees best performance and
long life cycle operating. Microprocessor software monitors operating status of laser which shows
on LCD. Once operating parameter of laser deviate from the range of set value, microprocessor
will cut power supply of laser automatically and red light turn will turn on with alarm (prompting
fault cause on LCD).Please refer to the following "Operation Instruction" for detailed report of
equipment parameters.
1.2 Features
1.2.1 High Quality: Adoption of multimode high power pump laser and power is optimized by
software which maximizes lower NF of EDFA rival to normal EDFA. It makes system get superior
CNR through power optimize balancing technique.
1.2.2 Reliability: adoption of 19″3U standard case, built-in high performance external modular
switching power supply, operating under AC90 to 255V, optional DC48V power supply (pre-order)

User Manual
- 2 -
hot-plugging supported, automatic temperature control case heat dissipation with dual power
cold&hot backup.
1.2.3 Intuitive: Microprocessor monitors operating status of pump laser which is the most valuable
part of the equipment, operating parameters show on LCD display.
1.2.4 Network Management: Optional type status monitoring transponder certainly satisfy
national, SCTE, HMS, WEB standard, it realizes network management monitoring function.
1.2.5 Adjustable Output Power: The equipment is advanced designed which satisfies bigger
range of adjustment from lower to -2dBm (special offer).
1.2.6 High Power Output: Combined output power has maximum to 30~45dBm and multiple
output configuration is available for users requirement.
1.2.7 WDM Insertion: It is available to integrate FWDM module if user need which is convenient
when combines GPON, EPON,OEM:XG(S)-PON.
1.2.8 Connecting Safety Mode: To prevent the optical patch cord end face from being burnt when
the optical output is connected, enable this mode to reduce the output power direct to 19dBm
during connection. Once turn off this mode, it returns to the original set power.
2. EQUIPMENT STRUCTURE
2.1 FWAP-1550H （32 road）Front & Back Panel
⑴PON signal input, ⑵CATV input,⑶LCD Display,⑷MENU Main Menu Button,⑸DOWN
Button,⑹UP Button,⑺ENTER Confirm Button,⑻Laser Lock Switch,⑼CATV(1550) Optical signal
input port,⑽FAN Group1,⑾FAN Group2,⑿NE Web Management Transponder,⒀Module Power
Supply2(AC 110/220V),⒁Module Power Supply1(AC110/220V).
(1) ⑵ ⑶ ⑷(5)(6)(8)(7) (9)
(10) (11) (12) (13) (14)

User Manual
- 3 -
2.2 Integrated PON+CATV WDM EDFA Block Diagram
W D 1543
W D 1543
E Y O A
C
R
P
P O N
3.MAIN TECHNICAL INDEX
Items
Unit
Performance Index
Optical Operating Wavelength
nm
1535～1565
Input Optical Power Range
dBm
-3～+10
Nominal Input Optical Power
dBm
+3
Maximum Alarm Value
dBm
≥+10 front panel display alarm，buzzer ring
Minimum Alarm Value
dBm
＜-10 front panel display and power off
Noise Ratio
dB
≤5.0 (0dBm,@1550nM)
Gain Flatness
dB
＜±0.3
Optical Power Output Stability
dB
＜±0.5
Polarization Sensitivity
dB
＜0.2
Polarization Mode Dispersion
Ps
＜0.5
Input End Pump Leakage
Power
dB
≤-30
Output End Pump Leakage
Power
dB
≤-30
Optical Input, Output Return
Loss
dB
＞45 （APC Stepped Face）
Pump Operating Number
No.
2～5
Rated Output Power
dBm
30～45
Linker(IN)
-
SC/APC
Linker(OUT)
-
SC/APC

User Manual
- 4 -
C/N
dB
≥48(comment 1)
C/CTB
dB
≥63(comment 1)
C/CSO
dB
≥63(comment 1)
Power Supply/Consumption
V/W
AC165～265 or DC-48/20(hot-plugging single power)
Operating/Storage
Temperature
℃
-20～50/-30～70
Operating/Storage Humidity
%
5～90
Case Size
mm
88×482.6×387
Network Management
Connector
/
RJ45(following national network management
standard, supports WEB)
PON
Optical
Path
with
WDM
PON Wavelength
mm
1310/1490
PON Linker
/
SC/UPC
PON Insertion
Loss
dB
＜1.2
1550 Port Insertion
Loss
dB
＜0.7
Comment:
1.Optical Link Test provides link index by measuring optical transmitter FWT-1550EH-2X7 and
receiver FWR-8610RW.
2.The main performance index above accords with GY/T 184-2002 CATV analog optical
amplifier technical requirement and measuring method.
4.OPERATION INSTRUCTION
The microprocessor software of this machine has many functions, such as laser working state
monitoring, digital panel display, fault alarm, network management and so on. When querying or
setting, press panel MENU key first, then press ENTER to confirm, press UP or DOAN to query or
set different parameters and set items.
4.1 The security connection mode setting interface (see screen 1) on (see screen 1). The ON is
turned on, the output power is adjusted to about 18.5 dBm, and the OFF is turned off, that is, the
specification power output. Safe connection mode setting step: in "ON" press Enter confirm to"
ON", press UP or select "press Enter confirm, then press Main to exit. IP Address (IP address),
OPT POWER( output optical power), FAN Control (fan set Set)(see screen 2), select item
content by UP or Down, press Enter to confirm, and then press Main to exit previous menu. IP
settings are (see screen 3): IP address, subnet mask, gateway, alarm server 1 and 2; output
power settings are (see screen 4): output power 1(1-16 channels) and 2(17-32 channels); fan
settings are (see screen 5): open (long-term open), automatic (chassis temperature <35℃off ,≥
35 ℃open). The third item under the main menu is system information. The information is as
follows (see Figure 6): Product name, product model specifications, laser 1(1-16 channels)

User Manual
- 5 -
nominal output power, laser 2(17-32 channels) nominal output power, product serial number,
control software version number and software version compilation date.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure6
4.2 The first item under the main menu is the parameter query (see figure screen 7). The contents
of the project are: real-time parameters of output power 1 and 2, power supply 1 and 2, working
state of fan. If the parameter or state in this project is abnormal, the exception item is red text.
Query detailed parameters entered by Enter, selected by UP or DOWN, supply voltage, operating
current of pre-laser, refrigeration or heating current (screen 8), output power, operating current of
post-pump laser (pump 1:1-16, pump 2:17-32)(screen 9), operating temperature and output power,
chassis temperature and fan status (screen 10) ), then press MENU to return to the previous
menu.
4.3 Laser switch, whether in any state to turn on or off the laser, press LASER ON/OFF,LCD to
display the laser switch interface (see screen 11), then press ENTER to select and confirm.

User Manual
- 6 -
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
5. STATUS ALARM DESCRIPTION
5.1 The machine is in the upper right position of the front panel with STATUS working status
indication (LED). The green light indicates that the operation is normal, the red light indicates that
the laser is not in operation, the red light flashes to indicate the alarm (there are related
parameters that do not conform to the set value), and is accompanied by a "beep" sound, which is
automatically turned off after one minute to reduce the noise of the machine room.
5.2 The local status display, any item abnormal, will prompt alarm, STATUS light red light flashing,
LCD display content is red text.
5.3 In order to protect the safe operation of the laser, the laser power supply of this machine has a

User Manual
- 7 -
delay function. When the laser is turned on, it takes 10 seconds to delay the laser to enter the
operation.
6. APPLICATION OF NETWORK
This machine has network management function, set up IP 、gateway, subnet mask, server
address according to the above operation steps, just connect the RJ45 interface signal to the local
area network (Ethernet), then connect with the main server from any network port in the local area
network, install the standard HFC network equipment management system application software
on the main network management server (PC), when running the network management system
can monitor the running status of the local machine in real time.

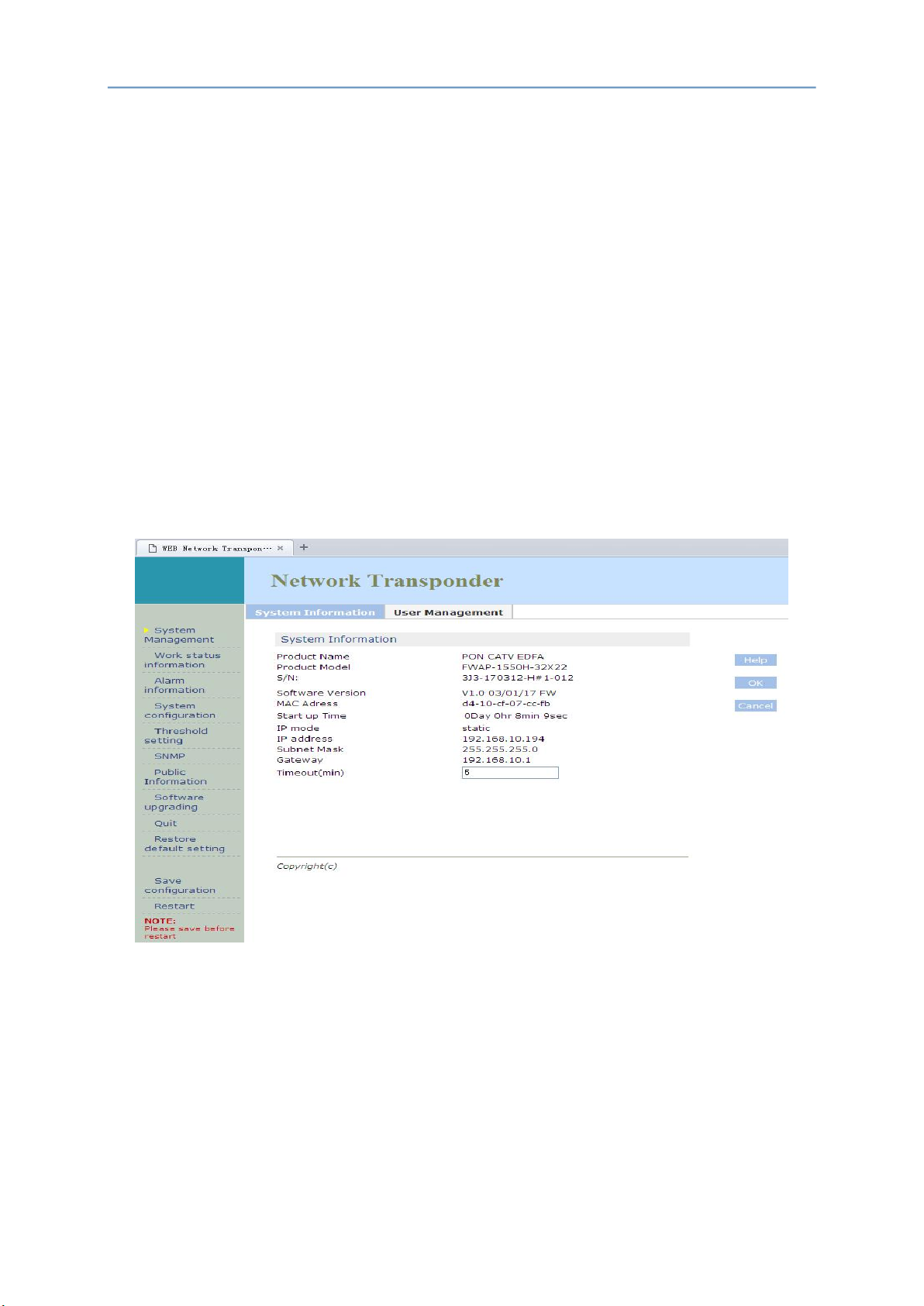

6.1 Network management WEB login and query: network management transponder default IP
address is 192.168.002.099, set the PC machine under the same network segment, open the login
page (see the right login chart for details), User Name and Password default are "admin", point
button" to enter the main network management page (see figure below for details); click on the left
navigation bar related button, you can query the various functional parameters.
6.2 parameter or threshold setting: if you want to set the relevant parameters and power supply,
fan, output power, etc. can be clicked Work status information, go to the setting page (see figure
below for details), select or set the relevant functions and parameters as required.

User Manual
- 8 -
7.OPTICAL CONNECTION ATTENTION
Before connection, clean all optical connectors carefully and read cleaning guide:
7.1 Optical Fiber Patch Cord
7.1.1 Taking off dust cap of fiber connector and making sure optical connector is APC
interface;
7.1.2 Using a specified dry wiping cloth without wool(5Kimwipes®) ; better to use specified
microscope (100 and 200 times) to check the clean level of optical connector or imperfection
statue;
7.1.3 Attention to keep connector clear and clean of flange plate, specified compressed gas to
clean the face of optical connector;
7.1.4 It is better to clean dust smaller than 0.2 micron;
7.1.5 Taking compressed gas pot away 6 inch to connector, aim at flange plate, pressing muzzle
transiently several times;
7.1.6 If you do not have specified compressed gas, 2.5 milometer swab is the substitution to clean
connector or clean the other side of fiber jumper getting rid of installing flange plate;
Caution:taking really carefully to deal with connector because it is easy to be broken.
7.2 Using jumper to connect to EDFA output to optical power meter.
7.3 Using optical power meter to check output power whether remains in normal range.
8. CAUTION

User Manual
- 9 -
8.1 The machine should have a good grounding, grounding resistance should be <4Ω. According
to international standards, 220V use three-wire system into the line, middle line is the grounding
wire.
8.2 This machine uses imported high-performance, highly reliable switching power supply with
constant voltage over-current protection, which already have imported fuse can be 165V ~ 260V
voltage range of the city within the network work properly. The machine's microprocessor output
DC voltage of the monitors, if the fuse blew, indicating failures have occurred inside the machine.
Therefore, the back panel of this machine has no 220V fuse.(The same as the imported
equipment).
8.3 In order to ensure the optical return loss ≥45dB, this machine optical connectors uses
SC/APC & SC/UPC.Connecting joints should be maintained clean. Plug should be used after
repeated ethanol and cotton wool to wipe the optical connector.
8.4 The input optical power of optical amplifier affect the system’s CNR, in practice, should be
based on indicators system, reference to " CNR degradation of the table " design the input optical
power of amplifier.
8.5 Optical fiber amplifiers work in the 1550nm wavelength, the max output optical power ≤
500mW. Access system in the machine, or optical output port unprotected pre-sets should not
open so as to avoid burns due to the optical connector, but also should prevent the laser direct the
human body, especially the eyes, causing harm to the people.
9. GUARANTEE AND MAINTENANCE MATTERS
9.1 Each optical transmitter has the company serial number (bar code). To the date of sale can
provide one-year.
9.2 The machine's microprocessor software with the laser working condition monitoring, digital
panel displays, fault alarm, network management functions. Non-human factors that can not be
damaged laser. If the machine flashes a red light appears (hint alarms), should be sent to the
company warranty. Users shall not open the lid for maintenance, otherwise the warranty
period,repairs and materials should be charged.
9.3 The warranty expires, providing life-long maintenance and equipment upgrades.
9.4 Due to power supply and man-made failures, resulting in damage to the device, are required to
collect materials costs.
