Owner’s Manual
EA-2000
PHONO AMPLIFIER


3
Thank you for purchasing Phasemation product.
Read your Owner’s Manual thoroughly for proper operation before starting to
use your equipment.
Please keep your Owner’s Manual with care.
Table of Contents
Safety Instructions.....................................................................................................4
Usage Cautions.........................................................................................................5
Care of Equipment....................................................................................................5
Names and Functions...................................................................................6, 7, 8, 9
Connections............................................................................................................10
Trouble Shooting Guide...........................................................................................11
User Support...........................................................................................................12
Specifications..........................................................................................................12

4
Safety Instructions
Before starting
to use
In this owner’s manual and on the product, various pictures are used
to show our customers how to use Phasemation EA-2000 safely and
properly in order to avoid the loss of our customer’s assets and to
protect our customers from harm.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product, to which this declaration relates,
is in conformity with the following standards:
EN60065, EN55032, EN55020, EN61000-3-2 and EN61000-3-3.
Following the provisions of Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
10. use attachments/accessories by the manufacturer.
11.
Use only with the cart, stand, tripod, bracket, or table specified
specified
by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. all servicing to servicequalified personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
14.
Do
Only
Refer
Batteries shall not be exposed to excessive heat such as sunshine, or thefire like.

5
Usage Cautions
Care of Equipment
If the equipment is covered with dust or dirt, clean it with a soft cloth.
If the equipment is very dirty, put detergent which is thinned very well with water on a soft
cloth. Wring the cloth and wipe off the dust and dirt. Then clean with a dry soft cloth.
Never use chemical agents such as thinner, naphtha or alcohol when cleaning it.
If any of them is attached to the equipment, the silk printing can be flaked or the surface can
lose metal luster.
Cautions on installation
* *
*Wall
*
• More than 0.1 m is recommended.
• Do not place any other equipment on this unit.
* For proper heat dispersal, do not install this unit in a confined space,
such as a bookcase or similar enclosure.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.
A NOTE ABOUT RECYCLING:
This product’s packaging materials are recyclable and can be reused. Please dispose of
any materials in accordance with the local recycling regulations.
When discarding the unit, comply with local rules or regulations.
This product and the supplied accessories constitute the applicable product
according to the WEEE directive.
NOTE ON USE
WARNINGS
Avoid high temperatures.
Allow for sufficient heat dispersion
when installed in a rack.
Handle the power cord carefully.
Hold the plug when unplugging
the cord.
Keep the unit free from moisture,
water, and dust.
Unplug the power cord when not
using the unit for long periods
of time.
Do not obstruct the ventilation
holes.
Do not let foreign objects into
the unit.
Do not let insecticides, benzene,
and thinner come in contact with
the unit.
Never disassemble or modify the
unit in any way.
Ventilation should not be impeded
by covering the ventilation
openings with items, such as
newspapers, tablecloths or
curtains.
Naked flame sources such as
lighted candles should not be
placed on the unit.
Observe and follow local
regulations regarding battery
disposal.
Do not expose the unit to dripping
or splashing fluids.
Do not place objects filled with
liquids, such as vases, on the unit.
Do not handle the mains cord
with wet hands.
The equipment shall be installed
near the power supply so that the
power supply is easily accessible.
Do not keep the battery in a
place exposed to direct sunlight
or in places with extremely high
temperatures, such as near a
heater.

(1) Phono Input Terminal
There are the RCA terminal (unbalanced) and the XLR terminal (balanced) and if they
are connected at the same time, it will be the cause of noises and lossing the sound
quality.
Connect each signal line from your analog disc player to L and R.
* A supported phono cable is needed for a balanced connection of an XLR terminal.
* For the XLR terimal, no.1 is GND, no.2 is HOT, and no.3 is COLD
(2) Phono Output Terminal
Connect to the MM input terminal of the phono amplifier EA-2000EQ
Names and Functions
GND
INPUT
OUTPUT
MODEL EA-2000T
GND
INPUT
OUTPUT
MODEL EA-2000T
EA-2000T MC Step-Up Transformer
Front Panel *The left and right of the front panel are in common
Rear Panel (Right) Rear Panel (Left)
Do not apply testers to the input/output terminals. The transformer’s
performance will deteriorate.
(3) GND Terminal
Connect either the L or R of the earth line coming from the analog disc player to the
GND terminal. Follow the connections diagram for wiring the GND connection cable
(from accessories).
Do not connect the RCA and XLR terminals at the same time to the input.
This unit is designed for a balanced connection due to a 2-core shield line.
Therefore when doing an unbalanced connection due to a 1-core shield line,
it is susceptible to noise effects. Caution is needed especially for high
impedance cartridges.
Caution
6
(2)
(3)
(1)
.
.
.

7
Names and Functions
(6) PLAYBACK CURVE Switch
EA-2000EQ Phono Equalizer
Front Panel *The left and right of the front panel are in common
(5) POWER & MUTE Indicator
(4) INPUT Switch
This switch is for changing the MM input channels and MUTE
Electric Characteristics of the Playing Equalizer Curve
-25.00
-20.00
-15.00
-10.00
-5.00
0.00dB
5.00
10.00
15.00
20.00
25.00
STEREO
MONO 1
MONO 2
Frequency
Playing Equalizer Curve
10 100 1000 10000 100000
Curve Turnover/Low limit Roll off
STEREO 500Hz/50Hz(+20dB) 75μs-2120Hz(-13.75dB at 10kHz)
MONO 1 500Hz/125Hz(+12-12.5dB) 50μs-3000Hz(-10.5dB at 10kHz)
MONO 2 500Hz/100Hz(+14dB) 100μs-1590Hz(-16dB at 10kHz)
Red:
Blue:
Purple:
When the power turns on, it lights up red with no sounds coming out until the
inner circuit is stable.
When the inner circuit is stable, it lights up blue and sounds will come out.
When the inner circuit is stable and the input switch is at MUTE, it lights up purple
with no sounds coming out.
This switch is for changing the played equalizer characteristic. The following three types
of playing curves are contained. Change according to the type of audio record.
STEREO: RIAA curve for stereo LP playing
MONO1: Curve 1 for monarual LP playing
(Used for DECCA lables and so forth: FFRR)
MONO2: Curve 2 for monarual LP playing (Used for Columbia lables and so forth)
.
.
.
(4) (5) (6)

8
(7) MM INPUT 1, 2, 3 (RCA) Terminal
Input terminal (RCA) for EA-2000T (MC step-up transformer) and MM cartridge.
(9) OUTPUT (RCA) Terminal
This is an unbalanced equalizer output (RCA) terminal. It connects to the RCA input
terminal of the line level (150-250mV) such as AUX terminals of a preamplifier.
(10) OUTPUT (XLR) Terminal
This is a balanced equalizer output (XLR) terminal. It connects to the XLR input
terminal of the line level (150-250mV) such as AUX terminals of a preamplifier.
Rear Panel(Left) Rear Panel(Right)
Do not connect to a phono input terminal of a preamplifier that has a phono
amplifier inside. It may go to maximum input and distort the sounds.
Caution
(8) GND Terminal
Follow the connections diagram for wiring the attached GND cable.
An XLR connector is adopted on the OUTPUT for this unit (balanced connection)
The pins are set as shown in the diagram pin = GND pin = HOT pin = COLD.
Some pre-amplifiers are set as pin = GND pin = COLD pin = HOT
and in this case the input signal and output signal are played as an anti-phase.
In order to correct the phase, change the connection so that the wiring of the
XLR connector pin and pin at one side of the balanced cable are inverted.
Notice
GND
HOT
COLD
DC IN
MODEL EA-2000EQ
GND
GND
GND
1
2
3
OUTPUT
INPUT
L
MODEL EA-2000EQ
DC IN GND
GND
GND
1
2
3
OUTPUT INPUT
R
(11) DC IN Connector
The DC power relay cable (from accessories) connects to the power supply.
(11) (11)(10) (10)
(9) (9)(8) (7) (8)(7)

9
(12) POWER Switch
This switches the power on and off.
(13) POWER Indicator
This lights up blue when the power is on.
(14) GND Terminal
Usually this does not need to be connected somewhere.
(15) DC OUT
This is an output connector that supplies DC power to the phono equalizer. This
connects to the phono equalizer with the DC power relay cable (from accessories).
There is no designation of L or R.
(16) AC IN
The power inlet terminal is connected to the power outlet with the AC power cable
(from accessories).
EA-2000PS Power Supply
Front Panel Rear Panel
~
AC IN FUSE 3A
MODEL EA-2000PS
100V~ 50/60Hz 35W
GND
DC OUT
Names and Functions
(16)(15)
(12) (13) (14)

10
Connections
GND
INPUT
OUTPUT
MODEL EA-2000T
GND
INPUT
OUTPUT
MODEL EA-2000T
DC IN
MODEL EA-2000EQ
GND
GND
GND
1
2
3
OUTPUT
INPUT
L
MODEL EA-2000EQ
DC IN GND
GND
GND
1
2
3
OUTPUT INPUT
R
~
AC IN FUSE 3A
MODEL EA-2000PS
100V~ 50/60Hz 35W
GND
DC OUT
~
AC IN FUSE 3A
MODEL EA-2000PS
100V~ 50/60Hz 35W
GND
DC OUT
Do not connect the RCA and
XLR at the same time on the
INPUT.
*Connection using the XLR cable
Earth Line
*Connection using the RCA cable
Caution
AUX INPUT
RIGHT LEFT
Analog Disc Player
Unbalanced line
cable (accessory)
GND connection cable
(accessory)
(Y type/1.5m)
DC power relay cable
(accessory)
AC power cable (accessory)
GND connecting
cable (accessory)
(banana plug : 0.5m)
Pre-amplifier

11
Trouble Shooting Guide
Trouble Causes Measures
The power does
not turn on
The electric plug is not entirely inserted. Properly insert the electric
plug to the socket outlet.
Properly insert the AC
power cable to the power
inlet of this unit.
In case the equipment does not operate properly, check out the followings.
If it does not operate properly even after checking the advised points, then remove the
electric plug from the socket outlet and contact the dealer.
No sounds come
out
The signal wire is not entirely inserted. Insert the signal wire properly.
Sounds do not
come out right
after the power
is on.
This unit uses a vacuum tube.
Sounds do not come out right away until
the inner circuit is stable.
Wait for 1 minute after
turning the power on.
Cannot play
sounds at high
bands
An MM cartridge is used. Directly connect to the
MM INPUT.
Sounds warp This unit’s output is connected to the
phono amplifier input terminal of the
pre-amplifier.
Connect to the line level input
terminal (such as AUX) of the
pre-amplifier
When the INPUT
switch is operated,
it makes a clicking
noise
Due to the principle of switching,
it makes a clicking noise to a certain level.
Turn the power switch on this
unit off or operate after using
up all the amplifier’s volume
control.
A hum noise is
heard
The signal wire is not entirely inserted.
The analog disc player and earth line are
disconnected.
There is a power transformer or a motor
of another device nearby
Both the XLR and RCA are connected
to the input terminal.
The phono amp and earth line are
disconnected
The RCA cable connected to the output
terminal is a shield floating type.
The input is an unbalanced connection.
Properly insert the signal wire
Properly connect the earth line
Place it away from the power
transformer and/or the motor.
Connect either one to the
input terminal
Properly connect the earth
line. Try GND connecting
between the phono amplifier
and pre-amplifier although it
is not necessary in general.
Cables that are shield floated
may induce noises. For ones
with an earth line, if the earth
line is connected, there are
times when improvements are
made. If there is no earth line,
use another cable and
connect.
Try the phono cable for a
balanced connection.

12
Specifications
User Support
As for unclear matters with regard to the after service, please contact the dealer.
The specifications and appearance of this equipment are subject to change without notice due to
improvements.
・Unbalanced line cable x 2
・AC power cable x2, DC power relay cable x2
・GND connecting cable (Y-type 1.5m x2, banana plug 0.5m x1)
Product Tube Type LCR Non-Feedback Phono Amplifier
Input Form MM MC
Input Sensitivity 2mV 0.1mV
Suitable Cartridge Output Impedance 47k or less 1.5 - 40
Gain 40dB 66dB
Input Equivalent S/N Ratio -121dBV -147dBV
Rated Output Voltage 200mV (1kHz)
Deviation from RIAA Curve ±0.5dB (20 to 20kHz)
Power Consumption 35W (120VAC 60Hz) for each ch (USA)
35W (230VAC 50/60Hz) for each ch (Europe)
Dimensions (mm)
Transformer 214(W)×118(H)×265(D) x2
Amplifier 214(W)×118(H)×368(D) x2
Power Supply 214(W)×118(H)×352(D) x2
Weight Transformer 4.5kg, Amplifier 6.1kg, Power Supply 7.8kg / x2
<Accessories>


Kyodo Denshi Engineering Co., Ltd.
8-40-17 Shinyoshidahigashi Kohoku-ku Yokohama-shi Kanagawa 223-0058 Japan
E-mail [email protected]
URL https://phasemation.com
is the original audio brand of Kyodo Denshi Engineering Co., Ltd.
Table of contents
Other Phasemation Amplifier manuals

Phasemation
Phasemation EA-350 User manual

Phasemation
Phasemation EA-1000 User manual

Phasemation
Phasemation MA-1000 User manual

Phasemation

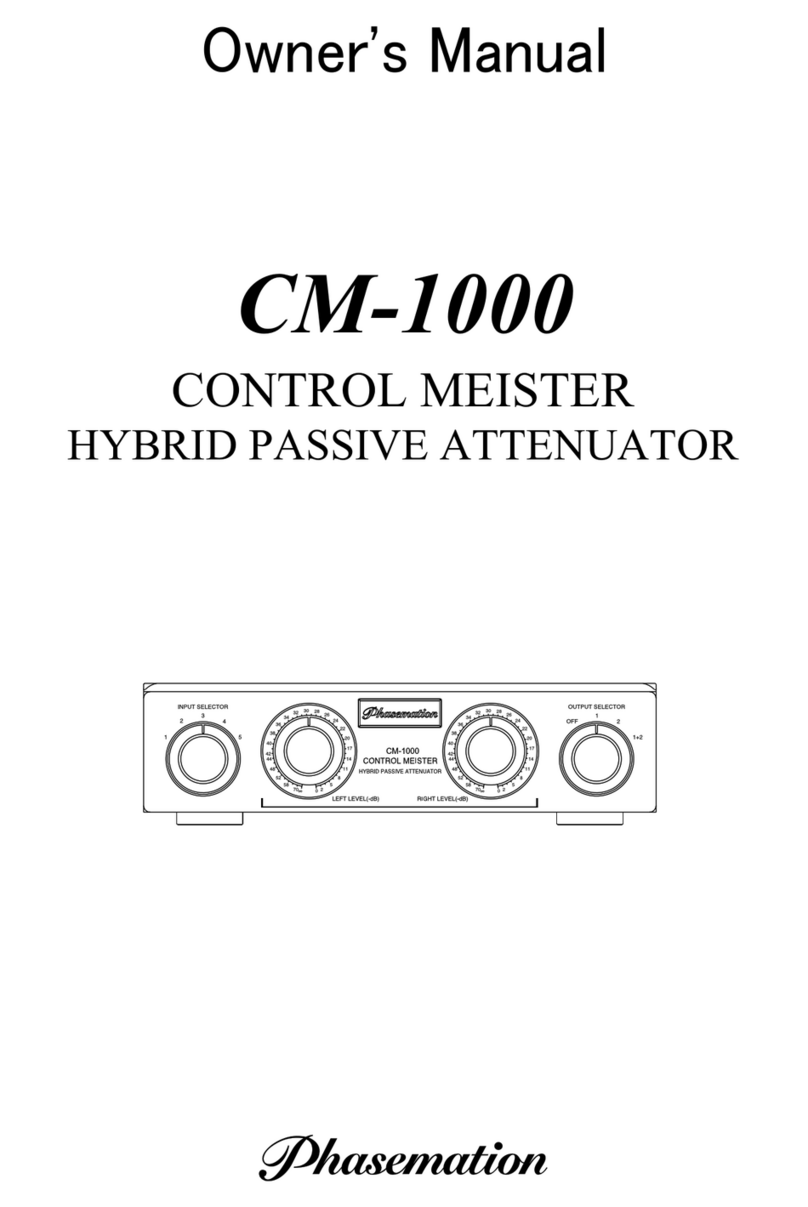

Phasemation CM-1000 CONTROL MEISTER User manual

Phasemation
Phasemation EA-500 User manual

Phasemation
Phasemation CA-1000 User manual

Phasemation
Phasemation EA-300 User manual

Phasemation
Phasemation EPA-007 Series User manual
