Mr. Christmas
Alexa Compatible LED
Christmas Tree
Instruction Manual
FOR INDOOR USE ONLY

2
Step 1: Check the contents of your box
1.1 Your tree will come in various combinations depending on
the size. (Figure 1)
1.2 A metal tree stand with 3 eyebolts. (Figure 2)
1.3 Control box and power cord with adaptor. (Figure 3)
1.4 “Ornament” with voice activated command list. (Figure 4)
1.5 Number of spare bulbs for each: 4 (5ft) /6 (6.5ft) /10 (7 ft)
/12 (9 ft) (Figure 5). These can be found in the poly bag
attached to the end of the light strand inside the tree.
5 ft 6.5 & 7.5 & 9 ft
Figure 1
Figure 2 Figure 3 Figure 4 Figure 5

3
Step 2: Stand Assembly ( Figure 6 ~ 8 )
Place the stand in your desired location as once the tree is fully assembled it may be too difficult to move and
relocate.
2.1 Open the tree stand to form an “X”. (Figure 6 and Figure 7)
2.2 Align the threaded holes to insert each eyebolt. Make only a few clockwise turns leaving room to insert bottom
section. (Figure 8)
Figure 6 Figure 7 Figure 8

4
Step 3-A Tree Assembly (Figure 9 ~ 11)
3.1 Locate the bottom section (B or C depending on
tree size) and insert into the top of tree stand.
(Figure 9).
3.2 Fully tighten the 3 pins into place. Secure the tree
base firmly to the tree stand. (Figure 10).
3.3 Insert the remaining section (A or B+A depending
on tree size) in the proper order. (Figure 11)
Figure 9 Figure 10 Figure 11
IMPORTANT TREE SET UP TIPS:
1. Shake the tree well after assembly to
ensure the branches are extended.
2. Some shaping of the tree may be
required for best appearance.
3. Spare bulbs are included in a small
bag inside the tree. Remove from the
tree and keep in case replacement is
needed.

5
Step 3-B Extend all branches and twigs and shape until the tree looks full.
Before After

6
Step 4: Connect Controller and AC Power Adapter (Figure 12).
Attach the power cord with adaptor to the control box, plug the adaptor into an AC power source.
Figure 12

7
Step 5: Connect to Alexa
1. Download the “Amazon Alexa” application from the app store on your mobile device .
2. Install and open the “Amazon Alexa” application.
3. Go to the settings menu.
4. Select “Add Device”
5. Select “Christmas Tree” and follow the on-screen instructions.
6. To set up a second tree, select “Second Christmas Tree” and follow the on-screen instructions. Alexa will ask for
clarification if a command does not target a specific tree.
Barcode Scanning & Location (Figure 13)
Note that during device setup you may be asked to
scan a device barcode. You can find this on the
back of the controller, shown in Figure 13. Figure 13

8
Step 6-A: Change your Christmas Tree LED lighting Mode using Alexa
Follow the voice commands for a list of functions to achieve up to 55 lighting functions. (Figure 14)
Color options
Command – “Set Christmas tree to” :
1. White
2. Red
3. Green
4. Yellow
5. Blue
6. Purple
7. Light blue
8. Starlight
9. Multi Color
Light functions
Command – “Set Christmas tree to” :
A. Steady
B. Fade
C. Flip
D. Sparkle
E. Twinkle
F. Trio
Brightness Settings
Command – “Set Christmas tree to” :
I. High
II. Medium
III.Low
Figure 14

9
Step 6-B: Manually change your Christmas Tree LED lighting mode
Push Button on Control Box to switch Christmas Tree LED Light Mode.
There are a total of 55 lighting modes:
10. White Fade
11. Red Fade
12. Green Fade
13. Yellow Fade
14. Blue Fade
15. Purple Fade
16. Light Blue Fade
17. Starlight Fade
18. Multi Color Fade
00. Power Off
01. White Steady
02. Red Steady
03. Green Steady
04. Yellow Steady
05. Blue Steady
06. Purple Steady
07. Light Blue Steady
08. Starlight Steady
09. Multi Color Steady

10
Demo Mode:
The Demo
mode will start and play all 54
lighting functions every 8
seconds.
28. White Sparkle
29. Red Sparkle
30. Green Sparkle
31. Yellow Sparkle
32. Blue Sparkle
33. Purple Sparkle
34. Light Blue Sparkle
35. Starlight Sparkle
36. Multi Color Sparkle
37. White Twinkle
38. Red Twinkle
39. Green Twinkle
40. Yellow Twinkle
41. Blue Twinkle
42. Purple Twinkle
43. Light Blue Twinkle
44. Starlight Twinkle
45. Multi Color Twinkle
19. White Flip
20. Red Flip
21. Green Flip
22. Yellow Flip
23. Blue Flip
24. Light Blue Flip
25. Purple Flip
26. Starlight Flip
27. Multi Color Flip
46. White Trio
47. Red Trio
48. Green Trio
49. Blue Trio
50. Yellow Trio
51. Light Blue Trio
52. Purple Trio
53. Starlight Trio
54. Multi Color Trio
55. Demo Mode
Step 6-B: Manually change your Christmas Tree LED lighting mode (cont'd)

11
Step 6-C: Automate your Christmas Tree with Routines
Alexa Routines allow you to automate your Christmas Tree Functionality. With Routines, you can
turn your tree on with custom commands (i.e. Good Morning) or turn the tree on/off at scheduled
times (i.e. every day at 10AM)
How to Enable Routines with Alexa.
1. Open the Alexa app.
2. Go to the menu and select “Routines”
3. Select Plus
4. Select “When this happens”, and then choose how to begin your Routine (i.e. “Good
Morning, or a scheduled time).
5. Select “Add Action”, select “Smart Home”, and then select “Christmas Tree”. Configure
the desired LED lighting mode for your selected action.

12
Example 1: Turn Christmas Tree ON
Example 2: Set lighting mode to Red
Example 3: Set brightness mode to High
“Alexa, Set Christmas tree to: Red.”
“Alexa, Set Christmas tree to: High.”
“Alexa, Turn Christmas tree: ON.”

13

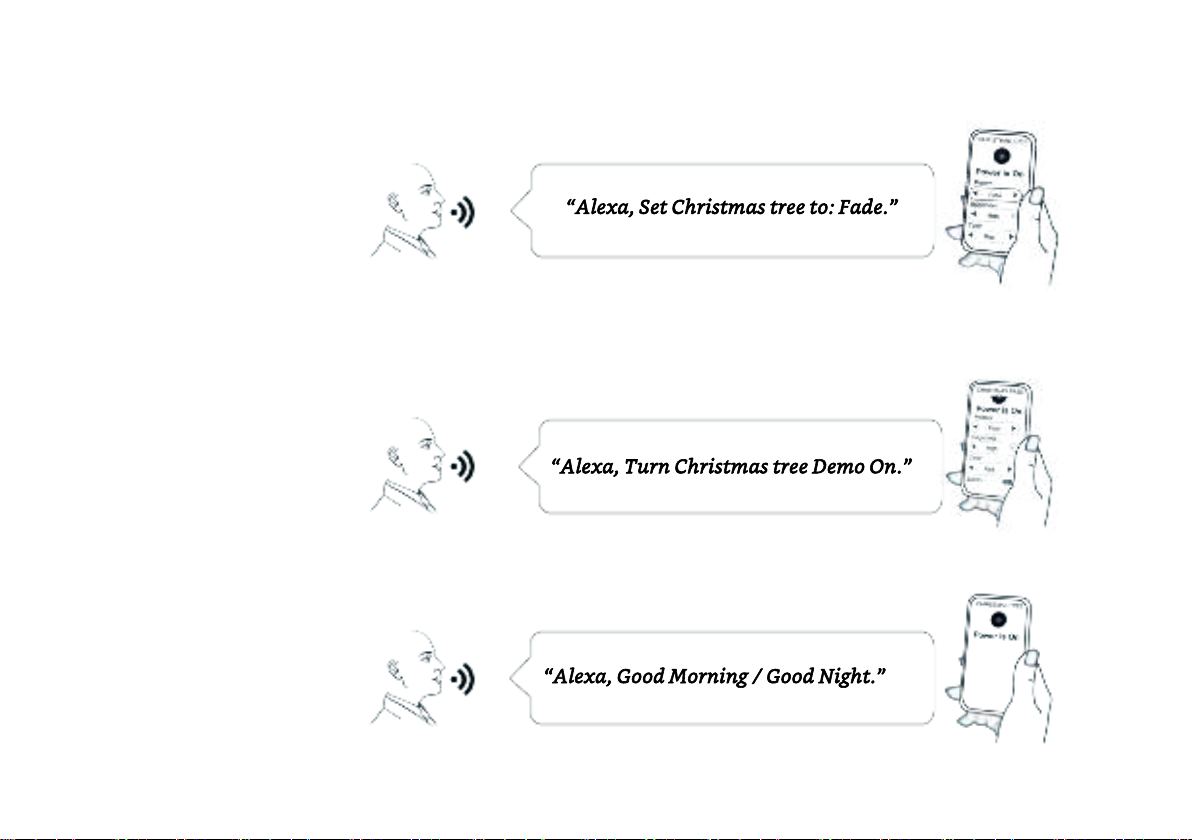

Example 4: Set lighting mode to Fade
Example 5: Set lighting mode to Demo
Example 6: Turn Christmas Tree on with Routine
“Alexa, Set Christmas tree to: Fade.”
“Alexa, Turn Christmas tree Demo On.”
“Alexa, Good Morning /Good Night.”

14
Connectivity Troubleshooting
1. I can't connect my device to Alexa.
•Check your WI-FI settings
•Make sure that your Alexa device and your Christmas Tree are connected to the same Wi-Fi network.
•Make sure that all devices have the most updated Wi-Fi password.
•Check the distance to your Alexa smart speaker
•Check that your device is within 30 ft. (9 m) of your Christmas Tree.
•Check your software version
•Check that your Alexa device and the Alexa app have the latest software version.
2. I can't get my Christmas Tree barcode to scan successfully.
•Make sure that there is enough light in the area for the bar code to be detected.
•If that does not work, then during the Alexa mobile app setup process, select "Don't Have a Barcode" and follow
the on-screen instructions.
3. My Christmas Tree stopped working with Alexa.
•Try a power cycle: Unplug your Christmas Tree from the outlet, and then plug it back in.
•Perform a factory reset :
To reset your Alexa Tree: press and hold the button on the control box for 10 seconds. Indication of action done:
3 flashes of white light. Then follow the instructions below.

15
•Open the "Amazon Alexa" application.
•Go to the settings menu.
•Select "Add Device"
•Select "Christmas Tree" and follow the on-screen instructions.
4. I can only turn my Christmas Tree On and Off with Alexa.
•Although the Alexa tree can be added to a group, the color and function selections will not work using the group
name.
•Color and Function can only be selected by using the utterance "Christmas Tree."
5. Alexa is not responding to some but not all of my utterances
•Alexa will not work if you have more than one Alexa device with a similar name
•Rename one of the devices.
It is recommended to always store the tree in a cool, dry location protected from excessive exposure to heat or
sunlight.
6. Should a bulb get out of color sync in respect to the light set color selected by Alexa Command, this can
be readily fixed by switching out the individual bulb with the replacement bulb provided.

16
User Servicing Instructions

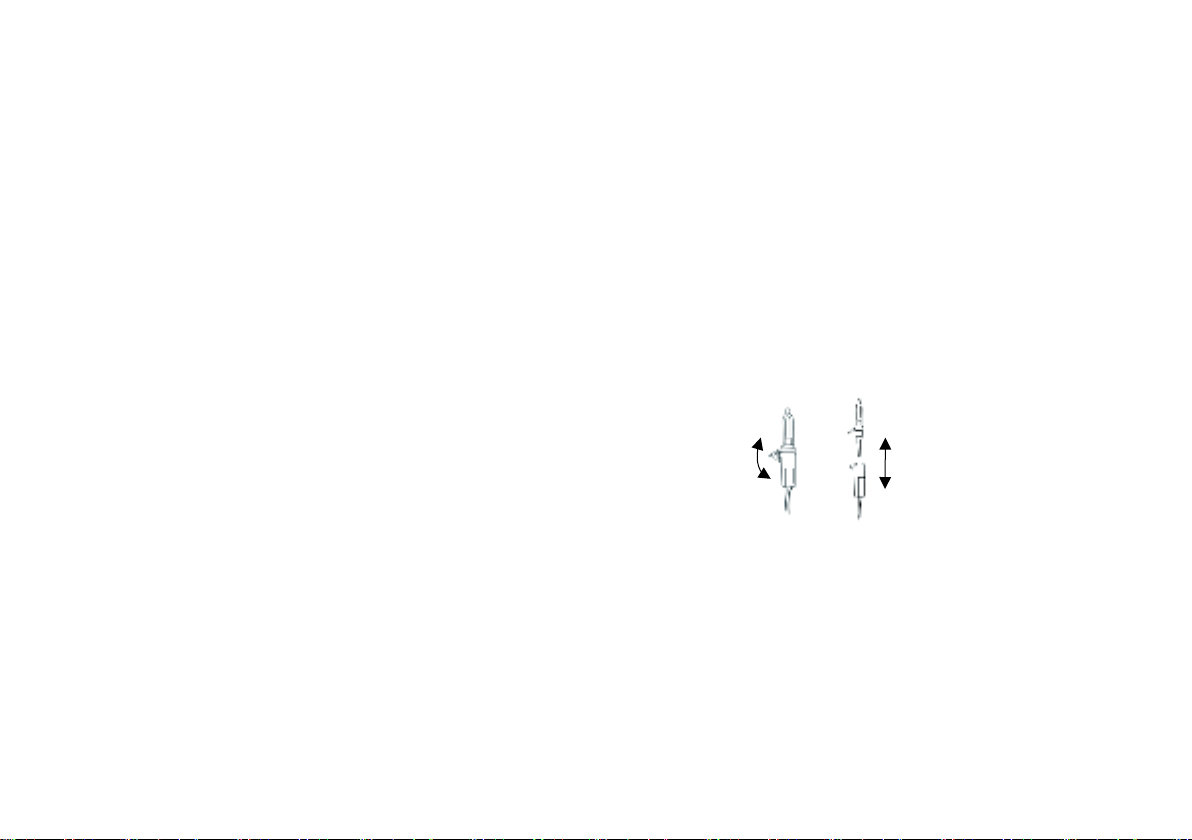

Replace the bulb. (Figure 18)
1. Grasp plug and remove from the receptacle or other outlet device. Do
not unplug by pulling on cord.
2. Pull bulb and plastic base straight out of bulb holder
3. Replace bulb with only 3 Volt 0.06 Watt LED type bulb (provided with
product).
If the new bulb base does not fit in bulb holder, follow the steps below
before step 3.
a) Remove the base of burned out bulb by straightening bulb leads
and gently pull bulb out.
b) Thread leads of new bulb through holes In old base with one lead
in each hole.
c) After bulb is fully inserted into base, bend each lead up like other
bulbs in the light set. so that the leads will touch the contacts inside
the bulb holder.
CAUTION
1. To reduce the risk of fire or electric shock do not attempt to replace
bulbs or modify string.
2. To reduce the risk of fire and electric shock：a) Do not install on trees
having needles, leaves or branch coverings of metal or materials which
look like metal, and b) Do not mount or support strings in a manner
that can cut or damage wire insulation.
3. This is not a toy, for decorative use only.
Figure 18
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic precautions should
always be followed including the Following:
a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b) Do not use seasonal products outdoors unless marked
suitable for indoor and outdoor use. When products
are used in outdoor applications, connect the product
to a Ground Fault Circuit Interrupting (GFCI) outlet. If
one is not provided contact a qualified for proper
installation.
c) This seasonal use product is not intended for
permanent Installation or use.
d) Do not mount or place near gas or electric heaters,
fireplace, candles or other similar sources of heat.
e) Do not secure the wiring of the product with staples
or nails, or place on sharp hooks or nails.
f) Do not let bulbs rest on the supply cord or on any wire.
g) Unplug the product when leaving the house, when
retiring for the night, or if left unattended.
h) This is an electric product-not a toy! To avoid risk of
fire, burns, personal injury and electric shock it should
not be played with or placed where small children can
reach it.
i) Do not use this product for other than its intended
use.
j) Do not hang ornaments or other objects from cord,
wire, or light string.
k) Do not close doors or windows on the product or
extension cords as this may damage the wire
insulation
l) Do not cover the product with cloth, paper or any
material not part of the product when In use.
m) This product is equipped with push-in type bulbs. Do
not twist bulbs.
n) Read and follow a instructions that are on the product
or provided with the product.
o) Save these instructions.

17
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Made by Mr. Christmas Inc.
6045 E. Shelby Dr., Suite 2, Memphis TN 38141-7601
Email: [e-mail]
Customer service number: 1-800-453-1972
Made in China
Model #: H259964, H259965, H259966, H259967
H259968, H259969, H25970, H259971
68341, 68342, 68343, 68344,
68345, 68346, 68347, 68348

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be u
sed in portable exposure condition without restriction
FCC ID: 2AZ4R-68341
