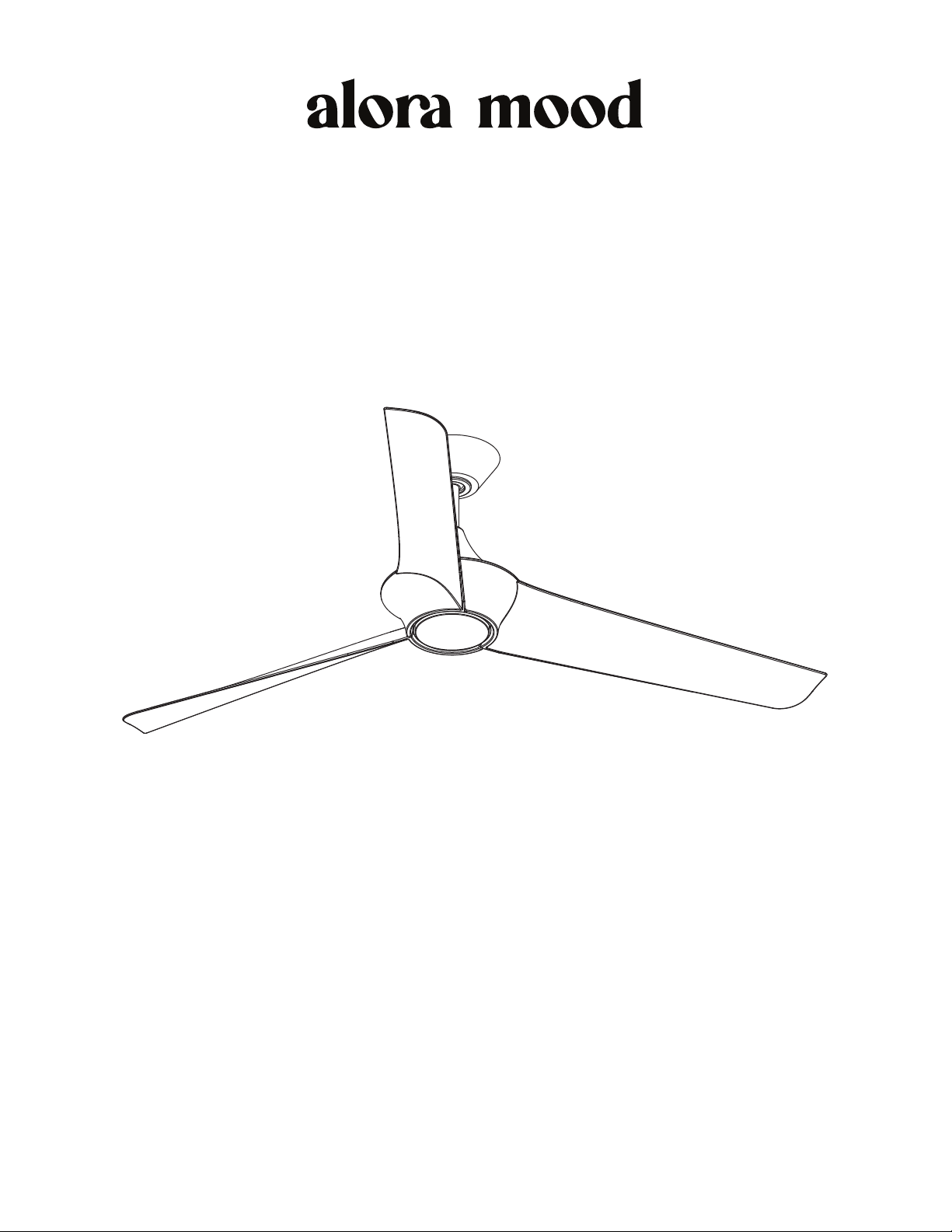

alora mood EMIKO User manual

EMIKO CEILING FAN INSTRUCTION SHEET
MODEL: CF523056
CANADA: 19054 28th Ave., - Surrey, BCV3Z 6M3
USA: 3035 E. Lone Mountain Rd. - Las Vegas, NV 89081
www.aloramood.com
20230505
P. 1.855.855.8926 | E. [email protected]

Page 1 of 14
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity
has been turned off at the circuit breaker or fuse box
before beginning.
All wiring must be in accordance with the National
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
CAUTION: Read all instructions and safety information
before installing your new fan. Review accompanying
assembly diagrams.
WARNING: To reduce the risk of electrical shock and
fire, do not use this fan with any solid-state fan speed
control device.
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount to UL Listed outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs.) or less”
and use mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of
light fixtures are not acceptable for fan support and
may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is
strongly recommended.
AVERTISSEMENT: Pour réduire les risques d'incendie,
de choc électrique ou de blessure, posez le ventilateur
seulement sur une boîte de sortie électrique ou tout
autre support portant une mention selon laquelle elle
peut supporter un ventilateur de 35 lb (15,9 kg) ou
moins, utilisez les vis de montage accompagnant la
boîte de sortie électrique. La plupart des boîtes de
sortie électriques généralement utilisées pour la pose
d'un appareil d'éclairage ne conviennent pas à la
suspension d'un ventilateur et peuvent nécessiter un
remplacement. En cas de doute, adressez-vous à un
électricien qualifié.
The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum
of 50 pounds.
The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the
floor. The tip of the fan blade to the nearest
wall/obstruction: 30 inches
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning
the fan.
Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
outlet box. The wires should be spread apart with the
grounded conductor and the equipment- grounding
conductor on one side of the outlet box.
Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be UL and cUL Listed
and marked suitable for use with the model fan you are
installing. Switches must be UL and cUL General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
SAFETY RULES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
12.
11.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, THIS FAN MUST BE INSTALLED WITH AN
ISOLATING WALL CONTROL/SWITCH.
WARNING: TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE ARMS (ALSO
REFERRED TO AS FLANGES), WHEN INSTALLING
THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN.

Page 2 of 14
• Safety
• Tools Needed
• Package Contents
• Hardware Included
• Fan Assembly
• Electrical Connections
• Philips screw driver
• Flat screw driver
• Step Ladder
• Wire Cutter
• Fan Blade Installation
• Light Kit Installation
• Fan Operation
• Care and Cleaning
• Troubleshooting
• Warranty Information
CONTENTS

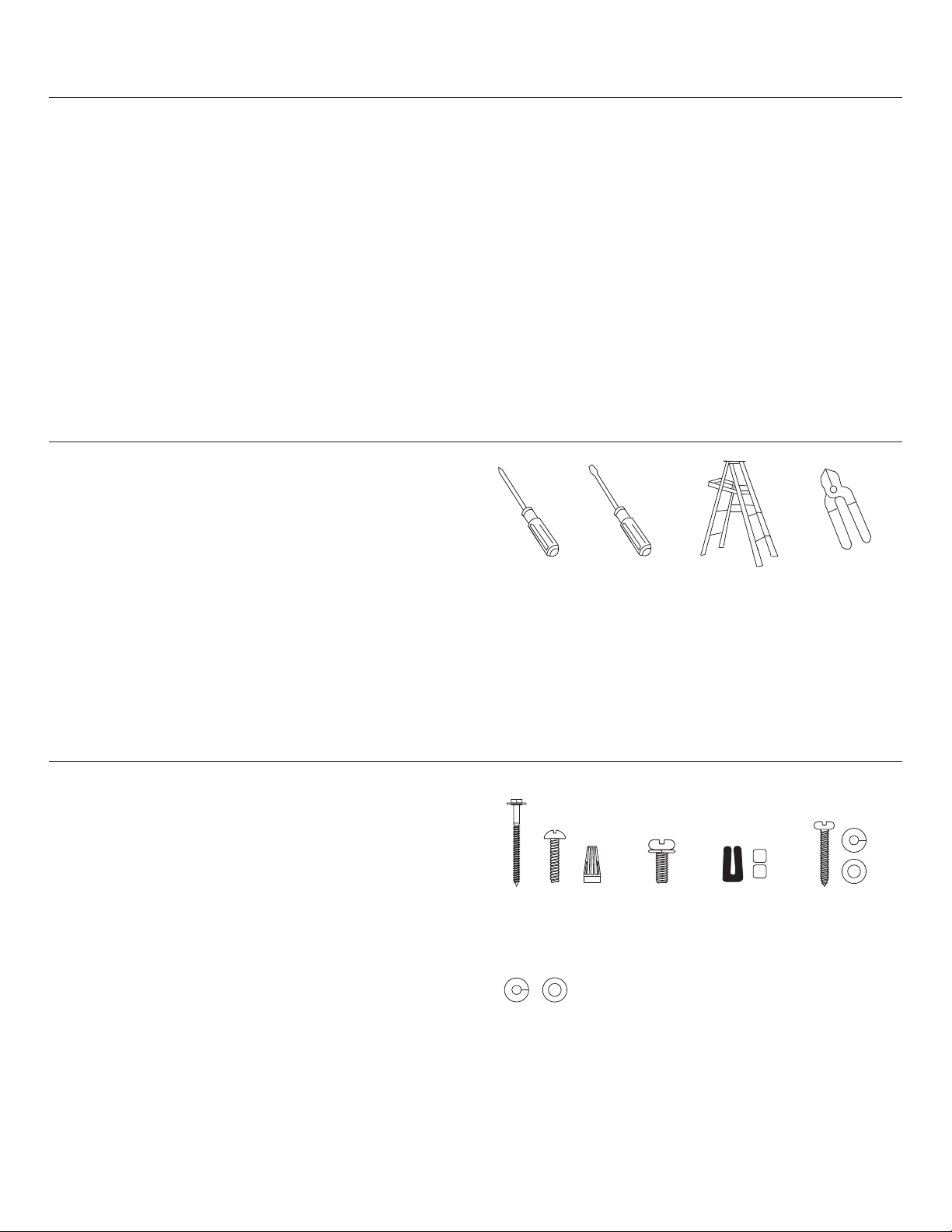

TOOLS NEEDED
HARDWARE INCLUDED
• Bracket Mounting Hardware
- wood screws (1a)
- screws (1b)
- wire nuts (1c)
- lock washers (1d)
- flat washers (1e)
• Blade to Motor Screws and Lock Washers (2a)
• Balance Kit (3a)
• Safety Cable Hardware
- wood screw, flat washer (4a)
x 7x 2 x 2
x 2 x 2
x 3 x 1x 1
1a. 1b. 1c. 2a. 3a. 4a.
1d. 1e.

Page 3 of 14

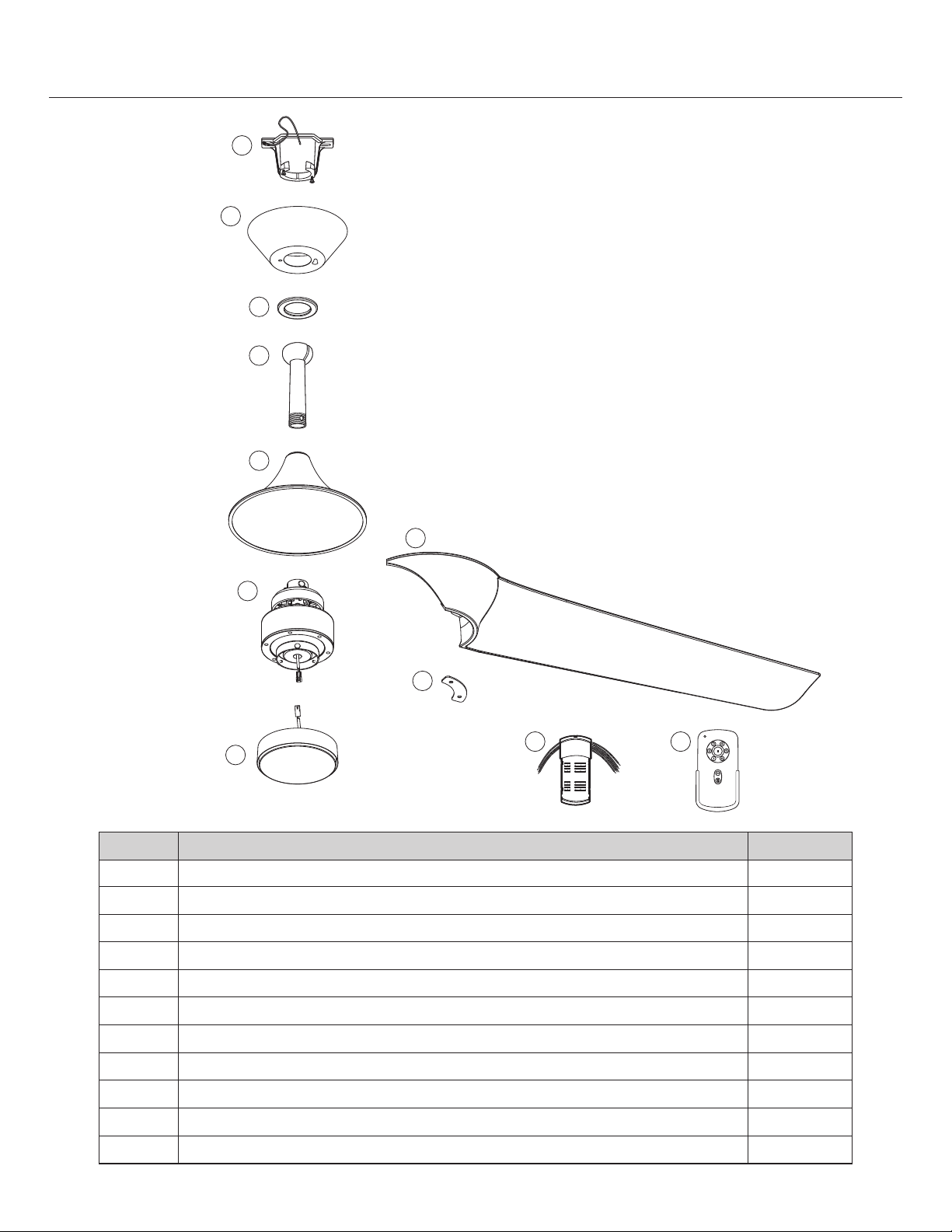

PACKAGE CONTENTS
A
B
C
D
E
F
G
H
IJ K
PART DESCRIPTION QTY
A Mounting Bracket 1
B Canopy 1
C Canopy Screw Cover 1
D Hanger Ball/Downrod Assembly 1
E Coupling Cover 1
F Fan Motor 1
G Blade 3
H Blade Support Plate 3
I LED Light kit Assembly 1
J Receiver 1
K Remote Control 1

Page 4 of 14
Outlet Box Mounting Options
If there isn’t an existing UL Listed octagonal mounting box marked “Acceptable for Fan Support” follow the
instructions below. (REMINDER: an electrical junction box for use with luminaires is not acceptable for this
application)
• Before you begin installing the mounting box, shut off the power at the circuit breaker of the fuse box.
• Secure the box directly to the building structure. The figures below show 3 example methods.
• For Sloped Ceiling Installation
Angled Ceiling Maximum 25º Angle
PREPARING THE MOUNTING HARDWARE
INSTALLING THE HANGING BRACKET
Locate ceiling joist where fan is to be mounted,
being sure location agrees with the requirements
in the minimum clearance section of this guide.
Wood joists must be sound and of adequate
size to support 35 lbs.
If not already present, mount a UL listed outlet
box marked “suitable for fan support” following
the instructions provided with the outlet box.
The outlet box must be able to support a minimum of
35 lbs.
Attach hanging bracket to outlet box using screws
provided with the outlet box.
1.
2.
3.
Cross brace
Outlet
box
Ceiling joist
Ceiling joist or Cross brace
Min 2”
Thick
Parallel
wood
brace
Ceiling joist
Hanger bar
Outlet
box
Outlet box
Mounting
bracket
Provide Strong Support
Recessed Outlet Box
Hanger opening must be facing upside
CAUTION: To avoid possible electrical shock, be sure electricity is turned off at the main power box
before wiring. All wiring must be in accordance with National and Local Electrical Codes and the
ceiling fan must be grounded as a precaution against possible electric shock.

Page 5 of 14

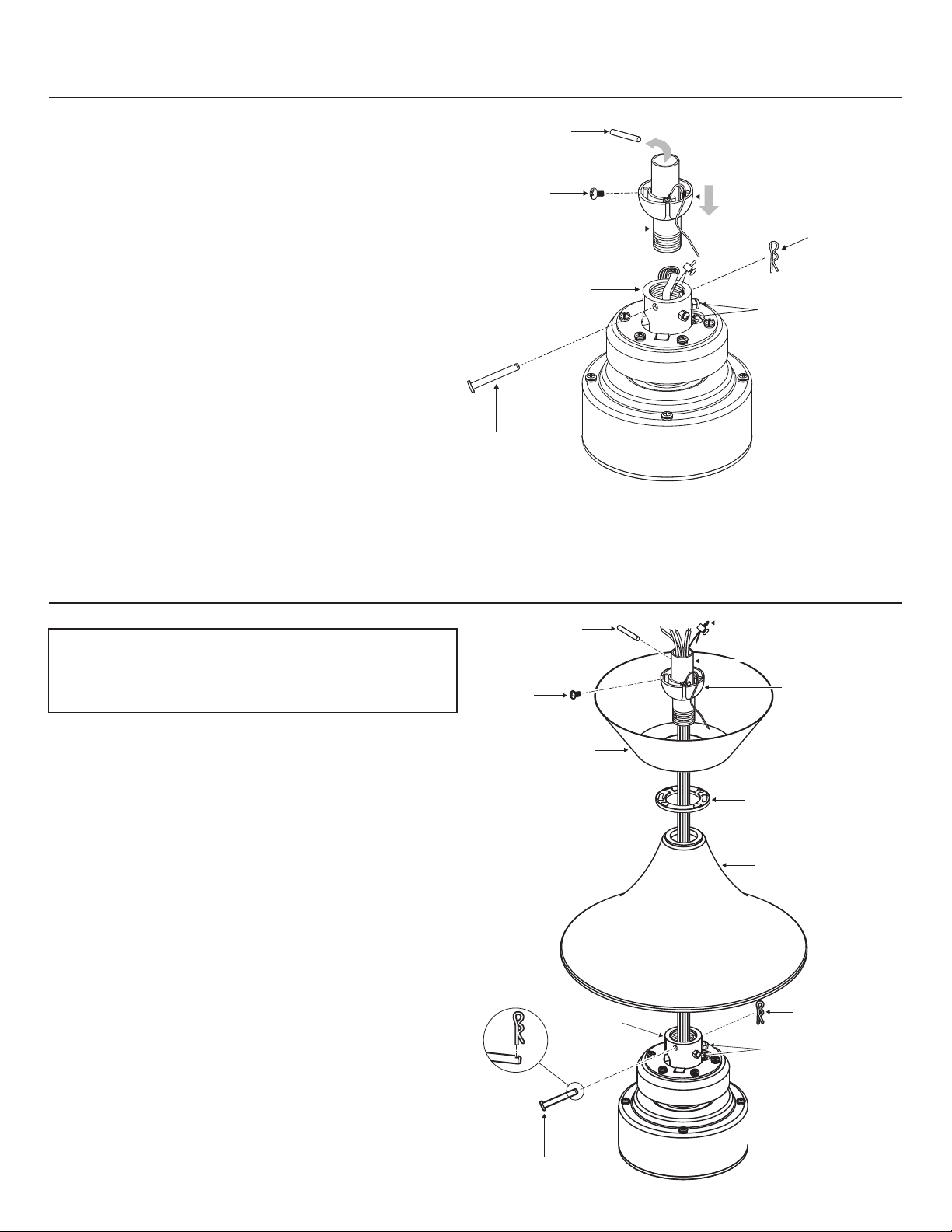

PREPARING THE MOTOR
ASSEMBLING THE FAN
Remove the cotter pin and clevis pin, and
loosen the two collar set screws from the
motor collar.
Take out the set screw located in the hanger
ball, lower the hanger ball and remove the
cross pin. Remove the hanger ball from the
hanger ball/downrod assembly.
1.
2.
Carefully feed the motor wires and safety
cable up through the downrod. Thread the
downrod into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar set screws.
Slip the coupling cover, the canopy screw
cover, and the canopy onto the downrod.
Carefully reinstall the hanger ball onto the
downrod. Being sure that the cross pin is in
the correct position, the set screw is tightened
and wires are not twisted.
1.
2.
3.
4.
WARNING: Failure to properly install the cotter
pin could result in the fan loosening and possibly
falling.
Cross pin
Set screw
Downrod
Motor collar
Cotter pin
Clevis pin
Hanger ball
Collar set screws
Cotter pin
Motor collar
Clevis pin
Cross pin Safety cable
Canopy screw
cover
Canopy
Coupling cover
Set screw
Downrod
Hanger ball
Collar set screws

Page 6 of 14
HANGING THE FAN
Carefully lift the fan motor assembly up to the
mounting bracket and seat the hanger ball/
downrod assembly in the mounting bracket
socket. Make sure the tab on the mounting
bracket socket is properly seated in the groove
in the hanger ball/downrod assembly. This will
help to balance the ceiling fan.
1.
WARNING: The tab in the ring must rest in the
groove of the hanger ball/downrod assembly. Failure
to properly seat the tab in the groove could cause
damage to the wiring.
Mounting
bracket
Tab
INSTALLATION OF SAFETY CABLE SUPPORT
Attach the wood screw and the flat washer to
the ceiling joist as shown (do not fully tighten).
Slide the cable clamp onto the safety cable
from the fan. Loop the safety cable around
the wood screw that was just attached to
ceiling joist. Feed the end of the cable into
the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp.
Cut off excess cable.
You are now ready to make the electrical
connections.
1. Wood ceiling joist
Safety Cable Clamp
Wood screw and washer
Safety cable
Safety cable loop
Groove

Page 7 of 14
ELECTRICAL CONNECTIONS
Insert the receiver into the ceiling fan canopy
with the flat side of the receiver facing the ceiling.
Make wire connections from the fan to the receiver
unit. For this step use the bundle of 5 wires on the
receiver
•Connect the YELLOW fan wire to the YELLOW
receiver wire.
• Connect the GRAY fan wire to the GRAY receiver
wire.
• Connect the RED fan neutral wire to the RED
receiver neutral wire.
• Connect the WHITE fan neutral wire to the WHITE
receiver neutral wire.
•Connect the BLACK fan neutral wire to the BLUE
receiver neutral wire.
Connect the wiring from the ceiling to the receiver
unit. (Use the 2 wire bundle on the receiver.) Secure
with supplied wire nuts.
•Connect the BLACK building supply wire to
the BLACK receiver wire.
•Connect the WHITE receiver neutral wire to
the WHITE building neutral wire.
•Connect the COPPER building ground wire to
the 3 YELLOW/GREEN ground wires from the
fan and receiver.
1.
2.
3.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before
installation.
WARNING: Check to see that all connections are
tight, including ground, and that no bare wire is
visible at the wire nuts, except for the ground wire.
CAUTION: To reduce the risk of electric shock,
this fan must be installed with an isolating,
general-use wall control/switch.
YELLOW / GRN (hanger bracket)
Receiver
Outlet box
Ceiling
WH (AC IN)
GROUND
WH
BLK
BLK (AC IN)
YELLOW / GRN
RED
RED
YELLOW
YELLOW
GRAY
GRAY
WHITE
BLACK
WHITE
BLUE
YELLOW / GRN (downrod)
Fan
NOTE: Control must be installed within 30 feet of fan.

Page 8 of 14

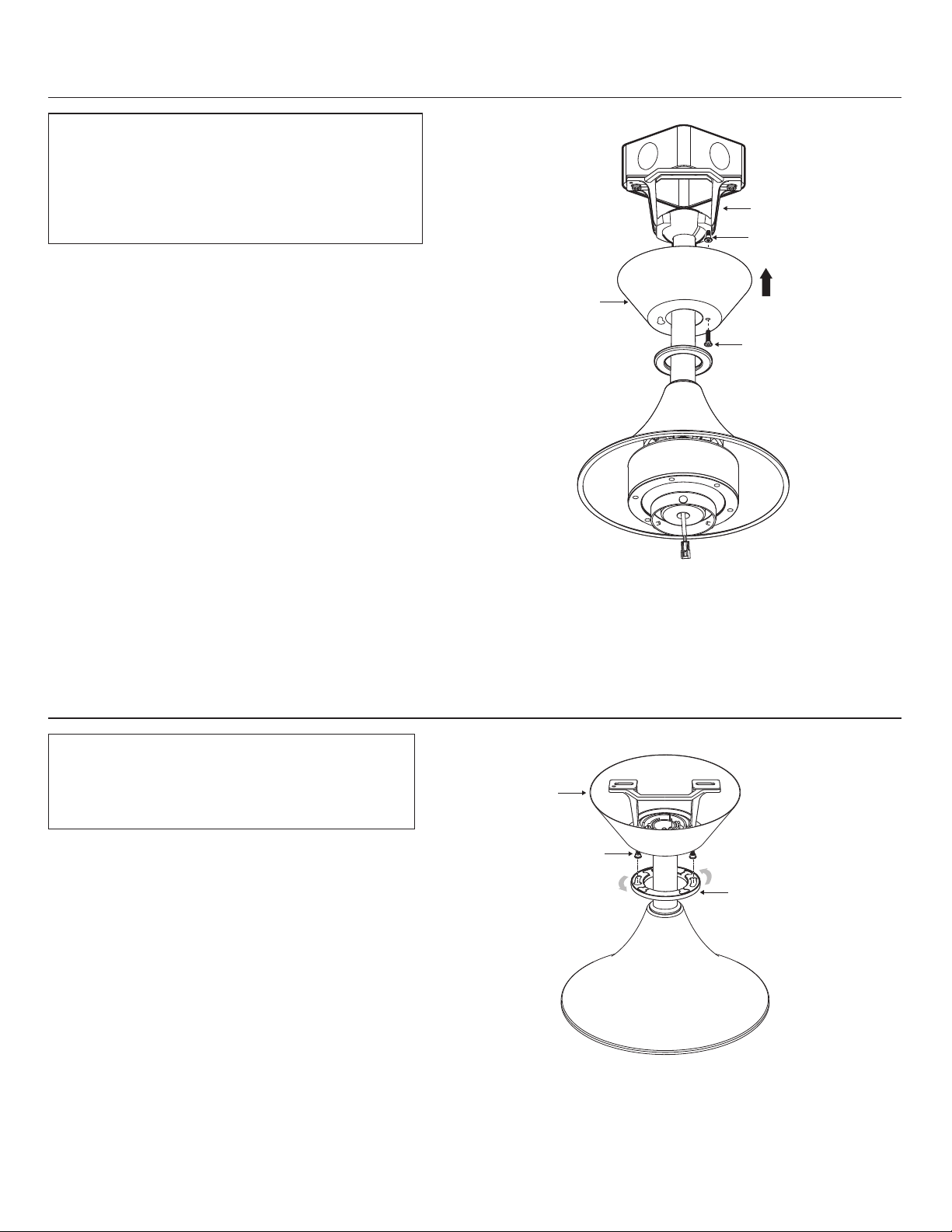

INSTALLING THE CANOPY
WARNING: Make sure the tab on the mounting
bracket properly sits in the groove in the hanger
ball/downrod assembly before attaching the
canopy to the mounting bracket by turning the
canopy until it drops into place.
INSTALLING THE CANOPY SCREW COVER
NOTE: Adjust the canopy mounting screws as
necessary until the canopy and canopy screw
cover are snug.
Make sure connections are neatly tucked into
the ceiling outlet box.
Slide the canopy up to the mounting bracket
and place the key hole on the canopy over the
loose canopy mounting screw on the mounting
bracket. Turn the canopy clockwise until the
canopy locks in place at the narrow section of
the key holes.
Align the circular hole on the canopy with the
remaining hole on the mounting bracket.
Secure by tightening two canopy mounting
screws.
1.
Attach the canopy screw cover to the canopy
by inserting the screw heads into the key slots
in the canopy screw cover and rotating it
clockwise.
1.
2.
3.
Canopy mounting
screw
Canopy screw cover
Canopy
Canopy
Canopy mounting
screw
Mounting bracket
Canopy mounting
screw

Page 9 of 14

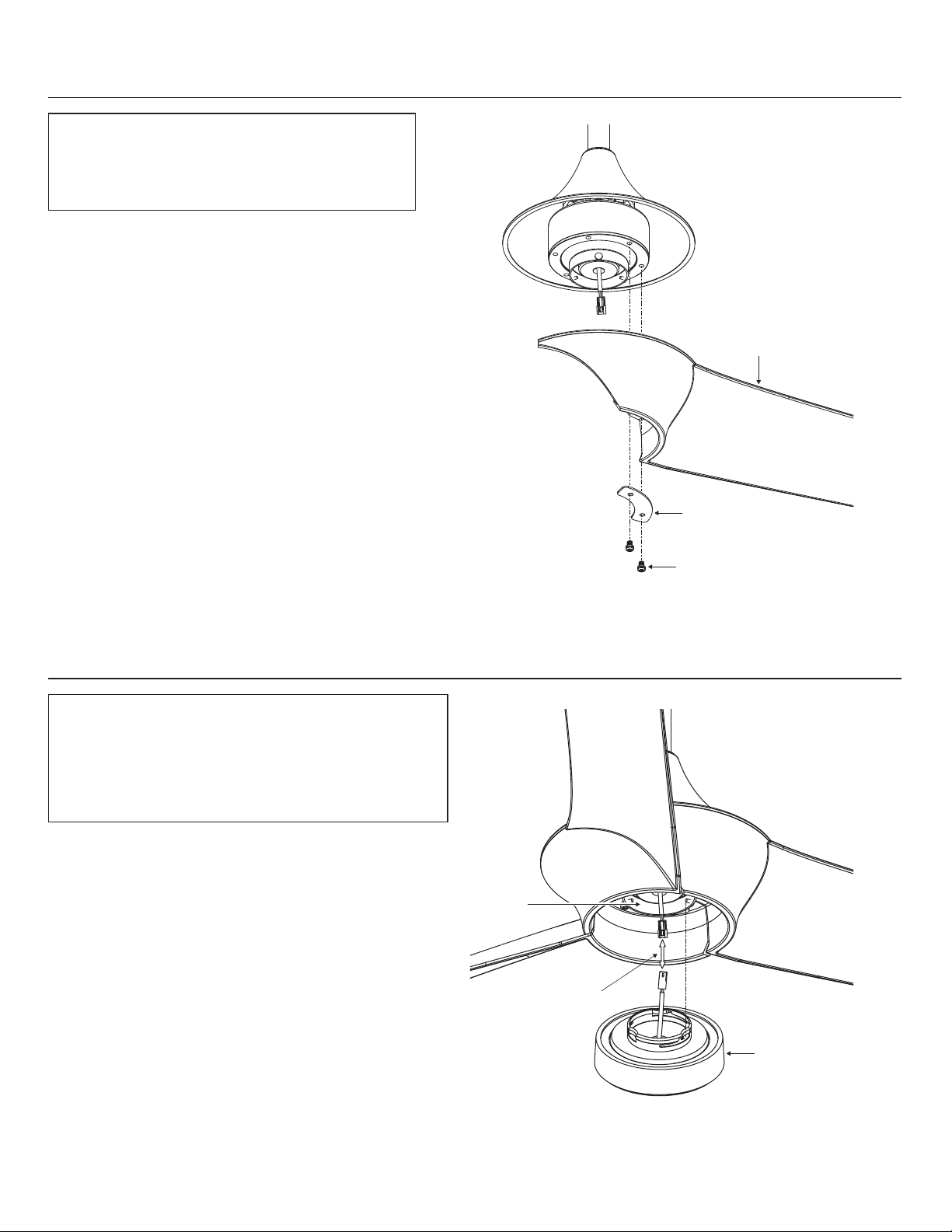

INSTALLATION OF THE BLADES
WARNING: To reduce the risk of personal
injury, do not bend the blades while installing,
balancing the blades, or cleaning the fan.
INSTALLING THE LED ASSEMBLY
WARNING: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power off
using the fan switch is not sufficient to prevent
electric shock.
Fasten blade to motor with provided blade
support plates and screws. Repeat procedure
for remaining blades. Make sure screws are
TIGHT! Loose motor screws can contribute to
unnecessary hum or wobble during operation.
1.
While holding the LED assembly under your
fan, make the polarize plug connections:
•White to white
•Black to black
Raise glass LED assembly against light kit
mounting plate and secure it to the fan by
turning the LED assembly clockwise until snug.
DO NOT OVERTIGHTEN.
Restore power and your light kit is ready for
operation.
1.
2.
3.
Screws
Blades
Blade support plates
Light kit
mounting
plate
LED assembly
Wire
connectors

Page 10 of 14
1
0
OPERATION
IMPORTANT: If you have two or more fans, please
follow steps below to control each fan independently.
Also follow steps below to re-pair the remote and
the receiver when needed.
NOTE: The dip switch in the battery compartment
has been set on “0” position for your convenience. If
you want to re-pair the remote, please set the dip
switch on “1” position.
Install one 23A/12V battery (included). To prevent
damage to transmitter, remove the battery if not
used for long periods of time.
1.
2.
3.
Light Button:
This button is to control light “ON/OFF” and
“Dimmable” condition.
SET code setting button:
Follow the below steps to set the remote control:
The auto learning function will only mandate
within 60 seconds when turning the fan’s AC
power ON.
Slide the dip switch in the battery compartment to
the “1” position.
With the fan’s power off, restore power to the fan.
From the back of the transmitter, Press and hold
“SET” button for about 5 seconds and release. If
the light kit is installed, the light kit will flash twice
and the signal light on the remote control will
come on when the button is pressed. The fan has
completed the pairing process with the remote
control and is ready for use.
NOTE: If the self calibration test failed, turn the AC
power off; restore power and process the self
calibration test again.
NOTE: During self calibration test, the remote is
non-fuctional.
4.
5.
a)
b)
1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan speed
as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed
button:
This button turns the fan off.
Reverse button:
This button is to control fan direction.

Page 11 of 14
OPERATION (CONTINUED)
NOTE: The learning frequency function and self
calibration test will continue to retain the last set
frequency and calibration set even when the AC
power is shut off. If the frequency is changed the
self calibration test will occur again.
This receiver provides the following protective
function:
Lock Rotor Position: The DC motor has a built-in safety
against a stalled or locked rotor condition (stalled blade
rotation). If there is an obstruction or fault with the
motor, the current monitoring function will automatically
turn power off to the motor after 30 seconds. Remove
the obstruction and turn the AC power off. Restore
power and re-start fan motor.
A DOWNWARD airflow creates a cooling effect. This
allows you to set your air conditioner on a warmer
setting without affecting your comfort.
1.
Summer Mode and Winter Mode Operation
Summer Mode (forward):
Over 80W protection: When the receiver
detects motor power consumption which is
greater than 80W, the receiver power will be
stopped and operation will immediately
discontinue. Wait for 5 seconds and then turn
the receiver power back on.
Speed settings for warm or cold weather depend on
factors such as room size, ceiling height and number
of fans.
NOTE: To operate the reverse function on this fan,
press the button while the fan is running.
2.
WINTER MODE
(CLOCKWISE DIRECTION)
SUMMER MODE
(COUNTERCLOCKWISE DIRECTION)
An UPWARD airflow moves warmer air off the
ceiling area. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
Winter Mode (Reverse):

Page 12 of 14
Remote control
holder cover
Remote control
holder
Screws
INSTALLING THE REMOTE CONTROL HOLDER
CARE AND CLEANING
Remove the remote control holder cover from
the remote control holder.
Attach the remote control holder with the two
remote control holder mounting screw provided.
Replace the remote control holder cover into
remote control holder.
1.
2.
3.
• Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor
screws to prevent clicking or humming sound during operation. This is especially true in climates
with broad temperature and humidity ranges.
• When dusting the blades, you must support the blade to prevent bending - no pressure should
be applied to the blades. If you experience any flaws in the operation of your fan, please check
the following points.

Page 13 of 14
TROUBLESHOOTING
FAN WILL NOT START Check circuit fuses or breakers.
Check wall control LED indicator light. If LED is not illuminated when pushing a
button, it is not transmitting a signal. Please check battery, power to wall control/
circuit breaker and all electrical connections.
Assure there are no more than 2 fans operating on a circuit through the wall
control. Assure that there are no more than 12 fans operating on a circuit through
an on/off wall switch or a breaker (not through a wall control).
Assure that the fan is within range of the wall control (30 ft.).
PROBLEM SOLUTION
1.
2.
3.
4.
Allow a 24-hour “breaking-in” period. Most noise associated with a new fan will
disappear during this time.
Make sure all motor housing screws are securely fastened.
Make sure the screws that attach the fan blade to the fan are tight.
Make sure your ceiling box is secure and rubber isolator pads are used between
the mounting bracket and outlet box.
1.
2.
3.
4.
Check that all blade to motor and blade arm screws are secure.
If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
Make sure the mounting plate is securely fastened to the ceiling outlet box.
Make sure ceiling box is secure.
1.
2.
3.
4.
FAN SOUNDS NOISY
FAN WOBBLES

Page 14 of 14
WARRANTY APPLIES ONLY TO ORIGINAL PURCHASER FROM AN AUTHORIZED KUZCO GROUP DISTRIBUTOR.
KUZCO GROUP CEILING FAN LIFETIME LIMITED WARRANTY
Kuzco Group products are warranted against defects in materials and construction, subject to
conditions and exclusions, for a period of two (2) years from the date of product shipment to the
customer. Kuzco Group warrants the original owner that the motor in the fan will be free from
defects for the lifetime of the fan. This warranty does not apply to fans which have been damaged
because of improper installation, removed from the original installation or subjected to use for
which the fan was not designed. The customer is responsible for any cost of removing the old fan,
installing a new fan or any other costs. This limited lifetime warranty is in lieu of all other expressed
warranties. Kuzco Group shall not be liable for any incidental or consequential damages.
PART RESIDENTIAL USE COMMERCIAL/HOSPITALITY USE
Motor
Below is a detailed list of items warranted:
Lifetime Lifetime
Integrated LED Components 5 Years 3 Years
LED Bulbs 3 Years 1 Year
Blades, Controls, Switches, Capacitors, Hardware 1 Year 1 Year
What is covered?
• Parts that arrive damaged
• Parts missing from the box
• Parts that do not function properly
• Parts that have ceased proper functioning within warranty limits
What is not covered?
• Installation costs
• Parts worn down with regular usage
• Parts damaged in installation
• Modified parts
• Parts out of warranty

FAN SLOPE CEILING ADAPTOR INSTALLATION SHEET
MODEL: X-ADP 34 FAN
CANADA: 19054 28th Ave. - Surrey, BCV3Z 6M3
USA: 3035 E. Lone Mountain Rd. - Las Vegas, NV 89081
www.kuzcolighting.com
20230802
TF. 1.855.855.8926 | T. 604.538.7162 | F. 604.538.7196

READ AND SAVE THESE INSTRUCTIONS
Install mounting plate to outlet box in ceiling using the screws and
washers provided with your outlet box. Remove the two canopy
mounting screws 180 degrees apart on outside edge of mounting plate.
Loosen the two remaining screws. This will make the installation of the
canopy easier in Step 5 and 6 (Fig 1).
Remove the downrod ball that was supplied with your ceiling fan by
loosening the set screw. Slide the downrod ball off the downrod. Be
sure to keep the crosspin supplied with your fans downrod to use with
the slope ceiling adaptor ball (Fig 2).
Install the slope ceiling adaptor ball to the existing downrod or new
longer downrod with the crosspin from your existing downrod. Push ball
up until it engages the crosspin and tighten set screws (Fig 3).
Feed motor lead wires through downrod/canopy assembly and insert
downrod into motor yoke. Make sure that the tab in the canopy
engages the notch in the downrod ball. Install downrod to fan using
instructions provided with your fan as this may vary from model to
model (Fig 4).
Carefully hang fan onto hook in mounting plate using one of the two
holes in the canopy. This will allow hands-free wiring. Refer to your
ceiling fan owners manual for wiring instructions (Fig 5).
Carefully lift fan from mounting plate hook, making sure not to break
any wire connections. The canopy has two mating slots and two mating
holes. Position both slots in canopy directly under and in line with two
mounting plate screws and lock washers. Lift fan until mounting plate
screws are seated in bottom of slots in canopy (Fig 6).
Rotate canopy clockwise until both mounting screws drop into slot
recesses. Tighten screws securely. Install third and fourth screws with
lock washers into mating holes and tighten (Fig 6).
1. 5.
6.
7.
2.
3.
4.
INSTALLATION SHEET
X-ADP 34 FAN
FAN SLOPE CEILING ADAPTOR ACCESSORY
WARNING: THE OUTLET BOX AND SUPPORT STRUCTURE MUST BE
SECURELY MOUNTED AND CAPABLE OF RELIABLY SUPPORTING A
MINIMUM OF 50 POUNDS. USE ONLY UL LISTED OUTLET BOXES
MARKED FOR FAN SUPPORT.
NOTE: THIS UNIT ACCOMMODATES SLOPES OF UP TO 45 DEGREES.
NOTE: THIS UNIT IS SOLD SEPARATELY.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, ENSURE
ELECTRICITY HAS BEEN TURNED OFF AT THE CIRCUIT BREAKER OR
FUSE BOX BEFORE BEGINNING.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY
THE TWO STEEL SCREWS (AND LOCK WASHERS) PROVIDED WITH
THE OUTLET BOX FOR MOUNTING TO THE OUTLET BOX. MOST
OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF LIGHTING
FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY
NEED TO BE REPLACED, CONSULT A QUALIFIED LICENSED
ELECTRICIAN IF IN DOUBT.

FAN DOWNROD ACCESSORY INSTALLATION SHEET
MODEL: X-RD34-06 FAN
X-RD34-12 FAN
X-RD34-18 FAN
X-RD34-24 FAN
X-RD34-36 FAN
CANADA: 19054 28th Ave. - Surrey, BCV3Z 6M3
USA: 3035 E. Lone Mountain Rd. - Las Vegas, NV 89081
www.kuzcolighting.com
20230901
TF. 1.855.855.8926 | T. 604.538.7162 | F. 604.538.7196

Cotter pin
Motor collar
Clevis pin
Cross pin
Safety cable
Canopy screw
cover
Canopy
Coupling cover
Set screw
Downrod
Hanger ball
Collar set screws
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION SHEET
X-RD34-06 FAN
X-RD34-12 FAN
X-RD34-18 FAN
X-RD34-24 FAN
X-RD34-36 FAN
FAN DOWNROD ACCESSORY
WARNING: THE OUTLET BOX AND SUPPORT
STRUCTURE MUST BE SECURELY MOUNTED AND
CAPABLE OF RELIABLY SUPPORTING A MINIMUM OF
50 POUNDS. USE ONLY UL LISTED OUTLET BOXES
MARKED FOR FAN SUPPORT.
NOTE: ALL RODS SOLD SEPARATELY
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, ENSURE ELECTRICITY HAS BEEN TURNED
OFF AT THE CIRCUIT BREAKER OR FUSE BOX BEFORE
BEGINNING.
WARNING: TO REDUCE THE RISK OF PERSONAL
INJURY, USE ONLY THE TWO STEEL SCREWS (AND
LOCK WASHERS) PROVIDED WITH THE OUTLET BOX
FOR MOUNTING TO THE OUTLET BOX. MOST OUTLET
BOXES COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN
SUPPORT AND MAY NEED TO BE REPLACED, CONSULT
A QUALIFIED LICENSED ELECTRICIAN IF IN DOUBT.
Remove the hanger ball that was supplied with your
ceiling fan by loosening the set screw. Slide the
hanger ball off the original downrod.
Carefully feed the motor wires and safety cable up
through the new downrod. Thread the new downrod
into the collar.
Align the holes and replace the clevis pin and
cotter pin. Tighten the two collar set screws.
Slip the coupling cover, the canopy screw cover, and
the canopy onto the new downrod.
Carefully reinstall the hanger ball onto the new
downrod. Being sure that the cross pin is in
the correct position, the set screw is tightened
and wires are not twisted.
Refer to specific model ceiling fan installation
instructions to install ceiling fan.
1.
2.
3.
4.
5.
6.
WARNING: FAILURE TO PROPERLY INSTALL THE
COTTER PIN COULD RESULT IN THE FAN LOOSENING
AND POSSIBLY FALLING.
