Altecnic Matrix Mini 130D Guide

Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the end user as it contains important
guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
Matrix Mini 130D
Pt. No. 121-1001
Matrix Mini 230D
Pt. No. 121-1002
2
CE compliant product
Matrix Mini

- 2 -
Cont ...
PRODUCT DESCRIPTION
Heating and cooling system pressurisation top up unit with integral water storage tank and electric
solenoid piston pump, automated control system consisting of pressure transducer and water level
switch. The tank includes an AB air gap for category 5 fluid isolation (BS EN 1717).
APPLICATION
The Matrix Mini range is designed to provide intermittent water top up only to compensate for
intermittent losses in system pressure in heating and cooling systems in commercial or industrial
applications. These could include slight leaks, air venting, etc. The units are not designed to deal
with sudden losses of system pressure due to major water losses over extended periods. They
are also not to be used for water boosting applications.
STORAGE
If this product is not to be installed immediately on receipt, ensure that it is stored in a dry, frost
and vibration free location in its original packaging.
CONTENTS Page
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Facts - read before commencing installation ................................5
Location .......................................................................6
Key Features ...................................................................8
Installation .....................................................................9
Electrical Installation ............................................................13
Commissioning .................................................................17
Operation .....................................................................21
Maintenance ...................................................................22
Environment Protection ..........................................................23
Technical Specification ...........................................................24
Trouble Shooting ................................................................25
Product Log ....................................................................26
Guarantee .....................................................................29

- 3 -
Cont ...
WARNINGS
zThis appliance must not be used for any other application
without the written consent of Altecnic Limited.
zThis appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision.
zChildren should be supervised to ensure that they do not
play with the appliance.
zThis product should not be used for the supply of water to
more than one heating/cooling system at a time.
zThe electrical installation must be carried out in accordance
with the current national electrical regulations.
zThe electrical installation must be installed by a qualified
person.
zThe motor is not accessible in normal operating mode. The
unit must only be operated with the front cover in place.
zThe electrical installation must be carried out in accordance
with the current national electrical regulations and installed
by a qualified person.
zIn the interests of electrical safety a 30 mA residual current
device (R.C.D. not supplied) should be installed in the supply
circuit. This may be part of a consumer unit or a separate
unit.
zThis appliance must be earthed via the supply cord.
Please read installation details carefully as they are intended to ensure this product provides
long, trouble free service. Failure to install the unit in accordance with the installation
instructions will lead to invalidation of the warranty.

- 4 -
Cont ...
CHECKLIST
Note:
Your product may vary slightly from the picture above.
Item Description Qty Item Description Qty
Matrix Mini 1 Fill valve flow restrictor, blue 1
Front cover 1 Rubber hose sealing washer, to be
used with item C 1
Flexible hose, G ½ 15 mm
compression 1 Cable tie 2
M6 screw 1 Instruction book 1
Wall mounting plate 1
A
E
C
B
D
H
G
F
I
Fig. 1
IMPORTANT: With the appliance removed from its packaging
check for any damage prior to installation. If any damage is
found contact Altecnic Ltd within 24 hours of receipt.
A D
C
Front cover removed for clarity
B
E
Electrical rating
plate & serial
number
G
H
F

- 5 -
Cont ...
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION
A Water storage capacity.
1.11 The Matrix Mini has a usable water volume of approximately 2 litres; the length of time
the Matrix Mini takes to pressurise a system will be dependent on:-
The pressure differential between the cold fill and set pressures and also the refill rate of
the tank
1.12 Ensure the pumps are primed as described in the priming section before starting, to
avoid causing damage to the pump. See Section 6.20 Hydraulic commissioning.
B Water temperature
This unit is designed to pump cold water only which should not exceed the following values:
1.13 The maximum allowable water temperature is 23 oC (see Section 10).
1.14 The minimum allowable water temperature is 4 oC.
C Pipework - General
1.15 Do not drill holes or put fastenings into the Matrix Mini tank, this will cause leakage.
1.16 Secure pipework: Ensure pipework to and from pump is independently supported &
clipped to prevent forces being transferred to inlet and outlet branches of the unit. Do
not secure pipework to the Matrix Mini, this will cause damage and possible leakage.
1.17 Flux: Solder joints must be completed and flux residues removed prior to Matrix Mini
installation (flux damage will void any warranty).
1.18 Pipework design: Care should be taken in the design of pipework runs to minimize the
risk of air locks e.g. use drawn bends rather than 90obends.
1.19 DO NOT introduce solder flux to flexible hose, tank, pump or any parts
manufactured from plastic.
1.20 DO NOT allow contact with oil or cellulose based paints, paint thinners or
strippers, acid based descalents or aggressive cleaning agents.
1.21 DO NOT bend the flexible hose beyond 90o. It must be installed as detailed,
DO NOT kink. See Installation Section 4.14.
D Plumbing Installation Regulations
1.22 The plumbing installation must comply with the current water and building regulations.
1.23 The plumbing installation must be installed by a qualified person.
E System Filling
1.24 The Matrix Mini is NOT DESIGNED TO FILL THE SYSTEM FROM EMPTY. It is only
intended to top up the system after occassional water leakage. Systems should be filled
via a dedicated filling loop.

- 6 -
Cont ...
2 LOCATION-GENERAL
2.11 Location: The Matrix Mini must be located on a solid wall of sufficient
strength to support the filled weight of the Matrix Mini, close to the water
source and a suitable overflow position (see Section 10 - Technical
Specification for filled weight). The Matrix Mini must not be installed in a
loft space. It must also be considered that the noise and vibration from
the Matrix Mini may be transmitted through the structure it is sited on.
Ensure the minimum clearance requirements are followed to allow servicing
of the unit.
2.12 Access and minimum clearance requirements: For emergencies and
maintenance the Matrix Mini must be easily accessible and have the
minimum clearance around it as laid out in Fig. 2.
Additional access to the front of the unit will be required to operate the
keypad and view the display.
2.13 Protection: The Matrix Mini must be located in a dry, frost free area.
2.14 Ventilation: Ensure an adequate air flow to cool the Matrix Mini. Separate
the Matrix Mini from other appliances that generate heat. Do not block the
vent holes on the front cover.
2.15 Water retention: Site the Matrix Mini in a location where in the unlikely
event of a water leak, any spillage is contained or routed to avoid electrics
or areas sensitive to water damage. As part of the AB airgap (CAT 5 fluid
isolation) the Matrix Mini has a weir type overflow on the front, water will
be discharged from this area in the event of the failure of the inlet valve or
non-return valve.
2.16 Supply inlet pressure: The water supply inlet pressure must not exceed 7 bar.
2.17 Ambient temperature: The Matrix Mini must be sited in a location where the ambient
temperature does not drop below 4 °C or exceed 40 °C.
2.18 Pipework: For optimum performance inlet and outlet pipework must be a minimum of
15 mm pipe.
300
500
300
150 150
Fig. 2
Dimensions in mm

- 7 -
Cont ...
2.19 Static outlet pressure: The static outlet head must be 3 metres below pump maximum
cold fill pressure (vertically above the appliance).
2.20 Noise: A flexible hose is supplied as standard which will minimise the transmission of
noise and vibration from the Matrix Mini pump to the pipework connected to the
appliance outlet. However, care must be taken when mounting the Matrix Mini that any
noise is not amplified through loose panels or pipework.
2.21 Flexible hose: Only use the Altecnic Ltd hose supplied with the Matrix Mini.
2.22 Isolating valves: Separate system isolating valves (non-restrictive) must be fitted to allow
easy service of the Matrix Mini. Isolating valves must be mounted where specified to
allow the system isolation and removal of the Matrix Mini if needed. See Section 4.14 for
installation details.

- 8 -
Cont ...
3 KEY FEATURES
3.11 The Matrix Mini comprises of the following main components:-
1. Moulded tank – Main body of the Matrix Mini, comprising of an integrated water
tank with warning pipe and weir overflow and mounting the solenoid piston pumps,
manifold and controller.
2. Pump assembly – One or two piston pump units mounted into the moulded tank
with vibration isolating rubber mounts.
3. Outlet manifold – Brass manifold with pressure transducer used to monitor system
pressure and connection to the pump(s)
4. Programmable controller – Custom designed, user set controller, allowing system set
up and easy alarm connection.
5. Wall mounting plate – Robust stainless steel wall mounting plate allowing quick, easy
installation and removal if needed.
6. Moulded cover – Moulded acrylic capped ABS cover retained to the moulded tanks
with Dual LockTM fastening system for quick and easy access
3.12 Principle of operation: The pressurisation unit consists of a break tank and one or two
piston pumps. The break tank is supplied with mains water from the left to a float valve
and includes an overflow and weir to maintain an AB air gap in the tank. The unit is
connected to the heating/chiller system via a flexible hose which can exit the unit on
either the left or right. The pumps are connected via a flexible hose to the tank via a
rubber connector.
A pressure transducer monitors system pressure and if a reduction in system pressure is
detected, the controller runs the pumps until the system is re-pressurised to the
required pre-set level. If the unit only has a single pump connected it will run on a
30 minutes on/30 minutes off basis until this level is reached, if the unit is a twin pump
model the pumps run in duty standby mode (the controller will alternate which pump
starts first to even the wear on the pumps). The manifold is fitted with a non-return valve
to ensure system pressure is maintained once pressurised.
1Fig. 3
2
3
4
5
6

- 9 -
Cont ...
4 INSTALLATION
4.11 Fill valve flow restrictor guidelines: Ensure side entry fill valve is fitted with the correct
filter and flow restrictor combination (dependant on the mains water pressure) into the
G ½ threaded tail as outlined below:
Coloured insert - To be used for water pressure between 1 and 4 bar
White insert - The Matrix Mini is pre fitted with the white high pressure insert.
Change if the unit is slow to fill or the water pressure is low (below 4 bar).
4.12 Cold mains feed connection: The connection to the cold water mains inlet is made
using a suitable fitting to the G ½ male thread on the left hand side of the Matrix Mini.
When tightening ensure the fill valve within the tank is not rotated. If the valve is rotated
it may not function correctly with the risk of flooding. (Do not overtighten).
4.13 Wall plate fixing:
1. When installing the Matrix Mini on a wall ensure suitable fixings for the wall
structure are used and are suitable to support the unit when fully filled with water
(see Section 10 for filled weights). The holes in the wall plate are 6 mm in diameter,
the maximum permissible screw head height is 3 mm.
2. All holes in the wall mounting plate must have fixings used in them as per the image
below, do not leave out fastenings as this will compromise the integrity of the
wall plate.
3. Ensure you have sufficent room around the area you are mounting the Matrix Mini to
allow installation, servicing and operation. See section 2.12.
4. Ensure wall plate is fixed to a flat vertical wall and the top of the plate is horizontal.
Fig. 4
Fig. 5

- 10 -
5. Retain the Matrix Mini to the wall mounting plate using the single M6 retaining screw
at the top of the wall plate.
6. Fit the plastic cover by pressing as indicated below with the palm of the hand as until
the Dual LockTM is heard to ‘click’.
Fig. 6
Fig. 7

- 11 -
Cont ...
4.14 Pipework connections & guidelines:
1. Before connecting the Matrix Mini to the system ensure that system flushing has
been performed correctly and all foreign matter, including pipe scale, has been
removed.
Note: Foreign material from the system coming into contact with the expansion
vessel bladder could cause premature failure of the expansion vessel.
2. Isolating valves MUST be installed on the unit inlet and outlet, before connection to
the flexible hoses to allow the unit to be isolated if required. The isolation valve on
the outlet should be of a lockshield type. See Fig. 10.
3. A drain valve must be fitted on the outlet of the Matrix Mini before the isolation
valve. See Fig. 10.
4. The connection to the heating/chilling system is also made with the supplied flexible
hose and a 15 mm compression fitting. The hose is made water tight with a sealing
washer on assembly, nip tight to 4 to 5 Nm for water tight seal. (Do not overtighten).
5. The connection to the heating/chilling system can be made to the left or right hand
side by routing the flexible hose supplied as detailed below.
Fig. 9Fig. 8
Cable tie

- 12 -
6. The flexible hose and any wiring can be retained in the desired position using cable
ties and the two metal cable retention points on the top left and right of the Matrix
Mini tank. See Figs. 8 & 9.
7. The warning pipe should be connected to a suitable drain via a tundish enabling
visual warning of an overflow condition. The overflow fitting is designed to
use 19 to 23 mm diameter plastic waste pipe or connect to G ¾ threaded pipe.
Ensure there is a demountable joint in the pipe to allow the removal of the Matrix
Mini if needed.
8. Non-return valves, pressure reducing valves and RPZ valves MUST NOT be installed
between the Matrix Mini and the heating/cooling system. These devices will
prevent the pressure sensor from reading the system pressure and will lead to
incorrect operation of the unit.
9. The Matrix Mini should be connected to the system return header along with the
expansion vessels as specified in BS 7074. See Fig. 10.

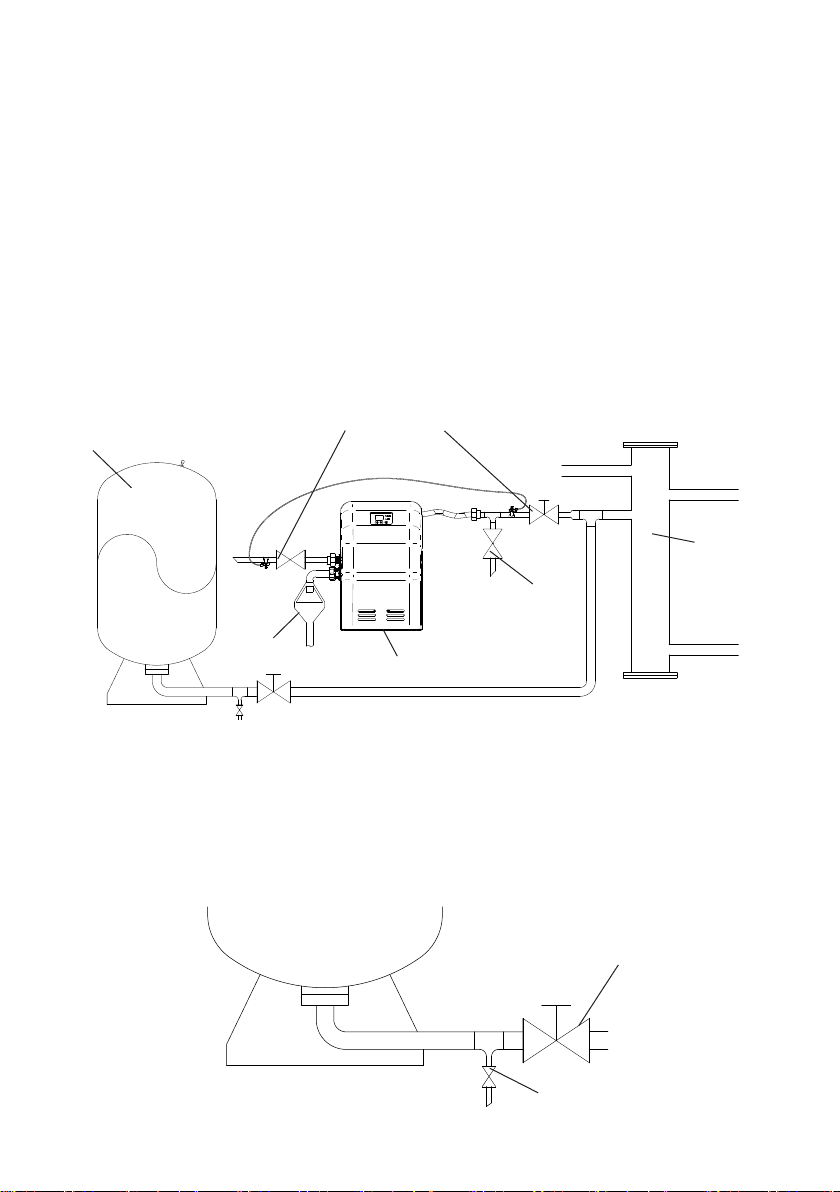

4.16 Typical installation diagram:
4.17 Vessel sizing & location:
1. System expansion vessel sizing should comply with the BS 7074 Expansion Vessel
sizing calculation.
2. The pressurisation unit and expansion vessels should be connected to the system at
the same point, to provide a neutral pressure reading.
3. A lockshield valve and drain valve should be installed at the inlet of each expansion
vessel to allow for servicing.
Fig. 10
Fig. 11
Matrix Mini
Warning pipe
Drain
valve
Isolation valvesExpansion
vessel
Return
header
Lockshield
valve
Drain valve

- 13 -
Cont ...
5 ELECTRICAL INSTALLATION / EARTHING
5.11 Regulations: The electrical installation must be carried out in accordance with
the current national electrical regulations and installed by a qualified person.
5.12 Safety: In the interests of electrical safety a 30 mA residual current device
(R.C.D. not supplied) should be installed in the supply circuit. This may be
part of a consumer unit or a separate unit.
5.13 Before starting work on the electrical supply ensure power supply is isolated.
5.14 DO NOT allow the supply cord to contact hot surfaces, including the motor
shell, pump body or pipework. The cord should be safely routed and secured
by cable clips.
5.15 Adjacent pipes: Adjacent suction and delivery pipes should be fitted with earthing
clamps in accordance with current regulations (Fig. 12).
5.16 Earthing: This appliance must be earthed via the supply cord.
5.17 Pipework: Copper or metallic pipework must have supplementary earth bonding where
the continuity has been broken by flexible hoses or plastic components.
5.18 Additional earthing: Certain installations may require additional earthing arrangements
such as equipotential bonding. Reference should be made to the relevant regulations
concerning this subject to ensure compliance.
5.19 Connections: The Matrix Mini must be connected to a dedicated fused spur via a
lockable isolator to avoid unauthorized disconnection.
5.20 The electrical connection must be made adjacent to (not behind) the Matrix Mini to
allow disconnection of the electrical supply should the pump module need to be
removed for service or maintenance.
Earth continuity
connection
Fig. 12
Flexible
hose
Metallic
pipework
Metallic
pipework

- 14 -
5.21 Wiring of connection unit:
WARNING: This appliance must be earthed.
The wires in the mains lead (supply cord) are coloured in accordance with the following
code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your connection unit proceed as
follows:
zThe wire which is coloured green and yellow must be connected to the terminal in
the connection unit which is marked with the letter E or by the earth symbol: or
coloured green or green and yellow.
zThe wire which is coloured blue must be connected to the terminal which is marked
with the letter N or coloured black.
zThe wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
5.22 Boiler interlock safety function:
The Matrix Mini is fitted with a single volt free contact specifically assigned for boiler/
chiller shut down in the event that the Matrix Mini detects system pressure above the Hi
alarm pressure or below the Lo alarm pressure.
The boiler interlock contact will be open circuit below the Lo alarm pressure and above
the Hi alarm pressure.
When the system pressure is in its normal operating pressure range (above Lo alarm
pressure and below Hi alarm pressure settings) the contact is closed circuit
Always refer to the boiler/chiller manufacturer’s instructions for correct integration.

- 15 -
Cont ...
5.23 Boiler interlock connections:
The circuits connected to the relay is limited to 5 Amps, 230 V a.c.
maximum. The Installer MUST fit a 5 Amp fuse in the circuit to the alarm
relay to protect the Matrix Mini from damage.
For connection of output relays follow the steps and images below:
1) Remove the required green connector from the right hand side of the control board.
2) Strip 6-8 mm insulation from the end of the connection wire (Max 2.5 mm2CSA).
3) Insert wire into connector and screw down terminal screws to secure (0.6 Nm max.).
NO
Boiler Interlock
Fig. 13
Fig. 14
Fig. 15
Fig. 16

- 16 -
Cont ...
5.25 Supply Cord Replacement:
The supply cord and internal wiring within the terminal box are routed and
secured to ensure compliance with the electrical standard EN 60335-1. It
is essential that prior to any disturbance of this internal wiring, all cable
routing and securing details are carefully noted to ensure re-assembly to
the same factory pattern is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a special cord
assembly, please contact Altecnic Ltd for further details.
On disassembly note the cord retention and routing system. Re-assemble to the same
pattern.
For information on cable connection consult the wiring diagram (Section 8.12).
4) Re-insert connector into the correct location on the control board and route the cable to
the back of the Matrix Mini and secure with a cable tie to the retainer.
Model Fuse Size (AMPS)
All models 5
5.24 Fuses: The following fuse size should be used:
Fig. 17
Retainer
Cable tie

- 17 -
Cont ...
6 COMMISSIONING
6.11 Pre-commissioning checklist:
Before starting the commissioning process the following conditions must be met. If these
conditions are not adhered to, damage to the equipment, system and property may
result.
zEnsure the unit is sited in a frost free area, away from precipitation and water sprays/
jets.
zAll necessary pipe/electrical connections should have been made to a satisfactory
standard by a qualified person.
zThe temperature and pressure at the point of connection are within the operating
limits of the pressurisation unit.
zThe heating/cooling system is fitted with a safety valve and expansion vessel sized
appropriately.
6.12 In order for the pressurisation unit and heating/cooling system to function correctly the
following conditions must be met. If these conditions have not been met, the
commissioning process should not continue.
zEnsure the system connection has been made into the heating/chiller system return
header.
zEnsure Non-return valves, pressure reducing valves or RPZ valves are NOT installed
between the pressurisation unit and the heating/cooling system.
zThe expansion vessel is pre-charged to the correct pressure (equal to initial system
design pressure).
6.13 Prior to commissioning, fill the heating/cooling system via a filling loop. The Matrix Mini
is NOT designed to fill the system from empty, it is only intended to top up the system
after occasional water leakage.
zEnsure the heating/cooling system is filled and pressurised to the required cold fill
pressure, with the water at approximately ambient temperature.
zEnsure the system is dosed with a suitable corrosion inhibitor. Note the Matrix Mini
is not designed for dosing chemicals into the system, this must be done via other
means.
6.14 Expansion vessel setting:
zTo set or check the expansion vessel charge pressure the lock-shield valve between
the Matrix Mini and the vessel must be closed and the vessel drained using the drain
valve.
zA suitable gauge should be used to check the charge pressure.
zIf the charge pressure is too high it can be reduced by releasing air from the vessel
pre-charge valve or by using a pressure gauge with an integral air release valve.
zIf the charge pressure is too low a small increase can be provided using a car foot
pump otherwise an oil free compressor or nitrogen bottle is recommended.
zWhen the correct pressure is set the Schrader valve protective cap must be replaced.
zCheck the integrity of the pipework. Ensure the lock-shield valve between the system
and the expansion vessel is open and the drain valve is closed.

- 18 -
6.15 Controller overview
The Matrix Mini controller is designed to be intuitive to use and allows functions and
alarms to be set by the installer/user.
The functions are set using the 3 buttons (A, B, & C) on the front of the controller and
with the help of on screen prompts via the back lit LCD display. On the front of the
Matrix Mini a green ‘power on’ light will be displayed whilst the unit is powered. If an
alarm or error is raised the red ‘Error’ light will be displayed.
A number pressure set points can be set using the menus, these set points are detailed
below, 1 to 4 and in the description of the function.
Button A Enters menus or selects values.
Button B Scrolls down through menus or reduces set values.
Button C Scrolls up through menus or increases set values.
TIME
PRESSURE
HIGH ALARM SET VALUE (1)
LOW ALARM SET VALUE (4)
SYSTEM PRESSURE SET VALUE (2)
DIFFERENTIAL SET VALUE (3)
PUMP 'OFF'
PUMP 'ON'
NORMAL OPERATION
SYSTEM
PRESSURE
Fig. 18
Fig. 19
AB C

- 19 -
Cont ...
6.16 Function list & explanation
The functions are contained within an initial display and a settings menu.
6.17 Initial display
On start up, and during normal operation, if the Matrix Mini has had no button inputs for
1 minute, the system pressure will be displayed (see Section 7.11).
6.18 Setting of Matrix Mini see Fig. 19
To access the setting of the Matrix Mini see the following procedure:
1 Press and hold button A for 5 seconds.
2 P1 will be displayed and the red Error light will slowly flash. See Fig. 20.
3 Using buttons B & C select the P function required.
4 Press button A to enter the function.
5 Using buttons B & C increment the value required up and down.
6 Press button A to confirm setting.
7. Press and hold button A until the red Error light stops flashing and the Matrix Mini
reverts to normal operation. This operation will save the changed values.
P1 System pressure (2)
see Fig. 18
Sets the required system pressure. Set in 0.1 bar increments
up to the maximum set value for the Matrix model. Matrix Mini
130D & Matrix Mini 230D, 4.0 bar max.
P2 Differential pressure (3)
see Fig. 18
Sets the pressure the Matrix Mini will turn on at as the system
pressure falls. Relative to the set system pressure. Set in 0.05
bar increments below the System pressure (2), cannot be set
above 0.1 bar below the System pressure (2).
P3 Hi Alarm (1)
see Fig. 18
Sets high system pressure alarm. Set in 0.05 bar increments
above the System pressure (2). Cannot be set below System
pressure + 0.5 bar. Alarm auto resets when system pressure is
reduced below alarm level.
If no button inputs are received within 1 minute the Matrix Mini will revert to normal
operation and the red Error light will stop flashing.
Note – Pumps do not operate when in the setting menu.
The following functions can be set and modified:-
Fig. 20
AB C

- 20 -
Cont ...
6.19 Pre-set values
The Matrix Mini will be delivered with the following pre-set values:-
P4 Lo Alarm (4)
see Fig. 18
Sets low system pressure alarm. Set in 0.05 bar increments
below the System pressure (2) - Differential pressure (3) - 0.05
bar. Alarm auto resets when system pressure is increased above
alarm level
P5 Pump number Sets number of pumps fitted to Matrix Mini. 1 or 2 pumps.
Factory set to suit model.
P6 Pump test
Allows pump 1 or 2 to be forced to run for 15 seconds to
confirm operation.
Using buttons A or B to select pump 1 or 2, then press button A
or B again to run the pump.
P7 Info. Displays software revision. No inputs.
Set Pressure 2 bar
Differential 0.2 bar
Hi Alarm 2.5 bar
Lo Alarm 1.3 bar
6.20 Hydraulic commissioning:
zEnsure both inlet and outlet hydraulic connections are made and watertight.
zTurn on water supply to Matrix Mini – Check for leakage and operation of fill valve.
zAllow the tank to fill and water level to stabilise. Adjust the float of the fill valve to
set the water level if needed.
zClose isolation valve on the outlet of the Matrix Mini.
zTurn the electrical supply ON to the Matrix Mini. The system pressure will be
displayed.
zThe Matrix Mini will run briefly and then turn off after a pre-set run on time. Due
to the small size of the isolated system the Matrix Mini will signal a Hi pressure
error and the red error light will illuminate on the front of the Matrix Mini, this is
normal.
zOpen the isolation valve on the outlet of the Matrix Mini and the Matrix Mini will
run and start to top the system up.
6.21 For Further Technical Support: Phone the Technical Helpline on [phone].
Our staff are trained to help and advise you over the phone.
