altimo 32LED01 User manual
Instruction Manual
32" HD Ready LED TV
32LED01
1
CONTENTS

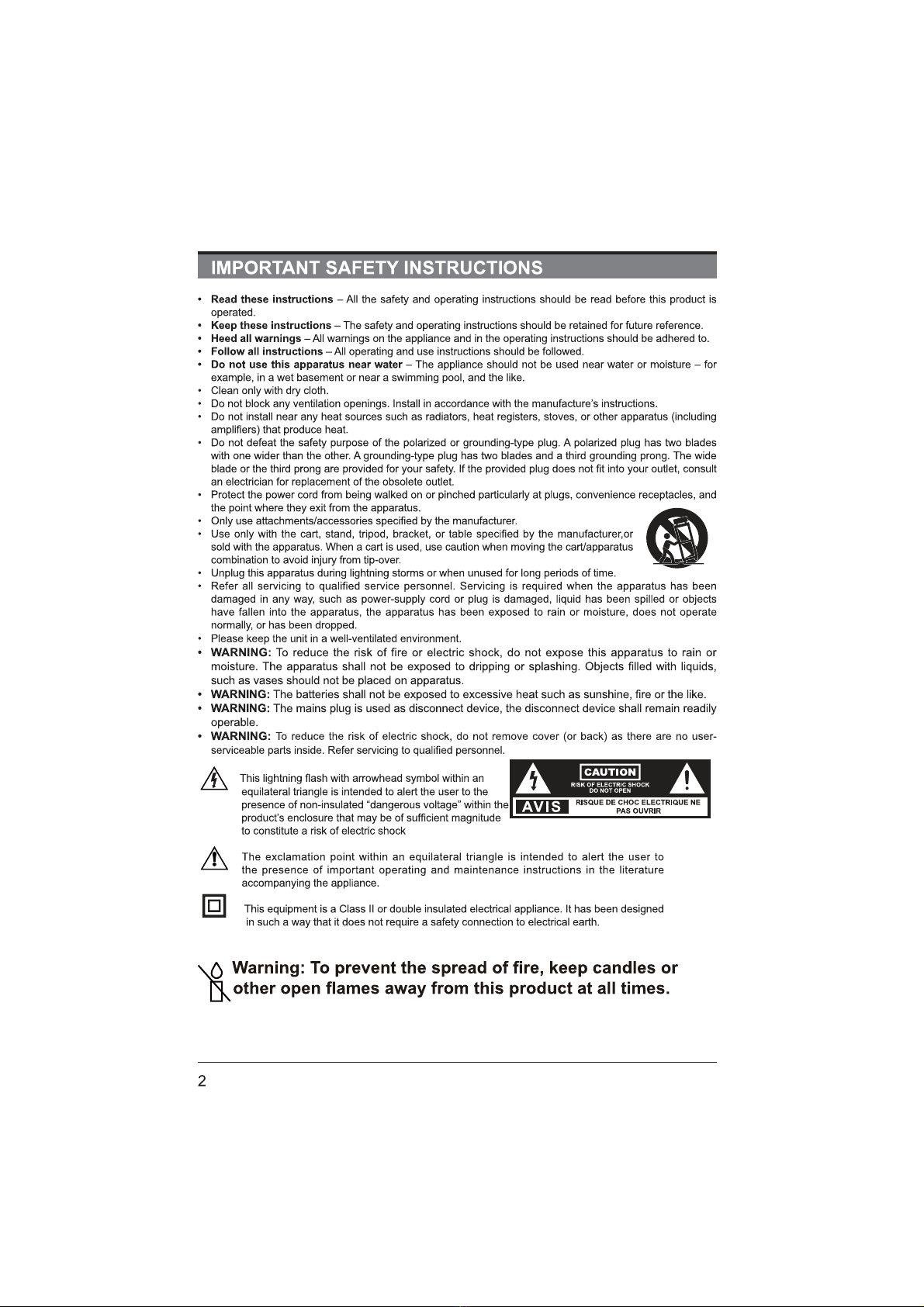

Important Safety Instructions 2
What is Included 4
Prepration 4
Safety Information 3
Troubleshooting 37
39
Disposal Information 39
Plug Replacement-UK and Ireland only 38
SPECIFICATION
Basic Features 11
Rear View 5
Installing the Stand 7
15
16
17
17
20
21
22
23
24
24
26
26
26
27
27
29
30
30
30
30
30
31
31
31
32
33
34
35
36
24
Removing the Stand for Wall-Mounting 7
Remote Control 8
Connecting External Devices 10
First time setup 11
VIEWING TELETEXT 15
How to select a page of text
USING THE TIME SHIFT FUNCTION
Using the remote control with
RECORDING DTV PROGRAMMES
WATCHING RECORDED PROGRAMMES
18
PICTURE MENU
SOUND MENU
CHANNEL MENU 22
Auto Tuning
Analogue Manual Tuning
Digital Manual Tuning 23
Channel Edit.
Signal Information
CI (Common Interface)
LOCK MENU
System Lock
Set Password
Channel Lock
TIME MENU
SETTINGS MENU
Language
Hearing Impaired
PVR File System
First Time Installation
Software Update (USB)
Restore Factory Default
Restore Factory Default
Version Info
USING THE USB FEATURES
Viewing Movies
Listening to Music
Viewing Photos
Viewing Files
3
SAFETY INFORMATION
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of
properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.
this user guide, especially the safety information below.
Electrical Safety
The TV set should only be connected to a main power supply with voltage that matches the label at the rear of
the product.
To prevent overload, do not share the same power supply socket with too many other electronic components.
Do not place any connecting wires where they may be stepped on or tripped over.
Do not place heavy items on any connecting wire, which may damage the wire.
Hold the main plug, not the wires, when removing from a socket.
During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on
the back of the television.
bathrooms, steamy kitchens or near swimming pools.
onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the
ventilation slots or if the TV set does not work normally.
Do not remove the safety covers. There are no user-serviceable parts inside. Trying to service the unit yourself is
To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period,
or when the batteries are exhausted.
Install only new batteries of the same type in your product.
Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of
the batteries or cause batteries to leak.
Do not mix old and new batteries.
Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium) or (Nickel Metal Hydride)
batteries.
Batteries should be recycled or disposed of as per state and local guidelines.
Do not attempt to recharge disposable batteries.
Do not short circuit battery terminals.
Keep away from children.
Physical Safety
clearance all around.
Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote
control.
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade, or the
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs.
Unplug the apparatus during lightning storms or when unused for long periods.
normally or if the apparatus, including the power supply cord or plug, has been damaged in any way.
4
TV Set
User Manual
User Manual
Quick Start Guide
Quick
Start Guide
Base Stand
PREPARATION
What is Included
Four Screws
MINI YPBPR cable
MINI AV cable
Remote Control with Batteries
5
PREPARATION
Rear View
1. POWER button
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
2. IR (Infrared Receiver)
Receive IR signals from the remote control.
6.
4.
Press to adjust the volume.
5.
Press to select the channel.
7.
Display the main menu.
STANDBY button
3.
Switch the TV between On/Standby mode.
7
4
3
5
6
LED
IR
1
2
2 3 4 5 6 6
6 7 8 9 1110 12 13
6
PREPARATION
1.
3.
4.
Power Cord
Connect to AC power outlet.
13. Headphone Socket
Connect to the Headphones.
5. SCART Socket
Connect to SCART cable between the
SCART socket on the TV and the SCART
socket on the external device.
6. HDMI Inputs
Connect to a H igh-Defintion(HD) signal
output device.
.
9. MINI AV
Connect to the composite VIDEO and
AUDIO (L/R) output sockets on external
video devices.
10.MINI YPBPR
Connect to AV devices with component
(Y/Pb/Pr) video and audio output sockets.
COMPONENT&VIDEO share with AUDIO
IN(L/R)subscribe to.
11. CI Slot
Used to insert a CI card.A CI card allows
you to view all the channels that you
subscribe to.For more information,see
"Conditional Access" section.
Rear View
7.
8.
DTV/TV Input
)FHU/FHV57(annetnaehtottcennoC
socket with the RF coaxial cable.
7
Installing the Stand
PREPARATION
Removing the Stand for Wall-Mounting
1.Lay the TV face-down on a
surface to avoid damaging or scratching.
2.Fix the base stand to the TV using the 4
provided screws.
1.Lay the TV face-down on a
surface to avoid damaging or scratching.
2.Untighten the 4 pcs screws holding the
stand assembly and remove them.
3.Attach the wall-mouting bracket to the
TV using the mounting holes on the back
of the TV.Mount this TV according to the
instructions included in the wall-mount
bracket.
Note:For safe use the wall-mounting bracket,please 4 screws(M4*8 )for attaching the
TV to wall.
8
PREPARATION
Remote Control
3
4
6
10
14
17
21
22
28
29
27
16
20
12
9
5
8
11
15
18
23
25
26
30
32
31
19
24
13
7
2
1
9

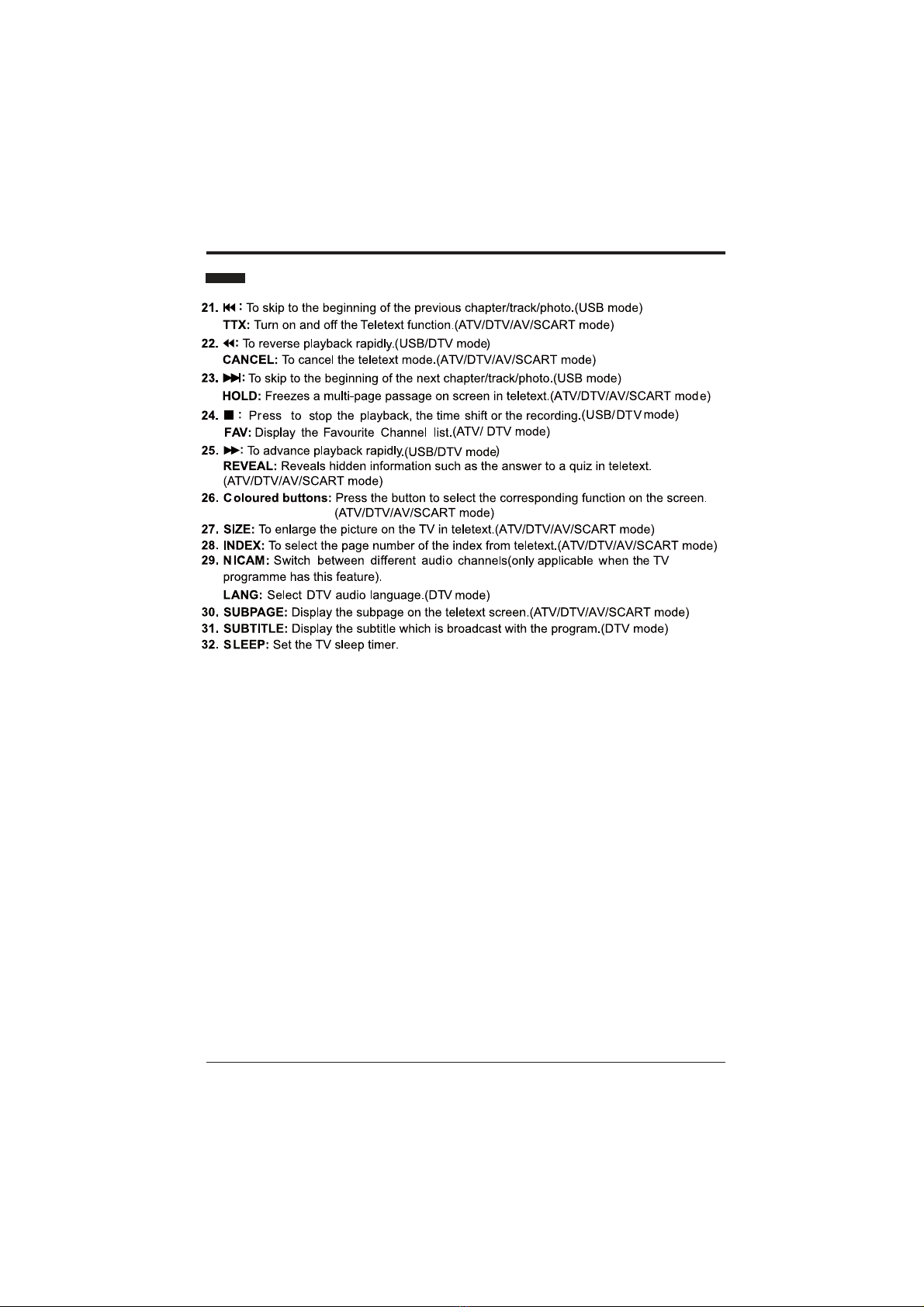

Remote Control
PREPARATION
10
CONNECTING EXTERNAL DEVICES
Connections
You’ll be up and running in no time
First time setup
1. Connect one end of an RF coaxial cable (not
supplied) to the aerial socket in your wall. Connect
the other end of the cable to the RF (75)socket in the
right side connection panel on the back of the TV.
2. Attach all other devices to the TV following the advice
given in the instructions supplied with them.
3. Slot the plug on the TV’s mains cable into a wall
socket and turn the power on if required.
4. In standby mode, press the button on the right
of the TV or on the remote control to turn the TV on.
The red LED indicator on the front of the TV will turn
blue, then you will go to the First Time Installation
menu.
5. Language is preset to English.
6. Press buttons to select country and use
buttons to set the desired country.
7. Press buttons to select Environment and use
buttons to select between Home Mode and
Store Mode. If you select to change to Store Mode,
a warning screen will appear asking if you do, select
YES or NO to continue.
8. Once you have completed all of the preliminary
settings, press buttons to select Auto Tuning
and then press OK button to start channel tuning.
9. Once the tuning process has been completed the
Country menu will be shown, press the OK button
to confirm.
First Time Installation
Language
English
Select
Move
Exit
Adjust
Country
UK
Environment
Home Mode
Auto Tuning
OK EXIT
Deutsch
GBR
Select Country
Select
OK
11
BASIC FEATURES
How to use your TV Let’s get
SELECTING INPUT SOURCE
You can connect multiple devices to your TV to improve
your watching and listening pleasure.
1. Press the SOURCE button on the TV or on the remote
control to display the source menu.
2. Use the buttons to select the source you wish
to watch or listen to and then press OK button to
confirm.
Note: Not all sources will be displayed when the menu
is open. You will need to use the buttons to scroll
through the list to view all of the sources.
USING THE ELECTRONIC
Digital TV (DTV) channels only
Your TV has an Electronic Programme Guide (EPG) to
help you navigate through all your possible viewing
options. The EPG supplies information such as
programme listings, start and end times for all available.
In addition, detailed information about the
programme is often available in EPG (the availability and
amount of programme information will vary,depending
on the particular broadcast).This function can only be
used when the information is broadcast by the
broadcasting companies.The EPG displays the
programme details for the next 7 days.
1. Press the EPG button on the remote control to display
the Electronic Programme Guide window.
2. Use the buttons to select the station you wish
to watch or listen to, then press the OK button to tune
to that station.
3. Press the
button to enter the programme listings
to look through all of the programmes available over
the next 7 days.
12
BASIC FEATURES
PROGRAMME GUIDE (EPG)
started
D
Digital TV
A
Analogue TV
Input Source
Composite / AV
SCART
Select
Move
Exit
OK EXIT
Input Source
10. Next the Primary Region menu will open, press OK
to confirm.
11. Next the Secondary Region menu will open, use the
buttons to select your secondary region then
press the OK button.
12. After pressing the OK button the Channel Tuning
menu will be displayed again for a few minutes as
your TV saves the settings.
Connections Bringing it all
13. After settings have been saved the TV will
automatically tune to the first available channel. Your
TV is now ready for use.
Yorkshire
Select Secondary region
Select
OK
England
Select Primary region
Select
OK
13
BASIC FEATURES
together
At the bottom of the window there are 4 additional
feature buttons which can be accessed by using the
coloured buttons on the remote control.
RED button: Recorder
Press this button to record programmes to a USB drive
attached to the USB port on your TV.
Note: Select the desired programme you want to record
and press RED button once/twice/triple, // will
display on the left top of the selected programme.
: Mode Once
:
Mode Everyday
: Mode Every Week
GREEN button: Prev Day
Press the green button to scroll through the previous 7
days of programmes.
Note: This only works if the broadcaster supports this
function.
YELLOW button: Next Day
Press the yellow button to scroll through the next 7 days
of programmes.
Note: This only works if the broadcaster supports this
function.
BLUE button: Remind
Press the blue button to set the reminder to
programmes you want.
Note: Select the desired programme you want to set
reminder and press BLUE button once/twice/triple,
/ /
will show on the left top of the selected
programme.
: Mode Once
:
Mode Everyday
: Mode Every Week
14
BASIC FEATURES
VIEWING TELETEXT
Digital TV (DTV) channels only
IMPORTANT: Before viewing Teletext, you need to turn
the Subtitle function off if it is switched on.
Note: Before turning Teletext on, check that the TV
channel you are watching transmits Teletext. If it does
not, NO Teletext will be shown on the screen.
1. Press the /TTX button on the remote control to
display the Teletext menu.
2. Follow the information on the Teletext page to access
the page you want to view. You can also use the 0 to 9
buttons on the remote control to enter the page
number you want to view.
3. You can also press the RED button on the remote
control instead of the / TTX button when the red
Teletext logo is shown on the TV screen.
4. Press the /TTX button again to exit the Teletext
menu.
How to select a page of text
1. Find the number of the page you wish to view and
enter it in the search panel using the 0 to 9 buttons on
the remote control then press the OK button.
2. The page counter will search for your page you wish
to view. When the page is found it will automatically
be displayed.
3. To move to the next or previous page use the
buttons on the remote control.
4. To return to the index page, enter 100 into the search
panel using the 0 to 9 buttons on the remote control
and press the OK button or press the INDEX button.
How to use Fast Te x t
At the bottom of the Teletext page, there is a row
of subject headings coloured in Red, Green, Yellow
and Blue. To access these pages, simply press the
correspondingly coloured buttons on the remote
control.
15
BASIC FEATURES
16
BASIC FEATURES
USING THE TIME SHIFT FUNCTION
Digital (DTV) channels only
This function lets you quickly record the TV programme
you are watching if you have to leave the room.
IMPORTANT: Please make sure a USB storage device
has been attached to your TV before using the Time Shift
function.
IMPORTANT: If the transfer rate of the attached USB
storage device is too slow for the Time Shift function, a
warning statement will be shown on the TV’s screen. If
this happens, please upgrade your USB storage device.
IMPORTANT: Time Shift mode may not work if the
stations signal strength is too weak.
NOTE: Always stop the Time Shift function by pressing the
button before switching to another input source.
Using the Time Shift function
1. To start Time Shift, press the TIMESHIFT button on
the remote control to pause the programme you are
watching. The Time Shift symbol will be displayed
2. When you wish to resume watching the programme,
press the II button on the remote control to show
the PVR Time Shift progress bar.
3. Use the buttons to select the button on the
progress bar then press the OK button to start
watching the programme. will be displayed in the
top left of the TV screen showing you are watching a
programme in Time Shift.
4. Press the button to stop the Time Shift recording
and return to the live TV broadcast.
Alternatively: You can press the (red dot) button on
the remote control to display the PVR Time Shift
progress bar and then use the buttons to select
II on the bar then press the OK button to start playback.
Note: There may be a slight delay with the video and
the sound may be slightly out of sync for a few seconds
when you start watching the recorded programme. This
will soon stop and the programme will play correctly.
The Time Shift progress bar
Use the buttons to navigate through the progress
bar. Once you have selected the feature you wish to use
press the OK button.
1. Shows the channel and name of the recorded
programme.
2. PLAY: Select to play your recording.
3. STOP: Select to stop play back.
4. PAUSE: Select to pause the recording.
5. FB: Select to rewind your recording at x2 / x4 / x8 / x16
/ x32 speed.
6. FF: Select to fast forward the recording at x1 / x2 / x4 /
x8 / x16 / x32 speed.
7. Slow: Select to view the recording in slow motion.
Press the OK button multiple times choose between
2 /4 / 8 / 16 / 32 playback speeds..
8. Time Play: Select to enter a time you wish to view
the recording from using the 0 to 9 buttons on the
remote control.
9. Backward: Select to move the recording backwards
30s of the recording.
10. Forward: Select to move the recording forwards 30s
of the recording.
11. Shows the amount of playback time the recording
has remaining.
12. Shows the amount of memory remaining on your
USB drive.
Using the remote control with
Time Shift
You can use the buttons on the remote control to
control playback in Time Shift.
II Press to start and pause playback.
Press repeatedly to rewind at x2 /
x4 / x8 / x16 / x32 speed.
Press repeatedly to fast forwards
at x2 / x4 / x8 / x16 / x32 speed.
Important:
To return to normal playback press the
II button.
I Press to jump backwards approximately 30s of the
recording time.
I Press to jump forwards approximately 30s of the
recording time.
Press to stop the Time Shift recording.
RECORDING DTV PROGRAMMES
Digital (DTV) channels only
You can record digital TV programs onto a USB drive
using either direct recording by pressing the red dot
button or using the program timer function.
IMPORTANT: You must have a USB storage device
attached to your TV to use the recording function.
IMPORTANT: If the transfer rate of the attached USB
storage device is too slow for the recording function, a
warning statement will be shown on the TV’s screen. If
this happens, please upgrade your USB storage device.
IMPORTANT:Recording mode may not work if the
stations signal strength is too weak.
Instant recording
This option is used to record the Programme you are
watching.
Press
record button on the remote control to record
the programme you are currently watching.
The recording progress bar will be displayed, press
the EXIT button to close recording progress bar. The
recording symbol in the top left of the screen will still
be visible showing that the TV is still recording. If you
want to view the recording progress bar again, press the
button on the remote control.
17
BASIC FEATURES
18
BASIC FEATURES
WATCHING RECORDED PROGRAMMES
You can play a recorded programme from the recorded
programme list from the USB storage device.
Note: When a USB storage device is inserted into the
USB port in your TV, a message will pop up asking if you
want to go directly to the USB MEDIA menu. Use the
buttons to select either Yes or No and press the OK
button to confirm.
1. Press the MENU button on the remote control or
on the TV to display the main interface, the use
buttons to select the USB MEDIA menu and press the OK
button to comfirm.
2. Press buttons to select MOVIE and press OK
button to enter.
Note: if more than one USB device is connected to the
TV, you need to firstly select one of them and then press
OK to confirm, and select MOVIE to enter.
3. Use the buttons to select _MSTPVR and press
OK button to confirm.
4. Use the buttons to select the recorded
programme you wish to watch.
Note: When you highlight a film to watch, after a few
seconds a thumbnail movie will appear on the screen.
5. If you have a lot of movies stored in the file you can
press the MENU button to open the tool bar. This will
help when looking through the files in your _MSTPVR
folder.
6. When you have found film you want to watch, press
the OK or II button to play the recording in full
screen mode.
7. Press the DISPLAY button to display the function bar
at the bottom of the screen. Use the buttons to
navigate through the functions then press the OK when
you have highlighted the one you require. See over the
page for a full list of the function bars list of functions.
1
Device
44
SETTINGS
NETWORK
TIME
LOCKCHANNEL
SOUND
USB MEDIA
List of functions
Previous:
Press to watch the previous programme in the
playlist.
Next: Press to watch the next programme in the play list.
Play/Pause: Press to play/pause the programme.
Stop: Press to play back of the programme.
FB: Press repeatedly to rewind at x2 / x4 / x8 / x16 / x32
speeds.
FF: Press repeatedly to fast forwards at x1 / x2 / x4 / x8 /
x16 / x32 speeds.
Repeat: Press to select the repeat function you want.
Choose form NONE/ONE/SEQUENCE/RANDOM.
TimePlay: Allows you to select a time to start watching
the programme from.
Enlarge: Allows you to enlarge the screen image
programme. Use the buttons to move around the
enlarged image.
Shrink: Allows you to shrink the screen image of the
programme.
Playlist: Shows you a full list of films you can watch. Press
the EXIT button to close the submenu.
Info: Shows information about the programme you are
watching. Press the EXIT button to close the submenu.
19
BASIC FEATURES
Table of contents
Other altimo LED TV manuals
